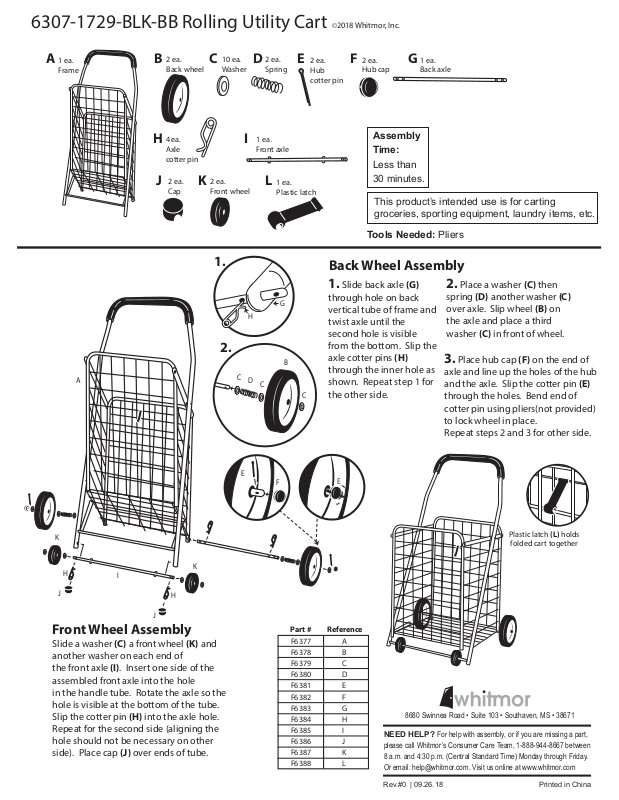

6307-1729-BLK-BB Rolling Utility Cart
E
©
2018 Whitmor, Inc.
A 1 ea.
Frame
2 ea.
B
Back wheel
4 ea.
H
Axle
cotter pin
2 ea.
J
Cap
C
2 ea.
K
Front wheel
10 ea.
Washer
D
1 ea.
I
Front axle
2 ea.
Spring
L
1 ea.
Plastic latch
E
2 ea.
Hub
cotter pin
F
2 ea.
Hub cap
G
Assembly
Time:
Less than
30 minutes.
1 ea.
Back axle
This product’s intended use is for carting
groceries, sporting equipment, laundry items, etc.
Tools Needed: Pliers
1.
G
H
2.
B
A
C
D
C
Back Wheel Assembly
1. Slide back axle (G)
through hole on back
vertical tube of frame and
twist axle until the
second hole is visible
from the bottom. Slip the
axle cotter pins (H)
through the inner hole as
shown. Repeat step 1 for
the other side.
C
2. Place a washer (C) then
spring (D) another washer (C)
over axle. Slip wheel (B) on
the axle and place a third
washer (C) in front of wheel.
3. Place hub cap (F) on the end of
axle and line up the holes of the hub
and the axle. Slip the cotter pin (E)
through the holes. Bend end of
cotter pin using pliers(not provided)
to lock wheel in place.
Repeat steps 2 and 3 for other side.
K
H
J
I
H
J
Front Wheel Assembly
Slide a washer (C) a front wheel (K) and
another washer on each end of
the front axle (I). Insert one side of the
assembled front axle into the hole
in the handle tube. Rotate the axle so the
hole is visible at the bottom of the tube.
Slip the cotter pin (H) into the axle hole.
Repeat for the second side (aligning the
hole should not be necessary on other
side). Place cap (J) over ends of tube.
E
K
F
Part # Reference
F6377
F6378
F6379
F6380
F6381
F6382
F6383
F6384
F6385
F6386
F6387
F6388
Plastic latch (L) holds
folded cart together
A
B
C
D
E
F
G
H
I
J
K
L
8680 Swinnea Road • Suite 103 • Southaven, MS • 38671
NEED HELP? For help with assembly, or if you are missing a part,
please call Whitmor’s Consumer Care Team, 1-888-944-8667 between
8 a.m. and 4:30 p.m. (Central Standard Time) Monday through Friday.
Or email: help@whitmor.com. Visit us online at www.whitmor.com
Rev.#0 | 09.26.18 Printed in China
