User
Manual
Washing
Machine
Manufactured by Electrolux Home Products, NA
MODEL TYPES:
XHE
137534400A (1208)
Thank you for selecting our appliance
We wish you lots of enjoyment with your new appliance and we hope that you will consider our brand again when
purchasing household appliances.
Please read this user manual carefully and keep it throughout the product life cycle as a reference document. The
user manual should be passed on to any future owner of the appliance.
The following symbols are used in this manual:
Important information concerning your personal safety and information on how to avoid damaging the
appliance.
General information and tips
Environmental information
Content
Safety information - - - - - - - - - - - - - - - - - - - - - - 3
Description of the appliance - - - - - - - - - - - - - - - - 4
Control panel and functions - - - - - - - - - - - - - - -5-6
Programme table - - - - - - - - - - - - - - - - - - - - - - 7-8
Washing Hints - - - - - - - - - - - - - - - - - - - - - - 9-10
Before the fi rst use - - - - - - - - - - - - - - - - - - - - - 10
Operating Sequence - - - - - - - - - - - - - - - - - - - - 11
Care and cleaning - - - - - - - - - - - - - - - - - - - - - 12
What to do if... - - - - - - - - - - - - - - - - - - - - - - - - 13
Technical Data/Consumption Values - - - - - - - - - - 14
Dimensions - - - - - - - - - - - - - - - - - - - - - - - - - - 15
Installation instruction - - - - - - - - - - - - - - - - 15-16
Environmental concerns - - - - - - - - - - - - - - - - - 17
Notes - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 18
2
Important Safety Information
In the interest of your safety and to ensure the correct use, before installing and fi rst using the appliance, read this
user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features.
Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone
using it through its life will be properly informed on appliance use and safety.
General safety
• It is dangerous to alter the specifi cations or attempt to
modify this product in any way.
• During high temperature wash programmes the door glass
may get hot. Do not touch it!
• Make sure that small pets do not climb into the tub. To
avoid this, please check into the tub before using.
• Any objects such as coins, safety pins, nails, screws,
stones or any other hard, sharp material can cause extensive damage and must not be placed into the machine.
• Only use the advised quantities of fabric softener and
detergent. Damage to the fabric can ensue if you over-fi ll.
Refer to the manufacturer’s recommendations of quantities.
• Wash small items such as socks, laces, washable belts
etc. in a washing bag or pillow case as it is possible for
such items to slip down between the tub and the inner tub.
• Do not use your appliance to wash articles with whalebones, material without hems or torn material.
• To avoid damaging the appliance and personal injury, DO
NOT hang on or lean against the appliance door.
• Do not place detergent, bleach or fabric softener containers on top of the appliance. They can damage the fi nish or
controls.
• Always unplug the appliance and turn off the water supply
after use, clean and maintenance.
• Under no circumstances you should attempt to repair the
appliance yourself. Repairs carried out by inexperienced
people may cause injury or serious malfunctioning. Contact
your local Service Centre.
Installation
• This appliance is heavy. Care should be taken when moving it.
• When unpacking the appliance, check that it is not damaged. If in doubt, do not use it and contact the Service
Centre.
• All packing and transit bolts must be removed before use.
Serious damage can occur to the product and to property
if this is not adhered to. See relevant section in the user
manual.
• After having installed the appliance, check that it is not
standing on the inlet and drain hose and the worktop is not
pressing the electrical supply cable against the wall.
• Do not install appliance on a carpeted fl oor.
• Always be sure, that there is no water leakage from hoses
and their connections after the installation.
• If the machine is installed in a location subject to frost,
please read the «dangers of freezing» chapter.
• Any plumbing work required to install this appliance should
be carried out by a qualifi ed plumber or competent person.
• Any electrical work required to install this appliance should
be carried out by a qualifi ed electrician or competent person.
Use
• This appliance is designed for domestic use. It must not be
used for different purposes.
• Only wash fabrics which are designed to be machine
washed. Follow the instructions on each garment label.
• Do not overload the appliance. See «Programme Table».
• Before washing, ensure that all pockets are empty and buttons and zips are fastened. Avoid washing frayed or torn
articles and treat stains such as paint, ink, rust, and grass
before washing. Bras must NOT be machine washed.
• Garments which have been in contact with volatile petroleum products should not be machine washed. If volatile
cleaning fl uids are used, care should be taken to ensure
that the fl uid is removed from the garment before placing in
the appliance.
• Never pull the power supply cord to remove the plug from
the socket; always take hold of the plug itself.
• Never use the appliance if the power supply cord, the control panel, the working surface or the base are damaged so
that the inside of the appliance is accessible.
Child safety
• This appliance is not intended for use by people (including
children) with reduced physical sensory or mental capabilities or lack of experience and knowledge unless they have
been given supervision or instruction concerning use of the
appliance by a person responsible for their safety.
• Young children should be supervised to ensure that they do
not play with the appliance.
• The packaging components (e.g. plastic fi lm, polystyrene)
can be dangerous to children - danger of suffocation! Keep
them out of children’s reach.
• Keep all detergents in a safe place out of children’s reach.
3
Description of the appliance
1
Control panel
2
“Bleach” : compartment for liquid bleaching agent
3
“Softener” : compartment for liquid fabric softener
4
Serial number / Rating plate
5
Lid safety lock
6
Adjustable feet
2
1
3
6
6
4
5
4
6
Control Panel
Information
Henceforth, the programme selector dial, the display, the different buttons and the door pilot light will be indicated in all the
book with the relevant numbers given in this picture.
1 2 3 4 5
8 96 7
Temperature Selector
1
Knob
2
Options Selector Knob
3
Programme Selector Dial
This button allows to change the wash water temperature according to the kind of fabrics,
colorfasteness and soil level. (See «Washing hints» for more details).
Note:
Select a wash water temperature according to fi ber content, colorfastness and soil level.
For best results, follow the care label instructions and use the hottest water safe for the fabric.
By turning this knob you can select one of the following options:
• EXTRA RINSE: This appliance is designed for saving water. However, for people with a very
delicate skin (allergic to detergents) it may be necessary to rinse the laundry using an extra
quantity of water.
• EXTRA SPIN: Use this option to add minutes to the fi nal spin. This will improve water extraction, decrease drying time and save energy.
• ENERGY SAVER: Saving energy and consumption option. The spinning time will be prolonged and the washing temperature will be reduced.
The programme selector dial allows to select a drying programme. It can be turned either
clockwise or anticlockwise. (See «Programme Table» for more details about the washing
programmes).
5
Control Panel, continued
This knob allows you to change the duration of agitation time based on the soil level of each
4
Wash Action Time Knob
5
Water Level
6
Chime
load. HIGH gives your cycle the agitation time of a long duration plus the added benefi t of a
mid agitation soak.
Turn the water level knob to select a water level appropriate for the load size. For best
results, DO NOT overload. Add items loosely to the tub. The dry load should not be higher
than the top row of holes in the wash tub. There should be enough water in the tub for items
to move freely.
Note: If AUTO water level is selected, the washer will perform a dry load sensing procedure
before adding water to the tub. The sensing indicator light will be lit.
A signal will sound at the end of the washing cycle if this option is selected.
7
Fabric Softener
8
Indicator Lights
Estimated Time Remain-
9
ing Display
You must turn the fabric softener switch to the “on” position for correct operation. See Care
and Cleaning for dispenser cleaning procedures.
The following pilot lights indicate which drying phase the appliance is carrying out:
• Sensing
• Add a Garment
• Wash
• Final Spin
• Done
The display shows the following information:
• The duration of the selected programme: After selecting a programme the duration of the
selected programme appears on the display. During the programme, the time remaining is
updated every minute.
• Message «PAUSE»: It is scrolled across the display when the cycle is paused.
6
Programme Table
Washing Programmes / Suitable Temperature / Spin Speed
Cycle Description / Load Capacity / Type of Laundry
NORMAL/COTTON
Hot - Warm - Cool - Cold - Cold Water Clean
Spin speed: 600
Normal wash - Rinses - Long spin
Maximum load: 10.1 Kg; *Reduced load: 5 Kg
White and Colour Fast: e.g. light to normally soiled cottons, towels, shirts, denims and mixed
loads.
BLANKETS
Hot - Warm - Cool - Cold - Cold Water Clean
Spin speed: 600
Gentle wash - Rinses - Long spin
Maximum load: 10.1 Kg
For one large comforter or two light-duty sleeping bags. Press the item(s) to the bottom of the
tub as much as possible to prevent them from fl oating as the tub fi lls with water
HEAVY DUTY
Hot - Warm - Cool - Cold - Cold Water Clean
Spin speed: 600
Normal wash - Rinses - Long spin
Maximum load: 10.1 Kg
Durable items: towels, sports gear, or fabric tote bags. For best soil and stain removal, use
the hottest water safe for the fabrics being washed.
DELICATES/SILKS
Warm - Cool - Cold - Cold Water Clean
Spin speed: 600
Gentle wash - Rinses - Short spin
Maximum load: 7 Kg
For lightly soiled knits and delicates which require gentle washing.
BED SHEETS
Hot - Warm - Cool - Cold - Cold Water Clean
Spin speed: 600
Gentle wash - Rinses - Long spin
Maximum load: 10.1 Kg
For large items such as blankets, sheets, mattress pads, linens, duvet covers and similar items
Available
Options
• CHIME
• FABRIC SOFTENER
• EXTRA RINSE
• EXTRA SPIN
• ENERGY SAVER
• HIGH, MEDIUM/HIGH, MEDIUM, MEDIUM/LOW or LOW WASH ACTION TIME
• AUTO, MAXIMUM, NORMAL or MINIMUM WATER LEVEL
• CHIME
• FABRIC SOFTENER
• EXTRA RINSE
• EXTRA SPIN
• HIGH, MEDIUM/HIGH, MEDIUM, MEDIUM/LOW or LOW WASH ACTION TIME
• AUTO, MAXIMUM, NORMAL or MINIMUM WATER LEVEL
• CHIME
• FABRIC SOFTENER
• EXTRA RINSE
• EXTRA SPIN
• HIGH, MEDIUM/HIGH, MEDIUM, MEDIUM/LOW or LOW WASH ACTION TIME
• AUTO, MAXIMUM, NORMAL or MINIMUM WATER LEVEL
• CHIME
• FABRIC SOFTENER
• EXTRA RINSE
• EXTRA SPIN
• HIGH, MEDIUM/HIGH, MEDIUM, MEDIUM/LOW or LOW WASH ACTION TIME
• AUTO, MAXIMUM, NORMAL or MINIMUM WATER LEVEL
• CHIME
• FABRIC SOFTENER
• EXTRA RINSE
• EXTRA SPIN
• ENERGY SAVER
• HIGH, MEDIUM/HIGH, MEDIUM, MEDI-
.
UM/LOW or LOW WASH ACTION TIME
• AUTO, MAXIMUM, NORMAL or MINIMUM WATER LEVEL
7
Programme Table, continued
Washing Programmes / Suitable Temperature / Spin Speed
Cycle Description / Load Capacity / Type of Laundry
QUICK WASH
Warm - Cool - Cold - Cold Water Clean
Spin speed: 600
Gentle wash - Long spin
Maximum load: 7 Kg
Quickly wash a small, lightly soiled load in 25 minutes.
RINSE & SPIN
Cold Water Clean
Spin speed: 600
Fill - Long spin
Maximum load: 10.1 Kg
For loads that need a cold water rinse or to add fabric softener that may have been omitted
in a regular cycle.
PRE-SOAK
Warm - Cool - Cold - Cold Water Clean
Spin speed: drain only, no spin
Fill - Soak - Drain
Maximum load: 10.1 Kg
Use this cycle to soak heavily soiled and stained items before washing. Cold water is
recommended with this cycle as warmer water may set some stains. Use the amount of
detergent recommended for a normal wash cycle. If desired, use a bleach or a soaking
agent safe for the fabric.
Note: Follow Pre-Soak with a complete wash cycle suitable for the load using a half dose of
detergent.
LIGHT BLENDS
Warm - Cool - Cold - Cold Water Clean
Spin speed: 600
Gentle wash - Rinses - Short spin
Maximum load: 7 Kg; *Reduced load: 4 Kg
Non-Colour Fast items: for example poly blends with a permanent press or no-iron fi nish.
Available
Options
• CHIME
• FABRIC SOFTENER
• EXTRA RINSE
• EXTRA SPIN
• ENERGY SAVER
• MEDIUM/LOW or LOW WASH ACTION
TIME
• AUTO, MAXIMUM, NORMAL or MINIMUM WATER LEVEL
• CHIME
• FABRIC SOFTENER
• AUTO, MAXIMUM, NORMAL or MINIMUM WATER LEVEL
• CHIME
• AUTO, MAXIMUM, NORMAL or MINIMUM WATER LEVEL
• CHIME
• FABRIC SOFTENER
• EXTRA RINSE
• EXTRA SPIN
• ENERGY SAVER
• HIGH, MEDIUM/HIGH, MEDIUM, MEDIUM/LOW or LOW WASH ACTION TIME
• AUTO, MAXIMUM, NORMAL or MINIMUM WATER LEVEL
8
Washing Hints
Sorting The Laundry
Follow the wash code symbols on each garment label and
the manufacturer’s washing instructions. Sort the laundry as
follows: whites, coloureds, synthetics, delicates, woollens.
Temperatures
Hot
Warm
Cold
for normally soiled white cottons and linen
(e.g. tea cloths, towels, tablecloths, sheets...)
for normally soiled, colour fast garments (e.g.
shirts, night dresses, pyjamas....) in linen,
cotton or synthetic fi bres and for lightly soiled
white cotton (e.g. underwear).
for delicate items (e.g. net curtains), mixed
laundry including synthetic fi bres and woollens bearing the label «pure new wool, machine washable, non-shrink».
Before loading the laundry
Never wash whites and coloureds together. Whites may lose
their «whiteness» in the wash.
New coloured items may run in the fi rst wash; they should
therefore be washed separately the fi rst time.
Make sure that no metal objects are left in the laundry (e.g. hair
clips, safety pins, pins). Button up pillowcases, close zip fasteners,
hooks and poppers. Tie any belts or long tapes.
Remove persistent stains before washing. Rub particularly
soiled areas with a special detergent or detergent paste.
Treat curtains with special care. Remove hooks or tie them
up in a bag or net.
Maximum Loads
Recommended loads are indicated in the «Programme
Table».
General rules:
Cotton, linen: tub full but not too tightly packed;
Synthetics: tub no more than half full;
Delicate fabrics and woollens: tub no more than one third full.
Washing a maximum load makes the most effi cient use of
water and energy. For heavily soiled laundry, reduce the load
size.
Laundry weights
The following weights are indicative:
bathrobe 1200 g
napkin 100 g
quilt cover 700 g
sheet 500 g
pillow case 200 g
tablecloth 250 g
towelling towel 200 g
tea cloth 100 g
night dress 200 g
ladies’ briefs 100 g
man’s work shirt 600 g
man’s shirt 200 g
man’s pyjamas 500 g
blouse 100 g
man’s underpants 100 g
Removing Stains
Stubborn stains may not be removed by just water and detergent. It is therefore advisable to treat them prior to washing.
Blood: treat fresh stains with cold water. For dried stains, soak
overnight in water with a special detergent then rub in the
soap and water.
Oil based paint: moisten with benzine stain remover, lay the
garment on a soft cloth and dab the stain; treat several times.
Dried grease stains: moisten with turpentine, lay the garment
on a soft surface and dab the stain with the fi ngertips and a
cotton cloth.
Rust: oxalic acid dissolved in hot water or a rust removing
product used cold. Be careful with rust stains which are not
recent since the cellulose structure will already have been
damaged and the fabric tends to hole.
Mould stains: treat with bleach, rinse well (whites and fast
coloureds only).
Grass: soap lightly and treat with bleach (whites and fast
coloureds only).
Ball point pen and glue: moisten with acetone (*), lay the garment on a soft cloth and dab the stain.
Lipstick: moisten with acetone as above, then treat stains
with methylated spirits. Remove any residual marks from
white fabrics with bleach.
Red wine:
soak in water and detergent, rinse and treat with ace-
tic or citric acid, then rinse. Treat any residual marks with bleach.
Ink: depending on the type of ink, moisten the fabric fi rst with
acetone (*), then with acetic acid; treat any residual marks on
white fabrics with bleach and then rinse thoroughly.
Tar stains: fi rst treat with stain remover, methylated spirits or
benzine, then rub with detergent paste.
(*) do not use acetone on artifi cial silk.
9
Washing Hints, continued
Detergents and Additives
Good washing results also depend on the choice of detergent and use of the correct quantities to avoid waste and
protect the environment. Although biodegradable, detergents
contain substances which, in large quantities, can upset the
delicate balance of nature.
The choice of detergent will depend on the type of fabric
(delicates, woollens, cottons, etc.), the colour, washing temperature and degree of soiling.
All commonly available washing machine detergents may be
used in this appliance:
• powder detergents for all types of fabric,
• powder detergents for delicate fabrics and woollens,
• liquid detergents, preferably for low temperature wash
programmes for all types of fabric, or special for woollens
only.
Pour liquid detergent directly into the wash tub before adding
wash load.
The additives must be placed in the appropriate compartments of the dispenser before starting the wash programme.
Any fabric softener must be poured into the compartment
marked «Softener» before starting the wash programme. Do
not exceed the «MAX» mark in the softener dispenser chamber.
Overfi lling can cause early dispensing of the fabric softener
which could result in stained clothes.
Do not pour fabric softener directly on the wash load.
The bleaching agent (chlorine) can be used only for white
cotton and linen items. Pour it into the compartment marked
«Bleach». Bleach is dispensed immediately to the bottom of tub
as you pour it in the «Bleach» compartment. Follow up with 250
ml of water to fl ush the dispenser.
Do not pour undiluted liquid chlorine bleach directly onto the
load or into the tub. Fabric damage can occur.
Quantity of Detergent to be Used
The type and quantity of detergent will depend on the type of
fabric, load size, degree of soiling and hardness of the water
used. Follow the product manufacturers’ instructions on
quantities to use.
Use less detergent if:
• you are washing a small load,
• the laundry is lightly soiled,
• large amounts of foam form during washing.
Degrees of Water Hardness
Water hardness is classifi ed in so-called «degrees» of hardness. Information on hardness of the water in your area can
be obtained from the relevant water supply company, or from
your local authority.
Degrees
Level Characteristic
1 soft 0-7 0-15
2 medium 8-14 16-25
3 hard 15-21 26-37
4 very hard >21 >37
German
°dH
French
°T.H.
Before the First Use
WARNING!
Ensure that the electrical and water connections comply with
the installation instructions.
IMPORTANT!
Remove any material from the tub.
10
IMPORTANT!
We recommend you to run a Normal/Cotton cycle, with Hot
water and no laundry in the appliance, to remove any manufacturing residue from the tub. Pour 1/2 a measure of detergent into the tub and start the cycle.
Operating Sequence
1. Sort laundry into loads that can be washed together
See «Washing Hints» for more details.
2. Pretreat stains and heavy soil
See «Washing Hints» for more details.
3. Add a measured amount of detergent to the wash tub before
adding the laundry load.
Follow detergent manufacturer’s directions. The amount
required depends on type of detergent, load size and soil
level, and water hardness.

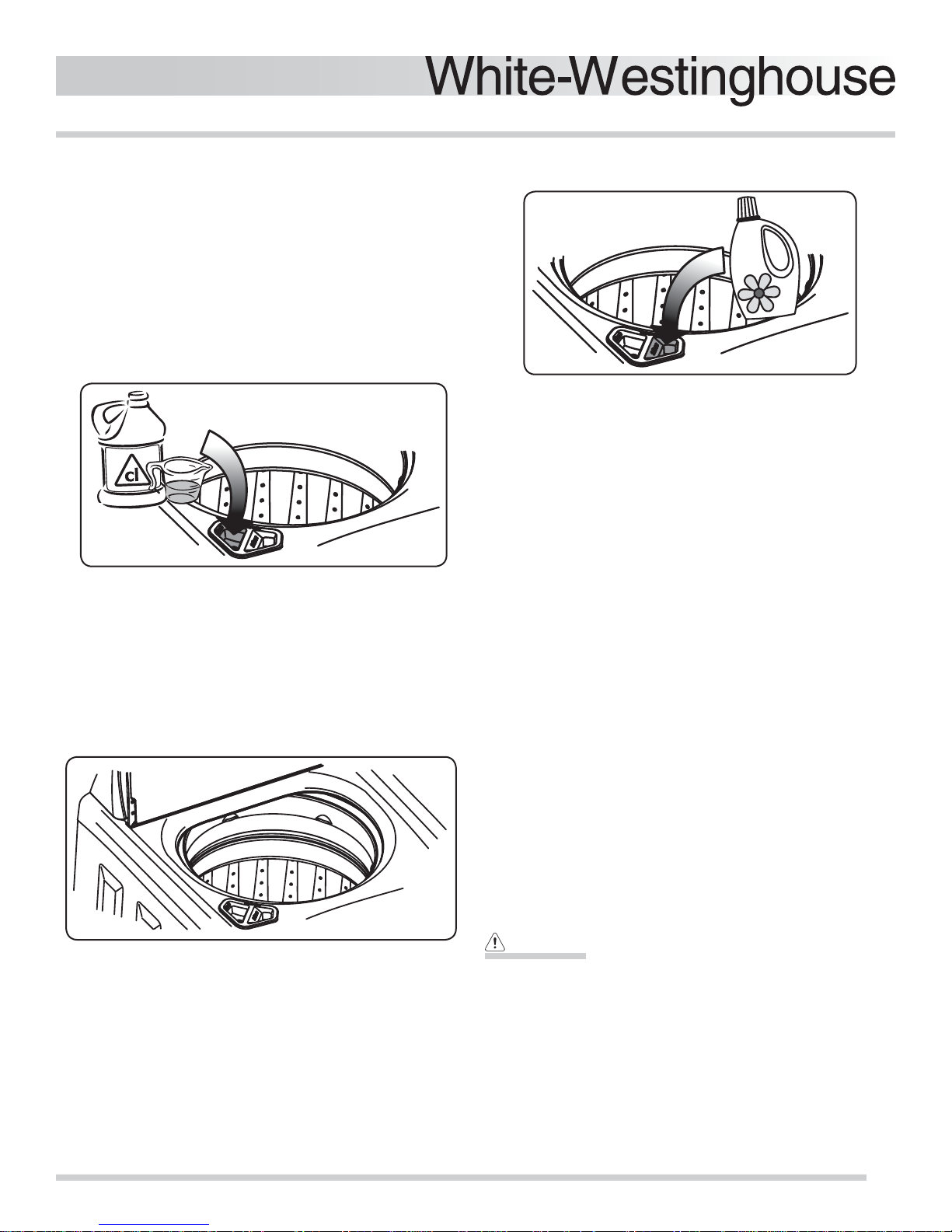

4. If desired, add liquid bleach to bleach dispenser.
• Before adding the wash load, add liquid bleach to bleach
dispenser located in left front corner under the lid:
• Refer to bleach manufacturer’s directions for quantity to
add.
• Then add 250 ml water to fl ush the dispenser.
• Do not use powdered bleach in the bleach dispenser.
Add powdered bleach to the empty tub.
5. Add laundry load to washer.
• For best washing performance, dry load level should not
be higher than the upper row of holes in the wash tub.
Do not overload the washer.
6. If desired, add liquid fabric softener to fabric softener dispenser.
• Add liquid softener to the dispenser, following fabric
softener label directions. DO NOT use granular detergent
in this dispenser.
• DO NOT fi ll above the maximum fi ll line.
• Turn fabric softener option on.
• Do not use bleach in this dispenser.
7. Select the appropriate cycle and settings for the load.
• See «Washing Hints» and «Programme Table» for more
details.
8. Wake up and start the washer.
• Close the washer lid. The washer will not operate with
the lid open.
• Push in or turn the cycle selector knob 3 or turn any op-
tion knob 1, 2, 4, 5, 6, or 7 to “wake” the washer. You will
hear three beeps to indicate washer is ready to operate.
• After making your selections, push in the selector knob 3
to start the cycle. You will hear one beep and the washer
lid will lock.
• To add a forgotten item to the wash tub, push in the
cycle selector knob 3 to pause the cycle. You will hear
two beeps.
releases, lift the lid and add the item. Close the lid and
push in the selector knob 3 again, continuing the current
cycle.
• To stop a running cycle, push in and hold the cycle selec-
tor knob 3.
9. At the end of the programme
• For your safety, the lid is locked during the operation of
the washer. It will unlock at the cycle end after the tub
has come to a complete stop.
Do not force open the locked lid.
After the lock
• Combine large and small items in a load. Load large
items fi rst. Large items should not be more than half the
total wash load.
• When washing a single heavy item, add 1 or 2 towels to
balance the load.
WARNING!
To avoid serious personal injury, do not operate washer if
safety lid lock is missing, damaged or operating improperly.
• Place washed items in automatic dryer, line dry, or dry fl at
as directed by fabric care label. Excess wrinkling, color
transfer or odors may develop in items left in the washer
after the cycle has ended.
11
Care and Cleaning
IMPORTANT:
• You must DISCONNECT the appliance from the electricity supply, before you can carry out any cleaning or
maintenance work.
• Do not use methylated spirit, diluents or similar products.
Note
Fabric softener may build up in the dispenser well. Residue should be removed once or twice a month.
a
Inside Washer
• Remove items from the washer as soon as the cycle ends.
Excess wrinkling, color transfer, and odors may develop in
items left in the washer.
• Descaling: The water we use normally contains lime. It is a
good idea to periodically use a water softening powder in the
appliance. Do this separately from any laundry washing, and
according to the softening powder manufacturer’s instructions. This will help to prevent the formation of lime deposits.
• When extremely soiled items have been washed, a dirty
residue may remain on the tub. Remove this by wiping the
tub with a nonabrasive household cleanser. Rinse thoroughly
with water.
Fabric Softener Dispenser
• Remove the dual chamber insert (a) from the bleach and
fabric softener dispenser by pinching at the chamber divider
and lifting upward. Also remove the siphon cap (b).
• Rinse the insert and cap with a combination of 200 ml liquid
chlorine bleach and 3 litres hot tap water to remove any
buildup. Large amounts of fabric softener residue may indicate improper dilution or more frequent cleaning is required.
Rinse well with tap water.
• For the dispenser well, use a small brush to clean the recesses. Remove all residue.
• Replace the siphon cap and insert by pressing it in place
until you hear a slight click.
b
Orient correctly
for reinsertion.
External Cleaning
• Clean the exterior cabinet of the appliance with soap and
water only, and then dry thoroughly.
• If your water is very hard or contains traces of lime deposit,
the water inlet fi lter may become clogged. It is therefore a
good idea to clean it from time to time. Turn off the water
tap. Unscrew the water inlet hose. Clean the fi lter using a
hard bristle brush. Tighten up the inlet hose.
The dangers of freezing
If the appliance is exposed to temperatures below 0°C, certain
precautions should be taken.
• Pull out the plug from the power socket;
• Turn off the water tap.
• Unscrew the inlet hose.
• Place the end of the inlet hose in a bowl placed on the fl oor
and let water drain out.
• Screw the water inlet hose back on again.
• When you intend to start the appliance up again, make sure
that the room temperature is above 0°C.
12
What to do if...
IMPORTANT!
Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engineer. Before
contacting your local Service Centre, please carry out the checks listed below.
During appliance operation it is possible that few acoustic signals sound to indicate that the appliance is not working.
Once the problem has been eliminated, press the button 3 to restart the programme. If after all checks, the problem persists, contact your
local Service Centre.
Washer Malfunction Possible Cause / Solution
The washer does not start:
The washer does not fi ll:
The appliance fi lls then empties immediately:
The appliance does not empty and/or does not
spin:
There is water on the fl oor:
Unsatisfactory washing results:
The lid will not open:
The appliance vibrates or is noisy:
Spinning starts late or the appliance does not spin:
If you are unable to identify or solve the problem, contact our service centre.
Before telephoning, make a note of the model, serial number and purchase date of your appliance: the Service Centre will require this information.
The lid has not been closed.
• Close fi rmly the lid.
The plug is not properly inserted in the power socket.
• Insert the plug into the power socket.
There is no power at the socket.
• Please check your domestic electrical installation.
The main fuse has blown.
• Replace the fuse.
The button 3 has not been pressed.
• Press the button 3.
The water tap is closed.
• Open the water taps.
The inlet hose is squashed or kinked.
• Check the inlet hose connection.
The lid is not properly closed.
• Close fi rmly the lid.
The end of the drain hose is too low.
• Refer to relevant paragraph in «water drainage» section.
The drain hose is squashed or kinked.
• Check the drain hose connection.
The laundry is not evenly distributed in the tub.
• Redistribute the laundry.
Check whether there are any leaks from one of the inlet hose fi ttings. It is not always
easy to see this as the water runs down the hose; check to see if it is damp.
• Check the water inlet hose connection.
The inlet hose is damaged.
• Change it with new one.
Too little detergent or unsuitable detergent has been used.
• Increase the detergent quantity or use another one.
Stubborn stains have not been treated prior to washing.
• Use commercial products to treat the stubborn stains.
The correct temperature was not selected.
• Check if you have selected the correct temperature.
Excessive laundry load.
• Introduce into the tub less laundry.
The programme is still running.
• Wait for the end of the wash cycle.
The lid lock has not been released.
• Wait until the lid lock has released.
The transit bolt has not been removed.
• Check the correct installation of the appliance.
The support feet have not been adjusted.
• Check the correct levelling of the appliance.
The laundry is not evenly distributed in the tub.
• Redistribute the laundry manually.
Maybe there is very little laundry in the tub.
• Load more laundry.
The electronic unbalance detection device has cut in because the laundry is not evenly
distributed in the tub. The cycle will fi nish, spinning at a reduced speed and the laundry
will be wetter than usual. In this case, redistribute the load manually and select the spin
programme.
• Redistribute the laundry.
13
Technical data
Electrical connection information Information on the electrical connection is given on the rating plate
Voltage [V] 230-240, single phase [50 Hz]
Frequency (Hz)
Rated input
Maximum dry load Cotton
Washer Spin speeds
Washer tub size
Water supply pressure Minimum
Usage range in domestic setting
above the appliance door opening.
220-230, single phase [60 Hz]
50 - 60
300 watts
10.1 kg
Synthetics
Maximum 600 rpm
Maximum
+ 5°C + 35°C
7 kg
96 l
0,05 MPa
0,8 MPa
14

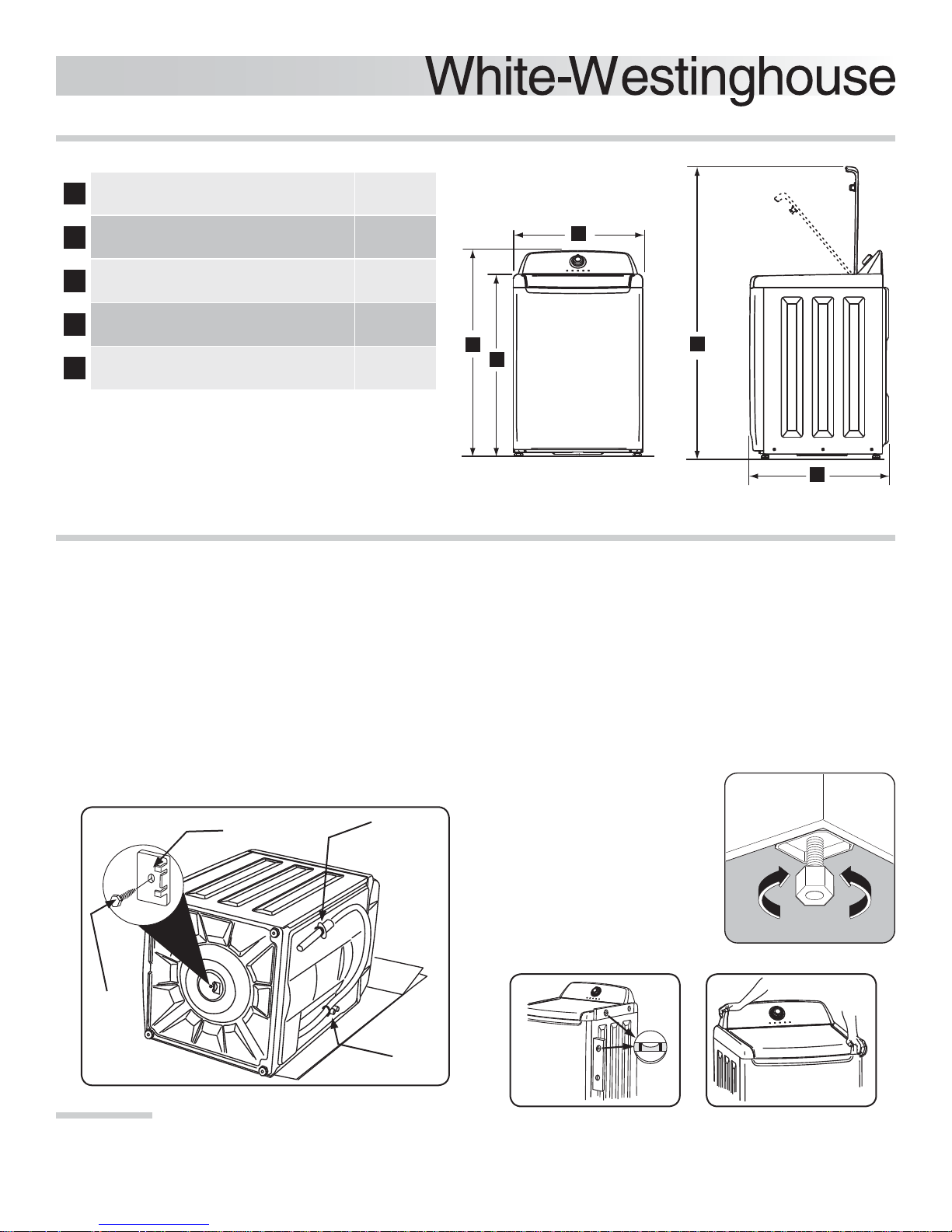

Dimensions
1
washer width
68.5 cm
2
height to top of rear console
3
height to top of closed washer lid
4
height to top of open washer lid
5
washer depth
109 cm
94 cm
152.5 cm
73.5 cm
Installation Instruction
Unpacking
All transit bolts and packing must be removed before using
the appliance. You are advised to keep all transit devices
so that they can be refi tted if the appliance ever has to be
transported again.
1. After removing all the packaging, carefully lay the appliance
on its left side. Use a rug, blanket or piece of cardboard to
protect the fl oor.
2. With a suitable spanner unscrew and remove the following
from the bottom and rear of the appliance:
• shipping bolt
• plastic spacers
• wire clip securing drain hose end
PLASTIC
SPACER
WIRE CLIP
1
2
3
4
5
Positioning
Install the appliance on a fl at hard fl oor. Make sure that air
circulation around the appliance is not impeded by carpets,
rugs etc. Check that the appliance does not touch the wall or
other kitchen units. Level the appliance by raising or lowering
the feet. The feet may be tight to adjust as they incorporate a
self locking nut, but the appliance MUST be level and stable.
Any necessary adjustment can be made with a spanner. The
feet must never be removed.
Accurate levelling prevents vibration, noise and displacement
of the appliance during operation.
Never place cardboard, wood
or similar materials under the
appliance to compensate for any
unevenness in the fl oor.
If necessary, check the setting
with a spirit level. Improper installation could cause an increase
of vibration and noise, especially
during spinning phases.
SHIPPING
BOLT
IMPORTANT!
Do NOT remove plastic clip securing the drain hose.
3. Carefully return the appliance to an upright position.
PLASTIC
CLIP
15
Installation Instruction, continued
Water inlet
Do not use the hose from your previous appliance to connect to
the water supply.
1. Set the hose correctly by loosening the ring nut. After
positioning the inlet hose, be sure to tighten the ring nut
again to prevent water leaks.
2. Connect the hose to a tap with
a 3/4” thread. Always use the
hose supplied with the appliance. The inlet hose must
not be lengthened. If it is too
short and you do not wish to
move the tap, you will have to
purchase a new, longer hose
specially designed for this type
of use.
Water drainage
The drain hose must not be kinked. The end of the drain
hose can be positioned in these ways:
Hooked over the edge of a sink.
In this case, make sure the end
cannot come unhooked when the
machine is emptying.
Directly into a drain pipe at a height of not less than 85 cm
and not more than 200 cm. The end of the drain hose must
always be ventilated, i.e. the inside
diameter of the drain pipe must be
larger than the outside diameter of
the drain hose.
NOTE
A wiring diagram and technical data sheet are located inside
the dryer console.
To remove the console faceplate follow the directions below:
1. Disconnect dryer from electrical source.
2. Remove the hole plugs on the back of the console
housing.
3. Insert a small, straight blade screw drive to gently pry
downward on each faceplate retaining tab.
4. Gently lay the console faceplate forward without pulling
wires to access technical/wiring diagram.
5. When fi nished with repair, return sheet inside console,
snap faceplate to console housing and reinstall hole
plugs.
16
TECH DATA SHEET/
WIRING DIAGRAM
Environmental concerns
Packaging materials
The materials marked with the symbol are recyclable.
This means that they can be recycled by disposing of them
properly in appropriate collection containers.
Old appliance
Use authorised disposal sites for your old appliance. Help to
keep your country tidy!
The symbol on the product or on its packaging indicates
that this product may not be treated as household waste.
Instead it should be taken to the appropriate collection point
for the recycling of electrical and electronic equipment. By
ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment
and human health, which could otherwise be caused by in
appropriate waste handling of this product. For more detailed
information about recycling of this product, please contact
your local council, your household waste disposal service or
the shop where you purchased the product.
Ecological tips
To save water, energy and to help protect the environment,
we recommend that you follow these tips:
• Normally soiled laundry may be washed without prewashing in order to save detergent, water and time (the
environment is protected too!).
• The appliance works more economically if it is fully loaded.
• With adequate pre-treatment, stains and limited soiling
can be removed; the laundry can then be washed at a
lower temperature.
• Measure out detergent according to the water hardness,
the degree of soiling and the quantity of laundry being
washed. Keep the lint screen clean and exhaust the dryer
correctly.
• Sort laundry properly and select proper temperature and
cycle settings. Choose an automatic dry cycle whenever
possible for accurate drying time.
• Dry only full loads. Single items and small loads usually
take longer to dry.
• Avoid overloading, adding wet items to a partially dry load,
and overdrying.
• Dry one load after another to take advantage of a warm
dryer.
• Opening the dryer door needlessly causes warm air to
escape, which prolongs drying time.
• If possible, use the dryer on low humidity days.
• Install the unit in an area where the room temperature is at
least 7°C.
17
Notes
18
Loading...
