Thank you for selecting our appliance

We wish you lots of enjoyment with your new appliance and we hope that you will consider our brand again when
purchasing household appliances.
Please read this user manual carefully and keep it throughout the product life cycle as a reference document. The
user manual should be passed on to any future owner of the appliance.

The following symbols are used in this manual:

Important information concerning your personal safety and information on how to avoid damaging the
appliance.

General information and tips

Environmental information

Content

Safety information - - - - - - - - - - - - - - - - - - - - - 3-4
Description of the appliance - - - - - - - - - - - - - - - - 4
Control panel and functions - - - - - - - - - - - - - - - 5-6
Programme table - - - - - - - - - - - - - - - - - - - - - - 6-7
Drying Hints - - - - - - - - - - - - - - - - - - - - - - - - - - 8
Before the fi rst use - - - - - - - - - - - - - - - - - - - - - - 8
Operating Sequence - - - - - - - - - - - - - - - - - - - - - 9

Care and cleaning - - - - - - - - - - - - - - - - - - - - - - 9
What to do if... - - - - - - - - - - - - - - - - - - - - - - - - 10
Technical data - - - - - - - - - - - - - - - - - - - - - - - - 11
Dimensions - - - - - - - - - - - - - - - - - - - - - - - - - - 11
Installation instruction - - - - - - - - - - - - - - - - 12-15
Reversing door swing - - - - - - - - - - - - - - - - - 16-17
Environmental concerns - - - - - - - - - - - - - - - - - 18

2

Important Safety Information

In the interest of your safety and to ensure the correct use, before installing and fi rst using the appliance, read this
user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is impor­tant to ensure that all people using the appliance are thoroughly familiar with its operation and safety features.
Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone
using it through its life will be properly informed on appliance use and safety.

General safety

• It is dangerous to alter the specifi cations or attempt to
modify this product in any way.

• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or lack of experi­ence and knowledge, unless they have been given supervi­sion or instruction concerning use of the appliance by a
person responsible for their safety.

• Make sure that small pets do not climb into the drum. To
avoid this, please check into the drum before using.

• Any objects such as coins, safety pins, nails, screws,
stones or any other hard, sharp material can cause exten­sive damage and must not be placed into the machine.

• In order to avoid danger of fi res caused by excessive dry­ing, do not use appliance to dry the following items: Cush­ions, quilts and the like (these items accumulate heat).

• Items such as foam rubber (latex foam), shower caps,
waterproof textiles, rubber backed articles and clothes or
pillows fi tted with foam rubber pads should not be dried in
the tumble dryer.

• Always unplug the appliance after use, clean and mainte­nance.

• Under no circumstances should you attempt to repair the
machine yourself. Repairs carried out by inexperienced
persons may cause injury or serious malfunctioning. Con­tact your local Service Centre. Always insist on genuine
spare parts.

• Items that have been soiled with substances such as cook­ing oil acetone, petrol, kerosene, spot removers, turpen­tine, waxes and wax removers should be washed in hot
water with an extra amount of detergent before being dried
in the tumble dryer.

• Danger of explosion: Never tumble dry items that have been
in contact with infl ammable solvents (petrol, methylated
spirits, dry cleaning fl uid and the like). As these substance
are volatile, they could cause an explosion. Only tumble dry
items washed with water.

• Risk of fi re: items that have been spotted or soaked with
vegetable or cooking oil constitute a fi re hazard and should
not be placed in the tumble dryer.

• Ensure you have adequate ventilation in the installation
room to avoid the back fl ow of gases into the room from
appliances burning other fuels, including open fi res.

• If you have washed your laundry with stain remover you
must execute an extra rinse cycle before loading your
tumble dryer.

• Please make sure that no gas lighters or matches have
accidentally been left in pockets of garments to be loaded
into appliance.

WARNING! - RISK OF FIRE!
Never stop a tumble dry before the end of the drying
cycle unless all items are quickly removed and spread
out so that the heat is dissipated.

Installation

• This appliance is heavy. Care should be taken when mov­ing it.

• When unpacking the appliance, check that it is not dam­aged. If in doubt, do not use it and contact the Service
Centre.

• All packing must be removed before use.

• Serious damage can occur to the product and to property
if this is not adhered to.

• See relevant section in the user manual.

• The fi nal part of a tumble dryer cycle occurs without heat
(cool down cycle ) to ensure that the items are left at a
temperature that ensures that items will not be damaged.

• Any electrical work required to install this appliance should
be carried out by a qualifi ed electrician or competent per­son.

• Care must be taken to ensure that the appliance does not
stand on the electrical supply cable.

• If the machine is situated on a carpeted fl oor, please adjust
the feet in order to allow air to circulate freely.

• After having installed the appliance, check that it is not
pressing or standing on its electrical supply cable or/and
drain hose.

3

Important Safety Information, continued

Use

• This appliance is designed for domestic use. It must not
be used for purposes other than those for which it was
designed.

• Only wash fabrics which are designed to be machine dried.
Follow the instructions on each garment label.

• Do not dry unwashed items in the tumble dryer.

• Do not overload the appliance. See the relevant section in
the user manual.

• Clothes which are dripping wet should not be placed in the
dryer.

• Garments which have been in contact with volatile pe­troleum products should not be machine dried. If volatile
cleaning fl uids are used, care should be taken to ensure
that the fl uid is removed from the garment before placing in
the machine.

• Never pull the power supply cable to remove the plug from
the socket; always take hold of the plug itself.

Description of the appliance

Description of the appliance

• Never use the tumble dryer if the power supply cable, the
control panel, the working surface or the base are damaged
so that the inside of the tumble dryer is accessible.

• Fabric softeners, or similar products should be used as
specifi ed by the fabric softener instructions.

Child safety

• This machine is not intended for use by young children or
infi rm persons without supervision.

• Children should be supervised to ensure that they do not
play with the appliance.

• The packaging components (e.g. plastic fi lm, polystyrene)
can be dangerous to children - danger of suffocation! Keep
them out of children’s reach.

• Keep all detergents in a safe place out of children’s reach.

• Make sure that children or pets do not climb into the drum.

1

Control panel

2

Serial number / Rating plate

3

Drum lamp (if equipped)

4

Lint («fl uff») fi lter

5

Adjustable feet (x4)

6

Electrical terminal cover

7

Rear vent outlet

Drum Lamp

The drum light will turn on when the appliance door is
opened and remain lighted for 4 minutes or until the door is
closed.

IMPORTANT!

The bulb for the interior lighting must be changed by our
Customer Care Department.

1

2

3

4

5

4

6

7

Control Panel

Information

Henceforth, the programme selector dial, the display, the different buttons and the programme indicator light will be indicated
in all the book with the relevant numbers given in this picture.

1 2 3 4 5

6 7

Temperature Selector Knob

1

Options Selector Knob

2

Programme Selector Dial

3

This button allows you to change the drying temperature according to the fi ber content of fabrics to
be dried. (See «Drying hints» for more details).

• MAXIMUM: Recommended for durable fabrics and towels.

• HIGH: Recommended for most cotton fabrics.

• NORMAL: Recommended for wrinkle free, easy care, lightweight fabrics and bulky loads.

• LOW: Recommended for delicate fabrics.

• AIR DRY: This setting (no heat) should only be used with a Timed Dry cycle to dry items containing

feathers, down, foam rubber, plastics or rubber-like materials; to refresh clothing, stuffed animal,

pillows or blankets; and to dust draperies.
Note: Not all temperatures are available in every programme. For best results, follow the care label
instructions.

By turning this knob you can select one of the following options:

• CHIME: On select models the chime feature is located on the options dial. A signal will sound at

the end of the drying cycle if this option is selected.

• SHRINK GUARD: Select Shrink Guard to lower the initial drying temperature to protect fabrics from

overdrying. May be combined with Wrinkle Release.

• WRINKLE RELEASE: Select Extended Tumble if the dried load might not be removed promptly at the

end of the cycle. The dry load will continue tumbling without heat to help reduce wrinkling. When

the Signal is selected, a beep will be heard periodically. The load may be removed any time during

Wrinkle Release. May be combined with Shrink Guard.

• ENERGY SAVER: The Energy Saver option reduces the drying temperature a few degrees to save

energy. In conjunction with automatic moisture sensors, cycle times will increase slightly, but over-

all energy usage will decrease.
The programme selector dial allows to select a drying programme. It can be turned either clockwise

or anticlockwise. (See «Dryer Programme Table» for more details about the drying programmes).

5

Control Panel, continued

This knob allows you to change the desired dryness level of the fabrics at the end of an automatic
programme. (See «Drying hints» for more details).

• MAXIMUM: Select for highest dryness level.

• HIGH: If load is too damp at the end of the programme, select this level for similar loads in the

future.

Dryness Level Knob

4

• NORMAL: Select this dryness level for most automatic programmes.

• LOW: If load is over dried at the end of the programme, select this level for similar loads in the

future.

• DAMP DRY: Select this dryness level for items you wish to partially dry before hanging or ironing.
Note: Not all dryness levels are available in every programme. For best results, follow the care label

instructions. Dryness level is not selectable on Timed Dry Programmes.

Chime

5

Indicator Lights

6

Estimated Time Remaining

7

Display

A signal will sound at the end of the drying cycle if this option is selected.

The following pilot lights indicate which drying phase the appliance is carrying out:

• Clean Lint Filter

• Drying

• Cool Down

• Wrinkle Release (if option is selected)

• Done

The display shows the following information:

• The duration of the selected programme: After selecting a programme the duration of the selected

programme appears on the display for about 5 minutes (1). Then the outside of the display will

light up in a circular track to indicate the drying time is being determined (2). When the load has

reached the selected dryness level, it will continue to tumble during a cool down period (3). This

helps reduce wrinkling and makes items easier to handle during unloading.

1. initial 2. calculating 3. estimated

• Message «PAUSE»: It is scrolled across the display when the cycle is paused.

6

Programme Table

Drying Programmes / Cycle Description / Type of Laundry

LIGHTS/BLENDS (Programme duration approximately 23 minutes)

Cycled Heat - Cool down
Select this programme to dry cottons, blends and permanent

press items with a no-iron fi nish.

NORMAL/COTTON (Programme duration approximately 60 minutes)

Cycled Heat - Cool down
Select this cycle to dry everyday fabrics including cottons, linens

and sheets.

HEAVY DUTY (Programme duration approximately 80 minutes)

Cycled Heat - Cool down
Select this Auto Dry programme to dry durable fabrics such as

work wear and overalls.

TOWELS (Programme duration approximately 50 minutes)

Cycled Heat - Cool down
Select this programme to dry heavy loads such as towels and

non-rubber-backed bath mats.

DELICATES/SILKS (Programme duration approximately 15 minutes)

Cycled Heat - Cool down
Select this programme to dry knits and delicates.

BLANKETS (Programme duration approximately 75 minutes)

Cycled Heat - Cool down
For bedding and bulky items such as comforters, blankets, sleep-

ing bags and parkas.

TIME DRY (Programme duration approximately 30 to 90 minutes)

Cycled Heat - Timed Duration - Cool down
To manually select the drying time for any load, turn the knob to

a numbered setting: 30, 60, or 90 minutes. Dryer will continue to
heat throughout the programme until the fi nal cool down period.

Available

Temperatures

High
Normal
Low

Maximum
High
Normal

Maximum
High
Normal

Maximum
High

Normal
Low

High
Normal

Maximum (90 only)
High
Normal
Low
Air Dry

Available

Dryness Levels

High
Normal
Low

Maximum
High
Normal
Low
Damp

Maximum
High
Normal

Maximum
High

High
Normal
Low
Damp

High
Normal

Not Available Chime

Energy Saver
Shrink Guard
Wrinkle Release
Chime

Energy Saver
Shrink Guard
Wrinkle Release
Chime

Energy Saver
Shrink Guard
Wrinkle Release
Chime

Energy Saver
Shrink Guard
Wrinkle Release
Chime

Energy Saver
Shrink Guard
Wrinkle Release
Chime

Energy Saver
Shrink Guard
Wrinkle Release
Chime

Available

Options

7

Drying Hints

Before loading the laundry

Never tumble dry the following:
Particularly delicate items such as net curtains, woollen,

silk, fabrics with metal trim, nylon tights, bulky materials
such as anoraks, blankets, eiderdowns, sleeping bags,
feather quilts and any items containing rubber foam or
materials similar to rubber foam.

• Always follow the instructions on garment labels:
may be tumble dried
normal drying (high temperature)
delicate drying (low temperature)
do not tumble dry

• Close pillowcases and covers with fasteners to prevent

small laundry items getting tangled inside them. Close
press studs, zips and hooks and tie belts and apron
strings.

• Sort laundry according to type and degree of drying re-

quired.

• Do not over-dry laundry, this avoids creasing and saves

energy.

• Avoid drying dark clothes with light coloured fl uffy items
such as towels as they could attract the fl uff.

• The laundry must be thoroughly spun before tumble drying.

• Easy-care items, too, e.g. shirts, should be briefl y pre-spun
before drying (depending on crease resistance approx. 30
seconds or using the special brief spin programme of your
washing machine).

• Knitted textiles (knitted underwear) may shrink a little during
drying. Please do not overdry items of this type. It is advis­able to allow for shrinkage when choosing the size of new
purchases.

• To avoid a static charge when drying is completed, use
either a fabric softener when you are washing the laundry
or a fabric conditioner specifi cally for tumble dryers.

• Remove the laundry when the dryer has fi nished drying.

• If individual items are still damp after drying, set a brief
post-drying time, for at least 30 minutes. This will be
necessary particularly for multilayered items (e.g. collars,
pockets, etc.).

Before the First Use

WARNING!

Ensure that the electrical connections comply with the instal­lation instructions.

IMPORTANT!

Remove any material from the drum.

8

IMPORTANT!

Before using your tumble dryer for the fi rst time, we recom­mend that you place a few damp cloths inside the appliance
and dry for 30 minutes. There may be dust inside a brand
new tumble dryer.

Operating Sequence

1. Check that the lint fi lter is
clean and in place.

IMPORTANT!

Do not operate dryer with­out lint fi lter in place.

2. Load the dryer and close the door.

• Load items loosely. The average wet load will fi ll the
drum 1/3 to 1/2 full. Items need room to tumble freely
for even drying and less wrinkling.

• If desired, place a dryer
fabric softener sheet on
top of the load at the
beginning of the cycle.

• To save energy and time
and avoid uneven dry­ing and wrinkling, do not
overload the dryer.

• When drying large items,
dry only two or three
items at a time. Fill out
the load with small and
medium sized items.

• For delicate or very small
loads, add two or three

similar items to improve tumbling action.

3. Select the appropriate programme and settings for each load.

See «Drying Hints» and «Dryer Programme Table» for more
details.

4. Wake up and start the dryer.

• Close the dryer door. The dryer will not operate with the
door open.

• Push in or turn the cycle selector knob 3 or turn any op­tion knob 1, 2, 4, or 5 to “wake” the dryer. You will hear
three beeps to indicate dryer is ready to operate.

• After making your selections, push in the selector knob
3 to start the cycle. You will hear one beep before the
drum begins to rotate.

• To add or remove items when the dryer is running, push
in the cycle selector knob 3 to pause the cycle and open
the door. Opening the door with a cycle running will also
pause the cycle. You will hear two beeps. Allow the drum
to come to a complete stop before reaching inside. Add
or remove the item, close the door and push in the selec­tor knob 3 again, continuing the current cycle.

• To cancel a running cycle, push in and hold the cycle
selector knob 3 until the dryer discontinues running.

• A signal will sound at the end of the cycle if the chime
option has been selected.

NOTE

If drying a single large or bulky item, such as a comforter,
remove the item part way through the cycle and turn it “inside
out” to maximize drying effectiveness. Place item back in
dryer and re-start cycle.

5. When the programme ends...

• Remove the items promptly and hang or fold.

• You are advised to unplug the appliance.

• Clean the fi lter after every drying programme. A clean
fi lter ensures correct functioning of the appliance.

Care and Cleaning

IMPORTANT:

You must DISCONNECT the appliance from the electricity
supply, before you can carry out any cleaning or maintenance
work.

External cleaning

Use only soap and water and then dry thoroughly.

Important: do not use methylated spirit, diluents or similar
products.

Cleaning the fi lter

Your dryer will only function well if the fi lter is clean.
Clean the lint («fl uff») fi lter after every load. Lint build-up on

the fi lter restricts air fl ow, which causes longer drying times.
The fi lter is located at the bottom of the door opening.

Remove fi lter by pulling straight up. Remove the lint and
replace the fi lter.

Washing the lint fi lter

Occasionally a waxy build­up may form on the lint fi lter
from using dryer-added
fabric softener sheets. To
remove this build-up, wash
it with warm, soapy water.
Dry the fi lter thoroughly and
replace. Do not operate the
dryer without the lint fi lter in
place.

CAUTION!

Do not use furniture cleaners or aggressive cleaning agents
to clean the machine. Use a damp cloth to wipe down the
operating screen and housing.

9

What to do if...

IMPORTANT!

Certain problems are due to lack of simple maintenance or oversights, which can be solved easily without calling out an engi­neer. Before contacting your local Service Centre, please carry out the checks listed below.

During appliance operation it is possible that few acoustic signals sound to indicate that the appliance is not working.
Once the problem has been eliminated, press the button 3 to restart the programme. If after all checks, the problem persists,

contact your local Service Centre.

Malfunction Possible Cause / Solution

Dryer does not start.

Dryer runs but won’t heat.

Drying cycle takes too long, outside of the dryer
feels too hot or smells hot.

Excessive wrinkling.

Electrical power cord is not securely plugged in or plug may be loose.

• Make sure the plug fi ts tightly in wall outlet.

House fuse blown or circuit breaker tripped.

• Reset circuit breaker or replace fuse.

• Make sure electrical line is not overloaded and the dryer is on a separate circuit.

The button 1 has not been pressed.

• Press the button 1.

Thermal limiter tripped.

• Call authorized service person for replacement.

There are 2 house fuses in the dryer circuit. If 1 of the 2 fuses is blown, the drum may
turn but the heater will not operate. (electric models).

• Replace fuse.

Lint fi lter is clogged with lint.

• Make sure all lint has been removed from the dryer lint fi lter before starting each
cycle.

Exhaust duct requirements have not been met.

• Exhaust duct must be at least 100 mm in diameter and made of rigid or semi­rigid metal.

• When in place, the duct must have no more than two 90° bends and must not
exceed 2 m.

Drying procedures have not been followed.

• See “Operating Instructions.”

Outside exhaust hood or exhaust duct may be clogged or restricted.

• Clean out any obstruction.

High humidity.

• Use a dehumidifi er near the dryer.

Dryer is overloaded.

• Do not overload. See “Operating Instructions.”

Items left in dryer too long.

• Remove items as soon as cycle ends.

Insuffi cient sorting of items.

• See “Operating Instructions.”

Drying temperature too high.

• Follow fabric care label instructions.

If you are unable to identify or solve the problem, contact our service centre.
Before telephoning, make a note of the model, serial number and purchase date of your appliance: the Service Centre will

require this information.

10

Technical data

Electrical connection information Information on the electrical connection is given on the rating plate

Voltage [V] 230-240, single phase [50 Hz]

Connected load
Maximum dry load Cotton

Dryer drum volume
Usage range in domestic setting
Frequency (Hz)

above the appliance door opening.

Synthetics

220-230, single phase [60 Hz]

4300 watts

10.1 kg
4 kg

199 l

+ 5°C + 35°C

50 - 60

Dimensions

1

dryer width

2

dryer height to top of rear console

3

dryer height to top of top panel

68.5 cm

109 cm

94 cm

4

dryer depth with loading door open

5

dryer depth with loading door closed

1

2

3

127 cm

73.5 cm

4

5

11

Installation

Positioning

It is recommended that, for your convenience, the machine is
positioned close to your washing machine.

The tumble dryer must be installed in a clean place, where
dirt does not build up. Make sure there are no obstructing
items or material near the air-intake louvres provided at the
back (e.g. paper, rags etc.).

To keep vibration and noise to a minimum when the dryer
is in use, it should be placed on a fi rm, level surface. Once
in its permanent operating position, check that the dryer is
absolutely level with the aid of a spirit level. If it is not, raise or
lower the feet until it is.

Venting

Whilst drying, the tumble dryer will expel a certain amount
of warm, very moist air, and this should be removed from
the room as quickly as possible to prevent condensation.
Carry the dryer’s exhaust outside via a 100 mm diameter
venting system ending at a fi xed ventilation grille fi tted to an
exterior wall. The dryer must be exhausted outdoors. Do
not exhaust dryer into a chimney, a wall, a ceiling, an attic, a
crawl space or any concealed space of a building. A clothes
dryer produces combustible lint. If the dryer is not exhausted
outdoors, some fi ne lint will be expelled into the laundry area.
An accumulation of lint in any area of the home can create a
health and fi re hazard.

WARNING!

Exhaust air must not be discharged into a fl ue which is used
for exhausting fumes from appliances burning gas or other
fuels, for example, a cooker hood, or a chimney or fl ue pipe
designed to carry the exhaust from a fuel burning appliance.

The feet must never be removed.
Do not restrict the fl oor clearance through deeppile carpets, strips

of wood or similar. This might cause heat build-up which would
interfere with the operation of the appliance.

Use only 100 cm diameter rigid or fl exible metal duct and
approved vent hood which has a swing-out damper(s) that
open when the dryer is in operation. When the dryer stops,
the dampers automatically close to prevent drafts and the
entrance of insects and rodents. To avoid restricting the
outlet, maintain a minimum of 30 cm clearance between the
vent hood and the ground or any other obstruction.

WARNING!

The appliance must not be installed behind the lockable door,
a sliding door or a door with a hinge on the opposite side to
that of the appliance, in such a way that a full opening of the
tumble dryer door is restricted.

12

Venting, continued

Do not screen the exhaust ends of the vent system, or use
any screws, rivets or other fasteners that extend into the duct
to assemble the exhaust system. Lint can become caught in
the screen, on the screws or rivets, clogging the duct work
and creating a fi re hazard as well as increasing drying times.
Use an approved vent hood to terminate the duct outdoors,
and seal all joints with metal foil duct tape. All male duct pipe
fi ttings MUST be installed downstream with the fl ow of air.

Install male fi ttings in correct direction:

correct incorrect

Exceeding the length of duct pipe or number of elbows
allowed in the “MAXIMUM LENGTH” chart can cause an ac­cumulation of lint in the exhaust system. Plugging the system
could create a fi re hazard, as well as increase drying times.

Number of 90° turns

100 mm louvered 65 mm

0 19.5 m 14.6 m

1 15.9 m 12.2 m

2 13.5 m 9.8 m

3 9.8 m 7.3 m

4 9.5 m 4.9 m

MAXIMUM LENGTH

of 100mm Rigid Metal Duct

VENT HOOD TYPE

(Preferred)

TEMPORARY IMAGE

If installing fl exible metal (semi-rigid) venting, do not exceed 2
m total duct length.

13

Electrical connection

This machine is designed to operate on a 220-240 V, single phase, 50 or
60 Hz (depending on country of fi nal destination). Check that your domestic
electrical installation can take the maximum load required (4,5 Kw) also tak­ing into account any other appliances in use.

Connect the machine to an earthed socket, in accordance with current
wiring regulations.

WARNING!

The manufacturer declines any responsibility for damage or injury
through failure to comply with the above safety precautions.

IMPORTANT!

The power supply cable must be accessible after installing the machine.
If the fl exible cord is provided without plug, the appliance must be
provided an accessible all pole disconnection according to 61058-1 for
overvoltage category 3. The nominal cross-sectional area of conductors
must be minimum 4,0 mm2.

Installing power supply cord

1. Turn off power supply to outlet.

2. Remove the screw (1) securing the terminal block access cover in
the lower corner on the back of the dryer.

3. Slide cover upward approximately 1 mm and slowly pull it away from
the back panel.

4. Remove the strain relief cap nut (7) and thread the dryer power cord
through it.

5. Continue threading the power supply cord through the strain relief
below the terminal access, temporarily leaving the cap nut loose at
this time.

6. Attach the power cord neutral conductor and one of the BLACK
wires from the line fi lter to the “N” terminal (3) on the terminal block.
Tighten the screw securely.

NOTE

If a terminal screw falls during cord installation, it can be retrieved in the
terminal screw recovery slot (8) below the access panel.

7. Attach the power cord ground (earth) conductor and the CLEAR­coated wire to the “ ” terminal (4) on the terminal block. Tighten the
screw securely.

8. Attach the power cord “live” conductor and the other BLACK wire to
the “L” terminal (5) on the terminal block. Tighten the screw securely.

IMPORTANT!

After installation ensure that earth wire is longer than power wires.

1

Access cover screw

2

Terminal block

3

Neutral (“N” terminal)

4

Earth/Ground (“ ” terminal)

5

Live (“L” terminal)

6

Internal ground (GREEN screw)

7

Strain relief

8

Terminal screw recovery slot

5

1

2

3

4

5

6

7

8

4

3

9. Slide the strain relief cap nut up the cord and tighten securely on the
strain relief threads.

10. Reinsert terminal block cover and slide downward slightly, ensuring
lower retaining tabs are in place. Reinstall screw removed earlier.

IMPORTANT!

Supplied strain relief fi ts supply cords ranging from 11.4 mm to 18.0 mm.
If your installation requires a cord outside these dimension parameters,
purchase and install the appropriate strain relief from a local supply store.

14

6

60 Hz to 50 Hz dryer conversion

This dryer was delivered from the manufacturer as a 60 Hz
appliance. To get the maximum effi ciency from this dryer when
operating on 50 cycle alternating current, the motor pulley
must be positioned with the grooved end away from the motor.
The belt must run in the set of grooves closest to the motor.

Follow these steps for correct pulley orientation for 50 Hz:

1. Disconnect unit from power supply.

2. Follow instructions on next page for information about
removing back sheet panel.

3. Release belt from belt tensioner.

4. Remove, reverse and reinstall pulley so grooved end is
away from motor for 50 Hz operation.

Belt Must Be Run
In Set of Grooves
Closest to Motor

50 Hz to 60 Hz dryer conversion

To get the maximum effi ciency from this dryer when operat­ing on 60 cycle alternating current, the motor pulley must be
positioned with the smooth end away from the motor. The
belt must run in the set of grooves closest to the motor. Fol­low the steps to the left and on the next page, but orient the
pulley according to image below for 60 Hz operation.

Belt Must Be Run
In Set of Grooves
Closest to Motor

Grooved End Away From
Motor for 50 Hz.

5. Reinstall belt on tensioner and pulley. Ensure belt runs in
set of grooves closest to motor.

6. Reinstall back sheet panel.

Smooth End Away From
Motor for 60 Hz.

15

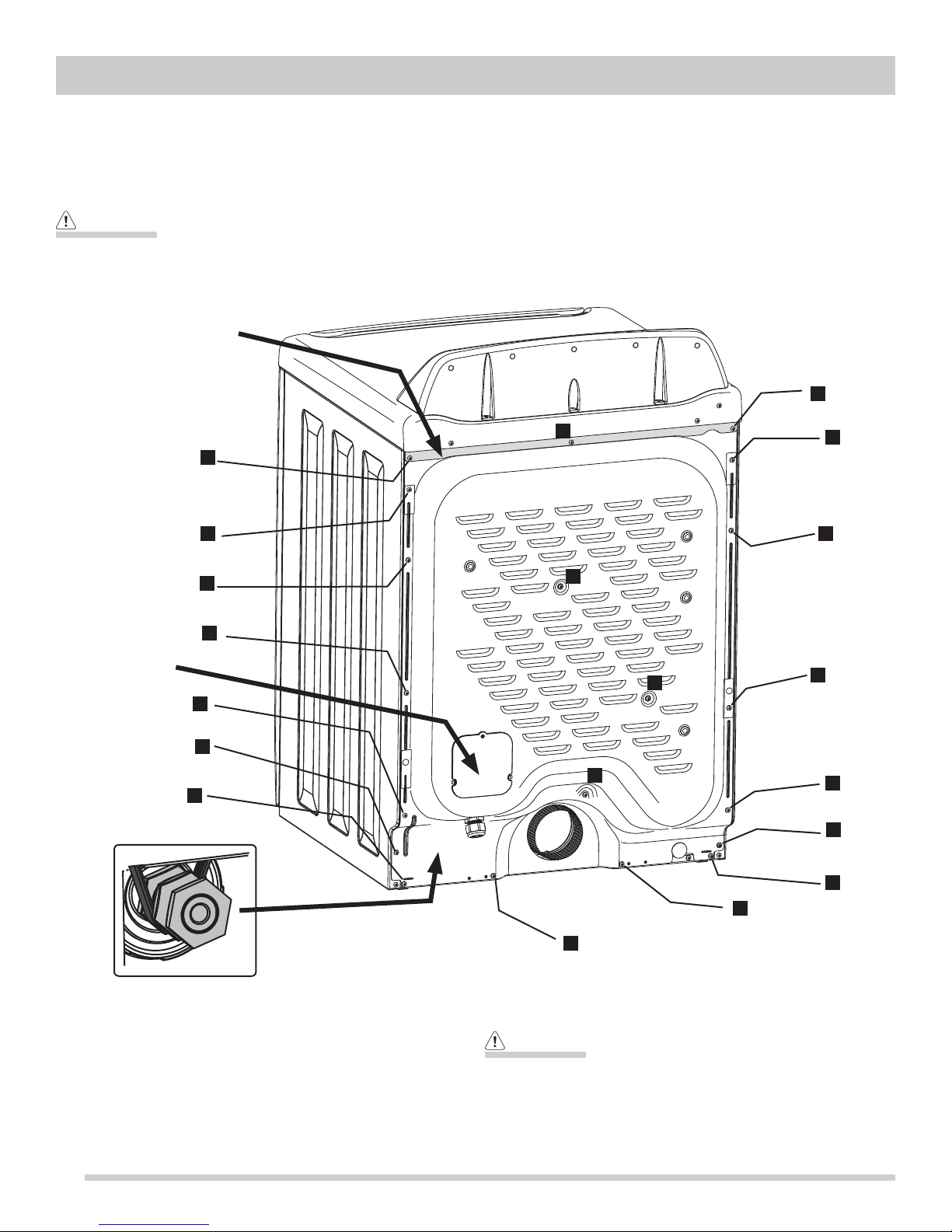

Removing Back Sheet Panel

To remove the back sheet panel and gain access to the dryer
motor pulley:

WARNING!

Protect yourself from cuts. Wear protective gloves as you
handle the edges of the back sheet after removing it from the
dryer.

Upper rear
bracket

1. Disconnect unit from power supply.

2. Remove terminal access cover and disconnect power
cord from terminals if already installed.

3. Remove all screws (1-20) holding back sheet to rear of
cabinet and lay back sheet aside.

4. Motor pulley is accessible under the rear bulk head panel.

12

Terminal access
cover

9

10

11

1

5

6

7

8

2

3

4

13

14

15

16

17

Motor pulley loca­tion behind back
sheet panel

Reinstalling Back Sheet Panel

1. Insert back panel so it is “sandwiched” between the
upper rear bracket and the side panel edges.

2. Insert top center screw (1) fi rst, followed by screws 2, 3,
and 4 down the center of the back sheet.

3. Insert all remaining screws around the outside edges and
along base (5-20).

16

18

19

20

WARNING!

Do not reconnect power supply until motor pulley is in correct
orientation for your usage, belt is reinstalled on pulley and
back sheet installation is complete.

4. Reinstall power wires according to electrical connection
instructions earlier.

General Installation

1. Connect the exhaust duct to the outside exhaust system.
Use of a 100 cm clamp is recommended to connect the
dryer to the exhaust vent system. Use metal foil tape to
seal all other joints.

2. Carefully slide the dryer to its fi nal position. Adjust one or
more of the legs until the dryer is resting solidly on all four
legs. Place a level on top of the dryer. The dryer MUST be
level and resting solidly on all four legs. Rock alternating
corners to check for stability.

IMPORTANT:

Be sure the power is off at a circuit breaker/fuse box before
plugging the power cord into an outlet.

3. Plug the power cord into a grounded outlet.

4. Turn on the power at the circuit breaker/fuse box.

5. Read the Use & Care instruction at the beginning of this
guide. It contains valuable and helpful information that will
save you time and money.

6. If you have any questions during initial operation, please
review the “Avoid Service Checklist” before calling for
service.

7. Place these instructions in a location near the dryer for
future reference.

NOTE

A wiring diagram and technical data sheet are located inside
the dryer console.

CLAMP

To remove the console faceplate follow the directions below:

1. Disconnect dryer from electrical source.

2. Remove the hole plugs on the back of the console

housing.

3. Insert a small, straight blade screw drive to gently pry

downward on each faceplate retaining tab.

4. Gently lay the console faceplate forward without pulling

wires to access technical/wiring diagram.

5. When fi nished with repair, return sheet inside console,

snap faceplate to console housing and reinstall hole
plugs.

TECH DATA SHEET/
WIRING DIAGRAM

17

Reversing door swing

Your dryer is designed so the door swing may be reversed at any time without additional parts. Conversion is accomplished
by transferring hinges and door strike to the opposite sides of the cabinet.

• Be sure you have adequate swing area before
reversing door.

• You will need a screw driver with a #2 square bit
and a pair of pliers.

• Protect fl at work surface, such as top of dryer or
fl oor near dryer, with a soft cloth or towel.

• Be sure dryer is unplugged from power source!

1. Open door and remove four plugs in the door opening
opposite the hinges. Retain all parts for use later, unless
otherwise noted. (Figure below)

ELECTRICAL SHOCK HAZARD

Failure to disconnect power source
before servicing could result in per­sonal injury or even death.

NOTE

You may need a plastic knife to help pull out the plugs. Be
careful not to scratch the paint.

HOLE PLUGS (x 4)

FRONT PANEL
HINGE SCREWS (x 4)

WARNING!

3. Place door on a towel (front side down) to prevent
scratches to paint or window (if equipped). Remove all
four remaining long hinge screws on edge of door. (Figure
below)

Tools needed:

Screwdriver with

#2 square bit

Adjustable

pliers

DOOR EDGE
SCREWS (x 4)

“D” STAMPED ON
DOOR SIDE OF
HINGE INTERIOR

2. Begin removing the four short screws that attach the
hinge to the front panel. (Figure Above) Start by only
removing one screw per hinge. Then only loosen the two
remaining screws while fi rmly holding the door to prevent
damage to hinge, front panel or door. After the remaining
screws are loosened, continue to remove all.

DOOR HINGE
SCREWS (x 4)

4. Remove the four long screws from edge of door opposite
hinges. (Figure above)

18

5. Install four long screws securing hinge to door assembly
in the new location, take note to place each hinge in
correct orientation. (Figure below)

IMPORTANT:

The plate with the stamped “D” is mounted to the door. The
“D” must be visible after the hinge is remounted and the
spine of the hinge should be oriented toward the front side of
the door for correct operation.

DOOR EDGE
SCREWS (x 4)

DOOR HINGE
SCREWS (x 4)

9. Install new striker (included in literature bag) into hole
square plug was previously installed in. (Figure below)

10. Grasping fi rmly the top of the door, position the door near
the door opening and align the top hinge hole to the top
hole in the front panel door opening. Once the fi rst short
screw is started, attach the second short screw to the
lower hinge. Once both screws are tightened, install the
remaining two short screws. (Figure below)

“D” STAMPED ON DOOR
SIDE OF HINGE INTERIOR

6. Install four long screws into holes that had secured the
hinges. (Figure above)

7. Remove striker and discard. (Figure below)

8. Remove square plug opposite striker. (Figure above) If
plug is damaged during removal, discard and install new
plug (included in literature bag) into hole striker was just
removed from.

HOLE PLUGS (x 4)

“D” STAMPED ON
DOOR SIDE OF
HINGE INTERIOR

11. Install four plugs into the front panel door opening where
hinges were originally installed. (Figure above)

12. Close the door and test operation of hinge, strike and
latch.

19

Environmental concerns

Packaging materials

The materials marked with the symbol are recyclable.
This means that they can be recycled by disposing of them
properly in appropriate collection containers.

Old appliance

Use authorised disposal sites for your old appliance. Help to
keep your country tidy!

The symbol
that this product may not be treated as household waste.
Instead it should be taken to the appropriate collection point
for the recycling of electrical and electronic equipment. By
ensuring this product is disposed of correctly, you will help
prevent potential negative consequences for the environment
and human health, which could otherwise be caused by in
appropriate waste handling of this product. For more detailed
information about recycling of this product, please contact
your local council, your household waste disposal service or
the shop where you purchased the product.

on the product or on its packaging indicates

Ecological tips

• Keep the lint screen clean and exhaust the dryer correctly.

• Sort laundry properly and select proper temperature and

cycle settings. Choose an automatic dry cycle whenever
possible for accurate drying time.

• Dry only full loads. Single items and small loads usually

take longer to dry.

• Avoid overloading, adding wet items to a partially dry load,

and overdrying.

• Dry one load after another to take advantage of a warm

dryer.

• Opening the door needlessly causes warm air to escape,

which prolongs drying time.

• If possible, use the dryer on low humidity days.

• Install the dryer in an area where the room temperature is

at least 7°C.

20
