White-Westinghouse WAC061L7A1 Installation Guide

Room Air Conditioner

Installation and Operation Manual

UNIT MODEL/

WACO6OKTA 127-1-60 WAC061 LTA 127-1-60

WALIOOK1A 127-1-60 WALl 26K2A 220-1-60 WAS180K2A 220-1-60 WAS250K2A 220-1-60

Record the Model No. and Serial No. of this appliance in the space provided below. The serial plate is located behind the

front louvers, or (on some models) on the outside of the cabinet.

Model No.

Serial No,

POWERSUPPLY

VOLTAGEVARIATION

(VOLTS)

MIN. MAX.

114.3 139.7

114.3 139.7 198 242 198 242 198 242

AMBIENT AIR ON CONDENSER

MIN. °F (°C)

70(20.1)

70(20.1) 70(20.1) 70(20.1) 70(20.1)

MAX. °F (°C)

115(46.1)

115(46.1) 115(46.1) 115(46.1) 115(46.1)

Keep these numbers for future reference.

IMPORTANT: Keep a copy of your bill of sale, The date on the bill establishes the warranty period should service be required,

If service is performed, it is in your best interest to obtain and keep all receipts,

Contents

2 How and Why 2 Important Safety Instructions 2 Energy Saving Ideas

3 Installation

4 Using the Air Conditioner

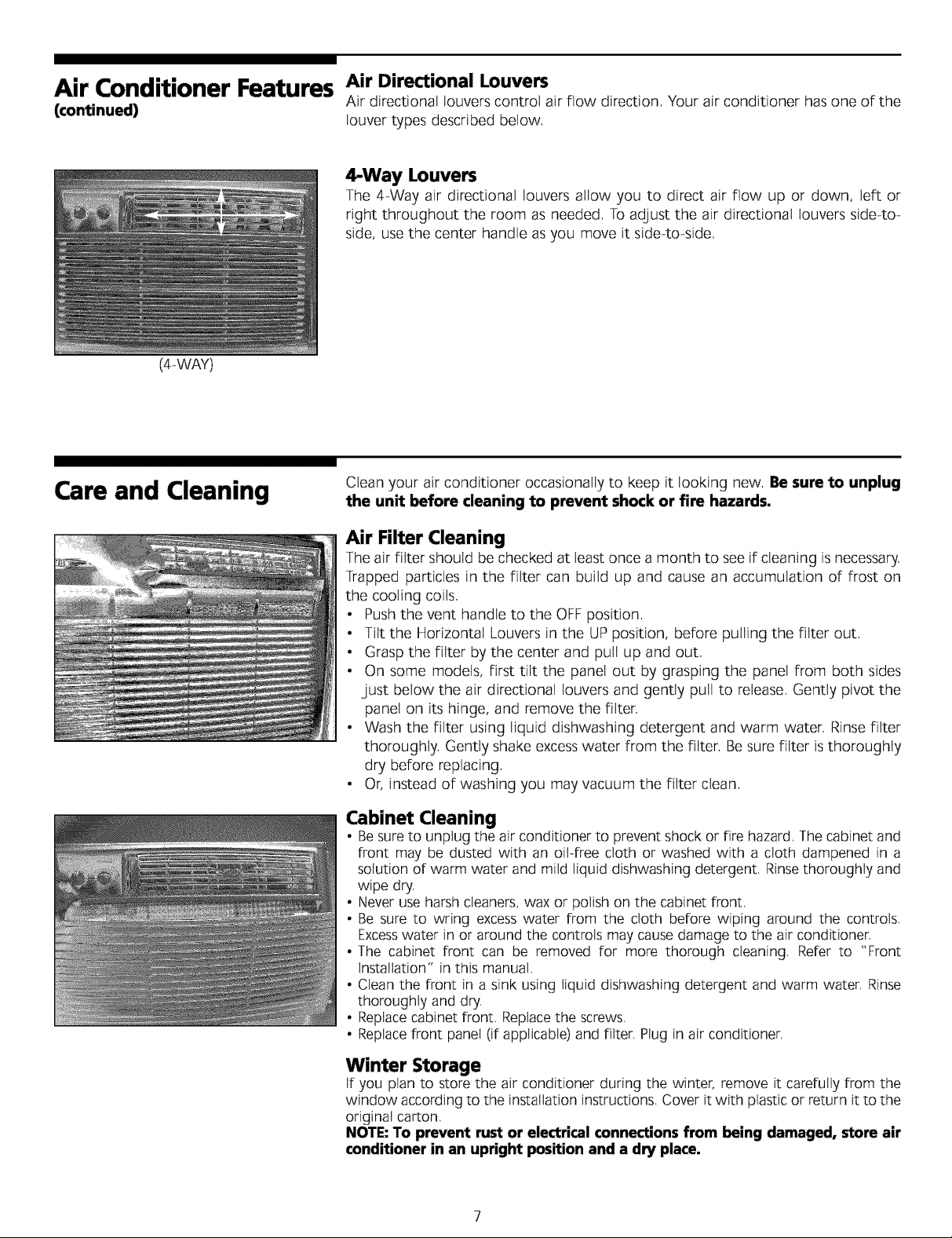

5-6 Air Conditioner Features 7 Care and Cleaning

8 Before You Call for Service

Pleasecontact your dealer/distributor for any questions or problems you may have pertaining to your new air conditioner,

309000841 (0104)

How and Why

Important Safety Instructions

Technical Specifications

•Indoor Fan Speeds 3

•Electrical Supply

•Fuse Rating (MAX,) 15 Amp (Over 18,000 Max is 20Amp)

Actual cooling capacity might vary according to local

environmental conditions.

Optional operating temperatures:

•Indoor 65° to 104°

•Outdoor 70° to 104°

This Useand Care Manual provides specific operating instructions for your model Use the air conditioner only as

instructed in this manual These instruc-

tions are not meant to cover every

possible condition and situation that may occur Common senseand caution must

be practiced when installing, operating, and maintaining any appliance

V/Ph/Hz 127/1/60 220-240/1/60

Your room air conditioner provides the following functions to make hot weather

living more comfortable:

• Cools and circulates room air

• Lowers humidity by removing excess moisture

• Filters out summertime dust, dirt, and some airborne impurities

The air conditioner performs these functions by drawing room air through a filter which traps dust and dirt particles The air then passes over a cooling coil which refrigerates the air and removes excess moisture The same air is then returned to

the room -- cooler, drier and cleaner Moisture removed from the room air iscarried to the outside and evaporated

Your air conditioner is designed to be easy to operate and to provide plenty of cooling power

Read all instructions before using this air conditioner.

For Your Safety

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of

this or any other appliance Read product labels for flammability and other warnings

Prevent Accidents

To reduce risk of fire, electrical shock, or injury to persons when using your air conditioner, follow basic precautions, including the following:

• Besure electrical service is adequate for model you have chosen, This information can be found on the serial plate, which is located either behind louvers or on left side of cabinet,

• If air conditioner is to be installed in window, you will probably want to clean

both sides of glass first, If window is a triple-track type with screen panel included, remove screen completely before installation,

• Besure air conditioner has been securely and correctly installed according to the separate installation instructions provided with this manual, Savethis manual and

installation instructions for possible future use in removing or reinstalling this unit,

• When handling the air conditioner, be careful to avoid cuts from sharp metal fins on front and rear coils,

Electrical Information

The complete electrical rating of your new room air conditioner is stated on the serial plate Refer to the rating when checking the electrical requirements

• Besure air conditioner is properly grounded To minimize shock and fire hazards,

proper grounding is important The power cord is equipped with a three-prong

grounding plug for protection against shock hazards

• Your air conditioner must be used in a properly grounded wall receptacle If wall receptacle you intend to use is not adequately grounded or protected by a time delay fuse or circuit breaker, have a qualified electrician install proper receptacle

• Do not run air conditioner with outside protective cover in plate This could result

in mechanical damage within the air conditioner

• Do not use an extension cord or an adapter plug.

• In case of damage to power cord, it should be replaced by an authorized

technician.

Energy Saving Ideas

• Do not block air flow inside with blinds, curtains or furniture; or outside with shrubs, enclosures, or other buildings.

• Room air conditioner capacity must fit room size for efficient operation

• Install room air conditioner on shady side of home A window that faces north is

best because it isshaded most of the day

• Close fireplace damper, floor and wall registers so cool air does not escape

• Keep blinds and drapes in other windows closed during sunniest part of day

• Clean air filter as recommended in section "Care and Cleaning"

• Proper home insulation and weather stripping keeps warm air out and cool air in

• Operate heat producing appliances such as ranges, washers, dryers and dishwashers during coolest part of the day

Installation

Warranty will be voided if installation instructions are not followed,

Readentire "installation" section before beginning installation,

Spirit Level

Unit level side-to-side

Wall

4-Spirit Level

Unit

Spirit Level

No slope Slope toward front

Minimum

12 in

_ [30.5cm]

Air in

m t

Wall Front of Unit

24 in.

[61.0cm ]

Front of Unit Front of Unit

Minimum clearance between two units

Wall

Too close
