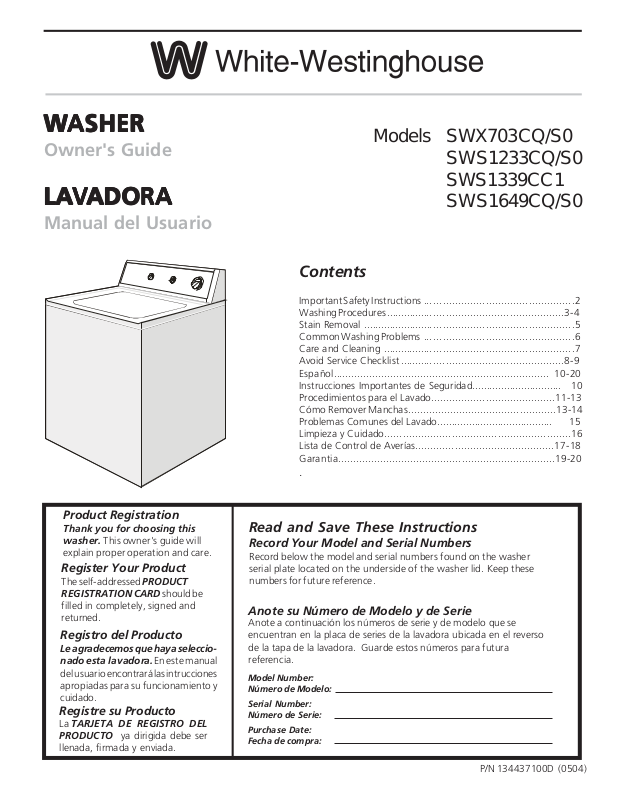

White-Westinghouse SWS1233CQ-S0, SWX703CQ-S0, SWS1339CC1, SWS1649CQ-S0 User Manual
WW
ASHERASHER
W
ASHER
WW
ASHERASHER
Owner's Guide
LALA
VV
LA
LALA
ADORAADORA
V
ADORA
VV
ADORAADORA
Manual del Usuario
Models SWX703CQ/S0
SWS1233CQ/S0
SWS1339CC1
SWS1649CQ/S0
Contents
Important Safety Instructions ... ..............................................2
Washing Procedures ................ ...........................................3-4
Stain Removal ......................................................................5
Common Washing Problems .................................................6
Care and Cleaning ...............................................................7
Avoid Service Checklist ......................................................8-9
Español........................................................................ 10-20
Instrucciones Importantes de Seguridad............................... 10
Procedimientos para el Lavado.........................................11-13
Cómo Remover Manchas.................................................13-14
Problemas Comunes del Lavado........................................ 15
Limpieza y Cuidado.............................................................16
Lista de Control de Averías..............................................17-18
Garantia........................................................................19-20
.
Product Registration
Thank you for choosing this
washer. This owner's guide will
explain proper operation and care.
Register Your Product
The self-addressed PRODUCT
REGISTRATION CARD should be
filled in completely, signed and
returned.
Registro del Producto
Le agradecemos que haya seleccionado esta lavadora. En este manual
del usuario encontrará las intrucciones
apropiadas para su funcionamiento y
cuidado.
Registre su Producto
La TARJETA DE REGISTRO DEL
PRODUCTO ya dirigida debe ser
llenada, firmada y enviada.
Read and Save These Instructions
Record Your Model and Serial Numbers
Record below the model and serial numbers found on the washer
serial plate located on the underside of the washer lid. Keep these
numbers for future reference.
Anote su Número de Modelo y de Serie
Anote a continuación los números de serie y de modelo que se
encuentran en la placa de series de la lavadora ubicada en el reverso
de la tapa de la lavadora. Guarde estos números para futura
referencia.
Model Number:
Número de Modelo:
Serial Number:
Número de Serie:
Purchase Date:
Fecha de compra:
1
P/N 134437100D (0504)
This Owner's Guide
Grounding type
w
grounding plug
provides general
operating instructions for
your washer. It also
contains information
about features for
several other models.
Your washer may not
have every feature
included here.
Use the washer only as
instructed in this Owner's
Guide and the
Operating Instructions
card included with your
washer.
Avoid fire hazard or
electrical shock. Do
not use an adaptor
plug or extension
cord or remove
grounding prong
from electrical
power cord. Failure
to follow this
warning can cause
serious injury, fire or
death.
all receptacle
Grounding type
wall receptacle
Use this way ONLYUse this way ONLY
Use this way ONLY
Use this way ONLYUse this way ONLY
Do not under
Do not under
any circumstances
any circumstances
cut, remove,
cut, remove,
or bypass
or bypass
the grounding prong
the grounding prong
from this plug
from this plug.
Power supply
Power supply
cord with 3-prong
cord with 3-prong
grounding plug
CORRECTCORRECT
CORRECT
CORRECTCORRECT
Do not use or mix
liquid chlorine bleach with
other household chemicals
such as toilet cleaners, rust
removers, acid or products
containing ammonia. These
mixtures can produce
dangerous fumes which can
cause serious injury or death.
Note: The instructions
appearing in this
Owner's Guide are not
meant to cover every
possible condition and
situation that may
occur. Common sense
and caution must be
practiced when
installing, operating
and maintaining any
appliance.
Important Safety Instructions
Read all instructions before using this washer.
Prevent Fire
etc. Do not store these items on or near the washer. These substances give off vapors or chemical reactions that could ignite or explode.
that could ignite or explode.
GAS IS EXPLOSIVE. If the hot water system has not been used for such a period, before using the washer, turn on all hot water faucets and let the
water flow from each for several minutes. This will release any accumulated hydrogen gas. Hydrogen gas is flammable; do not smoke or use an open
flame during this time.
FOR YOUR SAFETY
Do not store or use gasoline or other flammable vapors
or liquids in the vicinity of this or any other appliance.
Protect Children
grow, teach them the proper, safe use of all appliances.
with rugs, bedspreads or plastic sheets can become airtight chambers.
Prevent Injury
person in accordance with local codes. Installation instructions are packed in the washer for installer's reference. Refer to INSTALLATION INSTRUCTIONS
for detailed grounding procedures. If the washer is moved to a new location, have it checked and reinstalled by a qualified service person.
and polarized 3-prong outlet. The third grounding prong must never be removed. Never ground the washer to a gas pipe. Do not use an
extension cord or an adaptor plug.
• Do not combine laundry products for use in 1 load unless specified on the label.
• Do not mix chlorine bleach with ammonia or acids such as vinegar.
• All repairs and servicing must be performed by an authorized servicer unless specifically recommended in this Owner's Guide. Use only
• Do not tamper with controls.
• Do not install or store the washer where it will be exposed to the weather.
shock or injury.
knob and allow the tub to coast to a complete stop before reaching inside.
SAVE THESE INSTRUCTIONS
To reduce the risk of fire, electrical shock, or injury to persons when using this washer, comply with the basic warnings listed below.
Failure to comply with these warnings could result in serious personal injuries.
Do not wash items that have been previously cleaned in, soaked in, or spotted with gasoline, cleaning solvents, kerosene, cooking oils, waxes,
Do not put oily or greasy rags or clothing on top of the washer. These substances give off vapors that could ignite the materials.
Do not add gasoline, cleaning solvents, or other flammable or explosive substances to the wash water. These substances give off vapors
Under certain conditions, hydrogen gas may be produced in a hot water system that has not been used for 2 weeks or more. HYDROGEN
Failure to comply with these warnings could result in fire, explosion, serious bodily injury and/or damage to the rubber or plastic parts of the washer.
Do not allow children to play on or in the washer. Close supervision of children is necessary when the washer is used near children. As children
Destroy the carton, plastic bag and other packing materials after the washer is unpacked. Children might use them for play. Cartons covered
Keep laundry products out of children's reach. To prevent personal injury, observe all warnings on product labels.
Before the washer is removed from service or discarded, remove the washer lid to prevent accidental entrapment.
Failure to comply with these warnings could result in serious personal injuries.
To prevent shock hazard and assure stability during operation, the washer must be installed and electrically grounded by a qualified service
If the power cord is damaged, it should be replaced by the manufacturer, service technician or a qualified person to prevent any risk.
To prevent personal injury or damage to the washer, the electrical power cord of the washer must be plugged into a properly grounded
Follow package directions when using laundry products. Incorrect usage can produce poisonous gas--resulting in serious injury or death.
To prevent serious personal injury and damage to the washer:
authorized factory parts.
ALWAYS disconnect the washer from the electrical supply before attempting any service or cleaning. Failure to do so can result in electrical
To prevent injury, do not reach into the washer while parts are moving. Before loading, unloading or adding items, push in the cycle selector
Failure to comply with these warnings could result in serious personal injuries.
This washer is equipped with an electrical overload protector. The motor will stop if it becomes overheated. The washer will automatically restart
after a cool down period of up to 30 minutes, if the washer has not been manually turned off during this time.
2
Printed in U.S.A.
WW
ashing Prashing Pr
W
ashing Pr
WW
ashing Prashing Pr
Sort laundry into loads that can be
ocedurocedur
ocedur
ocedurocedur
washed together.
eses
es
eses
• Follow the guidelines below for preparing the wash load.
• Read the Operating Instructions card for operating your specific model.
• Always read and follow fabric care and laundry product labels.
To reduce the risk of fire, electrical shock, or injury to persons, read
Important Safety Instructions, pages 2-3, before operating this washer.
1. Sort laundry into loads that can be washed together.
Sort items by recommended water temperatures, wash time, and agitate/spin
speeds.
• Separate white, light, and colorfast items from dark and noncolorfast items.
• Separate items which shed lint from items which attract lint. Permanent
press, synthetic, knit and corduroy items will pick up lint from towels, rugs
and chenille bedspreads.
• Separate heavily soiled items from lightly soiled items.
• Separate lacy, sheer and loosely knit items from sturdy items.
2. Prepare items for washing.
• Empty pockets.
• Brush off lint and dirt. Shake out rugs and beach towels.
• Close zippers, fasten hooks, tie strings and sashes, and remove nonwashable
trims and ornaments.
• Remove pins, decorative buttons, belt buckles, and other objects which
could be damaged. This also helps protect other items in the wash load.
• Mend rips and tears to prevent further damage during washing.
• Place delicate items such as bras, shoulder pads, hosiery, and belts in a mesh
bag to prevent tangling during the wash cycle.
• Turn knit items inside out to prevent pilling.
Empty pockets.
Place delicate items in a mesh bag.
3. Pretreat stains and heavy soil.
See Stain Removal, pages 6-7, for details.
4. Add a measured amount of detergent to the wash tub
before adding the laundry load.
Follow detergent manufacturer's directions. The amount required depends on
type of detergent, load size and soil level, and water hardness.
5. If desired, add liquid bleach to Bleach Dispenser (some models).
• Before adding the wash load, add liquid bleach to bleach dispenser located
in left front corner under the lid:
• 3/4 cup (180 ml) for small loads
• 1 cup (240 ml) for large loads
• 1-1/4 cups (300 ml) for extra-large loads.
• Then add 1 cup (240 ml) water to flush the dispenser.
• Do not use powdered bleach in the bleach dispenser.
For models without a bleach dispenser, dilute the recommended amount of
liquid chlorine bleach in 1 quart (.95 L) water. Add it to wash water after
a few minutes of agitation. Do not pour bleach directly on wash load.
Bleach Dispenser (some models)
3
