White’s Electronics Bullseye 2 User Manual

120mm
BULLSEYE 2

ELECTRONIC PINPOINTING PROBE

DETECTION
AREA

HIGH INTENSITY
LED LIGHT

SENSITIVITY
ADJUST KNOB

ON BUTTON

Introduction

White's 120mm probe length Bullseye is designed to be
used as an aid to target location (pinpointing probe), as well as
for locating wall studs and other near surface metals.
Once the general location has been pinpointed with a
conventional detector, near surface metals can easily be
located with the Bullseye avoiding serious digging altogether.
Deeper metals may require some digging prior to using the
Bullseye.
The Bullseye is an invaluable tool to speed locating the
metal either in the bottom of the hole, the flap of turf, the side
of the hole, or in the pile of dirt removed from the hole. This
can be cumbersome with the conventional metal detector
alone, due to their ever increasing sensitivity, wide scanning
loops and physical size. The Bullseye provides reduced
sensitivity to isolate and recover such metal quickly. Such a
probe would not be useful if it approached the sensitivity
expectations of conventional metal detector models.
The end of the probe is waterproof. However, the Bullseye's
control box is not water proof and must be protected from
moisture/mud. Slip it into zip lock plastic bag on wet days.
The Bullseye is not digging tool, avoid using the probe to
pry metal from the ground.
The sensitivity areas of this probe are the very end of the
shaft protruding from the control box, as well as the sides near
this end, see DETECTON AREA on cover. This allows the
probe to be circled around a hole to determine what side of the
hole the metal is in. The end can be moved over a pile of dirt,
or turf flap. Like a conventional detector "X" the tip of the
probe over the area to find the metals center.

Batteries

To open battery door, placing your thumb on the recess area
on battery door, press down and sliding it out. Put in fresh 9V
battery (alkalines recommended) observe polarity. (If battery is
put in wrong orientation, battery door will not be able to close.)

Low battery alert:

When battery is low, unit will vibrate or beep continuously

Battery life: up to 20 hours.

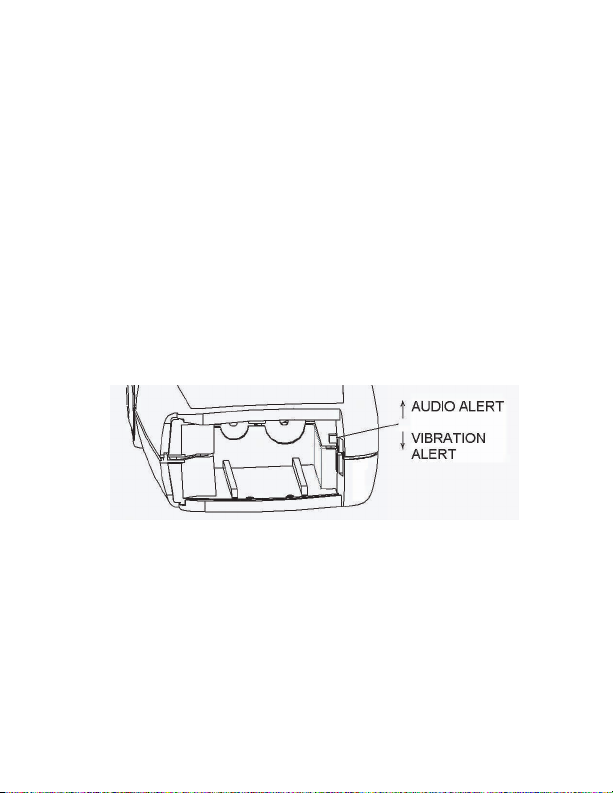

Selecting Audio or Vibration Alert:

Open battery door, remove battery, slide switch to desired
alert type. Put battery back and close battery door

Sensitivity adjustment:

Rotate sensitivity adjustment knob clockwise to increase
sensitivity or counter-clockwise to decrease sensitivity. For
maximum sensitivity, press and "hold" the ON button and at the
same time rotate sensitivity knob clockwise until the unit is
vibrating or beeping continuously, then rotate counter-clockwise
to the point the unit just stop vibrating or beeping.
(If sensitivity setting exceed its maximum allowable range, the
unit will beep or vibrate all the time when ON button is pressed)

Field use

1. Press and "hold" the ON button continuously for the
detection of metal. High intensity LED will also be turned on
for target illumination at the same time. (If the unit beep or
vibrate without any metal target nearby, it is very likely that
the sensitivity setting exceed its allowable range. Please
adjust sensitivity according to Sensitivity Adjustment
session.)

2. High intensity LED also indicates the Bullseye is ON and
ready to detector any metal that nears the end of the probe.

3. When the button is released the Bullseye reverts to OFF,
light is also turn OFF.

4. The Bullseye's automatic tuning requires very little motion
or movement of the probe in order to detect a metal and
ignore the ground. Practice with a coin or other small metal
to become familiar with this very slight movement required
to pinpoint a metal.

5. The best method on a salt water beach is still a sand scoop.
The Bullseye may detect conductive salt concentrations or
pockets as is common with (VLF) type metal detectors.

Warranty

The 120mm Bullseye is warranted for one year from the
original date of purchase to be free of defects in material and
workmanship.
Items excluded are batteries, shipping costs and damage due
to abuse, corrosion, modifications, or water.
Simply return the Bullseye to the place of purchase, or to one
of our White's Authorized Service Centers, with a copy of the
sales receipt, and a letter of explanation.
