Introduction
The Matrix 100 Handheld Metal Detector is a world class security scanner. It is designed to meet
and exceed the needs and specifications of today’s security conscious world, and complies with
all National Institute of Justice standards for indoor/outdoor operations. “Made in the U.S.A.” is
a hallmark of White’s Electronics, the Matrix 100 utilizes the latest in electronic design technology
that is both functional and attractive.
The Matrix 100 Handheld Metal Detector is designed to detect metal and is primarily for security
applications, however it is useful for a myriad of detection applications.
Table of Contents
Matrix 100 Features
Front–View .....................................................................................................4
Back–View ......................................................................................................5
Top Edge .........................................................................................................6
Bottom Edge ...................................................................................................6
Mechanical Drawing-metric Dimensions ..................................................6
Battery Door ...................................................................................................7
ON/OFF Button .......................................................................................................8
Sensitivity Control ..................................................................................................9
Volume Control for Earbud .................................................................................10
Testing the Scanner ...............................................................................................10
Batteries ..................................................................................................................11
Battery Installation ...............................................................................................12
De-sense Button ....................................................................................................13

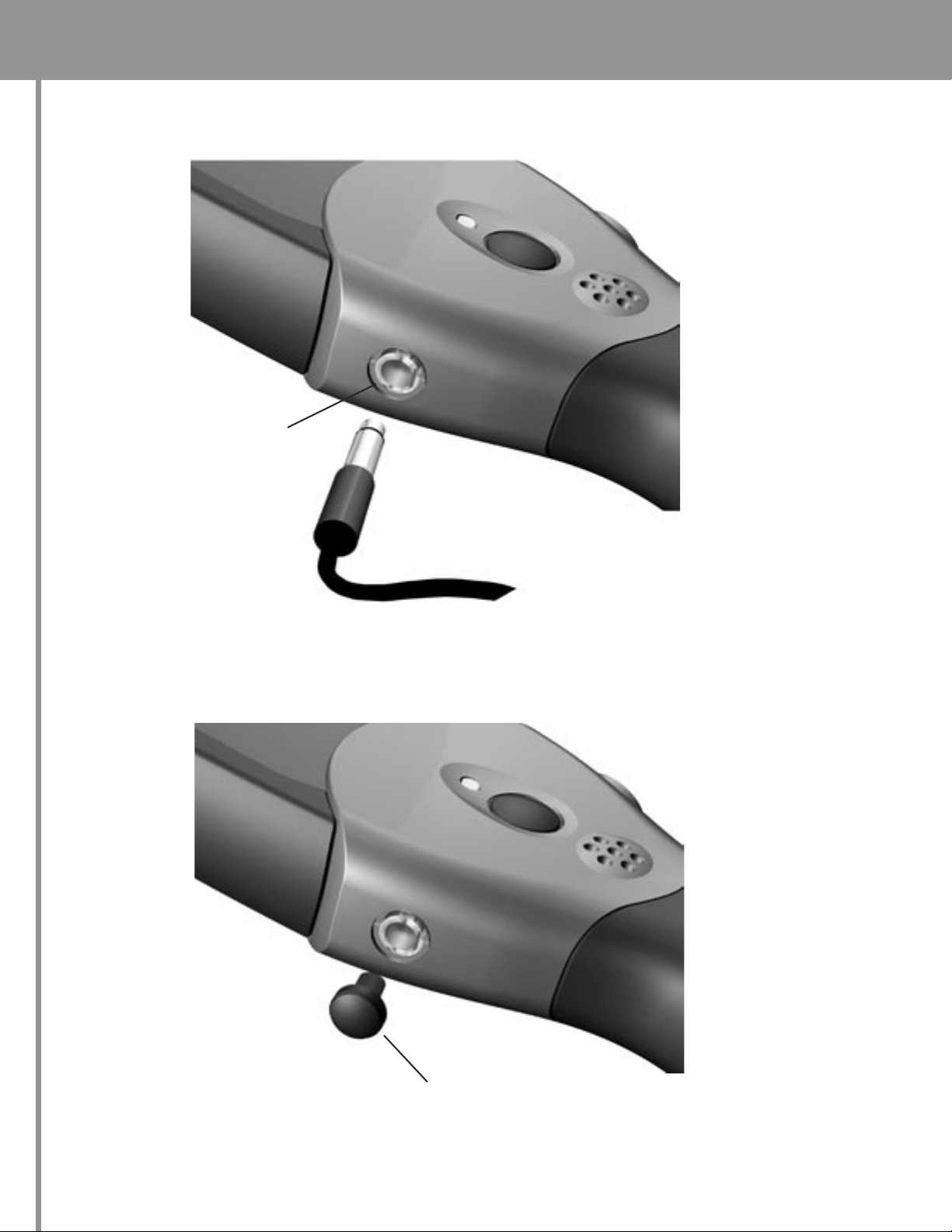

Earbud Jack ............................................................................................................14
Earbud Jack Rubber Plug .....................................................................................14

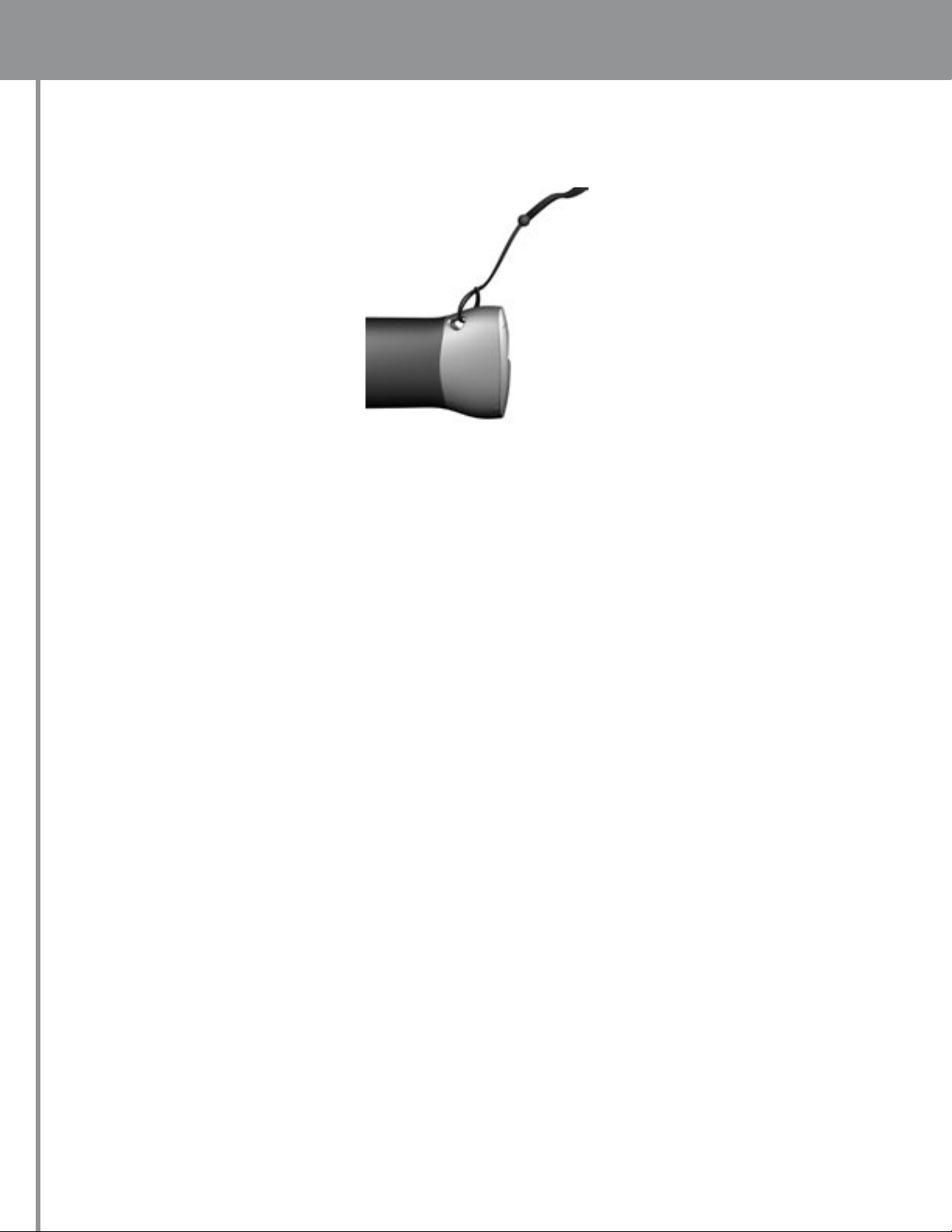

Lanyard ..................................................................................................................15
Scanning .................................................................................................................15
Three–year Warranty ............................................................................................19
Specifications .........................................................................................................20
Accessories .............................................................................................................21
Security Distributors ............................................................................................22
Contact Information .............................................................................Back Cover
Features – Front view
888-778-9010 www.whiteselectronics.com
3
Features—Front View
Visual indicator LED
ON/OFF LED and
Low battery indicator
ON/OFF button
Features – Back view
De-sense button
Lanyard
hole
Audio speaker
Battery door
888-778-9010 www.whiteselectronics.com
4
Features—Back View
Visual indicator LED
Lanyard
hole
Battery
door
De-sense button
Sensitivity
control
access
hole
Volume
control
access
hole
20 cm
Scan area
Earbud jack with
rubber plug
888-778-9010 www.whiteselectronics.com
5
Features—Top Edge
Battery
door
Lanyard hole
De-sense button
Features—Bottom Edge
20 cm
Visual indicator LED
20 cm
Scan area
Earbud jack and
rubber plug
Battery
door
Scan area
Mechanical Drawing-metric Dimensions
888-778-9010 www.whiteselectronics.com
6
Features—Battery Door
Battery door
Stylus
Battery polarization graphic
888-778-9010 www.whiteselectronics.com
7
ON/OFF Button
There are three selections for the ON/OFF button:
• ON Audio
• ON Vibrate
• OFF
ON Audio—press the ON/OFF button once. This will be followed
by a single, double, or triple beep to indicate the current sensitivity
level setting. The green ON indicator LED will emit a single flash
for low sensitivity, double flash for medium sensitivity or a triple
flash for high sensitivity.
ON Vibrate—press the ON/OFF button twice. This will be followed
by a single vibration burst and the ON indicator LED will emit a
single flash for low sensitivity, double flash for medium sensitivity,
or a triple flash for high sensitivity. The audio alarm is deactivated
when the vibrate alarm is activated.
OFF—Turn the unit off by pressing the ON/OFF button once. The
ON indicator LED will disappear.
Earbud jack
ON/OFF indicator LED
ON/OFF button
Speaker
888-778-9010 www.whiteselectronics.com
8
