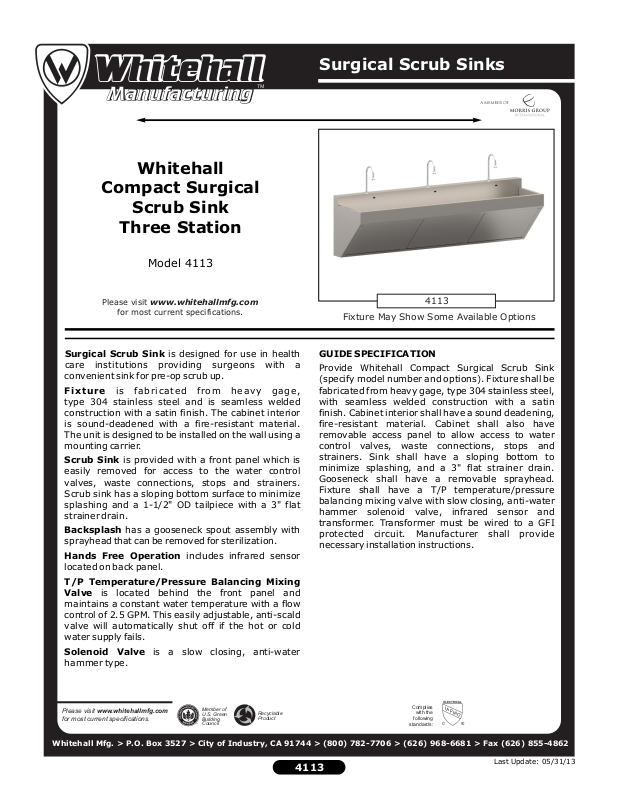

Page 1
Whitehall
Surgical Scrub Sinks
Compact Surgical
Scrub Sink
Three Station
Model 4113
Please visit www.whitehallmfg.com
for most current specifications.
Surgical Scrub Sink is designed for use in health GUIDE SPECIFICATION
care institutions providing surgeons with a
convenient sink for pre-op scrub up.
Fix tur e is f abr ica ted fro m heavy g age , fabricated from heavy gage, type 304 stainless steel,
type 304 stainless steel and is seamless welded with seamless welded construction with a satin
construction with a satin finish. The cabinet interior finish. Cabinet interior shall have a sound deadening,
is sound-deadened with a fire-resistant material. fire-resistant material. Cabinet shall also have
The unit is designed to be installed on the wall using a removable access panel to allow access to water
mounting carrier. control valves, waste connections, stops and
Scrub Sink is provided with a front panel which is
easily removed for access to the water control
valves, waste connections, stops and strainers.
Scrub sink has a sloping bottom surface to minimize
splashing and a 1-1/2" OD tailpiece with a 3" flat
strainer drain.
Backsplash has a gooseneck spout assembly with
sprayhead that can be removed for sterilization.
Hands Free Operation includes infrared sensor
located on back panel.
T/P Temperature/Pressure Balancing Mixing
Valve is located behind the front panel and
maintains a constant water temperature with a flow
control of 2.5 GPM. This easily adjustable, anti-scald
valve will automatically shut off if the hot or cold
water supply fails.
Solenoid Valve is a slow closing, anti-water
hammer type.
Fixture May Show Some Available Options
Provide Whitehall Compact Surgical Scrub Sink
(specify model number and options). Fixture shall be
strainers. Sink shall have a sloping bottom to
minimize splashing, and a 3" flat strainer drain.
Gooseneck shall have a removable sprayhead.
Fixture shall have a T/P temperature/pressure
balancing mixing valve with slow closing, anti-water
hammer solenoid valve, infrared sensor and
transformer. Transformer must be wired to a GFI
protected circuit. Manufacturer shall provide
necessary installation instructions.
4113
Please visit www.whitehallmfg.com
for most current specifications.
Whitehall Mfg. > P.O. Box 3527 > City of Industry, CA 91744 > (800) 782-7706 > (626) 968-6681 > Fax (626) 855-4862
Member of
U.S. Green
Building
Council
Recyclable
Product
4113
Complies
with the
following
standards:
®
Last Update: 05/31/13
Page 2
Surgical Scrub Sinks
BASE MODEL NUMBER
q -4113 Compact Surgical Scrub Sink (3 Station)
MOUNTING
q -MC Mounting Carrier
Please visit www.whitehallmfg.com
for most current specifications.
4"
(102)
2
Product Options
q -EYW Eyewash
q LH Station q RH Station
q CTR Station
q -HTR Chronomite Instantaneous Water Heater
(Refer to Chronomite Labs at
http://chronomite.com for applications and
sales assistance, supplied by Chronomite for
field installation)
q -LFN Laminar Flow Nozzle 1.5 GPM
q -SA Splash Panel
q -SWV Swivel Nozzle on Gooseneck
NOTES:
1. Gooseneck Spout Assembly.
2. Flat Strainer Drain.
5
23"
14
8
(341)
"
(584)
3. Removable Access Panel.
4. Infrared Sensor.
5. Optional -EYW Eyewash
5
4
1
4"
(102)
3
26"
(660)
40"
(1016)
RECOMMENDED
90"
(2286)
18"
(457)
MODEL# 4113-MC-EYW_RH-LFN
SELECTION SUMMARY & APPROVAL FOR MANUFACTURING
All dimensions are nominal and subject to
manufacturer's change without notice. Whitehall
assumes no responsibility fo use of void or
suspended data © Whitehall Manufacturing,
Member of Morris Group International.
Please visit www.whitehallmfg.com for most
current specifications.
Whitehall Mfg. > P.O. Box 3527 > City of Industry, CA 91744 > (800) 782-7706 > (626) 968-6681 > Fax (626) 855-4862
SELECTION SUMMARY & APPROVAL FOR MANUFACTURING
Model Number & Options______________________________________________Quantity___________
Model Number & Options______________________________________________Quantity___________
Company_________________________________________________________Date_______________
Company_________________________________________________________Date_______________
Contact_____________________________________Title_____________________________________
Contact_____________________________________Title_____________________________________
Approval for Manufacturing/Signature_____________________________________________________
Approval for Manufacturing/Signature_____________________________________________________
4113
Last Update: 05/31/13
