D14VR
User Guide
AUTOMOTIVE
DIGITAL VIDEO RECORDER
2
WHAT'S INCLUDED
D14VR
Welcome
Thank you for choosing a Whistler product. We are
dedicated to providing products that represent both
quality and value. Please read the user guide carefully
before using this product. If you have additional
questions, please visit the FAQ page on our website at
www.whistlergroup.com
or call toll free 800-531-0004
8am to 5pm CT, Monday through Friday
to speak to a Customer Service Representative.
USB CABLE
WINDSHIELD
BRACKET
DC POWER
CORD
USER
GUIDE
3
1. Speaker
2. Camers Lens
3. Status LEDs
4. LCD Display
5. Reset Button
6. Microphone
7. Mini HDMI Jack
8. Bracket Mount
9. USB Jack
10. Video / OK Button
11. Lock Button
12. Menu Button
13. Power Button
14. Down Button
15. Mode Button
16. Up Button
17. Micro SD Card slot
1 2 3 4
985 6 7
PRODUCT INTRODUCTION
Features
14 15 16 1710 11 12 13
4
Button and Function
1. Speaker – Provides audio for playback and device
tones.
2. Camera Lens – 120º wide-angle lens.
3. Status LED – BLUE = power on, RED = charging,
Flashing Blue = Recording
4. LCD Display – View photo and video.
5. Reset Button – Using a small pin, push in to reset
the device.
6. Microphone – Audio receiver for video recording.
7. Mini HDMI Jack – Provides connection to a HDMI
monitor.
8. Bracket Mount – windshield bracket attachment.
9. USB Jack – Allows PC interface to access microSD
card, PC camera and charge the battery.
10. Video/OK Button – Press to start recording. Press
again to stop. In menu, selects highlighted items.
FEATURE DESCRIPTION
5
11. Lock Button – Press to manually protect files.
12. MENU Button – Press button to display menu
settings.
13. Power Button – Press and hold briefly to power
ON / OFF.
14. Down Button - Press DOWN to zoom out. In Menu,
allows scrolling of menu items.
15. Mode Button – Press and hold to switch modes:
Video, Camera, Play back.
16. UP Button – Press UP to zoom in. In Menu allows
scrolling of menu items.
17. MicroSD Card Slot – Slot for memory card.
FEATURE DESCRIPTION
6
Designed exclusively for motor vehicles operating at 12
or 24 volts DC.
Inserting a micro SD Card
Before initial use, insert a micro SD card. (Suggest at
least a 4GB card (Class 6 minimum), up to 32GB)
Charging the Unit
Fully charge DVR for initial use by:
• 12 volt Car charger
• PC USB port
The status LED is red during charging.
NOTE: Turn DVR off before inserting or removing the
micro SD card.
OPERATIONS
7
OPERATIONS
Installing the Windshield Bracket
The included windshield bracket securely places the
DVR onto the vehicle’s windshield.
Follow the procedure below to secure the bracket:
1. Slide the collar into the bracket mounting point on
top of the DVR.
2. If applicable, remove protective film from the suction
cup.
3. Clean the selected area of the windshield for
mounting using a quality glass cleaner.
4. Press the bracket onto the windshield. To secure
the suction cup press the locking tab toward the
windshield.
5. Loosen the knob on the bracket to adjust the angle
of the DVR. Tighten knob securely to secure the
DVR’s position.
STEP 1
STEP 5
STEP 4
Slide Collar
Adjustable Knob
8
Power Connection in Vehicle
1. Plug the mini USB end of the vehicle power cord into
the USB jack of the DVR.
2. Insert the other end of the power cord into the
vehicle’s lighter socket/power port.
NOTE: Unit will automatically turn on and start
recording when power is applied. Unit will turn off when
power is removed.
Power ON/OFF
Power On: Press and hold to turn on DVR. Blue
Status LED illuminates.
Power Off: Press and hold until the blue status LED
shuts off.
NOTE: The unit will automatically power OFF after the
low battery warning is displayed.
OPERATIONS
STEP 1
STEP 2
9
OPERATIONS
Initial Settings
Date & Time Setting
1. Once connected with car charger, the device will start
power ON and start recording. Press the OK button to
switch into standby mode.
2. Press the MENU button twice then Press the or to
select Date/Time. Press OK to enter into setting.
3. Press or to choose the specific number, press OK to
enter into next setting. Once finished with settings, press
MENU button to return to DVR operation.
MENU Settings
There are 3 available levels; Video , Camera , and
Playback .
NOTE: Video or Camera menus have different option
selections. Use the MODE button to select the correct
level.
4. Press the menu button to see available settings.
5. Press the or to scroll through the settings.
6. Press OK to make a selection.
10
Recording Image
1. Take Picture: Press MODE (M) button. Camera icon
will be displayed in upper left corner.
2. Press OK to take an image.
OPERATIONS
Recording or Review a Video or Image
Recording Video
1. Power on: Press and hold to turn on DVR.
2. The icon is shown in the top left corner with a blinking
red dot when recording. Press OK to stop recording if
desired.
NOTE: When powered externally the DVR will automatically be
in Video Record mode and begin recording after initial power
ON.

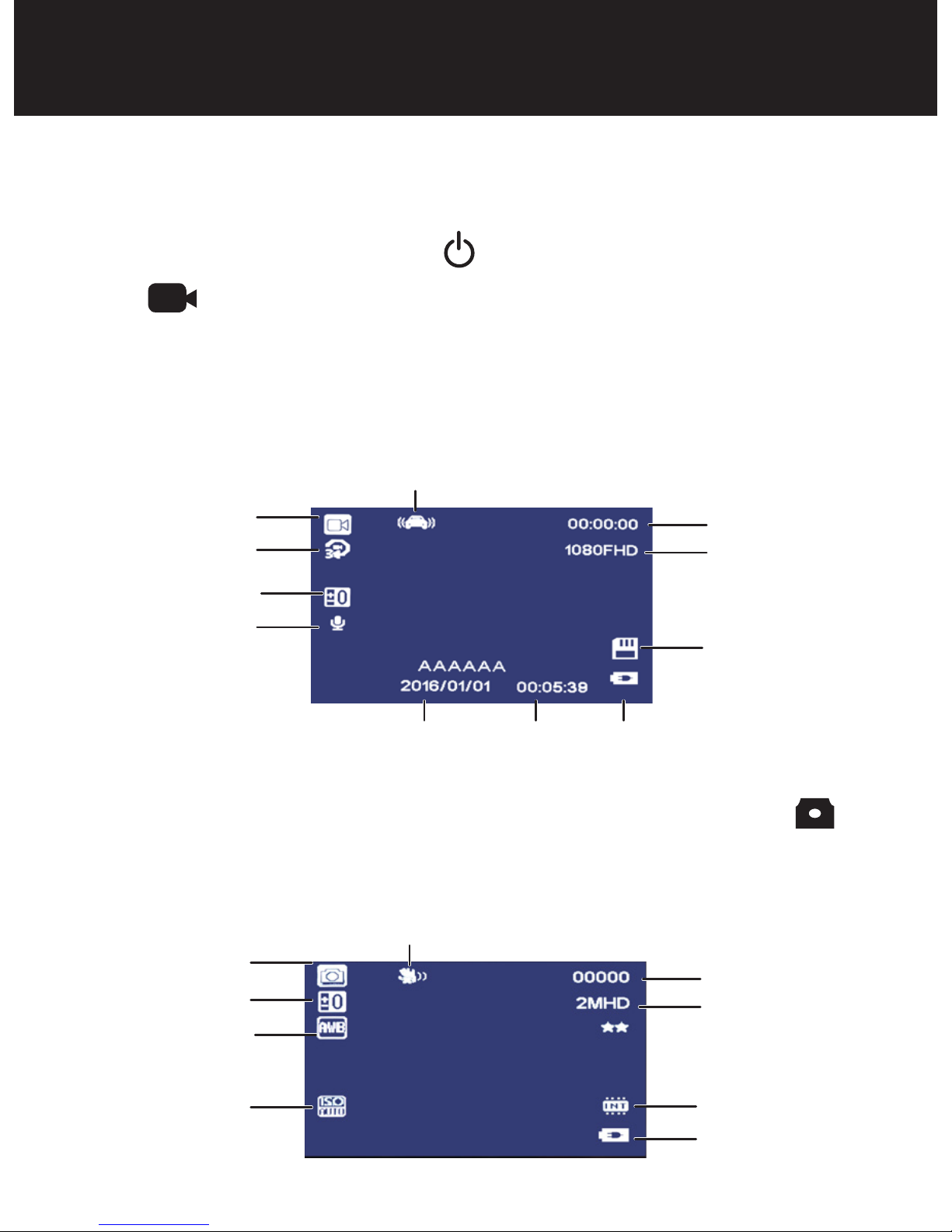

Video Mode
Video Segmentation
Time
Exposure
Compensation
Microphone
Date Time
Video Time Remaining
Video Resolution
SD Card Icon
Battery (Charging Shown)
Camera Mode
Exposure
Compensation
Auto White Balance
ISO
Motion
Picture Count
Video Resolution
Internal Memory SD
Card Icon will show
when installed
Battery
(Charging Shown)
G-Sensor
11
Review
1. Press MODE (M) to enter review screen.
2. Use or to highlight a file. Press OK to select it.
3. Press OK again to play a video. Use OK to pause the
video.
4. Press or to select another file.
5. When in this mode press MENU to select Delete, Protect
or Slide Show Options.
6. Press MODE (M) to exit review mode.
OPERATIONS

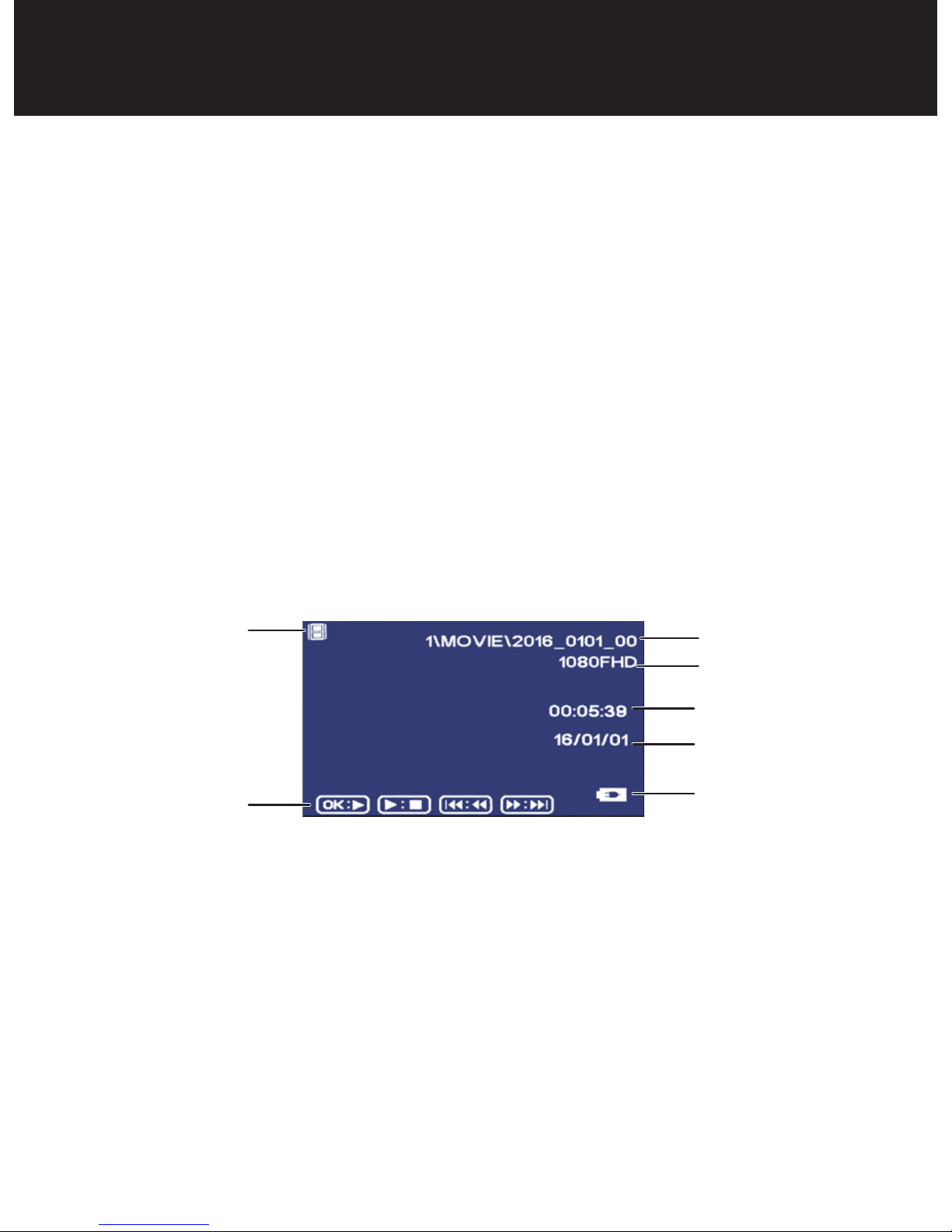

Playback Mode
Review Options
File Number
Video Resolution
Date
Battery
(Charging Shown)
Video Time
12
Battery Charging
• The unit may be charged using the included 12V Car
Adapter or USB cable.
• The red indicator light will be illuminated until charging is
complete.
NOTE: The unit is intended to be used with external power
source being supplied with either cord included. Stand alone
battery time is approximately 15 minutes.
USB Settings
Connect the unit to a computer using the USB cable included.
Two options are available. Use or and OK buttons to select
an option.
Mass Storage - In this mode the recorded files can be accessed
directly from the micro SD card installed into the DVR. They can
be viewed directly from the card or transferred to the computer
for storage.
PC Camera - In this mode the DVR can be selected from a
computer as an attached USB device and used as a webcam
(additional drivers may be required and are not included).
View DVR Screen on TV or Monitor
Simply plug in a compatible HDMI cable into the Mini HDMI
jack to an HDMI input on a TV or video monitor for larger
viewing.
OPERATIONS

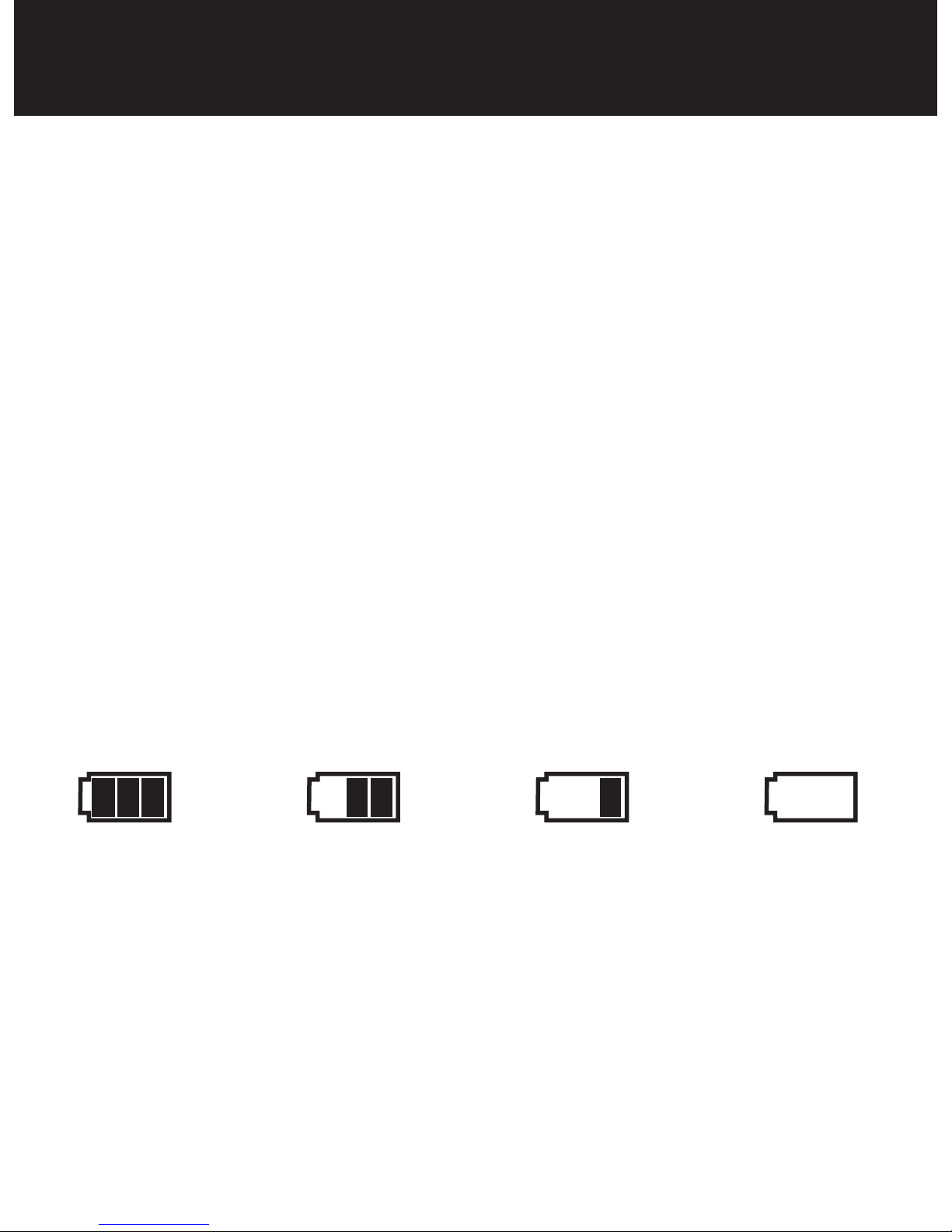

Full Battery Slightly Low Battery Low Battery Battery Empty
13
Special Functions
• G-sensor function. If a sudden shock is detected (such as in
an accident) the video segment recorded is protected from
being overwritten.
• Automatic power ON/OFF function when using car adapter
plugged into 12V power port controlled by vehicle ignition.
• Seamless loop recording.
• Mini HDMI output jack
• Parking Monitor: When enabled, the DVR will automatically
turn on and start recording when it detects a hit against the
car. This is mainly used when the car is parked and someone
hits your vehicle. A ‘P’ icon on the right of the screen
signifies it is turned on.
• Screen saver mode, when enabled will minimize night time
distraction. Will also extend battery life when operating
without external power.
OPERATIONS
14
TROUBLESHOOTING
Can’t record or
take photo
Confirm that the micro SD card is of
proper class (C6 min.) and has available
capacity.
Unit doesn’t
work with my
SD Card
If the unit does not recognize the card,
remove the SD card and insert it again. If
still not recognized, the SD card maybe
damaged or device does not support this
type of memory card. Try another memory
card. (SanDisk recommended)
“files error”
appears during
replay
Uncompleted files due to micro SD card
storage error. Reformat or replace card.
Video or Photo
unclear
Check lens for fingerprints, protective film
or other obstruction. Use a soft cloth to
clean lens.
Black image
when recording
sky or water
scene
Scenes with large contrast can influence
the automatic exposure function of the
unit. Adjust Exposure setting in the Global
menu settings to correct image.
Cross stripe
interference in
This is caused by incorrect “Light
Frequency“ setting. Check setting for
50Hz or 60Hz in MENU Settings.
15
Reset
Operation can be restored by pushing the reset button.
NOTE: No user serviceable parts inside. Do not open
product.
TROUBLESHOOTING
Use and Care
1. Unit does not use a Touch Screen to control its
functions! Do not touch screen with any objects as
damage to screen may occur.
2. Do not leave unit in direct sunlight for extended
period of time, especially in a vehicle.
3. Avoid using the unit in dusty and damp
environments.
16
Features HD camera, HD video recording
Unit
Dimensions
HxWxD
53.14 X 86.99 X 34.58 mm
(2.1” x 3.4” x 1.3”)
Unit Weight 109.5 g (3.8 oz)
LCD Screen
Size
3.0" TFT
Zoom 4X Digital
Lens 120º High definition wide-angle lens
Resolution
1080FHD / 1080P / 720P / WVGA / VGA
/ QVGA
Files Format AVI
Loop
Recording
OFF / 3 MIN. / 5 MIN. / 10 MIN.
Memory MicroSD Card - C6 MIN. / 32GB Max
USB USB 1.1 / 2.0
DC IN DC5v ± 1000mA
Frequency 50Hz / 60hHz
Specifications are subject to change without notice.
SPECIFICATIONS
17
Battery
Capacity
400mAH
Power
Consumption
220mA
Microphone/
Speaker
Support
Language
Supported languages are listed in MENU
settings
Photo Mode 12 Mega pixels
Photo Format JPEG
Video Output HDMI
USB Function
1. USB - Disk
2. PC - Camera
Operating
Temperature
Range
0° ~ 50°C (32° ~ 122°F) @ Humidity of
10% - 80%
SPECIFICATIONS
18
Basic functions
• Low illumination high-definition video
1080FHD@24fps / 1080P@30fps / 720P@30fps
• Built-in low illumination 120º lens
• 3.0 inch LTPS Monitor
• Impact sensitivity adjustment automatically locks file
• Supports cycle Video
• Mini HDMI output jack
• Supports up to 32 GB micro SD card
• Charges while in use
• Image monitor with real-time output
SPECIFICATIONS
19
Image resolution: 1080FHD / 1080P / 720P / WVGA / VGA /
QVGA
Loop video: OFF / 3 min / 5 min / 10 min
Exposure compensation: -2 -- +2
Motion detecting: ON / OFF
Recording audio: ON / OFF
Date stamp: ON / OFF
G-sensor: OFF / Low / Medium / High
Parking Monitor: ON / OFF
System Settings
Date/time: 2016/01/01 00:00:00 Year / month / day
Auto power off: OFF / 1 min / 3 min
Beep sound: ON / OFF
Language: English / simplified Chinese / traditional Chinese
/French / German / Japanese / Korean / Russian / Spanish /
Portuguese
TV mode: NTSC / PAL
Light source frequency: 50HZ / 60HZ
Screen Saver: OFF / 3 min / 5 min / 10 min
Plate Number: ON / OFF
Formatting: Cancel / OK
Default Settings: Cancel / OK
Version: * * * * * *
Playback Options
Delete: Delete Current/Delete All
Protection: Lock Current/Unlock Current/Lock All/Unlock All
Slide Show: 2 sec / 5 sec / 8 sec
MENU OPTIONS
20
WARRANTY INFORMATION
Consumer Warranty
This Whistler product is warranted to the original purchaser
for a period of one (1) year from the date of original purchase
against all defects in materials and workmanship, when
purchased from an authorized Whistler retailer. This limited
warranty is void if the unit is abused, misused, modified,
installed improperly, or if the housing and/or serial numbers
have been removed. There are no express warranties covering
this product other than those set forth in this warranty. All
express or implied warranties for this product are limited to one
(1) year. Whistler is not liable for damages arising from the use,
misuse, or operation of this product including but not limited
to loss of time, inconvenience, loss of use of your product or
property damage caused by your product or its failure to work,
or any other incidental or consequential damages including
personal injury.
DO NOT RETURN ITEM TO STORE WHERE PURCHASED.
FOR WARRANTY INFORMATION, CONTACT WHISTLER
CUSTOMER SERVICE AT 1-800-531-0004.
Representatives are available to answer your questions
Monday – Friday
8:00 a.m. to 5:00 p.m. CT
21
WARRANTY INFORMATION
Service Under Warranty
During the warranty period, defective units will be repaired or
replaced (with the same or a comparable model), at Whistler’s
option, without charge to the purchaser when returned prepaid,
with dated proof of purchase to the address below. Units
returned without dated proof of purchase will be considered
out-of-warranty and therefore are not covered by the described
Limited Warranty. (Refer to Service Out-of-Warranty section.)
1. Due to the specialized equipment necessary for testing
Whistler products, there are no authorized service centers
other than Whistler. When returning a unit for service under
warranty, please follow these instructions:
2. Ship the unit in the original carton or in a suitable sturdy
equivalent, fully insured, with return receipt requested to:
Whistler Repair Dept.
1412 South 1st St.
Rogers, AR 72756
Please allow 3 weeks turnaround time.
IMPORTANT: Whistler will not assume responsibility for loss
or damage incurred in shipping. Therefore, please ship your
unit insured with return receipt requested. CODs will not be
accepted!
22
WARRANTY INFORMATION
3. Include with your unit the following information, clearly
printed:
• Your name and physical street address for shipping (no PO
Boxes), a daytime telephone number, and an email address
(if applicable).
• A detailed description of the problem (e.g.,“device will not
power ON”).
• A copy of your dated proof of purchase or bill of sale.
4. Be certain your unit is returned with its serial number. Units
without serial numbers are not covered under warranty.
IMPORTANT: To validate that your unit is within the warranty
period, make sure you keep a copy of your dated proof of
purchase. For warranty verification purposes, a copy of your
dated store receipt must accompany any Whistler product sent
in for warranty work.
Service Out-Of-Warranty
Units will be repaired at “out-of-warranty” service rates when:
• The unit’s original warranty has expired.
• A dated proof of purchase is not supplied.
• The unit has been returned without its serial number.
• The unit has been misused, abused, modified, installed
improperly, or had its housing removed.
23
The minimum out-of-warranty service fee for your Whistler DVR
Camera is $40.00 (U.S.). If you require out-of-warranty service,
please return your unit as outlined in the section “Service Under
Warranty” along with a cashier’s check or money order in the
amount of $40.00. Payment may also be made by MasterCard,
VISA or American Express. Personal checks are not accepted.
In the event repairs cannot be covered by the minimum service
fee, you will be contacted by a Whistler technical service specialist
who will outline options available to you.
IMPORTANT: When returning your unit for service, be certain to
include a daytime telephone number and an email address
(if applicable).
Customer Service
If you have questions concerning the operation of your Whistler
product, or require service during or after the warranty period,
please call
Customer Service at 1-800-531-0004.
Representatives are available to answer your questions
Monday - Friday from 8:00 a.m. to 5:00 p.m. (CT) or visit the FAQ at
www.whistlergroup.com.
WARRANTY INFORMATION
CORPORATE HEADQUARTERS
1716 SW Commerce Dr. Ste. 8
Bentonville, AR 72712
Toll Free (800) 531-0004
TEL (479) 273-6012
www.whistlergroup.com
CUSTOMER RETURN CENTER
1412 South 1st St.
Rogers, AR 72756
Email: info@whistlergroup.com
P/N
05A17 © 2017 The Whistler Group, Inc.
Loading...
