Whistler D12VRS User Manual

D12VRS

User Guide

AUTOMOTIVE

DIGITAL VIDEO RECORDER

2

WHAT'S INCLUDED

D12VR

USER

GUIDE

Welcome

Thank you for choosing a Whistler product. We are
dedicated to providing products that represent both
quality and value. Please read the user guide carefully
before using this product.

USB CABLE

WINDSHIELD

BRACKET

DC POWER

CORD

MICRO

SD

CARD

3

PRODUCT INTRODUCTION

Features

1. Display

2. Power/OK Button

3. Speaker

4. Infrared LEDs

5. Camera Lens

6. Status LEDs

7. AV Output Jack

8. Micro SD Card Slot

9. Bracket Mount

10. USB Jack

11. UP Button

12. MODE/Menu/SOS Button

13. Down Button

14. Reset Button

15. Microphone

3

11

12

54 6 21

1097 8

13

15

14

4

FEATURE DESCRIPTION

Buttons and Function

1. Display – View photos and video.

2a. POWER ON/OFF

- Press and hold briefly to turn

unit ON. Press and hold to turn off.

2b. OK

– In VIDEO mode, short press to start/stop
recording. In CAMERA mode short press to take
a picture. In MENU mode short press to confirm
and execute highlighted operation.

3. Speaker – Provides audio for playback and device

tones.

4. Infrared LEDs – Provides infrared light for night

recordings.

5. Camera Lens – 120° viewing angle.

6. Status LEDs – BLUE = power on, RED = charging,

Flashing Blue = Recording.

7. AV Output Port – Provides Audio and Video

output to an external monitor.

8. Micro SD Card Slot – Slot for memory card.

5

FEATURE DESCRIPTION

9. Bracket Mount – Windshield bracket attachment.

10. USB Jack – Allows PC interface to access Micro

SD card, PC Camera, and charge the battery.

11. UP Button – Press UP to zoom in. In MENU mode

allows scrolling of menu items.

12. MODE/MENU/SOS Button – Short press changes

operation from VIDEO, CAMERA, PLAYBACK
modes. Long press and release enters MENU
mode. Short press during recording creates
protected file (SOS) to prevent over recording.

13. Down Button – Press DOWN to zoom out. In

MENU mode allows scrolling of menu items.

14. Reset – Device hard reset in case of a system jam

or crash.

15. Microphone – Audio receiver for video recording.

6

Designed exclusively for motor vehicles operating at 12
or 24 volts DC.

Inserting a micro SD Card

Before initial use, insert a micro SD card. (Suggest at
least a 4GB card (Class 6 minimum), up to 32GB)

Charging the Unit

Fully charge DVR for initial use by:

• 12 volt Car charger

• PC USB port

The status LED is red during charging.

NOTE: Turn DVR off before inserting or removing the
micro SD card.

OPERATIONS

7

OPERATIONS

Installing the Windshield Bracket

The included windshield bracket securely places the
DVR onto the vehicle’s windshield.

Follow the procedure below to secure the bracket:

1. Insert the threaded collar into the bracket mounting

point on top of the DVR and tighten until snug.
(Threaded collar may be used to insure bracket its
snugly tightened.)

2. If applicable, remove protective film from the suction

cup.

3. Clean the selected area of the windshield for

mounting using a quality glass cleaner.

4. Press the bracket onto the windshield. To secure

the suction cup press the locking tab toward the
windshield.

5. Loosen the knob on the bracket to adjust the angle

of the DVR. Tighten knob securely to secure the
DVR’s position.

STEP 1

STEP 5

STEP 4

Threaded Collar

Adjustable Knob

8

Power Connection in Vehicle

1. Plug the mini USB end of the vehicle power cord into

the USB jack of the DVR.

2. Insert the other end of the power cord into the

vehicle’s lighter socket/power port.

NOTE: Unit will automatically turn on and start
recording when power is applied. Unit will turn off when
power is removed.

Power ON/OFF
Power On: Press to turn on DVR. Blue Status LED

illuminates.
Power Off: Press and hold until the blue status

LED shuts off.
NOTE: The unit will automatically power OFF after the

low battery warning is displayed.

OPERATIONS

STEP 1

STEP 2

9

OPERATIONS

Initial Settings

Date & Time Setting

1. Once connected with car charger, the device will start

power ON and start recording. Press the OK button to
switch into standby mode.

2. Press and hold the MENU button for 2 seconds twice

then Press the  or  to select Date/Time. Press OK to
enter into setting.

3. Press or to choose the specific number, press OK to

enter into next setting. Once finished with settings, press

MENU button to return to DVR operation.

NOTE: The MENU button may need to pressed more than

once to return to desired operation of VIDEO, CAMERA,
or PLAYBACK.

MENU Settings

There are 3 available levels; Video , Camera , and
Playback

 .

NOTE: Video or Camera menus have different option
selections.

4. Press and hold the MENU button for 2 seconds to see

available settings.

5. Press the or  to scroll through the settings.

6. Press OK to make a selection.

10

OPERATIONS

Recording or Review a Video or Image

Recording Video

1. Power on: Press and hold to turn on DVR.

2. The REC icon is shown in the top left corner with a

blinking red dot when recording. Press OK to stop
recording if desired.

NOTE: When powered externally the DVR will
automatically be in Video Record mode and begin
recording after initial power ON.

Recording Image

1. Take Picture: Press MODE (M) button. Camera icon

will be displayed in upper left corner.

2. Press OK to take an image.

Video Mode

Video Segmentation

Time

Exposure

Compensation

Mic

Date Time

Video Time Remaining

Video Resolution

SD Card

Battery

11

Review

1. Press MODE (M) twice to enter review screen.

2. Use  or  to highlight a file. Press OK to select

it.

3. Press OK again to play a video. Use OK to pause

the video.

4. Press  or  to select another file.

5. Press MODE (M) to exit review mode.

OPERATIONS

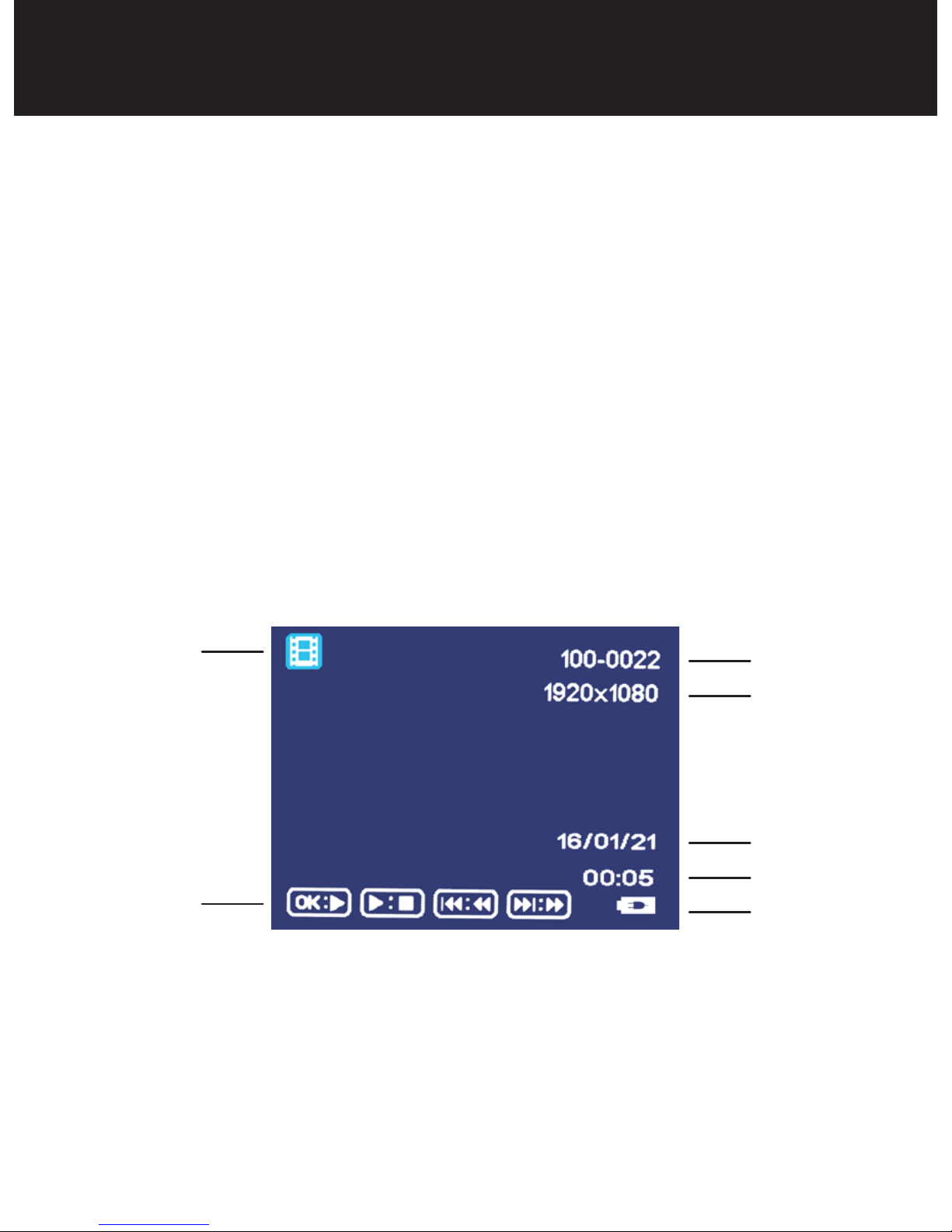

Review Options

File Number

Date

Time

Battery

Review Mode

Video Resolution

12

USB Settings

Connect the unit to a computer using the USB cable included.
Two options are available. Use  or  and OK buttons to
select an option.

Mass Storage - In this mode the recorded files can be accessed
directly from the micro SD card installed into the DVR. They can
be viewed directly from the card or transferred to the computer
for storage.

PC Camera - In this mode the DVR can be selected from a
computer as an attached USB device and used as a webcam
(additional drivers may be required and are not included).

View DVR Screen on TV or Monitor

Simply plug in a compatible Audio/Video cable into the AV Out
jack to an AV Input on a TV or video monitor for larger viewing.

OPERATIONS

Battery Charging

• The unit may be charged using the included 12V Car

Adapter or USB cable.

• The red indicator light will be illuminated until charging is

complete.

NOTE: The unit is intended to be used with external power
source being supplied with either cord included. Stand alone
battery time is approximately 15 minutes.

Full Battery Slightly Low Battery Low Battery Battery Empty

13

Special Functions

• G-sensor function. If a sudden shock is detected (such as in

an accident) the video segment recorded is protected from
being overwritten.

• Automatic power ON/OFF function when using car adapter

plugged into 12V power port controlled by vehicle ignition.

• Seamless loop recording.

• Parking Monitor: When enabled, the DVR will automatically

turn on and start recording when it detects a crash against
the car. This is mainly used when the car is parked and
someone else hits your vehicle. A ‘P’ icon on the right of the
screen signifies this feature is turned on.

• Infrared LED's, when enabled, assist during low light

conditions. (limited range)

• Screen saver mode, when enabled will minimize night time

distraction. Will also extend battery life when operating
without external power.

OPERATIONS

14

TROUBLESHOOTING

Can’t record or
take photo

Confirm that the micro SD card is of
proper class
(C6 min.) and has available capacity.

Unit doesn’t
work with my
SD Card

If the unit does not recognize the card,
remove the SD card and insert it again. If
still not recognized, the SD card maybe
damaged or device does not support this
type of memory card. Try another memory
card. (SanDisk recommended)

“files error”
appears during
replay

Uncompleted files due to micro SD card
storage error. Reformat or replace card.

Video or Photo
unclear

Check lens for fingerprints, protective film
or other obstruction. Use a soft cloth to
clean lens.

Black image
when recording
sky or water
scene

Scenes with large contrast can influence
the automatic exposure function of the
unit. Adjust Exposure setting in the Global
menu settings to correct image.

Cross stripe
interference in

This is caused by incorrect “Light
Frequency“ setting. Check setting for
50Hz or 60Hz in MENU Settings.

15

TROUBLESHOOTING

Use and Care

1. Unit does not use a Touch Screen to control its

functions! Do not touch screen with any objects as
damage to screen may occur.

2. Do not leave unit in direct sunlight for extended

period of time, especially in a vehicle.

3. Avoid using the unit in dusty and damp

environments.

Reset

Operation can be restored by pushing the reset button.
NOTE: No user serviceable parts inside. Do not open
product.

16

SPECIFICATIONS

Features HD camera, HD video recording

Unit
Dimensions
HxWxD

41.8 x 77.93 x 30.8mm ( 1.6” x 3.0” x 1.2”)

Unit Weight 40g ( 1.4oz)

LCD Screen
Size

1.5" TFT

Zoom 4X Digital

Lens 120º High definition wide-angle lens

Resolution

1080FHD / 1080P / 720P / WVGA / VGA
/ QVGA

Files Format AVI

Loop
Recording

OFF / 1 MIN. / 2 MIN. / 3 MIN.

Memory C6 Micro SD Card / 32GB max

USB USB 1.1 / 2.0

DC IN DC5v +/- 1000MA

Frequency 50HZ / 60hHZ

Specifications are subject to change without notice.

17

SPECIFICATIONS

Battery
Capacity

200mAH

Power
Consumption

220mA

Microphone/
Speaker

Support

Language

Supported languages are listed in MENU
settings

Photo Mode 12 Mega pixels

Photo Format JPEG

Video Output A / V

USB Function

1. USB - Disk

2. PC - Camera

Operating
Temperature
Range

0° ~ 50°C (32° ~ 122°F) @ Humidity of
10% - 80%

18

SPECIFICATIONS

Basic functions

• Low illumination high-definition video 1080P@24fps
720P@30fps

• Built-in low illumination 120º lens

• 1.5 inch LTPS Monitor

• Impact sensitivity adjustment automatically locks file

• Supports cycle Video

• Supports up to 32 GB micro SD card

• Charges while in use

• Image monitor with real-time output

19

MENU OPTIONS

Video Resolution: 1080FHD/1080P/720P/WVGA/VGA/
QVGA
Loop Recording: OFF/1 min/2 min/3 min
Exposure Compensation: -2 -- +2
Motion Detecting: ON/OFF
Recording Audio: ON/OFF
Date Stamp: ON/OFF
G-Sensor: OFF/Low/Medium/High
Parking Monitor: ON/OFF

System Settings

Date/time: 2016/01/01 00:00:00 Year/month/day
Beep sound: ON/OFF
Language: English/simplified Chinese/traditional Chinese/
French/German/Japanese/Korean/Russian/Spanish/
Portuguese
TV mode: NTSC/PAL
Light source frequency: 50HZ/60HZ
Screen saver: OFF/3 min/5 min/10 min
LED Setting: ON/OFF/AUTO
Formatting: Cancel/OK
Default Settings: Cancel/OK
Version: * * * * * *

Playback Options

Delete: Delete Current/Delete All
Protection: Lock Current/Unlock Current/ Lock All/
Unlock All
Slide Show: 2 sec/5 sec/8 sec

20

WARRANTY INFORMATION

Consumer Warranty

This limited warranty is void if the unit is abused, misused,
modified, installed improperly, or if the housing and/or serial
numbers have been removed. There are no express warranties
covering this product other than those set forth in this warranty.
All express or implied warranties for this product are limited.
Whistler is not liable for damages arising from the use, misuse,
or operation of this product including but not limited to loss of
time, inconvenience, loss of use of your product or property
damage caused by your product or its failure to work, or any
other incidental or consequential damages including personal
injury.

21

WARRANTY INFORMATION

Service Under Warranty

During the warranty period, defective units will be repaired or
replaced (with the same or a comparable model), at Whistler’s
option, without charge to the purchaser when returned prepaid,
with dated proof of purchase to the address below. Units
returned without dated proof of purchase will be considered
out-of-warranty and therefore are not covered by the described
Limited Warranty. (Refer to Service Out-of-Warranty section.)

1. Due to the specialized equipment necessary for testing
Whistler products, there are no authorized service centers
other than Whistler. When returning a unit for service under
warranty, please follow these instructions:

2. Ship the unit in the original carton or in a suitable sturdy
equivalent, fully insured, with return receipt requested.

IMPORTANT: Whistler will not assume responsibility for loss
or damage incurred in shipping. Therefore, please ship your
unit insured with return receipt requested. CODs will not be

accepted!

22

WARRANTY INFORMATION

3. Include with your unit the following information, clearly
printed:

• Your name and physical street address for shipping (no PO
Boxes), a daytime telephone number, and an email address
(if applicable).

• A detailed description of the problem (e.g.,“device will not
power ON”).

• A copy of your dated proof of purchase or bill of sale.

4. Be certain your unit is returned with its serial number. Units
without serial numbers are not covered under warranty.

IMPORTANT: To validate that your unit is within the warranty
period, make sure you keep a copy of your dated proof of
purchase. For warranty verification purposes, a copy of your
dated store receipt must accompany any Whistler product sent
in for warranty work.

Service Out-Of-Warranty

Units will be repaired at “out-of-warranty” service rates when:

• The unit’s original warranty has expired.

• A dated proof of purchase is not supplied.

• The unit has been returned without its serial number.

• The unit has been misused, abused, modified, installed
improperly, or had its housing removed.

In the event repairs cannot be covered by the minimum service
fee, you will be contacted by a Whistler technical service specialist
who will outline options available to you.

IMPORTANT: When returning your unit for service, be certain to
include a daytime telephone number and an email address
(if applicable).

WARRANTY INFORMATION

23

Accept no compromises, choose only quality cameras and driver safety.
