Whispbar S17W Fitting Instructions Manual [en, fr, es, ru, pt +2]

Page 1

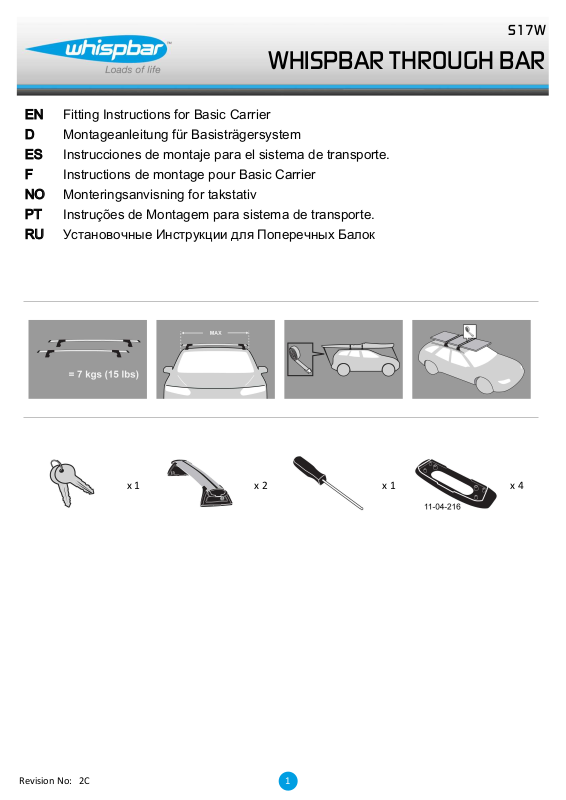

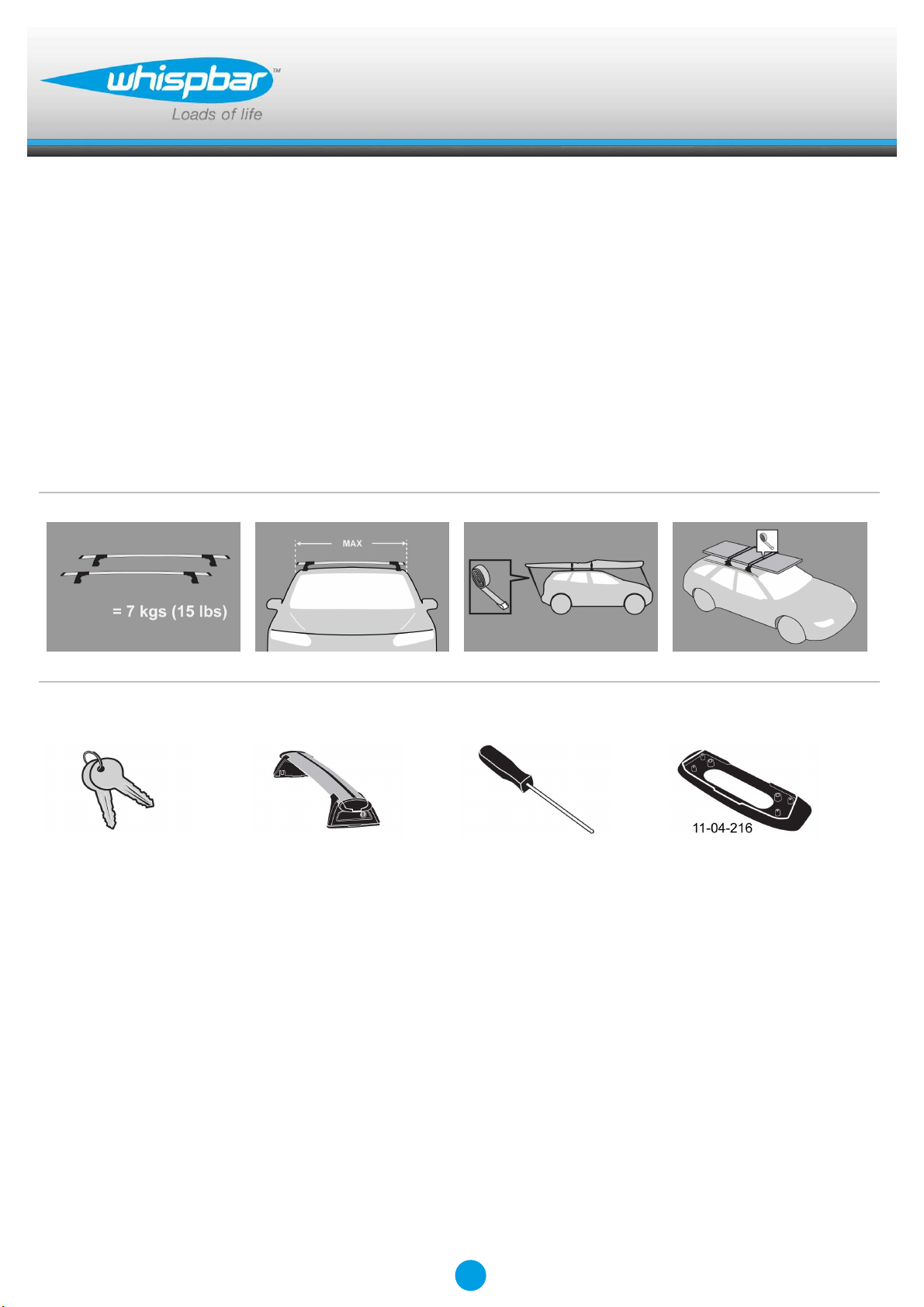

WHISPBAR THROUGH BAR

EN Fitting Instructions for Basic Carrier D Montageanleitung für Basisträgersystem ES Instrucciones de montaje para el sistema de transporte. F Instructions de montage pour Basic Carrier NO Monteringsanvisning for takstativ PT Instruções de Montagem para sistema de transporte. RU Установочные Инструкции для Поперечных Балок

S17W

x 1 x 2 x 1 x 4

Revision No: 2C 1

Page 2

WHISPBAR THROUGH BAR

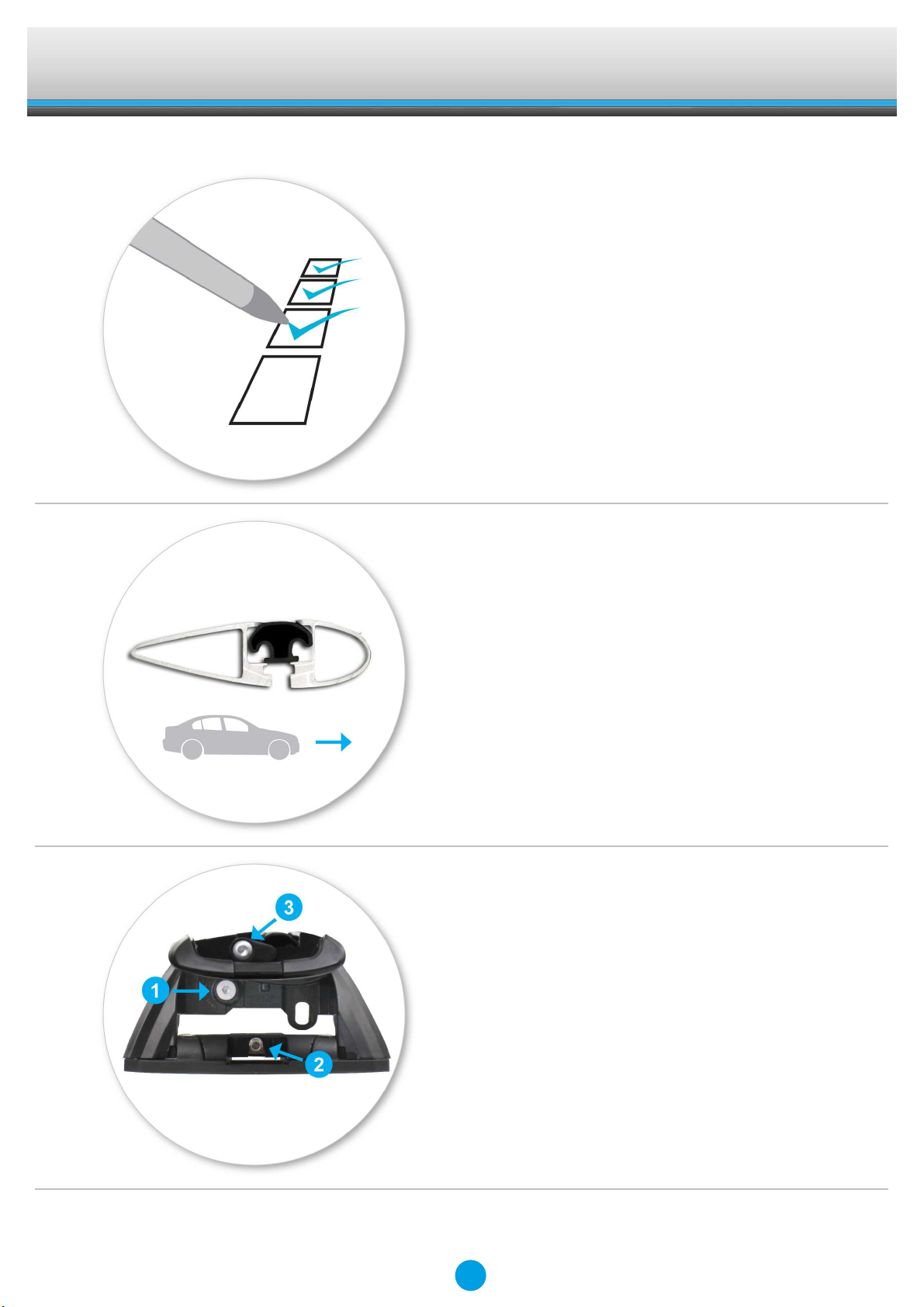

First Time Installation

S17W

● Remove parts from inside the package and

check. Contact your dealer if any parts are missing or damaged.

● Ensure the roof rack face towards the front

of vehicle.

● 1. Adjusting Screw

● 2. Locking Screw

● 3. Security Screw

Page 3

WHISPBAR THROUGH BAR

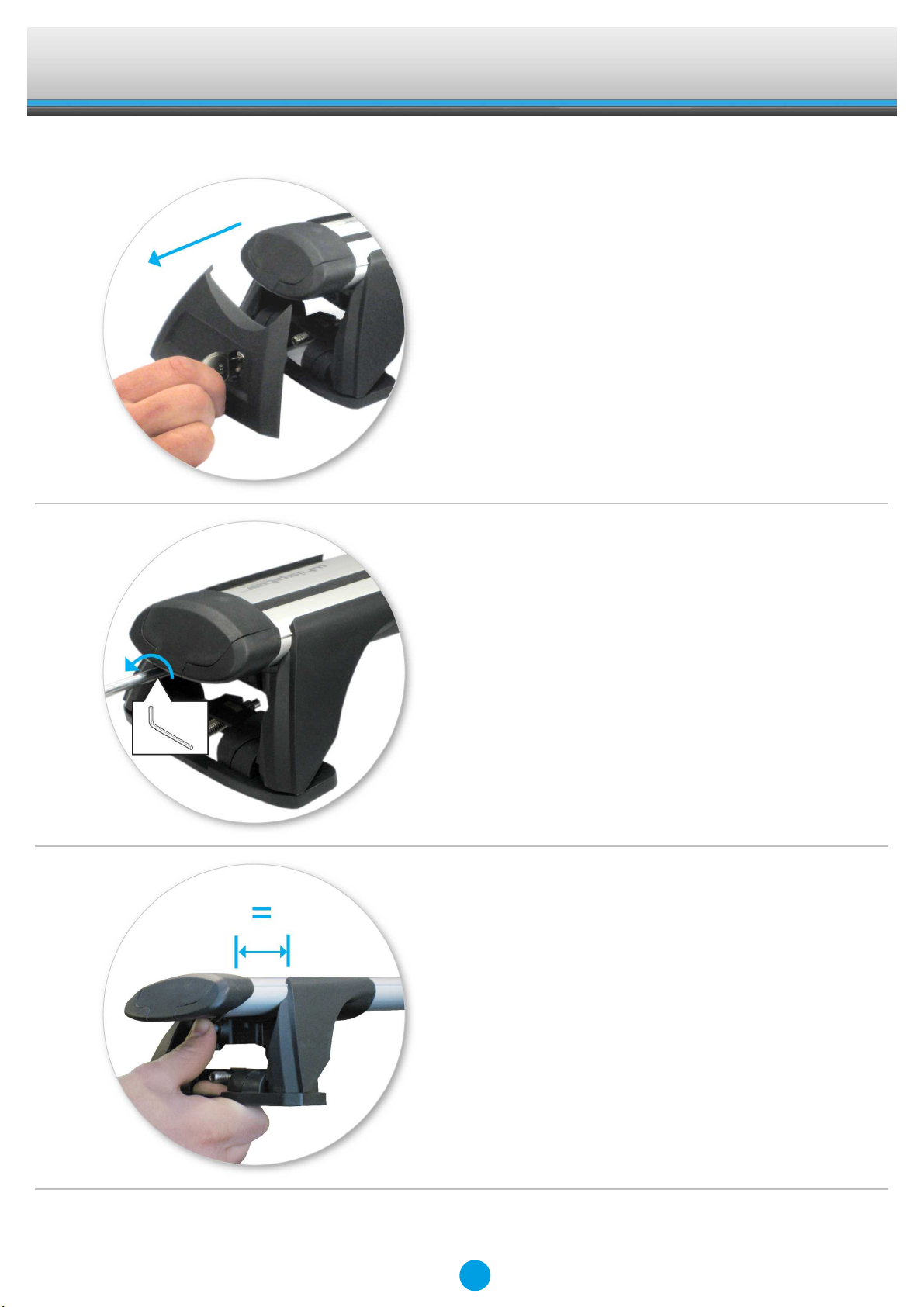

Crossbar Adjustment

S17W

● Use keys to remove covers.

● Use hex screwdriver to reverse adjusting

screw 10 turns.

● Hold adjusting screw in and slide crossbar

in or out as required.

● Ensure each end of the crossbar is

adjusted equally.

Page 4

WHISPBAR THROUGH BAR

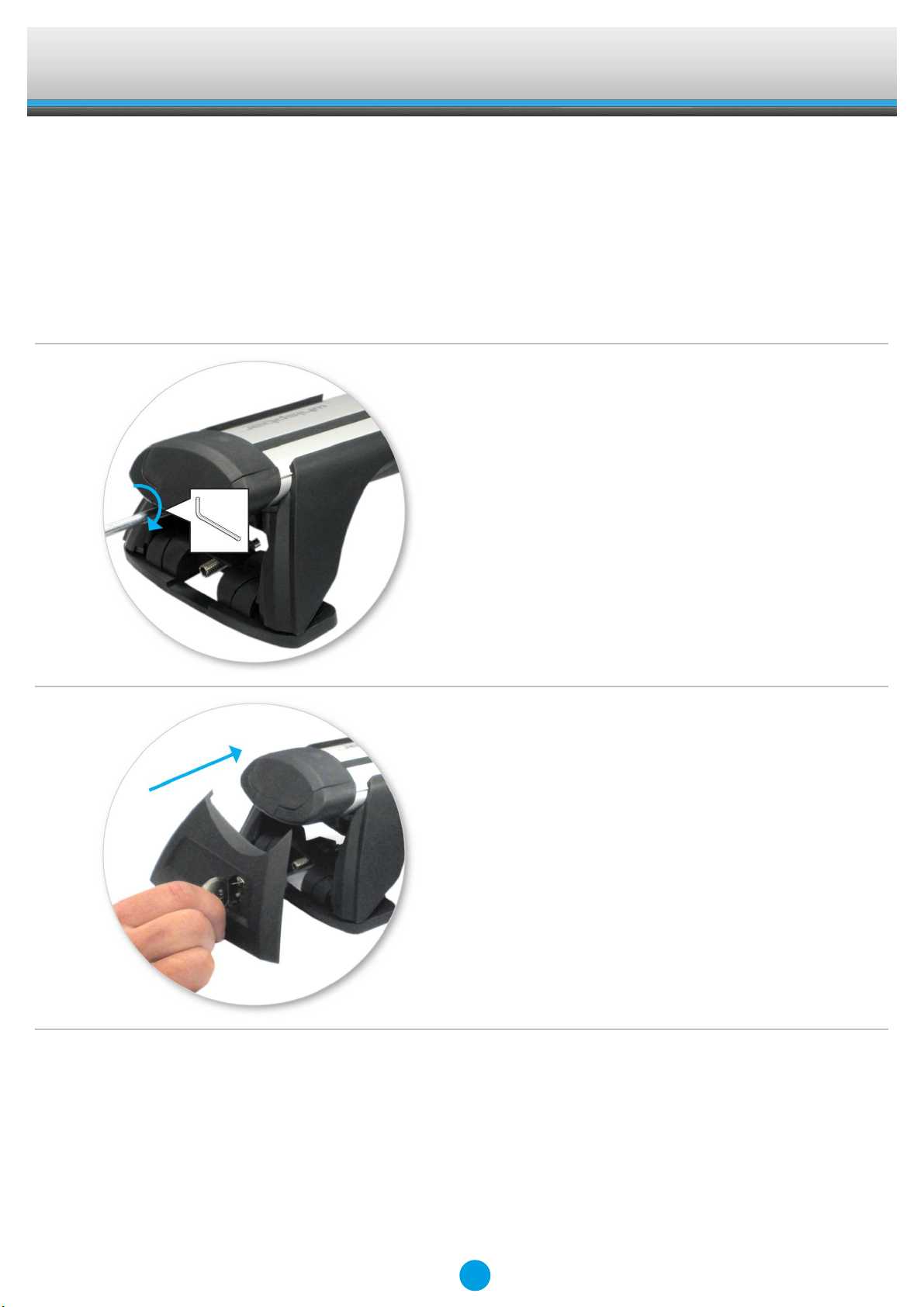

To fit roof rack to vehicle, refer to Fitting Kit

instructions.

S17W

● Tighten adjusting screw to 5 Nm (3.7 ft lb).

● Use keys to fit and lock covers

Page 5

WHISPBAR THROUGH BAR

Maintenance

S17W

● Clean the car roof and surfaces of the

product that will be in contact with the car roof.

● Follow the fitting instructions for fitting the

product to your vehicle. Make sure all steps are carried out in order.

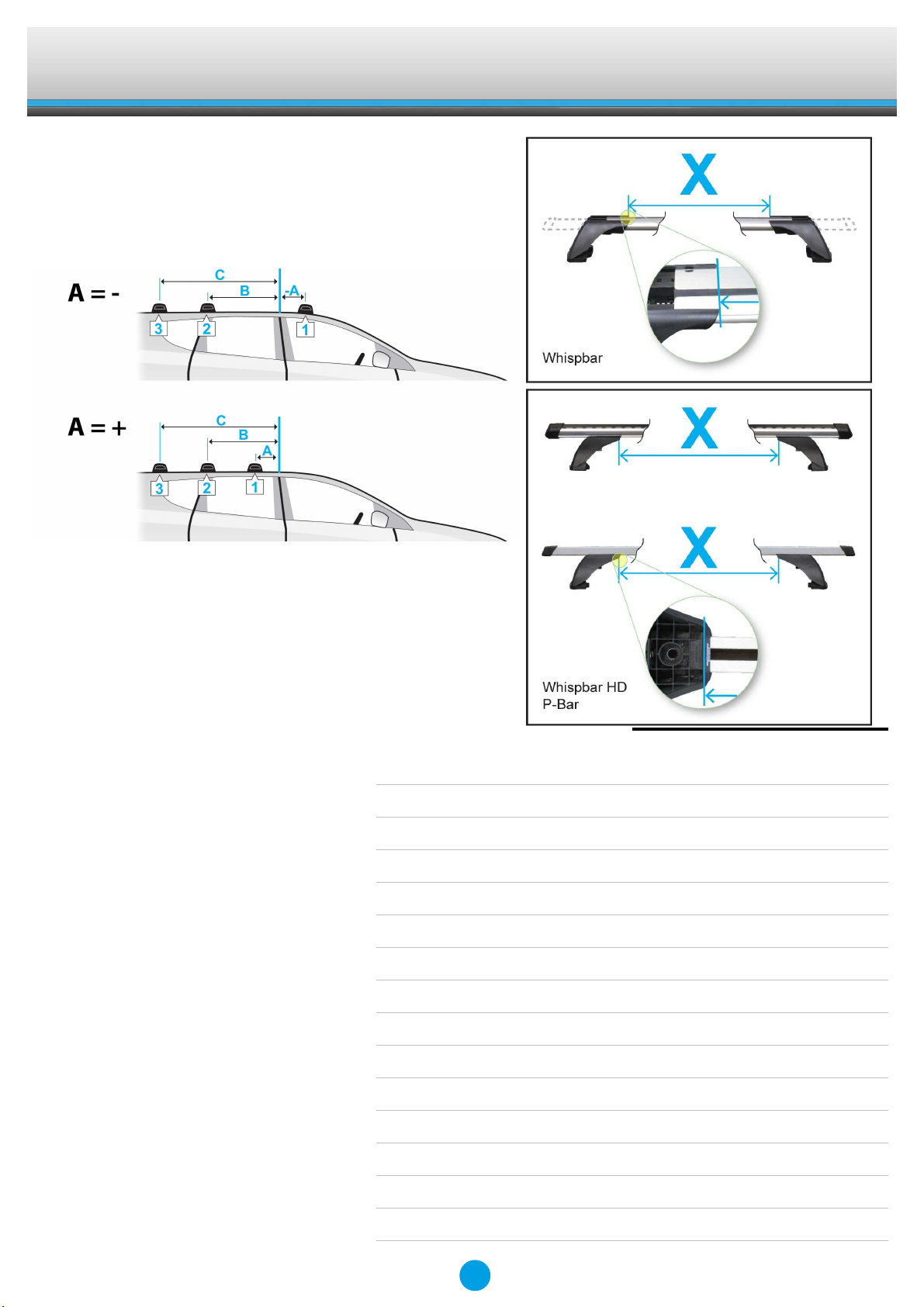

● Set crossbars a minimum distance of

700mm (27 1/2") apart where no other distance is specified in the fitting instructions. This is especially important when carrying long loads.

● Check unit is securely attached whenever

you refit it to the vehicle. If the unit feels loose, refer to the fitting instructions and readjust.

● Some glass/panoramic roofs and radio

antennae may not be able to be used when the product is fitted.

● Do not modify this product.

● Refer to the maximum permitted load

capacity specified in the fitting instructions. Do not exceed the vehicle manufacturers roof load rating if it is lower than the maximum load capacity specified in the fitting instructions.

● Loads should not overhang the sides of the

product and be evenly distributed with the lowest possible centre of gravity.

● Long loads should be secured with non-

elastic straps to the front and rear of the vehicle.

● Objects with pointed ends (e.g. ski poles)

should be carried with the pointed ends to the rear of the vehicle.

● Remove all loose or removable objects

from the load prior to loading.

● Make sure all loads are securely fastened

with non-elastic straps. Check regularly during longer journeys.

● A loaded roof rack system can alter the

performance of your vehicle. Be especially aware of the effects of side winds, changing of direction, and braking performance. Avoid rapid acceleration and deceleration. Drive carefully.

● Note that the total height of the vehicle

increases when upright loads are carried.

● Products should be locked during transport

if they have locks fitted.

Page 6

WHISPBAR THROUGH BAR

Accessories Available for this Product:

S17W

● Check and replace worn out or defective

parts.

● Keep the product clean and maintained.

● Never drive into a car wash with the roof

rack system fitted.

● Lubricate locks and adjusting screws at

regular intervals.

● Remove the products from the vehicle

when not in use. Make sure all loose parts are stored safely.

● Roof Box

● Ski, Snowboard Carrier

● Canoe, Kayak Carrier

● Bicycle Carrier

● For more accessories please see our

product catalogue.

● Yakima Products, Inc.

15025 SW Koll Pkwy. Beaverton, OR 97006-6056 USA

www.whispbar.com www.whispbar.ca www.whispbar.eu www.whispbar.co.uk www.whispbar.co.za

Page 7

WHISPBAR THROUGH BAR

Erstinstallation

S17W

● Komponenten aus der Verpackung

nehmen und überprüfen. Setzen Sie sich mit Ihrem Händler in Verbindung, sollten Teile fehlen oder beschädigt sein!

● Sicherstellen, dass der Dachträger in

Fahrtrichtung zeigt (s. Abb.).

● 1. Stellschraube

● 2. Befestigungsschraube

● 3. Sicherungsschraube

Page 8

WHISPBAR THROUGH BAR

Einstellen der Querträger

S17W

● Abdeckungen mit Schlüsseln abnehmen.

● Innensechskantschlüssel benutzen und

Stellschraube mit 10 Umdrehungen lösen.

● Obere Stellschraube eindrücken und

Querträger (je nach Fall) reinschieben oder herausziehen.

● Sicherstellen, dass beide Enden der

Querträger gleich lang eingestellt sind (Maß 'x', s. Abb.).

Page 9

WHISPBAR THROUGH BAR

Zur Montage s. Montageanleitung des Kits.

S17W

● Stellschraube mit 5 Nm / 3.7 ft lb anziehen.

● Abdeckungen aufsetzen und mit

Schlüsseln verschließen (s. Abb.).

Page 10

WHISPBAR THROUGH BAR

Sicherheitshinweise & Tipps

S17W

● Dach sowie alle Trägerflächen, die mit dem

Dach Kontakt haben reinigen.

● Träger anhand der Montageanleitung

montieren. Alle Schritte unbedingt in der richtigen Reihenfolge ausführen!

● Wenn in der Anleitung nicht anders

angegeben, Querträger im Abstand von min. 700 mm montieren. Dies ist besonders für lange Belastungen wichtig!

● Bei jeder neuen Montage am Fahrzeug

prüfen, ob der Träger korrekt sitzt. Im Zweifelsfalle bitte in der Montageanleitung nachschauen und nachziehen!

● Aufgrund der niedrigen Bauhöhen lassen

sich evtl. manche Schiebedächer und Radioantennen nicht mehr benutzen.

● Dachträger nicht eigenmächtig

modifizieren!

● Max. zulässige Zuladung in der

Bedienungsanleitung des Fahrzeugs beachten! Sollte die max. zulässige Dachlast des Fahrzeugs gem. Herstellerangaben niedriger sein, darf diese auf keinen Fall überschritten werden!

● Lasten sollten seitlich nicht überstehen und

gleichmäßig auf dem Träger verteilt sein; der Masseschwerpunkt sollte so niedrig wie möglich liegen.

● Lange Lasten sollten mit nichtelastischen

Gurten an Front und Heck des Fahrzeugs gesichert werden.

● Gegenstände mit spitzen Enden (Ski)

sollten mit den Spitzen nach hinten transportiert werden.

● Bei Lasten mit losen oder abnehmbaren

Teilen diese vor dem Beladen entfernen.

● Sicherstellen, dass alle Lasten ausreichend

mit nichtelastischen Gurten gesichert sind. Während längerer Fahrten regelmäßig überprüfen!

● Dachlasten verändern das Fahr- und

Bremsverhalten Ihres Fahrzeugs! Vorsicht bei Seitenwind, Richtungswechseln, Bremsmanövern! Kein schnelles Beschleunigen und Abbremsen!

● Vorsicht! Dachlasten erhöhen die

Gesamthöhe des Fahrzeugs!

● Dachträger während der Reise

verschließen.

Page 11

WHISPBAR THROUGH BAR

● Komponenten regelmäßig überprüfen und

● Träger stets sauber halten (nicht ölen oder

● Mit montierten Dachträgern nicht in

● Schlösser und Stellschrauben regelmäßig

● Dachgepäckträger bei Nichtgebrauch

Lieferbares Zubehör für dieses Produkt

● Dachbox

S17W

defekte oder verschlissene Teile gegen Originalteile ersetzen.

fetten)!

Waschanlagen einfahren.

schmieren.

abmontieren. Alle losen Teile sicher aufbewahren!

● Träger für Ski und Snowboard

● Träger für Kanus, Kajaks etc.

● Fahrradträger

● Weitere Zubehörteile finden Sie in unserem

Produktkatalog.

● Yakima Products, Inc.

15025 SW Koll Pkwy. Beaverton, OR 97006-6056 USA

www.whispbar.de

Page 12

WHISPBAR THROUGH BAR

Primera instalación

S17W

● Retire las piezas del embalaje y confirme

su contenido. Póngase en contacto con su vendedor en el caso de que falten piezas o éstas estén dañadas.

● Asegúrese de que la cara frontal de barra

de techo está direccionada hacia la delantera del vehículo.

● 1. Tornillo de ajuste

● 2. Tornillo de bloqueo

● 3. Tornillo de seguridad

Page 13

WHISPBAR THROUGH BAR

Ajuste de barra de techo.

S17W

● Utilice las llaves para retirar la tapa.

● Utilice la llave Allen para desatornillar los

tornillos de ajuste en 10 vueltas.

● Presione el tornillo de ajuste y deslice la

barra hacia dentro o hacia fuera de acuerdo con lo deseado.

● Asegúrese de que las extremidades de la

barra estén ajustadas de forma igual.

Page 14

WHISPBAR THROUGH BAR

S17W

Para montaje de las barras de techo en el vehículo

consulte el manual del Kit de Fijación.

● Apriete el tornillo de ajuste a 5Nm (3.7 ft

lb).

● Utilice las llaves para instalar y cerrar las

cubiertas.

Page 15

WHISPBAR THROUGH BAR

Mantenimiento

S17W

● Limpie el techo del vehículo y las

superfícies del producto que estarán en contacto con el techo.

● Siga las instrucciones de montaje para la

instalación del producto en su vehículo. Asegúrese de que todos los pasos se siguen correctamente.

● Ponga las barras de techo a una distáncia

mínima de 600mm (27 1/2") cuando no se especifique otra distáncia en las instrucciones de montaje. Esto es especialmente importante al transportar cargas largas.

● Siempre que vuelva a montar las barras en

su vehículo, confirme que el conjunto formado por las barras y sus pies sigue montado de forma segura. Si parecer estar suelto, consulte novamente las instrucciones de montaje y reajuste.

● Algunos techos solares y antenas no

podrán utilizarse cuando se instalen las barras de techo.

● No intente modificar este producto.

● Considere siempre la capacidad máxima

de carga especificada en instrucciones de montaje. No exceda la capacidad de carga comunicada por el fabricante del vehículo cuando esta sea inferior a la especificada en instrucciones de montaje.

● La carga no deberá repasar la extremidad

lateral de las barras. Deberá ser distribuida uniformemente y con el menor centro de gravedad posible.

● Las cargas largas deberán estar seguradas

con cintas no elásticas en la delantera y trasera del vehículo.

● Objetos puntiagudos (ej. esquís) deberán

transportarse con la extremidad puntiaguda direccionada hacia a la trasera del vehículo.

● Retire todos los objetos sueltos o que

puedan soltarse, antes de iniciar el transporte.

● Asegúrese de que toda la carga esté

sujetada de forma segura con cintas no elásticas. Verifique regularmente en viajes largos.

Page 16

WHISPBAR THROUGH BAR

S17W

● Transportar carga en el techo del vehículo

cambia el comportamiento del mismo. Especial atención al efecto de viento cruzado, cambios de dirección y situaciones de frenado. Evite las aceleraciones y desaceleraciones rápidas. Conduzca con precaución.

● Tenga en cuenta que la altura total del

vehículo se incrementa cuando se llevan cargas verticales.

● Los accesorios deben estar cerrados en el

transporte siempre que tengan cerraduras.

● Verifique y reemplace las piezas

desgastadas o defectuosas.

● Mantenga el producto limpio y con

mantenimiento regular.

● No lave el coche en sistemas de lavado

automático con las barras de techo montadas.

● Lubricar las cerraduras y tornillos de ajuste

de forma periódica.

● Retire las barras de techo de su vehículo

cuando no las utilice. Asegúrese de que mantiene todas las piezas en lugar seguro.

Accesorios disponibles para este producto:

● Maletero de techo

● Porta-esquís, snowboard

● Porta-kayaks, canoas

● Porta-bicicletas

● Para más accesorios por favor consulte

nuestro catálogo de productos.

● Yakima Products, Inc.

15025 SW Koll Pkwy. Beaverton, OR 97006-6056 USA

www.whispbar.es www.whispbar.com.mx

Page 17

WHISPBAR THROUGH BAR

Première installation

S17W

● Retirer les pièces de contenu de

l'emballage et vérifier. Contactez votre revendeur si certaines pièces sont manquantes ou endommagées.

● Veiller à ce que les barres de toit soient

tournées vers l'avant du véhicule.

● 1. Vis de réglage

● 2. Vis de blocage

● 3. Vis de fixation

Page 18

WHISPBAR THROUGH BAR

Réglage des barres latérales

S17W

● Utiliser les clés pour retirer les caches

● Utiliser le tournevis cruciforme pour

repositionner la vis de réglage et faire 10 tours.

● Appuyer sur la vis de réglage et faire

glisser la barre transversale vers l'intérieur ou l'extérieur selon les besoins.

● Veiller à ce que chaque extrémité de la

barre transversale soit ajustée également.

Page 19

WHISPBAR THROUGH BAR

Pour fixer les barres de toit sur un véhicule,

veuillez consulter les instructions du kit

d'installation.

S17W

● Serrer la vis de réglage jusqu'à 5 Nm (3.7 ft

lb).

● Utiliser les touches pour installer et

verrouiller les couvercles

Page 20

WHISPBAR THROUGH BAR

Maintenance

S17W

● Nettoyer le toit de la voiture et les surfaces

des produits qui seront en contact avec le toit de la voiture.

● Suivre les instructions de montage pour

l'installation du produit sur votre véhicule. S'assurer que toutes les étapes sont réalisées dans l'ordre.

● Placer les barres transversales à une

distance minimale de 700 mm (27 1/2") lorsqu'aucune autre distance n'est indiquée dans les instructions de montage. Cela est particulièrement important pour le transport de charges longues.

● Placer les barres transversales à une

distance minimale de 700 mm lorsqu'aucune autre distance n'est indiquée dans les instructions de montage. Cela est particulièrement important pour le transport de charges longues.

● Certains toits en verre/panoramiques et

autres antennes radio peuvent ne plus être utilisés dès lors que le produit est fixé.

● Ne pas modifier ce produit.

● Se référer à la capacité de charge

maximale autorisée dans les instructions de montage. Ne pas dépasser les fabricants de véhicules toit des avis si elle est inférieure à la capacité de charge maximale spécifiée dans les instructions de montage

● Les charges ne doivent pas dépasser des

côtés du produit et être également réparties avec le centre de gravité le plus bas possible.

● Les charges longues doivent etre

attachées avec des sangles non élastiques à l'avant et l'arrière du véhicule.

● Les objets à bouts pointus (skis) doivent

être transportés avec les pointes tournées vers l'arrière du véhicule.

● Retirez tous les objets en vrac ou

amovibles de la charge avant le chargement.

● S'assurer que toutes les charges sont

solidement attachées avec des sangles non élastiques. Vérifier régulièrement pendant les longs trajets.

Page 21

WHISPBAR THROUGH BAR

S17W

● Un système de galerie de toit chargé peut

altérer les performances de votre véhicule. Soyez particulièrement conscients des effets de vents latéraux, le changement de direction, et du freinage. Évitez accélération et de décélération. Conduisez prudemment

● Noter que la hauteur totale du véhicule

augmente lorsque les charges sont transportées en position verticale.

● Les produits doivent être verrouillés

pendant le transport si ils sont équipés de serrures.

● Vérifier et remplacer les éléments usés ou

défectueux

● Conserver le produit propre et en bon état.

● Ne jamais entrer dans un lave-auto avec le

système de galerie de toit installé.

● Lubrifier les serrures et les vis de réglage à

intervalles réguliers.

● Retirer le produit du véhicule lorsqu'il n'est

pas utilisé. Veiller à ce que toutes les pièces détachées soient stockées en toute sécurité.

Accessoires disponibles pour ce produit:

● Coffre de toit

● Porte-ski/snowboard

● Porte-canoë/kayak

● Porte-vélo

● Pour plus d'accessoires, veuillez consulter

notre catalogue de produits.

● Yakima Products, Inc.

15025 SW Koll Pkwy. Beaverton, OR 97006-6056 USA

www.whispbar.fr www.whispbar.ca/fr

Page 22

WHISPBAR THROUGH BAR

Montering første gang

S17W

● Pakk ut delene og kontroller innholdet.

Kontakt din forhandler hvis deler mangler eller er skadet.

● Forsikre deg om at takstativet vender riktig

vei mot fronten av bilen.

● 1. Justerskrue

● 2. Låseskrue

● 3. Sikkerhetsskrue

Page 23

WHISPBAR THROUGH BAR

Justering av stativer

S17W

● Bruk nøklene for å ta av dekslene

● Bruk unbracoskrutrekker for å skru ut

justeringsskruen 10 omdreininger.

● Trykk inn justeringsskruen og juster

lengdene på stativet inn eller ut.

● Forsikre deg om at stativet er justert likt i

hver ende i forhold til.

Page 24

WHISPBAR THROUGH BAR

For å montere takstativ se bruksanvisning.

S17W

● Trekk til justeringskruen med et moment på

5Nm / 3.7 ft lb.

● Bruk nøkkelen og sett på dekslene

Page 25

WHISPBAR THROUGH BAR

Vedlikehold

S17W

● Rengjør grundig taket og alle overflater på

produktet som kommer i kontakt med taket på bilen.

● Følg bruksanvisningen når du monterer

produktet på bilen. Sørg for at trinn følges i rett rekkefølge.

● Avstanden mellom stengene skal være

minimum 700 mm hvis noe annet ikke er spesifisert i bruksanvisningen. Dette er spesielt viktig der det skal transporteres lange gjenstander.

● Kontroller at takstativet er sikkert festet

hver gang du monterer det på bilen. Hvis stativet føles løst bør bruksanvisningen følges og etterjuster.

● Enkelte soltak og antenner kan ikke være i

bruk når takstativ er montert.

● Ikke modifiser dette produktet.

● Se maksimalt tillatte lastekapasitet i

bruksanvisningen. Man skal likevel aldri gå over anbefalt totalvekt for bilens tak.

● Last skal ikke henge utover siden på

takstativet og alltid være jevnt plassert med tyngdepunkt så lavt som mulig.

● Lange gjenstander bør alltd festes med

elastiske stropper både foran og bak på bilen.

● Gjenstander med spiss ende bør alltid

fraktes med den spisse enden bakover.

● Fjern alle løse gjenstander fra lasten før

den festes på taket.

● Forsikre deg om at all last er festet med

ikke elastiske stropper og kontroller regelmessig under lange turer.

● Last på taket kan endre kjøregenskapene

på bilen. Det er viktig å være oppmerksom på sidevind, unnamanøvre og bremseegenskaper. Kjør forsiktig.

● Vær oppmerksom på at høyden på bilen

ofte øker betraktelig med last på taket.

● Produkter bør løses under transport hvis

mulig.

● Kontroller og bytt ut slitte eller defekte

deler.

● Hold produktet rent og vedlikeholdt.

● Kjør aldri inn i en bilvaskemaskin med

takstativet på.

Page 26

WHISPBAR THROUGH BAR

Tilbehør tilgjengelig for dette produktet

S17W

● Smør låsene og juster skruer hvis

nødvendig med jevne intervaller.

● Demonter produktet hvis det ikke er bruk.

Sørg for å lagre alle løse deler forsvarlig.

● Takboks

● Ski, Snøbrettholder

● Kano, Kajakkholder

● Sykkelstativ

● For mer ekstrautstyr se vår produktkatalog

● Yakima Products, Inc.

15025 SW Koll Pkwy. Beaverton, OR 97006-6056 USA

www.whispbar.no

Page 27

WHISPBAR THROUGH BAR

Primeira instalação

S17W

● Retire as peças da embalagem e confirme

o conteúdo. Contacte a sua loja no caso de faltarem peças ou na eventualidade de estarem danificadas.

● Certifique-se que a barra de tejadilho tem a

parte frontal na direcção da frente do veículo.

● 1. Parafuso de ajuste

● 2. Parafuso de bloqueio

● 3. Parafuso de segurança

Page 28

WHISPBAR THROUGH BAR

Ajuste da barra de tejadilho.

S17W

● Utilize as chaves para retirar a tampa.

● Utilize a chave hexagonal para desapertar

o parafuso de ajuste. 10 voltas.

● Pressione o parafuso de ajuste e faça

deslizar a barra para dentro ou para fora conforme pretendido.

● Certifique-se que as extremidades da barra

estão ajustadas de forma igual.

Page 29

WHISPBAR THROUGH BAR

S17W

Para a montagem das barras de tejadilho no

veículo consulte as Instruções de Montagem do Kit

de Fixação.

● Aperte parafuso de ajuste a 5Nm / 3.7 ft lb.

● Utilize as chaves para colocar e fechar as

coberturas.

Page 30

WHISPBAR THROUGH BAR

Manutenção

S17W

● Limpe o tejadilho do carro e as superficies

do produto que estarão em contacto com o tejadilho.

● Siga as Instruções de Montagem para a

colocação do produto no seu veículo. Certifique-se que todos os passos são seguidos correctamente.

● Coloque as barras de tejadilho a uma

distância minima de 700mm, quando não é específicada outra distância nas Instruções de Montagem. Especialmente importante ao transportar cargas longas.

● Sempre que voltar a colocar as barras no

seu veículo, confirme se o conjunto formado pelas barras e respectivos pés continua montado de forma segura. Se perceber que tem folgas, consulte novamente as Instruções de Montagem e reajuste.

● Certos tectos de abrir e antenas de rádio

não poderão ser utilizados aquando da colocação das barras de tejadilho.

● Não tente modificar este produto.

● Considere sempre a capacidade máxima

de carga específicada nas Instruções de Montagem. Não exceda a capacidade de carga comunicada pelo fabricante do veículo quando esta é inferior à capacidade de carga específicada nas Instruções de Montagem.

● A carga não deve ultrapassar a

extremidade lateral das barras. Deve também ser distribuida de forma uniforme e com o menor centro de gravidade possivel.

● As cargas longas deverão ser seguras com

cintas não elásticas na frente e na traseira do veículo.

● Objectos pontiagudos (ex. Skis) deverão

ser transportados com a extremidade pontiaguda em direccão à traseira do automóvel.

● Retire todos os objectos soltos ou

passiveis de se soltarem antes de iniciar o transporte.

● Certifique-se que toda a carga está presa

de forma segura com cintas não elásticas. Verifique regularmente durante viagens longas.

Page 31

WHISPBAR THROUGH BAR

S17W

● Transportar carga no tejadilho do veículo

pode alterar o comportamento do mesmo. Tenha especial atenção para o efeito dos ventos laterais, mudanças de direcção e situações de travagem. Evite acelerações e desacelerações rápidas. Conduza com precaução.

● Note que a altura total do veículo aumenta

quando são transportadas cargas verticais.

● Os acessórios devem estar trancados

durante o transporte sempre que tiverem dispositivos anti-roubo.

● Verifique e substitua as peças desgastadas

ou com defeito.

● Mantenha o produto limpo e com

manutenção regular.

● Não lavar o carro em sistemas de lavagem

automática com as barras de tejadilho montadas.

● Lubrifique os anti-roubos e os parafusos de

ajuste periodicamente.

● Retire as barras de tejadilho do seu veículo

quando não as utilizar. Salvaguarde que guarda todas as peças em local seguro.

Acessórios disponíveis para este produto:

● Mala Bagageira

● Suporte de Skis, Snowboard

● Suporte de Kayak, Canoa

● Suporte de Bicicleta

● Para consulta de mais acessórios PF

consulte o nosso catálogo de produtos.

● Yakima Products, Inc.

15025 SW Koll Pkwy. Beaverton, OR 97006-6056 E.U.A

www.whispbar.pt www.whispbar.br

Page 32

WHISPBAR THROUGH BAR

Первая Установка

S17W

● Распакуйте установочный комплект и

проверьте наличие всех компонентов. В случае отсутствия или повреждения каких либо компонентов обратитесь к вашему представителю Prorack

● Убедитесь что багажник установлен в

правильном направлении

● Регулировочный Винт

● Винт Зажима

● Винт Замка

Page 33

WHISPBAR THROUGH BAR

Регулировка Поперечных Балок

S17W

● Используйте ключи чтобы снять крышки

багажника

● Используйте шестигранную отвертку

чтобы открутить регулировочный винт. Около 10-ти оборотов.

● Нажмите на регулировочный винт и

двигайте упор попречной балки в требуемом направлении (вперед или на зад).

● Постарайтесь отрегулировать упоры так

чтобы они были расположенны на одинаковом расстоянии от краёв балки.

Page 34

WHISPBAR THROUGH BAR

При установке багажника на ваш автомобиль

обратитесь к инструкции Установочного

Комплекта

● Затяните регулировочный винт до 5Nm /

3.7 ft lb.

S17W

● Используйте ключи чтобы установить и

закрыть крышки багажника

Page 35

WHISPBAR THROUGH BAR

Эксплуотация

S17W

● Крыша автомобиля, а также все

компоненты набора которые будут с ней соприкосатся должны быть чистыми

● Следуйте инструкции при установке

продукции на ваш автомобиль.

● Установите поперечные балки с

минимальным промежутком 700мм (27 1/2") если в инструкциях не указаны специальные размеры для вашего автомобиля. Ето поможет вам при перевозке длинных грузов.

● Если переустановив багажник вы

считаете что он плохо прикреплён то обратитесь к инструкциям по установке и переустановите багажник заново.

● При установке данного изделия

возможно Вы не сможете использовать некоторые виды стеклянных/панорамных крыш и радиоантенн.

● Не модифицируйте данный продукт!

● Максимальная допустимая нагрузка на

ваш багажник обозначенна в инструкциях установочного набора. Если производитель вашего автомобиля допускает меньшую нагрузку на крышу то следуйте ей.

● Перевозимые грузы не должны

выступать по сторонам багажника и должны быть равномерно распределены по поперечным балкам. Посторайтесь расположить центр тяжести груза как можно ниже.

● Длинные грузы должны быть закреплены

неэластичными верёвками спереди и сзади автомобиля

● Остроконечные предметы (например

лыжи) должны перевозится с острыми концами направленными назад.

● Снимите все плохо закреплённые

предметы с вещей которые вы собираетесь везти перед тем как погрузите их на багажник.

● Все перевозимые предметы должны

быть крепко закреплены на багажнике неэластичными верёвками. Регулярно проверяйте тугость верёвок во время длинных поездок.

Page 36

WHISPBAR THROUGH BAR

S17W

● Багажник с нагрузкой может повлиять на

характеристики вашего автомобиля. Старайтесь вести ваш автомобиль аккуратно, не превышая скорость и избегая резких разгонов, торможений и поворотов.

● Помните что багажник с грузом влияет

на высоту вашего автомобиля.

● Всё оборудование с установленными на

нём замками должно быть закрыто во время поездки.

● Если вы заметили что какие либо из

компонентов повреждёны или износились, замените их как можно скорее.

● Старайтесь сохранять ваш багажник в

чистом и ухоженном состоянии так как ето увеличит срок службы продукта.

● Никогда не заезжайте в автоматическую

автомойку с установленным багажником.

● Регулярно смазывайте замки и

регулировочные винты.

● Снимите багажник с автомобиля когда

вы его не используете. Храните все компоненты в безопасном месте.

Аксессуары доступные для данного продукта:

● Бокс

● Лыжное крепление

● лодочное крепление

● Велокрепление

● Смотрите каталог нашей продукции

чтобы узнать больше о вспомогательном оборудовании доступном для вашего багажника

Page 37

WHISPBAR THROUGH BAR

S17W

● Yakima Products, Inc.

15025 SW Koll Pkwy. Beaverton, OR 97006-6056 USA

www.whispbar.ru www.whispbar.com.ua

Page 38

WHISPBAR THROUGH BAR

S17W

A B C 1 2 3

164, 4dr Sedan 88-97 (ZA) - - - - - -

280, 4dr Sedan 76-85 (AU) - - - - - -

300, 4dr Sedan 05-10 (US) - - - - - -

300, 4dr Sedan 05-10 (US) -400mm 250mm - 957mm 970mm -

3008, 5dr SUV 09-+ (EU) -175mm 530mm - 1005mm 940mm -

3008, 5dr SUV 10-+ (AU) -175mm 530mm - 1005mm 940mm -

3008, 5dr SUV 10-+ (US) -175mm 530mm - 1005mm 940mm -

3008, 5dr SUV 10-+ (ZA) -175mm 530mm - 1005mm 940mm -

3008, 5dr SUV 10-+ (NZ) -175mm 530mm - 1005mm 940mm -

300C, 4dr Sedan 04-10 (NZ) - - - - - -

300C, 4dr Sedan 04-10 (NZ) -400mm 250mm - 957mm 970mm -

300C, 4dr Sedan 04-10 (EU) - - - - - -

300C, 4dr Sedan 04-10 (EU) -400mm 250mm - 957mm 970mm -

300C, 4dr Sedan 04-10 (AU) - - - - - -

300C, 4dr Sedan 04-10 (AU) -400mm 250mm - 957mm 970mm -

- - - - - -

-15 -3/4ths" 9 13/16ths" - 37 11/16ths" 38 3/16ths" -

-6 -7/8ths" 20 7/8ths" - 39 9/16ths" 37" -

- - - - - -

-15 -3/4ths" 9 13/16ths" - 37 11/16ths" 38 3/16ths" -

- - - - - -

-15 -3/4ths" 9 13/16ths" - 37 11/16ths" 38 3/16ths" -

- - - - - -

-15 -3/4ths" 9 13/16ths" - 37 11/16ths" 38 3/16ths" -

Page 39

WHISPBAR THROUGH BAR

S17W

300D, 4dr Sedan 76-85 (AU) - - - - - -

380, 4dr Sedan 81-91 (NZ) - - - - - -

4 Runner, 5dr SUV 03-09 (EU) 200mm 1240mm - 953mm 953mm -

4 Runner, 5dr SUV 03-09 (US) 200mm 1240mm - 953mm 953mm -

4 Runner, 5dr SUV 10-+ (US) 350mm 1050mm - 920mm 920mm -

5 Series, 4dr Sedan 09-11 (AU) -270mm 430mm - 1065mm 1065mm -

5 Series, 4dr Sedan 09-11 (US) -270mm 430mm - 1065mm 1065mm -

5 Series, 4dr Sedan 09-11 (EU) -270mm 430mm - 1065mm 1065mm -

5 Series, 4dr Sedan 09-11 (ZA) -270mm 430mm - 1065mm 1065mm -

5 Series, 4dr Sedan 09-11 (NZ) -270mm 430mm - 1065mm 1065mm -

5008, 5dr MPV 09-+ (EU) -170mm 520mm - 990mm 945mm -

604, 4dr Sedan 75-85 (NZ) - - - - - -

604, 4dr Sedan Mar 75-85 (AU) - - - - - -

7 Series, 4dr Sedan 02-08 (ZA) - - - - - -

7 Series, 4dr Sedan 94-01 (ZA) - - - - - -

7 Series, 4dr Sedan 94-01 (US) - - - - - -

7 Series, 4dr Sedan Feb 02-08 (AU) - - - - - -

7 Series, 4dr Sedan Feb 95-Feb 02 (AU) - - - - - -

7 Series, 4dr Sedan Nov 94-01 (NZ) - - - - - -

A8, 4dr Sedan 03-09 (AU) -340mm 380mm - 950mm 950mm -

A8, 4dr Sedan 03-09 (EU) -340mm 380mm - 950mm 950mm -

A8, 4dr Sedan 03-09 (NZ) -340mm 380mm - 950mm 950mm -

A8, 4dr Sedan 04-10 (US) -340mm 380mm - 950mm 950mm -

Actyon, 4dr Ute 05-+ (ZA) -150mm 650mm - 950mm 940mm -

Actyon, 4dr Ute 05-+ (EU) -150mm 650mm - 950mm 940mm -

Actyon, 4dr Ute Mar 07-+ (AU) -150mm 650mm - 950mm 940mm -

Actyon, 4dr Ute Mar 07-+ (NZ) -150mm 650mm - 950mm 940mm -

Alfa 164, 4dr Sedan Feb 88-Dec 97 (NZ) - - - - - -

Alhambra, 5dr MPV Oct 10-+ (EU) 100mm 850mm - 965mm 930mm -

Amarok, 4dr Ute 10-+ (NZ) -270mm 500mm - 970mm 955mm -

Amarok, 4dr Ute 10-+ (AU) -270mm 500mm - 970mm 955mm -

Amarok, 4dr Ute 10-+ (EU) -270mm 500mm - 970mm 955mm -

Amarok, 4dr Ute 10-+ (ZA) -270mm 500mm - 970mm 955mm -

Avalanche, 4dr Truck 02-06 (US) - - - - - -

Avalanche, 4dr Truck 07-+ (US) -160mm 740mm - 1048mm 1048mm -

- - - - - -

7 7/8ths" 48 13/16ths" - 37 1/2ths" 37 1/2ths" -

13 3/4ths" 41 5/16ths" - 36 1/4ths" 36 1/4ths" -

-10 -5/8ths" 16 15/16ths" - 41 15/16ths" 41 15/16ths" -

-6 -11/16ths" 20 1/2ths" - 39" 37 3/16ths" -

- - - - - -

-13 -3/8ths" 14 15/16ths" - 37 3/8ths" 37 3/8ths" -

-5 -7/8ths" 25 9/16ths" - 37 3/8ths" 37" -

- - - - - -

3 15/16ths" 33 7/16ths" - 38" 36 5/8ths" -

-10 -5/8ths" 19 11/16ths" - 38 3/16ths" 37 5/8ths" -

- - - - - -

Page 40

WHISPBAR THROUGH BAR

-6 -5/16ths" 29 1/8ths" - 41 1/4ths" 41 1/4ths" -

Avenger, 4dr Sedan 08-+ (NZ) -300mm 400mm - 937mm 918mm -

-11 -13/16ths" 15 3/4ths" - 36 7/8ths" 36 1/8ths" -

Avenger, 4dr Sedan 08-+ (EU) -300mm 400mm - 937mm 918mm -

-11 -13/16ths" 15 3/4ths" - 36 7/8ths" 36 1/8ths" -

Avenger, 4dr Sedan 08-+ (AU) -300mm 400mm - 937mm 918mm -

-11 -13/16ths" 15 3/4ths" - 36 7/8ths" 36 1/8ths" -

Avenger, 4dr Sedan 08-+ (US) -300mm 400mm - 937mm 918mm -

-11 -13/16ths" 15 3/4ths" - 36 7/8ths" 36 1/8ths" -

Berlingo, 5dr Van 08-+ (AU) -180mm 670mm 1370mm 990mm 940mm 920mm

-7 -1/16ths" 26 3/8ths" 53 15/16ths" 39" 37" 36 1/4ths"

Berlingo, 5dr Van 08-+ (EU) -180mm 670mm 1370mm 990mm 940mm 920mm

-7 -1/16ths" 26 3/8ths" 53 15/16ths" 39" 37" 36 1/4ths"

Berlingo, 5dr Van 08-+ (NZ) -180mm 670mm 1370mm 990mm 940mm 920mm

-7 -1/16ths" 26 3/8ths" 53 15/16ths" 39" 37" 36 1/4ths"

Bighorn, 3dr SUV 92-02 (EU) - - - - - -

- - - - - -

Bighorn, 3dr SUV 92-02 (EU) - - - - - -

- - - - - -

Bighorn, 5dr SUV 92-02 (EU) - - - - - -

- - - - - -

Bighorn, 5dr SUV 92-02 (NZ) - - - - - -

- - - - - -

Bighorn, 5dr SUV 92-02 (EU) - - - - - -

- - - - - -

Bighorn, 5dr SUV 92-02 (EU) -200mm 600mm - 890mm 890mm -

-7 -7/8ths" 23 5/8ths" - 35 1/16ths" 35 1/16ths" -

Bighorn, 5dr SUV 92-02 (NZ) - - - - - -

- - - - - -

Bighorn, 5dr SUV 92-02 (NZ) -200mm 600mm - 890mm 890mm -

-7 -7/8ths" 23 5/8ths" - 35 1/16ths" 35 1/16ths" -

Bipper Tepee, 5dr MPV 08-+ (EU) 50mm 850mm - 1050mm 995mm -

1 15/16ths" 33 7/16ths" - 41 5/16ths" 39 3/16ths" -

Blazer, 5dr SUV 95-04 (US) - - - - - -

- - - - - -

Bronco, 2dr Ute 78-91 (NZ) - - - - - -

- - - - - -

Bronco, 2dr Ute Mar 81-87 (AU) - - - - - -

- - - - - -

Bronco, 3dr SUV 78-91 (EU) - - - - - -

- - - - - -

BT-50, 4dr Ute 12-+ (EU) -220mm 530mm - 944mm 914mm -

-8 -11/16ths" 20 7/8ths" - 37 3/16ths" 36" -

BT-50, 4dr Ute 12-+ (ZA) -220mm 530mm - 944mm 914mm -

-8 -11/16ths" 20 7/8ths" - 37 3/16ths" 36" -

BT-50, 4dr Ute Nov 11-+ (NZ) -220mm 530mm - 944mm 914mm -

-8 -11/16ths" 20 7/8ths" - 37 3/16ths" 36" -

BT-50, 4dr Ute Nov 11-+ (AU) -220mm 530mm - 944mm 914mm -

-8 -11/16ths" 20 7/8ths" - 37 3/16ths" 36" -

C20, 4dr Van Mar 82-Jan 96 (NZ) - - - - - -

- - - - - -

C22, 4dr Van Feb 81-Jul 96 (NZ) - - - - - -

- - - - - -

C4, 5dr MPV 06-+ (NZ) 190mm 890mm - 985mm 935mm -

7 1/2ths" 35 1/16ths" - 38 3/4ths" 36 13/16ths" -

C4, 5dr MPV 06-+ (AU) 190mm 890mm - 985mm 935mm -

7 1/2ths" 35 1/16ths" - 38 3/4ths" 36 13/16ths" -

C4, 5dr MPV 06-+ (EU) 190mm 890mm - 985mm 935mm -

7 1/2ths" 35 1/16ths" - 38 3/4ths" 36 13/16ths" -

Caddy, 4dr Van 03-+ (ZA) - 100mm 860mm 818mm 790mm -

- 3 15/16ths" 33 7/8ths" 32 3/16ths" 31 1/8ths" -

Caddy, 4dr Van 04-+ (AU) - 100mm 860mm 818mm 790mm -

- 3 15/16ths" 33 7/8ths" 32 3/16ths" 31 1/8ths" -

Caddy, 4dr Van 04-+ (EU) - 100mm 860mm 818mm 790mm -

- 3 15/16ths" 33 7/8ths" 32 3/16ths" 31 1/8ths" -

Caddy, 4dr Van 04-+ (NZ) - 100mm 860mm 818mm 790mm -

- 3 15/16ths" 33 7/8ths" 32 3/16ths" 31 1/8ths" -

Caddy, 5dr Van 08-+ (ZA) - 100mm 860mm 818mm 790mm 782mm

- 3 15/16ths" 33 7/8ths" 32 3/16ths" 31 1/8ths" 30 13/16ths"

S17W

Page 41

WHISPBAR THROUGH BAR

S17W

Caddy, 5dr Van 08-+ (EU) - 100mm 860mm 818mm 790mm 782mm

Caddy, 5dr Van 08-+ (NZ) - 100mm 860mm 818mm 790mm 782mm

Caddy, 5dr Van 08-+ (AU) - 100mm 860mm 818mm 790mm 782mm

Carnival, 5dr MPV 11-+ (AU) -200mm 550mm - 932mm 922mm -

Cayenne, 5dr SUV 02-10 (ZA) 120mm 820mm - 840mm 830mm -

Cayenne, 5dr SUV 02-10 (NZ) 120mm 820mm - 840mm 830mm -

Cayenne, 5dr SUV 02-10 (AU) 120mm 820mm - 840mm 830mm -

Cayenne, 5dr SUV 02-10 (US) 120mm 820mm - 840mm 830mm -

Cayenne, 5dr SUV 02-10 (EU) 120mm 820mm - 840mm 830mm -

Cayenne, 5dr SUV 10-+ (ZA) -130mm 620mm - 1015mm 945mm -

Cayenne, 5dr SUV 10-+ (US) -130mm 620mm - 1015mm 945mm -

Cayenne, 5dr SUV 10-+ (EU) -130mm 620mm - 1015mm 945mm -

Cayenne, 5dr SUV 10-+ (NZ) -130mm 620mm - 1015mm 945mm -

Cayenne, 5dr SUV 10-+ (AU) -130mm 620mm - 1015mm 945mm -

Cayenne, 5dr SUV 10-+ (NZ) -80mm 670mm - 965mm 910mm -

Cayenne, 5dr SUV 10-+ (AU) -80mm 670mm - 965mm 910mm -

Cayenne, 5dr SUV 10-+ (US) -80mm 670mm - 965mm 910mm -

Cayenne, 5dr SUV 10-+ (EU) -80mm 670mm - 965mm 910mm -

Cayenne, 5dr SUV 10-+ (ZA) -80mm 670mm - 965mm 910mm -

Challenger, 5dr SUV 96-09 (EU) - - - - - -

Challenger, 5dr SUV May 98-09 (AU) - - - - - -

Challenger, 5dr SUV Sep 96-09 (NZ) - - - - - -

Cherokee, 5dr SUV 08-+ (EU) - - - 1055mm 1025mm -

Cherokee, 5dr SUV 08-+ (ZA) - - - 1055mm 1025mm -

Cherokee, 5dr SUV 08-+ (NZ) - - - 1055mm 1025mm -

Cherokee, 5dr SUV 08-+ (AU) - - - 1055mm 1025mm -

CLS Class, 4dr Sedan 04-10 (EU) -140mm 500mm - 980mm 965mm -

CLS Class, 4dr Sedan 05-10 (NZ) -140mm 500mm - 980mm 965mm -

CLS Class, 4dr Sedan 05-10 (AU) -140mm 500mm - 980mm 965mm -

CLS Class, 4dr Sedan 05-10 (US) -140mm 500mm - 980mm 965mm -

CLS Class, 4dr Sedan 05-10 (ZA) -140mm 500mm - 980mm 965mm -

Colorado, 4dr Truck 13-+ (US) -295mm 595mm - 905mm 885mm -

Colorado, 4dr Ute 12-+ (NZ) -295mm 595mm - 905mm 885mm -

Colorado, 4dr Ute 12-+ (AU) -295mm 595mm - 905mm 885mm -

Colorado, 4dr Ute 13-+ (EU) -295mm 595mm - 905mm 885mm -

- 3 15/16ths" 33 7/8ths" 32 3/16ths" 31 1/8ths" 30 13/16ths"

-7 -7/8ths" 21 5/8ths" - 36 11/16ths" 36 5/16ths" -

4 3/4ths" 32 5/16ths" - 33 1/16ths" 32 11/16ths" -

-5 -1/8ths" 24 7/16ths" - 39 15/16ths" 37 3/16ths" -

-3 -1/8ths" 26 3/8ths" - 38" 35 13/16ths" -

- - - - - -

- - - 41 9/16ths" 40 3/8ths" -

-5 -1/2ths" 19 11/16ths" - 38 9/16ths" 38" -

-11 -5/8ths" 23 7/16ths" - 35 5/8ths" 34 13/16ths" -

Page 42

WHISPBAR THROUGH BAR

-11 -5/8ths" 23 7/16ths" - 35 5/8ths" 34 13/16ths" -

Cruze, 5dr Hatch Jun 02-06 (NZ) - - - - - -

- - - - - -

CX-9, 5dr SUV 06-+ (EU) -250mm 450mm - 919mm 906mm -

-9 -13/16ths" 17 11/16ths" - 36 3/16ths" 35 11/16ths" -

CX-9, 5dr SUV 07-+ (AU) -250mm 450mm - 919mm 906mm -

-9 -13/16ths" 17 11/16ths" - 36 3/16ths" 35 11/16ths" -

CX-9, 5dr SUV 07-+ (NZ) -250mm 450mm - 919mm 906mm -

-9 -13/16ths" 17 11/16ths" - 36 3/16ths" 35 11/16ths" -

CX-9, 5dr SUV 07-+ (US) -250mm 450mm - 919mm 906mm -

-9 -13/16ths" 17 11/16ths" - 36 3/16ths" 35 11/16ths" -

CX-9, 5dr SUV 07-+ (ZA) -250mm 450mm - 919mm 906mm -

-9 -13/16ths" 17 11/16ths" - 36 3/16ths" 35 11/16ths" -

CX-9, 5dr SUV 07-+ (US) - - - 976mm 976mm -

- - - 38 7/16ths" 38 7/16ths" -

CX-9, 5dr SUV 07-+ (US) -260mm 810mm - 955mm 930mm -

-10 -1/4ths" 31 7/8ths" - 37 5/8ths" 36 5/8ths" -

CX-9, 5dr SUV 07-+ (EU) -260mm 810mm - 955mm 930mm -

-10 -1/4ths" 31 7/8ths" - 37 5/8ths" 36 5/8ths" -

CX-9, 5dr SUV 07-+ (ZA) -260mm 810mm - 955mm 930mm -

-10 -1/4ths" 31 7/8ths" - 37 5/8ths" 36 5/8ths" -

CX-9, 5dr SUV 07-+ (NZ) -260mm 810mm - 955mm 930mm -

-10 -1/4ths" 31 7/8ths" - 37 5/8ths" 36 5/8ths" -

CX-9, 5dr SUV 07-+ (AU) -260mm 810mm - 955mm 930mm -

-10 -1/4ths" 31 7/8ths" - 37 5/8ths" 36 5/8ths" -

D Max, 4dr Ute 12-+ (NZ) -295mm 595mm - 905mm 885mm -

-11 -5/8ths" 23 7/16ths" - 35 5/8ths" 34 13/16ths" -

D Max, 4dr Ute 12-+ (EU) -295mm 595mm - 905mm 885mm -

-11 -5/8ths" 23 7/16ths" - 35 5/8ths" 34 13/16ths" -

D Max, 4dr Ute 12-+ (EU) -295mm 595mm - 905mm 885mm -

-11 -5/8ths" 23 7/16ths" - 35 5/8ths" 34 13/16ths" -

D Max, 4dr Ute 13-+ (ZA) -295mm 595mm - 905mm 885mm -

-11 -5/8ths" 23 7/16ths" - 35 5/8ths" 34 13/16ths" -

D Max, 4dr Ute Jul 12-+ (AU) -295mm 595mm - 905mm 885mm -

-11 -5/8ths" 23 7/16ths" - 35 5/8ths" 34 13/16ths" -

D Max, 4dr Ute Jul 12-+ (AU) -295mm 595mm - 905mm 885mm -

-11 -5/8ths" 23 7/16ths" - 35 5/8ths" 34 13/16ths" -

D Max, 4dr Ute Jul 12-+ (AU) -295mm 595mm - 905mm 885mm -

-11 -5/8ths" 23 7/16ths" - 35 5/8ths" 34 13/16ths" -

Delica, 5dr SUV Mar 07-+ (NZ) 100mm 800mm 1500mm 1034mm 1007mm 978mm

3 15/16ths" 31 1/2ths" 59 1/16ths" 40 11/16ths" 39 5/8ths" 38 1/2ths"

Discovery, 5dr SUV 04-+ (EU) - - - - - -

- - - - - -

Discovery, 5dr SUV 04-05 (ZA) -330mm 250mm 840mm - 950mm 935mm

-12 -1/1ths" 9 13/16ths" 33 1/16ths" - 37 3/8ths" 36 13/16ths"

Discovery, 5dr SUV 04-09 (EU) 220mm 1640mm - 935mm 875mm -

8 11/16ths" 64 9/16ths" - 36 13/16ths" 34 7/16ths" -

Discovery, 5dr SUV 04-09 (NZ) -330mm 250mm 840mm - 950mm 935mm

-12 -1/1ths" 9 13/16ths" 33 1/16ths" - 37 3/8ths" 36 13/16ths"

Discovery, 5dr SUV 04-09 (AU) -330mm 250mm 840mm - 950mm 935mm

-12 -1/1ths" 9 13/16ths" 33 1/16ths" - 37 3/8ths" 36 13/16ths"

Discovery, 5dr SUV 04-09 (EU) -330mm 250mm 840mm - 950mm 935mm

-12 -1/1ths" 9 13/16ths" 33 1/16ths" - 37 3/8ths" 36 13/16ths"

Discovery, 5dr SUV 09-+ (ZA) -330mm 250mm 840mm - 950mm 935mm

-12 -1/1ths" 9 13/16ths" 33 1/16ths" - 37 3/8ths" 36 13/16ths"

Discovery, 5dr SUV 09-+ (NZ) -330mm 250mm 840mm - 950mm 935mm

-12 -1/1ths" 9 13/16ths" 33 1/16ths" - 37 3/8ths" 36 13/16ths"

Discovery, 5dr SUV 09-+ (AU) -330mm 250mm 840mm - 950mm 935mm

-12 -1/1ths" 9 13/16ths" 33 1/16ths" - 37 3/8ths" 36 13/16ths"

Discovery, 5dr SUV 09-+ (EU) -330mm 250mm 840mm - 950mm 935mm

-12 -1/1ths" 9 13/16ths" 33 1/16ths" - 37 3/8ths" 36 13/16ths"

Discovery, 5dr SUV 09-+ (EU) 220mm 1640mm - 935mm 875mm -

8 11/16ths" 64 9/16ths" - 36 13/16ths" 34 7/16ths" -

Discovery, 5dr SUV 09-+ (ZA) 220mm 1640mm - 935mm 875mm -

8 11/16ths" 64 9/16ths" - 36 13/16ths" 34 7/16ths" -

Discovery, 5dr SUV 09-+ (NZ) 220mm 1640mm - 935mm 875mm -

8 11/16ths" 64 9/16ths" - 36 13/16ths" 34 7/16ths" -

Discovery, 5dr SUV 09-+ (AU) 220mm 1640mm - 935mm 875mm -

8 11/16ths" 64 9/16ths" - 36 13/16ths" 34 7/16ths" -

S17W

Page 43

WHISPBAR THROUGH BAR

S17W

Discovery, 5dr SUV Nov 04-09 (NZ) 220mm 1640mm - 935mm 875mm -

Discovery, 5dr SUV Nov 04-09 (AU) 220mm 1640mm - 935mm 875mm -

Doblo, 3dr Van 00-03 (EU) - - - - - -

Doblo, 3dr Van 00-03 (ZA) - - - - - -

Doblo, 5dr Van 00-05 (ZA) - - - - - -

Doblo, 5dr Van 00-05 (EU) - - - - - -

Doblo, 5dr Van 05-09 (EU) - 850mm 1450mm 963mm 934mm 894mm

Doblo, 5dr Van 05-09 (ZA) - 850mm 1450mm 963mm 934mm 894mm

Dualis, 5dr SUV 07-+ (AU) -170mm 590mm - 988mm 970mm -

Dualis, 5dr SUV 07-+ (NZ) -170mm 590mm - 988mm 970mm -

Durango, 5dr SUV 04-09 (US) 320mm 1540mm - 933mm 933mm -

Durango, 5dr SUV 04-09 (US) -100mm 600mm - 940mm 940mm -

Durango, 5dr SUV 98-03 (US) - - - - - -

E Series, 4dr Van Nov 88-Oct 99 (AU) - - - - - -

E Series, 4dr Van Oct 99-Apr 03 (AU) - - - - - -

Econovan, 4dr Van May 84-+ (AU) - - - - - -

Edge, 5dr SUV 07-+ (US) 30mm 780mm - 968mm 944mm -

Edge, 5dr SUV 07-+ (US) -100mm 600mm - 979mm 960mm -

Elgrande, 4dr MPV 97-02 (NZ) 190mm 950mm - 930mm 917mm 880mm

Elgrande, 4dr MPV 97-02 (AU) 190mm 950mm - 930mm 917mm 880mm

Envoy, 5dr SUV 02-09 (US) 100mm 1660mm - 814mm 814mm -

Expedition, 5dr SUV 03-06 (US) - - - 863mm 863mm -

Expedition, 5dr SUV 03-06 (US) - - - 845mm 845mm -

Expedition, 5dr SUV 97-02 (US) 40mm 1720mm - 853mm 853mm -

Expert, 5dr Van 07- (EU) - - - - - -

Expert, 5dr Van 07-+ (AU) - - - - - -

Expert, 5dr Van 07-+ (NZ) - - - - - -

Explorer, 3dr SUV 95-02 (US) - 700mm - 975mm 975mm -

Explorer, 5dr SUV Nov 96-01 (NZ) - - - - - -

F20-F50, 3dr SUV 74-84 (AU) - - - - - -

Fairlane, 4dr Sedan 79-88 (NZ) - - - - - -

Fairlane, 4dr Sedan Jun 79-May 88 (AU) - - - - - -

8 11/16ths" 64 9/16ths" - 36 13/16ths" 34 7/16ths" -

- - - - - -

- 33 7/16ths" 57 1/16ths" 37 15/16ths" 36 3/4ths" 35 3/16ths"

-6 -11/16ths" 23 1/4ths" - 38 7/8ths" 38 3/16ths" -

12 5/8ths" 60 5/8ths" - 36 3/4ths" 36 3/4ths" -

-3 -15/16ths" 23 5/8ths" - 37" 37" -

- - - - - -

1 3/16ths" 30 11/16ths" - 38 1/8ths" 37 3/16ths" -

-3 -15/16ths" 23 5/8ths" - 38 9/16ths" 37 13/16ths" -

7 1/2ths" 37 3/8ths" - 36 5/8ths" 36 1/8ths" 34 5/8ths"

3 15/16ths" 65 3/8ths" - 32 1/16ths" 32 1/16ths" -

- - - 34" 34" -

- - - 33 1/4ths" 33 1/4ths" -

1 9/16ths" 67 11/16ths" - 33 9/16ths" 33 9/16ths" -

- - - - - -

- 27 9/16ths" - 38 3/8ths" 38 3/8ths" -

- - - - - -

Page 44

WHISPBAR THROUGH BAR

- - - - - -

Fairlane, 4dr Sedan Jun 88-Feb 94 (AU) - - - - - -

- - - - - -

Fairlane, 4dr Sedan Oct 88-Mar 94 (NZ) - - - - - -

- - - - - -

Falcon, 2dr Ute Mar 79-May 99 (AU) - - - - - -

- - - - - -

Falcon, 3dr Van Mar 79-May 99 (AU) - - - - - -

- - - - - -

Falcon, 4dr Sedan 08-+ (ZA) -210mm 510mm - 964mm 945mm -

-8 -1/4ths" 20 1/16ths" - 37 15/16ths" 37 3/16ths" -

Falcon, 4dr Sedan 79-Sep 88 (NZ) - - - - - -

- - - - - -

Falcon, 4dr Sedan Aug 94-Aug 98 (AU) - - - - - -

- - - - - -

Falcon, 4dr Sedan Mar 79-Jan 88 (AU) - - - - - -

- - - - - -

Falcon, 4dr Sedan May 08-+ (AU) -210mm 510mm - 964mm 945mm -

-8 -1/4ths" 20 1/16ths" - 37 15/16ths" 37 3/16ths" -

Falcon, 4dr Sedan May 08-+ (NZ) -210mm 510mm - 964mm 945mm -

-8 -1/4ths" 20 1/16ths" - 37 15/16ths" 37 3/16ths" -

Falcon, 4dr Sedan Sep 94-Jul 98 (NZ) - - - - - -

- - - - - -

Falcon, 5dr Wagon 79-Sep 88 (NZ) - - - - - -

- - - - - -

Falcon, 5dr Wagon Mar 79-Jan 88 (AU) - - - - - -

- - - - - -

FJ Cruiser, 5dr SUV 07-+ (US) 240mm 990mm - 885mm 850mm -

9 7/16ths" 39" - 34 13/16ths" 33 7/16ths" -

FJ Cruiser, 5dr SUV 07-+ (EU) 240mm 990mm - 885mm 850mm -

9 7/16ths" 39" - 34 13/16ths" 33 7/16ths" -

FJ Cruiser, 5dr SUV 07-+ (US) -675mm 165mm - 1007mm 950mm -

-26 -9/16ths" 6 1/2ths" - 39 5/8ths" 37 3/8ths" -

FJ Cruiser, 5dr SUV 07-+ (EU) -675mm 165mm - 1007mm 950mm -

-26 -9/16ths" 6 1/2ths" - 39 5/8ths" 37 3/8ths" -

FJ Cruiser, 5dr SUV 11-+ (NZ) 240mm 990mm - 885mm 850mm -

9 7/16ths" 39" - 34 13/16ths" 33 7/16ths" -

FJ Cruiser, 5dr SUV 11-+ (AU) 240mm 990mm - 885mm 850mm -

9 7/16ths" 39" - 34 13/16ths" 33 7/16ths" -

FJ Cruiser, 5dr SUV 11-+ (ZA) 240mm 990mm - 885mm 850mm -

9 7/16ths" 39" - 34 13/16ths" 33 7/16ths" -

FJ Cruiser, 5dr SUV 11-+ (ZA) -675mm 165mm - 1007mm 950mm -

-26 -9/16ths" 6 1/2ths" - 39 5/8ths" 37 3/8ths" -

FJ Cruiser, 5dr SUV 11-+ (AU) -675mm 165mm - 1007mm 950mm -

-26 -9/16ths" 6 1/2ths" - 39 5/8ths" 37 3/8ths" -

FJ Cruiser, 5dr SUV 11-+ (NZ) -675mm 165mm - 1007mm 950mm -

-26 -9/16ths" 6 1/2ths" - 39 5/8ths" 37 3/8ths" -

Freelander, 5dr SUV 07-+ (AU) -180mm 570mm - 960mm 940mm -

-7 -1/16ths" 22 7/16ths" - 37 13/16ths" 37" -

Freelander, 5dr SUV 07-+ (EU) -180mm 570mm - 960mm 940mm -

-7 -1/16ths" 22 7/16ths" - 37 13/16ths" 37" -

Freelander, 5dr SUV 07-+ (ZA) -180mm 570mm - 960mm 940mm -

-7 -1/16ths" 22 7/16ths" - 37 13/16ths" 37" -

Freelander, 5dr SUV 07-+ (NZ) -180mm 570mm - 960mm 940mm -

-7 -1/16ths" 22 7/16ths" - 37 13/16ths" 37" -

Freestyle, 5dr SUV 05-07 (US) -80mm 1420mm - 977mm 900mm -

-3 -1/8ths" 55 7/8ths" - 38 7/16ths" 35 7/16ths" -

Frontera, 2dr SUV Feb 99-Jul 02 (AU) - - - - - -

- - - - - -

Frontera, 3dr SUV 91-97 (EU) - - - - - -

- - - - - -

Frontera, 3dr SUV 91-97 (EU) - - - - - -

- - - - - -

Frontera, 3dr SUV 98-04 (EU) - - - - - -

- - - - - -

Frontera, 3dr SUV 98-04 (EU) - - - - - -

- - - - - -

Frontera, 4dr SUV 98-04 (EU) - - - - - -

- - - - - -

S17W

Page 45

WHISPBAR THROUGH BAR

S17W

Frontera, 4dr SUV 98-04 (EU) - - - - - -

Frontera, 4dr SUV Feb 99-Jan 04 (AU) - - - - - -

FX, 5dr SUV 03-08 (US) -70mm 880mm - 876mm 809mm -

FX, 5dr SUV 03-08 (EU) -70mm 880mm - 876mm 809mm -

FX50, 5dr SUV 09-+ (US) 50mm 750mm - 800mm 855mm -

FX50, 5dr SUV 09-+ (EU) 50mm 750mm - 800mm 855mm -

G Class, 5dr SUV 79-11 (EU) - - - - - -

Galaxy, 5dr MPV 06-09 (EU) - - - 954mm 882mm -

Galaxy, 5dr MPV 06-09 (ZA) - - - 954mm 882mm -

Gamma, 2dr Coupe 76-84 (NZ) - - - - - -

GL Class, 5dr SUV 06-+ (EU) - - - 952mm 890mm -

GL Class, 5dr SUV 06-+ (US) - - - 952mm 890mm -

GL Class, 5dr SUV 06-+ (AU) - - - 952mm 890mm -

GL Class, 5dr SUV Jul 06-+ (NZ) - - - 952mm 890mm -

GLK Class, 5dr SUV 08-+ (EU) - - - - - -

GLK Class, 5dr SUV 08-+ (ZA) - - - - - -

GLK Class, 5dr SUV 10-+ (US) - - - - - -

Grand Caravan, 5dr MPV 08-+ (US) 370mm 1070mm - 930mm 930mm -

Grand Cherokee, 5dr SUV 05-10 (US) - - - 986mm 970mm -

Grand Cherokee, 5dr SUV 05-10 (ZA) - - - 986mm 970mm -

Grand Cherokee, 5dr SUV 05-10 (EU) - - - 986mm 970mm -

Grand Cherokee, 5dr SUV 11-+ (NZ) 130mm 970mm - 890mm 845mm -

Grand Cherokee, 5dr SUV 11-+ (AU) 130mm 970mm - 890mm 845mm -

Grand Cherokee, 5dr SUV Jan 11-+ (US) 130mm 970mm - 890mm 845mm -

Grand Cherokee, 5dr SUV Jan 11-+ (EU) 130mm 970mm - 890mm 845mm -

Grand Cherokee, 5dr SUV Jan 11-+ (ZA) 130mm 970mm - 890mm 845mm -

Grand Cherokee, 5dr SUV Jul 05-10 (AU) - - - 986mm 970mm -

Grand Cherokee, 5dr SUV Jul 05-10 (NZ) - - - 986mm 970mm -

Grand Voyager, 5dr Estate 01-07 (EU) - - - - - -

Grand Voyager, 5dr MPV 01-07 (EU) - - - - - -

Grand Voyager, 5dr MPV 08-+ (EU) 400mm 1100mm - 1010mm 1010mm -

Grand Voyager, 5dr MPV 08-+ (ZA) 400mm 1100mm - 1010mm 1010mm -

Grand Voyager, 5dr MPV 08-+ (NZ) 400mm 1100mm - 1010mm 1010mm -

Grand Voyager, 5dr MPV 08-+ (AU) 400mm 1100mm - 1010mm 1010mm -

GX470, 5dr SUV 03-09 (US) 360mm 1060mm - 915mm 915mm -

- - - - - -

-2 -3/4ths" 34 5/8ths" - 34 1/2ths" 31 7/8ths" -

1 15/16ths" 29 1/2ths" - 31 1/2ths" 33 11/16ths" -

- - - - - -

- - - 37 9/16ths" 34 3/4ths" -

- - - - - -

- - - 37 1/2ths" 35 1/16ths" -

- - - - - -

14 9/16ths" 42 1/8ths" - 36 5/8ths" 36 5/8ths" -

- - - 38 13/16ths" 38 3/16ths" -

5 1/8ths" 38 3/16ths" - 35 1/16ths" 33 1/4ths" -

- - - 38 13/16ths" 38 3/16ths" -

- - - - - -

15 3/4ths" 43 5/16ths" - 39 3/4ths" 39 3/4ths" -

Page 46

WHISPBAR THROUGH BAR

14 3/16ths" 41 3/4ths" - 36" 36" -

H1, 5dr Van 08-+ (ZA) 150mm 850mm - 1030mm 1017mm -

5 7/8ths" 33 7/16ths" - 40 9/16ths" 40 1/16ths" -

H1, 5dr Van 08-+ (ZA) 150mm 850mm - 1030mm 1017mm -

5 7/8ths" 33 7/16ths" - 40 9/16ths" 40 1/16ths" -

H1, 5dr Van Feb 08-09 (NZ) 150mm 850mm - 1030mm 1017mm -

5 7/8ths" 33 7/16ths" - 40 9/16ths" 40 1/16ths" -

H100, 4dr Van 97-Jan 08 (NZ) - - - - - -

- - - - - -

Hiace, 4dr Van 89-04 (EU) - - - - - -

- - - - - -

Hiace, 4dr Van Apr 89-Mar 05 (NZ) - - - - - -

- - - - - -

Hiace, 4dr Van Oct 89-Apr 05 (AU) - - - - - -

- - - - - -

Highlander, 5dr SUV 01-07 (US) - - - - - -

- - - - - -

Highlander, 5dr SUV 07-+ (NZ) -90mm 660mm - 975mm 960mm -

-3 -9/16ths" 26" - 38 3/8ths" 37 13/16ths" -

Highlander, 5dr SUV 07-+ (US) -90mm 660mm - 975mm 960mm -

-3 -9/16ths" 26" - 38 3/8ths" 37 13/16ths" -

Highlander, 5dr SUV Aug 07-+ (NZ) 400mm 1100mm - 970mm 970mm -

15 3/4ths" 43 5/16ths" - 38 3/16ths" 38 3/16ths" -

Highlander, 5dr SUV Jul 07-+ (US) 400mm 1100mm - 970mm 970mm -

15 3/4ths" 43 5/16ths" - 38 3/16ths" 38 3/16ths" -

Highlander, 5dr SUV Nov 03-Jul 07 (NZ) - - - - - -

- - - - - -

Hilux, 5dr SUV 03-09 (EU) 200mm 1240mm - 953mm 953mm -

7 7/8ths" 48 13/16ths" - 37 1/2ths" 37 1/2ths" -

Hilux, 5dr SUV 03-09 (NZ) 200mm 1240mm - 953mm 953mm -

7 7/8ths" 48 13/16ths" - 37 1/2ths" 37 1/2ths" -

i800, 5dr Van 08-+ (EU) 150mm 850mm - 1030mm 1017mm -

5 7/8ths" 33 7/16ths" - 40 9/16ths" 40 1/16ths" -

iLoad, 5dr Van 08-+ (EU) 150mm 850mm - 1030mm 1017mm -

5 7/8ths" 33 7/16ths" - 40 9/16ths" 40 1/16ths" -

iLoad, 5dr Van 09-+ (NZ) 150mm 850mm - 1030mm 1017mm -

5 7/8ths" 33 7/16ths" - 40 9/16ths" 40 1/16ths" -

iLoad, 5dr Van Feb 08-+ (AU) 150mm 850mm - 1030mm 1017mm -

5 7/8ths" 33 7/16ths" - 40 9/16ths" 40 1/16ths" -

iMax, 5dr Van 08-+ (AU) 150mm 850mm - 1030mm 1017mm -

5 7/8ths" 33 7/16ths" - 40 9/16ths" 40 1/16ths" -

iMax, 5dr Van 09-+ (NZ) 150mm 850mm - 1030mm 1017mm -

5 7/8ths" 33 7/16ths" - 40 9/16ths" 40 1/16ths" -

ix55, 5dr SUV 07-+ (EU) - - - - - -

- - - - - -

Jackaroo, 3dr SUV Dec 81-Jun 92 (NZ) - - - - - -

- - - - - -

Jackaroo, 3dr SUV Nov 81-Mar 92 (AU) - - - - - -

- - - - - -

Jackaroo, 5dr SUV Jul 92-02 (NZ) - - - - - -

- - - - - -

Jackaroo, 5dr SUV Jul 92-02 (NZ) -200mm 600mm - 890mm 890mm -

-7 -7/8ths" 23 5/8ths" - 35 1/16ths" 35 1/16ths" -

Jackaroo, 5dr SUV May 92-Jan 02 (AU) - - - - - -

- - - - - -

Jackaroo, 5dr SUV May 92-Jan 02 (AU) -200mm 600mm - 890mm 890mm -

-7 -7/8ths" 23 5/8ths" - 35 1/16ths" 35 1/16ths" -

Journey, 5dr Estate 08-09 (ZA) - - - - - -

- - - - - -

Journey, 5dr Wagon 08-09 (AU) - - - - - -

- - - - - -

Journey, 5dr Wagon 08-09 (NZ) - - - - - -

- - - - - -

Journey, 5dr Wagon 09-+ (US) - - - - - -

- - - - - -

Jumpy, 5dr Van 07-+ (AU) - - - - - -

- - - - - -

Jumpy, 5dr Van 07-+ (EU) - - - - - -

- - - - - -

S17W

Page 47

WHISPBAR THROUGH BAR

S17W

Jumpy, 5dr Van 07-+ (NZ) - - - - - -

Kingcab, 4dr Ute Oct 86-Jun 95 (NZ) - - - - - -

Kluger, 5dr SUV 07-+ (AU) -90mm 660mm - 975mm 960mm -

Kluger, 5dr SUV Aug 07-+ (AU) 400mm 1100mm - 970mm 970mm -

Kluger, 5dr SUV Oct 03-Jul 07 (AU) - - - - - -

L200, 4dr Van Dec 82-Jun 98 (NZ) - - - - - -

L200, 4dr Van Sep 84-86 (AU) - - - - - -

L300, 5dr Van Sep 80-Nov 03 (AU) - - - - - -

Land Cruiser Prado, 3dr SUV Jul 96-Feb 03 (NZ) - - - - - -

Land Cruiser Prado, 5dr SUV 03-09 (ZA) 360mm 1060mm - 915mm 915mm -

Land Cruiser Prado, 5dr SUV 03-09 (EU) 360mm 1060mm - 915mm 915mm -

Land Cruiser Prado, 5dr SUV 09-+ (EU) 370mm 1070mm - 950mm 920mm -

Land Cruiser Prado, 5dr SUV 09-+ (ZA) 370mm 1070mm - 950mm 920mm -

Land Cruiser Prado, 5dr SUV 98-03 (ZA) - - - - - -

Land Cruiser Prado, 5dr SUV Dec 09-+ (NZ) 370mm 1070mm - 950mm 920mm -

Land Cruiser Prado, 5dr SUV Jul 96-Feb 03 (NZ) - - - - - -

Land Cruiser Prado, 5dr SUV Jul 96-Feb 03 (NZ) -250mm 650mm - 1025mm 1030mm -

Land Cruiser Prado, 5dr SUV Jul 96-Feb 03 (AU) - - - - - -

Land Cruiser Prado, 5dr SUV Jul 96-Feb 03 (AU) -250mm 650mm - 1025mm 1030mm -

Land Cruiser Prado, 5dr SUV Jul 96-Feb 03 (NZ) - - - - - -

Land Cruiser Prado, 5dr SUV Jul 96-Feb 03 (AU) - - - - - -

Land Cruiser Prado, 5dr SUV Mar 03-Nov 09 (NZ) 360mm 1060mm - 915mm 915mm -

Land Cruiser Prado, 5dr SUV Mar 03-Oct 09 (AU) 360mm 1060mm - 915mm 915mm -

Land Cruiser Prado, 5dr SUV Nov 09-+ (AU) 370mm 1070mm - 950mm 920mm -

Land Cruiser, 3dr SUV Jan 85-07 (AU) - - - - - -

Land Cruiser, 5dr SUV 07-+ (US) - - - - - -

Land Cruiser, 5dr SUV 07-+ (US) 280mm 940mm 1600mm 983mm 954mm 935mm

Land Cruiser, 5dr SUV 07-+ (EU) - - - - - -

Land Cruiser, 5dr SUV 07-+ (EU) 280mm 940mm 1600mm 983mm 954mm 935mm

Land Cruiser, 5dr SUV 07-+ (ZA) - - - - - -

Land Cruiser, 5dr SUV 07-+ (US) - - - - - -

Land Cruiser, 5dr SUV 07-+ (EU) - - - - - -

Land Cruiser, 5dr SUV 85-07 (NZ) - - - - - -

Land Cruiser, 5dr SUV 85-07 (AU) - - - - - -

Land Cruiser, 5dr SUV 85-07 (EU) - - - - - -

- - - - - -

-3 -9/16ths" 26" - 38 3/8ths" 37 13/16ths" -

15 3/4ths" 43 5/16ths" - 38 3/16ths" 38 3/16ths" -

- - - - - -

14 3/16ths" 41 3/4ths" - 36" 36" -

14 9/16ths" 42 1/8ths" - 37 3/8ths" 36 1/4ths" -

- - - - - -

14 9/16ths" 42 1/8ths" - 37 3/8ths" 36 1/4ths" -

- - - - - -

-9 -13/16ths" 25 9/16ths" - 40 3/8ths" 40 9/16ths" -

- - - - - -

-9 -13/16ths" 25 9/16ths" - 40 3/8ths" 40 9/16ths" -

- - - - - -

14 3/16ths" 41 3/4ths" - 36" 36" -

14 9/16ths" 42 1/8ths" - 37 3/8ths" 36 1/4ths" -

- - - - - -

11" 37" 63" 38 11/16ths" 37 9/16ths" 36 13/16ths"

- - - - - -

11" 37" 63" 38 11/16ths" 37 9/16ths" 36 13/16ths"

- - - - - -

Page 48

WHISPBAR THROUGH BAR

- - - - - -

Land Cruiser, 5dr SUV 96-03 (US) - - - - - -

- - - - - -

Land Cruiser, 5dr SUV 96-03 (US) -250mm 650mm - 1025mm 1030mm -

-9 -13/16ths" 25 9/16ths" - 40 3/8ths" 40 9/16ths" -

Land Cruiser, 5dr SUV 96-03 (EU) - - - - - -

- - - - - -

Land Cruiser, 5dr SUV 96-03 (EU) -250mm 650mm - 1025mm 1030mm -

-9 -13/16ths" 25 9/16ths" - 40 3/8ths" 40 9/16ths" -

Land Cruiser, 5dr SUV 96-03 (US) - - - - - -

- - - - - -

Land Cruiser, 5dr SUV 96-03 (EU) - - - - - -

- - - - - -

Land Cruiser, 5dr SUV 98-07 (EU) - - - - - -

- - - - - -

Land Cruiser, 5dr SUV 98-07 (EU) 150mm 820mm 1540mm 1040mm 1010mm 980mm

5 7/8ths" 32 5/16ths" 60 5/8ths" 40 15/16ths" 39 3/4ths" 38 9/16ths"

Land Cruiser, 5dr SUV 98-07 (US) - - - - - -

- - - - - -

Land Cruiser, 5dr SUV 98-07 (US) 150mm 820mm 1540mm 1040mm 1010mm 980mm

5 7/8ths" 32 5/16ths" 60 5/8ths" 40 15/16ths" 39 3/4ths" 38 9/16ths"

Land Cruiser, 5dr SUV 98-07 (ZA) - - - - - -

- - - - - -

Land Cruiser, 5dr SUV 98-07 (ZA) 150mm 820mm 1540mm 1040mm 1010mm 980mm

5 7/8ths" 32 5/16ths" 60 5/8ths" 40 15/16ths" 39 3/4ths" 38 9/16ths"

Land Cruiser, 5dr SUV 98-07 (EU) - - - - - -

- - - - - -

Land Cruiser, 5dr SUV 98-07 (US) - - - - - -

- - - - - -

Land Cruiser, 5dr SUV Apr 98-Jun 07 (AU) - - - - - -

- - - - - -

Land Cruiser, 5dr SUV Apr 98-Jun 07 (AU) 150mm 820mm 1540mm 1040mm 1010mm 980mm

5 7/8ths" 32 5/16ths" 60 5/8ths" 40 15/16ths" 39 3/4ths" 38 9/16ths"

Land Cruiser, 5dr SUV Apr 98-Jun 07 (AU) - - - - - -

- - - - - -

Land Cruiser, 5dr SUV Apr 98-Oct 07 (NZ) - - - - - -

- - - - - -

Land Cruiser, 5dr SUV Apr 98-Oct 07 (NZ) 150mm 820mm 1540mm 1040mm 1010mm 980mm

5 7/8ths" 32 5/16ths" 60 5/8ths" 40 15/16ths" 39 3/4ths" 38 9/16ths"

Land Cruiser, 5dr SUV Apr 98-Oct 07 (NZ) - - - - - -

- - - - - -

Land Cruiser, 5dr SUV Aug 07-+ (AU) - - - - - -

- - - - - -

Land Cruiser, 5dr SUV Aug 07-+ (AU) 280mm 940mm 1600mm 983mm 954mm 935mm

11" 37" 63" 38 11/16ths" 37 9/16ths" 36 13/16ths"

Land Cruiser, 5dr SUV Nov 07-+ (NZ) - - - - - -

- - - - - -

Land Cruiser, 5dr SUV Nov 07-+ (NZ) 280mm 940mm 1600mm 983mm 954mm 935mm

11" 37" 63" 38 11/16ths" 37 9/16ths" 36 13/16ths"

Land Cruiser, 5dr SUV Nov 07-+ (AU) - - - - - -

- - - - - -

Land Cruiser, 5dr SUV Nov 07-+ (NZ) - - - - - -

- - - - - -

Liberty, 5dr SUV 08-+ (US) - - - 1055mm 1025mm -

- - - 41 9/16ths" 40 3/8ths" -

Liteace, 4dr Van 82-92 (AU) - - - - - -

- - - - - -

Liteace, 4dr Van May 82-Oct 92 (NZ) - - - - - -

- - - - - -

LR2, 5dr SUV 07-+ (US) -180mm 570mm - 960mm 940mm -

-7 -1/16ths" 22 7/16ths" - 37 13/16ths" 37" -

LR3, 5dr SUV 04-+ (US) - - - - - -

- - - - - -

LR3, 5dr SUV 04-09 (US) 220mm 1640mm - 935mm 875mm -

8 11/16ths" 64 9/16ths" - 36 13/16ths" 34 7/16ths" -

LR3, 5dr SUV 04-09 (US) -330mm 250mm 840mm - 950mm 935mm

-12 -1/1ths" 9 13/16ths" 33 1/16ths" - 37 3/8ths" 36 13/16ths"

LR4, 5dr SUV 09-+ (US) -330mm 250mm 840mm - 950mm 935mm

-12 -1/1ths" 9 13/16ths" 33 1/16ths" - 37 3/8ths" 36 13/16ths"

S17W

Page 49

WHISPBAR THROUGH BAR

S17W

LR4, 5dr SUV 09-+ (US) 220mm 1640mm - 935mm 875mm -

LTD, 4dr Sedan 79-85 (NZ) - - - - - -

LTD, 4dr Sedan Apr 85-Oct 88 (NZ) - - - - - -

LTD, 4dr Sedan May 79-May 88 (AU) - - - - - -

LX470, 5dr SUV Apr 98-Jul 07 (AU) - - - - - -

LX470, 5dr SUV Apr 98-Jul 07 (AU) 150mm 820mm 1540mm 1040mm 1010mm 980mm

LX470, 5dr SUV May 98-Oct 07 (NZ) - - - - - -

LX470, 5dr SUV May 98-Oct 07 (NZ) 150mm 820mm 1540mm 1040mm 1010mm 980mm

M Class, 5dr SUV 06-11 (AU) - - - - - -

M Class, 5dr SUV 06-11 (NZ) - - - - - -

M Class, 5dr SUV 06-11 (ZA) - - - - - -

M Class, 5dr SUV 06-11 (US) - - - - - -

M Class, 5dr SUV 06-11 (EU) - - - - - -

M Class, 5dr SUV 12-+ (AU) - 800mm - - - -

M Class, 5dr SUV 12-+ (ZA) - 800mm - - - -

M Class, 5dr SUV 12-+ (EU) - 800mm - - - -

M Class, 5dr SUV 12-+ (US) - 800mm - - - -

M Class, 5dr SUV 12-+ (NZ) - 800mm - - - -

M Class, 5dr SUV 98-05 (ZA) - - - - - -

M Class, 5dr SUV 98-05 (EU) - - - - - -

M Class, 5dr SUV Aug 98-02 (NZ) - - - - - -

M Class, 5dr SUV Jun 98-05 (AU) - - - - - -

Maverick, 3dr SUV Mar 88-Mar 94 (AU) - - - - - -

MDX, 5dr SUV 01-06 (US) - - - - - -

MDX, 5dr SUV 07-+ (US) 115mm 840mm - 990mm 990mm -

MDX, 5dr SUV 07-+ (US) -240mm 485mm - 1040mm 1025mm -

MKX, 5dr SUV 07-+ (US) -100mm 600mm - 983mm 953mm -

Mondeo, 4dr Sedan 07-12 (EU) -300mm 500mm - 936mm 912mm -

Mondeo, 4dr Sedan Oct 07-12 (NZ) -300mm 500mm - 936mm 912mm -

Mondeo, 4dr Sedan Oct 07-12 (AU) -300mm 500mm - 936mm 912mm -

Monterey, 3dr SUV 92-97 (EU) - - - - - -

Monterey, 5dr SUV 92-02 (EU) - - - - - -

Monterey, 5dr SUV 92-02 (EU) -200mm 600mm - 890mm 890mm -

Monterey, 5dr SUV 92-02 (EU) - - - - - -

8 11/16ths" 64 9/16ths" - 36 13/16ths" 34 7/16ths" -

- - - - - -

5 7/8ths" 32 5/16ths" 60 5/8ths" 40 15/16ths" 39 3/4ths" 38 9/16ths"

- - - - - -

5 7/8ths" 32 5/16ths" 60 5/8ths" 40 15/16ths" 39 3/4ths" 38 9/16ths"

- - - - - -

- 31 1/2ths" - - - -

- - - - - -

4 1/2ths" 33 1/16ths" - 39" 39" -

-9 -7/16ths" 19 1/8ths" - 40 15/16ths" 40 3/8ths" -

-3 -15/16ths" 23 5/8ths" - 38 11/16ths" 37 1/2ths" -

-11 -13/16ths" 19 11/16ths" - 36 7/8ths" 35 7/8ths" -

- - - - - -

-7 -7/8ths" 23 5/8ths" - 35 1/16ths" 35 1/16ths" -

Page 50

WHISPBAR THROUGH BAR

- - - - - -

Monterey, 5dr SUV 92-02 (EU) -200mm 600mm - 890mm 890mm -

-7 -7/8ths" 23 5/8ths" - 35 1/16ths" 35 1/16ths" -

Monterey, 5dr SUV 92-97 (EU) - - - - - -

- - - - - -

Montero, 3dr SUV 99-06 (EU) -100mm 670mm - 900mm 894mm -

-3 -15/16ths" 26 3/8ths" - 35 7/16ths" 35 3/16ths" -

Montero, 5dr SUV 01-06 (US) - - - - - -

- - - - - -

Montero, 5dr SUV 99-06 (EU) -50mm 700mm 1450mm 900mm 900mm 900mm

-1 -15/16ths" 27 9/16ths" 57 1/16ths" 35 7/16ths" 35 7/16ths" 35 7/16ths"

MPV, 5dr MPV May 90-99 (NZ) - - - - - -

- - - - - -

MPV, 5dr MPV Sep 93-Jul 99 (AU) - - - - - -

- - - - - -

MPV, 5dr Van 89-99 (EU) - - - - - -

- - - - - -

Murano, 5dr Sedan 03-07 (US) - - - - - -

- - - - - -

Murano, 5dr SUV 03-08 (EU) - - - - - -

- - - - - -

Murano, 5dr SUV 05-09 (ZA) - - - - - -

- - - - - -

Murano, 5dr SUV 08-+ (US) - 780mm - 920mm 875mm -

- 30 11/16ths" - 36 1/4ths" 34 7/16ths" -

Murano, 5dr SUV 08-+ (AU) -150mm 550mm - 945mm 900mm -

-5 -7/8ths" 21 5/8ths" - 37 3/16ths" 35 7/16ths" -

Murano, 5dr SUV 08-+ (US) -150mm 550mm - 945mm 900mm -

-5 -7/8ths" 21 5/8ths" - 37 3/16ths" 35 7/16ths" -

Murano, 5dr SUV 09-+ (NZ) - 780mm - 920mm 875mm -

- 30 11/16ths" - 36 1/4ths" 34 7/16ths" -

Murano, 5dr SUV 09-+ (AU) - 780mm - 920mm 875mm -

- 30 11/16ths" - 36 1/4ths" 34 7/16ths" -

Murano, 5dr SUV 09-+ (EU) - 780mm - 920mm 875mm -

- 30 11/16ths" - 36 1/4ths" 34 7/16ths" -

Murano, 5dr SUV Aug 05-09 (AU) - - - - - -

- - - - - -

Murano, 5dr SUV Aug 05-09 (NZ) - - - - - -

- - - - - -

Musso, 5dr SUV 93-05 (EU) - - - - - -

- - - - - -

Musso, 5dr SUV 96-05 (ZA) - - - - - -

- - - - - -

Navara, 4dr Truck 05-+ (US) -100mm 650mm - 962mm 965mm -

-3 -15/16ths" 25 9/16ths" - 37 7/8ths" 38" -

Navara, 4dr Truck 05-+ (US) -180mm 520mm - 970mm 970mm -

-7 -1/16ths" 20 1/2ths" - 38 3/16ths" 38 3/16ths" -

Navara, 4dr Ute 05-+ (EU) -100mm 650mm - 962mm 965mm -

-3 -15/16ths" 25 9/16ths" - 37 7/8ths" 38" -

Navara, 4dr Ute 05-+ (EU) -180mm 520mm - 970mm 970mm -

-7 -1/16ths" 20 1/2ths" - 38 3/16ths" 38 3/16ths" -

Navara, 4dr Ute Dec 05-+ (NZ) -100mm 650mm - 962mm 965mm -

-3 -15/16ths" 25 9/16ths" - 37 7/8ths" 38" -

Navara, 4dr Ute Dec 05-+ (NZ) -180mm 520mm - 970mm 970mm -

-7 -1/16ths" 20 1/2ths" - 38 3/16ths" 38 3/16ths" -

Navara, 4dr Ute Nov 05-+ (AU) -100mm 650mm - 962mm 965mm -

-3 -15/16ths" 25 9/16ths" - 37 7/8ths" 38" -

Navara, 4dr Ute Nov 05-+ (AU) -180mm 520mm - 970mm 970mm -

-7 -1/16ths" 20 1/2ths" - 38 3/16ths" 38 3/16ths" -

Nemo Multispace, 5dr MPV 08-+ (EU) 50mm 850mm - 1050mm 995mm -

1 15/16ths" 33 7/16ths" - 41 5/16ths" 39 3/16ths" -

Odyssey, 5dr MPV 04-09 (EU) -40mm 660mm - 981mm 986mm -

-1 -9/16ths" 26" - 38 5/8ths" 38 13/16ths" -

Odyssey, 5dr MPV 05-09 (US) -530mm 1480mm - - - -

-20 -7/8ths" 58 1/4ths" - - - -

Odyssey, 5dr MPV 09-+ (NZ) - - - - - -

- - - - - -

Odyssey, 5dr MPV 09-+ (NZ) -220mm 470mm - 965mm 920mm -

-8 -11/16ths" 18 1/2ths" - 38" 36 1/4ths" -

S17W

Page 51

WHISPBAR THROUGH BAR

S17W

Odyssey, 5dr MPV 09-+ (AU) - - - - - -

Odyssey, 5dr MPV 09-+ (AU) -220mm 470mm - 965mm 920mm -

Odyssey, 5dr MPV 09-+ (EU) - - - - - -

Odyssey, 5dr MPV 09-+ (EU) -220mm 470mm - 965mm 920mm -

Odyssey, 5dr MPV 09-11 (US) 530mm 1480mm - 920mm 898mm -

Odyssey, 5dr MPV 99-04 (US) 150mm 850mm - 885mm 860mm -

Odyssey, 5dr MPV Jun 04-Mar 09 (NZ) -40mm 660mm - 981mm 986mm -

Odyssey, 5dr MPV Jun 04-Mar 09 (AU) -40mm 660mm - 981mm 986mm -

Outlander, 5dr SUV 05-May 10 (EU) 100mm 800mm - 945mm 900mm -

Outlander, 5dr SUV 07-09 (ZA) 100mm 800mm - 945mm 900mm -

Outlander, 5dr SUV 07-09 (US) 100mm 800mm - 945mm 900mm -

Outlander, 5dr SUV 12-+ (NZ) -300mm 450mm - 960mm 910mm -

Outlander, 5dr SUV 12-+ (AU) -300mm 450mm - 960mm 910mm -

Outlander, 5dr SUV 12-+ (EU) -300mm 450mm - 960mm 910mm -

Outlander, 5dr SUV 13-+ (US) -300mm 450mm - 960mm 910mm -

Outlander, 5dr SUV Feb 06-Aug 09 (AU) 100mm 800mm - 945mm 900mm -

Outlander, 5dr SUV Feb 06-Sep 09 (NZ) 100mm 800mm - 945mm 900mm -

Pajero, 3dr SUV 07-+ (ZA) - - - - - -

Pajero, 3dr SUV 07-+ (EU) - - - - - -

Pajero, 3dr SUV 91-98 (ZA) - - - - - -

Pajero, 3dr SUV Aug 91-May 00 (NZ) - - - - - -

Pajero, 3dr SUV Dec 06-+ (AU) - - - - - -

Pajero, 3dr SUV Jun 00-Feb 07 (AU) -100mm 670mm - 900mm 894mm -

Pajero, 3dr SUV Jun 00-Oct 06 (NZ) -100mm 670mm - 900mm 894mm -

Pajero, 3dr SUV Mar 07-+ (AU) -100mm 670mm - 900mm 894mm -

Pajero, 3dr SUV Mar 07-+ (NZ) -100mm 670mm - 900mm 894mm -

Pajero, 3dr SUV May 91-Jun 00 (AU) - - - - - -

Pajero, 5dr SUV 00-07 (EU) -50mm 700mm 1450mm 900mm 900mm 900mm

Pajero, 5dr SUV 00-Feb 07 (NZ) - - - - - -

Pajero, 5dr SUV 82-Apr 91 (AU) - - - - - -

Pajero, 5dr SUV 91-00 (NZ) - - - - - -

Pajero, 5dr SUV 91-98 (ZA) - - - - - -

- - - - - -

-8 -11/16ths" 18 1/2ths" - 38" 36 1/4ths" -

- - - - - -

-8 -11/16ths" 18 1/2ths" - 38" 36 1/4ths" -

20 7/8ths" 58 1/4ths" - 36 1/4ths" 35 3/8ths" -

5 7/8ths" 33 7/16ths" - 34 13/16ths" 33 7/8ths" -

-1 -9/16ths" 26" - 38 5/8ths" 38 13/16ths" -

3 15/16ths" 31 1/2ths" - 37 3/16ths" 35 7/16ths" -

-11 -13/16ths" 17 11/16ths" - 37 13/16ths" 35 13/16ths" -

3 15/16ths" 31 1/2ths" - 37 3/16ths" 35 7/16ths" -

- - - - - -

-3 -15/16ths" 26 3/8ths" - 35 7/16ths" 35 3/16ths" -

- - - - - -

-1 -15/16ths" 27 9/16ths" 57 1/16ths" 35 7/16ths" 35 7/16ths" 35 7/16ths"

- - - - - -

Page 52

WHISPBAR THROUGH BAR

- - - - - -

Pajero, 5dr SUV 91-98 (ZA) - - - - - -

- - - - - -

Pajero, 5dr SUV 91-May 00 (AU) - - - - - -

- - - - - -

Pajero, 5dr SUV 99-06 (ZA) - - - - - -

- - - - - -

Pajero, 5dr SUV 99-06 (ZA) -50mm 700mm 1450mm 900mm 900mm 900mm

-1 -15/16ths" 27 9/16ths" 57 1/16ths" 35 7/16ths" 35 7/16ths" 35 7/16ths"

Pajero, 5dr SUV Aug 91-00 (NZ) - - - - - -

- - - - - -

Pajero, 5dr SUV Dec 06-+ (AU) - - - - - -

- - - - - -

Pajero, 5dr SUV Jun 82-May 91 (NZ) - - - - - -

- - - - - -

Pajero, 5dr SUV Mar 07-+ (AU) -50mm 700mm 1450mm 900mm 900mm 900mm

-1 -15/16ths" 27 9/16ths" 57 1/16ths" 35 7/16ths" 35 7/16ths" 35 7/16ths"

Pajero, 5dr SUV Mar 07-+ (NZ) -50mm 700mm 1450mm 900mm 900mm 900mm

-1 -15/16ths" 27 9/16ths" 57 1/16ths" 35 7/16ths" 35 7/16ths" 35 7/16ths"

Pajero, 5dr SUV Mar 07-+ (NZ) - - - - - -

- - - - - -

Pajero, 5dr SUV May 00-Feb 07 (AU) -50mm 700mm 1450mm 900mm 900mm 900mm

-1 -15/16ths" 27 9/16ths" 57 1/16ths" 35 7/16ths" 35 7/16ths" 35 7/16ths"

Pajero, 5dr SUV May 00-Oct 06 (NZ) -50mm 700mm 1450mm 900mm 900mm 900mm

-1 -15/16ths" 27 9/16ths" 57 1/16ths" 35 7/16ths" 35 7/16ths" 35 7/16ths"

Pajero, 5dr SUV Oct 02-Nov 06 (AU) - - - - - -

- - - - - -

Partner, 5dr Van 08-+ (EU) -180mm 670mm 1370mm 990mm 940mm 920mm

-7 -1/16ths" 26 3/8ths" 53 15/16ths" 39" 37" 36 1/4ths"

Partner, 5dr Van 08-+ (ZA) -180mm 670mm 1370mm 990mm 940mm 920mm

-7 -1/16ths" 26 3/8ths" 53 15/16ths" 39" 37" 36 1/4ths"

Partner, 5dr Van 08-+ (US) -180mm 670mm 1370mm 990mm 940mm 920mm

-7 -1/16ths" 26 3/8ths" 53 15/16ths" 39" 37" 36 1/4ths"

Partner, 5dr Van 08-+ (NZ) -180mm 670mm 1370mm 990mm 940mm 920mm

-7 -1/16ths" 26 3/8ths" 53 15/16ths" 39" 37" 36 1/4ths"

Partner, 5dr Van 08-+ (AU) -180mm 670mm 1370mm 990mm 940mm 920mm

-7 -1/16ths" 26 3/8ths" 53 15/16ths" 39" 37" 36 1/4ths"

Pathfinder, 5dr SUV 05-+ (US) - - - - - -

- - - - - -

Pathfinder, 5dr SUV 05-+ (US) -230mm 470mm - 995mm 990mm -

-9 -1/16ths" 18 1/2ths" - 39 3/16ths" 39" -

Pathfinder, 5dr SUV 05-+ (EU) - - - - - -

- - - - - -

Pathfinder, 5dr SUV 05-+ (EU) -230mm 470mm - 995mm 990mm -

-9 -1/16ths" 18 1/2ths" - 39 3/16ths" 39" -

Pathfinder, 5dr SUV Jul 05-+ (AU) - - - - - -

- - - - - -

Pathfinder, 5dr SUV Jul 05-+ (AU) -230mm 470mm - 995mm 990mm -

-9 -1/16ths" 18 1/2ths" - 39 3/16ths" 39" -

Pathfinder, 5dr SUV Nov 01-Jun 05 (AU) - - - - - -

- - - - - -

Patrol, 5dr SUV 98-10 (ZA) - - - - - -

- - - - - -

Patrol, 5dr SUV 98-10 (ZA) 1500mm -350mm - 1056mm 1056mm -

59 1/16ths" -13 -3/4ths" - 41 9/16ths" 41 9/16ths" -

Patrol, 5dr SUV 98-10 (EU) - - - - - -

- - - - - -

Patrol, 5dr SUV 98-10 (EU) 1500mm -350mm - 1056mm 1056mm -

59 1/16ths" -13 -3/4ths" - 41 9/16ths" 41 9/16ths" -

Patrol, 5dr SUV Dec 97-+ (AU) - - - - - -

- - - - - -

Patrol, 5dr SUV Dec 97-+ (AU) 1500mm -350mm - 1056mm 1056mm -

59 1/16ths" -13 -3/4ths" - 41 9/16ths" 41 9/16ths" -

Patrol, 5dr SUV Jan 98-10 (NZ) - - - - - -

- - - - - -

Patrol, 5dr SUV Jan 98-10 (NZ) 1500mm -350mm - 1056mm 1056mm -

59 1/16ths" -13 -3/4ths" - 41 9/16ths" 41 9/16ths" -

Pilot, 5dr SUV 03-08 (US) - - - 873mm 861mm -

- - - 34 3/8ths" 33 7/8ths" -

S17W

Page 53

WHISPBAR THROUGH BAR

S17W

Pilot, 5dr SUV 06-09 (US) -200mm 550mm - 1040mm 1005mm -

Pregio, 4dr Van 02-06 (ZA) - - - - - -

Pregio, 4dr Van Jul 02-06 (AU) - - - - - -

Pregio, 4dr Van Jul 02-06 (NZ) - - - - - -

Qashqai, 5dr SUV 07-+ (NZ) -170mm 590mm - 988mm 970mm -

Qashqai, 5dr SUV 07-+ (ZA) -170mm 590mm - 988mm 970mm -

Qashqai, 5dr SUV 07-+ (EU) -170mm 590mm - 988mm 970mm -

Qubo, 5dr MPV 08-+ (EU) 130mm 850mm - 1015mm 965mm -

Quest, 5dr MPV 04-09 (US) 200mm 900mm - 960mm 960mm -

Quest, 5dr MPV 04-10 (US) - 1570mm - 946mm 880mm -

R Class, 5dr MPV 05-+ (EU) -140mm 600mm - 955mm 862mm -

R Class, 5dr MPV 05-+ (ZA) -140mm 600mm - 955mm 862mm -

R Class, 5dr MPV 05-+ (NZ) -140mm 600mm - 955mm 862mm -

R Class, 5dr MPV 05-+ (AU) -140mm 600mm - 955mm 862mm -

R Class, 5dr MPV 05-+ (US) -140mm 600mm - 955mm 862mm -

Ram 1500, 2dr Truck 02-08 (US) -450mm -80mm - 1030mm 1000mm -

Ram 1500, 4dr Truck 02-08 (US) -190mm 420mm - 1010mm 986mm -

Ram 2500/3500, 2dr Truck 03-09 (US) -90mm -480mm - 1035mm 990mm -

Ram 2500/3500, 4dr Truck 03-09 (US) -190mm 430mm - 1050mm 985mm -

Range Rover , 3dr SUV 70-94 (EU) - - - - - -

Range Rover , 5dr SUV 02-+ (NZ) - - - - - -

Range Rover , 5dr SUV 02-+ (NZ) 330mm 1200mm - 990mm 940mm 1015mm

Range Rover , 5dr SUV 02-+ (US) - - - - - -

Range Rover , 5dr SUV 02-+ (US) 330mm 1200mm - 990mm 940mm 1015mm

Range Rover , 5dr SUV 02-+ (ZA) - - - - - -

Range Rover , 5dr SUV 02-+ (ZA) 330mm 1200mm - 990mm 940mm 1015mm

Range Rover , 5dr SUV 02-+ (EU) - - - - - -

Range Rover , 5dr SUV 02-+ (EU) 330mm 1200mm - 990mm 940mm 1015mm

Range Rover , 5dr SUV 70-94 (EU) - - - - - -

Range Rover , 5dr SUV 71-95 (NZ) - - - - - -

Range Rover , 5dr SUV 71-Apr 95 (AU) - - - - - -

Range Rover , 5dr SUV 95-01 (ZA) - - - - - -

Range Rover , 5dr SUV 95-01 (ZA) -320mm 375mm 1065mm 940mm 940mm 925mm

Range Rover , 5dr SUV 95-01 (EU) - - - - - -

Range Rover , 5dr SUV 95-01 (EU) -320mm 375mm 1065mm 940mm 940mm 925mm

-7 -7/8ths" 21 5/8ths" - 40 15/16ths" 39 9/16ths" -

- - - - - -

-6 -11/16ths" 23 1/4ths" - 38 7/8ths" 38 3/16ths" -

5 1/8ths" 33 7/16ths" - 39 15/16ths" 38" -

7 7/8ths" 35 7/16ths" - 37 13/16ths" 37 13/16ths" -

- 61 13/16ths" - 37 1/4ths" 34 5/8ths" -

-5 -1/2ths" 23 5/8ths" - 37 5/8ths" 33 15/16ths" -

-17 -11/16ths" -3 -1/8ths" - 40 9/16ths" 39 3/8ths" -

-7 -1/2ths" 16 9/16ths" - 39 3/4ths" 38 13/16ths" -

-3 -9/16ths" -18 -7/8ths" - 40 3/4ths" 39" -

-7 -1/2ths" 16 15/16ths" - 41 5/16ths" 38 3/4ths" -

- - - - - -

13" 47 1/4ths" - 39" 37" 39 15/16ths"

- - - - - -

13" 47 1/4ths" - 39" 37" 39 15/16ths"

- - - - - -

13" 47 1/4ths" - 39" 37" 39 15/16ths"

- - - - - -

13" 47 1/4ths" - 39" 37" 39 15/16ths"

- - - - - -

-12 -5/8ths" 14 3/4ths" 41 15/16ths" 37" 37" 36 7/16ths"

- - - - - -

Page 54

WHISPBAR THROUGH BAR

-12 -5/8ths" 14 3/4ths" 41 15/16ths" 37" 37" 36 7/16ths"

Range Rover , 5dr SUV Aug 02-+ (AU) - - - - - -

- - - - - -

Range Rover , 5dr SUV Aug 02-+ (AU) 330mm 1200mm - 990mm 940mm 1015mm

13" 47 1/4ths" - 39" 37" 39 15/16ths"

Range Rover , 5dr SUV Jul 95-Dec 02 (NZ) - - - - - -

- - - - - -

Range Rover , 5dr SUV Jul 95-Dec 02 (NZ) -320mm 375mm 1065mm 940mm 940mm 925mm

-12 -5/8ths" 14 3/4ths" 41 15/16ths" 37" 37" 36 7/16ths"

Range Rover , 5dr SUV May 95-Jul 02 (AU) - - - - - -

- - - - - -

Range Rover , 5dr SUV May 95-Jul 02 (AU) -320mm 375mm 1065mm 940mm 940mm 925mm

-12 -5/8ths" 14 3/4ths" 41 15/16ths" 37" 37" 36 7/16ths"

Ranger, 4dr Ute 12-+ (NZ) -150mm 550mm - 980mm 950mm -

-5 -7/8ths" 21 5/8ths" - 38 9/16ths" 37 3/8ths" -

Ranger, 4dr Ute 12-+ (AU) -150mm 550mm - 980mm 950mm -

-5 -7/8ths" 21 5/8ths" - 38 9/16ths" 37 3/8ths" -

Ranger, 4dr Ute 12-+ (ZA) -150mm 550mm - 980mm 950mm -

-5 -7/8ths" 21 5/8ths" - 38 9/16ths" 37 3/8ths" -

Ranger, 4dr Ute 12-+ (EU) -150mm 550mm - 980mm 950mm -

-5 -7/8ths" 21 5/8ths" - 38 9/16ths" 37 3/8ths" -

Ranger, 4dr Ute Jan 12-+ (ZA) -220mm 530mm - 944mm 914mm -

-8 -11/16ths" 20 7/8ths" - 37 3/16ths" 36" -

Ranger, 4dr Ute Jan 12-+ (EU) -220mm 530mm - 944mm 914mm -

-8 -11/16ths" 20 7/8ths" - 37 3/16ths" 36" -

Ranger, 4dr Ute Nov 11-+ (NZ) -220mm 530mm - 944mm 914mm -

-8 -11/16ths" 20 7/8ths" - 37 3/16ths" 36" -

Ranger, 4dr Ute Nov 11-+ (AU) -220mm 530mm - 944mm 914mm -

-8 -11/16ths" 20 7/8ths" - 37 3/16ths" 36" -

RDX, 5dr SUV 06-+ (US) -200mm 500mm - 968mm 880mm -

-7 -7/8ths" 19 11/16ths" - 38 1/8ths" 34 5/8ths" -

RDX, 5dr SUV 06-12 (US) -20mm 610mm - 960mm 890mm -

0 -13/16ths" 24" - 37 13/16ths" 35 1/16ths" -

Regius, 4dr MPV 97-02 (NZ) 500mm 1100mm 1720mm - - -

19 11/16ths" 43 5/16ths" 67 11/16ths" - - -

Regius, 4dr MPV 97-02 (NZ) - - - - - -

- - - - - -

Ridgeline, 4dr Truck 06-+ (US) -150mm 500mm - 870mm 870mm -

-5 -7/8ths" 19 11/16ths" - 34 1/4ths" 34 1/4ths" -

Routan, 5dr MPV 08-+ (US) 50mm 1570mm - 1118mm 1118mm -

1 15/16ths" 61 13/16ths" - 44" 44" -

S Max, 5dr MPV Jun 06-+ (EU) -90mm 650mm - 1000mm 980mm -

-3 -9/16ths" 25 9/16ths" - 39 3/8ths" 38 9/16ths" -

S Max, 5dr MPV Jun 06-+ (EU) -80mm 670mm - 1030mm 990mm -

-3 -1/8ths" 26 3/8ths" - 40 9/16ths" 39" -

S70, 4dr Sedan 97-00 (US) -300mm 500mm - 1010mm 955mm -

-11 -13/16ths" 19 11/16ths" - 39 3/4ths" 37 5/8ths" -

S70, 4dr Sedan 97-00 (EU) -300mm 500mm - 1010mm 955mm -

-11 -13/16ths" 19 11/16ths" - 39 3/4ths" 37 5/8ths" -

S70, 4dr Sedan 97-01 (ZA) -300mm 500mm - 1010mm 955mm -

-11 -13/16ths" 19 11/16ths" - 39 3/4ths" 37 5/8ths" -

S70, 4dr Sedan Apr 97-Apr 00 (AU) -300mm 500mm - 1010mm 955mm -

-11 -13/16ths" 19 11/16ths" - 39 3/4ths" 37 5/8ths" -

S70, 4dr Sedan Apr 97-Apr 00 (NZ) -300mm 500mm - 1010mm 955mm -

-11 -13/16ths" 19 11/16ths" - 39 3/4ths" 37 5/8ths" -

SA220, 4dr Ute Jul 09-+ (NZ) -200mm 500mm - 900mm 900mm -

-7 -7/8ths" 19 11/16ths" - 35 7/16ths" 35 7/16ths" -

SA220, 4dr Ute Jun 09-+ (AU) -200mm 500mm - 900mm 900mm -

-7 -7/8ths" 19 11/16ths" - 35 7/16ths" 35 7/16ths" -

Scudo, 4dr MPV 95-06 (EU) - - - - - -

- - - - - -

Scudo, 5dr Van 07-+ (EU) - - - - - -

- - - - - -

Scudo, 5dr Van 07-+ (NZ) - - - - - -

- - - - - -

Scudo, 5dr Van 07-+ (AU) - - - - - -

- - - - - -

SD1, 5dr Hatch 76-86 (EU) - - - - - -

- - - - - -

S17W

Page 55

WHISPBAR THROUGH BAR

S17W

SD1, 5dr Hatch 76-Oct 86 (NZ) - - - - - -

Sequoia, 5dr SUV 00-07 (US) 280mm 980mm - 990mm 990mm -

Serena, 4dr MPV 91-99 (NZ) - - - - - -

Serena, 5dr MPV Sep 92-Dec 95 (AU) - - - - - -

Sharan, 5dr MPV 10-+ (EU) 100mm 850mm - 965mm 930mm -

Sharan, 5dr MPV 95-04 (ZA) - - - - - -

Sharan, 5dr MPV Feb 95-04 (NZ) - - - - - -

Shogun, 5dr SUV 06-+ (EU) - - - - - -

Shogun, 5dr SUV 99-06 (EU) - - - - - -

Shuttle, 4dr Van 82-91 (AU) - - - - - -

Sienna, 5dr MPV 04-10 (US) 80mm 1590mm - 980mm 980mm -

Sienna, 5dr MPV 11-+ (US) 680mm 1380mm - 880mm 875mm -

Sierra, 2dr Truck 07-+ (US) -425mm -65mm - 1030mm 1010mm -

Sierra, 2dr Truck 99-07 (US) -515mm -65mm - 1035mm 1010mm -

Sierra, 4dr Truck 01-07 (US) -200mm 500mm - 1002mm 1002mm -

Sierra, 4dr Truck 07-+ (US) -100mm 750mm - 1026mm 1004mm -

Sierra, 4dr Truck 07-+ (US) -200mm 450mm - 1018mm 1012mm -

Sierra, 4dr Truck 99-07 (US) -200mm 500mm - 1005mm 1005mm -

Silverado, 2dr Truck 01-07 (US) -65mm -515mm - 1035mm 1010mm -

Silverado, 4dr Truck 01-07 (US) -100mm 650mm - 1009mm 1004mm -

Silverado, 4dr Truck 01-07 (US) -200mm 500mm - 1002mm 1002mm -

Silverado, 4dr Truck 07-+ (US) -100mm 750mm - 1026mm 1004mm -

Silverado, 4dr Truck 07-+ (US) -200mm 450mm - 1018mm 1012mm -

Sorento, 5dr SUV 02-09 (ZA) - - - - - -

Sorento, 5dr SUV 03-09 (EU) - - - - - -

Sorento, 5dr SUV 11-+ (US) -280mm 420mm - 970mm 925mm -

Sorento, 5dr SUV Aug 09-+ (AU) -280mm 420mm - 970mm 925mm -

Sorento, 5dr SUV Oct 09-+ (NZ) -280mm 420mm - 970mm 925mm -

Spectron, 4dr Van 83-Jun 90 (AU) - - - - - -

Statesman, 4dr Sedan 06-+ (NZ) - - - - - -

Statesman, 4dr Sedan 06-+ (NZ) -280mm 420mm - 955mm 928mm -

Statesman, 4dr Sedan 06-+ (AU) - - - - - -

Statesman, 4dr Sedan 06-+ (AU) -280mm 420mm - 955mm 928mm -

Steed, 4dr Ute 09-+ (ZA) -270mm 470mm - 835mm 815mm -

- - - - - -

11" 38 9/16ths" - 39" 39" -

- - - - - -

3 15/16ths" 33 7/16ths" - 38" 36 5/8ths" -

- - - - - -

3 1/8ths" 62 5/8ths" - 38 9/16ths" 38 9/16ths" -

26 3/4ths" 54 5/16ths" - 34 5/8ths" 34 7/16ths" -

-16 -3/4ths" -2 -9/16ths" - 40 9/16ths" 39 3/4ths" -

-20 -1/4ths" -2 -9/16ths" - 40 3/4ths" 39 3/4ths" -

-7 -7/8ths" 19 11/16ths" - 39 7/16ths" 39 7/16ths" -

-3 -15/16ths" 29 1/2ths" - 40 3/8ths" 39 1/2ths" -

-7 -7/8ths" 17 11/16ths" - 40 1/16ths" 39 13/16ths" -

-7 -7/8ths" 19 11/16ths" - 39 9/16ths" 39 9/16ths" -

-2 -9/16ths" -20 -1/4ths" - 40 3/4ths" 39 3/4ths" -

-3 -15/16ths" 25 9/16ths" - 39 3/4ths" 39 1/2ths" -

-7 -7/8ths" 19 11/16ths" - 39 7/16ths" 39 7/16ths" -

-3 -15/16ths" 29 1/2ths" - 40 3/8ths" 39 1/2ths" -

-7 -7/8ths" 17 11/16ths" - 40 1/16ths" 39 13/16ths" -

- - - - - -

-11" 16 9/16ths" - 38 3/16ths" 36 7/16ths" -

- - - - - -

-11" 16 9/16ths" - 37 5/8ths" 36 9/16ths" -

- - - - - -

-11" 16 9/16ths" - 37 5/8ths" 36 9/16ths" -

Page 56

WHISPBAR THROUGH BAR

-10 -5/8ths" 18 1/2ths" - 32 7/8ths" 32 1/16ths" -

Steed, 4dr Ute 10-+ (EU) -270mm 470mm - 835mm 815mm -

-10 -5/8ths" 18 1/2ths" - 32 7/8ths" 32 1/16ths" -

Suburban, 5dr SUV 00-06 (US) - - - - - -

- - - - - -

Suburban, 5dr SUV 00-06 (US) -200mm 500mm - 995mm 995mm -

-7 -7/8ths" 19 11/16ths" - 39 3/16ths" 39 3/16ths" -

Suburban, 5dr SUV 92-99 (US) - - - - - -

- - - - - -

Tacoma, 2dr Truck 05-+ (US) -80mm -480mm - 965mm 925mm -

-3 -1/8ths" -18 -7/8ths" - 38" 36 7/16ths" -

Tacoma, 4dr Truck 05-11 (US) -120mm 530mm - 949mm 930mm -

-4 -3/4ths" 20 7/8ths" - 37 3/8ths" 36 5/8ths" -

Tacoma, 4dr Truck 05-11 (US) -300mm 330mm - 957mm 930mm -

-11 -13/16ths" 13" - 37 11/16ths" 36 5/8ths" -

Tahoe, 5dr SUV 00-06 (EU) - - - - - -

- - - - - -

Tahoe, 5dr SUV 00-06 (US) - - - - - -

- - - - - -

Tahoe, 5dr SUV 07-+ (US) -200mm 500mm - 1010mm 1015mm -

-7 -7/8ths" 19 11/16ths" - 39 3/4ths" 39 15/16ths" -

Tahoe, 5dr SUV 95-99 (US) - - - - - -

- - - - - -

Taurus, 4dr Sedan 10-+ (US) -250mm 450mm - 970mm 945mm -

-9 -13/16ths" 17 11/16ths" - 38 3/16ths" 37 3/16ths" -

Terracan, 5dr SUV 01-05 (EU) - - - 990mm 990mm -

- - - 39" 39" -

Terracan, 5dr SUV 01-07 (ZA) - - - 990mm 990mm -

- - - 39" 39" -

Terracan, 5dr SUV Nov 01-Jun 07 (NZ) - - - 990mm 990mm -

- - - 39" 39" -

Terracan, 5dr SUV Nov 01-Jun 07 (AU) - - - 990mm 990mm -

- - - 39" 39" -

Terraza, 5dr MPV 05-07 (US) 560mm 1260mm - 905mm 905mm -

22 1/16ths" 49 5/8ths" - 35 5/8ths" 35 5/8ths" -

Touareg, 5dr SUV 06-10 (ZA) -80mm 1090mm - - - -

-3 -1/8ths" 42 15/16ths" - - - -

Touareg, 5dr SUV 07-10 (NZ) -80mm 1090mm - - - -

-3 -1/8ths" 42 15/16ths" - - - -

Touareg, 5dr SUV 07-10 (AU) -80mm 1090mm - - - -

-3 -1/8ths" 42 15/16ths" - - - -

Touareg, 5dr SUV 07-10 (EU) -80mm 1090mm - - - -

-3 -1/8ths" 42 15/16ths" - - - -

Touareg, 5dr SUV 07-10 (US) -80mm 1090mm - - - -

-3 -1/8ths" 42 15/16ths" - - - -

Touareg, 5dr SUV 10-+ (EU) 50mm 750mm - 950mm 900mm -

1 15/16ths" 29 1/2ths" - 37 3/8ths" 35 7/16ths" -

Touareg, 5dr SUV 10-+ (NZ) 50mm 750mm - 950mm 900mm -

1 15/16ths" 29 1/2ths" - 37 3/8ths" 35 7/16ths" -

Touareg, 5dr SUV 10-+ (AU) 50mm 750mm - 950mm 900mm -

1 15/16ths" 29 1/2ths" - 37 3/8ths" 35 7/16ths" -

Touareg, 5dr SUV 10-+ (ZA) 50mm 750mm - 950mm 900mm -

1 15/16ths" 29 1/2ths" - 37 3/8ths" 35 7/16ths" -

Touareg, 5dr SUV 11-+ (US) 50mm 750mm - 950mm 900mm -

1 15/16ths" 29 1/2ths" - 37 3/8ths" 35 7/16ths" -

Touran, 5dr MPV 03-+ (NZ) - 800mm - 970mm 918mm -

- 31 1/2ths" - 38 3/16ths" 36 1/8ths" -

Touran, 5dr MPV 03-+ (ZA) - 800mm - 970mm 918mm -

- 31 1/2ths" - 38 3/16ths" 36 1/8ths" -

Touran, 5dr MPV 03-+ (EU) - 800mm - 970mm 918mm -

- 31 1/2ths" - 38 3/16ths" 36 1/8ths" -

Town and Country, 5dr MPV 01-07 (US) 180mm 1550mm - 924mm 924mm -

7 1/16ths" 61" - 36 3/8ths" 36 3/8ths" -

Town and Country, 5dr MPV 01-07 (US) - - - 866mm 866mm -

- - - 34 1/8ths" 34 1/8ths" -

Town and Country, 5dr MPV 08-+ (US) 400mm 1100mm - 1010mm 1010mm -

15 3/4ths" 43 5/16ths" - 39 3/4ths" 39 3/4ths" -

Town and Country, 5dr MPV 96-00 (US) 190mm 1600mm - 926mm 926mm -

7 1/2ths" 63" - 36 7/16ths" 36 7/16ths" -

S17W

Page 57

WHISPBAR THROUGH BAR

S17W

Trajet, 5dr MPV 00-04 (ZA) - - - - - -

Trajet, 5dr MPV 99-+ (EU) - - - - - -

Trajet, 5dr MPV Apr 00-04 (NZ) - - - - - -

Trajet, 5dr MPV Jun 00-May 04 (AU) - - - - - -

Transit, 4dr Ute Jun 01-+ (AU) - - - - - -

Transit, 5dr Van Apr 94-Dec 00 (NZ) - - - - - -

Transit, 5dr Van Apr 94-Jan 01 (AU) - - - - - -

Transporter, 4dr Van Oct 86-Feb 93 (AU) - - - - - -

Traverse, 5dr SUV 09-+ (US) -20mm 1430mm - 854mm 774mm -

Tribeca, 5dr SUV 06-+ (ZA) 160mm 920mm - 950mm 910mm -

Tribeca, 5dr SUV 06-07 (EU) 160mm 920mm - 950mm 910mm -

Tribeca, 5dr SUV 08-+ (AU) - - - - - -

Tribeca, 5dr SUV 08-+ (NZ) - - - - - -

Tribeca, 5dr SUV 08-+ (US) - - - - - -

Tribeca, 5dr SUV 08-+ (ZA) - - - - - -

Tribeca, 5dr SUV 08-+ (EU) - - - - - -

Tribeca, 5dr SUV Nov 06-Nov 07 (NZ) 160mm 920mm - 950mm 910mm -

Tribeca, 5dr SUV Nov 06-Nov 07 (AU) 160mm 920mm - 950mm 910mm -

Tribute, 5dr SUV 08-+ (US) -300mm 400mm - 900mm 900mm -

Trooper, 3dr SUV 81-91 (EU) - - - - - -

Trooper, 3dr SUV 92-02 (EU) - - - - - -

Trooper, 3dr SUV 93-02 (ZA) - - - - - -

Trooper, 5dr SUV 92-02 (EU) - - - - - -

Trooper, 5dr SUV 92-02 (EU) -200mm 600mm - 890mm 890mm -

Trooper, 5dr SUV 92-02 (NZ) - - - - - -

Trooper, 5dr SUV 92-02 (NZ) -200mm 600mm - 890mm 890mm -

Trooper, 5dr SUV 93-02 (ZA) - - - - - -

Trooper, 5dr SUV 93-02 (ZA) -200mm 600mm - 890mm 890mm -

Tundra, 4dr Truck 00-06 (US) -200mm 500mm - 1000mm 1005mm -

Tunland Double Cab, 4dr Ute 12-+ (NZ) -140mm 610mm - 885mm 835mm -

Tunland Double Cab, 4dr Ute 12-+ (AU) -140mm 610mm - 885mm 835mm -

Tunland Double Cab, 4dr Ute 12-+ (ZA) -140mm 610mm - 885mm 835mm -

V200, 4dr Ute Jul 11-+ (AU) -270mm 470mm - 835mm 815mm -

- - - - - -

0 -13/16ths" 56 5/16ths" - 33 5/8ths" 30 1/2ths" -

6 5/16ths" 36 1/4ths" - 37 3/8ths" 35 13/16ths" -

- - - - - -

6 5/16ths" 36 1/4ths" - 37 3/8ths" 35 13/16ths" -

-11 -13/16ths" 15 3/4ths" - 35 7/16ths" 35 7/16ths" -

- - - - - -

-7 -7/8ths" 23 5/8ths" - 35 1/16ths" 35 1/16ths" -

- - - - - -

-7 -7/8ths" 23 5/8ths" - 35 1/16ths" 35 1/16ths" -

- - - - - -

-7 -7/8ths" 23 5/8ths" - 35 1/16ths" 35 1/16ths" -

-7 -7/8ths" 19 11/16ths" - 39 3/8ths" 39 9/16ths" -

-5 -1/2ths" 24" - 34 13/16ths" 32 7/8ths" -

Page 58

WHISPBAR THROUGH BAR

-10 -5/8ths" 18 1/2ths" - 32 7/8ths" 32 1/16ths" -

V200, 4dr Ute Jul 11-+ (NZ) -270mm 470mm - 835mm 815mm -

-10 -5/8ths" 18 1/2ths" - 32 7/8ths" 32 1/16ths" -

V240, 4dr Ute Jul 09-+ (NZ) - - - - - -

- - - - - -

V240, 4dr Ute Jul 09-+ (NZ) -270mm 470mm - 835mm 815mm -

-10 -5/8ths" 18 1/2ths" - 32 7/8ths" 32 1/16ths" -

V240, 4dr Ute Jul 09-+ (AU) - - - - - -

- - - - - -

V240, 4dr Ute Jul 09-+ (AU) -270mm 470mm - 835mm 815mm -

-10 -5/8ths" 18 1/2ths" - 32 7/8ths" 32 1/16ths" -

V70, 5dr Estate 96-99 (EU) -90mm 1380mm - 1007mm 906mm -

-3 -9/16ths" 54 5/16ths" - 39 5/8ths" 35 11/16ths" -

V70, 5dr Wagon 97-00 (US) -90mm 1380mm - 1007mm 906mm -

-3 -9/16ths" 54 5/16ths" - 39 5/8ths" 35 11/16ths" -

V70, 5dr Wagon Jul 97-Oct 00 (NZ) -90mm 1380mm - 1007mm 906mm -

-3 -9/16ths" 54 5/16ths" - 39 5/8ths" 35 11/16ths" -

V70, 5dr Wagon Mar 97-Sep 00 (AU) -90mm 1380mm - 1007mm 906mm -

-3 -9/16ths" 54 5/16ths" - 39 5/8ths" 35 11/16ths" -

Vanette, 4dr Van 82-Dec 93 (AU) - - - - - -

- - - - - -

Venza, 5dr Wagon 08-+ (US) -250mm 450mm - 952mm 934mm -

-9 -13/16ths" 17 11/16ths" - 37 1/2ths" 36 3/4ths" -

Veracruz, 5dr SUV 07-+ (US) - - - - - -

- - - - - -

Verso, 5dr MPV 09-+ (EU) -300mm 450mm - 980mm 940mm -

-11 -13/16ths" 17 11/16ths" - 38 9/16ths" 37" -

Verso, 5dr MPV 09-+ (ZA) -300mm 450mm - 980mm 940mm -

-11 -13/16ths" 17 11/16ths" - 38 9/16ths" 37" -

Voyager, 5dr MPV 96-00 (EU) - - - - - -

- - - - - -

Voyager, 5dr MPV 96-00 (EU) - - - - - -

- - - - - -

Voyager, 5dr MPV 96-01 (ZA) - - - - - -

- - - - - -

Voyager, 5dr MPV Mar 97-Dec 02 (AU) - - - - - -

- - - - - -

WB, 2dr Ute 80-Aug 84 (NZ) - - - - - -

- - - - - -

Windstar, 4dr MPV 95-98 (EU) - - - - - -

- - - - - -

Wizard, 5dr SUV Jan 99-02 (NZ) - - - - - -

- - - - - -

X3, 5dr SUV 04-10 (AU) 80mm 780mm - 965mm 900mm -

3 1/8ths" 30 11/16ths" - 38" 35 7/16ths" -

X3, 5dr SUV 04-10 (US) 80mm 780mm - 965mm 900mm -

3 1/8ths" 30 11/16ths" - 38" 35 7/16ths" -

X3, 5dr SUV 04-10 (ZA) 80mm 780mm - 965mm 900mm -

3 1/8ths" 30 11/16ths" - 38" 35 7/16ths" -

X3, 5dr SUV 04-10 (EU) 80mm 780mm - 965mm 900mm -

3 1/8ths" 30 11/16ths" - 38" 35 7/16ths" -

X3, 5dr SUV 04-Jul 05 (NZ) 80mm 780mm - 965mm 900mm -

3 1/8ths" 30 11/16ths" - 38" 35 7/16ths" -

X5, 5dr SUV 00-06 (EU) 80mm 780mm - 960mm 940mm -

3 1/8ths" 30 11/16ths" - 37 13/16ths" 37" -

X5, 5dr SUV 00-06 (US) 80mm 780mm - 960mm 940mm -

3 1/8ths" 30 11/16ths" - 37 13/16ths" 37" -

X5, 5dr SUV 00-06 (ZA) 80mm 780mm - 960mm 940mm -

3 1/8ths" 30 11/16ths" - 37 13/16ths" 37" -

X5, 5dr SUV 07-+ (EU) 140mm 840mm - 955mm 915mm -

5 1/2ths" 33 1/16ths" - 37 5/8ths" 36" -

X5, 5dr SUV 07-+ (NZ) 140mm 840mm - 955mm 915mm -

5 1/2ths" 33 1/16ths" - 37 5/8ths" 36" -

X5, 5dr SUV 07-+ (ZA) 140mm 840mm - 955mm 915mm -

5 1/2ths" 33 1/16ths" - 37 5/8ths" 36" -

X5, 5dr SUV 07-+ (AU) 140mm 840mm - 955mm 915mm -

5 1/2ths" 33 1/16ths" - 37 5/8ths" 36" -

X5, 5dr SUV 07-+ (US) 140mm 840mm - 955mm 915mm -

5 1/2ths" 33 1/16ths" - 37 5/8ths" 36" -

S17W

Page 59

WHISPBAR THROUGH BAR

S17W

X5, 5dr SUV Nov 00-06 (AU) 80mm 780mm - 960mm 940mm -

X5, 5dr SUV Nov 00-06 (NZ) 80mm 780mm - 960mm 940mm -

xB, 5dr MPV 04-07 (US) -200mm 550mm - 980mm 980mm -

xB, 5dr Wagon 08-+ (US) -200mm 550mm - 1032mm 1004mm -

XJ12, 4dr Sedan 72-Dec 94 (NZ) - - - - - -

XJ40, 4dr Sedan Mar 86-Dec 95 (NZ) - - - - - -

XJ6, 4dr Sedan Mar 86-Oct 97 (NZ) - - - - - -

XJ6, 4dr Sedan Mar 87-Oct 91 (AU) - - - - - -

Yukon, 5dr SUV 00-06 (US) - - - 1038mm 1038mm -

Yukon, 5dr SUV 95-99 (US) - - - - - -

3 1/8ths" 30 11/16ths" - 37 13/16ths" 37" -

-7 -7/8ths" 21 5/8ths" - 38 9/16ths" 38 9/16ths" -

-7 -7/8ths" 21 5/8ths" - 40 5/8ths" 39 1/2ths" -

- - - - - -

- - - 40 7/8ths" 40 7/8ths" -

- - - - - -

Page 60

WHISPBAR THROUGH BAR

S17W

LIMITED LIFETIME WARRANTY

Technical Assistance or Replacement Parts: Contact your dealer or visit: www.whispbar.com or call (888) 925-4621 Monday through Friday, 7:00am to 5:00pm, PST

This limited lifetime warranty covers all Whispbar-brand products* and rack components manufactured by Yakima Products, Inc. (Yakima), and is effective for as long as the original retail purchaser owns the product. This warranty terminates when the original retail purchaser sells or otherwise transfers the product to any other person. Subject to Yakima’s inspection of the product, Yakima will remedy defects in materials and/or workmanship by repairing or replacing, at Yakima’s option, the defective product without charge for parts or labor, subject to the limitations and exclusions described in this warranty. Yakima may elect, at its option, not to repair or replace a defective product, in which case Yakima will issue to the original retail purchaser, at Yakima’s option, either a refund equal to the purchase price paid for the product, or a credit to be used toward the purchase of new Whispbar products or rack components. This warranty does not cover problems caused by normal wear and tear (including, but not limited to, scratches, dents, or aesthetic oxidation of surfaces), accidents, unlawful vehicle operation, or modifications or repairs not performed or authorized by Yakima. In addition, this warranty does not cover problems resulting from conditions beyond Yakima’s control including, but not limited to, theft, misuse, overloading, or failure to assemble, mount or use the product in accordance with Yakima’s written instructions or guidelines included with the product or made available to the original retail purchaser. If a product is believed to be defective, the original retail purchaser should contact the Whispbar dealer from whom it purchased the product, who will give the original retail purchaser instructions on how to proceed. If the original retail purchaser is unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, the original retail purchaser should contact Yakima by e-mail at: [email protected], or phone 888.925.4621 for shipping instructions. Upon contacting Yakima directly, a Yakima technician will provide the original retail purchaser with appropriate instructions for returning the product to Yakima. The original retail purchaser will be responsible for the cost of mailing the product to Yakima. In order to receive any remedy under this warranty (either from a Whispbar dealer, or from Yakima directly), proof of purchase in the form of an original purchase invoice or receipt is strictly required.

LIMITATION OF LIABILITY REPAIR OR REPLACEMENT OF A DEFECTIVE PRODUCT, OR THE ISSUANCE OF A REFUND OR CREDIT (AS DETERMINED BY YAKIMA), IS THE ORIGINAL RETAIL PURCHASER’S EXCLUSIVE REMEDY UNDER THIS WARRANTY. DAMAGE OR INJURY TO THE ORIGINAL RETAIL PURCHASER, TO HIS OR HER VEHICLE, CARGO, OR PROPERTY, AND/OR TO ANY OTHER PERSON OR PROPERTY IS NOT COVERED BY THIS WARRANTY. THIS WARRANTY IS EXPRESSLY MADE IN LIEU OF ANY AND ALL OTHER EXPRESS WARRANTIES, WHETHER ORAL OR WRITTEN.

YAKIMA’S SOLE LIABILITY IS LIMITED TO THE REMEDY SET FORTH ABOVE. IN NO EVENT WILL YAKIMA BE LIABLE FOR ANY DIRECT, INDIRECT, CONSEQUENTIAL, INCIDENTAL, SPECIAL, EXEMPLARY, OR PUNITIVE DAMAGES OR FOR ANY OTHER DAMAGES OF ANY KIND OR NATURE (INCLUDING, BUT NOT LIMITED TO, LOST PROFITS OR LOST SALES). SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY FROM STATE TO STATE.

Page 61

WHISPBAR THROUGH BAR

S17W

WARRANTY & DISCLAIMER

Yakima Australia Pty Ltd ABN 58 154 440 221

17 Hinkler Court, Brendale QLD 4500

Tel: 0800 4776 722 (NZ) or 1800 143 548 (AU)

Email: [email protected] or [email protected]

Where the product is supplied to the customer for other than business purposes within the meaning of section 43 of the New Zealand Consumer Guarantees Act 1993, the provisions of that Act shall apply. It is important that anyone who fits or uses this product does so in accordance with the manufacturer's instructions.

Where the product is supplied to the customer for business purposes within the meaning of section 43 of the New Zealand Consumer Guarantees Act 1993, the provisions of that Act and all other representations or terms (including any conditions or warranty expressed or implied by law, statute or otherwise) not expressly included in this leaflet are hereby expressly excluded shall have no effect and the clauses (a) and (b) shall apply.

Subject to the Additional Information (Australia), where the product is supplied and purchased in Australia, the following shall apply:

THE SUPPLIER WARRANTS the product to be free from defects in materials and/or workmanship for a limited lifetime from the date of original purchase (the warranty period). Proof of purchase is required. Subject to the limitations and exclusions set out below, the Supplier hereby agrees to remedy any defects in materials or workmanship becoming apparent during the warranty period, by replacing or repairing any defective product or component (at its option) free of charge to the purchaser in respect of replacement parts or labour. Any defective product or component must be notified and where practicable, returned at the purchaser’s expense to the Supplier immediately upon discovery of the alleged defect and no attempt made on the part of the purchaser to repair it.

EXCEPTIONS, EXCLUSIONS AND LIMITATIONS TO WARRANTY. The product and/or its components must be fitted/ assembled and loaded in accordance with the Supplier’s written instructions and any requirements set out in the car’s owner manual. This warranty does not cover defects, loss or damage resulting from circumstances beyond the Supplier’s control including, but not limited to misuse, overloading, or failure to assemble and/or fit the product or component in accordance with the Supplier’s written instructions. Nor does the warranty cover defects, loss or damage resulting from accidents, unlawful use of the vehicle or defects/inconsistencies in the vehicle on which the product or component is fitted. Liability for direct, indirect, special, punitive, incidental, exemplary, contractual or consequential damage or loss arising from defects, faulty materials or design omissions or negligence or workmanship in the product or its components is hereby expressly excluded subject to the following. Certain Commonwealth legislation, including the Competition and Consumer Act 2010 (Cth), and other State and Territorial legislation confers upon purchasers rights which cannot be excluded from or be restricted or modified by contract. Any conditions, guarantees and/or warranties implied by law and incapable of exclusion are deemed to be expressly incorporated herein. Nothing herein contained is intended nor shall be permitted to be inconsistent with any such conditions, guarantees and/or warranties. To the extent permitted by legislation all conditions, guarantees and/or warranties such as implied warranties which are capable of exclusion are hereby expressly excluded and negatived.

ADDITIONAL INFORMATION ( AUSTRALIA )

This information should be read in conjunction with clauses (a) and (b).

IMPORTANT LEGAL NOTICE

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.

This warranty does not change or take away your rights under the Australian Consumer Law. Your right to claim under this policy for the benefits covered is in addition to other rights and remedies you have under the law in relation to the product.

Where you become aware of defects in materials or of workmanship, and wish to make a claim under this warranty you must do the following for the warranty to be honoured by your Whispbar dealer or Yakima Australia Pty Ltd ABN 58 154 440 221 (Yakima):

Make a claim as soon as practicable by contacting the Whispbar dealer from whom you purchased the product, who will give you instructions on how to proceed.

If you are unable to contact the Whispbar dealer, or the dealer is not able to remedy the defect, you should contact Yakima as soon as practicable at: Call: 0800 4776 722 (NZ) or 1800 143 548 (AU) Email: [email protected] or [email protected]

Alternately, you can write to Yakima at 17 Hinkler Court, Brendale QLD Australia 4500 in order to make a claim under your warranty.

Upon contacting Yakima directly, you should explain as fully as possible the defect. A Yakima representative will provide you with appropriate instructions for returning the product together with a copy of the original purchase invoice or receipt to Yakima.

Page 62

WHISPBAR THROUGH BAR

4. The costs and expenses associated with making a claim under your warranty including the costs of complying with those

instructions and of returning the product to Yakima or the Whispbar dealer will be borne by you.

Following receipt of the product and purchase invoice or receipt, Yakima or the Whispbar dealer must inspect the product to determine whether the claim falls within the warranty. If:

4.1 the claim falls within the warranty, Yakima will remedy any defects in materials or workmanship becoming apparent during the warranty period, by replacing or repairing any defective product or component (at its option) free of charge to the purchaser in respect of replacement parts or labour.

4.2 the claim does not fall within the warranty, Yakima will return the product to you at your expense.

S17W

Page 63

WHISPBAR THROUGH BAR

S17W

Whispbar 5-Jahres-Garantie (EU)

Whispbar ist stolz darauf, dass alle Produkte des Unternehmens nach höchsten Qualitätsstandards entwickelt, getestet und hergestellt werden. Zusätzlich verfügen alle in Europa verkauften Whispbar-Produkte über eine 5-Jahres-Garantie auf Material und Verarbeitung.

I. Von der Garantie umfasste Waren und Garantierahmen Whispbar gewährt für Lastträgersysteme, Dachboxen und Zubehör, die/das von Whispbar hergestellt und unter dem Markennamen Whispbar verkauft wurde/n, bei Materialdefekten und Verarbeitungsfehlern eine Garantie mit einer Laufzeit von bis zu fünf Jahren ab Lieferdatum. Außer bei den nachfolgend genannten Einschränkungen und Ausnahmen behebt Whispbar Materialdefekte oder Verarbeitungsfehler während der Garantiezeit durch Reparatur oder Austausch der defekten Teile (nach Whispbars Ermessen), ohne dass dem Erstkäufer Kosten für Teile oder Arbeit entstehen. Der Erstkäufer ist für die Kosten des Versands der entsprechenden Teile/Produkte an den Original-Whispbar-Händler verantwortlich. Damit die Mängelbeseitigung im Rahmen dieser Garantie berücksichtigt werden kann, muss ein Kaufbeleg in Form der Originalrechnung vorgelegt werden.

II. Übertragung der Garantie Die Garantie gilt nur für den Erstkäufer der Ersatzteile und ist nicht übertragbar.

III. Einschränkung der Garantierechte Eine Garantie gilt nicht für Defekte durch Umstände, die außerhalb der Kontrolle von Whispbar liegen, einschließlich, aber nicht beschränkt auf normale Abnutzung, fehlerhaften Gebrauch, Überladung, Modifizierungen oder Reparaturen, die nicht von Whispbar ausgeführt oder autorisiert wurden, oder die durch fehlerhafte Montage, falschen Zusammenbau oder fehlerhafte Nutzung des Lastenträgers oder des Zubehörs entgegen den Anweisungen in den schriftlichen Bedienungsanleitungen und Sicherheitsbestimmungen von Whispbar entstanden sind. Weiterhin wird keine Garantie gewährt für Defekte durch Unfälle, illegale Fahrzeugbewegung oder für Defekte am Fahrzeug, auf dem das Produkt installiert ist. Eine Garantie für Defekte aufgrund fehlerhaften Verhaltens des Nutzers bei der Lastensicherung gemäß den Empfehlungen von Whispbar wird ebenfalls nicht gewährt. Die Reparatur oder der Austausch fehlerhafter Whispbar-Produkte im Rahmen der Garantie ist allein dem Erstkäufer vorbehalten. Folge- oder Unfallschäden sind von der Garantie ausgenommen. Schäden am Fahrzeug oder Beförderungsgut des Nutzers sowie an anderen Personen oder Gütern sind von der Garantie ausgenommen.

IV. Davon unberührte gesetzliche Mängelansprüche Die oben aufgeführten Bestimmungen beeinträchtigen weder die gesetzlichen Rechte des Käufers oder Dritter bezüglich geltender nationaler Gesetze, noch die sich für den Käufer aus dem Kaufvertrag ergebenden Rechte gegenüber dem Verkäufer. Dies gilt insbesondere für Gewährleistungsrechte nach den geltenden nationalen Gesetzen, die in vollem Umfang weiterbestehen, unabhängig davon, ob ein Garantiefall eintritt und die Garantie in Anspruch genommen wird.

V. Kontaktaufnahme mit Whispbar Bei allen speziellen Fragen zur Garantie von Whispbar setzen Sie sich bitte mit dem nächsten Whispbar-Händler oder mit dem Händler in Verbindung, bei dem das Produkt gekauft wurde. Informationen über entsprechende Händler finden Sie auf www.whispbar.eu Garantiegeber ist Yakima Products, Inc., 15025 SW Koll Parkway, Beaverton, OR 97006 USA

Whispbar ist eine registrierte Handelsmarke von Yakima Products, Inc.

Page 64

WHISPBAR THROUGH BAR

S17W

GARANTÍA LIMITADA DE POR VIDA

SI NECESITA ASISTENCIA TÉCNICA O REPUESTOS Contacte un vendedor, visite el sitio www.whispbar.com o llame al (888)925-4621De lunes a viernes, 7:00 AM a 5:00 PM, hora del Pacífico

Esta garantía limitada de por vida cubre todos los productos y accesorios de marca Whispbar, fabricados por Yakima Products, Inc. (Yakima), y es válida durante todo el tiempo que el comprador original conserve el producto. La validez de esta garantía caducará cuando el comprador original venda o transfiera el producto a otra persona. Sujeto a inspección y a las limitaciones y exclusiones descritas en esta garantía, Yakima reparará o sustituirá, a su criterio, el producto que presente defectos de material o mano de obra sin cargo por las piezas o la mano de obra. Yakima podrá elegir, según lo estime conveniente, no reparar o reemplazar un producto defectuoso. En tal caso, Yakima otorgará al comprador original, a su criterio, un reembolso o un vale igual al precio de compra para ser usado en la compra de nuevos productos o componentes de rejillas portaequipajes Whispbar. Esta garantía no cubre problemas causados por uso o desgaste normal del producto (incluyendo, sin limitarse a ello, arañazos, abolladuras, u oxidaciones que afecten solo a la estética de las superficies), accidentes, conducción ilegal de vehículos, reparaciones o modificaciones no realizadas o autorizadas por Yakima. Asimismo, esta garantía no cubre problemas derivados de circunstancias fuera del alcance de Yakima incluyendo, sin limitarse a ello, robo, mal uso, sobrecarga, o la colocación, montaje o uso del producto que no respeten las instrucciones por escrito de Yakima, incluidas en el producto o puestas a disposición del comprador original. Si el comprador original considera que un producto tiene algún defecto, puede comunicarse con el distribuidor de productos Whispbar donde adquirió el producto, que le dará las instrucciones necesarias sobre cómo proceder en este caso. Si no es posible comunicarse con el concesionario de Whispbar, o este no puede reparar el defecto, el comprador original deberá comunicarse con Yakima mediante el correo electrónico [email protected], o bien llamar por teléfono al número 888 925 4621 para que le indiquen las instrucciones de envío. Al comunicarse directamente con Yakima, un técnico de Yakima dará al comprador original las instrucciones apropiadas para devolver el producto a Yakima. El comprador original correrá con los gastos de envío. Para recibir cualquier servicio de reparación bajo esta garantía (tanto del distribuidor de los productos Whispbar como directamente de Yakima) se exigirá sin excepción la factura o el recibo original.

LIMITACIÓN DE LA RESPONSABILIDAD LA REPARACIÓN O SUSTITUCIÓN DEL PRODUCTO DEFECTUOSO O LA EMISIÓN DE UN REEMBOLSO O UN VALE (SEGÚN LO DETERMINE YAKIMA), CONSTITUYEN EL REMEDIO EXCLUSIVO PARA EL COMPRADOR ORIGINAL EN VIRTUD DE ESTA GARANTÍA. LOS DAÑOS O LESIONES OCASIONADOS AL COMPRADOR ORIGINAL, A SU VEHÍCULO, CARGA O PROPIEDAD O A CUALQUIER PERSONA O PROPIEDAD NO ESTÁN CUBIERTOS POR ESTA GARANTÍA. ESTA GARANTÍA ESTÁ CONCEBIDA EXPRESAMENTE PARA REEMPLAZAR AL RESTO DE GARANTÍAS, SEAN ORALES O ESCRITAS. LA RESPONSABILIDAD DE YAKIMA SE LIMITA AL REMEDIO MENCIONADO ANTERIORMENTE. EN NINGÚN CASO, YAKIMA SERÁ RESPONSABLE DE DAÑO ALGUNO DIRECTO, INDIRECTO, INCIDENTAL, ESPECIAL, PUNITIVO U OTROS DAÑOS DE CUALQUIER NATURALEZA (INCLUYENDO, SIN LIMITARSE A ELLO, GANANCIAS O VENTAS NO REALIZADAS).

Page 65

WHISPBAR THROUGH BAR

S17W

Garantía Whispbar de 5 años (UE)

En Whispbar estamos orgullosos de garantizar que todos nuestros productos son diseñados, probados y fabricados de acuerdo con las normas de calidad más exigentes. Además, todos los productos Whispbar vendidos en la UE disponen de una garantía de 5 años para los materiales y la mano de obra.

I. Artículos cubiertos y ámbito de aplicación Whispbar garantizará que los sistemas de transporte de cargas, cofres de techo y accesorios, fabricados por Whispbar y vendidos bajo la denominación comercial Whispbar, estén exentos de defectos en los materiales o la mano de obra durante cinco años a partir de la fecha de entrega del producto al comprador minorista original. Con sujeción a las limitaciones y exclusiones que se exponen abajo, Whispbar remediará los defectos del material o de la mano de obra durante el período de garantía, reparando o sustituyendo (a discreción de Whispbar) los componentes defectuosos sin cargo en concepto de piezas o mano de obra para el comprador minorista original, que correrá con el coste de devolver los componentes/productos al distribuidor Whispbar original. Con el fin de que cualquier reparación se considere cubierta por esta garantía, será estrictamente necesario aportar una prueba de compra en forma de factura o recibo de compra original.

II. Transferencia de la garantía La garantía se emite solo para el comprador minorista original y no es transferible.

III. Limitación de las reclamaciones de garantía No se ofrece garantía alguna ante los defectos resultantes de condiciones ajenas al control de Whispbar incluyendo, sin limitarse a ello, uso o desgaste natural, mala utilización, sobrecarga, modificaciones o reparaciones no realizadas ni autorizadas por Whispbar, o debidas a un fallo de montaje, colocación o uso del portacargas o los accesorios de acuerdo con las instrucciones, directrices y texto de seguridad escritos de Whispbar. Además, no se ofrece garantía alguna por los defectos causados por accidentes, uso ilegal del vehículo o defectos en el vehículo en el que se instala el producto. Asimismo, no se ofrece garantía alguna por los defectos causados por el fallo de los usuarios a la hora de asegurar adecuadamente la carga de acuerdo con las recomendaciones de Whispbar. La reparación o sustitución del producto Whispbar defectuoso es el único remedio que obtendrá el comprador original en virtud de la garantía. Todos los daños resultantes o fortuitos quedan excluidos de esta garantía. Los daños sufridos en el vehículo del usuario o en la carga así como por cualquier otra persona o propiedad quedan excluidos.

IV. Reclamaciones legales no afectadas por las limitaciones Las disposiciones anteriores no restringen los derechos legales del comprador ni de terceros en virtud de la legislación nacional aplicable. Tampoco afectan a los derechos del comprador ante el distribuidor derivados del contrato de compra formalizado entre las dos partes. Concretamente, esto se aplicará a los derechos de garantía de acuerdo con la legislación nacional aplicable que esté vigente, exceptuando el hecho de que se produzca un caso de garantía y de que la garantía se reclame o no.

V. Contacto con Whispbar Si tiene cualquier duda concreta acerca de la garantía Whispbar, póngase en contacto con el distribuidor Whispbar más cercano o con el distribuidor donde adquirió el producto. Puede encontrar información sobre los distribuidores en www.whispbar.eu El garante es Yakima Products, Inc., 15025 SW Koll Parkway, Beaverton, OR 97006 EE. UU.

Whispbar es una marca registrada de Yakima Products, Inc.

Page 66

WHISPBAR THROUGH BAR

S17W

GARANTIE LIMITÉE À VIE

POUR OBTENIR DES RENSEIGNEMENTS TECHNIQUES OU DES PIÈCES DE RECHANGE prière de contacter votre dépositaire, de consulter le site www.whispbar.com ou d’appeler au (888) 925-4621, du lundi au vendredi, entre 7 heures et 17 heures, heure du Pacifique.

Cette garantie limitée à vie couvre tous les produits de la marque Whispbar* et tous les composants du porte-vélo fabriqué par Yakima Products, Inc. (Yakima), et restera en vigueur aussi longtemps que l'acheteur au détail original sera en possession du produit. Cette garantie prendra fin lorsque l'acheteur au détail original vendra ou transfèrera le produit à toute autre personne. Sous réserve de l'inspection du produit par Yakima, Yakima remédiera aux défauts des matériaux et / ou de fabrication en réparant ou en remplaçant, à la discrétion de Yakima, tout produit défectueux sans frais de pièces ou de main d'oeuvre, sous réserve des limitations et des exclusions décrites dans cette garantie. Yakima peut décider, à sa discrétion, de ne pas réparer ou de ne pas remplacer un produit défectueux, auquel cas Yakima délivrera à l'acheteur au détail original, à la discrétion de Yakima, soit un remboursement égal au prix d'achat payé pour le produit, soit un avoir à utiliser pour l'achat de nouveaux produits ou de nouveaux composants du portevélo Whispbar . Cette garantie ne couvre pas les problèmes causés par l'usure normale (y compris, entre autres, les égratignures, les enfoncements, ou l'oxydation esthétique des surfaces), les accidents, la conduite illégale du véhicule, ou les modifications ou les réparations non effectuées ou non autorisées par Yakima. En outre, cette garantie ne couvre pas les problèmes résultant de situations échappant au contrôle de Yakima, y compris, entre autres, aux suivantes : le vol, l'abus, la surcharge, ou l'incapacité à assembler, à monter ou à utiliser le produit conformément aux instructions écrites par Yakima ou des instructions fournies avec le produit ou mises à disposition à l'acheteur au détail original. Si un produit est jugé défectueux, l'acheteur au détail original devra contacter le distributeur Whispbar auquel il a acheté le produit, qui lui donnera des instructions sur la marche à suivre. Si l'acheteur au détail original n'est pas en mesure de contacter le distributeur de la marque Whispbar, ou si le distributeur n'est pas à même de remédier au défaut, l'acheteur au détail original devra communiquer avec Yakima par e-mail à l'adresse suivante : [email protected], ou téléphoner au + 1 888.925.4621 pour s'enquérir au sujet des instructions d'expédition. Après avoir contacté directement Yakima, un technicien de Yakima donnera à l'acheteur au détail original les instructions appropriées pour retourner le produit à Yakima. Le coût de l'envoi du produit à Yakima sera à la charge de l'acheteur au détail original. Afin de redresser toute situation fâcheuse pendant toute la vigueur de cette garantie (ocasionnée soit par un distributeur Whispbar, soit directement par Yakima), un justificatif d'achat sous la forme d'une facture originale d'achat ou d'un reçu est strictement requise.

LIMITATION DE RESPONSABILITÉ LA RÉPARATION OU LE REMPLACEMENT D'UN PRODUIT DEFECTUEUX, OU ENCORE LA DÉLIVRANCE D'UN REMBOURSEMENT OU D'UN AVOIR (À LA DISCRÉTION DE YAKIMA), CONSTITUE LE RECOURS EXCLUSIF DE L'ACHETEUR AU DÉTAIL ORIGINAL TOUT AU LONG DE LA DUREE DE VALIDITE DE CETTE GARANTIE. TOUT DOMMAGE OU TOUTE BLESSURE INFLIGÉ(E) À L'ACHETEUR AU DÉTAIL ORIGINAL, À SON VÉHICULE, À SON CHARGEMENT, OU À SA PROPRIÉTÉ, ET/OU À TOUTE AUTRE PERSONNE OU À TOUTE AUTRE PROPRIÉTÉ, N'EST PAS COUVERT PAR CETTE GARANTIE. CETTE GARANTIE EST EXPRESSÉMENT FAITE POUR REMPLACER TOUTE AUTRE GARANTIE EXPRESSE, QU'ELLE SOIT ORALE OU ÉCRITE. LA SEULE RESPONSABILITÉ DE YAKIMA EST LIMITÉE AU RECOURS DÉVELOPPÉ CI-DESSUS. EN AUCUN CAS, YAKIMA NE POURRA ÊTRE TENUE POUR RESPONSABLE DES DOMMAGES DIRECTS, INDIRECTS, CONSÉQUENTS, EXEMPLAIRES OU PUNITIFS OU DE TOUT AUTRE DOMMAGE DE QUELQUE NATURE QUE CE SOIT (Y COMPRIS, ENTRE AUTRES, DE MANQUES À GAGNER OU DE VENTES MANQUÉES).

Page 67

WHISPBAR THROUGH BAR

S17W

Garantie quinquennale Whispbar (UE)

Chez Whispbar, nous pouvons nous vanter de garantir que l'ensemble de nos produits est conçu, testé et fabriqué conformément aux exigences les plus strictes. Par ailleurs, tous les produits Whispbar vendus au sein de l'UE bénéficient d'une garantie quinquennale sur les pièces et la main d'oeuvre.

I. Produits couverts et champs d'application. La garantie Whispbar couvre les systèmes de porte-charges, les coffres de toit et les accessoires fabriqués par Whispbar et commercialisés sous la marque Whispbar, pour une durée de cinq ans à compter de la date de la remise du produit à l'acheteur au détail d'origine. Il s'agit d'une garantie couvrant l'ensemble des défauts sur les pièces ou de fabrication. Sous réserve des limitations et des exclusions indiquées ci-dessous, Whispbar remédiera à l'ensemble des défauts affectant les pièces ou de fabrication pendant toute la durée de la période de garantie, en réparant ou en remplaçant (au choix de Whispbar) le(s) composant(s) défectueux, et cela à titre gratuit (pièces et main d'oeuvre) pour l'acheteur d'origine. L'acheteur au détail d'origine devra prendre à sa charge tous frais associés au retour du/des composant(s)/produit(s) au commerçant Whispbar initial. Pour que la présente garantie puisse être mise en jeu, il sera nécessaire de produire une preuve d'achat, sous la forme de l'exemplaire original de la facture d'achat ou du ticket de caisse.

II. Transfert de la garantie. La présente garantie n'est accordée qu'au profit de l'acheteur au détail d'origine.

III. Limitation des réclamations dans le cadre de la garantie. Nulle garantie n'est accordée concernant les défauts trouvant leur origine dans des situations qui échappent au contrôle de Whispbar, comme, à titre non limitatif, une usure normale, une utilisation indue, la surcharge, des modifications ou des réparations non effectuées ou autorisées par Whispbar, ou encore dans l'assemblage, le montage ou l'utilisation du porte-charges ou de l'accessoire/des accessoires en cause d'une manière non conforme aux instructions écrites, aux lignes directrices et aux tests de sécurité de Whispbar. De plus, nulle garantie n'est accordée concernant les défauts occasionnés par des accidents ou par un maniement illicite du véhicule sur lequel le produit aura été installé. En outre, nulle garantie n'est accordée concernant les défauts causés par l'incapacité de l'utilisateur à assurer correctement sa charge, conformément aux recommandations de Whispbar. La réparation ou le remplacement du produit Whispbar défectueux est la seule action dont l'acheteur d'origine pourra se prévaloir dans le cadre de la présente garantie. Tous dommages accessoires ou indirects sont exclus de la présente garantie. Les dommages causés au véhicule de l'utilisateur, à la charge ou à des biens appartenant à des tiers en sont exclus.

IV. Garantie légale. Les dispositions ci-dessus ne sauraient nullement restreindre les droits légaux dont l'acheteur ou des tiers pourraient se prévaloir au sens de la loi nationale applicable. Elles ne sauraient affecter davantage les droits de l'acheteur vis-à-vis de son vendeur, tels que prévus au sein du contrat d'achat conclu entre ces deux parties. C'est ainsi notamment que lesdites dispositions ne sauraient s'appliquer aux droits de garantie prescrits par la loi nationale applicable, lesquels demeurent inchangés (sous réserve de la mise en oeuvre de la garantie).

V. Contacter Whispbar Pour toute question particulière concernant la garantie Whispbar, veuillez contacter le commerçant Whispbar le plus proche ou celui auprès duquel vous avez acheté le produit. Vous pourrez trouver des informations concernant les commerçants sur le site Internet : www.Whispbar.eu Le donneur de garantie est Yakima Products, Inc., 15025 SW Koll Parkway, Beaverton, OR 97006, États-Unis d'Amérique.

Whispbar est une marque déposée de Yakima Products, Inc.

Page 68

WHISPBAR THROUGH BAR

S17W

Whispbar 5 års garanti (EU)

I Whispbar setter vi vår ære i å sørge for at alle produktene våre er konstruert, testet og produsert etter de høyeste kvalitetsstandardene. Alle Whispbar-produkter som selges i EU har dessuten 5 års garanti på materialer og utførelse.

I. Produkter som dekkes og omfang Whispbar garanterer i inntil fem år fra leveringsdato til den opprinnelige forbrukerkjøperen at takgrinder, takbokser og tilleggsutstyr, som produseres av Whispbar og selges under merkenavnet Whispbar, er fri for mangler i materialer og utførelse. Whispbar vil utbedre mangler i materialer eller utførelse i garantiperioden, med begrensningene og unntakene angitt nedenfor, ved å reparere eller skifte ut (etter Whispbars valg) de defekte komponentene uten at den opprinnelige kjøperen må betale for arbeidet eller komponentene. Den opprinnelige kjøperen skal være ansvarlig for kostnadene ved å returnere komponenten(e)/produktet(ene) til den opprinnelige Whispbar-forhandleren. Bevis på kjøpet i form av en original faktura eller kvittering må fremlegges for at noen som helst utbedring vil bli vurdert i henhold til denne garantien.

II. Overføring av garantien Garantien gis kun til den opprinnelige kjøperen og kan ikke overføres.

III. Begrensning av garantikrav Garantien omfatter ikke mangler som er forårsaket av forhold som ligger utenfor Whispbars kontroll, inkludert, men ikke begrenset til, normal bruk og slitasje, misbruk, overbelastning, endringer eller reparasjoner som ikke er utført eller godkjent av Whispbar, eller feil sammensetting, montering eller bruk av takgrinden eller tilleggsutstyret i henhold til de skriftlige instruksjonene, retningslinjene eller sikkerhetsveiledningen fra Whispbar. Garantien omfatter heller ikke mangler som skyldes ulykker, ulovlig bruk av kjøretøyet eller feil ved kjøretøyet som produktet monteres på. Garantien omfatter heller ikke mangler som er forårsaket av at brukeren ikke fester lasten riktig, slik Whispbar anbefaler. Reparasjon eller utskifting av det mangelfulle Whispbar-produktet er den opprinnelige kjøperens eneste rettsmiddel etter garantien. Alle tilfeldige skader eller følgeskader er unntatt fra garantien. Skader på brukerens last, kjøretøy eller andre personer eller eiendom er unntatt.

IV. Lovfestede krav påvirkes ikke Bestemmelsene ovenfor begrenser ikke kjøpers eller tredjeparts lovfestede rettigheter i henhold til relevant, ufravikelig, nasjonal lovgivning. Heller ikke begrenser de kjøperens rettigheter overfor forhandleren etter kjøpekontrakten inngått mellom partene. Dette gjelder spesielt garantirettigheter i henhold til nasjonal lovgivning som fortsatt gjelder fullt ut, bortsett fra det faktum at garantitilfellet oppstår og at det fremlegges krav etter garantien eller ikke.

V. Kontakt med Whispbar Hvis du har spesielle spørsmål om Wispbar-garantien, kan du kontakte nærmeste Whispbar-forhandler eller forhandleren der produktet ble kjøpt. Forhandlerinformasjon kan du finne på www.Whispbar.eu. Ansvarlig for garantien er Yakima Products Inc., 15025 SW Koll Parkway, Beaverton OR 97006, USA.

Whispbar er et registrert varemerke som eies av Yakima Products, Inc

Page 69

WHISPBAR THROUGH BAR

S17W

Garantia de 5 anos da Whispbar (UE)

Na Whispbar, orgulhamo-nos por garantir que todos os nossos produtos são concebidos, testados e fabricados de acordo com os mais elevados padrões de qualidade. Além disso, todos os produtos da Whispbar vendidos na UE têm uma garantia de 5 anos que abrange os materiais e o acabamento.

I. Produtos abrangidos e alcance A garantia da Whispbar, que abrange sistemas de transporte de cargas, caixas de tejadilho e acessórios produzidos pela Whispbar e vendidos com o nome comercial Whispbar, tem uma duração de cinco anos a partir da data de entrega do produto (sem defeitos a nível de material e acabamento) ao comprador final original. Sujeito às limitações e exclusões abaixo indicadas, a Whispbar irá resolver defeitos de materiais ou acabamentos durante o período de garantia, recorrendo à reparação ou substituição (segundo a exclusiva opção da Whispbar) do(s) componente(s) com defeito, sem cobrar peças nem mão-de-obra ao comprador original. O comprador original é responsável pelo custo de devolução do(s) componente(s)/produto(s) ao revendedor original da Whispbar. Para se poder considerar qualquer tipo de resolução ao abrigo desta garantia é obrigatório apresentar o recibo ou a factura original da compra.

II. Transmissão da garantia A garantia é emitida exclusivamente para o comprador original e não é transmissivel.

III. Limitação das reclamações de garantia A garantia não abrange defeitos resultantes de condições que não estão sob controlo da Whispbar, designadamente desgaste normal, utilização incorrecta, sobrecarregamento, modificações ou reparações não executadas nem autorizadas pela Whispbar, ou resultantes da incapacidade de montar, instalar ou utilizar o sistema de transporte de cargas ou acessórios em conformidade com as instruções, directrizes e texto de segurança da Whispbar. A garantia também não abrange defeitos causados por acidentes, operação ilegal do veículo ou defeitos no veículo onde o produto se encontra instalado. Além disso, a garantia não abrange defeitos provocados pelo facto de o utilizador não fixar correctamente a carga conforme recomendado pela Whispbar. A reparação ou substituição do produto da Whispbar com defeito são as únicas soluções de que o comprador original dispõe ao abrigo da garantia. Todos os danos consequenciais e incidentais estão excluídos desta garantia. Os danos do veículo e da carga do utilizador ou sofridos por qualquer outra pessoa ou bens estão excluídos.

IV. Garantias legais não afectadas As anteriores disposições não representam uma restrição aos direitos legais do comprador ou de terceiros em conformidade com a legislação nacional obrigatória relevante. Também não afectam o direito do comprador em relação ao revendedor no que diz respeito ao contrato de compra e venda celebrado entre as duas partes. Isto aplica-se em particular a direitos de garantia, em conformidade com a legislação nacional aplicável, que se mantêm inalterados, independentemente de ocorrer a situação garantida e de a garantia ser ou não reclamada.

V. Contacto com a Whispbar Para qualquer pergunta específica sobre a garantia da Whispbar, entre em contacto com o revendedor mais próximo da Whispbar ou o revendedor onde adquiriu o produto. Visite www.Whispba.eu para obter informações sobre os revendedores. O garante é a Yakima Products, Inc., 15025 SW Koll Parkway, Beaverton, OR 97006 EUA

A Whispbar é uma marca comercial registada da Yakima Products, Inc.

Page 70

WHISPBAR THROUGH BAR

S17W

5-летняя гарантия на продукцию Whispbar (ЕС)

Компания Whispbar обеспечивает соблюдение высочайших стандартов качества при проектировании, тестировании и производстве всей своей продукции. Кроме того, для всех продаваемых в ЕС продуктов Whispbar предоставляется 5-летняя гарантия на материалы и качество изготовления.

I. Покрываемые гарантией продукты и область применения Компания Whispbar предоставляет гарантию на отсутствие дефектов материалов и качества изготовления производимых Whispbar и продаваемых с маркой Whispbar багажных систем, устанавливаемых на крыше багажников и аксессуаров на срок до 5 лет с момента поставки продукта первоначальному розничному покупателю. С учетом приведенных ниже ограничений и исключений компания Whispbar обязуется устранять дефекты материалов или качества изготовления в течение гарантийного срока посредством ремонта или замены (на усмотрение компании Whispbar) некачественного(-ых) компонента(-ов) без взимания с первоначального покупателя стоимости соответствующих компонентов или работ. Расходы, связанные с возвратом компонента(-ов)/продукта(-ов) первоначальному продавцу Whispbar, оплачиваются первоначальным покупателем. Для реализации права на гарантию необходимо предоставить доказательство совершенной покупки в виде оригинала счета на ее оплату или чека.

II. Передача гарантии Гарантия предоставляется только первоначальному розничному покупателю и не подлежит передаче другим лицам.

III. Ограничение претензий по гарантии Гарантия не распространяется на дефекты, возникшие по не зависящим от компании Whispbar причинам, включая помимо прочего нормальный износ, ненадлежащее использование, перегрузку, модификации или ремонт, выполненные без участия компании Whispbar или одобрения с ее стороны, а также невыполнение письменных указаний, рекомендаций и правил техники безопасности компании Whispbar при сборке, монтаже или эксплуатации багажной системы или аксессуаров. Кроме того, гарантия не распространяется на дефекты, возникшие в результате дорожно-транспортных происшествий, незаконного управления транспортным средством или недостатков транспортного средства, на котором установлено изделие. Кроме того, гарантия не распространяется на повреждения, связанные с невыполнением рекомендаций компании Whispbar по креплению груза. Ремонт или замена некачественного изделия Whispbar является единственным средством правовой защиты первоначального покупателя в рамках гарантии. Все сопутствующие и вытекающие повреждения под настоящую гарантию не подпадают. Гарантия не распространяется на ущерб, нанесенный принадлежащему пользователю транспортному средству или грузу, а также здоровью или имуществу других лиц.

IV. Сохраняющие силу законные притязания Приведенные выше положения не ограничивают законные права покупателя или третьих лиц в соответствии с действующим национальным законодательством. Они также не затрагивают права покупателя по отношению к дилеру на основании заключенного между ними договора купли-продажи. В частности, это распространяется на гарантийные права в соответствии с действующим национальным законодательством, сохраняющие свою полную силу независимо от факта возникновения гарантийного случая и предъявления гарантийной претензии или отсутствия таковой.

V. Контакты с компанией Whispbar По любым вопросам, связанным с гарантией на продукцию Whispbar, обращайтесь к ближайшему дилеру Whispbar или дилеру, у которого был приобретен продукт. Информация о дилерах приведена на сайте www.Whispbar.eu Гарантом является компания Yakima Products, Inc., зарегистрированная по адресу: 15025 SW Koll Parkway, Beaverton, OR 97006 USA (США)

Whispbar является зарегистрированной торговой маркой компании Yakima Products, Inc.
