Whirlwind THS Users Manual
TALKBACK
HEADPHONE
THS
SYSTEMS

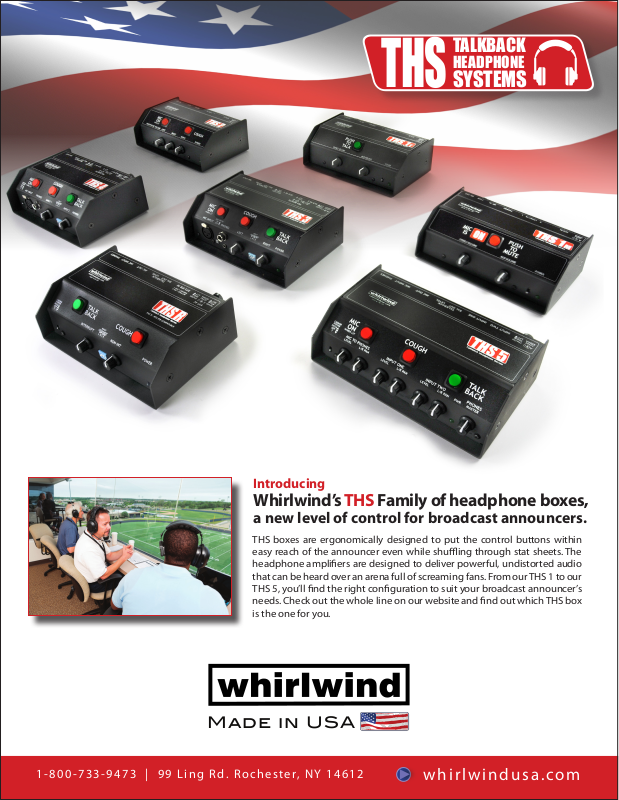

Introducing
Whirlwind’s THS Family of headphone boxes,
a new level of control for broadcast announcers.
THS boxes are ergonomically designed to put the control buttons within
easy reach of the announcer even while shuing through stat sheets. The
headphone ampliers are designed to deliver powerful, undistorted audio
that can be heard over an arena full of screaming fans. From our THS 1 to our
THS 5, you’ll nd the right conguration to suit your broadcast announcer’s
needs. Check out the whole line on our website and nd out which THS box
is the one for you.
Made in USA
1-800-733-9473 | 99 Ling Rd. Rochester, NY 14612
whirlwindusa.com
Choose the THS Talkback Headphone System that works best for you!
THS 1
Left and right line
level inputs with single
stereo volume control
Additional mono Aux
input with volume
control
Momentary Push to
Mute switch turns mic
OFF while depressed
Mic is ON if power
is disconnected
Footswitch jack for
remote mic switching,
footswitch not included
THS 1
Identical to the THS
1M except with a
Momentary Push to
Talk switch that turns
the mic ON while
depressed
M
T
THS 2
Left, Right and Mono
line level inputs with
individual volume
controls
Latching Mic On
switch with red LED
indicates mic is ON
Momentary Cough
switch mutes the mic
while depressed
Mic stays ON if power
is disconnected
THS 3
Two line level inputs
with Input Assign
switches for routing
to either or both ears
Separate left and right
volume controls adjust
the overall level of all
inputs assigned to
that ear
Latching Mic On
switch with red LED
indicates mic is ON
Momentary Cough
switch mutes the mic
while depressed
Momentary Talkback
switch mutes the main
mic out and activates
the adjustable line
level Talkback Out
Mic stays ON if power
is disconnected with
dynamic mics
Selectable phantom
or “T” power for
condenser mics
THS 4
Two line level inputs
with individual volume
controls that feed left/
right Assign Switches
and adjust each input’s level to both ears
equally
Latching Mic On
switch with red LED
indicates mic is ON
Momentary Cough
switch mutes the mic
while depressed
Momentary Talkback
switch mutes the main
mic out and activates
the adjustable line
level Talkback Out
Mic stays ON if power
is disconnected with
dynamic mics
Selectable phantom
or “T” power for
condenser mics
THS 5
Two line level inputs
with individual volume
and pan controls for
adjusting signal to left
and right earpieces
Mic mix volume and
pan controls for adding the local mic
to headphone mix
Master headphone
volume adjusts mix
in both ears simultaneously
Latching Mic On
switch with red LED
indicates mic is ON
Momentary Cough
switch mutes the mic
while depressed
Momentary Talkback
switch mutes the main
mic out and activates
the adjustable line
level Talkback Out
Mic stays ON if power
is disconnected with
dynamic mics
Selectable phantom
or “T” power for
condenser mics
THS R
Made in USA
TALKBACK
HEADPHONE
THS
SYSTEMS
RTS® compatible 3 pin
XLR input congured
for “Wet” IFB
XLR pin 2 power and
interrupt audio; pin 3
non -interrupt audio
Individual volume
controls for interrupt
and non-interrupt
inputs
Input Assign switches
route inputs to either
or both ears
Momentary Cough
switch mutes the mic
while depressed
Momentary Talkback
switch mutes the main
mic out and activates
the adjustable line
level Talkback Out
Mic stays ON if power
is disconnected with
dynamic mics
Selectable phantom
or “T” power for
condenser mics
Transformer isolation
on both inputs and
talkback out
Powered with
24-30VDC from
“Wet” IFB or external
power adapter
1-800-733-9473 | 99 Ling Rd. Rochester, NY 14612 whirlwindusa.com
