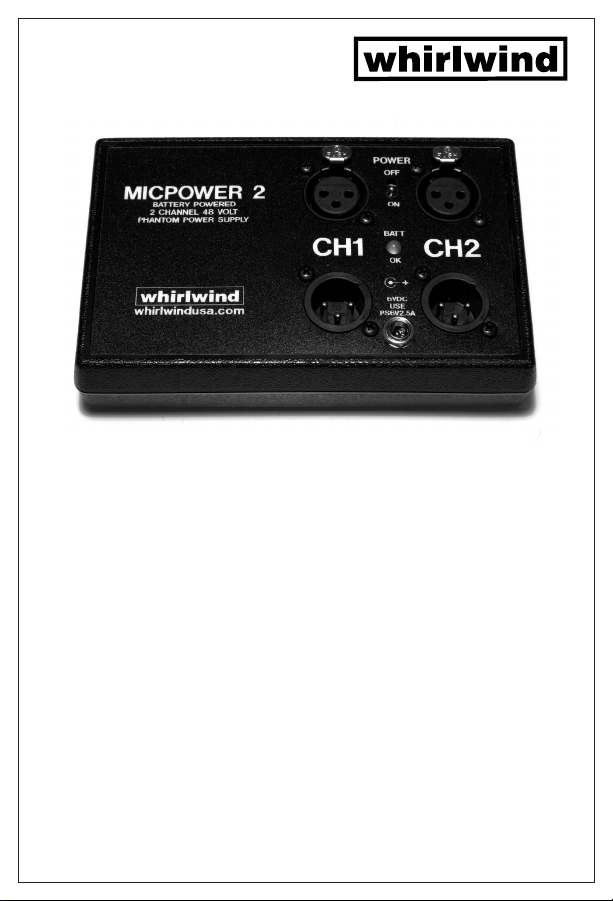

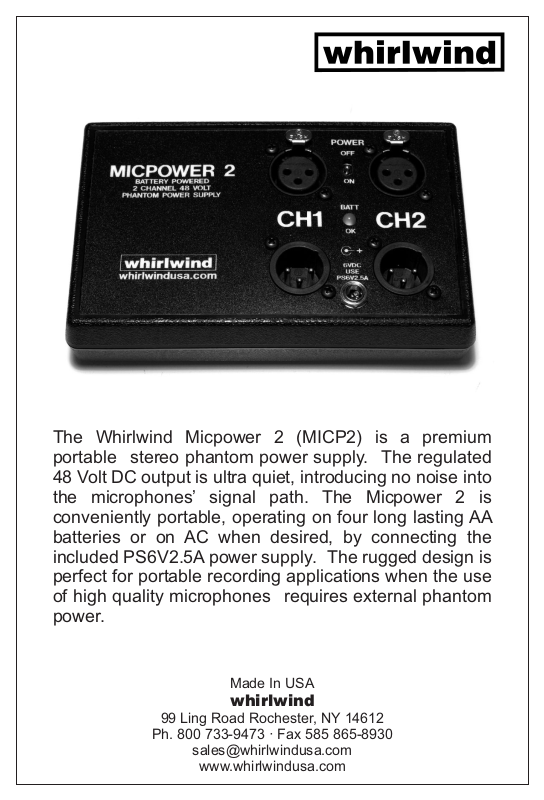

The Whirlwind Micpower 2 (MICP2) is a premium
portable stereo phantom power supply. The regulated
48 Volt DC output is ultra quiet, introducing no noise into
the microphones’ signal path. The Micpower 2 is
conveniently portable, operating on four long lasting AA
batteries or on AC when desired, by connecting the
included PS6V2.5A power supply. The rugged design is
perfect for portable recording applications when the use
of high quality microphones requires external phantom
power.
Made In USA
99 Ling Road Rochester, NY 14612
Ph. 800 733-9473 · Fax 585 865-8930
whirlwind
www.whirlwindusa.com
Page 2
Frequency Response 20-20 kHz +/- .01 dBV
Total Harmonic Distortion +noise < .001%, 20-20 kHz at 0 dBV
Phase Shift < 1.1Degrees 20-20 kHz
-.2 Degrees at 1 kHz
Common Mode Rejection of Input >90 dBV 20-20 kHz
-115 dBV at 1 kHz
-118 dBV at 63 Hz
Maximum Input level +20 dBV
Input Impedance 7.1 k Ohms
Maximum output level +20 dBV
Output Impedance 7.1 k Ohms
Dynamic Range >140 dBV
Noise at unity gain <-118.7 dBV
Isolation between channels <107 dBV 20-20 kHz
-126 dBV at 1 kHz
Phantom Power 48 Volts DC +/- .1 VDC
Power consumption 8 mA AC idle
37 mA AC full load
Power requirements 4 AA batteries or PS6V2.5A Wall supply 100-240 VAC
50/60 Hz (other AC adapters not recommended)
Battery life 8 hours of continuous use at full rated load
AC dropout voltage 100 VAC
Turn on impulse noise < -70 dBV
Turn off impulse noise <-80 dBV
FEATURES:
? 8 hour battery life minimum (with fresh alkaline AA batteries)
? PS6V2.5A wall power supply included
? Ultra quiet, regulated, filtered 48 VDC power
? AC coupled outputs (no phantom power down the line)
? Recessed Power ON/OFF switch
? Power ON/ Battery OK LED indicator
? 2 year warranty
? Made In USA
SPECIFICATIONS:
Warranty
This product is guaranteed for 2 years from the date of purchase against manufacturing
defects. For warranty service, return the unit, along with the original sales receipt, to:
whirlwind, 99 Ling Road, Rochester, NY 14612, postage prepaid. We will repair or replace
the unit at our option and pay the return postage.
