MICROWAVE OVEN
HOOD COMBINATION
USER INSTRUCTIONS
THANK YOU for purchasing this high-quality product. Register your microwave oven at www.whirlpool.com.
For future reference, please make a note of your product model and serial numbers. These can be found on the label located on the
microwave oven frame behind the top right side of the microwave oven door.
Model Number __________________________________________ Serial Number ___________________________________________
Para una versión de estas instrucciones en español, visite www.whirlpool.com.
Deberá tener a mano el número de modelo y de serie, que están ubicados en el marco del horno, detrás del lado derecho superior
de la puerta del horno.
Table of Contents
MICROWAVE OVEN SAFETY ........................................................2
Electrical Requirements ...............................................................4
PARTS AND FEATURES ................................................................5
Feature Guide ...............................................................................5
Standby Mode ..............................................................................8
Additional Features ......................................................................8
Options .........................................................................................9
Turntable ....................................................................................... 9
Control Lock .................................................................................9
MICROWAVE OVEN USE .............................................................10
Food Characteristics ..................................................................10
Cooking Guidelines ....................................................................10
Cookware and Dinnerware.........................................................11
Aluminum Foil and Metal ...........................................................11
Microwave Cooking Power ........................................................11
Doneness ...................................................................................11
Sensor Cook...............................................................................11
Manual Cooking/Stage Cooking ................................................11
Add More Time ...........................................................................11
Reheat ........................................................................................12
Frozen Entrée .............................................................................12
Defrost ........................................................................................12
Soften/Melt .................................................................................12
Auto Cook ..................................................................................13
Kids Menu ..................................................................................13
Potato .........................................................................................13
Vegetable ....................................................................................13
Steam / Simmer .........................................................................14
Popcorn ......................................................................................14
Warm Hold .................................................................................14
MICROWAVE OVEN CARE ..........................................................15
General Cleaning ........................................................................15
TROUBLESHOOTING ..................................................................16
ACCESSORIES .............................................................................17
WARRANTY ..................................................................................18
W11297795B
1
MICROWAVE OVEN SAFETY
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances basic safety precautions should be followed, including the following:
WARNING: To reduce the risk of burns, electric shock, fire,
injury to persons, or exposure to excessive microwave energy:
■ Read all instructions before using the microwave oven.
■ Read and follow the specific “PRECAUTIONS TO AVOID
POSSIBLE EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY” found in this section.
■ The microwave oven must be grounded. Connect only to
properly grounded outlet. See “GROUNDING INSTRUCTIONS”
found in this section and in the provided Installation Instructions.
■ Install or locate the microwave oven only in
accordance with the provided Installation Instructions.
■ Some products such as whole eggs in the shell and
sealed containers - for example, closed glass jars are able to explode and should not be heated in the
microwave oven.
SAVE THESE INSTRUCTIONS
2
IMPORTANT SAFETY INSTRUCTIONS
Use the microwave oven only for its intended use as
■
described in the manual. Do not use corrosive chemicals or
vapors in the microwave oven. This type of oven is
specifically designed to heat, cook, or dry food. It is not
designed for industrial or laboratory use.
■ As with any appliance, close supervision is necessary when
used by children.
■ Do not operate the microwave oven if it has a damaged cord
or plug, if it is not working properly, or if it has been damaged
or dropped.
■ The microwave oven should be serviced only by qualified
service personnel. Call an authorized service company for
examination, repair, or adjustment.
■ Do not cover or block any openings on the microwave oven.
■ Do not store this microwave oven outdoors. Do not use the
microwave oven near water - for example, near a kitchen
sink, in a wet basement, near a swimming pool, or similar
locations.
■ Do not immerse cord or plug in water.
■ Keep cord away from heated surfaces.
■ Do not let cord hang over edge of table or counter.
■ See door surface cleaning instructions in the “Microwave
Oven Care” section.
■ To reduce the risk of fire in the oven cavity:
– Do not overcook food. Carefully attend the microwave oven
when paper, plastic, or other combustible materials are
placed inside the oven to facilitate cooking.
– Remove wire twist-ties from paper or plastic bags before
placing bags in oven.
– If materials inside the oven ignite, keep oven door closed,
turn oven off, and disconnect the power cord, or shut off
power at the fuse or circuit breaker panel.
– Do not use the cavity for storage purposes. Do not leave
paper products, cooking utensils, or food in the cavity when
not in use.
Liquids, such as water, coffee, or tea are able to be
■
overheated beyond the boiling point without appearing to
be boiling. Visible bubbling or boiling when the container
is removed from the microwave oven is not always
present. THIS COULD RESULT IN VERY HOT LIQUIDS
SUDDENLY BOILING OVER WHEN THE CONTAINER
IS DISTURBED OR A SPOON OR OTHER UTENSIL IS
INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons:
– Do not overheat the liquid.
– Stir the liquid both before and halfway through heating it.
– Do not use straight-sided containers with narrow necks.
– After heating, allow the container to stand in the
microwave oven for a short time before removing the
container.
– Use extreme care when inserting a spoon or other
utensil into the container.
■ Do not mount over a sink.
■ Do not store anything directly on top of the microwave
oven when the microwave oven is in operation.
■ Clean Ventilating Hoods Frequently - Grease should not
be allowed to accumulate on hood or filter.
When flaming foods under the hood, turn the fan on.
■
■ Suitable for use above both gas and electric cooking
equipment.
■ Intended to be used above ranges with maximum width of
36" (91.44 cm).
■ Use care when cleaning the vent-hood filter. Corrosive
cleaning agents, such as lye-based oven cleaners, may
damage the filter.
SAVE THESE INSTRUCTIONS
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open
since open-door operation can result in harmful exposure
to microwave energy. It is important not to defeat or
tamper with the safety interlocks.
(b) Do not place any object between the oven front face and
the door or allow soil or cleaner residue to accumulate on
sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly
important that the oven door close properly and that there
is no damage to the:
(1) Door (bent),
(2) Hinges and latches (broken or loosened),
(3) Door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone
except properly qualified service personnel.
3
Electrical Requirements
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
Observe all governing codes and ordinances.
Required:
■ A 120 V, 60 Hz, AC-only, 15 or 20 A electrical supply with a
fuse or circuit breaker
Recommended:
■ A time-delay fuse or time-delay circuit breaker
■ A separate circuit serving only this microwave oven
GROUNDING INSTRUCTIONS
■
For all cord connected appliances:
The microwave oven must be grounded. In the event of
an electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the electric
current. The microwave oven is equipped with a cord
having a grounding wire with a grounding plug. The plug
must be plugged into an outlet that is properly installed
and grounded.
WARNING: Improper use of the grounding plug can
result in a risk of electric shock. Consult a qualified
electrician or serviceman if the grounding instructions are
not completely understood, or if doubt exists as to whether
the microwave oven is properly grounded.
Do not use an extension cord. If the power supply cord is
too short, have a qualified electrician or serviceman install
an outlet near the microwave oven.
SAVE THESE INSTRUCTIONS
This device complies with Part 18 of the FCC Rules.
4
FEATURES
Feature Guide
This manual covers several models. Your model may have some or all of the items listed. Refer to this manual or the Product Help section
of our website at www.whirlpool.com for more detailed instructions.
WARNING
Food Poisoning Hazard
Do not let food sit in oven more than one hour before
or after cooking.
Doing so can result in food poisoning or sickness.
Display icons
Clock
Kitchen
Timer
Control
Lock
Cook
Defrost
Weight
Power
Quantity
Weight
Ounce
Cancel
Number Keypad
(0 ~ 9)
Start
5
Keypad Feature Instructions
Hold to set the Clock The Clock is a 12-hour(1:00-12:59).
1. Hold the keypad TIMER keypad for 3 seconds.
2. Tone sound and
3. Pressing number keypad to set the clock.
4. Pressing the START or the TIMER keypad to save the clock.
Note: If the clock set is not correctly, start the clock with the clock in memory
or “:”.
Set Kitchen Timer
Add 30 Seconds In Manual cooking, touch the START keypad will start 30 seconds of cook
Start Function Press the START keypad to start any cooking functions. If cooking is
1. Touch TIMER keypad,
2. Touch the number keypads to enter time up to 99 minutes and 59
seconds.
3. For example, to set 12 minutes length time, touch TIMER keypad.
4. Use the number keypads to enter 12:00. “Start?” icon fl ash on the display.
5. Touch Start.
Note:
When Kitchen Timer is running:
Press NUMBER keypad (0~9) will reset timer, e.g. press number keypad 1000,
the kitchen timer will reset to “10:00”.
Press POWER/TIMER keypad will run manual cooking mode.
Press POPCORN / COOK / REHEAT /DEFROST / SOFTEN OR MELT keypad
will run auto cooking mode.
time with full power MW cycle. Duration can be adjusted by pressing START
keypad, it adds 30 seconds per each press while the unit is running. Pressing
and holding the START keypad, it will add more duration automatically.
For example:
Add 30 seconds cooking time, press START keypad once.
Add 1 minute cooking time, press START keypad twice.
Add more duration, press and hold START keypad until your prefer cooking
time.
Note: User holes the START keypad, the duration can be add up to 10 minutes
to the current time countdown. When 10 minutes has been added or the max
time has been reached, invalid/retry tone sound and the display shows the fi nal
time setting. If you want more duration, you can release the keypad, then press
and hold the START keypad again to add up to another 10 minutes.
interrupted by opening the door, touch START after the door is closed again will
resume the preset cycle.
icon shown on the display.
icon shown on the display.
Microwave Oven Cancel The CANCEL keypad stops any microwave oven function except for the clock
Activate Control Lock Activate to avoid unintended start. Touch and hold the CANCEL keypad for
Light Turn on Hood Light Press the LIGHT keypad to turn the light beneath the hood on or off. Press
Fan Turn on the Fan Press the FAN keypad to turn the fan on or off. Press the FAN keypad
6
and control lock.
The microwave oven will also turn off when the door is opened. When the door
is opened, the element(s) will turn off, but the microwave oven light and fan will
remain on. Close the door and touch the Start keypad to resume the preset
cycle.
about 3 seconds until tone sound and the CONTROL LOCKED icon appears in
the display. Repeat to unlock control.
the LIGHT keypad repeatedly to adjusts the hood light setting among OFF>HIGH-> LOW->OFF. The display show “Hi”, “Lo” and “Off”.
Note: The hood light can be operated independent of any cooking functions or
the control lock status.
repeatedly to change the hood fan setting among OFF->HIGH-> LOW->OFF.
The display show “Hi”, “Lo” and “Off”.
Note: The hood fan can be operated independent of any cooking functions or
the control lock status.
Keypad Feature Instructions
Number Key “4” Set the Key Sound
(Tones) on/off
Disable or enable key tones on/off. Press and hold number key “4” for 5
seconds to disable key tones. Repeat to turn key tones back on.
Note:
n Except for key tones, other tones are active, such as end of cycle tones,
timer tones, reminder tones and error tones.
n Only available during an idle state.
Number Key “3” Activate Demo Mode Activate to practice using the control without actually turning on the
magnetron. To activate or deactivate Demo Mode in idle state.
To Activate
1. Open the door.
2. Press and hold number key “3” for 5 seconds.
3. “Demo” icon shown on the display. And “Start?” icon fl ash on the display.
Press the START within 5 seconds.
4. Demo Mode on.
To Deactivate
Repeat step 1 to step 4 to deactivate Demo Mode.
Number Key “9” Factory Reset User may set microwave oven back to default state. To Activate factory reset
mode, at idle state, press and hold number key “9” for 10 seconds.
Power/Timer Set Manual Cooking
Time and Power
Touch POWER/TIMER to set manual power and cooking time. The default
power level is 100%, press any number keypad to change the power level. For
example to set the time to 2:30 in 90% power level.
1. Touch POWER/TIMER,
icon show on the display.
2. Use the number keypad 9 to set the power level in 90%.
3. Touch POWER/TIMER again,
icon show on the display.
4. Use the number keypads to enter the cooking time length 2:30. “Start?”
icon fl ash on the display.
5. Touch Start.
When the stop time is reached, the microwave oven will shut off
automatically, and end tones will sound.
DEFROST Automatic Defrost
1. Touch DEFROST,
icon show on the display.
2. Touch number keypad to select food category, see DEFROST section for
the food category or the door sticker on the unit.
3. Touch number keypad to enter the quantity.
4. Touch Start.
The display will count down the defrost time. For better results, a preset
standing time is included in the defrosting time. This may make the
defrosting time seem longer than expected.
When the stop time is reached, the microwave oven will shut off
automatically, and end tones will sound.
REHEAT Automatic Reheat
1. Touch REHEAT, icon show on the display.
2. Touch number keypad to select food category, see REHEAT section for the
food category or the door sticker on the unit.
3. Touch number keypad to enter the quantity.
4. Touch Start.
When the stop time is reached, the microwave oven will shut off
automatically, and end tones will sound.
POPCORN Popcorn 1. Touch POPCORN repeatedly to select bag size. 3.0 oz is the default bag
size. “Start?” fl ash on the display.
2. Touch the Start.
When the stop time is reached, the microwave oven will shut off
automatically, and end tones will sound.
SOFTEN/MELT Soften/Melt
1. Touch SOFTEN/MELT, icon show on the display.
2. Touch number keypad to select food category, see SOFTEN/MELT section
for the food category or the door sticker on the unit.
3. Touch number keypad to enter the quantity. “Start?” fl ash on the display
4. Touch Start.
When the stop time is reached, the microwave oven will shut off
automatically, and end tones will sound.
7
Keypad Feature Instructions
k
e
an
COOK Auto Cook
1. Touch COOK, icon show on the display.
2. Touch number keypad to select food category, see COOK section for the
food category or the door sticker on the unit.
3. Touch number keypad to enter the quantity. “Start?” fl ash on the display
4. Touch Start.
When the stop time is reached, the microwave oven will shut off
automatically, and end tones will sound.
tandby Mod
When no functions are working, microwave oven will switch to
Standby Power mode and dim the display brightness after 2
minutes. Touch any keypad or open/close the door, and the display
will return to the normal brightness.
Auto Vent F
To keep the microwave oven from overheating, the auto vent fan
will automatically turn on to prevent the hardware. When this
occurs, the vent fan cannot be turned off. “AUTO FAN” will stay lit
until the safe temperature is reached.
MICROWAVE OVEN USE
A magnetron in the microwave oven produces microwaves which
refl ect off the metal fl oor, walls, and ceiling and pass through the
turntable and appropriate cookware to the food. Microwaves are
attracted to and absorbed by fat, sugar, and w
ater molecules in the food, causing them to move, producing
friction and heat which cooks the food.
n To avoid damage to the microwave oven, do not lean on or
allow children to swing on the microwave oven door.
n To avoid damage to the microwave oven, do not operate
microwave oven when it is empty.
n The turntable must be in place and correct side up when
microwave oven is in use. Do not use if turntable is chipped
or broken. See the “Accessories” section to reorder.
n Baby bottles and baby food jars should not be heated in
microwave oven.
n Clothes, fl owers, fruit, herbs, wood, gourds, and paper,
including brown paper bags and newspaper, should not
be dried in the microwave oven.
n Paraffi n wax will not melt in the microwave oven because
it does not absorb microwaves.
n Use oven mitts or pot holders when removing containers from
microwave oven.
n Do not overcook potatoes. At the end of the recommended
cook time, potatoes should be slightly fi rm. Let potatoes stand
for 5 minutes. They will fi nish cooking while standing.
n Do not cook or reheat whole eggs inside the shell. Steam
buildup in whole eggs may cause them to burst. Cover
poached eggs and allow a standing time.
Food Characteristics
When the microwave oven is cooking, the amount, size and shape,
starting temperature, composition and density of the food affect
cooking results.
Amount of Food
The more food that is heated at once, the longer the cook time
that is needed. Check for doneness and add small increments of
time, if necessary.
The Control Lock shuts down the control panel keypads to avoid
ontrol Loc
unintended use of the microwave oven. The Control Lock will
remain set after a power failure, if set before the power failure
occurs.
When the control is locked, only the fan and light will function.
The Control Lock is preset unlocked, but can be locked.
To Lock Control: Touch CANCEL for approximately 3 seconds,
until two tones sound and a
To Unlock Control: Repeat to unlock. Two tones will sound and
icon will be removed.
the
Size and Shape
Smaller pieces of food will cook more quickly than larger pieces,
and uniformly shaped foods cook more evenly than irregularly
shaped food.
Starting Temperature
Room temperature foods will heat faster than refrigerated foods,
and refrigerated foods will heat faster than frozen foods.
Composition and Density
Foods high in fat and sugar will reach a higher temperature and
will heat faster than other foods. Heavy, dense foods, such as
meat and potatoes, require a longer cook time than the same size
of a light, porous food, such as cake.
Cooking Guidelines
Covering
Covering food helps retain moisture, shorten cook time, and
reduce spattering. Use the lid supplied with cookware. If a lid is
not available, wax paper, paper towels, or plastic wrap approved
for microwave ovens may be used. Plastic wrap should be
turned back at one corner to provide an opening to vent steam.
Condensation on the door and cavity surfaces is normal during
heavy cooking.
Stirring and Turning
Stirring and turning redistributes heat evenly to avoid overcooking
the outer edges of food. Stir from outside to center. If possible,
turn food over from bottom to top.
Arranging
If heating irregularly shaped or different-sized foods, arrange the
thinner parts and smaller-sized items toward the center. If cooking
several items of the same size and shape, place them in a ring
pattern, leaving the center of the ring empty.
Piercing
Before heating, use a fork or small knife to pierce or prick foods
that have a skin or membrane, such as potatoes, egg yolks,
chicken livers, hot dogs, and sausage. Prick in several places
to allow steam to vent.
icon appears in the display.
8
Shielding
Use small, fl at pieces of aluminum foil to shield the thin pieces of
irregularly shaped foods, bones, and foods such as chicken wings,
leg tips, and fi sh tails. See the “Aluminum Foil and Metal” section
fi rst.
Standing Time
Food will continue to cook by the natural conduction of heat, even
after the microwave cooking cycle ends. The length of standing
time depends on the volume and density of the food.
Cookware and Dinnerware
Cookware and dinnerware must fi t on the turntable. Always
use oven mitts or pot holders when handling because any dish
may become hot from heat transferred from the food. Do not
use cookware and dinnerware with gold or silver trim. Use the
following chart as a guide, then test before using.
Material Recommendations
Aluminum Foil,
Metal
Browning Dish Bottom must be at least 3/16" (5 mm)
Ceramic Glass,
Glass
China, Earthenware Follow manufacturer’s recommendations.
Melamine Follow manufacturer’s recommendations.
Paper: Towels,
Dinnerware,
Napkins
Plastic: Wraps,
Bags, Covers,
Dinnerware,
Containers
Pottery and Clay Follow manufacturer’s recommendations.
Silicone Bakeware Follow manufacturer’s recommendations.
Straw, Wicker,
Wooden Containers
Styrofoam
Wax Paper Acceptable for use.
®†
To Test Cookware or Dinnerware for Microwave Use:
1. Place cookware or dinnerware in microwave oven with 1 cup
(250 mL) of water beside it.
2. Cook at 100% cooking power for 1 minute.
Do not use cookware or dinnerware if it becomes hot and the
water stays cool.
†
Styrofoam® is a registered trademark of The Dow Chemical Company.
See the “Aluminum Foil and Metal” section.
above the turntable. Follow manufacturer’s
recommendations.
Acceptable for use.
Use non-recycled and those approved by
the manufacturer for microwave oven use.
Use those approved by the manufacturer for
microwave oven use.
Do not use in microwave oven.
Do not use in microwave oven.
Aluminum Foil and Metal
Always use oven mitts or pot holders when removing dishes from
the microwave oven.
Aluminum foil and some metal can be used in the microwave
oven. If not used properly, arcing (a blue fl ash of light) can occur
and cause damage to the microwave oven.
OK for Use
Racks and bakeware supplied with the microwave oven (on
some models), aluminum foil for shielding, and approved meat
thermometers may be used with the following guidelines:
n To avoid damage to the microwave oven, do not allow
aluminum foil or metal to touch the inside cavity walls,
ceiling, or fl oor.
n Always use the turntable.
n To avoid damage to the microwave oven, do not allow contact
with another metal object during microwave cooking.
Do Not Use
Metal cookware and bakeware, gold, silver, pewter, non-approved
meat thermometers, skewers, twist ties, foil liners, such as
sandwich wrappers, staples, and objects with gold or silver trim or
a metallic glaze, should not be used in the microwave oven.
Metal bakeware may be used only during convection (bake)
cycles. Use ovenproof, microwave-safe cookware for all other
convection and combination.
Microwave Cooking Power
Many recipes for microwave cooking specify which cooking
power to use by percent, name, or number. For example,
70%=Medium-High=7.
Use the following chart as a general guide for the suggested
cooking power of specifi c foods.
MICROWAVE COOKING POWER CHART
Percent/
Name
100%, High
(default setting)
90% 9 Cooking small, tender pieces of
80% 8 Heating rice, pasta, or casseroles.
70%, MediumHigh
60% 6 Cooking sensitive foods such as
50%, Medium 5 Cooking ham, whole poultry, and
40% 4 Melting chocolate.
30%, MediumLow, Defrost
20% 2 Softening butter, cheese,
10%, Low 1 Taking chill out of fruit.
Number Use
10 Quick-heating convenience foods
and foods with high water content,
such as soups, beverages, and
most vegetables.
meat, ground meat, poultry pieces,
and fi sh fi llets.
Heating cream soups.
Cooking and heating foods that
need a cook power lower than
high, for example, whole fi sh and
meat loaf.
7 Reheating a single serving
of food.
cheese and egg dishes, pudding,
and custards.
Cooking non-stirrable casseroles,
such as lasagna.
pot roasts.
Simmering stews.
Heating bread, rolls, and pastries.
3 Defrosting bread, fi sh, meats,
poultry, and precooked foods.
and ice cream.
9
Defrost
n For optimal results, food should be 0°F (-18°C) or colder
when defrosting.
n Unwrap foods and remove lids (from fruit juice) before
defrosting.
n Shallow packages will defrost more quickly than deep blocks.
n Separate food pieces as soon as possible during or at the end
of the cycle for more even defrosting.
n Foods left outside the freezer for more than 20 minutes or
frozen ready-made food should not be defrosted using the
Defrost feature but should be defrosted manually.
n Use small pieces of aluminum foil to shield parts of food such
as chicken wings, leg tips, and fi sh tails. See the “Aluminum
Foil and Metal” section fi rst
n Times and cooking powers have been preset for defrosting a
number of food types.
Item Food Category Weight
1 Meats* 0.2 to 6.6 lbs (90 g to 3 kg)
2 Poultry* 0.2 to 6.6 lbs (90 g to 3 kg)
3 Fish* 0.2 to 4.4 lbs (90 g to 2 kg)
4 Quick 1.0 lb only
* See the Defrost Preparation Chart at end of the “Defrost” section
for cuts, sizes, and instructions.
Use the following chart as a guide when defrosting meat, poultry,
or fi sh.
DEFROST PREPARATION CHART
Reheat
Times and cooking powers have been preset for reheating a
number of food types.
Use the following chart as a guide.
REHEAT CHART
Item Food Category Quantity
1 Beverage
Do not cover.
2 Casserole
Place in microwave-safe container.
Cover with plastic wrap and vent.
Stir and let stand 2-3 minutes after
reheating.
3 Dinner plate
Place food on plate. Cover with
plastic wrap and vent. Let stand
2-3 minutes after reheating.
4 Pizza
Place on paper towel lined
microwave-safe plate.
5 Soup/Sauce
Place in microwave-safe container.
Cover with plastic wrap and vent.
Stir and let stand 2-3 minutes after
reheating.
1-2 cups (250
mL-500 mL)
1-4 cups (250
mL-1 L)
1 plate, about
8-16 oz (227454 g)
1-3 slice, 4 oz
(113 g) each
1-4 cups (250
mL-1 L)
MEAT
Beef: ground, steaks,
roast, stew
Lamb: stew and chops
Pork: chops, ribs, roasts,
sausage
POULTRY
Chicken: whole and cut up Place in a microwave-safe baking
Cornish hens
Turkey: breast
FISH
Fillets, Steaks,
Whole, Shellfi sh
The narrow or fatty areas of
irregular-shaped cuts should
be shielded with foil before
defrosting.
Do not defrost less than 1/4 lb
(113 g) or two 4 oz (113 g) patties.
Place all meats in a microwavesafe baking dish.
dish, chicken breast-side up.
Remove giblets from whole
chicken.
Place in a microwave-safe baking
dish.
10
Cook Popcorn
Item Food Category Quantity
1 Bacon
Average thickness: Follow
directions on package. For
best results, place bacon on
microwave-safe bacon rack.
2 Canned Vegetable
Place in microwave-safe
container. Cover with plastic
wrap, and vent. Stir and let
stand 2-3 minutes after cooking.
3 Fresh Vegetable
Place in microwave-safe
container and add 2-4 tbs
water. Cover with plastic wrap
and vent. Stir and let stand 2-3
minutes after cooking.
4 Frozen Vegetable
Place in microwave-safe
container and add 2-4 tbs
water. Cover with plastic wrap
and vent. Stir and let stand 2-3
minutes after cooking.
5 Small Potatoes
Pierce each potato several times
with a fork. Place on paper
towel, around turntable edges,
at least 1” (2.5 cm) apart. Place
single potato to the side of the
turntable. Let stand 5 minutes
after cooking.
6 Large Potatoes
Pierce each potato several times
with a fork. Place on paper
towel, around turntable edges,
at least 1” (2.5 cm) apart. Place
single potato to the side of the
turntable. Let stand 5 minutes
after cooking.
7 Rice
Follow measurements on
package for ingredient
amounts. Place rice and liquid
in microwave-safe dish. Cover
with loose fi tting lid. Let stand
5 minutes after cooking, or until
liquid is absorbed. Stir.
1-6 slices
1, 2, 3 or 4 cups
(250, 500, 750 mL
or 1 L)
1-4 cups (250 mL-1
L)
1-4 cups (250 mL-1
L)
1-4 pieces, 4-7 oz
(113-198 g)
1-4 pieces, 8-10 oz
(227-283 g).
0.5,1.0, 1.5, 2.0 cups
(125, 250, 375, 500
mL) (dry, white long
grain)
3.0 or 3.5 oz bags.
n Do not use regular paper bags or glassware.
n Pop only one package of popcorn at a time.
n Follow manufacturer’s instructions when using a microwave
popcorn popper.
n Listen for popping to slow to one pop every 1 or 2 seconds,
and then stop the cycle. Do not repop unpopped kernels.
n For best results, use fresh bags of popcorn.
n Cooking results may vary by brand and fat content.
NOTE: Follow the instructions provided by the microwave
popcorn manufacturer.
Soften/Melt
Soften and Melt functions may be used to soften or melt your
food. Times and cooking powers have been preset for a number of
food types. Use the following chart as a guide.
Item Food Category Quantity Preparation
1 Soften Butter 0.5, 1.0. 1.5,
2 Soften Ice
Cream
3 Soften Cream
Cheese
4 Soften Frozen
Juice
5 Melt Butter 0.5, 1.0. 1.5,
6 Melt Chocolate 4, 6, 8 or
7 Melt Cheese 8 or 16 oz
8 Melt
Marshmallows
2.0 sticks
16, 32, or
64 oz (473,
946 or 1893
mL)
8 oz (227 g) Unwrap and place
12oz (340 g) Remove lid.
2.0 sticks
12 oz (113,
170, 227 or
340 g)
(227 or 454
g)
5 or 10 oz
(142 or 283
g)
Unwrap and place
in microwave-safe
container.
Place ice cream
container on turntable.
in microwave-safe
container.
Unwrap and place
in microwave-safe
container.
Cut squares into small
pieces or use chips.
Place in microwavesafe container.
Cut into small
pieces and place
in microwave-safe
container.
Place in microwavesafe container.
11
MICROWAVE OVEN CARE
General Cleaning
IMPORTANT: Before cleaning, make sure all controls are off and
the microwave oven is cool. Always follow label instructions on
cleaning products.
Soap, water, and a soft cloth or sponge are suggested fi rst, unless
otherwise noted.
STAINLESS STEEL (on some models)
NOTE: To avoid damage to stainless steel surfaces, do not use
soap-fi lled scouring pads, abrasive cleaners, cooktop polishing
creme, steel-wool pads, gritty washcloths, or abrasive paper
towels. Damage may occur to stainless steel surfaces, even
with one-time or limited use.
Rub in direction of grain to avoid damaging.
Cleaning Method:
n Affresh
n Vinegar for hard water spots
®
(not included):
See the “Accessories” section to order.
Stainless Steel Cleaner Part Number W10355016
MICROWAVE OVEN DOOR EXTERIOR
Cleaning Method:
n Glass cleaner and a soft cloth or sponge:
Apply glass cleaner to soft cloth or sponge, not directly
on panel.
n Affresh
®
(not included):
See the “Accessories” section to order.
Kitchen Appliance Cleaner Part Number W10355010
MICROWAVE OVEN CAVITY
To avoid damage to microwave oven cavity, do not use soapfi lled scouring pads, abrasive cleaners, steel-wool pads, gritty
washcloths, or some paper towels.
On stainless steel models, rub in direction of grain
to avoid damaging.
The area where the microwave oven door and frame touch when
closed should be kept clean.
Cleaning Method:
Average soil
n Mild, nonabrasive soaps and detergents:
Rinse with clean water and dry with soft, lint-free cloth.
Heavy soil
n Mild, nonabrasive soaps and detergents:
Heat 1 cup (250 mL) of water for 2 to 5 minutes in microwave
oven. Steam will soften soil. Rinse with clean water and dry
with soft, lint-free cloth.
Odors
n Lemon juice or vinegar:
Heat 1 cup (250 mL) of water with 1 tbs (15 mL) of either
lemon juice or vinegar for 2 to 5 minutes in microwave oven.
TURNTABLE
Replace turntable immediately after cleaning. Do not operate the
microwave oven without the turntable in place.
Cleaning Method:
n Mild soap and water
n Dishwasher
GREASE FILTERS
n Mild soap, water, and dishwasher
TURNTABLE SUPPORT AND ROLLERS, HUB
n Mild soap and water or dishwasher
NONSTICK CAVITY COATING (on some models)
To avoid damage to the microwave oven cavity, do not use metal
or sharp utensils or scrapers or any type of abrasive cleanser
or scrubbers.

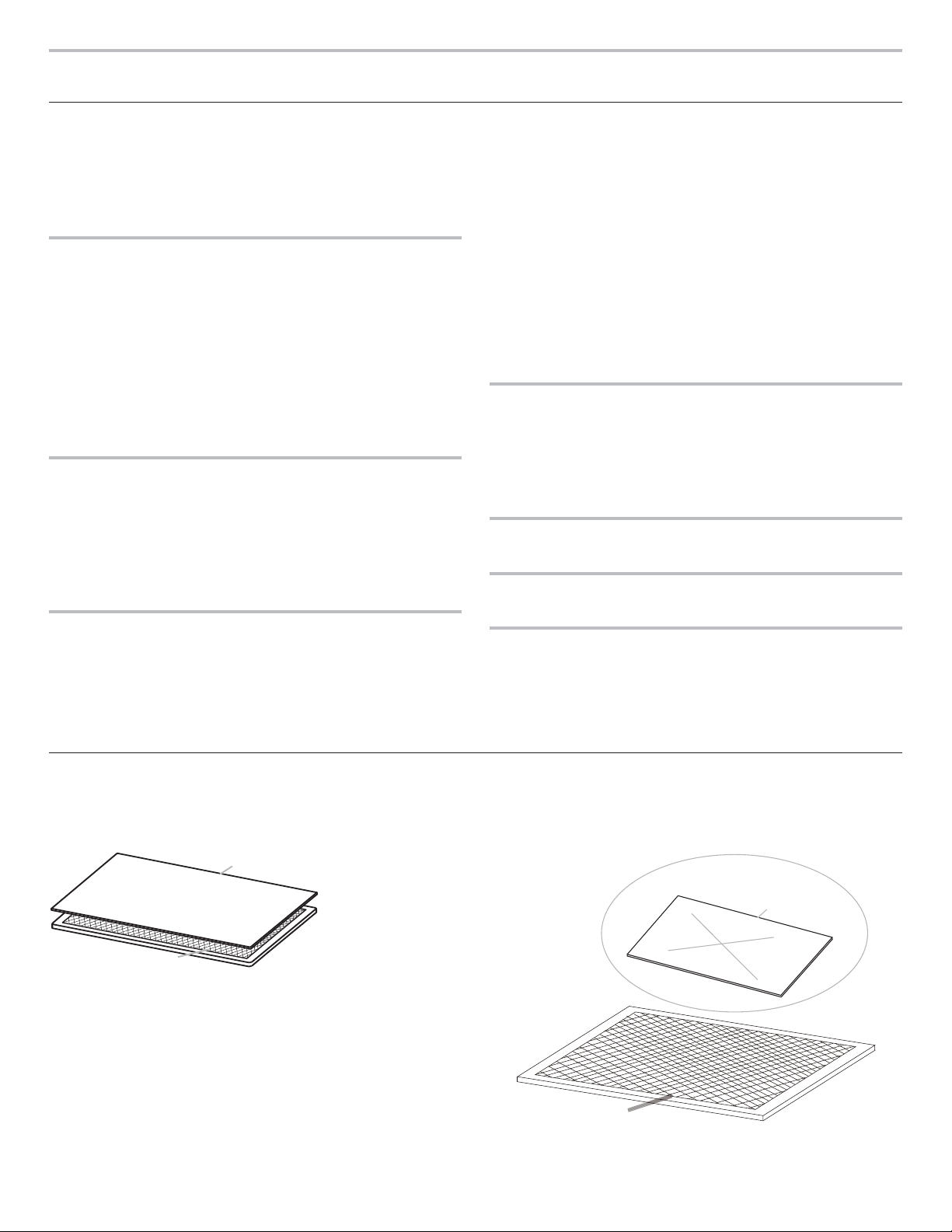

Installing / Replacement Grease Filter or Charcoal Filter
For recirculation only:
Do not operate the microwave oven without the charcoal fi lter in
place.
Charcoal Filter
Grease Filter
12
For Wall and Roof Ventilation:
To ensure good performance of airfl ow, remove the charcoal fi lter
from the bottom plate before operating the microwave oven.
Charcoal Filter
Grease Filter
MICROWAVE OVEN CARE
Installing/Replacement Grease Filter For
Recirculation Ventilation
Grease fi lter is underside of the microwave oven. The grease fi lter
should be removed and cleaned at least once a month.
1. To remove the grease fi lter. Using a philips screwdriver,
remove the screw on the grease fi lter.
Grease Filter screw
2. Hold the left side of the Grease fi lter, swing it to the right
position, and remove it from the slotted area.
3. Separate the Grease fi lter from the charcoal fi lter.
Grease Filter
Bottom Plate
Installing/Replacement Charcoal Filter For
Recirculation Ventilation
Charcoal fi lter: The charcoal fi lter is underside of the microwave
oven. The charcoal fi lter behind the grease fi lter the top front of the
microwave oven. The charcoal fi lter cannot be cleaned and should
be replaced about every 6 months or as prompted by Filter Status
indicator.
Repeat steps 1 to 3 from the “Installing/Replacement Grease Filter
For Recirculation Ventilation”.
4. Replace a new charcoal fi lter. And attach it to the grease fi lter.
5. Put the grease fi lter and charcoal fi lter back to the bottom
plate slotted area..
6. Secure the grease fi lter and charcoal fi lter back to the bottom
plate with the grease fi lter screw.
Installing/Replacement Grease Filter For
Wall and Roof Ventilation
Grease fi lter is underside of the microwave oven. The grease fi lter
should be removed and cleaned at least once a month.
1. To remove the grease fi lter. Using a philips screwdriver,
remove the screw on the grease fi lter.
A
A. Bottom Plate
B. Grease filter and Charcoal Filter
C. Slotted-Area
4. Clean the grease fi lter monthly, or replace with new grease
fi lter if necessary.
BC
Charcoal Filter
Grease Filter
5. Reattach the grease fi lter to the charcoal fi lter.
6. Put the grease fi lter and charcoal fi lter back to the bottom
plate slotted area..
7. Secure the grease fi lter and charcoal fi lter back to the bottom
plate with the grease fi lter screw.
Grease Filter screw
2. Hold the left side of the Grease fi lter, swing it to the right
position, and remove it from the slotted area.
A
A. Bottom Plate
B. Grease Filter
C. Slotted-Area
3. Clean the grease fi lter monthly, or replace with new grease
fi lter if necessary.
4. Reattach the grease fi lter to bottom plate.
5. Secure the grease fi lter back to the bottom plate with the
grease fi lter screw.
Grease Filter
BC
Bottom Plate
13
MICROWAVE OVEN CARE
Installing / Replacement Cooktop Light
Cooktop Light is underside of microwave oven, behind the
bottom light cover. It is replaceable.
To replace the cooktop light refer the following steps:
1. Using a philips screwdriver, remove the 4 screws from the
bottom light cover.
B
A. Screws
B. Bottom Light Cover
A
2. Push the 2 hooks backward, and take the LED out.
Hook
Installing / Replacement Cavity Light
Cavity Light is located at the top front of the microwave oven,
under the cover and is replaceable.
To replace the cavity light refer the following steps.
1. Using a Philips screwdriver, remove the second left vent top
cover screw from the top front of the microwave oven.
Screw
Second left vent
top cover
Top front of the
microwave oven
2. Remove the second left top cover.
3. Pull out the halogen light from the light holder.
4. Insert a new halogen.
3. Unplug the terminal from the LED board.
Terminal
4. Replace a new LED, press it back between two hooks and
plug in the terminal.
Terminal
5. Using a Philips screwdriver, reattach the 4 screws back to the
bottom light cover.
5. Reattach the second top vent cover with the screw removed
in step 1.
Screw
Second left vent
top cover
Top front of
micowave oven
14
TROUBLESHOOTING
First try the solutions suggested here. If you need further assistance or more recommendations that may help you avoid a service call,
refer to the warranty page in this manual, or visit producthelp.whirlpool.com.
Contact us by mail with any questions or concerns at the address below:
In the U.S.A.:
Whirlpool Brand Home Appliances
Customer eXperience Center
553 Benson Road
Benton Harbor, MI 49022-2692
Please include a daytime phone number in your correspondence.
If you experience Recommended Solutions
Microwave oven will
not operate
Check the following:
n Household fuse or circuit breaker: If a household fuse has blown or a circuit breaker has tripped, replace
the fuse or reset the circuit breaker. If the problem continues, call an electrician.
n Magnetron: Try to heat 1 cup (250 mL) of cold water for 2 minutes at 100% cooking power. If water does
not heat, try the steps in the bullets below. If microwave oven still does not operate, call for service.
n Door: Firmly close door. On some models, if a packaging spacer is attached to inside of the door, remove it,
then fi rmly close door.
If a message about the door appears in the display, the door has been closed for 5 minutes or more without
the microwave oven being started. This occurs to avoid unintended starting of the microwave oven. Open
and close the door, then start the cycle.
n Control: Make sure control is set properly. Make sure Control Lock is off. Make sure Demo mode (on some
models) is off.
Arcing in the
microwave oven
Turntable alternates
rotation directions
Display shows
messages
Fan running during
cooktop usage
Radio, TV, or cordless
phone interference
For accessories in the U.S.A., you can visit our website at www.whirlpool.com or call us at 1-800-253-1301.
Cleaning Supplies
n Heavy-duty Degreaser
n Affresh
®
Kitchen Appliance Cleaner
Check the following:
n Soil buildup: Soil buildup on cavity walls, microwave inlet cover, cooking rack supports, and area where the
door touches the frame can cause arcing. See “General Cleaning” in the “Microwave Oven Care” section.
n This is normal and depends on motor rotation at the beginning of the cycle.
n “Enter clock” with fl ashing digits means there has been a power failure. Reset the clock.
n A letter followed by a number is an error indicator. Call for assistance.
n This is normal. The microwave oven’s cooling fan, which is separate from the vent fan, automatically comes
on during microwave oven operation to cool the microwave oven. It may also automatically come on and
cycle on and off to cool the microwave oven’s controls while the cooktop below is being used.
Check the following:
n Proximity: Move the receiver away from the microwave oven, or adjust the radio or TV antenna.
n Soil: Make sure the microwave oven door and sealing surfaces are clean.
n Frequency: Some 2.4 GHz-based cordless phones and home wireless networks may experience static
or noise while microwave oven is on. Use a corded phone, a different frequency cordless phone, or avoid
using these items during microwave oven operation.
ACCESSORIES
n Affresh
n Affresh
®
Stainless Steel Cleaner
®
Stainless Steel Wipes
15
ATTACH YOUR RECEIPT HERE. PROOF OF PURCHASE IS REQUIRED
TO OBTAIN WARRANTY SERVICE.
WHIRLPOOL®
MAJOR APPLIANCE
LIMITED WARRANTY
Please have the following information available when you call the
Customer eXperience Center:
■
Name, address, and telephone number
■
Model number and serial number
■
A clear, detailed description of the problem
■
Proof of purchase, including dealer or retailer name and address
IF YOU NEED SERVICE:
1. Before contacting us to arrange service, please determine whether your product requires repair. Some questions can be addressed without
service. Please take a few minutes to review the Troubleshooting section of the Use and Care Guide or visit producthelp.whirlpool.com.
2. All warranty service is provided exclusively by our authorized Whirlpool Service Providers. In the U.S. and Canada, direct all requests for
warranty service to:
Whirlpool Customer eXperience Center
In the U.S.A., call 1-800-253-1301. In Canada, call 1-800-807-6777.
If outside the 50 United States or Canada, contact your authorized Whirlpool dealer to determine whether another warranty applies.
ONE YEAR LIMITED WARRANTY
WHAT IS COVERED
For one year from the date of purchase,
when this major appliance is installed,
operated, and maintained according
to instructions attached to or furnished
with the product, Whirlpool Corporation
or Whirlpool Canada LP (hereafter
“Whirlpool”) will pay for factory
specified replacement parts and repair
labor to correct defects in materials or
workmanship that existed when this
major appliance was purchased or, at
its sole discretion, replace the product.
In the event of product replacement,
your appliance will be warranted for
the remaining term of the original unit’s
warranty period.
YOUR SOLE AND EXCLUSIVE
REMEDY UNDER THIS LIMITED
WARRANTY SHALL BE PRODUCT
REPAIR AS PROVIDED HEREIN.
Service must be provided by a
Whirlpool designated service company.
Th
is limited warranty is valid only in
the United States or Canada and
applies only when the major appliance
is used in the country in which it was
purchased. This limited warranty is
effective from the date of original
consumer purchase. Proof of original
purchase date is required to obtain
service under this limited warranty.
1. Commercial, non-residential, multiple-family use, or use inconsistent with published user, operator,
or installation instructions.
2. In-home instructi
3. Service to correct improper product maintenance or installation, installation not in accordance with
electrical or plumbing codes, or correction of household electrical or plumbing (e.g., house wiring,
fuses, or water inlet hoses).
4. Consumable parts (e.g., light bulbs, batteries, air or water filters, preservation solutions).
5. Defects or damage caused by the use of non-genuine Whirlpool parts or accessories.
6. Conversion of products from natural gas or propane gas.
7. Damage from accident, misuse, abuse, fire, floods, acts of God, or use with products not approved
by Whirlpool.
8. Repairs to parts or systems to correct product damage or defects caused by unauthorized service,
alteration, or modification of the appliance.
9. Cosmetic damage including scratches, dents, chips, and other damage to the appl
unless such damage results from defects in materials and workmanship and is reported to Whirlpool
within 30 days.
10. Discoloration, rust, or oxidation of surfaces resulting from caustic or corrosive environments including,
but not limited to, high salt concentrations, high moisture or humidity, or exposure to chemicals.
11. Food or medicine loss due to product failure.
12. Pickup or delivery. This product is intended for in-home repair.
13. Travel or transportation expenses for service in remote locations where an authorized Whirlpool
servi
cer is not available.
14. Removal or reinstallation of inaccessible appliances or built-in fixtures (e.g., trim, decorative panels,
flooring, cabinetry, islands, countertops, drywall) that interfere with servicing, removal, or replacement
of the product.
15. Service or parts for appliances with original model/serial numbers removed, altered, or not easily
determined.
The cost of repair or replacement under these excluded circumstances shall be borne by
the customer.
on on how to use your product.
WHAT IS NOT COVERED
iance finishes,
DISCLAIMER OF IMPLIED WARRANTIES
IMPLIED WARRANTIES, INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR IMPLIED WARRANTY OF FITNESS FOR A
PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW. Some states and provinces do not allow
limitations on the duration of implied warranties of merchantability or fitness, so this limitation may not apply to you. This warranty gives you specific
legal rights, and you also may have other rights that vary from state to state or province to province.
DISCLAIMER OF REPRESENTATIONS OUTSIDE OF WARRANTY
Whirlpool makes no representations about the quality, durability, or need for service or repair of this major appliance other than the representations
contained in this warranty. If you want a longer or more comprehensive warranty than the limited warranty that comes with this major appliance,
you should ask Whirlpool or your retailer about buying an extended warranty.
LIMITATION OF REMEDIES: EXCLUSION OF INCIDENTAL AND CONSEQUENTIAL DAMAGES
YOUR SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE PRODUCT REPAIR AS PROVIDED HEREIN. WHIRLPOOL
SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. Some states and provinces do not allow the exclusi
incidental or consequential damages, so these limitations and exclusions may not apply to you. This warranty gives you specific legal rights, and you
also may have other rights that vary from state to state or province to province.
on or limitation of
07/19
W11332391B
®
SP PN W11332392
/™ ©2019 Whirlpool. All rights reserved. 07/19
16
Loading...
