Whirlpool YWEE510S0FS, YWEE510S0FB, YWEE510S0FW, YWEE510S0FV Control Guide

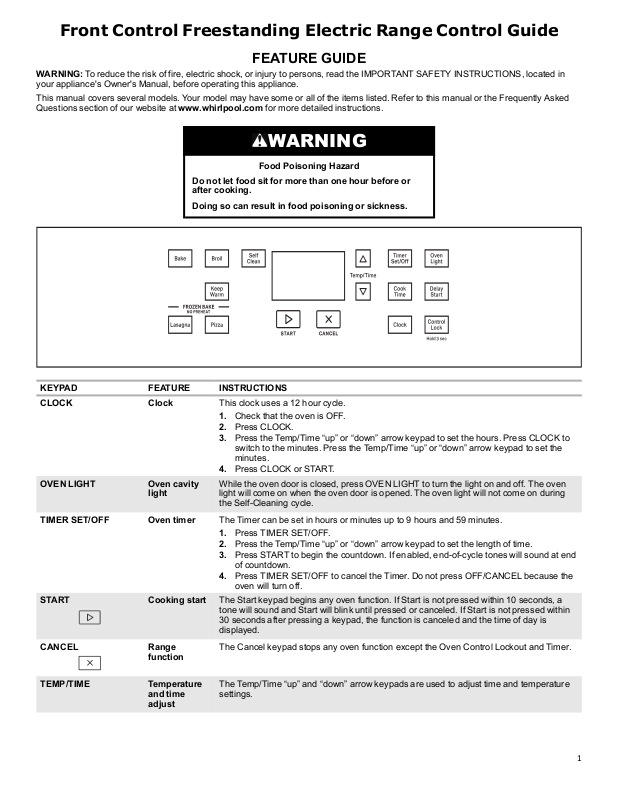

Front Control Freestanding Electric Range Control Guide

FEATURE GUIDE

WARNING: To reduce the risk of fire, electric shock, or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS, located in

your appliance's Owner's Manual, before operating this appliance. This manual covers several models. Your model may have some or all of the items listed. Refer to this manual or the Frequently Asked

Questions section of our website at www.whirlpool.com for more detailed instructions.

WARNING

Food Poisoning Hazard

Do not let food sit for more than one hour before or after cooking.

Doing so can result in food poisoning or sickness.

KEYPAD FEATURE INSTRUCTIONS CLOCK Clock This clock uses a 12 hour cycle.

1. Check that the oven is OFF.

2. Press CLOCK.

3. Press the Temp/Time “up” or “down” arrow keypad to set the hours. Press CLOCK to

switch to the minutes. Press the Temp/Time “up” or “down” arrow keypad to set the minutes.

4. Press CLOCK or START.

OVEN LIGHT Oven cavity

TIMER SET/OFF Oven timer The Timer can be set in hours or minutes up to 9 hours and 59 minutes.

START

CANCEL

light

Cooking start The Start keypad begins any oven function. If Start is not pressed within 10 seconds, a

Range function

While the oven door is closed, press OVEN LIGHT to turn the light on and off. The oven light will come on when the oven door is opened. The oven light will not come on during the Self-Cleaning cycle.

1. Press TIMER SET/OFF.

2. Press the Temp/Time “up” or “down” arrow keypad to set the length of time.

3. Press START to begin the countdown. If enabled, end-of-cycle tones will sound at end

of countdown.

4. Press TIMER SET/OFF to cancel the Timer. Do not press OFF/CANCEL because the

oven will turn off.

tone will sound and Start will blink until pressed or canceled. If Start is not pressed within 30 seconds after pressing a keypad, the function is canceled and the time of day is displayed.

The Cancel keypad stops any oven function except the Oven Control Lockout and Timer.

TEMP/TIME Temperature

and time adjust

The Temp/Time “up” and “down” arrow keypads are used to adjust time and temperature settings.

KEYPAD FEATURE INSTRUCTIONS BAKE Baking and

roasting

1. Press BAKE

2. Press the Temp/Time “up” or “down” arrow keypad until desired temperature is

reached. A tone will sound if the minimum or maximum temperature is reached.

3. Press START.

4. To change the temperature, repeat steps 2. Press START.

5. Press CANCEL when finished. NOTE: The convection fan will shut off when the oven door is opened. If the oven door

remains open for too long, the heating elements will shut off until the oven door is closed. All timers, including any active Cook Time or Timed Cook functions, will continue to count down.

SELF CLEAN (On some models)

Self-Cleaning cycle

FROZEN BAKE Prepackaged

food

See the “Self-Cleaning Cycle” section in the Owner’s Manual.

1. Position the food on a flat rack in the oven on rack position 4. See the “Positioning

Racks and Bakeware” section. NOTE: Cook only 1 package of frozen food at a time when using FrozenBake™

Technology.

2. Press FROZEN BAKE LASAGNA or PIZZA.

3. Press the Temp/Time “up” or “down” arrow keypad to set the temperature as

recommended on the food packaging.

4. Press COOK TIME.

5. Press the Temp/Time “up” or “down” arrow keypad to set the maximum cook time as

recommended on the food packaging.

6. Press START. The range will calculate the best cook time based on the current oven

temperature. NOTE: The cook time that appears in the display is the estimated required cook time

as calculated by the oven control. It may be different than the time you entered. A beep will alert you to check the food’s doneness with at least 2 minutes remaining on the timer. To add more time, press the “up” arrow keypad and press START. The time entered is added to the remaining time

7. Press START to start the calculated time.

8. At the end of the cook time, a beep will alert you to check the food’s doneness. To add

more time, press the “up” arrow keypad and press START. Unless more time is selected, the bake element turns off.

9. Press CANCEL when finished. NOTE: The convection fan will shut off when the oven door is opened. If the oven door

remains open for too long, the heating elements will shut off until the oven door is closed. All timers, including any active Cook Time or Timed Cook functions, will continue to count down.

BROIL Broiling

1. Position cookware in the oven and close the oven door.

2. Press BROIL.

3. Press the Temp/Time “up” or “down” arrow keypad until the desired temperature is

reached. A tone will sound if the minimum or maximum temperature is reached.

4. Press START.

5. To change the temperature, repeat Step 3 and press START.

6. Press OFF/CANCEL when finished.

NOTE: The convection fan will shut off when the oven door is opened. If the oven door

remains open for too long, the heating elements will shut off until the oven door is closed. All timers, including any active Cook Time or Timed Cook functions, will continue to count down.

KEEP WARM Hold warm Food must be at serving temperature before placing it in the warmed oven.

1. Press KEEP WARM.

2. Temperature is set at 170°F (75°C). Press the Temp/Time “up” or “down” arrow

keypad until desired temperature is reached. A tone will sound if the minimum or maximum temperature is reached.

3. Press START.

4. Press CANCEL when finished.

NOTE: The convection fan will shut off when the oven door is opened. If the oven door

remains open for too long, the heating elements will shut off until the oven door is closed. All timers, including any active Cook Time or Timed Cook functions, will continue to count down.

KEYPAD FEATURE INSTRUCTIONS DELAY START Delayed start The Delay Start keypad is used to enter the starting time for an oven function with a

COOK TIME Timed

CONTROL LOCK (Hold 3 sec.)

cooking

Oven and cooktop control lockout

delayed start. Delay should not be used for foods such as breads and cakes because they may not bake properly.

To set a Timed Cook or a Delayed Timed Cook, see “Cook Time” section.

Cook Time allows the oven to be set to turn on at a certain time of day, cook for a set length of time, and/or shut off automatically. To set a Timed Cook or a Delayed Timed Cook, see “Cook Time” section.

No keypads will function with the controls locked.

1. Check that the oven is off.

2. Press and hold CONTROL LOCK keypad for 3 seconds.

3. A tone will sound and a lock will be displayed.

4. Repeat to unlock. NOTE: The control lock cannot be activated or deactivated while the Hot Surface

indicator light is on. Wait for the Hot Surface indicator light to turn off before activating or deactivating the control lock.

Cooktop Use

WARNING

Fire Hazard Turn off all controls when done cooking. Failure to do so could result in death or fire.

Ceramic Glass (on some models)

The surface cooking area will glow red when an element is on. Some parts of the surface cooking area may not glow red when an element is on. This is normal operation. It will also randomly cycle off and back on again, even while on High, to keep the cooktop from extreme temperatures.

It is normal for the surface of light-colored ceramic glass to appear to change color when surface cooking areas are hot. As the glass cools, it will return to its original color.

Clean the cooktop after each use to help avoid scratches, pitting, abrasions, and to condition the glass surface. Ceramic glass cooktop cleaner and a cooktop scraper are also recommended for stubborn soils. Do not use abrasive cleaners, cleaning pads, or harsh chemicals for cleaning. The Cooktop Care Kit Part Number 31605 contains all of the items needed to clean and condition your ceramic glass cooktop. Refer to the “Range Maintenance and Care” section in the Owner’s Manual for additional information.

IMPORTANT: To avoid permanent damage to the cooktop surface and to make soils easier to remove, clean the cooktop after each use to remove all soils.

■ Avoid storing jars or cans above the cooktop. Dropping a heavy or hard object onto the cooktop could crack the cooktop.

■ To avoid damage to the cooktop, do not leave a hot lid on the cooktop. As the cooktop cools, air can become trapped between the lid and the cooktop and the ceramic glass could break when the lid is removed.

■ For foods containing sugar in any form, clean up all spills and soils as soon as possible. Allow the cooktop to cool down slightly. Then, while wearing oven mitts, remove the spills using a scraper while the surface is still warm. If sugary spills are allowed to cool down, they can adhere to the cooktop and can cause pitting and permanent marks.

■ To avoid scratches, do not slide cookware or bakeware across the cooktop. Aluminum or copper bottoms and rough finishes on cookware or bakeware could leave scratches or marks on the cooktop.

■ Do not cook popcorn in prepackaged aluminum containers on the cooktop. They could leave aluminum marks that cannot be removed completely.

■ To avoid damage to the cooktop, do not allow objects that could melt, such as plastic or aluminum foil, to touch any part of the cooktop.

■ To avoid damage to the cooktop, do not use the cooktop as a cutting board.

■ Use cookware about the same size as the surface cooking area. Cookware should not extend more than 1/2" (13 mm) outside the area.

A. Surface cooking area B. Cookware/canner C. 1/2" (13 mm) maximum overhang

■ Use flat-bottomed cookware for best heat conduction and energy efficiency. Cookware with rounded, warped, ribbed, or dented bottoms could cause uneven heating and poor cooking results.

■ Determine flatness by placing the straight edge of a ruler across the bottom of the cookware. While you rotate the ruler, no space or light should be visible between it and the cookware.

■ Cookware designed with slightly indented bottoms or small expansion channels can be used.

■ Make sure the bottoms of pots and pans are clean and dry before using them. Residue and water can leave deposits when heated.

■ To avoid damage to the cooktop, do not cook foods directly on the cooktop.

Ceramic Glass Cooktop Cleaning (on some models)

IMPORTANT: To avoid permanent damage to the cooktop surface and to make soils easier to remove, clean the cooktop after each use to remove all soils.

Cooktop On Indicator Light

The Cooktop On indicator light is located on the console panel. When any control knob/cooktop element on the console panel is turned on, the Cooktop On indicator light will glow.

Hot Surface Indicator Light

On ceramic glass models, the Hot Surface indicator light is located on the display panel.

The Hot Surface indicator light will glow as long as any surface cooking area is too hot to touch, even after the surface cooking area is turned off.

The control lock cannot be turned on or off while the Hot Surface indicator is on. Wait for the Hot Surface indicator to turn off before turning the control lock on or off.

Coil Elements and Burner Bowls (on some models)

Coil elements should be level for optimal cooking results. Burner bowls, when clean, reflect heat back to the cookware. They also help catch spills.

Cookware should not extend more than 1/2" (1.3 cm) over the coil element. If cookware is uneven or too large, it can produce excess heat, causing the burner bowl to change color.

■ Weight of the Cookware to be no Lighter than 1 lb.

■ Discoloration of Medallion of the Coil Element is expected over

time.

Dual Zone Cooking Element

The Dual Zone cooking element offers flexibility depending on the size of the cookware. Single size can be used in the same way as a regular element. The dual size combines both the single and outer elements and is recommended for larger size cookware.

Cookware

IMPORTANT: Do not leave empty cookware on a hot surface

cooking area, element or surface burner. Ideal cookware should have a flat bottom, straight sides and a

well-fitting lid, and the material should be of medium-to-heavy thickness.

Rough finishes may scratch the cooktop. Aluminum and copper may be used as a core or base in cookware. However, when used as a base, they can leave permanent marks on the surfaces.

Cookware material is a factor in how quickly and evenly heat is transferred, which affects cooking results. A nonstick finish has the same characteristics as its base material. For example, aluminum cookware with a nonstick finish will take on the properties of aluminum.

Cookware with nonstick surfaces should not be used under the broiler.

Check for flatness by placing the straight edge of a ruler across the bottom of the cookware. While you rotate the ruler, no space or light should be visible between it and the cookware.

Use the following chart as a guide for cookware material characteristics.

COOKWARE CHARACTERISTICS

Aluminum

Cast iron

■ Heats quickly and evenly.

■ Suitable for all types of cooking.

■ Medium or heavy thickness is best for

most cooking tasks.

■ May leave aluminum residues, which may be diminished if cleaned immediately after cooking.

■ Heats slowly and evenly.

■ Good for browning and frying.

■ Maintains heat for slow cooking.

■ Rough edges or burrs may scratch the

cooktop.

A. Dual

B. Single

Ceramic or Ceramic glass

Copper

Earthenware

■ Follow manufacturer’s instructions.

■ Heats slowly, but unevenly.

■ Ideal results on low to medium heat

settings.

■ May scratch the cooktop.

■ Heats very quickly and evenly.

■ May leave copper residues, which may

be diminished if cleaned immediately after cooking

■ Can leave a permanent stain or bond to the cooktop if overheated.

■ Follow manufacturer’s instructions.

■ Use on low heat settings.

■ May scratch the cooktop.

COOKWARE CHARACTERISTICS

Porcelain enamel-onsteel or cast iron

Stainless steel

Use flat-bottomed cookware for best cooking results and energy efficiency. The cookware should be about the same size as the cooking area outlined on the cooktop. Cookware should not extend more than 1/2" (1.3 cm) outside the area.

■ See stainless steel or cast iron.

■ Porcelain enamel bakeware without the

metal base may bond to the cooktop if overheated.

■ Heats quickly, but unevenly.

■ A core or base of aluminum or copper

on stainless steel provides even heating.

Home Canning

Canning can be performed on a glass smooth top cooking surface or traditional coil element cooktop. When canning for long periods, alternate the use of surface cooking areas or elements between batches. This allows time for the most recently used areas to cool.

■ Center the canner on the largest surface cooking area or element. On electric cooktops, canners should not extend more than 1/2" (1.3 cm) beyond the surface cooking area or element.

■ Do not place canner on 2 surface cooking areas or elements at the same time.

■ On ceramic glass models, use only flat-bottomed canners to avoid damage to the cooktop and elements.

■ For more information, contact your local agricultural extension office, or refer to published home canning guides. Companies that manufacture home canning products can also offer assistance.

OVEN USE

Odors and smoke are normal when the oven is used the first few times or when it is heavily soiled.

IMPORTANT: The health of some birds is extremely sensitive to the fumes given off. Exposure to the fumes may result in death to certain birds. Always move birds to another closed and wellventilated room.

NOTE: The convection fan will shut off when the oven door is opened. If the oven door remains open for too long, the heating elements will shut off until the oven door is closed. All timers, including any active Cook Time or Timed Cook functions, will continue to count down.

Electronic Oven Controls

Control Display

The display will flash when powered up or after a power loss. Press Cancel to clear. When oven is not in use, the time of day is displayed.

Fahrenheit and Celsius

The temperature is preset to Fahrenheit but can be changed to Celsius.

To change: Press and hold the Temp/Time “up” arrow keypad for 5 seconds. “°C” or “°F” will appear on the display. Repeat to change back.

To exit mode, press CANCEL.

Keypress Tones

Activates or turns off the tones when a keypad is pressed. To Change: Press and hold LIGHT or OVEN LIGHT for 5

seconds. Repeat to change back. To exit mode, press CANCEL.

Demo Mode

IMPORTANT: This feature is intended for use on the sales floor

with 120 V power connection and permits the control features to be demonstrated without heating elements turning on. If this feature is activated, the oven will not work.

To change: Press CANCEL, CANCEL, Temp/Time “up” arrow keypad, TIMER SET/OFF. Repeat to change back and end Demo mode.

Tones

Tones are audible signals, indicating the following:

Basic Functions

One Tone

■ Valid keypad press.

■ Oven is preheated (long tone).

■ Function has been entered.

■ Reminder (on some models), repeating every 20 seconds after

the end-of-cycle tones.

Three Tones

■ Invalid keypad press

Four Tones

■ End of cycle

Oven Temperature Control

IMPORTANT: Do not use a thermometer to measure oven

temperature. Elements will cycle on and off as needed to provide consistent temperature but may run slightly hot or cool at any point in time due to this cycling. Most thermometers are slow to react to temperature change and will not provide an accurate reading due to this cycling.

The oven provides accurate temperatures; however, it may cook faster or slower than your previous oven, so the temperature can be adjusted to personalize it for your cooking needs. It can be changed in Fahrenheit or Celsius.

To Adjust Oven Temperature:

1. Press and hold the Temp/Time “down” arrow keypad for 5

seconds until the oven display shows the current setting, for example “0°F CAL” or “00”.

2. Press the Temp/Time “up” or “down” arrow keypad to increase

or decrease the temperature in 5°F (3°C) amounts. The adjustment can be set between 30°F (18°C) and

-30°F (-18°C).

3. Press START.

Sabbath Mode (on some models)

The Sabbath mode sets the oven to remain on in a Bake setting until turned off.

A Timed Bake can also be set to keep the oven on for only part of the Sabbath. The Oven Control Lockout feature (if present) will be disabled during the Sabbath mode.

After the Sabbath mode is set, no tones will sound, the display will not show the temperature, the Kitchen Timer mode will be canceled (if active), and only the following keypads will function:

■ Temp/Time “up” and “down” arrow keypads

■ Cance

When the oven door is opened or closed, the oven light will not turn on or off and the heating elements will not turn on or off immediately.

When power is restored after a power failure, the oven will return to Sabbath mode and remain Sabbath compliant with the bake elements off until the Cancel keypad is pressed.

Pressing the Cancel keypad at any time cancels the cooking cycle and returns the oven to the normal cooking mode (not Sabbath compliant).

Before entering the Sabbath mode, it must be decided if the oven light is to be ON or OFF for the entire Sabbath mode period. If the light is ON when entering Sabbath mode, it will remain ON for the entire time Sabbath mode is in use. If the light is OFF when entering Sabbath mode, it will remain OFF for the entire time Sabbath mode is in use. Opening the oven door or pressing the Light keypad will not affect the oven light once Sabbath mode has been entered.

On the Holiday, the oven temperature can be changed once the oven is in Sabbath mode by pressing the Temp/Time “up” or “down” arrow keypad. The oven temperature will change 25°F (14°C) each time the Temp/Time “up” and “down” arrow keypads are pressed. Press START to activate the new temperature. The display will not change and there will be no sounds during this adjustment.

To Bake Using Sabbath Mode:

1. Press BAKE.

2. To change the temperature : Press the Temp/Time “up” or

“down” arrow keypad.

3. Press START.

4. Press and hold the Timer Set/Off keypad for 5 seconds. “SAb”

will flash in the display.

5. Press START while “SAb” is flashing to enter Sabbath mode;

otherwise, the entire cycle cancels out. “SAb” will stop flashing and remain ON in the display. The oven is now in Sabbath mode and is Sabbath compliant.

Pressing the OFF/CANCEL keypad at any time returns the oven to the normal cooking mode (not Sabbath compliant).

To Set a Timed Bake Using Sabbath Mode (on some models):

1. Press BAKE.

2. Press the Temp/Time “up” or “down” arrow keypad to enter a

temperature other than the one displayed.

3. Press COOK TIME. The Cook Time oven indicator light will

light up.

4. Press the Temp/Time “up” or “down” arrow keypad to enter a

cook time length.

5. Press START.

6. Press and hold the Timer Set/Off keypad for 5 seconds. “SAb”

will flash in the display.

7. Press START while “SAb” is flashing to enter Sabbath mode;

otherwise, the entire cycle cancels out. “SAb” will stop flashing and remain on in the display. The oven is now in Sabbath mode and is Sabbath compliant. The Bake, On, and Cook Time indicator lights will be displayed.

When the set cook time ends, the oven will shut off automatically and the indicator lights will turn off, indicating the end of the cycle.

Pressing the Cancel keypad at any time cancels the cooking cycle and returns the oven to the normal cooking mode (not Sabbath mode compliant).

To Set a Delayed Timed Bake Using Sabbath Mode (on some models):

1. Press BAKE.

2. Press the Temp/Time “up” or “down” arrow keypad to enter a

temperature other than the one displayed.

3. Press COOK TIME. The Cook Time oven indicator light will

light up.

4. Press the Temp/Time “up” or “down” arrow keypad to enter a

cook time length.

5. Press DELAY START. The Delay indicator light will light up.

6. Press the Temp/Time “up” or “down” arrow keypad to enter a

start time.

7. Press START.

8. Press and hold the Timer Set/Off keypad for 5 seconds. “SAb”

will flash in the display.

9. Press START while “SAb” is flashing to enter Sabbath mode;

otherwise, the entire cycle cancels out. “SAb” will stop flashing and remain on in the display. The oven is now in Sabbath mode and is Sabbath compliant. The Delay indicator light will be displayed.

When the start time is reached the Bake, On, and Cook Time indicator lights will automatically turn on. When the set cook time ends, the oven will shut off automatically and the indicator lights will turn off, indicating the end of the cycle.

Pressing the Cancel keypad at any time returns the oven to the normal cooking mode (not Sabbath mode compliant).

Keep Warm

NOTE: The convection fan will shut off when the oven door is

opened. If the oven door remains open for too long, the heating elements will shut off until the oven door is closed. All timers, including any active Cook Time or Timed Cook functions, will continue to count down.

IMPORTANT: Food must be at serving temperature before placing it in the warmed oven. Food may be held up to 1 hour; however, breads and casseroles may become too dry if left in the oven during the Keep Warm or warm function. For best results, cover food.

The Keep Warm feature allows hot cooked foods to stay at serving temperature.

To Use:

1. Press WARM.

2. Press Temp/Time "up" or "down" arrow keypad until desired

temperature is reached. A tone will sound if the minimum or maximum temperature is reached.

3. Press START.

4. Place food in the oven.

5. Press CANCEL when finished. NOTE: The temperature may be changed at any time by pressing

the Temp/Time "up" or "down" arrow keypad to reach the desired temperature and then pressing START.

Positioning Racks and Bakeware

To move a rack, pull it out to the stop position, raise the front edge, and then lift out. Use the following illustration as a guide.

Rack Positions

Rack 5: Toasting bread or broiling thin, non-fatty foods Rack 4: 2-rack baking and broiling Rack 3: Most baked goods on a cookie sheet, muffin pan, or jelly

roll pan; layer cakes; broiling chicken pieces Rack 2: Pies, casseroles, yeast bread, quick breads, frozen

convenience foods, 2-rack baking Rack 1: Roasting large and small cuts of meat and poultry

Multiple Rack Cooking

2-rack: Use rack positions 2 and 4.

Bakeware

To cook food evenly, hot air must be able to circulate. Allow 2" (5 cm) of space around bakeware and oven walls. Make sure that no bakeware piece is directly over another.

Baking and Roasting

NOTE: The convection fan will shut off when the oven door is

ACCUBAKE®Temperature Management System

The ACCUBAKE®system electronically regulates the oven heat levels during preheat and bake to maintain a precise temperature range for optimal cooking results. The bake and broil elements or burners cycle on and off in intervals. On convection range models, the fan will run while preheating and may be cycled on and off for short intervals during Bake to provide the best results. This feature is automatically activated when the oven is in use.

Before baking and roasting, position racks according to “Positioning Racks and Bakeware” section. When roasting, it is not necessary to wait for the oven preheat cycle to end before putting food in unless it is recommended in the recipe.

Preheating

When START is pressed, the oven will begin preheating. Once 100ºF (38ºC) is reached, the display temperature will increase as the actual temperature of the oven increases. When the preheat temperature is reached, a tone will sound and the selected temperature will appear on the display.

IMPORTANT: Close the door to ensure proper broiling temperature.

Changing the temperature when Custom Broiling allows more precise control when cooking. The lower the broil setting is, the slower the cooking. Thicker cuts and unevenly shaped pieces of meat, fish, and poultry may cook better at lower broil settings. Use rack 4 or 5 for broiling. Refer to the "Positioning Racks and Bakeware" section for more information.

On lower settings, the broil element will cycle on and off to maintain the proper temperature.

■ For best results, use a broiler pan and grid. It is designed to drain juices and help avoid spatter and smoke.

If you would like to purchase a broiler pan, one may be ordered. Please refer to the Quick Start Guide for contact information.

Cook Time (on some models)

To Set a Timed Cook:

1. Press BAKE. The Bake indicator light will light up.

2. Press the Temp/Time “up” or “down” arrow keypad to enter a

temperature other than the one displayed.

3. Press COOK TIME. The Cook Time oven indicator light will

light up.

4. Press the Temp/Time “up” or “down” arrow keypad to enter the

length of time to cook.

5. Press START. The display will count down the time. When the

time ends, the oven will shut off automatically.

6. Press CANCEL keypad to clear the display.

To Set a Delayed Timed Cook:

Before setting, make sure the clock is set to the correct time of day. See the “Clock” keypad feature in the “Feature Guide” section.

1. Press BAKE.

2. Press the Temp/Time “up” or “down” arrow keypad to enter a

temperature other than the one displayed.

3. Press COOK TIME. The cook time oven indicator light will

light up.

4. Press Temp/Time “up” or “down” arrow keypad to enter the

length of time to cook.

5. Press DELAY START. The delay oven indicator light will light

up.

6. Press Temp/Time “up” or “down” arrow keypad to enter the

time of day to start.

7. Press the START keypad.

When the start time is reached, the oven will automatically turn on. The Temperature and/or Cook Time settings can be changed anytime after the oven turns ON by repeating steps 2-4 and pressing Start. To change to a different delay time, cancel the feature and repeat steps 1-7. When the set cook time ends, the oven will shut off automatically.

8. Press CANCEL keypad to clear the display.

Broiling

NOTE: The convection fan will shut off when the oven door is

Position food on grid in a broiler pan, and then place it in the center of the oven rack.

Guide des commandes de la cuisinière électrique

autoportante avec commandes à l’avant

GUIDE DES CARACTÉRISTIQUES

AVERTISSEMENT: Pour réduire le risque d’incendie, de décharge électrique ou de blessures, lire les INSTRUCTIONS IMPORTANTES

DE SÉCURITÉ du guide d’utilisation de l’appareil avant de faire fonctionner cet appareil. Ce manuel concerne plusieurs modèles. Le modèle que vous avez peut comporter toutes les caractéristiques énumérées ou seulement

certaines d’entre elles. Se reporter à ce manuel ou à la section Foire aux questions de notre site Web au www.whirlpool.com pour des instructions plus détaillées.

AVERTISSEMENT

Risque d’empoisonnement alimentaire

Ne pas laisser des aliments reposer plus d’une heure avant ou après la cuisson.

Le non-respect de cette instruction peut causer un empoisonnement alimentaire ou une maladie.

TOUCHE

CLOCK (horloge) Clock

OVEN LIGHT (lampe du four)

TIMER SET/OFF (réglage/arrêt de la minuterie)

CARACTÉRISTIQUE

(horloge)

Lampe de la cavité du four

Minuterie du four

INSTRUCTIONS

Cette horloge utilise un programme de 12 heures.

1. Vérifier que le four est éteint.

2. Appuyer sur CLOCK (horloge).

3. Appuyer sur les touches à flèche « vers le haut » ou « vers le bas » de Temp/Time

(température/durée) pour régler l’heure. Appuyer sur CLOCK (horloge) pour passer aux minutes. Appuyer sur les touches à flèche « vers le haut » ou « vers le bas » de Temp/Time (température/durée) pour régler les minutes.

4. Appuyer sur CLOCK (horloge) ou START (mise en marche).

Alors que la porte du four est fermée, appuyer sur OVEN LIGHT (lampe du four) pour allumer ou éteindre la lampe. La lampe du four s’allume à l’ouverture de la porte. La lampe du four ne s’allume pas durant le programme d’autonettoyage.

La minuterie peut être réglée en heures ou en minutes jusqu’à concurrence de 9 heures et 59 minutes.

1. Appuyer sur TIMER SET/OFF (réglage/arrêt de la minuterie).

2. Appuyer sur la touche à flèche « vers le haut » ou « vers le bas » de Temp/Time

(température/durée) pour régler la durée.

3. Appuyer sur START (mise en marche) pour commencer le compte à rebours. Si

activés, les signaux sonores de fin de programme retentissent à la fin du compte à rebours.

4. Appuyer sur TIMER SET/OFF (réglage/arrêt de la minuterie) pour annuler la

minuterie. Ne pas appuyer sur la touche OFF/CANCEL (arrêt/annulation), sinon le four s’éteindra.

+ 16 hidden pages
