INSTRUCTION MANUALINSTRUCTION MANUAL
Please read instructions carefully before using
WHITEMAGIC WASHER
XWT-608
Page 2
TABLE OF CONTENTS
KNOW YOUR MACHINE
Know your machine
Control panel
Installation
Wash
Drain
Rinse
You're going to use the washing machine. But first, it will be easy If you really know your machine.
Read the instruction manual carefully before using.
Spin
Care after use
Precautions
Maintenance
Reminder

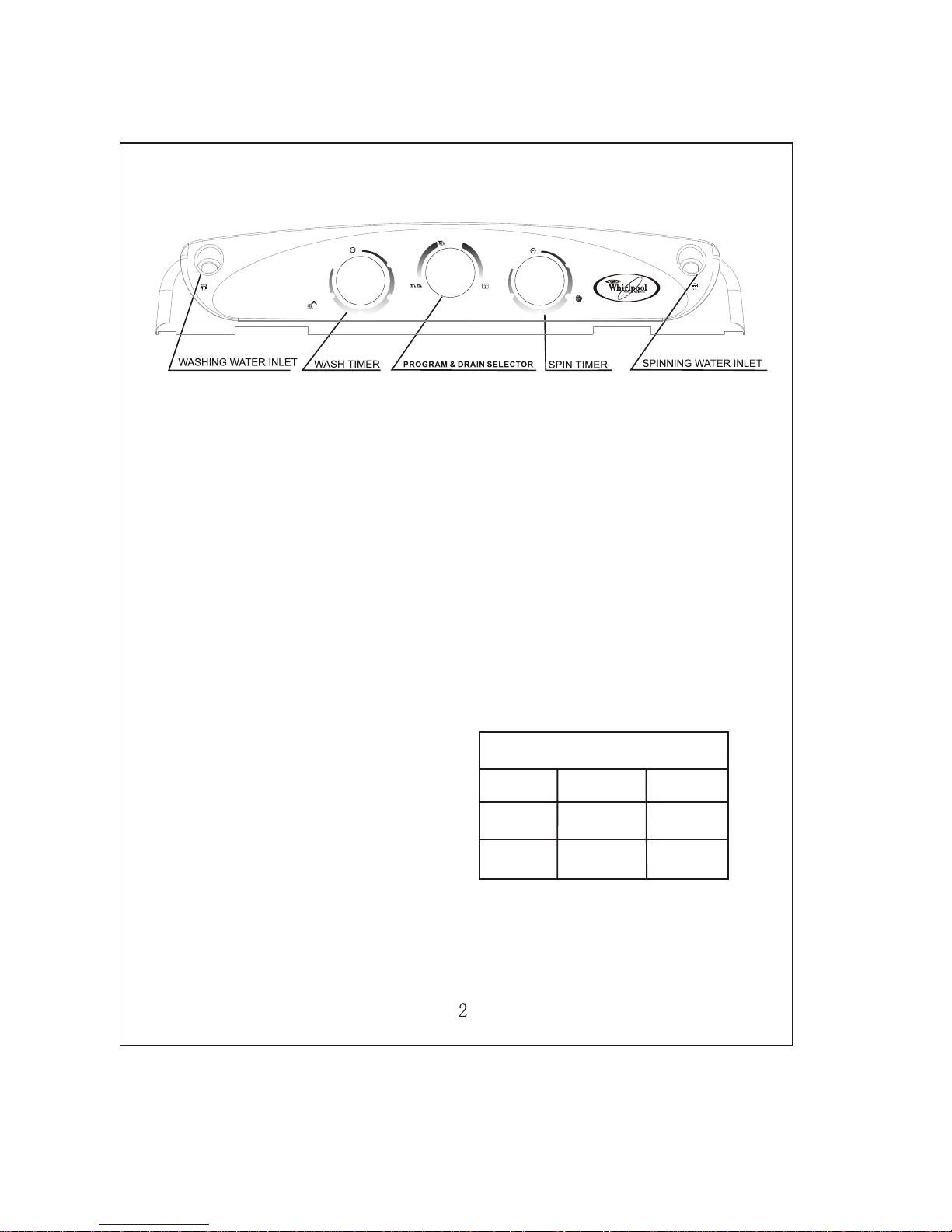

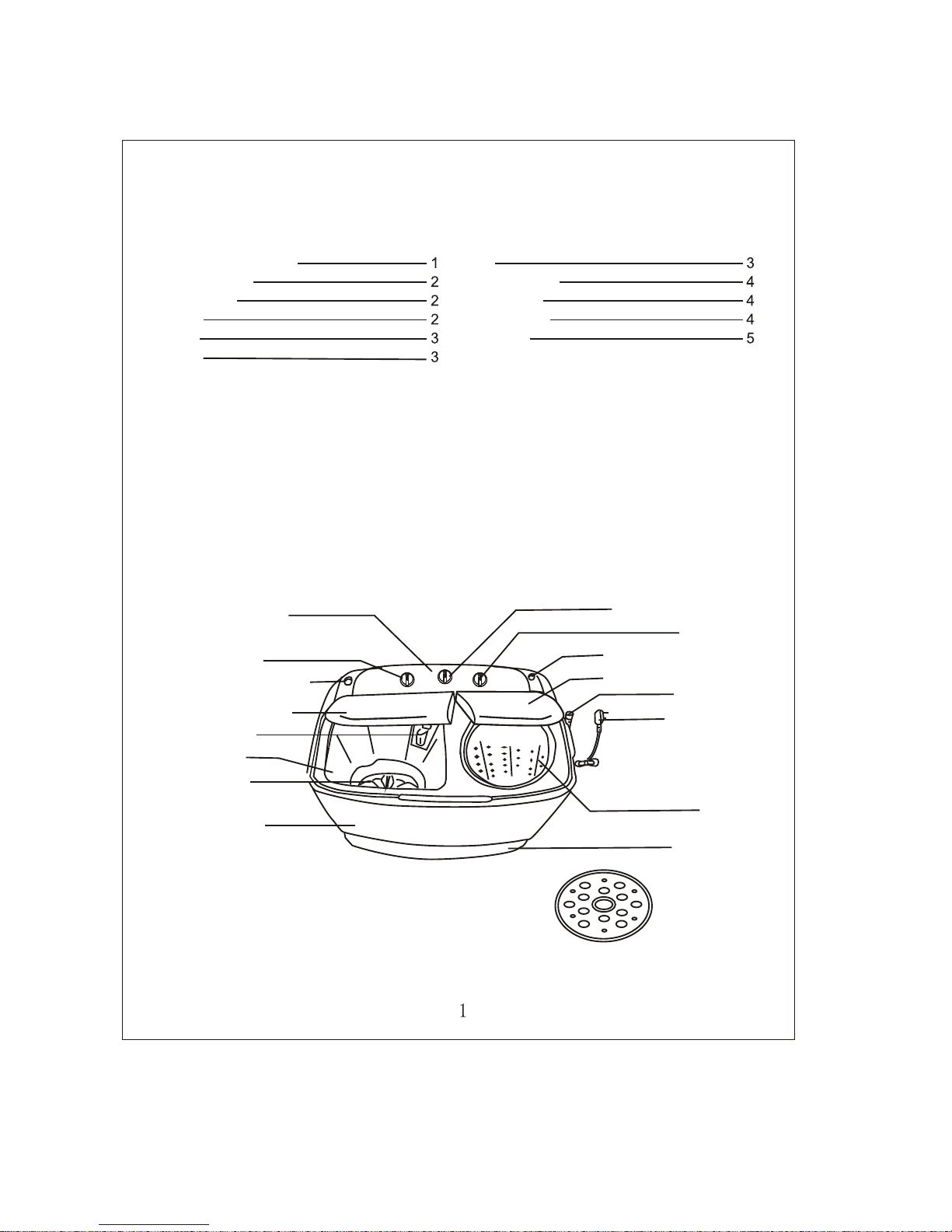

CONTROL PANEL
WASH TIMER
WASHING WATER INLET
WASH TUB
LINT FILTER
PULSATOR
OUTER CASE
PLASTIC BASE
SPIN TUB
POWER CORD
DRAIN HOSE
SPIN TUB COVER
SPIN TIMER
PROGRAM SELECTOR
SAFETY COVER
WASH TUB COVER
SPINNING WATER INLET
Actual unit may differ from the picture above as it is only an illustration.
Page 3
CONTROL PANEL
INSTALLATION
1.Location
2.Drain Hose
3.Inlet Hose
4.Electrical Connection
Place the machine on a flat/level surface, wellÂventilated area but away from direct sunlight or
any other heat source, conveniently close to
an electric outlet and near the drainage facility
(This could be a drain pipe, sink or bathroom).
Suitable for the down-drain type:
Drop the drain hose to a outfall ditch.
Suitable for the up-drain type:
Hang the drain hose over a drain outlet or
over the side of a bath or sink, not higher than
1.2 metres above floor level.
4.Open the Water Tap and fill the Wash Tub with
water up to 3 cm below the Water Level Mark.
5.Close the Water Tap.
6.Add a suitable amount of washing machine
detergent in the Wash Tub(Refer to the proper
amount of detergent as specified/directed by
the detergent's manufacturer).
7.Put the clothes one by one into the Wash Tub
and arrange them evenly.
8.Set the Wash Timer to the desired time or you
may refer to the table below for good washing
result.
9.Your Washing Machine will then operate as per
selected time and mode on the Wash Selector.
Connect one end of the Inlet Hose to a Water
Tap. Place the other end of the Hose into the
Inlet.
Turn both Timers (Wash and Spin) to "OFF"
position and insert the plug into an outlet.
1.Open the Wash Tub cover.
2.Insert the plug into an outlet.
3.Turn the Wash Selector to Normal, Strong.It
will depend on the type of fabric and degree of
dirt/soiled.
WASH TIME TABLE
TYPE OF
FABRIC
NORMAL
Normal
Normal Soiled
Clothes
3 - 9 mins.
HEAVY
Work
Clothes
10 - 15 mins.
WASH
PROGRAM
WASH
TIME
WASH
WATER INLET
WATER INLET
Whitemagic Washer
XWT-608
WASH TIMER
12
0
15
3
6
9
SPIN TIMER
1
5
0
4
3
2
SELECTOR
NORMAL
DRAIN
HEAVY
Page 4
DRAIN
1.After the washing is completed, remove the
clothes from the Wash Tub and place it in the
Spin Tub.
2.If you wish to wash other clothes in the same
soapy water, you may do so. If not, turn the
Drain Selector to drain.
3.The soapy water will then be drained from the
Tub.
4.When all the water has been drained from the
Wash Tub, turn the Drain Selector to "Normal".
RINSE
After washing, it is best to first extract the soapy
wash water from the Wash Tub to obtain best
result of rinsing.
1.Place the clothes into the Spin Tub and
arrange them evenly.
2.Press the clothes gently into the Tub and place

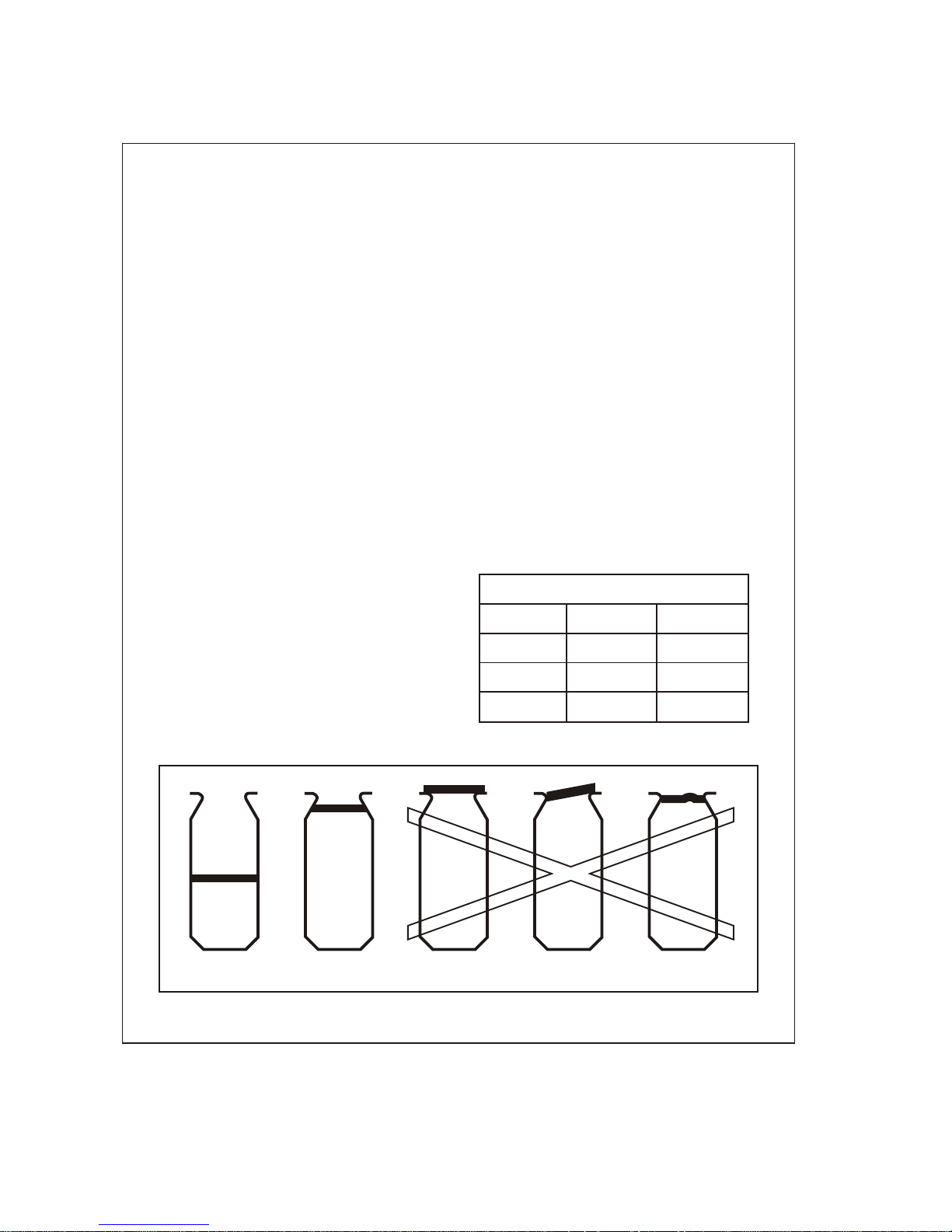

the safety Cover so that it completely covers
the clothes (see illustration below).
3.Close spin tub cover of the Spin Tub.
4.Turn the Spin Timer to approximately 2
minutes.
5.Remove the clothes from the Spin Tub and
place it back to the empty Wash Tub.
6.Open the Tap and fill the Wash Tub with water
to a level of approximately 3 cm below the
Water Level Mark and then close the Tap.
7.Turn the Wash Selector to Normal .
8. Turn the Wash Timer to the required time.
9. After rinsing, turn the Drain Selector to Drain.
10. When all the water has been drained off ,turn
the Drain Selector to "NormaL" .
NOTE : You may repeat steps 6 to 10 if necessary.
SPIN
1.Transfer the clothes from the Wash Tub to the
Spin Tub and arrange them evenly.
2.Smaller items should be placed in first.
3.Press the clothes firmly towards the bottom of
the tub.
4.Place the safety Cover on the clothes (Please
see Illustration below) .
5.Close spin Tub Cover.
6.Turn the Spin Timer to the desired time (refer to
the table below).
SPIN TIME TABLE
MODE
TYPE OF
FABRIC
SPINNING
TIME
Delicate Fabrics Synthetics 1 min.
White Fabrics Cotton-Linen 2 - 4 mins.
Heavy Fabrics Cotton 3 - 5 mins.
3
Page 5
CARE AFTER USE
1.Ensure that the power is switched OFF and the
Plug is pulled out from the wall outlet.
2.Clean the machine with soft cloth.
3.Close the Wash Tub cover.
4.Hang up the Drain Hose well .
5.Take off the linlet Hose.
PRECAUTIONS
1.Do not touch Spin Tub while it is still rotating.
2.Do not use water hotter than 50 . Very hot
water may deform plastic parts of the machine
causing them to malfunction.
3.Always use the safety Cover duing spinning as
this prevents clothes from rising out of the Spin
Tub.
4.Do not wash the clothes with petroleum gas,
thinner or other inflammable liquids.
5.Check all clothes for loose buttons ,coins, pins,
etc.
6.Separate the clothes to be washed by color,
fabric and degree of dirt.
7.Use the detergent specifically produced for
Washing Machine.
NOTE: Do not spray water on the Control Panel.
MAINTENANCE
1. Clean
Wipe the machine with a clean dry or slightly
wet cloth. Do not use Household cleansers, or
volatile liquid cleaners.

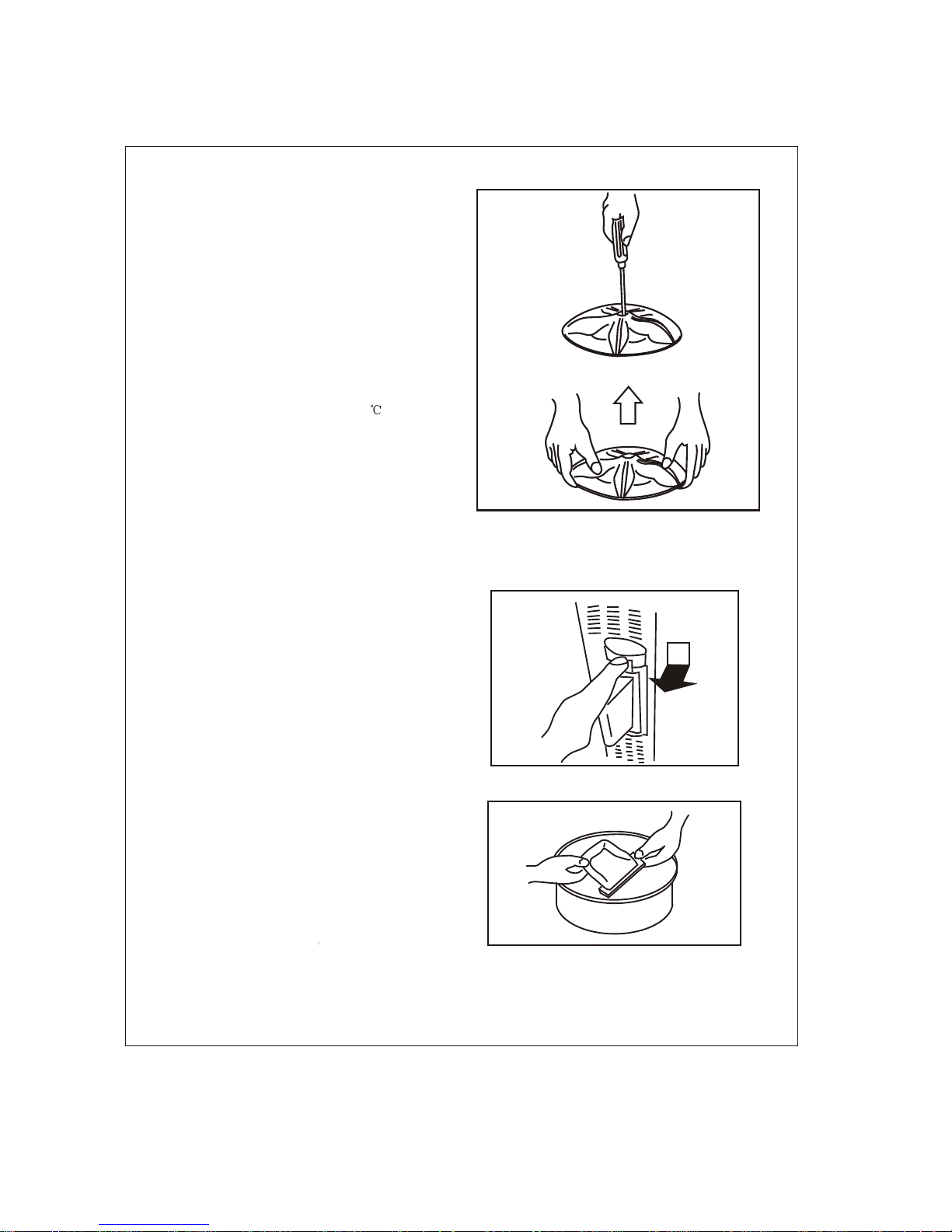

2. Dismantle the Pulsator
If there is something under the Pulsator, it can
be taken out by dismantling the Pulsator.
Simply loose the Center Screw and use both
hands to lift evenly the Pulsator off its Shaft.
To refit, simply push it back and tighten the
screw.
4
3. Clean the Lint Filter
Grasp the frame of the Lint Filter, press down and
pull outwards.
Clean the lint in the Lint Filter.
Page 6
REMINDER
If your machine does not work, check the following
points before calling a service technician.
1.Is the Plug in the wall outlet and is the Power
switched to ON position?
2.Is the house Safety Box Fuse blown?
3.Are the Control Knobs in the OFF position?
4.Is the Safety Box switched ON?
5.Is the Drain Hose twisted or is there any
obstruction?
NOTE: The design and the name of parts are
subject to change without prior notice.
