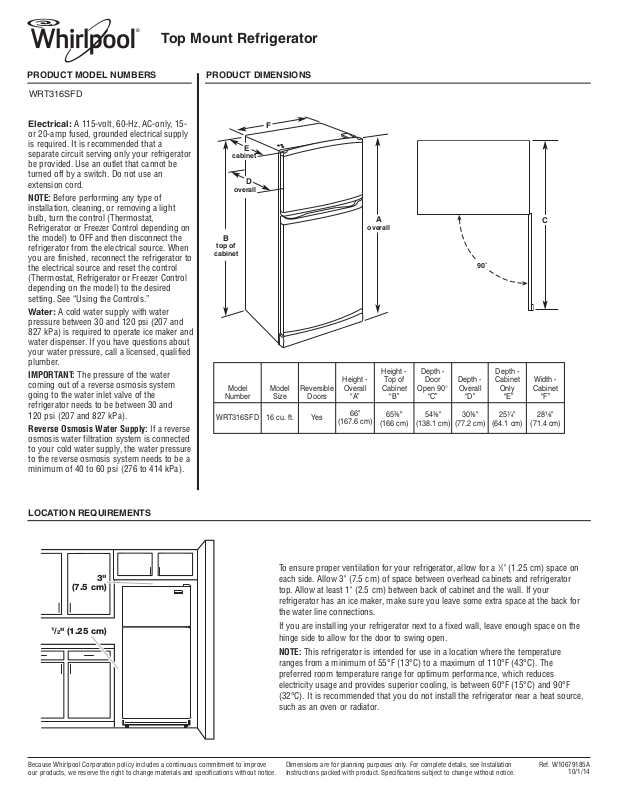

Whirlpool WRT316SFDW Dimension Guide
PRODUCT MODEL NUMBERS PRODUCT DIMENSIONS
LOCATION REQUIREMENTS
WRT316SFD
Electrical: A 115-volt, 60-Hz, AC-only, 15or 20-amp fused, grounded electrical supply
is required. It is recommended that a
separate circuit serving only your refrigerator
be provided. Use an outlet that cannot be
turned off by a switch. Do not use an
extension cord.
NOTE: Before performing any type of
installation, cleaning, or removing a light
bulb, turn the control (Thermostat,
Refrigerator or Freezer Control depending on
the model) to OFF and then disconnect the
refrigerator from the electrical source. When
you are finished, reconnect the refrigerator to
the electrical source and reset the control
(Thermostat, Refrigerator or Freezer Control
depending on the model) to the desired
setting. See “Using the Controls.”
Water: A cold water supply with water
pressure between 30 and 120 psi (207 and
827 kPa) is required to operate ice maker and
water dispenser. If you have questions about
your water pressure, call a licensed, qualified
plumber.
IMPORTANT: The pressure of the water
coming out of a reverse osmosis system
going to the water inlet valve of the
refrigerator needs to be between 30 and
120 psi (207 and 827 kPa).
Reverse Osmosis Water Supply: If a reverse
osmosis water filtration system is connected
to your cold water supply, the water pressure
to the reverse osmosis system needs to be a
minimum of 40 to 60 psi (276 to 414 kPa).
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref. W10679185A
10/1/14
To ensure proper ventilation for your refrigerator, allow for a 1⁄2" (1.25 cm) space on
each side. Allow 3" (7.5 cm) of space between overhead cabinets and refrigerator
top. Allow at least 1" (2.5 cm) between back of cabinet and the wall. If your
refrigerator has an ice maker, make sure you leave some extra space at the back for
the water line connections.
If you are installing your refrigerator next to a fixed wall, leave enough space on the
hinge side to allow for the door to swing open.
NOTE: This refrigerator is intended for use in a location where the temperature
ranges from a minimum of 55°F (13°C) to a maximum of 110°F (43°C). The
preferred room temperature range for optimum performance, which reduces
electricity usage and provides superior cooling, is between 60°F (15°C) and 90°F
(32°C). It is recommended that you do not install the refrigerator near a heat source,
such as an oven or radiator.
Model
Number
Model
Size
Reversible
Doors
Height -
Overall
“A”
Height -
Top of
Cabinet
“B”
Depth -
Door
Open 90°
“C”
Depth Overall
“D”
Depth Cabinet
Only
“E”
Width -
Cabinet
“F”
WRT316SFD 16 cu. ft. Yes
66"
(167.6 cm)
65³⁄₈"
(166 cm)
54³⁄₈"
(138.1 cm)
30³⁄₈"
(77.2 cm)
25¹⁄₄"
(64.1 cm)
28¹⁄₈"
(71.4 cm)
Top Mount Refrigerator
F
E
cabinet
D
overall
B
top of
cabinet
overall
A
90˚
C
3"
(7.5 cm)
1
/
2" (1.25 cm)
