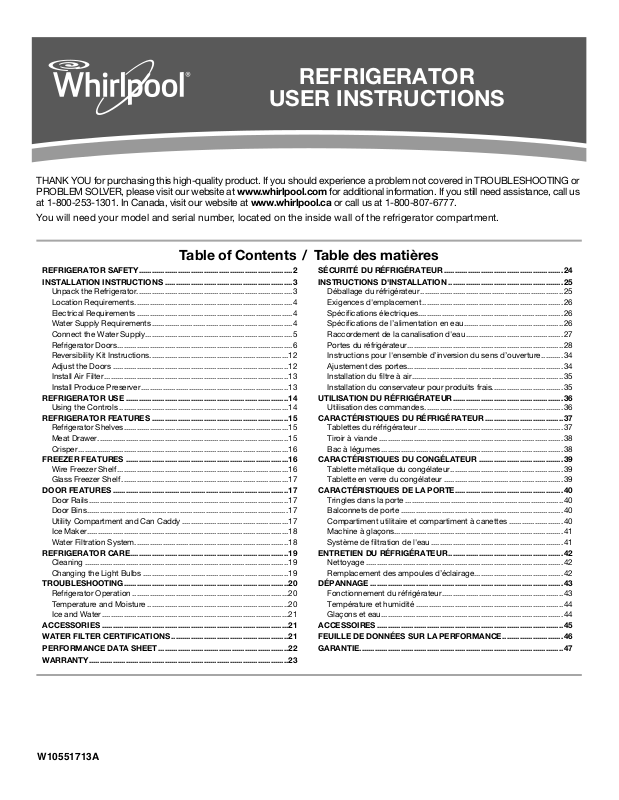

Whirlpool WRT311FZB User Guide

REFRIGERATOR

USER INSTRUCTIONS

THANK YOU for purchasing this high-quality product. If you should experience a problem not covered in TROUBLESHOOTING or PROBLEM SOLVER, please visit our website at www.whirlpool.com for additional information. If you still need assistance, call us at 1-800-253-1301. In Canada, visit our website at www.whirlpool.ca or call us at 1-800-807-6777.

You will need your model and serial number, located on the inside wall of the refrigerator compartment.

Table of Contents / Table des matières

REFRIGERATOR SAFETY.......................................................................	2
INSTALLATION INSTRUCTIONS ...........................................................	3
Unpack the Refrigerator........................................................................	3
Location Requirements.........................................................................	4
Electrical Requirements ........................................................................	4
Water Supply Requirements.................................................................	4
Connect the Water Supply....................................................................	5

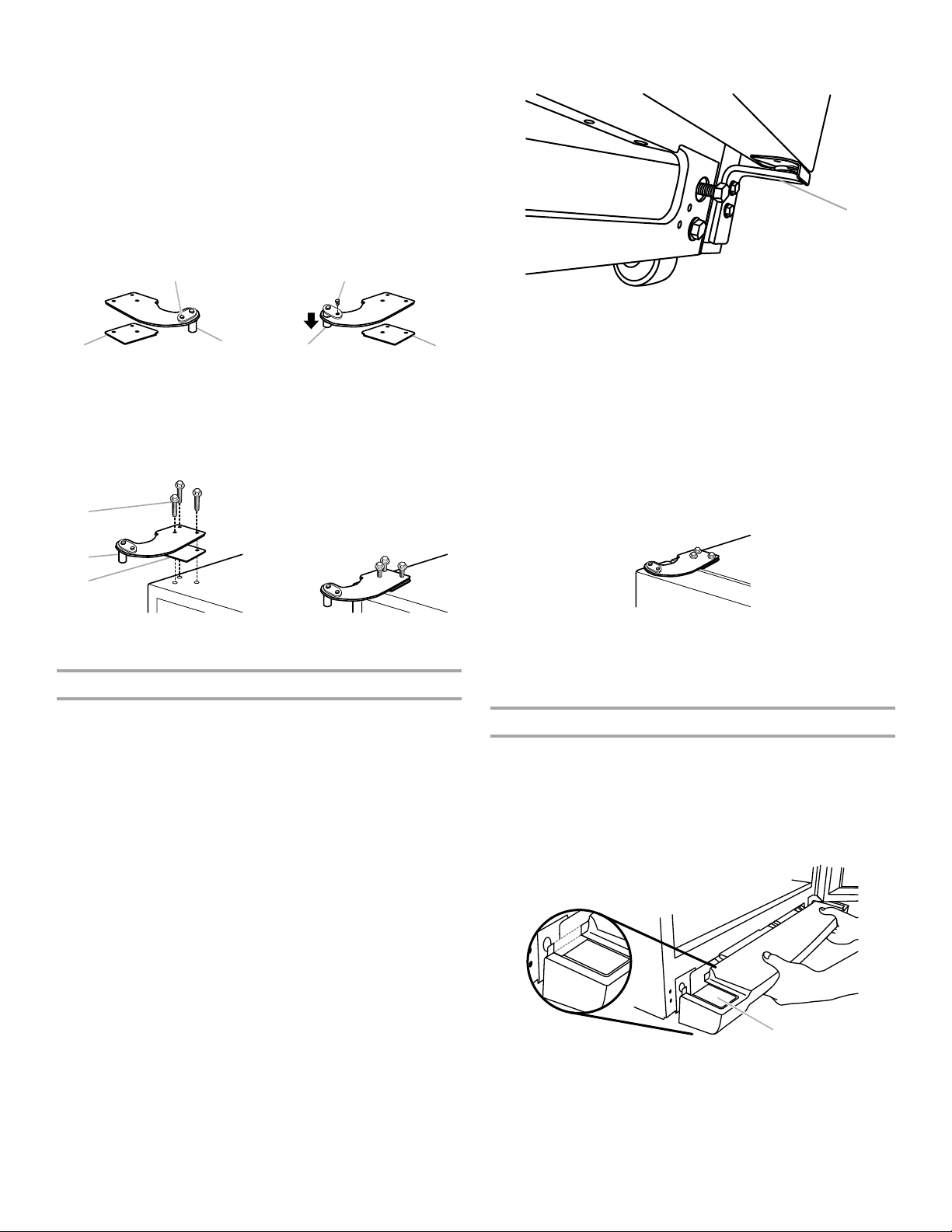

Refrigerator Doors.................................................................................	6

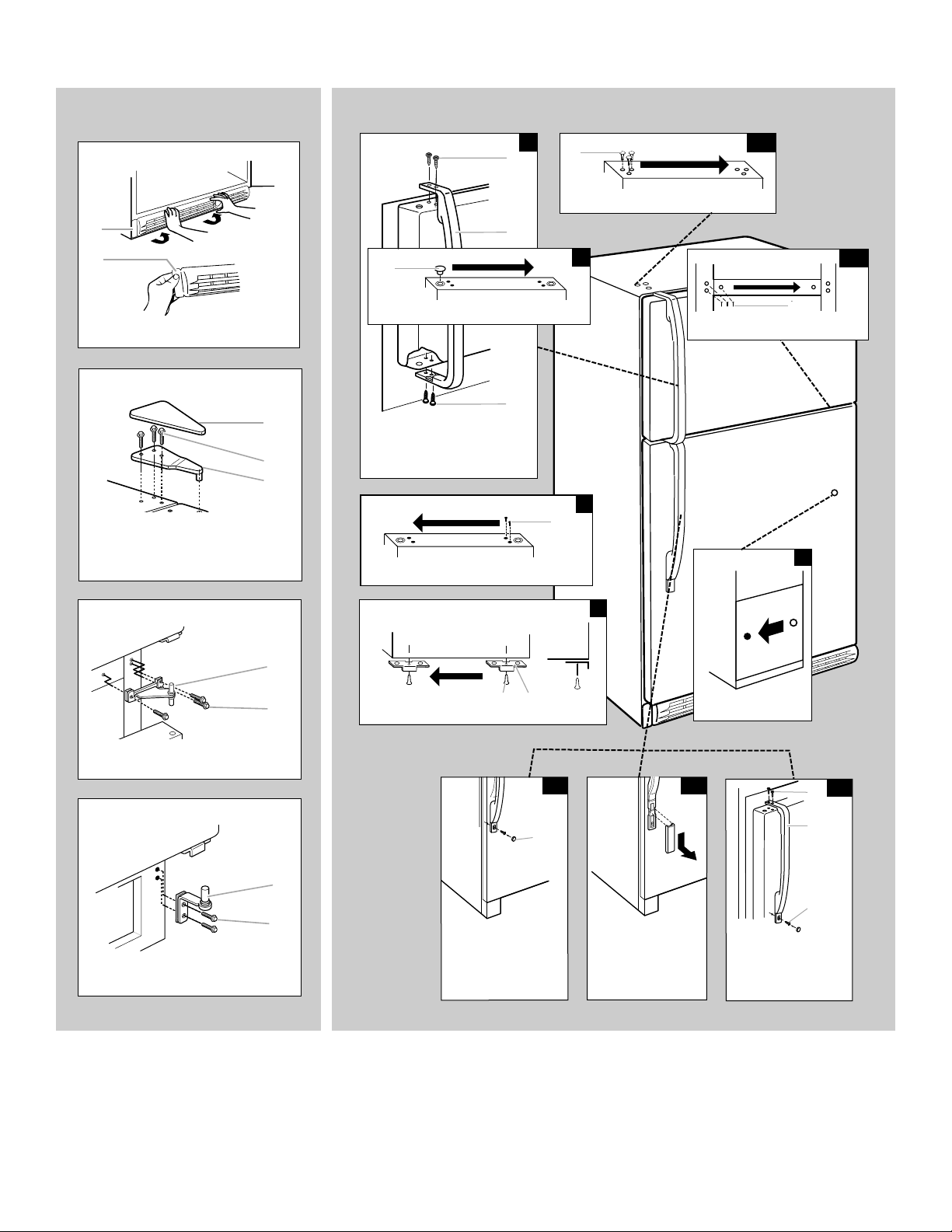

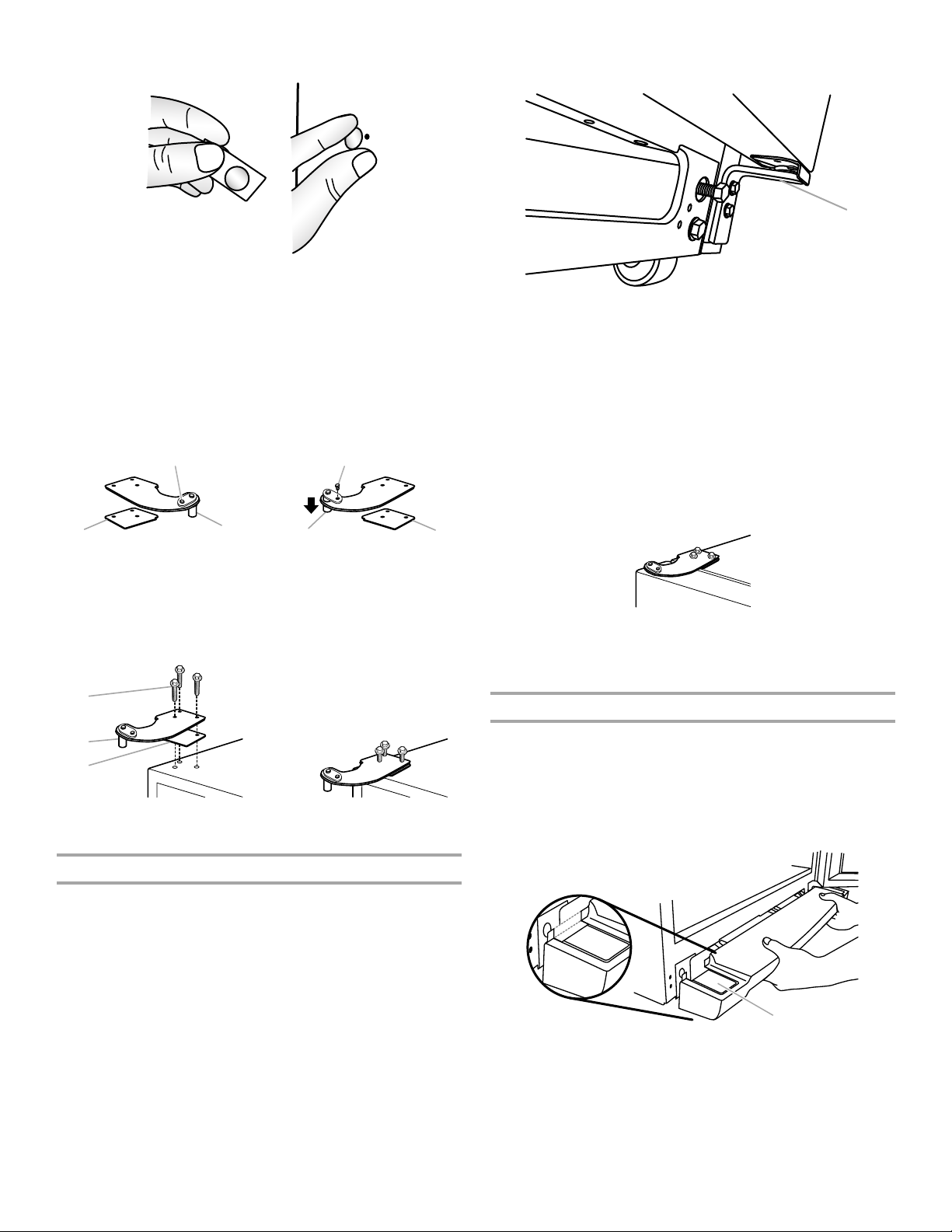

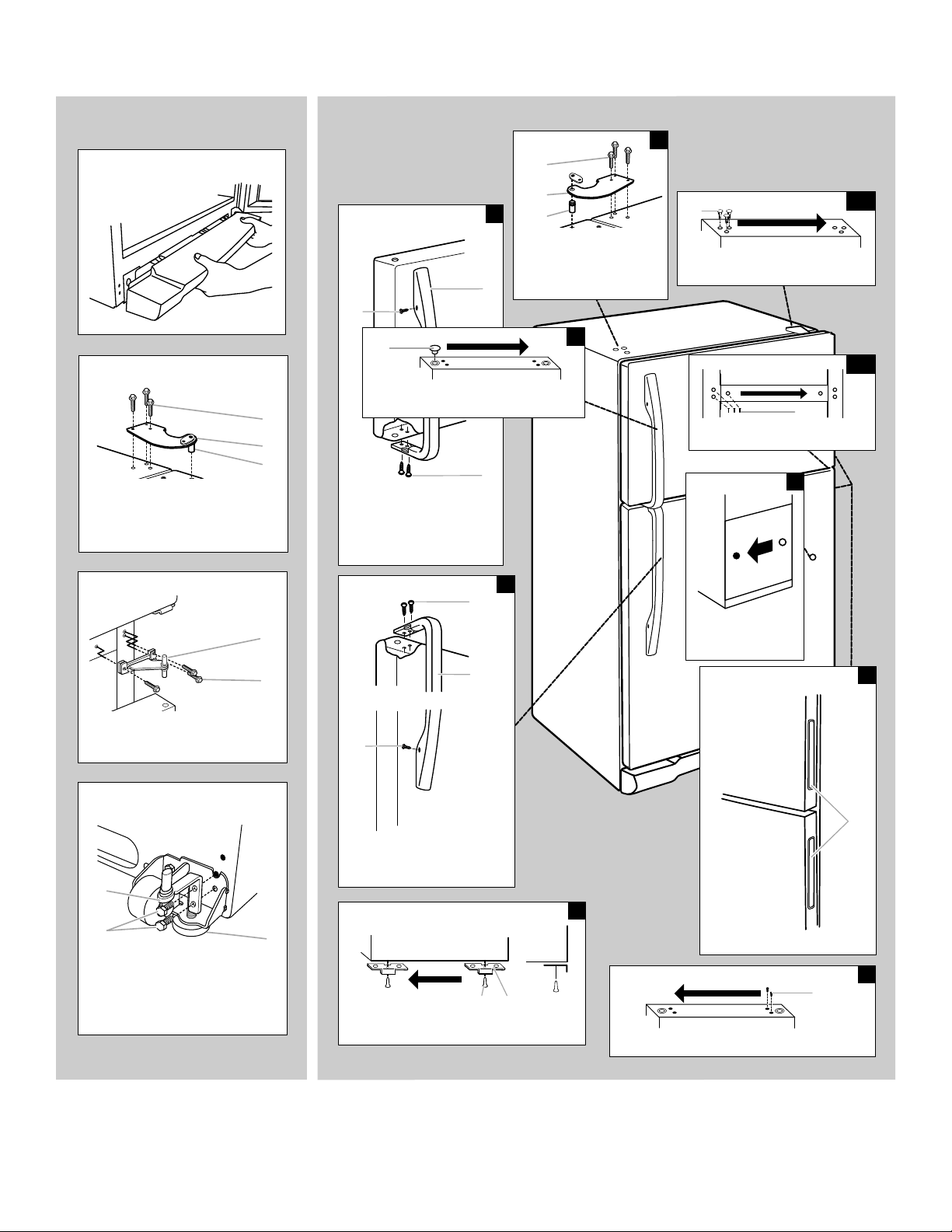

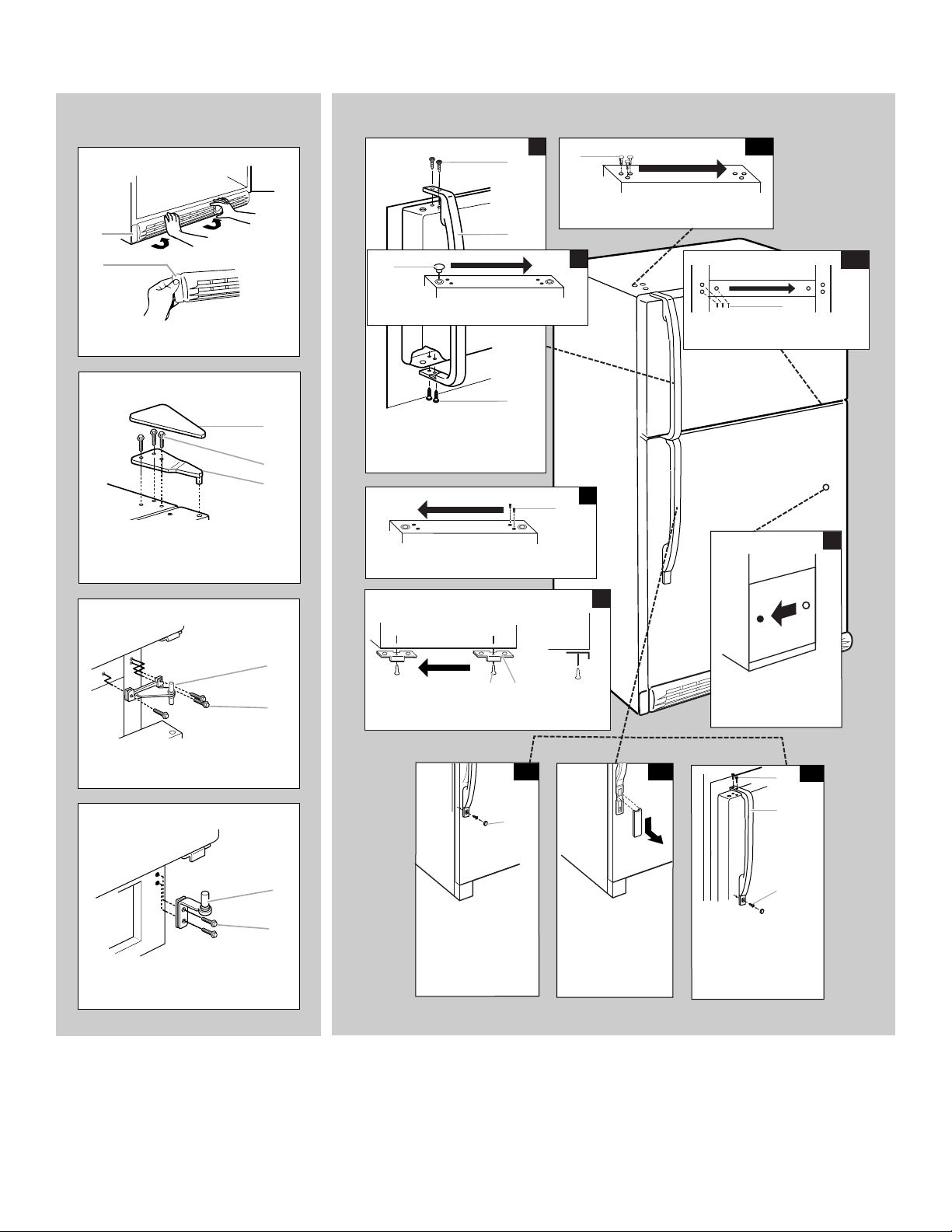

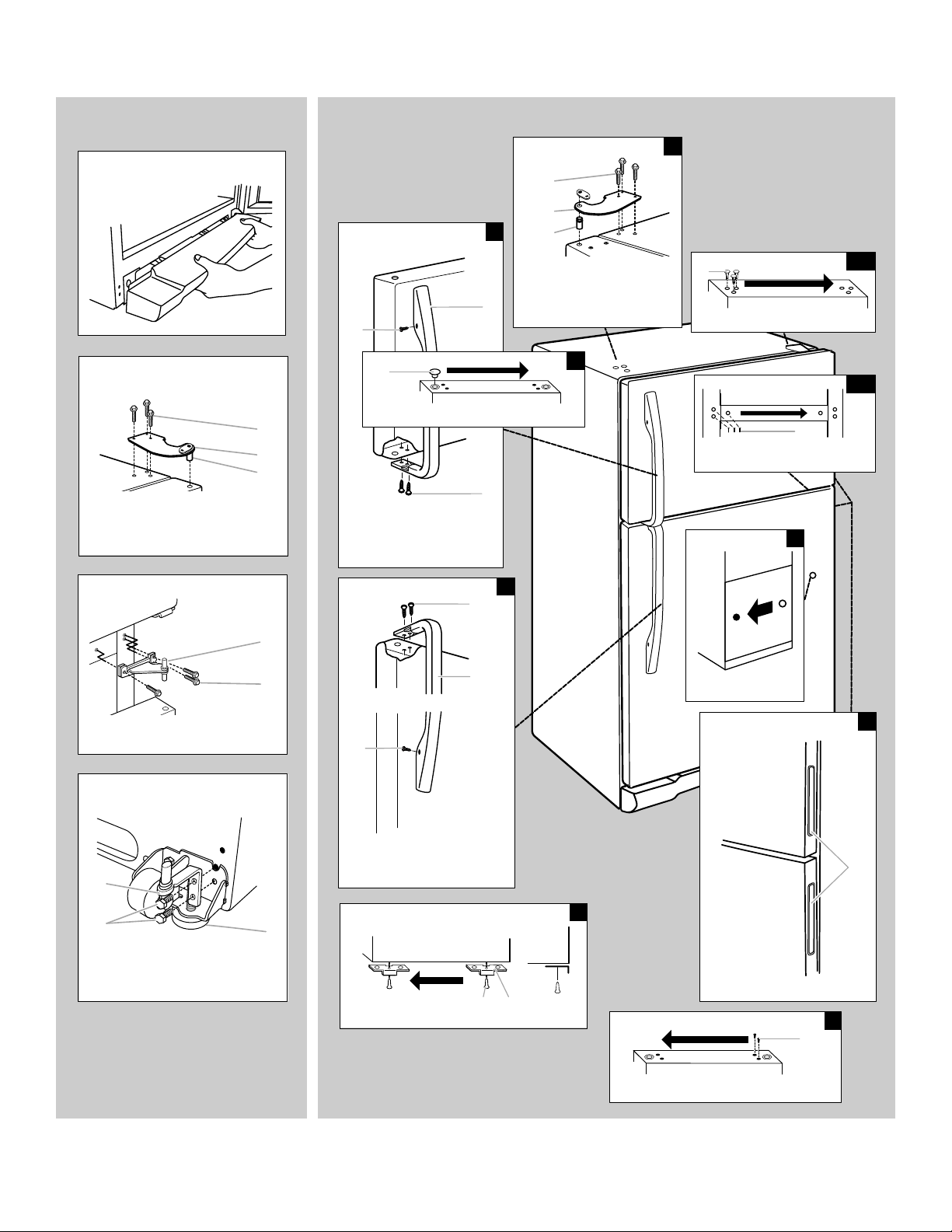

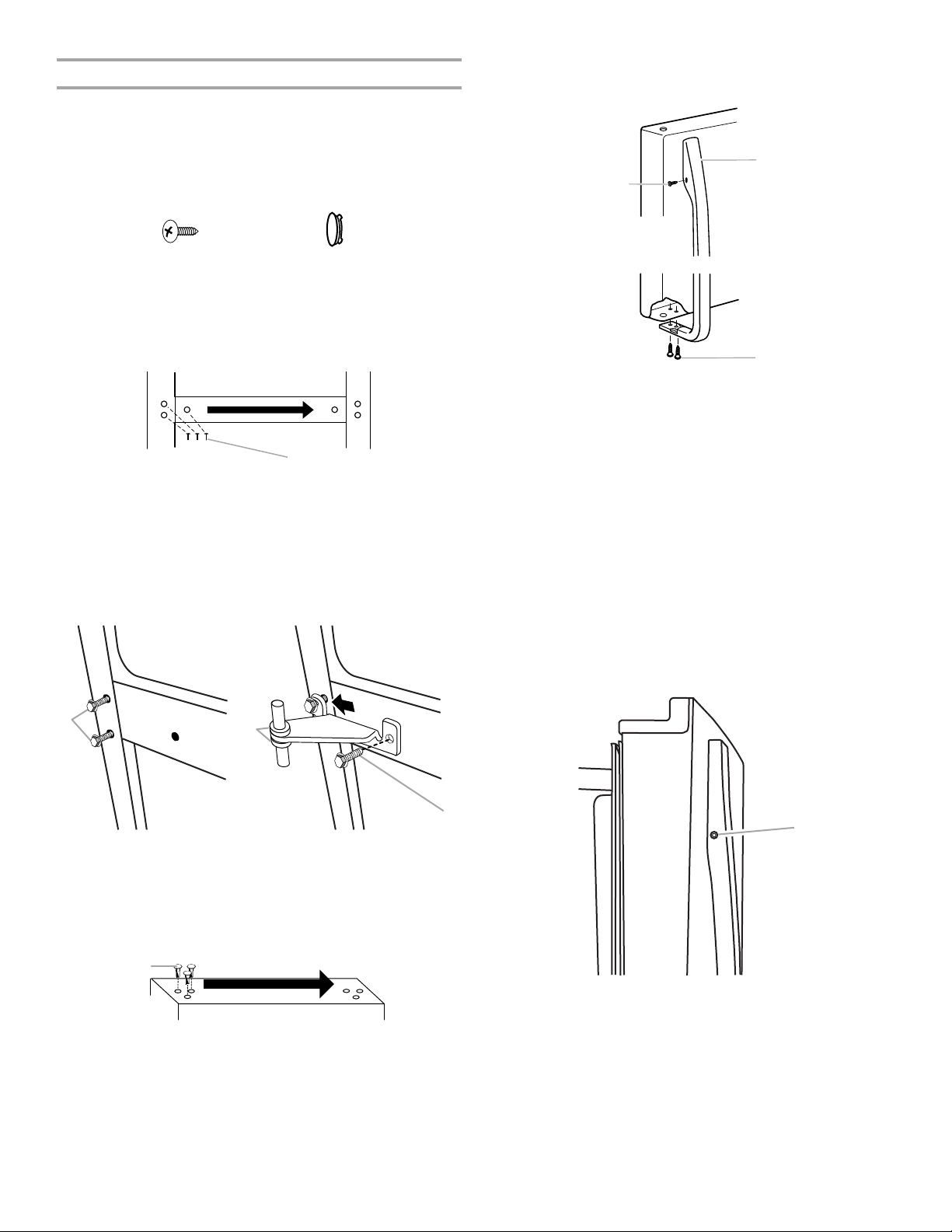

Reversibility Kit Instructions................................................................	12

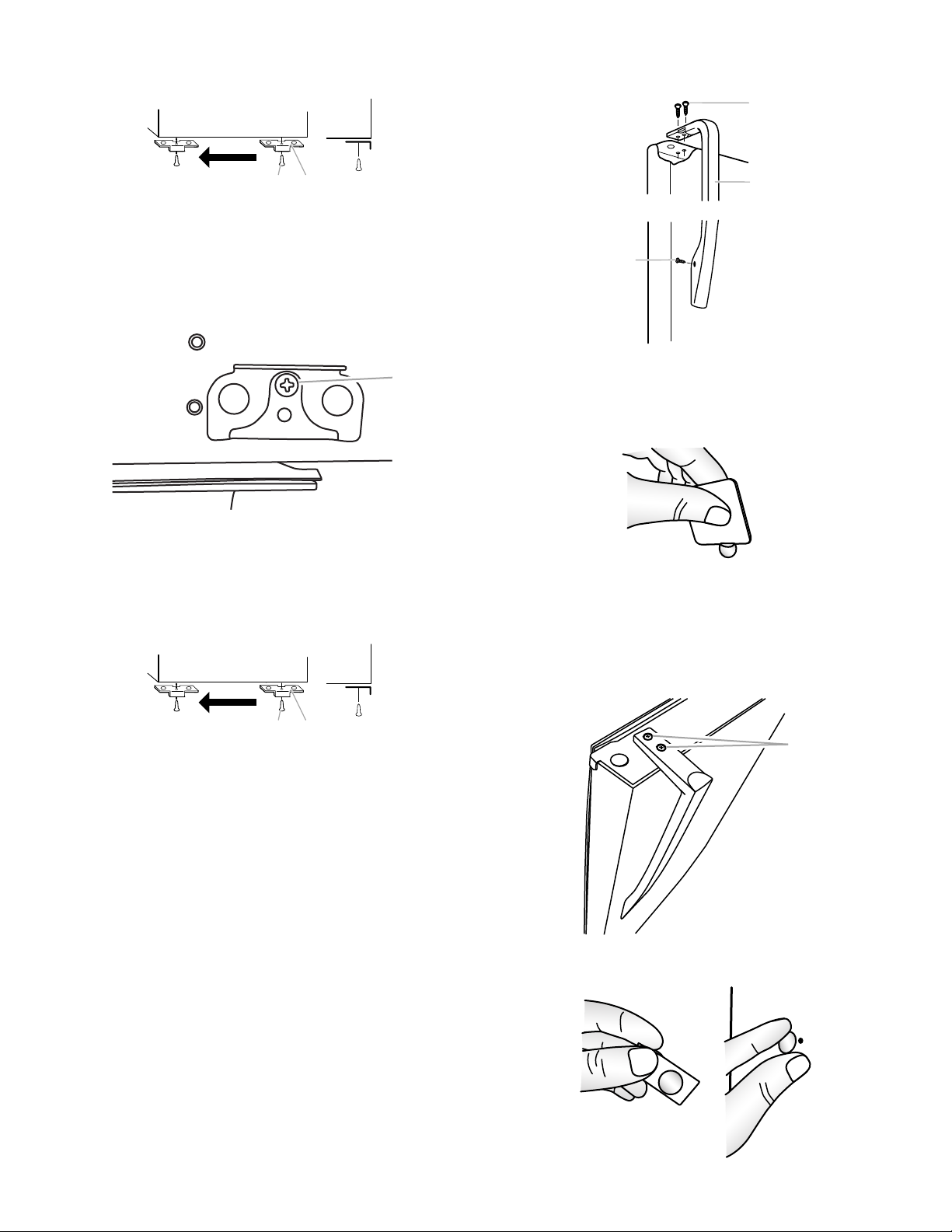

Adjust the Doors .................................................................................	12

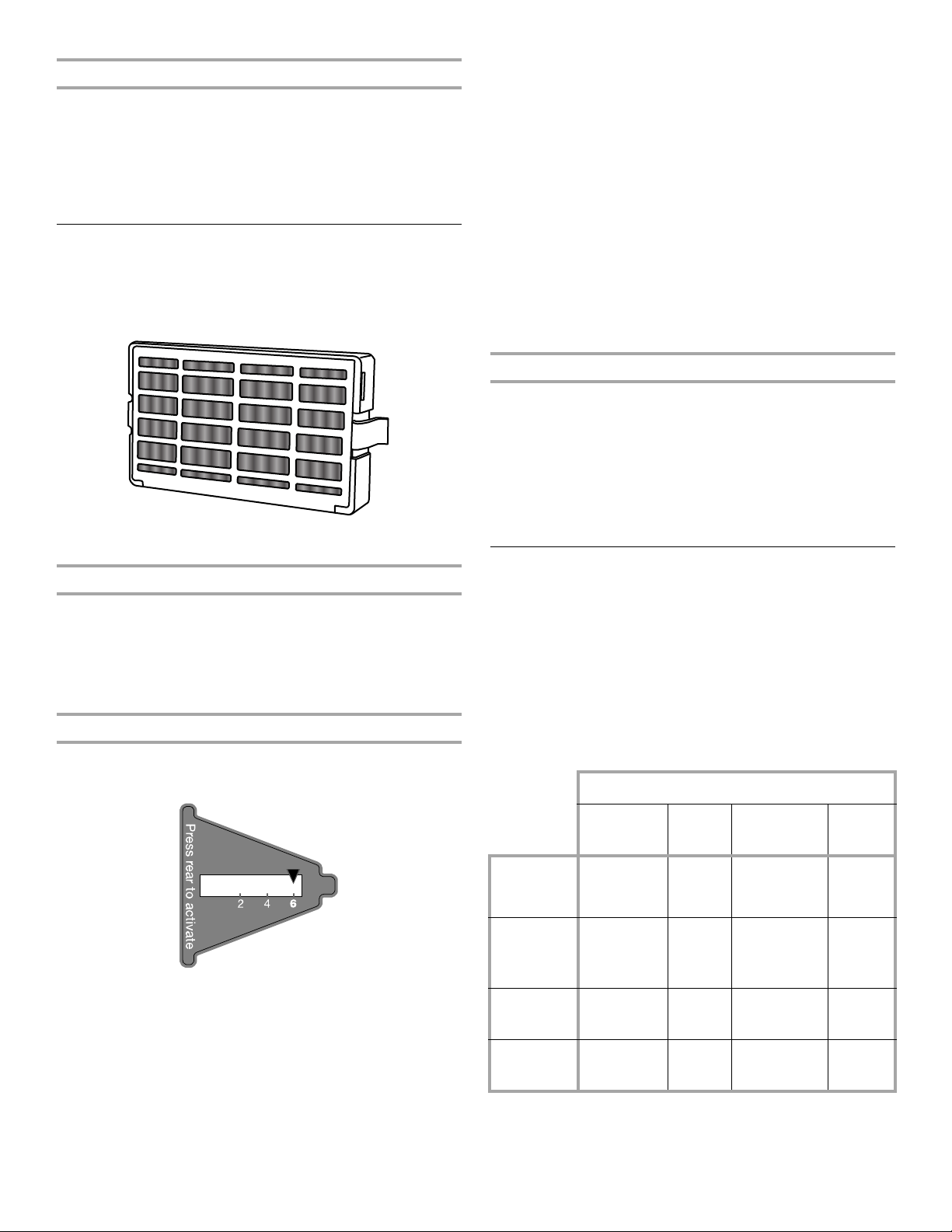

Install Air Filter.....................................................................................	13
Install Produce Preserver....................................................................	13
REFRIGERATOR USE ...........................................................................	14
Using the Controls ..............................................................................	14
REFRIGERATOR FEATURES ...............................................................	15

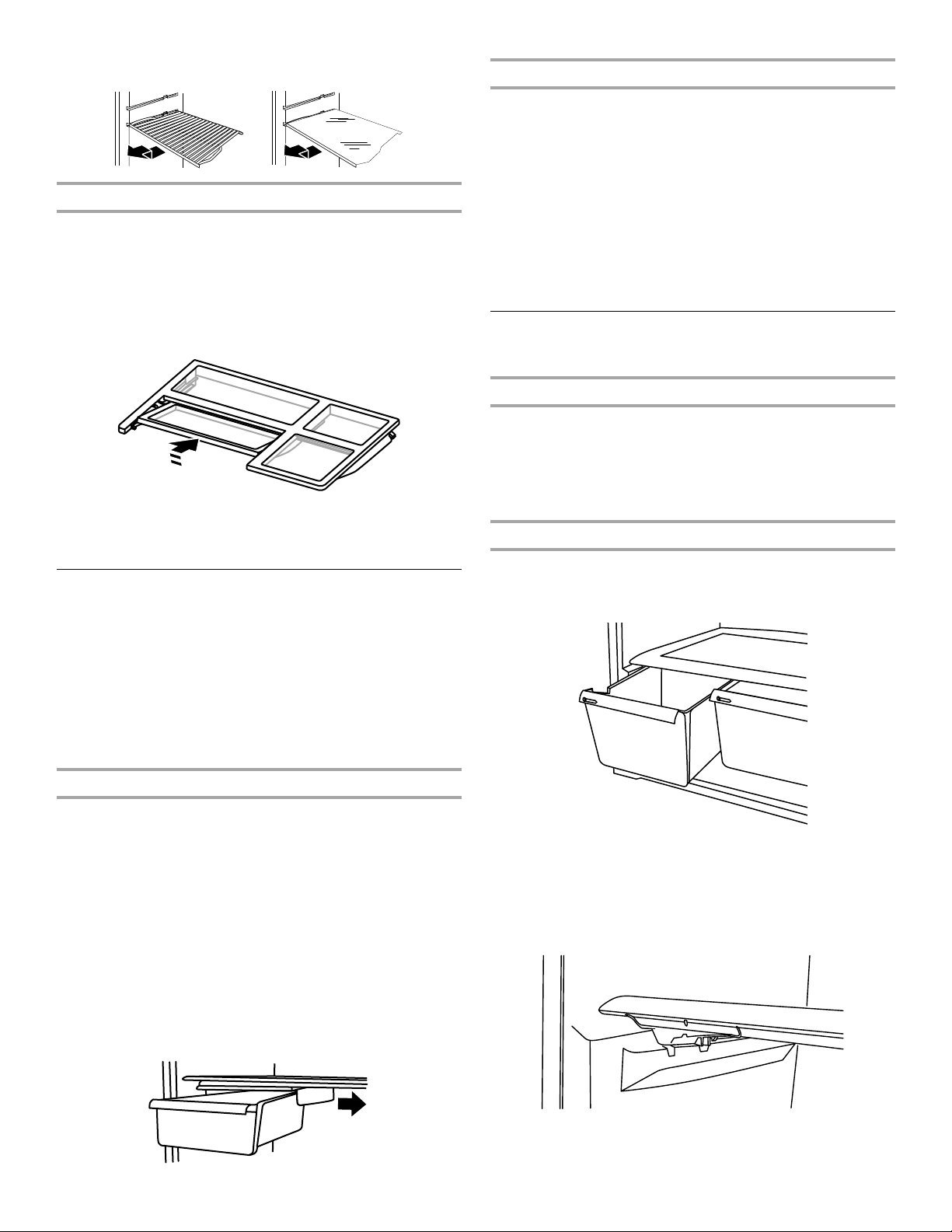

Refrigerator Shelves............................................................................	15

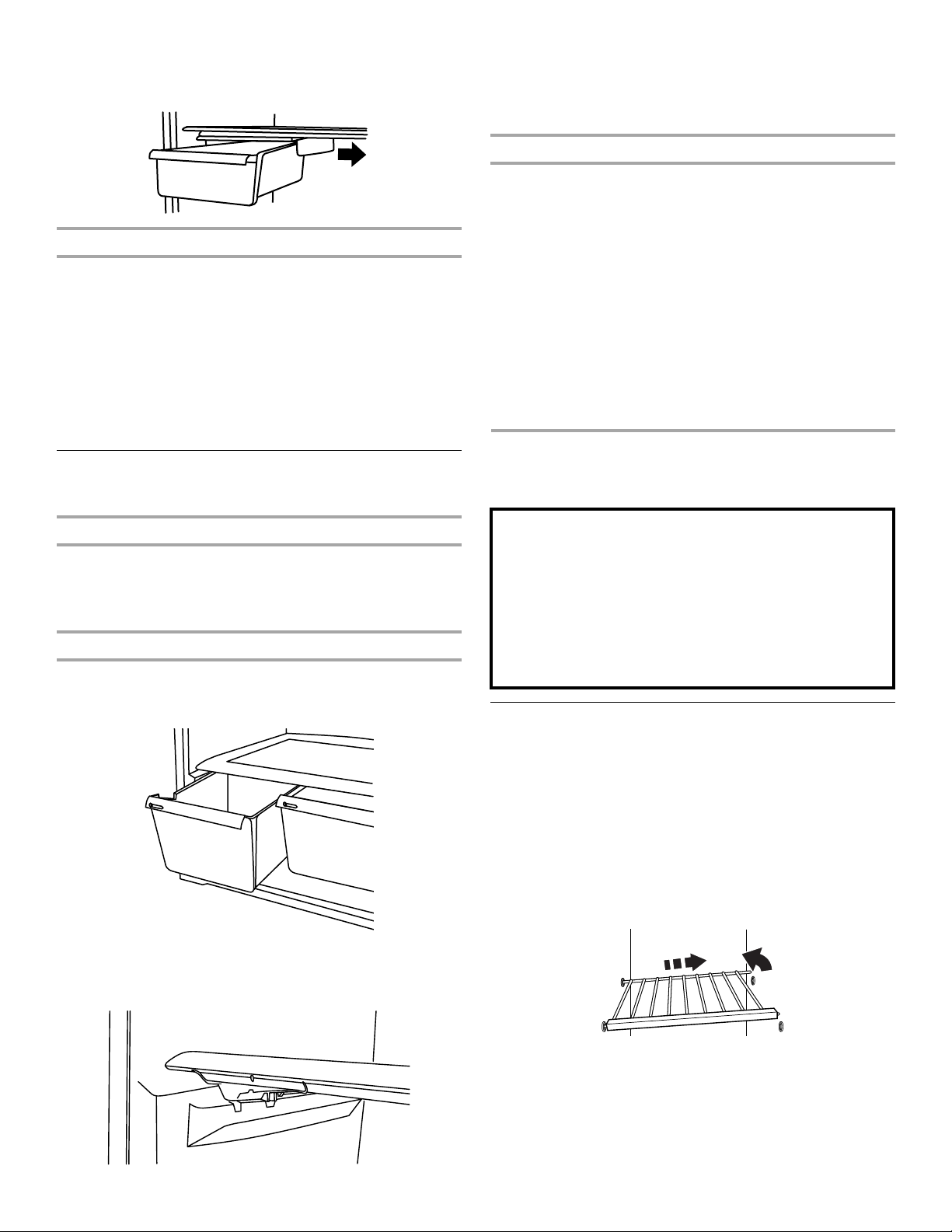

Meat Drawer........................................................................................	15
Crisper.................................................................................................	16
FREEZER FEATURES ...........................................................................	16
Wire Freezer Shelf...............................................................................	16
Glass Freezer Shelf .............................................................................	17

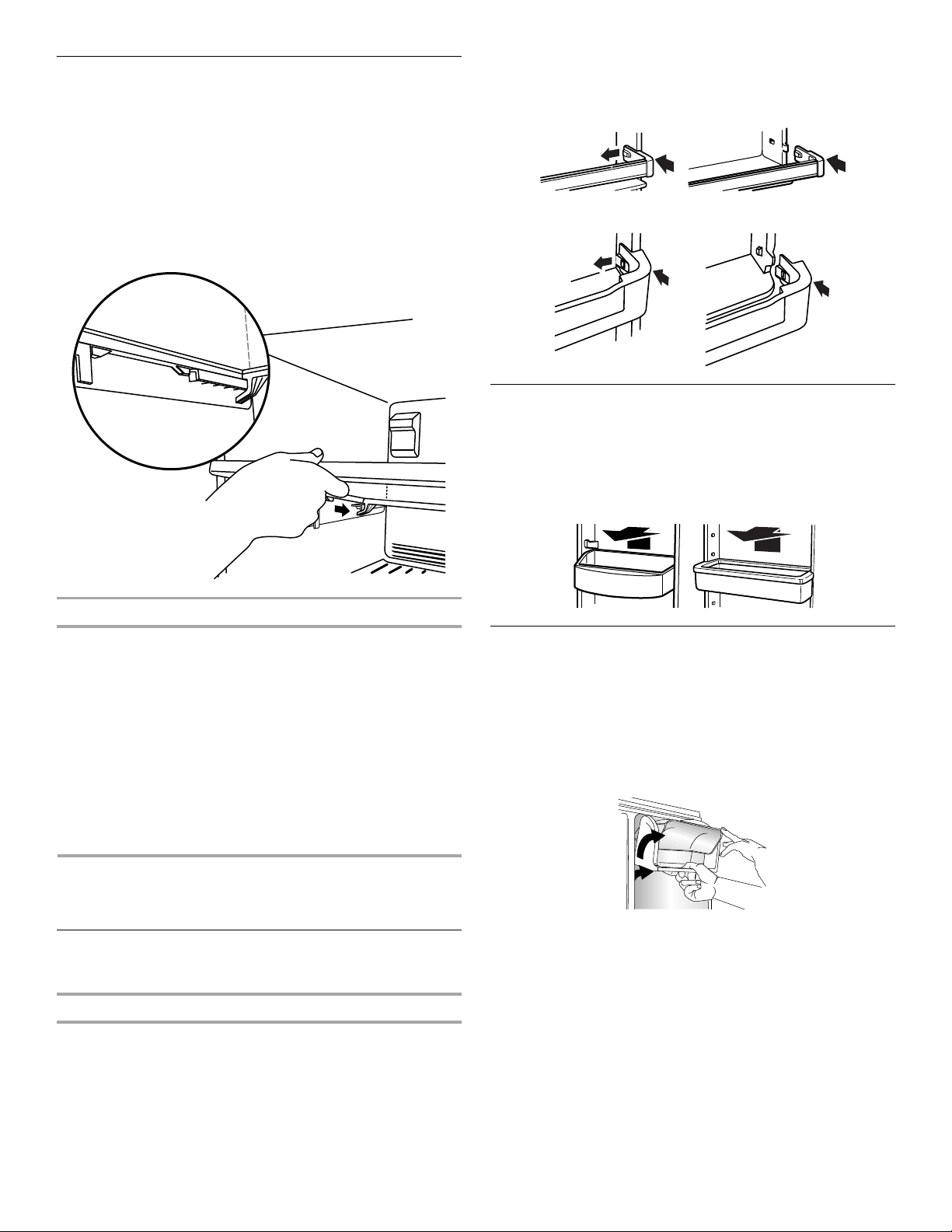

DOOR FEATURES .................................................................................	17

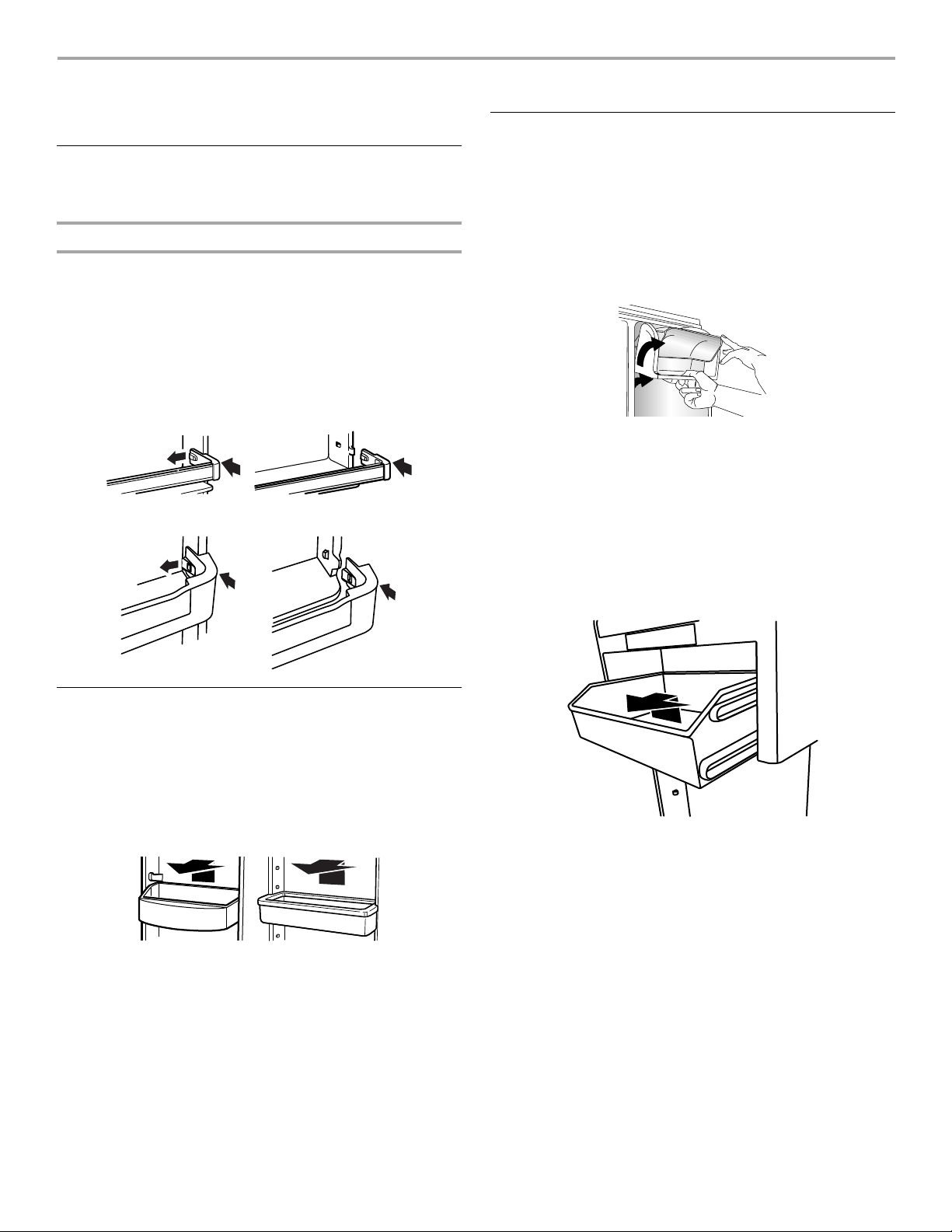

Door Rails............................................................................................	17
Door Bins.............................................................................................	17
Utility Compartment and Can Caddy .................................................	17
Ice Maker.............................................................................................	18
Water Filtration System.......................................................................	18
REFRIGERATOR CARE.........................................................................	19
Cleaning ..............................................................................................	19
Changing the Light Bulbs ...................................................................	19
TROUBLESHOOTING............................................................................	20
Refrigerator Operation ........................................................................	20
Temperature and Moisture .................................................................	20
Ice and Water......................................................................................	21
ACCESSORIES ......................................................................................	21

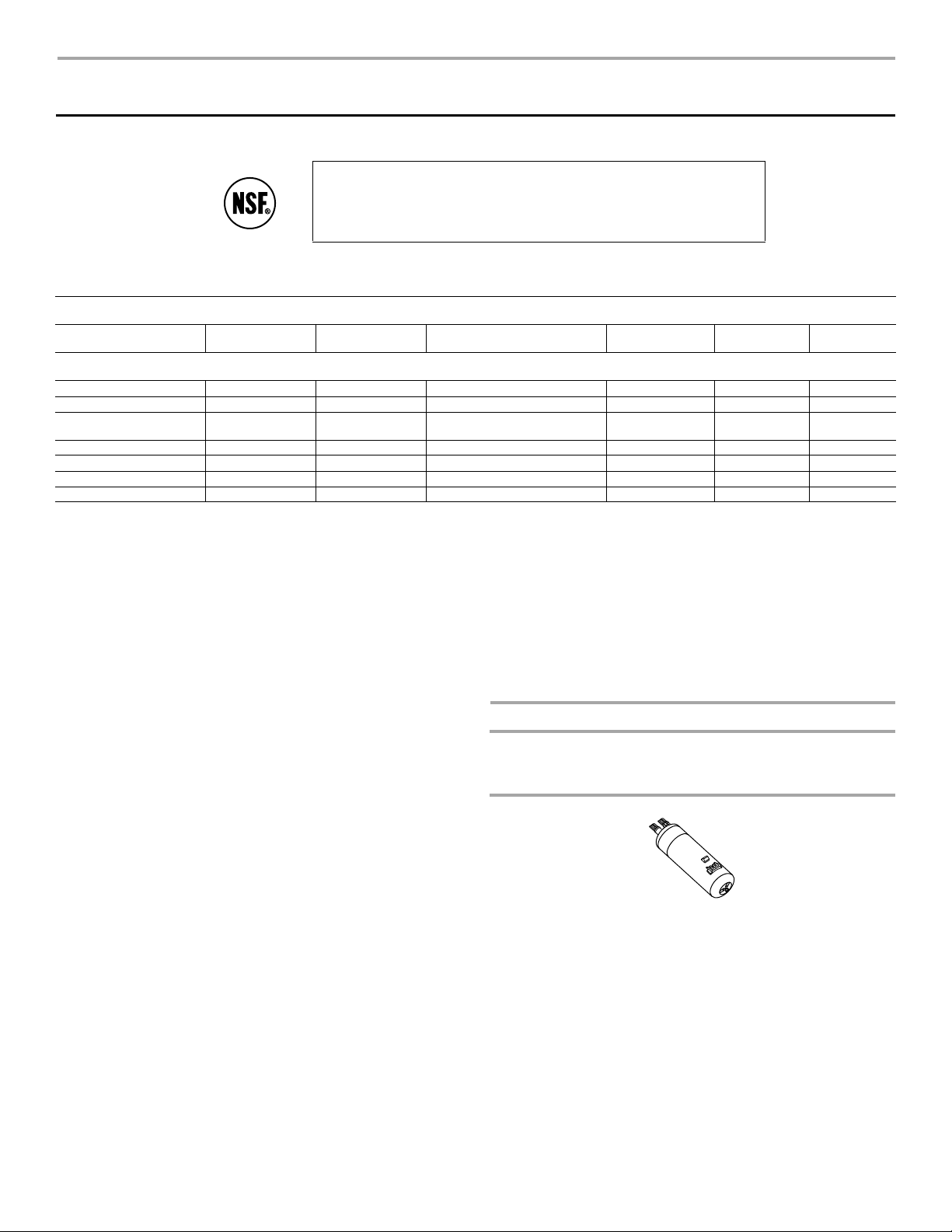

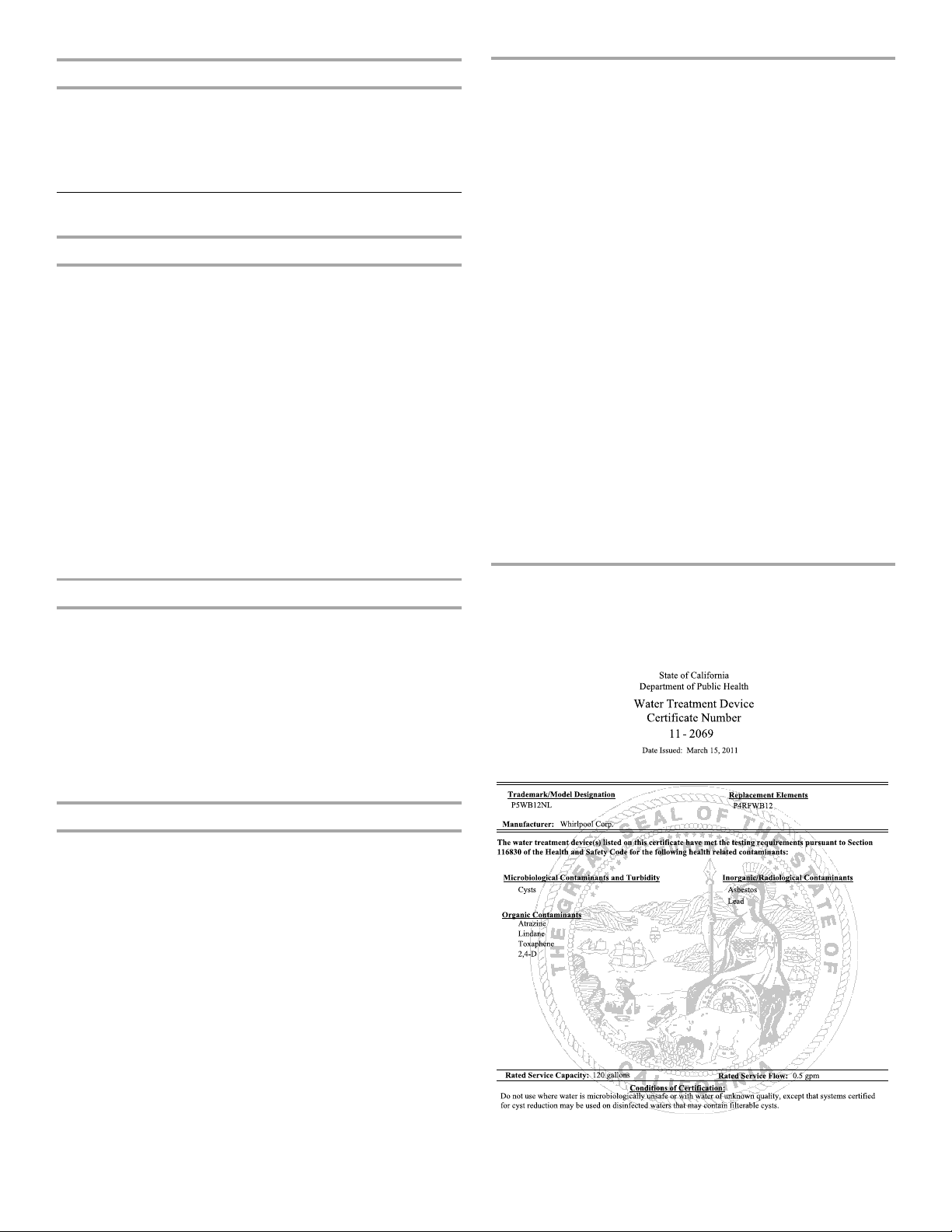

WATER FILTER CERTIFICATIONS ......................................................	21
PERFORMANCE DATA SHEET............................................................	22
WARRANTY............................................................................................	23

SÉCURITÉ DU RÉFRIGÉRATEUR .......................................................	24
INSTRUCTIONS D'INSTALLATION .....................................................	25
Déballage du réfrigérateur..................................................................	25
Exigences d'emplacement .................................................................	26
Spécifications électriques...................................................................	26
Spécifications de l’alimentation en eau..............................................	26
Raccordement de la canalisation d'eau.............................................	27
Portes du réfrigérateur........................................................................	28

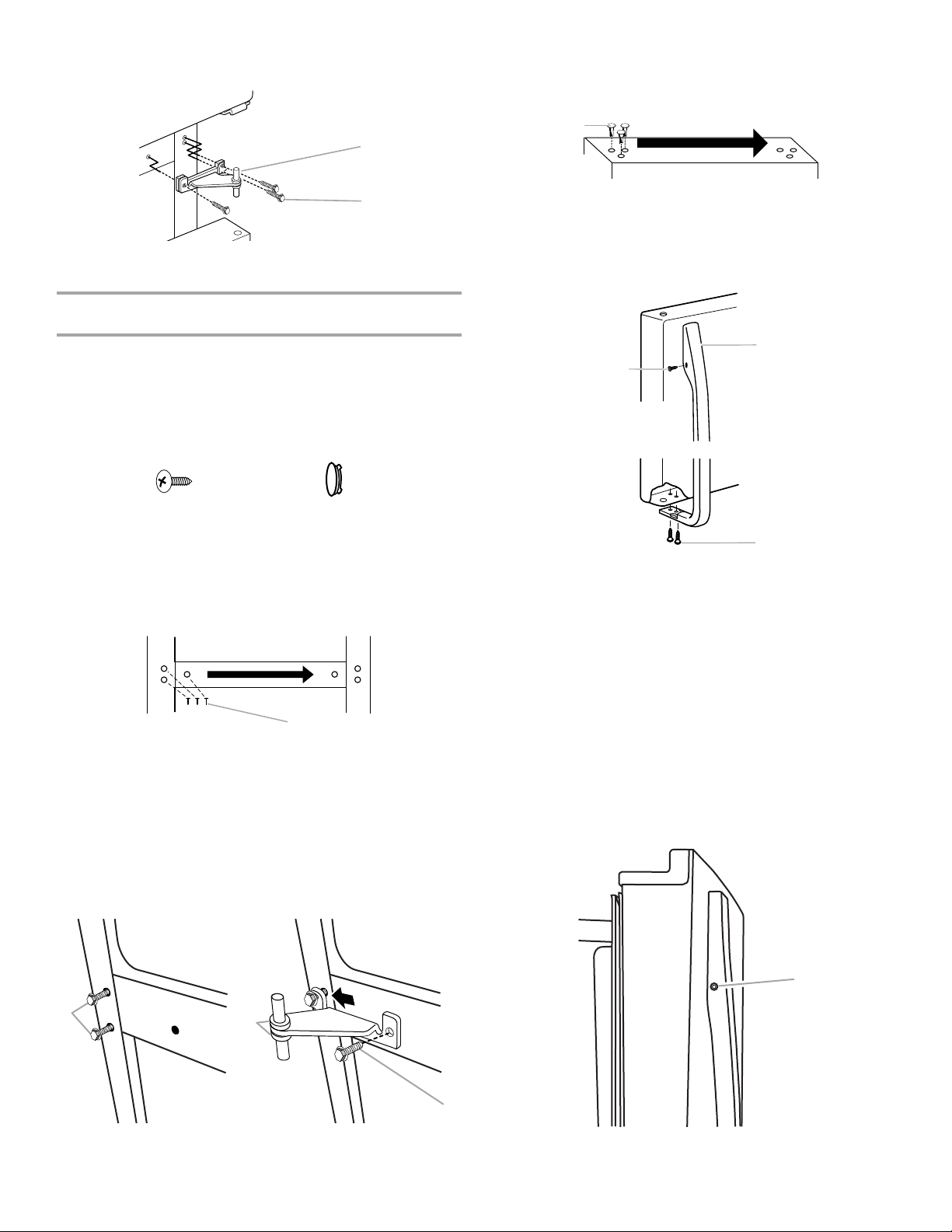

Instructions pour l'ensemble d’inversion du sens d’ouverture..........	34
Ajustement des portes........................................................................	34

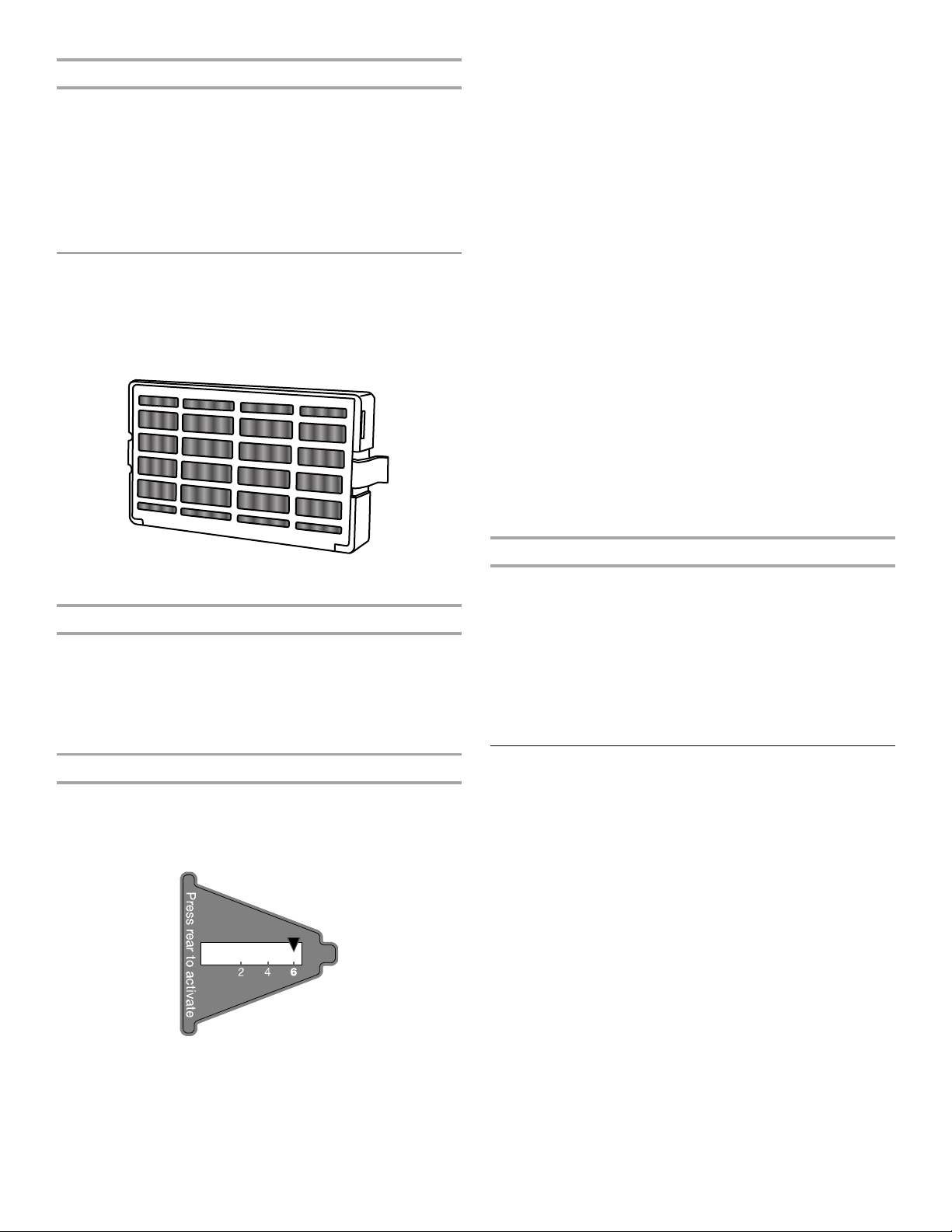

Installation du filtre à air......................................................................	35
Installation du conservateur pour produits frais.................................	35
UTILISATION DU RÉFRIGÉRATEUR...................................................	36

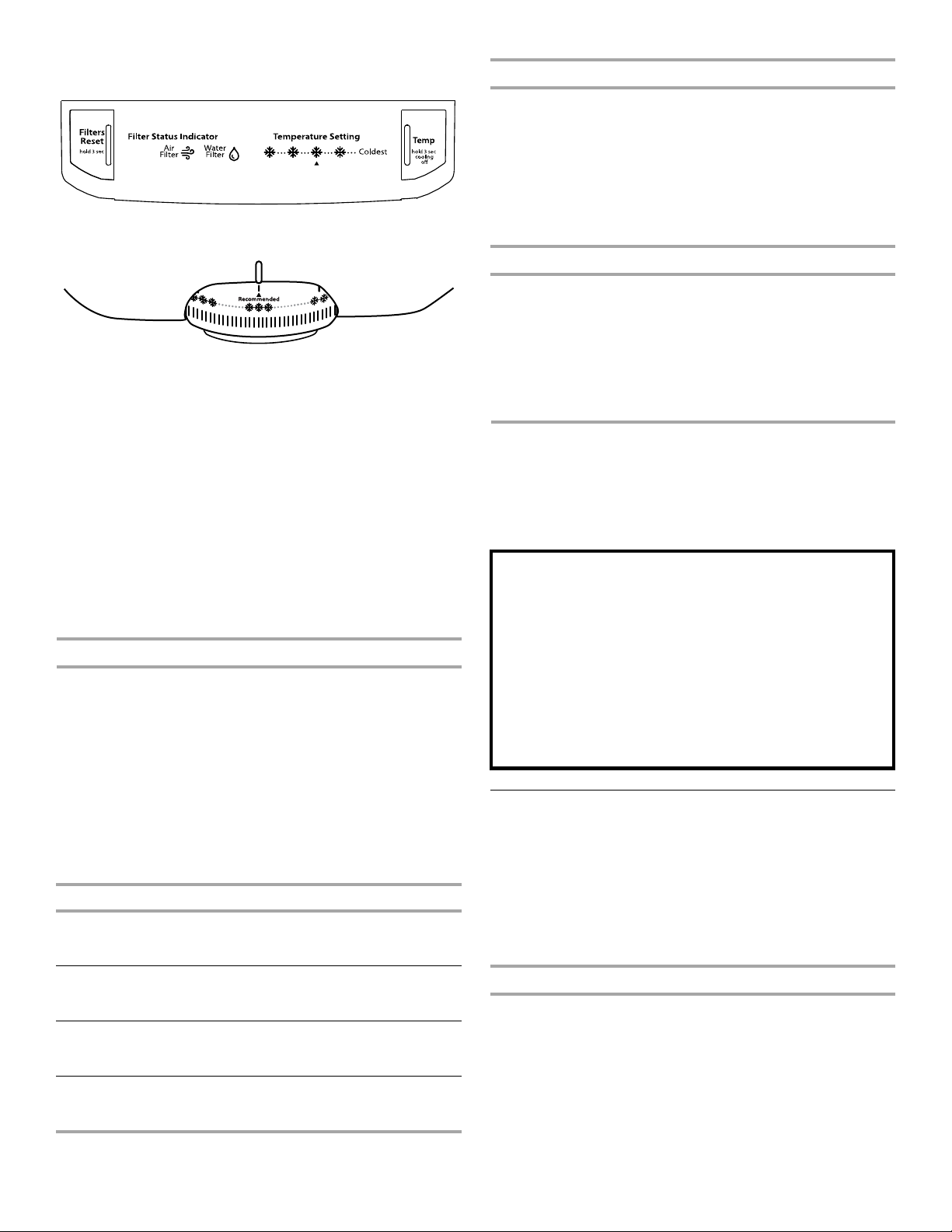

Utilisation des commandes ................................................................	36
CARACTÉRISTIQUES DU RÉFRIGÉRATEUR ....................................	37
Tablettes du réfrigérateur ...................................................................	37
Tiroir à viande .....................................................................................	38
Bac à légumes ....................................................................................	38
CARACTÉRISTIQUES DU CONGÉLATEUR .......................................	39

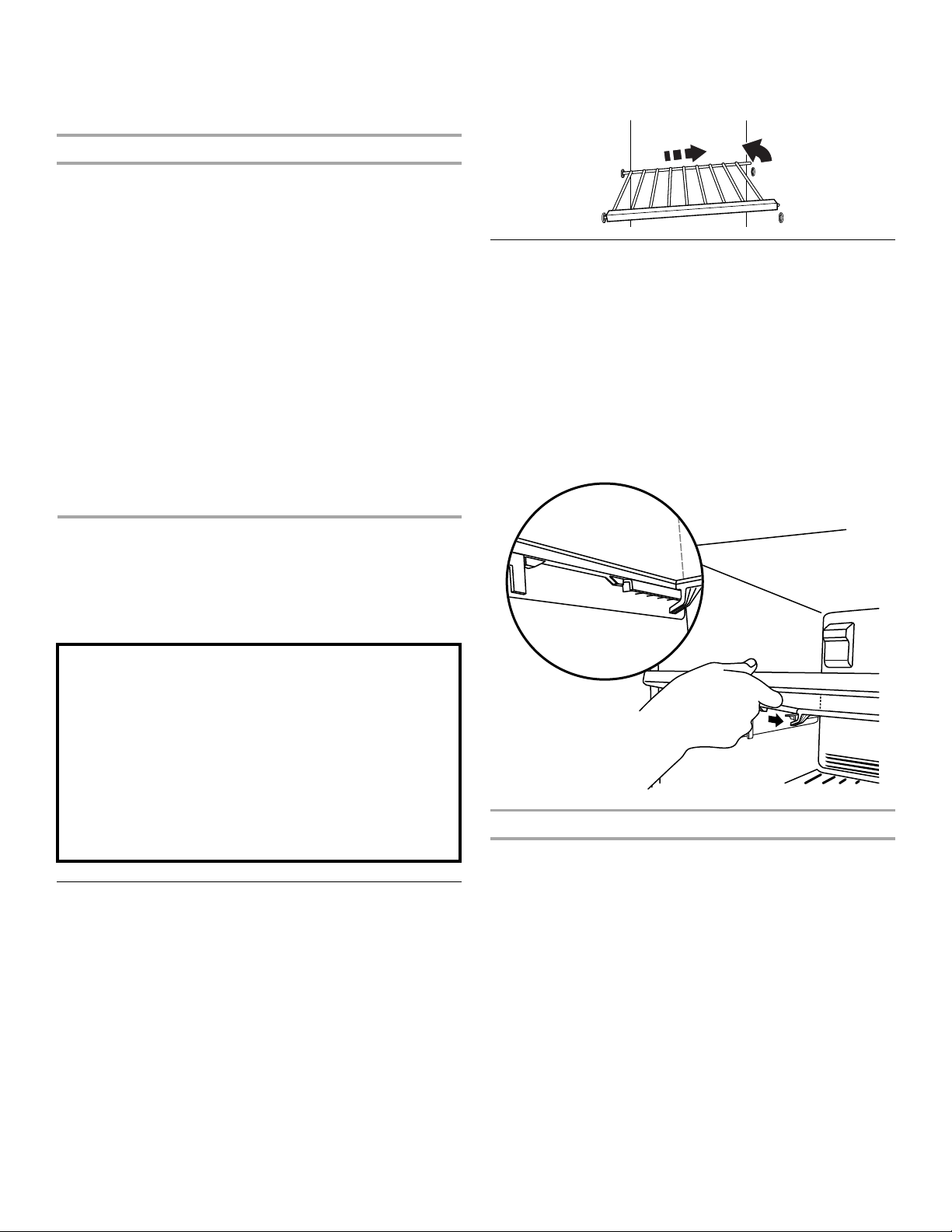

Tablette métallique du congélateur....................................................	39
Tablette en verre du congélateur .......................................................	39
CARACTÉRISTIQUES DE LA PORTE..................................................	40
Tringles dans la porte .........................................................................	40
Balconnets de porte ...........................................................................	40
Compartiment utilitaire et compartiment à canettes .........................	40
Machine à glaçons..............................................................................	41
Système de filtration de l'eau .............................................................	41
ENTRETIEN DU RÉFRIGÉRATEUR.....................................................	42
Nettoyage ...........................................................................................	42
Remplacement des ampoules d’éclairage.........................................	42
DÉPANNAGE .........................................................................................	43
Fonctionnement du réfrigérateur........................................................	43
Température et humidité ....................................................................	44
Glaçons et eau....................................................................................	44
ACCESSOIRES ......................................................................................	45
FEUILLE DE DONNÉES SUR LA PERFORMANCE............................	46
GARANTIE..............................................................................................	47

W10551713A

REFRIGERATOR SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.” These words mean:

DANGER

WARNING

You can be killed or seriously injured if you don't immediately follow instructions.

You can be killed or seriously injured if you don't follow instructions.

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

IMPORTANT SAFETY INSTRUCTIONS

WARNING:To reduce the risk of fire, electric shock, or injury to persons when using the refrigerator, follow basic precautions, including the following:

■ Plug into a grounded 3 prong outlet.	■ Use nonflammable cleaner.
■ Do not remove ground prong.	■ Keep flammable materials and vapors, such as gasoline,
■ Do not use an adapter.	away from refrigerator.
■ Do not use an extension cord.	■ Use two or more people to move and install refrigerator.
■ Disconnect power before servicing.	■ Disconnect power before installing ice maker (on ice maker
■ Replace all parts and panels before operating.	kit ready models only).
■ Replace all parts and panels before operating.
■ Remove doors from your old refrigerator.

SAVE THESE INSTRUCTIONS

State of California Proposition 65 Warnings:

WARNING: This product contains one or more chemicals known to the State of California to cause cancer.

WARNING: This product contains one or more chemicals known to the State of California to cause birth defects or other reproductive harm.

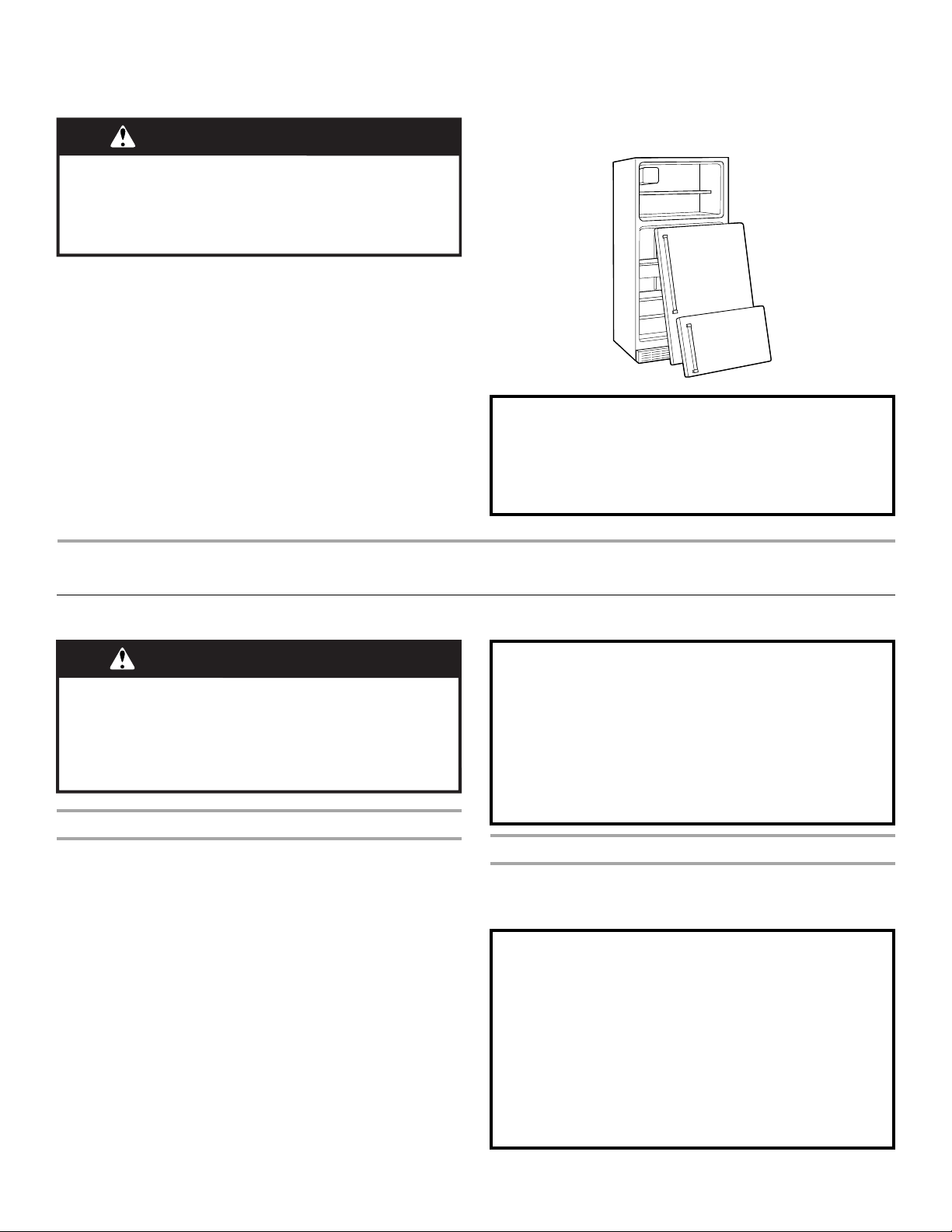

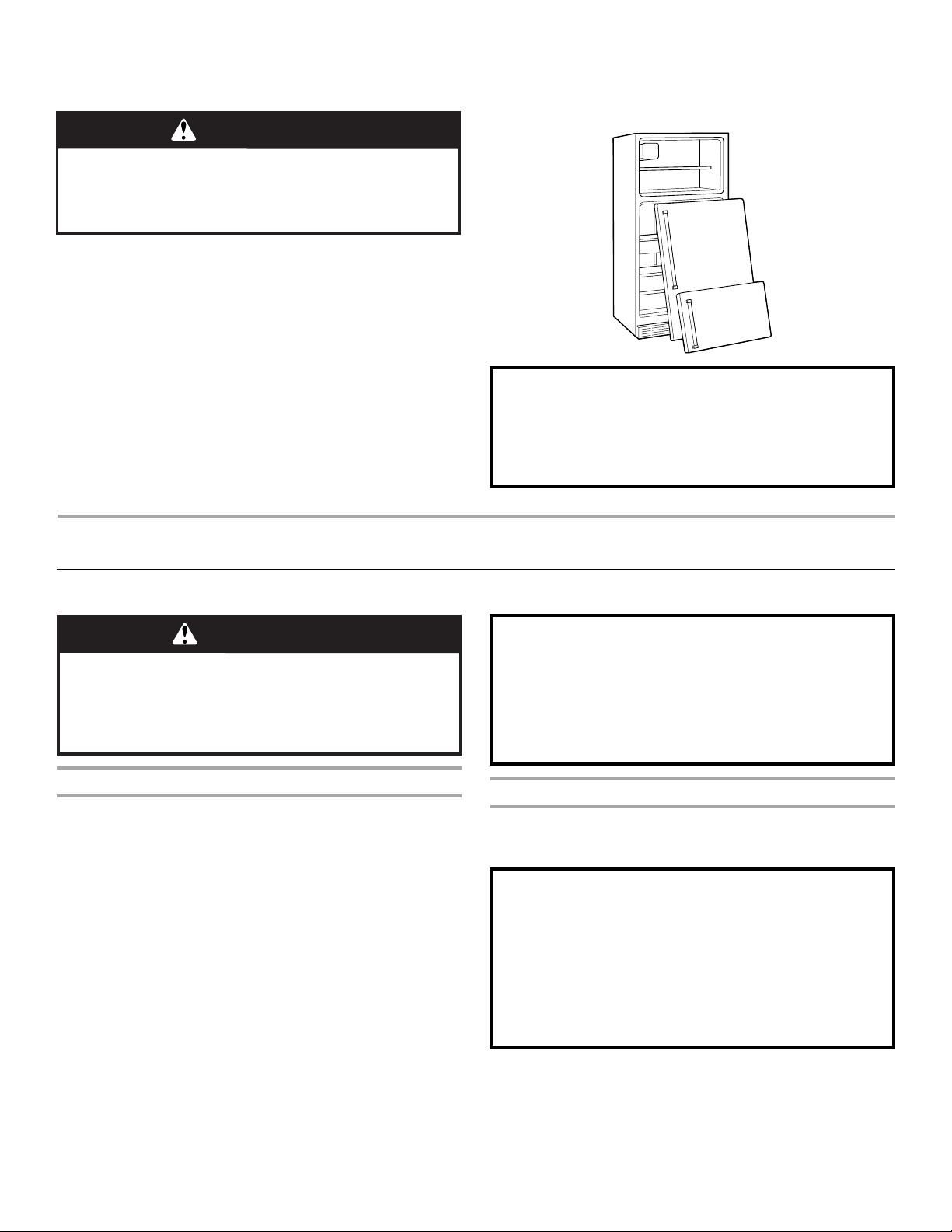

Proper Disposal of

Your Old Refrigerator

WARNING

Suffocation Hazard

Remove doors from your old refrigerator.

Failure to do so can result in death or brain damage.

IMPORTANT: Child entrapment and suffocation are not problems of the past. Junked or abandoned refrigerators are still dangerous

– even if they will sit for “just a few days.” If you are getting rid of your old refrigerator, please follow these instructions to help prevent accidents.

Before You Throw Away Your Old Refrigerator or Freezer:

■Take off the doors.

■Leave the shelves in place so that children may not easily climb inside.

Important information to know about disposal of refrigerants:

Dispose of refrigerator in accordance with Federal and Local regulations. Refrigerants must be evacuated by a licensed, EPA certified refrigerant technician in accordance with established procedures.

INSTALLATION INSTRUCTIONS

Unpack the Refrigerator

WARNING

Excessive Weight Hazard

Use two or more people to move and install refrigerator.

Failure to do so can result in back or other injury.

Remove the Packaging

When Moving Your Refrigerator:

Your refrigerator is heavy. When moving the refrigerator for cleaning or service, be sure to cover the floor with cardboard or hardboard to avoid floor damage. Always pull the refrigerator straight out when moving it. Do not wiggle or “walk” the refrigerator when trying to move it, as floor damage could occur.

Clean Before Using

IMPORTANT: Do not remove the white foam air return insert from behind the control panel on the ceiling of the refrigerator. If the insert is removed, ice may migrate down from the freezer and cause icicles to form.

■Remove tape and glue residue from surfaces before turning on the refrigerator. Rub a small amount of liquid dish soap over the adhesive with your fingers. Rinse with warm water and dry with a soft cloth.

■Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your refrigerator. For more information see “Refrigerator Safety.”

After you remove all of the package materials, clean the inside of your refrigerator before using it. See the cleaning instructions in “Refrigerator Care.”

Important information to know about glass shelves and covers:

Do not clean glass shelves or covers with warm water when they are cold. Shelves and covers may break if exposed to sudden temperature changes or impact, such as bumping. Tempered glass is designed to shatter into many small, pebble-size pieces. This is normal. Glass shelves and covers are heavy. Use both hands when removing them to avoid dropping.

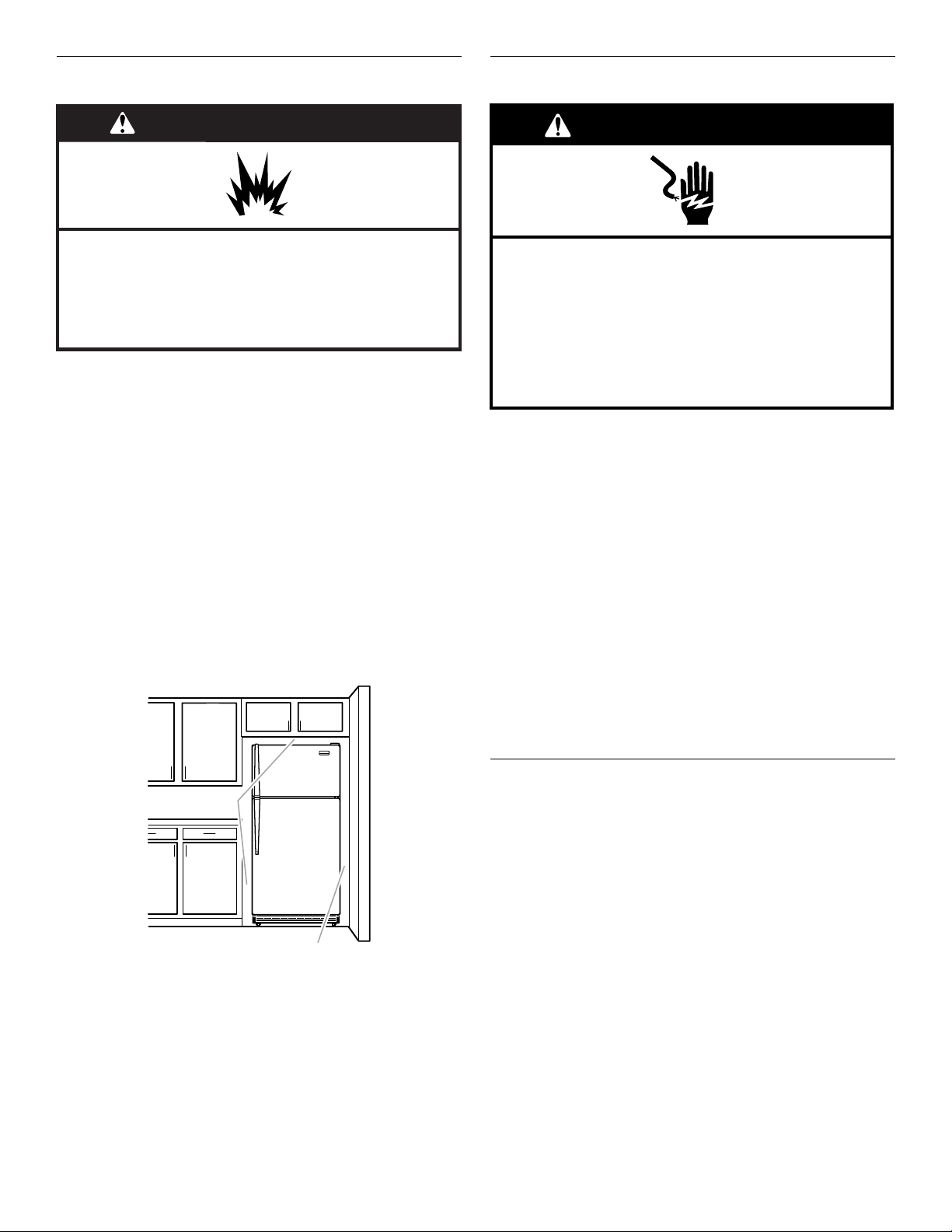

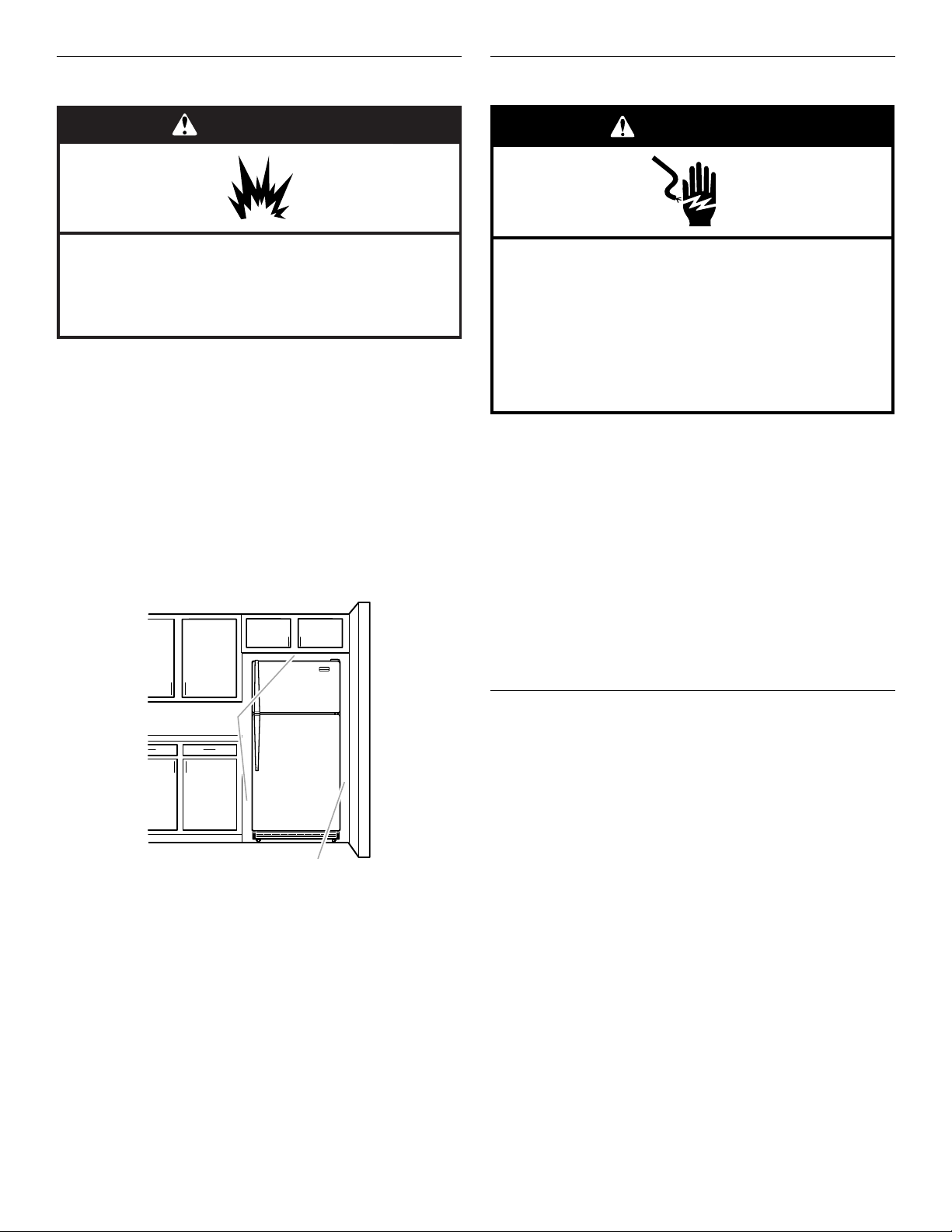

Location Requirements

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as gasoline, away from refrigerator.

Failure to do so can result in death, explosion, or fire.

IMPORTANT: This refrigerator is designed for indoor household use only.

To ensure proper ventilation for your refrigerator, allow for ½" (1.25 cm) of space on each side and at the top. Allow for 1" (2.54 cm) of space behind the refrigerator. If your refrigerator has an ice maker, allow extra space at the back for the water line connections. When installing your refrigerator next to a fixed wall, leave a 2" (5.08 cm) minimum space on the hinge side (some models require more) to allow the door to swing open.

NOTE: This refrigerator is intended for use in a location where the temperature ranges from a minimum of 55°F (13°C) to a maximum of 110°F (43°C). The preferred room temperature range for optimum performance, which reduces electricity usage and provides superior cooling, is between 60°F (15°C) and 90°F (32°C). It is recommended that you do not install the refrigerator near a heat source, such as an oven or radiator.

1/2" (1.25 cm)

2" (5.08 cm)

Electrical Requirements

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

Before you move your refrigerator into its final location, it is important to make sure you have the proper electrical connection.

Recommended Grounding Method

A 115 volt, 60 Hz, AC only, 15or 20-amp fused, grounded electrical supply is required. It is recommended that a separate circuit serving only your refrigerator be provided. Use an outlet that cannot be turned off by a switch. Do not use an extension cord.

NOTE: Before performing any type of installation or cleaning, or removing a light bulb, turn cooling off or turn the control (Thermostat, Refrigerator or Freezer Control depending on the model) to OFF, and then disconnect the refrigerator from the electrical source. When you are finished, reconnect the refrigerator to the electrical source and turn cooling on or reset the control (Thermostat, Refrigerator or Freezer Control depending on the model) to the desired setting. See “Using the Controls” in the User Instructions, User Guide, or Use & Care Guide.

Water Supply Requirements

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

TOOLS NEEDED:

■	Flat-blade screwdriver	■	¹⁄ " Nut driver
■	⁄ " and ¹⁄ " Open-end or two	■	¹⁄ " Drill bit
	adjustable wrenches	■	Cordless drill
		■	Cordless drill

NOTE: Your refrigerator dealer has a kit available with a ¹⁄ " (6.35 mm) saddle-type shutoff valve, a union, and copper tubing. Before purchasing, make sure a saddle-type valve complies with your local plumbing codes. Do not use a piercing-type or ³⁄ "

(4.76 mm) saddle valve which reduces water flow and clogs more easily.

IMPORTANT:

■All installations must meet local plumbing code requirements.

■Use copper tubing and check for leaks. Install copper tubing only in areas where the household temperatures will remain above freezing.

Water Pressure

A cold water supply with water pressure of between 30 and 120 psi (207 and 827 kPa) is required to operate the water

dispenser and ice maker. If you have questions about your water pressure, call a licensed, qualified plumber.

Reverse Osmosis Water Supply

IMPORTANT: The pressure of the water supply coming out of a reverse osmosis system going to the water inlet valve of the refrigerator needs to be between 30 and 120 psi (207 and

827 kPa).

If a reverse osmosis water filtration system is connected to your cold water supply, the water pressure to the reverse osmosis system needs to be a minimum of 40 to 60 psi (276 to 414 kPa).

If the water pressure to the reverse osmosis system is less than 40 to 60 psi (276 to 414 kPa):

■Check to see whether the sediment filter in the reverse osmosis system is blocked. Replace the filter if necessary.

■Allow the storage tank on the reverse osmosis system to refill after heavy usage.

If you have questions about your water pressure, call a licensed, qualified plumber.

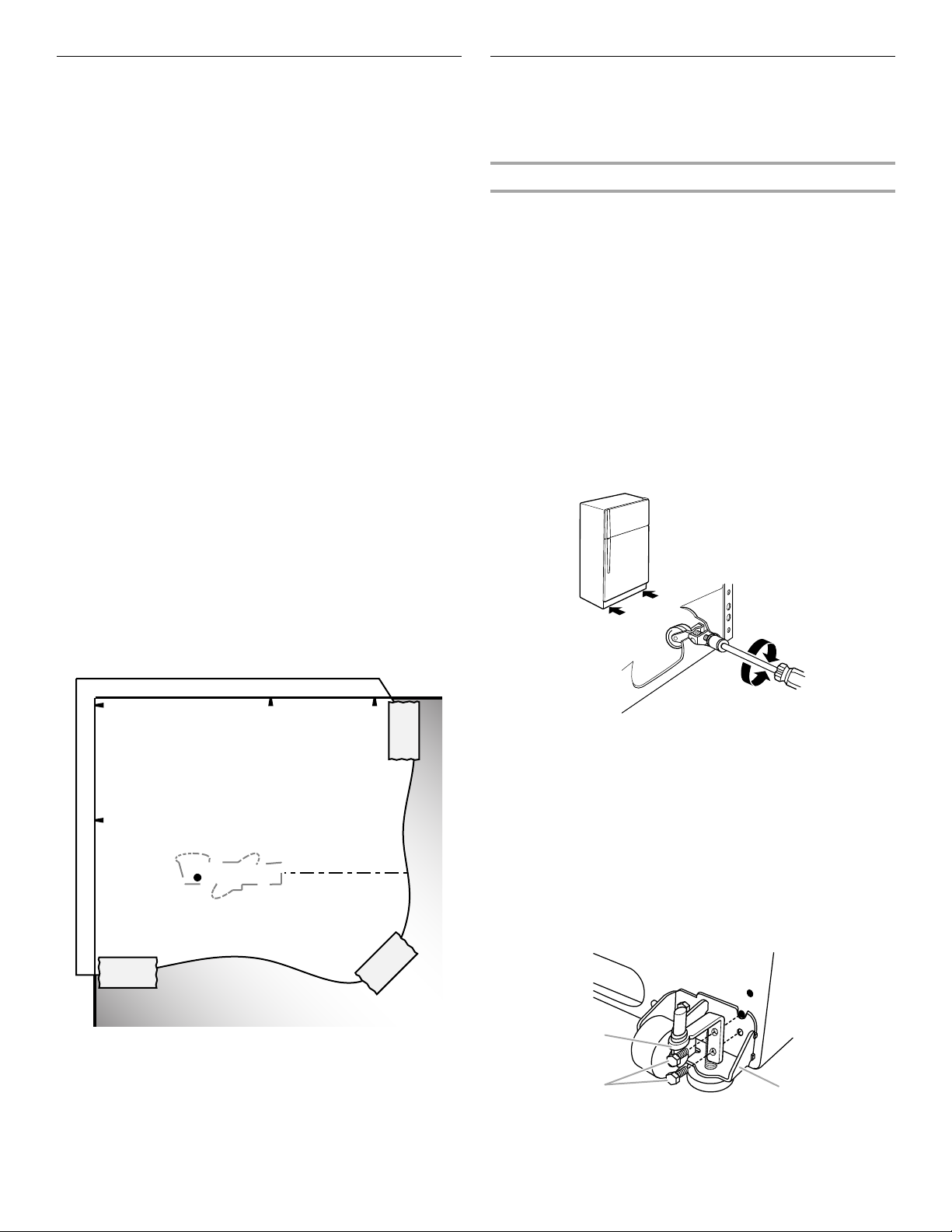

Connect the Water Supply

Read all directions before you begin.

IMPORTANT: If you turn the refrigerator on before the water line is connected, turn the ice maker OFF.

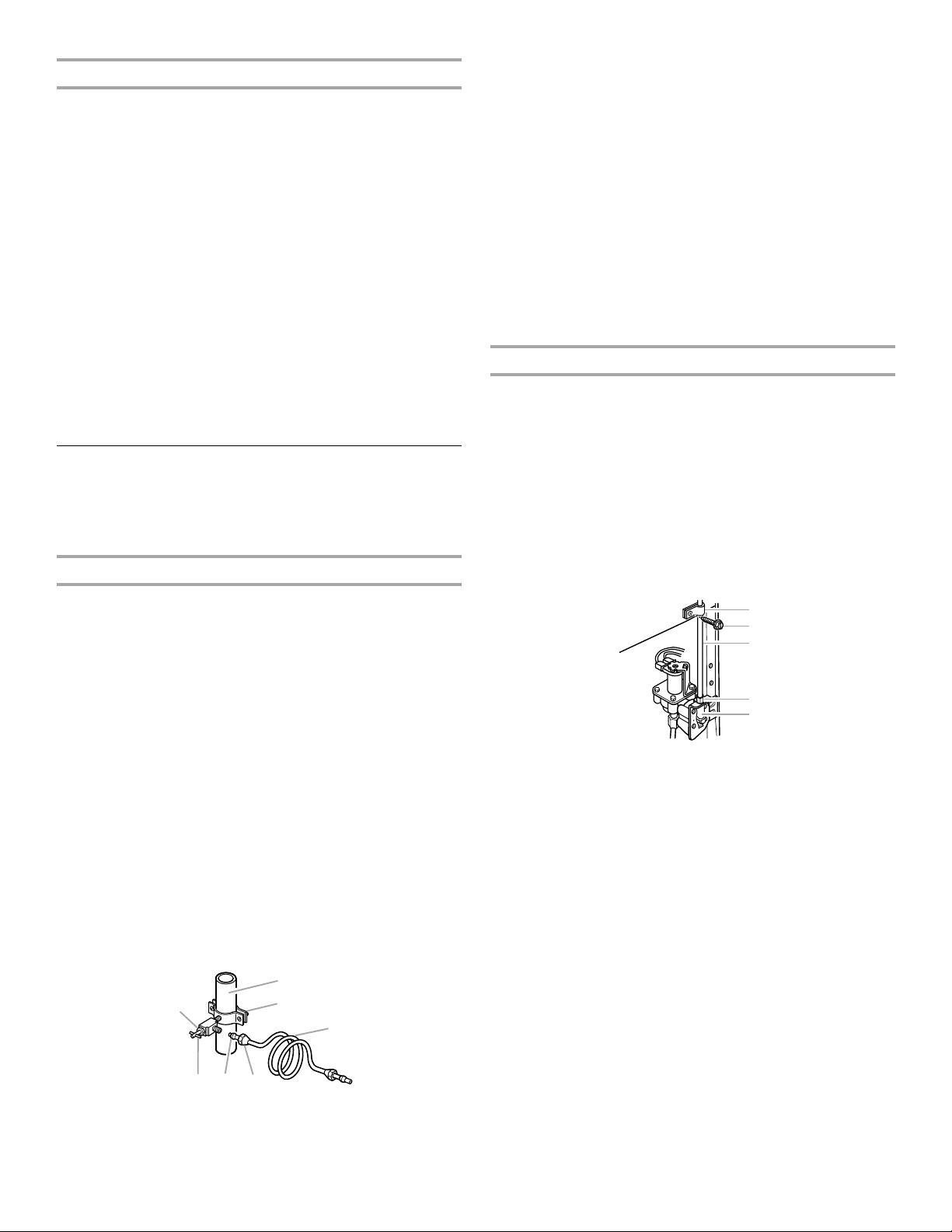

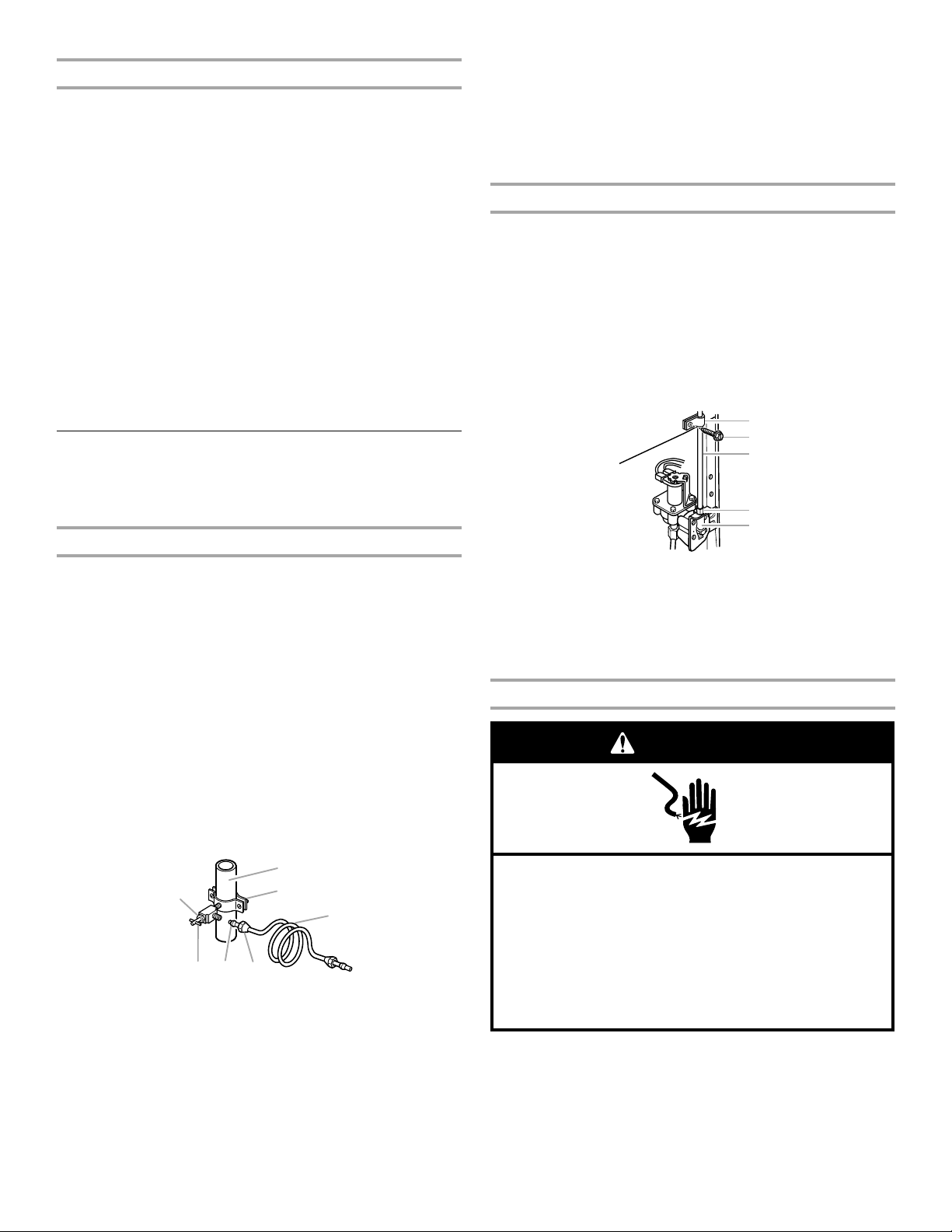

Connect to Water Line

1.Unplug refrigerator or disconnect power.

2.Turn OFF main water supply. Turn ON nearest faucet long enough to clear line of water.

3.Locate a ½" to 1¹⁄ " (1.25 cm to 3.18 cm) vertical cold water pipe near the refrigerator.

IMPORTANT:

■Make sure it is a cold water pipe.

■Horizontal pipe will work, but drill on the top side of the pipe, not the bottom. This will help keep water away from the drill and normal sediment from collecting in the valve.

4.Determine the length of copper tubing you need. Measure from the connection on the lower left rear of refrigerator to the water pipe. Add 7 ft (2.1 m) to allow for cleaning. Use ¹⁄ " (6.35 mm) O.D. (outside diameter) copper tubing. Be sure both ends of copper tubing are cut square.

5.Using a cordless drill, drill a ¹⁄ " hole in the cold water pipe you have selected.

	A
G	B
G
	C
F E	D
A. Cold water pipe	E. Compression sleeve
B. Pipe clamp	F. Shutoff valve
C. Copper tubing	G. Packing nut

D.Compression nut

6.Fasten the shutoff valve to the cold water pipe with the pipe clamp. Be sure the outlet end is solidly in the ¹⁄ " drilled hole in the water pipe and that the washer is under the pipe clamp. Tighten the packing nut. Tighten the pipe clamp screws slowly and evenly so washer makes a watertight seal. Do not overtighten or you may crush the copper tubing.

7.Slip the compression sleeve and compression nut on the copper tubing as shown. Insert the end of the tubing into the outlet end squarely as far as it will go. Screw compression nut onto outlet end with adjustable wrench. Do not overtighten.

8.Place the free end of the tubing in a container or sink, and turn ON the main water supply. Flush the tubing until water is clear. Turn OFF the shutoff valve on the water pipe. Coil the copper tubing.

Connect to Refrigerator

1.Unplug refrigerator or disconnect power.

2.Attach the copper tube to the valve inlet using a compression nut and sleeve as shown. Tighten the compression nut. Do not overtighten.

3.Use the tube clamp on the back of the refrigerator to secure the tubing to the refrigerator as shown. This will help avoid damage to the tubing when the refrigerator is pushed back against the wall.

4.Turn shutoff valve ON.

5.Check for leaks. Tighten any connections (including connections at the valve) or nuts that leak.

A. Tube clamp	D. Compression nut
B. Tube clamp screw	E. Valve inlet

C.Copper tubing

6.The ice maker is equipped with a built-in water strainer. If your water conditions require a second water strainer, install it in the ¹⁄ " (6.35 mm) water line at either tube connection. Obtain a water strainer from your nearest appliance dealer.

Complete the Installation

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death, fire, or electrical shock.

1. Plug into a grounded 3 prong outlet.

NOTE: Allow 24 hours to produce the first batch of ice. Discard the first three batches of ice produced. Allow 3 days to completely fill ice container.

Refrigerator Doors

Depending on the width of your doorway, you may need to remove the doors to move the refrigerator into your home. Also, the door hinges are factory installed on the right-hand side. If you want the door to open from the other direction, you must reverse the door swing.

IMPORTANT:

■Before you begin, turn the refrigerator control OFF, unplug refrigerator or disconnect power. Remove food and any adjustable door or utility bins from doors.

■Depending on your model, your refrigerator has either

Style 1–Contour Doors or Style 2–Standard Doors. Reference the graphic specific to your model later in this section following “Final Steps.”

NOTE: For contour door models only - A Reversibility kit, which includes a new Brand Badge and hole covers, is available. To purchase a reversibility kit, see “Accessories” for contact information, and order Part Number W10395148.

Tools Needed: ⁄" hex head socket wrench, #2 Phillips screwdriver, flat-blade screwdriver, ⁄" open-end wrench, flat 2" putty knife.

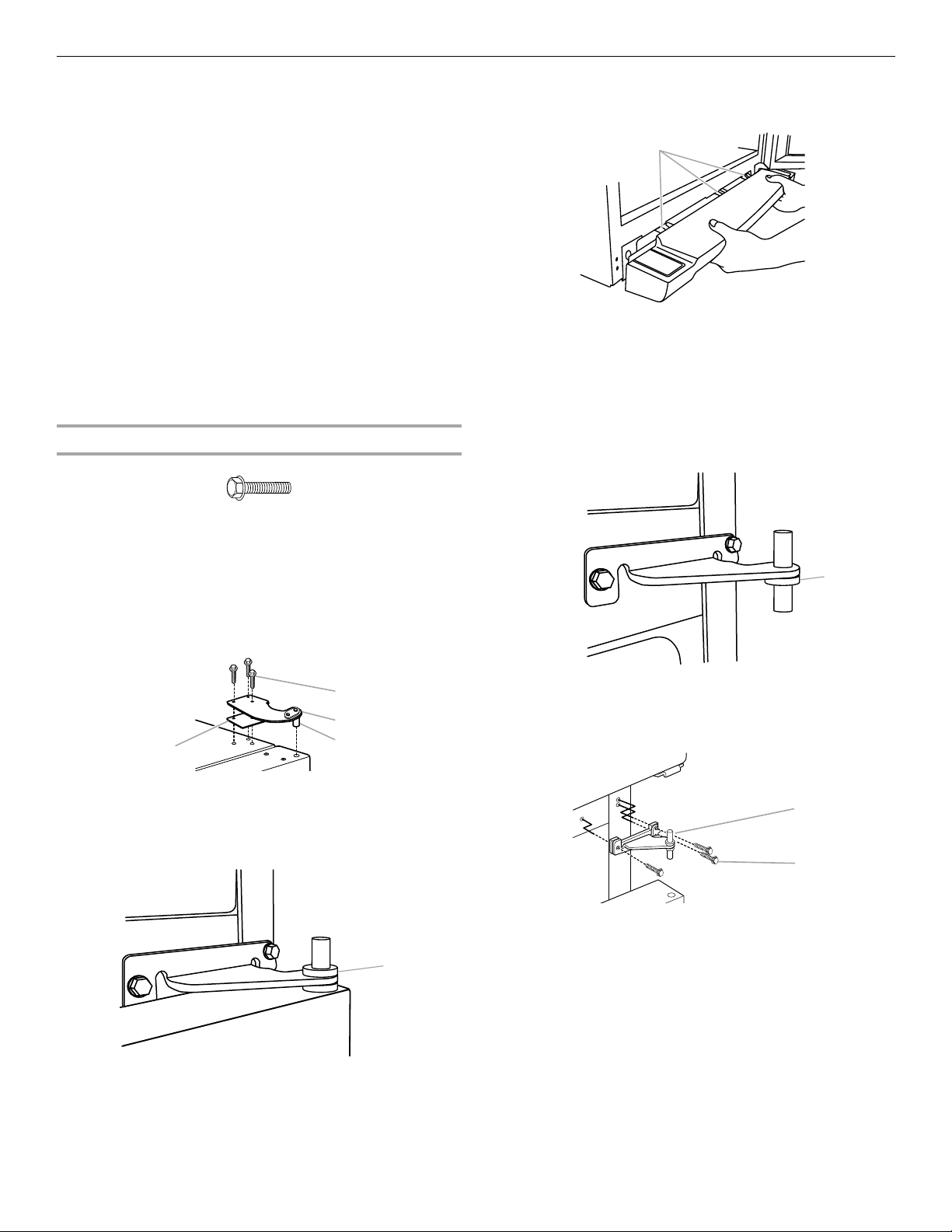

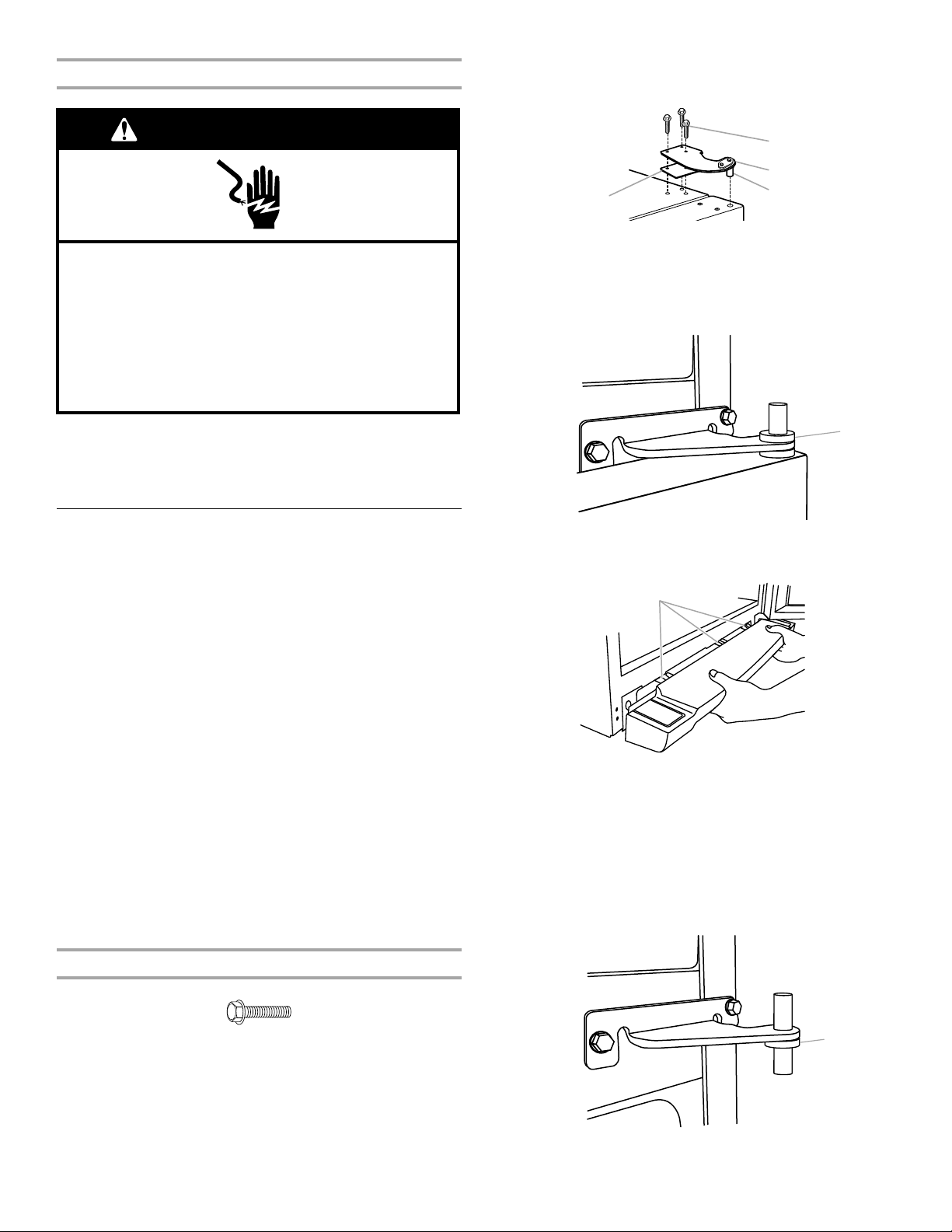

Remove Doors and Hinges

5.Open refrigerator door and remove base grille from the bottom front of the refrigerator.

A.Clips

6.Using a hex head socket wrench, remove the two ⁄" hex head hinge screws from the bottom hinge and pull the hinge from the bottom of the refrigerator door.

NOTE: For 21 cu ft models, remove both the Bottom Hinge assembly and the leveling foot.

7.Lower the refrigerator door from the Center Hinge.

8.Remove the washer from the bottom of the Center Hinge pin.

	⁄" Hex Head Hinge Screw
1.	Unplug refrigerator or disconnect power.
2.	Using a hex head socket wrench, remove the three ⁄" hex	A
	head hinge screws from the top hinge and lift up to remove	A
	the hinge.

NOTE: Provide additional support for the doors while the hinges are being moved. Do not depend on the door magnets to hold the doors in place while you are working.

	A
	B
D	C
A. ⁄" Hex head hinge screws	C. Hinge pin
B. Top hinge	D. Spacer

3.Lift the freezer door off of the center hinge and set it aside.

4.Remove the washer from the top of the Center Hinge pin.

A.Washer

9.Using a hex head socket wrench, remove the three screws from the center hinge and remove the hinge. Set aside.

A.Center hinge

B.⁄" Hex head hinge screws

A. Washer

Reverse Doors and Hinges

IMPORTANT:

■Your model may have either handles that extend from the door or cup handles which are recessed into the doors. If your model has cup handles, disregard instructions pertaining to moving the handles to the opposite side.

■See complete graphics later in these instructions.

Round-Head	Door Handle
Handle Screw	Screw Hole Plug

Reverse Center Hinge

1.Remove the three screws (that match the exterior finish) from the handle side and use them to fill the holes created when the hinge screws were removed.

A.Screws matching exterior finish

2.Using the three ⁄" hex head hinge screws, removed in Step 9, insert two screws halfway into the holes, leaving space to insert the Center Hinge.

3.Slide the center hinge, from the right, onto the screws, insert the third screw, and tighten all screws completely.

NOTE: Make sure the washers are in place on both the top and bottom pins of the center hinge.

A.⁄" Hex head hinge screws

B.Washers

Reverse Freezer Door

1.Remove the three cabinet hole plugs from the top of the cabinet and place them in the hinge holes on the opposite side.

2.Remove the two screws from the bottom of the freezer door handle.

3.Using the ¹⁄" hex key, loosen the setscrew attaching the top of the handle.

4.Pull the lower part of the handle away from the door and push upward on the handle to release it from the shoulder screw. Keep all parts together.

A. Freezer handle

C. Flat-head handle screws

B.¹⁄" Setscrew

5.Using the plastic tool (provided), remove the brand badge from the freezer door by prying up the right-hand side and slowly peeling the badge away from the door, revealing the hole to mount the door handle.

NOTES:

■To avoid scratching the finish, do not use a sharp or metallic object to pry the brand badge from the door.

■Rub a small amount of liquid dish soap over any adhesive residue with your fingers. Rinse the door with warm water and dry with a soft cloth.

6.Remove the shoulder screw from the left-hand side of the door and fasten it into the hole that was behind the brand badge.

7.Place the handle on the shoulder screw and push the handle toward the door until the mounting base is flush against the door. Tighten the setscrew.

A. Setscrew

8.Fasten the bottom of the handle to the bottom of the freezer door.

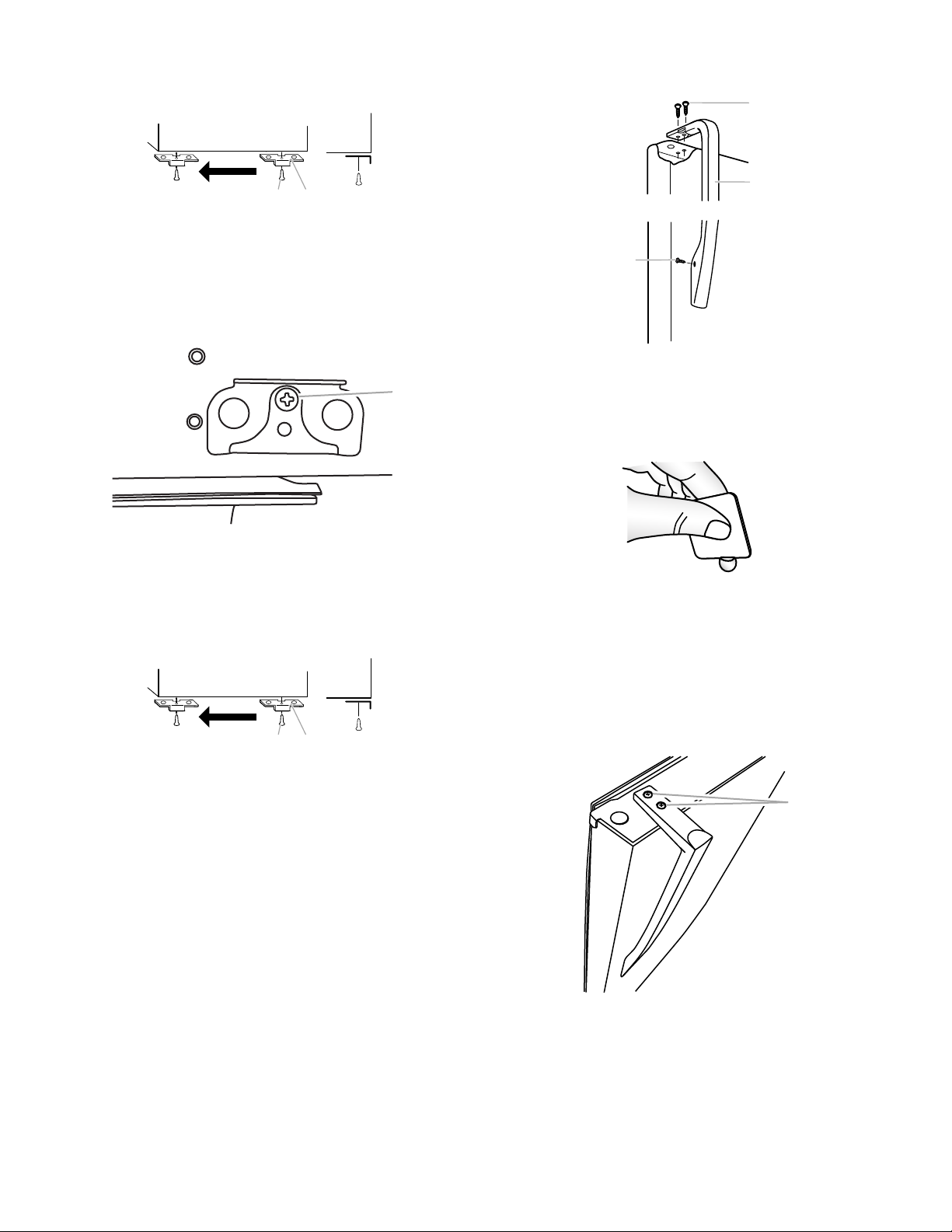

9.Remove the door stop from the bottom of the freezer door.

A B

A.Door stop screw

B.Door stop

10.Move the door stop to the opposite side making sure that the hole in the door stop plate is aligned perfectly with the hole for the center hinge pin.

11.Using the screw removed in Step 9, fasten the door stop to the bottom of the freezer door.

A.Door stop screw

12.Tighten all screws. Set aside the freezer door until the hinges and refrigerator door are in place.

Reverse Refrigerator Door

1.Remove the door stop from the bottom of the refrigerator door.

A B

A.Door stop screw

B.Door stop

2.Replace the door stop on the opposite side of the refrigerator door, making sure that the hole in the door stop plate is aligned perfectly with the hole for the bottom hinge pin.

3.Fasten the door stop to the door.

4.Remove the screws from the top of the refrigerator door handle.

5.Remove the setscrew from the lower part of the handle.

6.Pull the handle away from the door to release it from the shoulder screw. Keep all parts together.

A. Flat-head handle screws

C. ¹⁄" Setscrew

B.Refrigerator door handle

7.Remove the decal covering the hole on the opposite side of the door, where the refrigerator door handle will be installed, and discard the decal.

8.Remove the shoulder screw from the left-hand side of the door and fasten it into the hole that was behind the decal.

9.Place the handle on the shoulder screw and push the handle toward the door until the mounting base is flush against the door. Tighten the setscrew.

10.Fasten the top of the refrigerator handle to the top of the refrigerator door.

A. Flat-head handle screws

11. Cover the remaining hole with the decal (provided).

12.Tighten all screws. Set aside refrigerator door until bottom hinge is installed on the opposite side of the refrigerator.

NOTE: For 21 cu ft models, transfer both the bottom hinge assembly and the leveling foot to the opposite side.

Reverse Top Hinge

1.Remove the screw attaching the hinge pin to the hinge. Turn the hinge over so that it is pointing in the opposite direction.

2.Place the plastic spacer beneath the hinge so that it will be between the hinge and the cabinet, making sure the holes are aligned.

B B

A	C	C	A
		C
	A. Plastic spacer	C. Hinge pin

B.Hinge pin screw

3.Fasten the Top Hinge to the opposite side of the cabinet, inserting the screws only halfway, so you will be able to replace and align the freezer door later.

A. ⁄" Hex head hinge screws	C. Plastic spacer
B. Top hinge pin

Replace Doors and Hinges

IMPORTANT: Provide additional support for the doors while the hinges are being moved. Do not depend on the door magnets to hold the doors in place while you are working.

Install Refrigerator Door

1.Place the washer on the hole on top of the refrigerator door.

2.Lift the refrigerator door onto the bottom pin of the Center hinge, and rest the door on the magnetic shipping bracket to ensure proper alignment.

NOTE: If the shipping bracket is no longer there, the distance between the bottom of the door and the floor must be 3.46" (8.8 cm).

3.Insert the bottom hinge pin into the bottom of the refrigerator door and fasten the hinge to the cabinet. Do not tighten completely.

NOTE: For 21 cu ft models, install both the bottom hinge assembly and the leveling foot.

A.Bottom hinge

4.Measure the distance from the bottom of the refrigerator door to the floor. The distance should be approximately 3¹⁄"

(88 mm).

NOTE: If necessary, loosen the bottom hinge, without removing the screws, adjust the door to the correct height and fully tighten the screws.

Install Freezer Door

1.Place washer on the upper hinge pin of the Center Hinge.

2.Place the freezer door on the upper hinge pin of the Center Hinge.

3.Insert the Top Hinge pin into the drilled hole in the top of the freezer door. Do not tighten the screws completely.

4.Align the doors so that the bottom of the freezer door aligns evenly with the top of the refrigerator door. Tighten all screws.

NOTE: The distance between the doors should be approximately ⁄" (16 mm).

Final Steps

1.Remove the cover from each side of the base grille. Move each cover to the opposite side.

NOTE: The shorter cover must be on the hinge side of the base grille.

2.Align the clips on the base grille with the screws on the bottom of the cabinet. Push the base grille toward the cabinet until it is flush.

A.Cover

3.Plug in the refrigerator or reconnect the power.

4.Reset the controls. See “Using the Controls.”

5.Return all removable door parts to doors and food to refrigerator.

Style 1–Contour Door

Door Removal &

Replacement

Base Grille

Top Hinge

A.⁄" Hex-Head Hinge Screws

B.Top Hinge

C.Hinge Pin

Center Hinge

A. Center Hinge

B. ⁄" Hex-Head Hinge Screws

Bottom Hinge

A.Bottom Hinge

B.Screws

C.Leveling Leg (on some models)

	Door Swing Reversal (optional)
				2
		A
		B
Plastic Handle	3	C
		A. ⁄" Hex-Head Hinge		A	1-2
		A. ⁄" Hex-Head Hinge		A
		Screws
	A	B. Top Hinge
	A	C. Hinge Pin
		C. Hinge Pin		A. Cabinet Hinge Hole Plugs
B				A. Cabinet Hinge Hole Plugs
B
A			4
A					1-1
					1-1
A. Door Hinge Hole Plug
				A
				A. ⁄" Hex-Head Hinge
				Screws
	C
A. Freezer Handle				9
B. ¹⁄" Setscrew				9
C. Flat-Head Handle Screws
Plastic Handle		5
	A
	B			Door Handle
				Door Handle
				Seal Screw Front
				Cup Handle	8
C
A. Flat-Head Handle Screws
B. Refrigerator Handle					A
C. ¹⁄" Setscrew					A
C. ¹⁄" Setscrew
Front View		Side View	6
				A. Cup Handle
A. Door Stop Screw	A	B
B. Door Stop				7
				A
			A. Door Handle Sealing Screws

Style 2–Standard Doors

Door Removal &

Replacement

Base Grille

A. Bottom Hinge Hole Plug

Top Hinge

A.Top Hinge Cover

B.⁄" Hex-Head Hinge Screws

C.Top Hinge

Center Hinge

A. Center Hinge

B. ⁄" Hex-Head Hinge Screws

Bottom Hinge

A. Bottom Hinge

B. ⁄" Hex-Head Hinge Screws

Door Swing Reversal (optional)

2	A	1-2
A	A
A
	A. Cabinet Hinge Hole Plugs
B
A	3	1-1
A
A. Door Hinge Hole Plug		A
A. Door Hinge Hole Plug		A. ⁄" Hex-Head Hinge Screws
		A. ⁄" Hex-Head Hinge Screws
A
A. Flat-Head Handle Screws
B. Freezer Handle
	4
	A
		7

A. Door Handle Sealing Screws

Front View		Side View	5
A. Door Stop Screw	A	B	Door Handle
B. Door Stop			Seal Screw Front

6-1	6-2	A 6-3
		B
A
		C
A. Door Handle		A. Flat-Head
Screw Cover		Handle Screw

B. Refrigerator Handle

C. Handle Screw

Reversibility Kit Instructions

(contour door models only)

If you purchased the Reversibility kit for your contour door refrigerator, please use the Brand Badge Placement template and the following instructions to install the Brand Badge on the opposite side of the freezer door.

Parts Included:

Brand badge removal tool

Brand badge template (on last page of User Instructions) Hole cover decal (color coordinated to exterior)

Tools Needed:

Scissors Masking tape

Freezer Door

1.Using the removal tool (provided), remove the brand badge from the freezer door by lifting up the right-hand side and peeling the badge away from the door from right to left.

NOTE: To avoid scratching the door, do not use a sharp or metallic object to pry the brand badge from the door.

2.Rub a small amount of liquid dish soap over any adhesive residue with your fingers. Rinse the door with warm water and dry with a soft cloth.

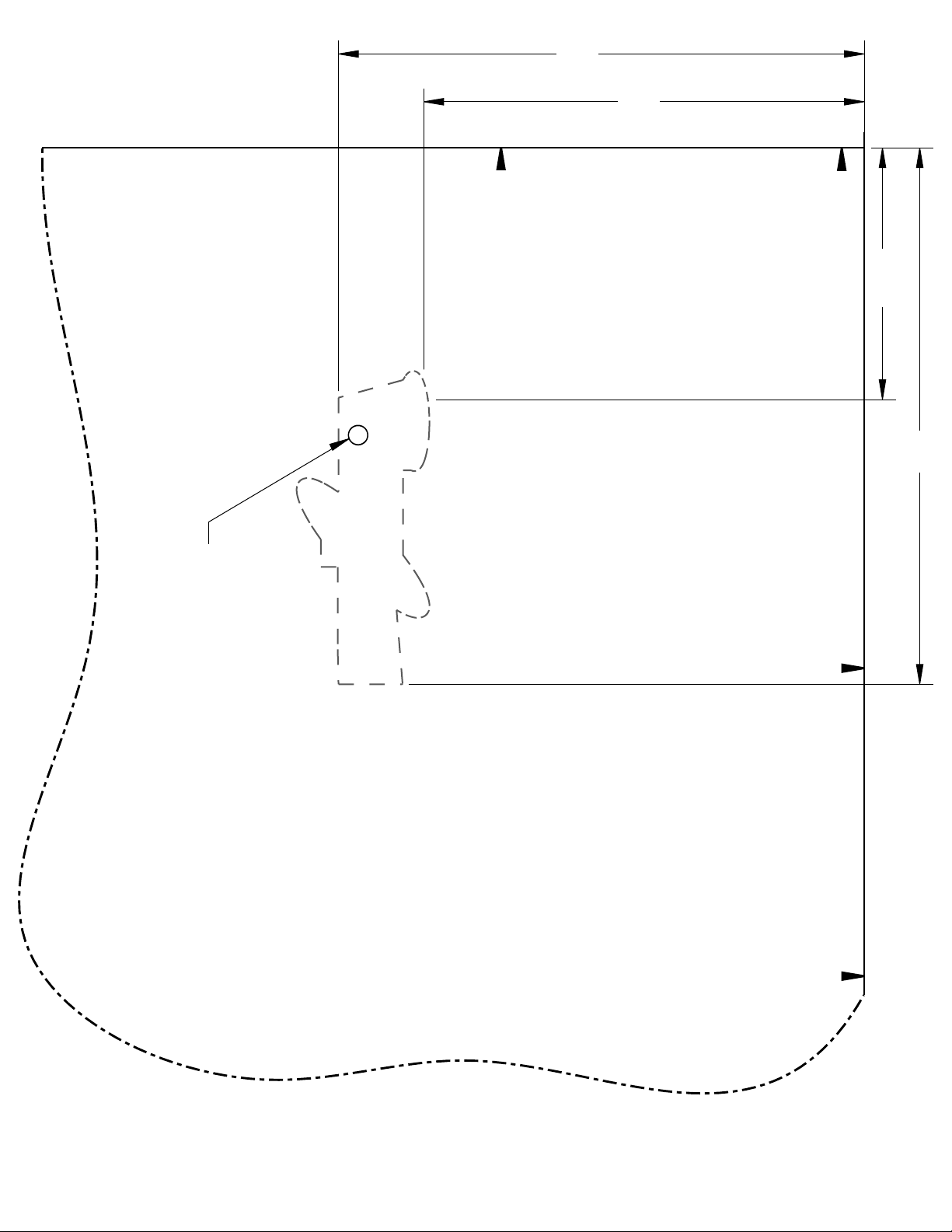

3.Cut the template along the dotted lines that match the shape of the brand badge.

4.Align the edges of the template with the side and top of the freezer door and tape the template to the door.

NOTE: When the template is correctly aligned, the hole in the door, where the handle was, will be within the cutout of the template, as shown.

Adjust the Doors

IMPORTANT: To comply with American Disabilities Act (ADA) guidelines, fully retract the rollers into the cabinet to lower the refrigerator.

Door Closing

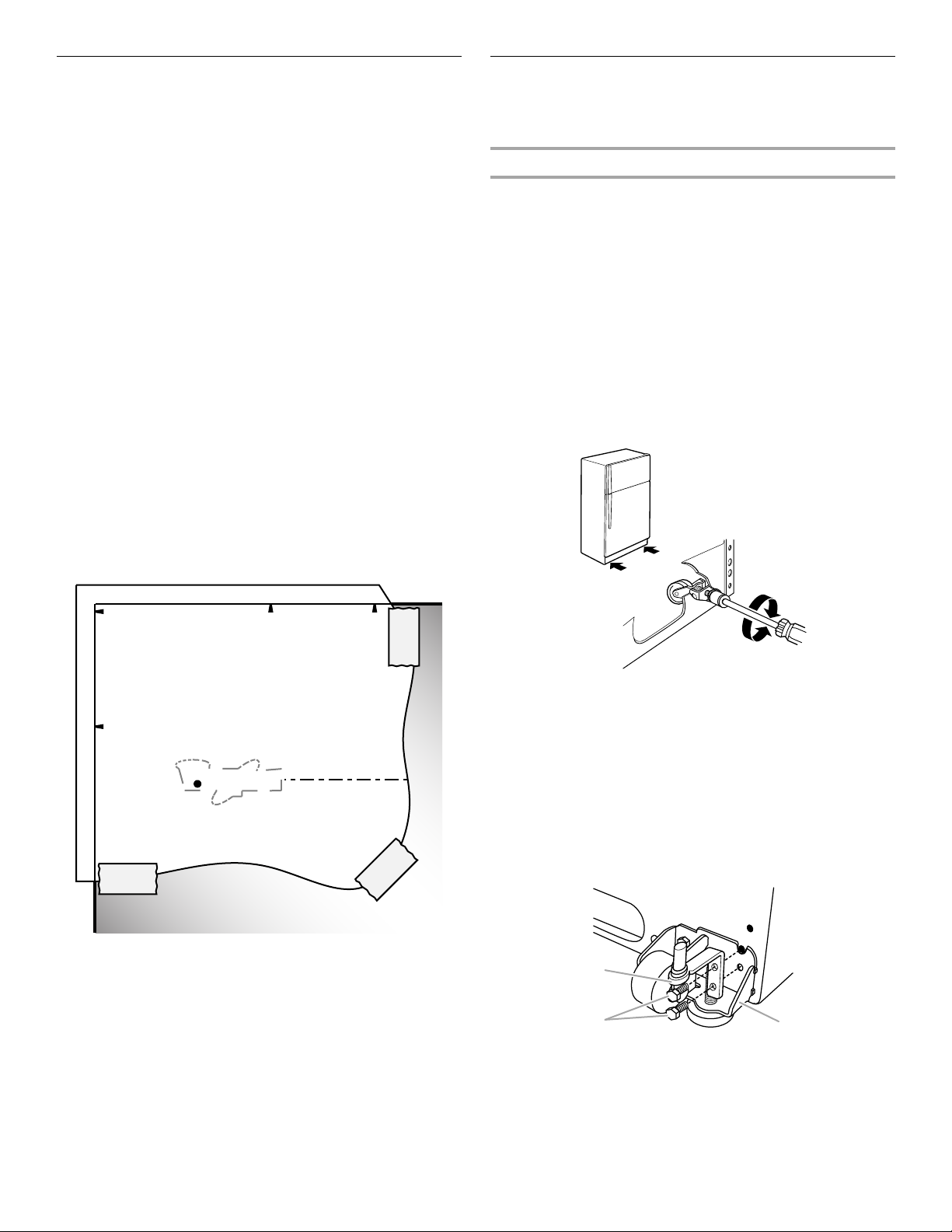

Your refrigerator has two front adjustable rollers – one on the right and one on the left. If your refrigerator seems unsteady or you want the doors to close easier, adjust the refrigerator's tilt using the following instructions:

1.Remove the base grille. See the Base Grille graphic in “Refrigerator Doors.” The two leveling screws are part of the front roller assemblies which are at the base of the refrigerator on either side.

2.Use a socket driver to adjust the leveling screws. Turn the leveling screw to the right to raise that side of the refrigerator or turn the leveling screw to the left to lower that side. It may take several turns of the leveling screws to adjust the tilt of the refrigerator.

NOTE: Having someone push against the top of the refrigerator takes some weight off the leveling screws and rollers which makes it easier to adjust.

3.Open both doors again to make sure they close as easily as you like and that they stay closed. If not, tilt the refrigerator slightly more to the rear by turning both leveling screws to the right. It may take several more turns.

NOTES:

■To keep the refrigerator level, you should turn both leveling screws the same amount.

■On models with the leveling/roller assembly, after adjusting the refrigerator to the desired tilt, turn the leveling leg until it is firmly against the floor as shown.

On some models

5.Using the cutout as a guide, press the brand badge onto the freezer door making sure that the hole is completely covered.

6.Slowly remove the template.

B C

A.Bottom hinge

B.Screws

C.Leveling/roller assembly

4.Replace the base grille.

Door Aligning

If the space between your doors looks uneven, you can adjust it using the following instructions:

1.Pry off the top hinge cover.

2.Loosen the top hinge screws using a ⁄" socket or wrench.

3.Have someone hold the door in place or put a spacer between the doors while you tighten the top hinge screws.

4.Replace the top hinge cover.

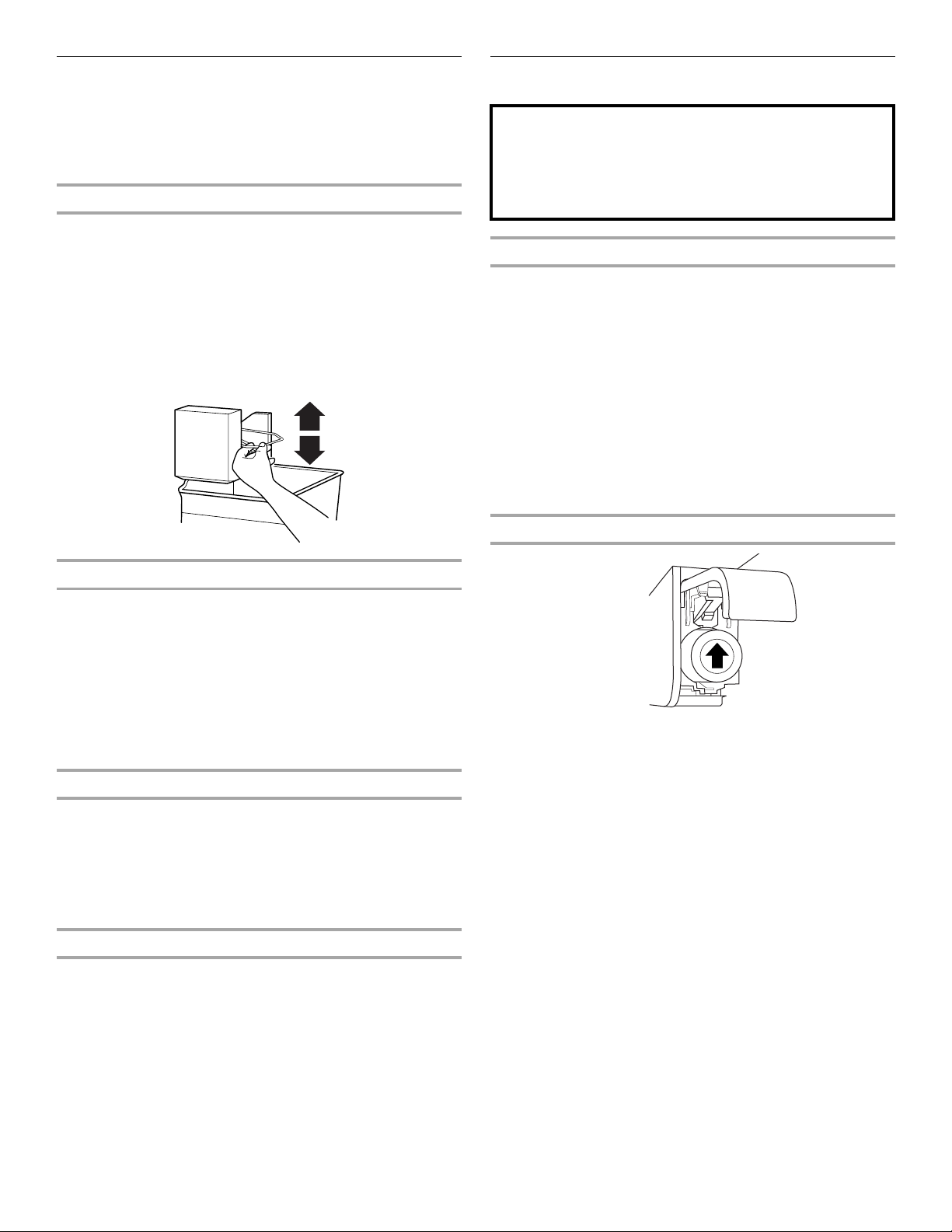

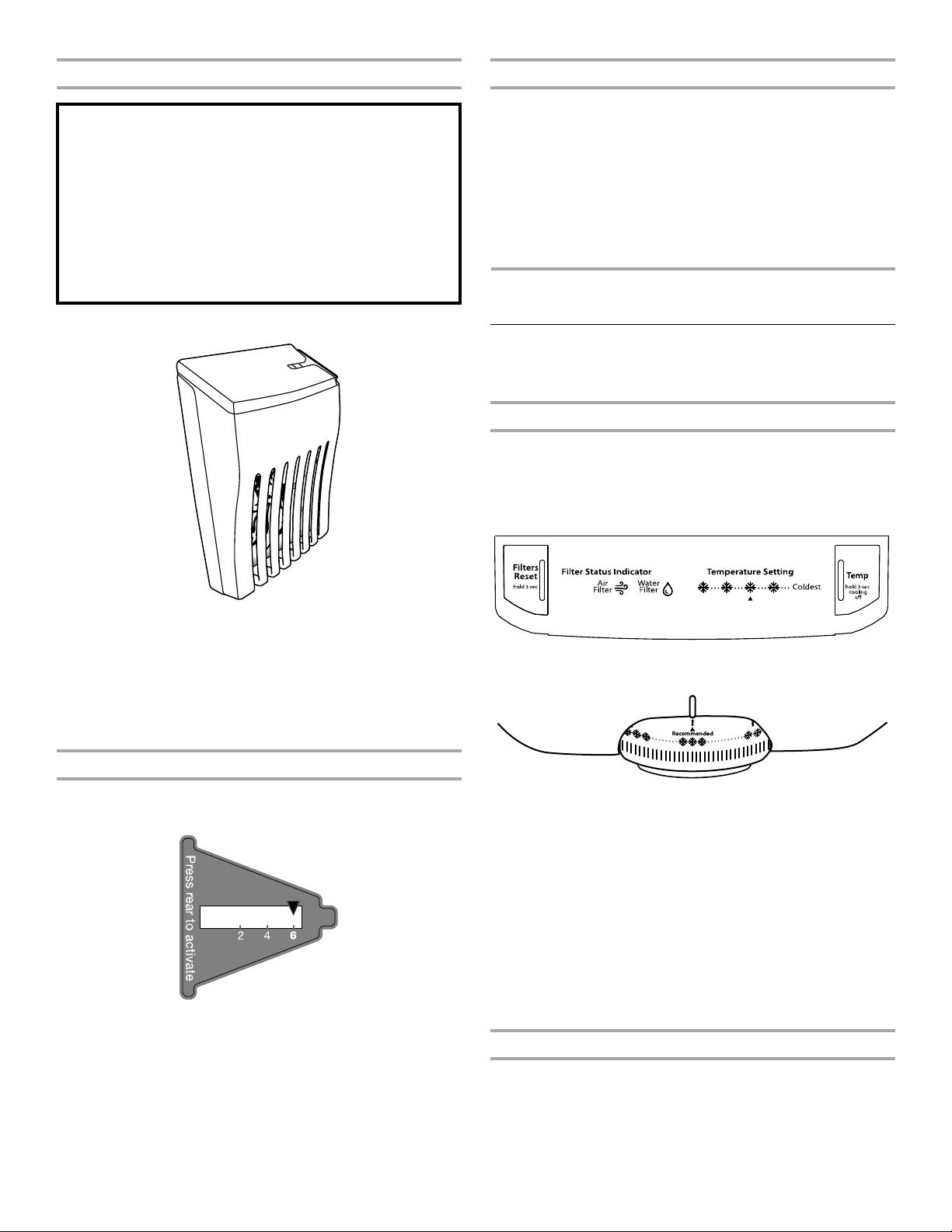

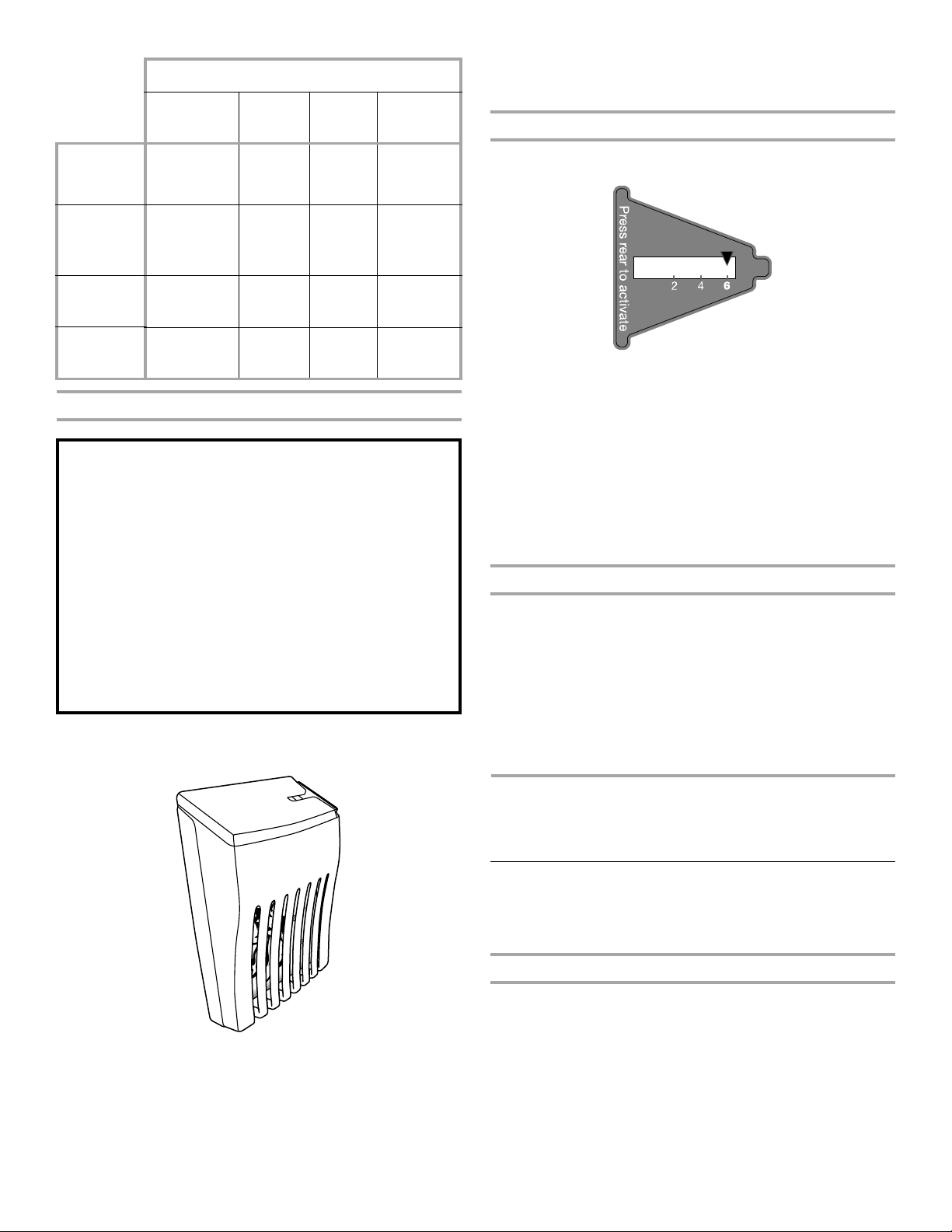

Install Air Filter

(on some models)

On some models, your refrigerator's accessory packet includes an air filter, which must be installed prior to use. On some models, the air filter is already installed at the factory.

The air filter reduces the buildup of odors. This helps to maintain a cleaner environment inside the refrigerator.

Installing the Air Filter (on some models)

The filter should be installed behind the vented door, which is located (depending on your model) along either the rear or left interior wall near the top of the refrigerator compartment.

1.Remove the air filter from its packaging.

2.Lift open the vented door.

3.Snap the filter into place.

Air Filter Status Indicator (on some models)

Style 1 - Install Manual Air Filter Status Indicator

The filter comes with a status indicator, which should be activated and installed at the same time the air filter is installed.

REPLACE

MONTHS

1.Place the indicator face-down on a firm, flat surface.

2.Apply pressure to the bubble on the back of the indicator, until the bubble pops to activate the indicator.

3.Lift open the vented air filter door. On some models, there are notches behind the door.

On models with notches:

■Slide the indicator down into the notches, facing outward.

NOTE: The indicator will not easily slide into the notches if the rear bubble has not been popped.

■Close the air filter door, and check that the indicator is visible through the rectangular hole in the door.

On models without notches:

■Store the indicator in a visible place you will easily remember - either inside the refrigerator, or elsewhere in your kitchen or home.

Style 2 - Air Filter Status on Electronic Control Display

The control panel displays the Air Filter status.

■GOOD - The air filter LED does not light up.

■REPLACE - The air filter LED lights up constantly when the refrigerator door is open.

■EXPIRED - The air filter LED lights up constantly and flashes when the refrigerator door is open.

After replacing the air filter, press and hold FILTERS RESET for

3 seconds. The filter icons will turn off. See “Using the Control(s).”

NOTE: At any filter status, pressing and holding FILTERS RESET for 3 seconds will reset the air filter status to good and the air filter LED will turn off.

Replacing the Air Filter

The disposable air filter should be replaced every 6 months, or when the status indicator air filter icon LED turns on and starts flashing when the refrigerator door is opened.

To order a replacement air filter, contact us using the assistance/service information following the warranty.

1.Remove the old air filter by squeezing in on the side tabs.

2.Remove the old status indicator.

3.Install the new air filter and reset the status indicator using the instructions in the previous sections.

Install Produce Preserver

(on some models)

The accessory packet includes two produce preserver pouches, which should be installed in a crisper drawer prior to use.

NOTE: For best performance, always use two pouches.

The produce preserver absorbs ethylene, to slow the ripening process of many produce items. As a result, certain produce items will stay fresh longer.

Ethylene production and sensitivity varies depending on the type of fruit or vegetable. To preserve freshness, it is best to separate produce with sensitivity to ethylene from fruits that produce moderate to high amounts of ethylene.

		Produces Ethylene

	Very	Low	High	Very
	Low			High

Sensitivity
to
Ethylene

High	Broccoli			Apples
	Lettuce			Pears
	Spinach

Med.	Asparagus		Cantaloupe
	Citrus fruit

Low	Carrots	Berries
	Grapes

Installing the Produce Preserver

CAUTION: IRRITANT

MAY IRRITATE EYES AND SKIN. DANGEROUS FUMES FORM WHEN MIXED WITH OTHER PRODUCTS.

Do not mix with cleaning products containing ammonia, bleach or acids. Do not get in eyes, on skin or clothing. Do not breathe dust. Keep out of reach of children.

FIRST AID TREATMENT: Contains potassium permanganate. If swallowed, call a Poison Control Center or doctor immediately. Do not induce vomiting. If in eyes, rinse with water for 15 minutes. If on skin, rinse with water.

The produce preserver pouches should be installed in the housing, located on the wall of one of the crisper drawers.

1.Remove the FreshFlow™ Produce Preserver pouches from the packaging.

2.Lift up on the housing to remove it from the mounting tab.

3.Open the housing by pulling up and out on the back of the top of the housing.

4.Place both pouches inside the housing, then snap the housing back together.

5.Place the housing back on the mounting tab.

Installing the Status Indicator

The produce preserver comes with a status indicator, which should be activated and installed at the same time the pouches are installed.

REPLACE

MONTHS

1.Place the indicator face-down on a firm, flat surface.

2.Apply pressure to the bubble on the back of the indicator until the bubble pops, to activate the indicator.

3.Slide open the cap on the top of the produce preserver housing.

4.Place the indicator in the top of the housing, facing outward.

5.Slide the cap closed, and check that the indicator is visible through the rectangular hole in the cap.

NOTE: The cap will not easily close if the indicator’s bubble has not been popped.

Replacing the Produce Preserver

The disposable pouches should be replaced every 6 months, when the status indicator has completely changed from white to red.

To order replacements, contact us. See “Accessories” for information on ordering.

1.Remove the used pouches from the produce preserver housing.

2.Remove the used status indicator.

3.Install the replacement pouches and status indicator using the instructions in the previous sections.

REFRIGERATOR USE

Using the Controls

The temperature controls are located at the top front of the refrigerator or freezer compartments.

Temperature Controls

For your convenience, the temperature controls are preset at the factory. When you first install your refrigerator, make sure the controls are still set to the recommended setting as shown.

Style 1 - Electronic

Recommended Setting “3rd Snowflake”

Style 2 - Dial

Recommended Setting “3 Snowflakes”

IMPORTANT:

■The recommended setting should be correct for normal household refrigerator use. The controls are set correctly when milk or juice is as cold as you like and when ice cream is firm.

■Wait 24 hours for your refrigerator to cool completely before adding food. If you add food before the refrigerator has cooled completely, your food may spoil.

NOTE: Adjusting the refrigerator and freezer temperature controls to a colder than recommended setting will not cool the compartments any faster.

■If the temperature is too warm or too cold in the refrigerator or freezer, first check the air vents to be sure they are not blocked before adjusting the controls.

Adjusting Controls

If you need to adjust the temperature in either the refrigerator or freezer compartment, use the settings listed in the chart below as a guide.

Style 1 - Press the TEMP button to display the desired number of snowflakes from (1 snowflake [least cold] to all snowflakes [coldest]).

Style 2 - Move the dial to the desired number of snowflakes from (1 least cold to 5 coldest).

NOTE: Except when starting the refrigerator, do not adjust either control more than one setting at a time. Wait 24 hours between adjustments for the temperature to stabilize.

CONDITION/REASON:	ADJUSTMENT:

REFRIGERATOR too warm	REFRIGERATOR Control
	one setting higher

FREEZER too warm/too little ice	FREEZER Control one
	setting higher

REFRIGERATOR too cold	REFRIGERATOR Control
	one setting lower

FREEZER too cold	FREEZER Control one
	setting lower

Cooling Off/On

Style 1 - Press and hold TEMP for 3 seconds to turn cooling off. To turn cooling back on, press and hold TEMP again for

3 seconds.

Style 2 - Move the dial control to the word OFF. To turn cooling back on, move the dial control to the desired temperature setting.

NOTE: Neither compartment will cool when the control is set to OFF.

Additional Features

Filters Reset (on some models)

The Filters Reset control allows you to restart the filter status tracking feature each time you replace the air filter or water filter.

■Press and hold FILTERS RESET for 3 seconds. The filter icons will turn off. See “Install Air Filter” and “Water Filtration System.”

REFRIGERATOR

FEATURES

Your model may have some or all of these features.

Important information to know about glass shelves and covers:

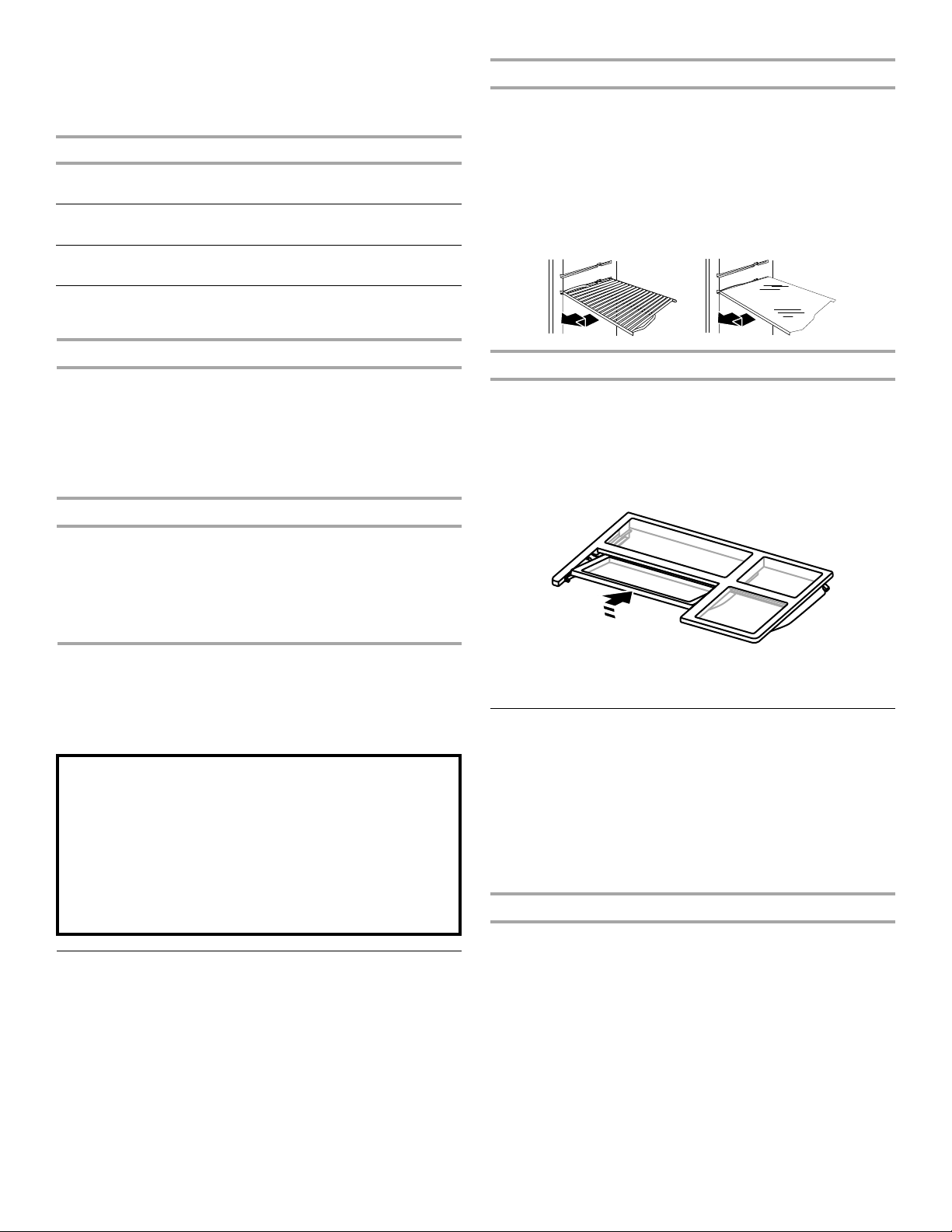

Refrigerator Shelves

(Glass shelves on some models)

The shelves in your refrigerator are adjustable to match your individual storage needs.

Storing similar food items together in your refrigerator and adjusting the shelves to fit different heights of items will make it easier to find the exact item you want. It will also reduce the amount of time the refrigerator door is open, and save energy.

Shelves and Glass Shelves (on some models)

To remove and replace a shelf:

1.Remove items from the shelf.

2.Slide the shelf straight out to the stop.

3.Depending on your model, lift back or front of the shelf past the stop. Slide shelf out the rest of the way.

4.Replace the shelf by sliding the back of the shelf into the track in the wall of the cabinet.

5.Guide the front of the shelf into the shelf track. Be sure to slide the shelf in all the way.

Fold Away Shelf (on some models)

To remove and replace a shelf:

1.To remove the entire shelf, tilt up the front of the shelf and slide it out toward you.

2.To remove the front-half of the shelf, hold the front of the shelf with one hand and press up in the center of the shelf. Then push down and in on the shelf until it slides beneath the back half of the shelf.

3.Replace the entire shelf by guiding it into the door liner and pushing it inward until it stops. Then, tilt the front of the shelf upward until the stopper is overcome and slide it in.

Meat Drawer

(on some models)

To remove and replace the meat drawer:

1.Slide meat drawer out to the stop.

2.Lift front of meat drawer with one hand while supporting bottom of drawer with other hand. Slide drawer out the rest of the way.

3.Replace the drawer by sliding it back in fully past the drawer stop.

Meat Drawer Cover (on some models)

To remove and replace the meat drawer cover:

1.Remove the meat drawer.

2.Push the cover back to release the rear clips from the shelf. Tilt the cover up at the front, and pull it forward.

3.Replace the meat drawer cover by fitting the notches and clips on the cover over the rear and center crossbars on the shelf.

4.Lower cover into place and pull the cover forward to secure the rear clips onto the shelf.

+ 33 hidden pages
