Service Manual
Top Mount
No Frost Refrigerator
1
Page 2
INDEX
Sno. Detail Page No.
1.0 Model Range 3
2.0 Safety Precuations 4
3.0 Feature /Technical specification 6
4.0 Controls & Electronic configuration 7
5.0 Wiring Diagram 9
6.0 Assembly/Dissembly 11
7.0 Controlling the refrigerator temperature 14
8.0 Error indications & Trigger 15

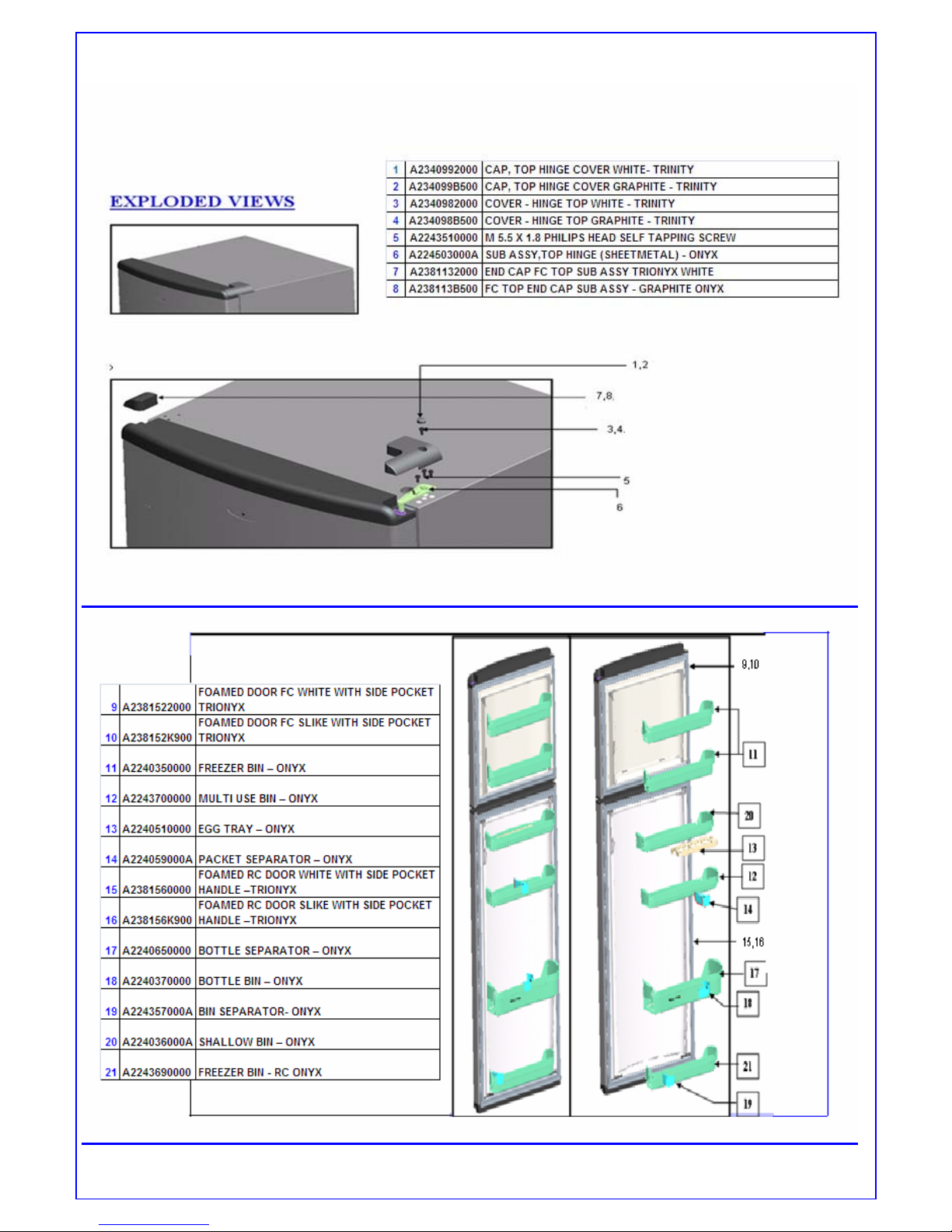

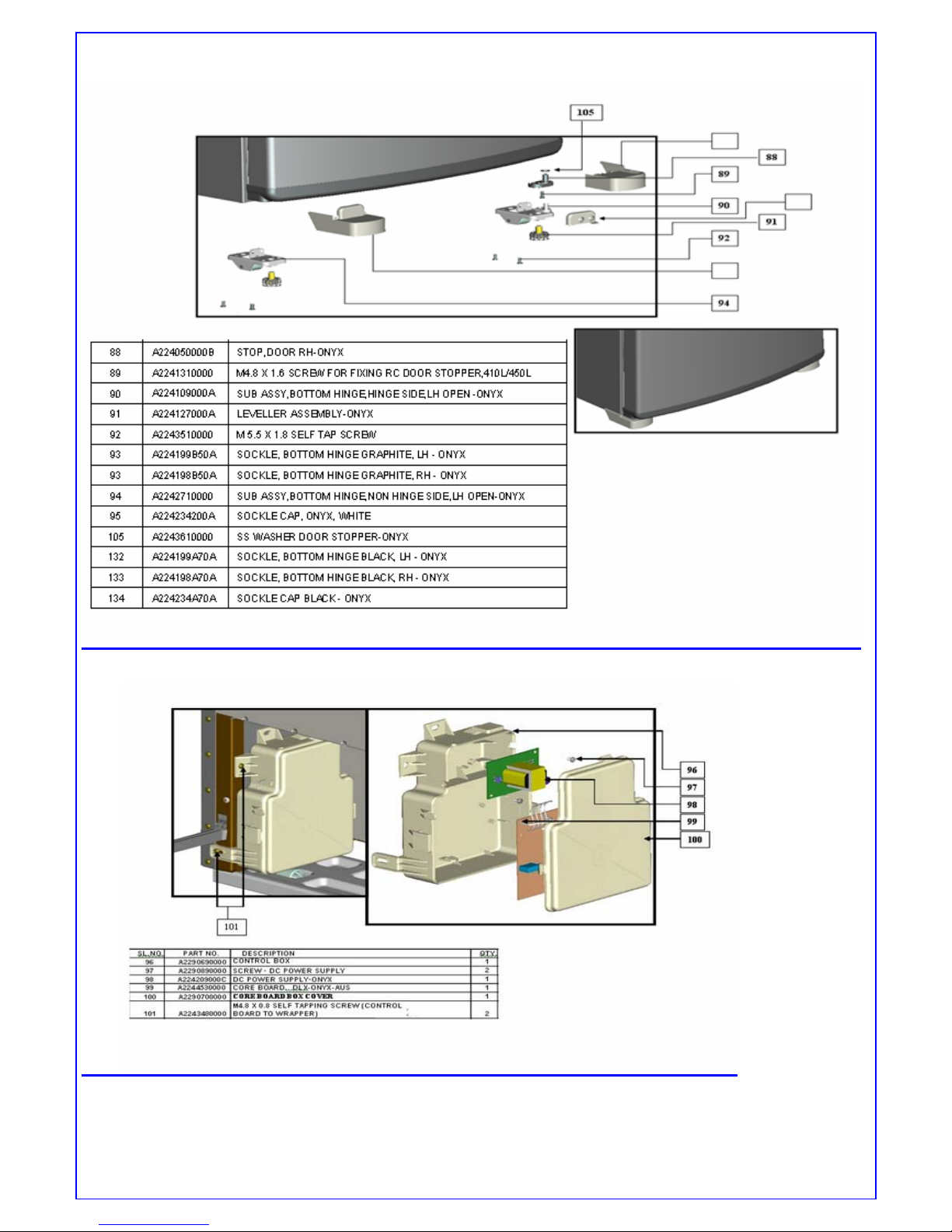

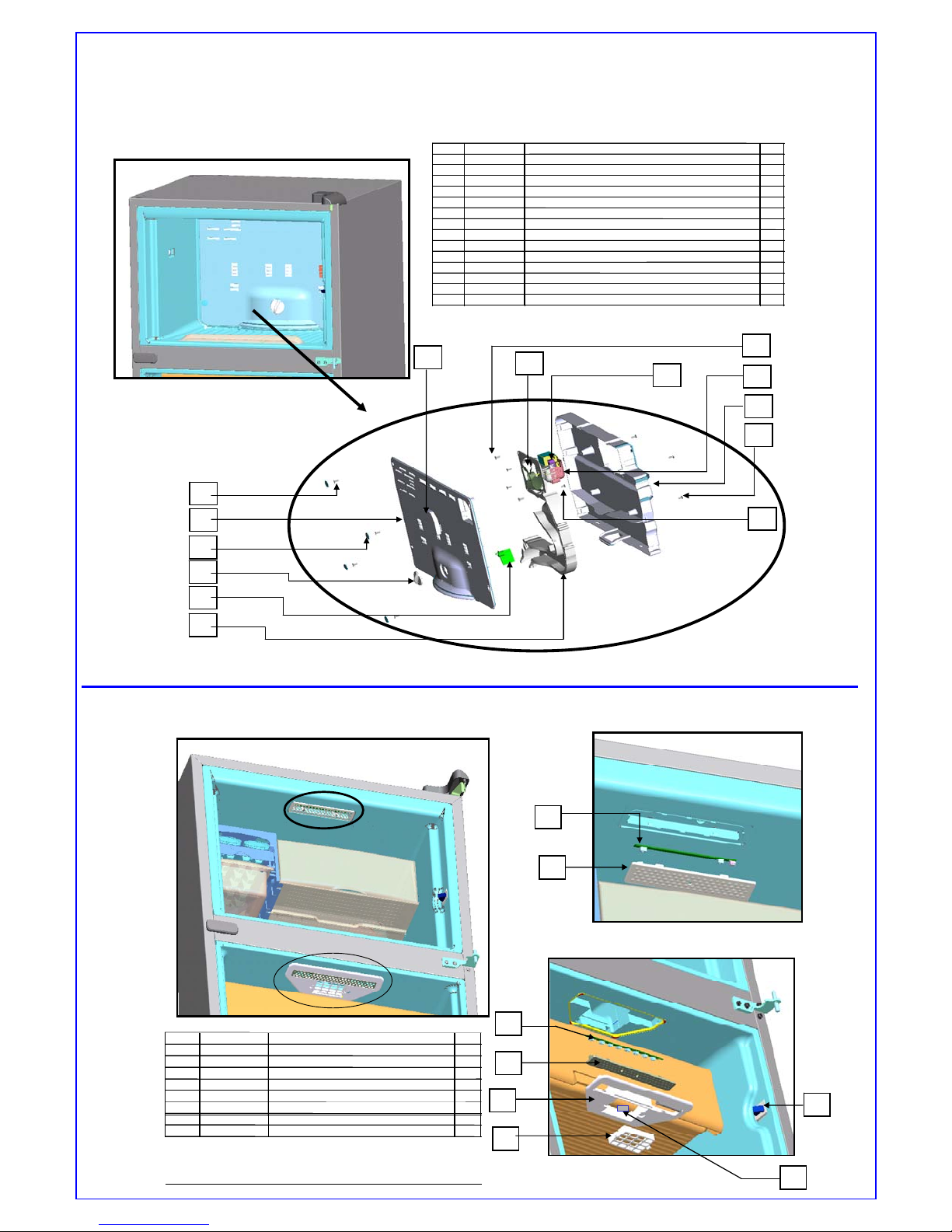

9.0 Exploded Views 17
10.0 Part List 23
2
Page 3
NO FROST REFRIGERATOR: MODEL RANGE
410L Dlx - WRIT41W
410L Dlx – WRIT41N
3
Page 4
4
Page 5
5
Page 6
TECHNICAL /FEATURE SPECIFICATION
MODEL 410 L Dlx
Type Frost Free
Capacities (L) total net 410L
Product Dime nsions (mm)
Width 700
Height 1652
Depth 695
Gross Weight (kg) 85
Voltage / Hz 220-240V/5 0- 6 0 Hz
Compressor EMY65HLC
Oil Capacity ISO 22 (280 ml)
Comp. Run Capacitor XS351505XLUB
5 microF/350VAC
PTC Relay PTH7M220MD3
Resistance : 17.6 TO 26.4 @
25°C
Motor Protector 4TM283KFBYY-53
opening temp – 105°C
Closing temp. – 61°C
Trip current – 9.4 A@25°C
Fan motor MI – AE2
2680 rpm , 230V , 50 Hz , 10.5W
Split Diffuser NO
Deodorizer Yes
Number of Shelves 2
Type of Shelves Glass
Humidity Control Yes
RC Illumination ( 8 LED Bank ) Illumination by LED’s
FC Illumination ( 2 LED Bank ) Illumination by LED’s
Bottle Separator YES
Packet Separator YES
Can Rack NO
Egg tray 1 No.
Ice Twister Assembly YES –Plastic
Ice Collector YES
Collapsible Shelf YES
Freezer Door Bins 2
Refrigerator Door Bins 4
Quick Chill Compartment YES
Door lock NO
Handle RECESSED
Roof Rail NO
Cabinet Stop per YES
POT Control in RC compartment YES,8 SETTINGS
Fast Forward Cool Operation NO
Door Alarm YES
Auto Power save mode NO
6
Page 7
CONTROLS & ELECTRONICS
CONFIGURATION
Product Configuration No frost Dlx
Product Control RC Controlled
Software BEE/Pot based Professional
User interface No
Auto cool mode No
Ice accelerator No
Auto Power save mode No
Door Alarm Yes
Power supply for illumination DC (Linear 220mA)
RC Illumination (8 LED) Yes
FC Illumination (2 LED) Yes
Control Board Yes(Nilgiri BEE)
Defrost heater Yes (Integrated Al tube
275W)
Fan motor 10.5W MI Shaded Pole AC
fan motor
FC Door grounding No
Compressor EMY65HLC
Run Capacitor No
Door Reversibility YES
RATED VOLTAGE : 220-240V,50-60Hz, IPH
VOLTAGE RANGE : 198V – 255V
INPUT WATTAGE : 112W
DEFROST WATTAGE : 275W
FULL LOAD AMPS : 0.5A
7
Page 8
Top Mount : Deluxe models: -------------------
This refrigerator is managed by an Electronic System, mainly consisting of the components:
• Electronic Control Board (Nilgiri- Dlx (BEE))
• POT (Potentiometer) in case of Dlx (BEE) models only.
• Temperature Sensors {refrigerator, Defrost & POT(Dlx)}
• Compressor ( With Run capacitor)
• Freezer Fan Motor (AC)
• Defrost Heater ( Integrated Al tube 245W)
• Door Open Sensing
These components are described as shown below.
– Electronic Control
The complete operation of this product is done by the Electronic Control, Functions of this models are
fully controlled by the Micro-controller IC which executes the functions according to the needs, turning
the components On or Off through received/managed signals, such as:
- Compressor On/Off
- Defrost Heater On/Off
- Temp setting in refrigerator Compartment, through received signals by the POT along with the RC &
FC Sensors Temp. Feedback.
- Door open sensing / Alarm
- Among many other functions controlled by its software.
The Electronic Control is located at the rear of the refrigerator, next to the cabinet and besides the
Compressor, inside a plastic box. Cables going inside the product, using connectors that do not permit an
assembling failure do its connection to the mains and its components.
Note: For more details see Wiring Diagram.
8
Page 9
Wiring Diagram : Top Mount – No Frost Dlx
9
Page 10
10
Page 11
Refrigerant Charging Qty:
Model Refrigerant R134a(gms)
410L Dlx 146

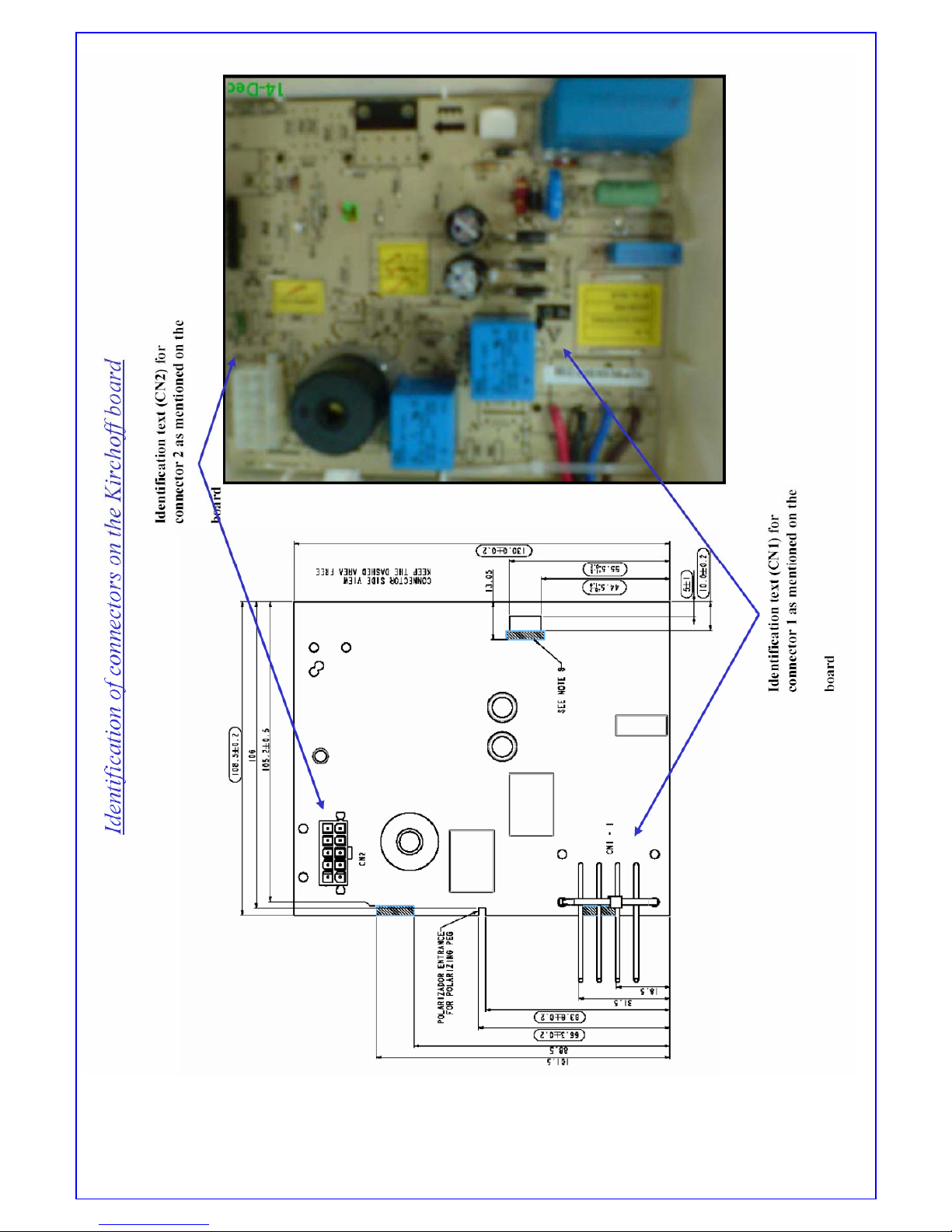

CN1 (Connector 1) – Compressor, Heater and Power Cord
CN2 (Connector 2) – RC/FC LED, Load component and Temperature Sensors/POT
CN3 (Connector 3) – User Interface board (Used only for Elite models)

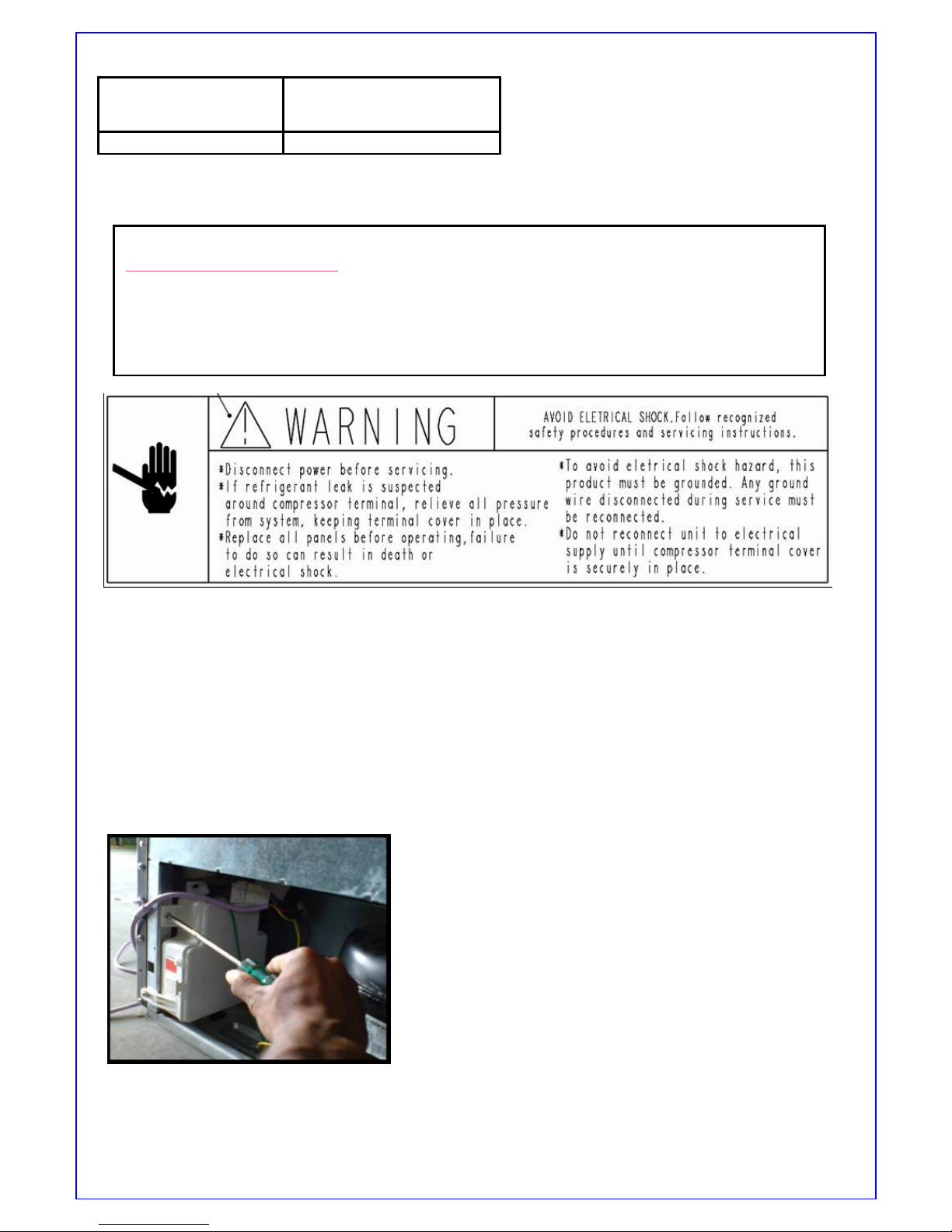

Electrostatic Discharge Risk
Do not touch the Circuit components, because you can damage fuse/burned or weaken the
board.
Always handle the Boards by the sides/plastic holder.
Spare parts/stock boards if outside the BOX must be kept in anti-static packaging.
WARNING
Assembly &Disassembly Procedure
Disassembly Procedure:

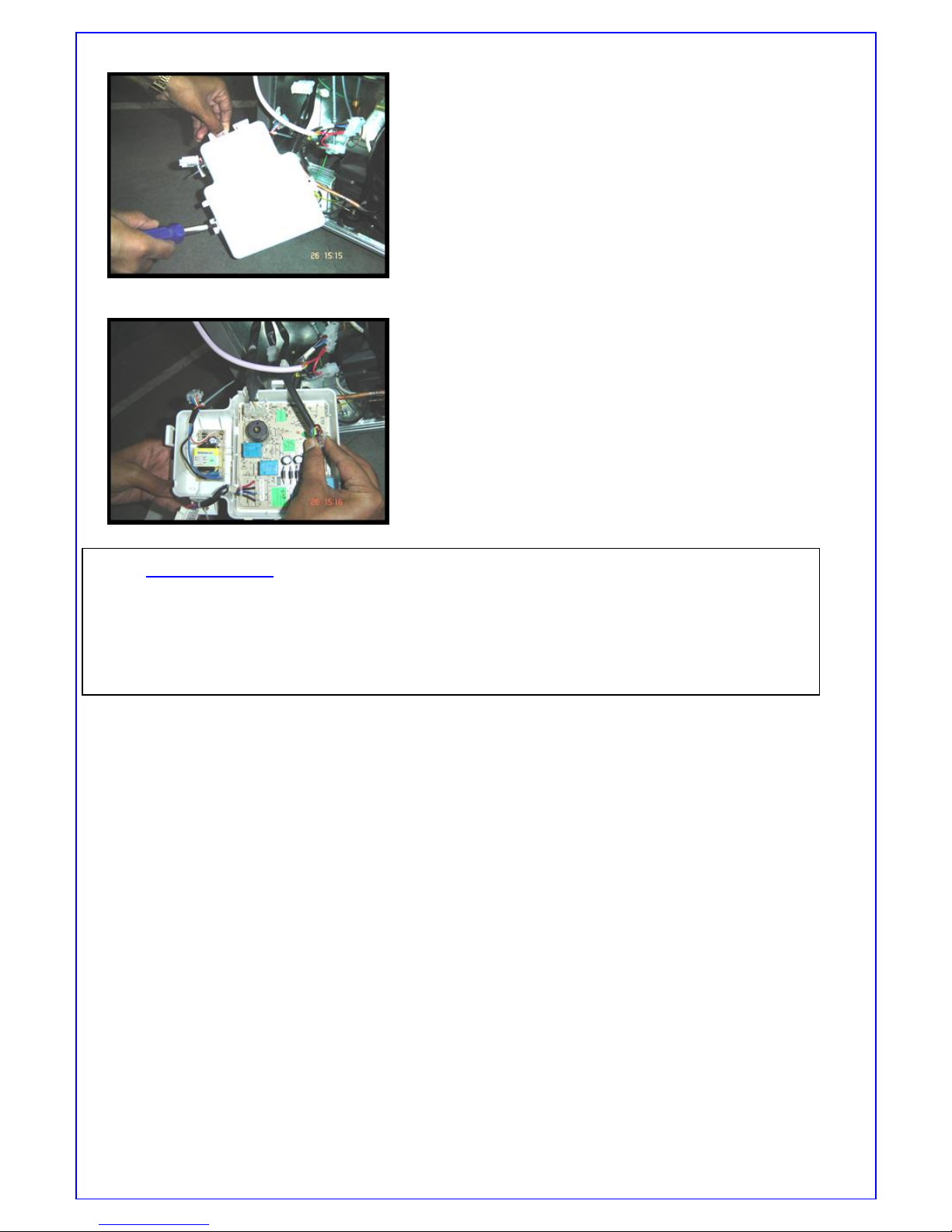

A) Core Board Box
1. Disconnect the Power cord from the Mains supply.
2. Remove the Mounting Screws.
11
Page 12
3. Release the Cover tabs.
4. Releasing the On board Connectors.
IMPORTANT
# Be careful when using the Multimeter measuring probes, as they may damage the
Connector terminals.
# Be careful when removing the electronic board connectors, as they are latched.
Remove them at right angles with no side movements
12
Page 13

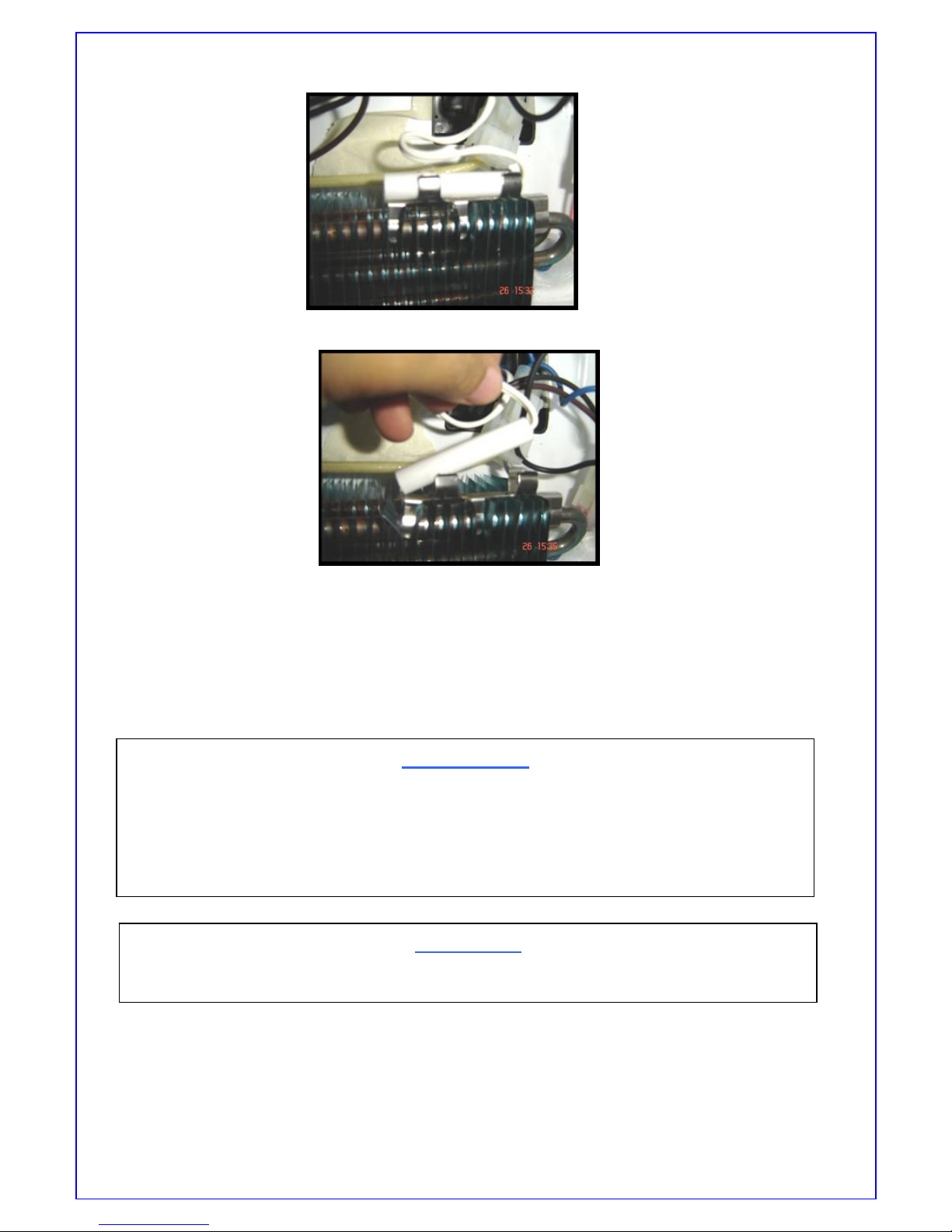

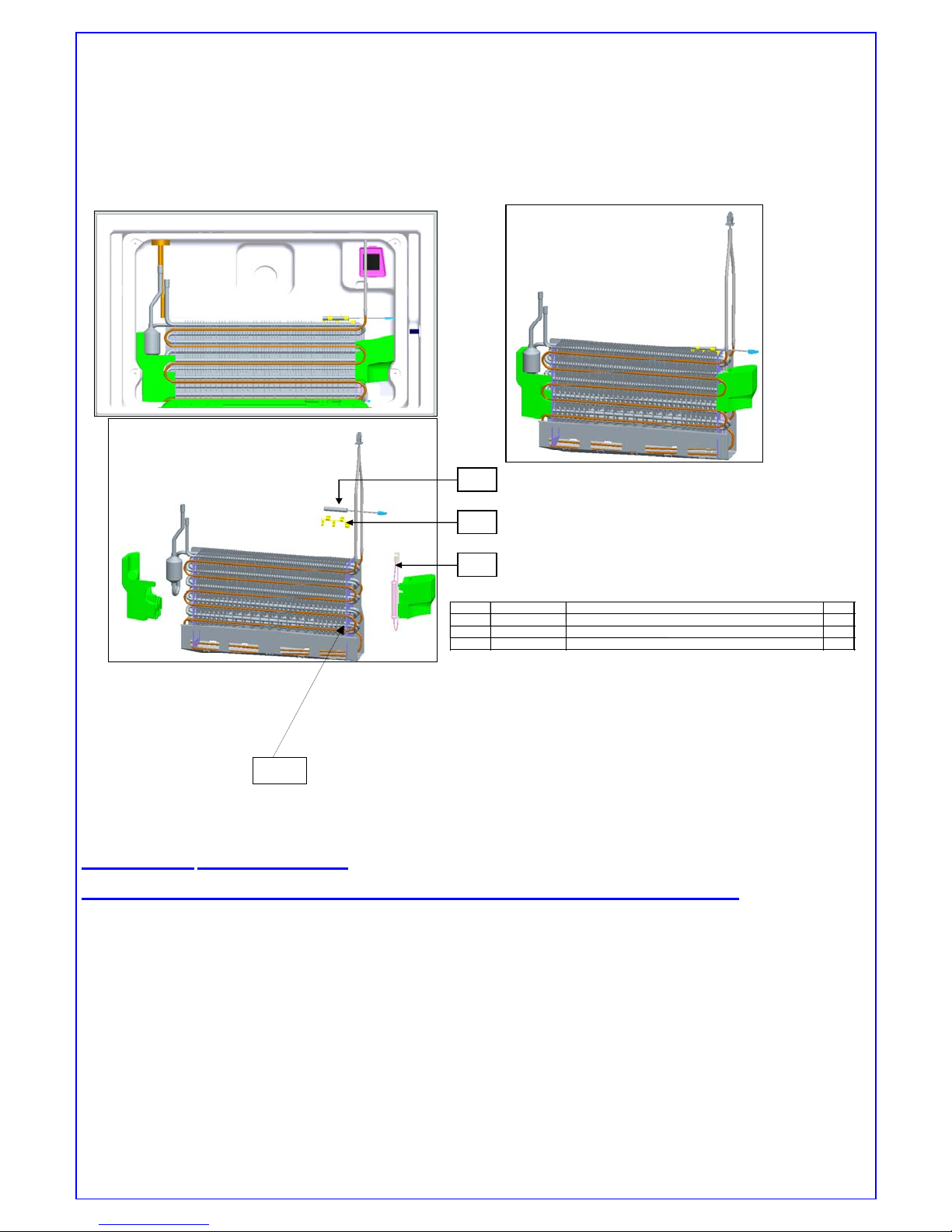

1. Defrost Sensor mounted on the Evaporator tube.
2. Removing/Replacing the Defrost Sensor
Defrost Temperature Sensor – NTC
It’s located at the freezer compartment, along with the Evaporator. The Defrost Sensor is responsible
for sending signals to the electronic control, which will command the ending of the defrost, turning off
the Defrost Heater,
This does a similar function to the well-known Defrost Bimetal
Never change the position of such Sensors, as their functional characteristics can be
modified. This sensor also informs the temperature conditions of the Evaporator when
the product is activated (plugged in electricity) indicating to the Electronic Control the
correct start up to be followed, for instance, manufacturing ,default or the previous
programming done by the user, compressor delay , etc.
IMPORTANT
These Sensors (refrigerator & Defrost) Are Compatible with Each Other, but
Are not compatible with the Sensors of the previous Model (SYMPHONY)
WARNING
NEVER replace these Sensors with the Sensor Kit used in the Symphony model.
In the need of replacing one of the Temperature Sensors, Replace the full RC/FC Sensor harness (In
these model FC Sensor harness is replaceable). Directly replace the relevant RC or FC Sensor
harness. Do not try to repair the harness for the faulty Thermistor.
13
Page 14

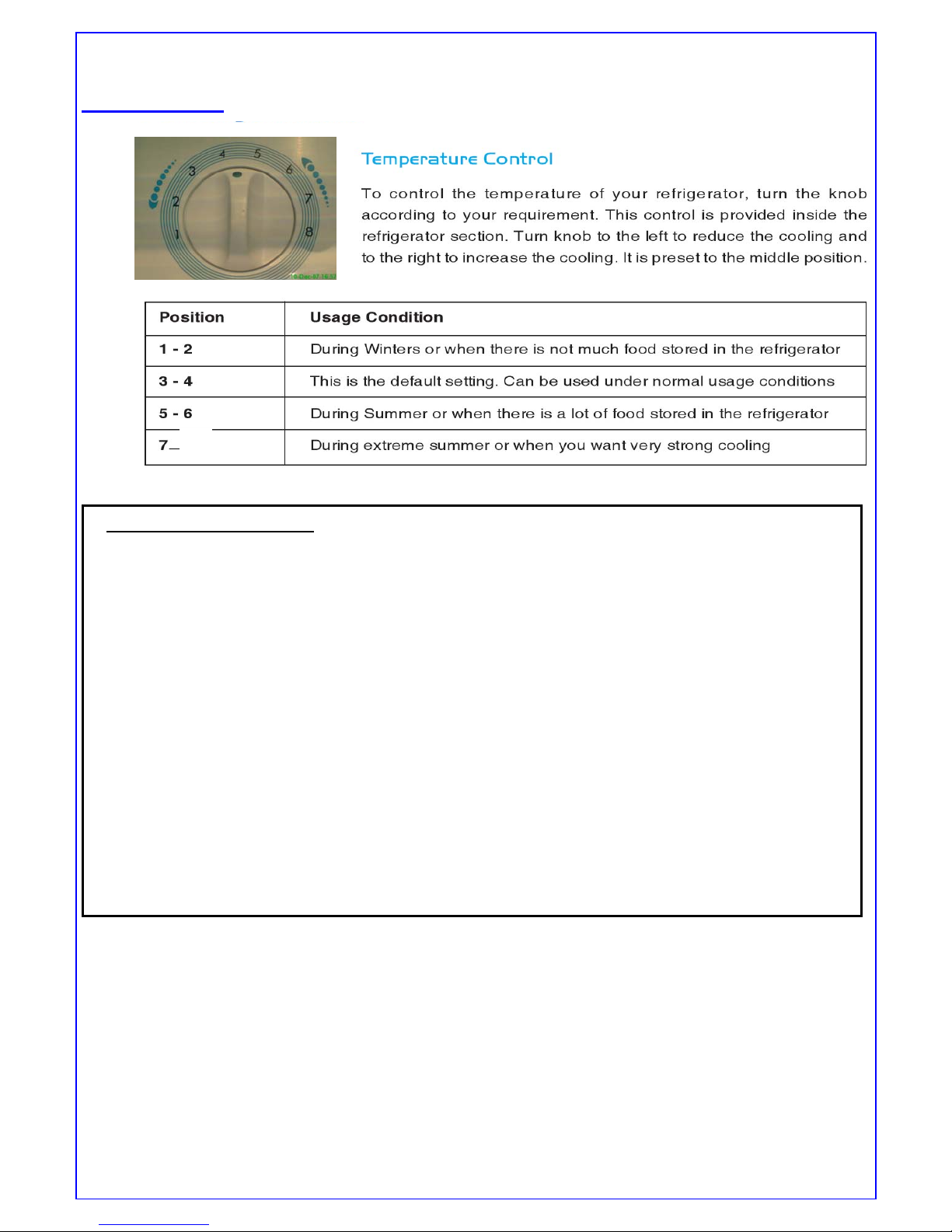

Dlx models:-
8
Adaptive Defrost Control
The defrost cycle shall be started after the Defrost timer has expired. According to the following defrost procedure:
Defrost must be executed every time one of the following event occurs:
1. After 8 hours (+/-10 minutes) of compressor running, calculated considering just the thermostat
function.
2. When the compressor stops (in thermostatic mode) and a time period of 20 min (+/-1 minute) is
allowed to complete the time to defrost.
3. If the door open time > 10 min, within first 5 hrs of cumulative compressor run time, defrost is
initiated at 5hrs.
4. If door open time > 10 min between 5 to 8 hours of cumulative compressor run time, defrost will
happen instantaneously.
5. If the door open time < 10 min or If there is at least one door opening up to 8 hrs of compressor
running then defrost time is as per point 1.
6. If there is no door opening up to 8 hrs of compressor running than defrost time will be 18hrs
7. If there is no door opening for 8 hrs, & there is door opening between 8 to 18 hrs of compressor
running, defrost will take place immediately.
th
The 5
time, independently of the number of compressor cycles and how many time the compressor was ON.
, 8th or 18th hr of compressor running (defrost timer) consist of the sum of all the compressor’s ON
14
Page 15
Door Open Sensing Alarm
Door open sensing alarm activates or gives beep if the door is kept open for more than 2 min.
During the Door opening beep alarm if the door is closed then the alarm gets deactivated
.
Alarm Codes, Priority, Retention and Trigger
Alarm code for Deluxe models: -
• In event of any Fault accurring for RC/FC or Pot sensors then immediately after 2 min’s of the
fault occurrence a Buzzer Beep for 1 Sec will be activated indicating the Sensor fault condition in
Dlx models only.
• To understand where there is any Sensor or Pot failure indication in the Dlx model, Service Person
should Switch On the Product & wait for the any buzzer Beep if any after 5 sec of Product switch
ON. This will indicate the Error status in the Dlx models.
Check Point:
- Poor contact between terminals/ connectors – CN2 (Temperature Sensors) at Electronic Control
(main board)
- The Sensor/Pot itself that might be open or in short circuit and has to be replaced (see Sensor/Pot
replacement).
Safe mode routine
During Constant fault condition, the Electronic Control will assume a safety routine, as in normal
cycle, trying to keep food conservation, however will work as follows:
• Compressor and Fan Motors will be on for 25 minutes and then will turn off for 20 minutes.
• Interval set between defrosts will be fixed in every 5 hours of the Compressor activity
• Every defrost time is fixed for 20 minutes. No dependency on defrost sensor for Cut Off temp of
15°C
Normal
Compressor
/Product
running
Mode
Sensor
Failed??
(Open/Shor
t Mode)
{RC, FC or
Ambient
Sensor)
Start Safe mode
Yes
routine
after 2 min of
error
Event in sensor
15
No
Whether
sensor/POT
is
repaired/correc
ted??
Normal
Compressor
/Product
running
Mode
Page 16
Note: -
• There is no Service routine provided in this model.
• In Dlx models Diagnosis of the Error / Sensor / Pot failure is not of continuous nature. Service person
needs to restart the Product to listen to the Buzzer Beep for error indications if any.
• To check whether Heater is working fine or not, service person can use the Power up initialization
function of the model, where Product need to be switched Off & need to be ensured that the temp at the
FC sensor is >0°c, then after making the product ON product goes into the Power up initialization mode
where after product switch ON, heater gets activated for the first 5 seconds & then it goes to the
compressor mode. Service person can make the use of this 5 seconds where by putting the Tong tester one
can easily identify the healthy/faulty condition of the heater through the driving current displayed on the
tong tester it self at the Electronic core board box location without opening the FC Plenum.
• In case of any Aluminum foil wrapping found over the Wiring harness either in FC compartment, RC
Compartment or in the Compressor deck area, the same Al foil should be carefully replaces in same
fashion after servicing
• In case of any detailed technical information please check with the Dlx technical specification.
Board Level Diagnostics for :
* Thermistor Failure FC/RC
* Potentiometer Failure
1 First Turn Off the Product & disconnect the Plug.
2 Remove the Control Board from Box.
3 Disconnect the 10-Pin connector from Board.
4 For Thermistor Failure FC/RC
* Check resistance on pin no. 8 & 9 of CN2 ( 10 pin connec) for RC Thermistor.
* Check resistance on pin no. 5 & 7 of CN2 ( 10 pin connec) for FC Thermistor.
* IF thermistor is open then the resistance is zero.
* IF thermistor is short then the resistance is above 22 KOhms
* IF resistance lie between 0-22 KOhms the themistor is OK.
5 Potentiometer Failure
* Check resistance on pin no. 1 & 8 of CN2 ( 10 pin connec) for Potentiometer.
* It should lie between 0 to 22 K ohms
16
Page 17
17
Page 18

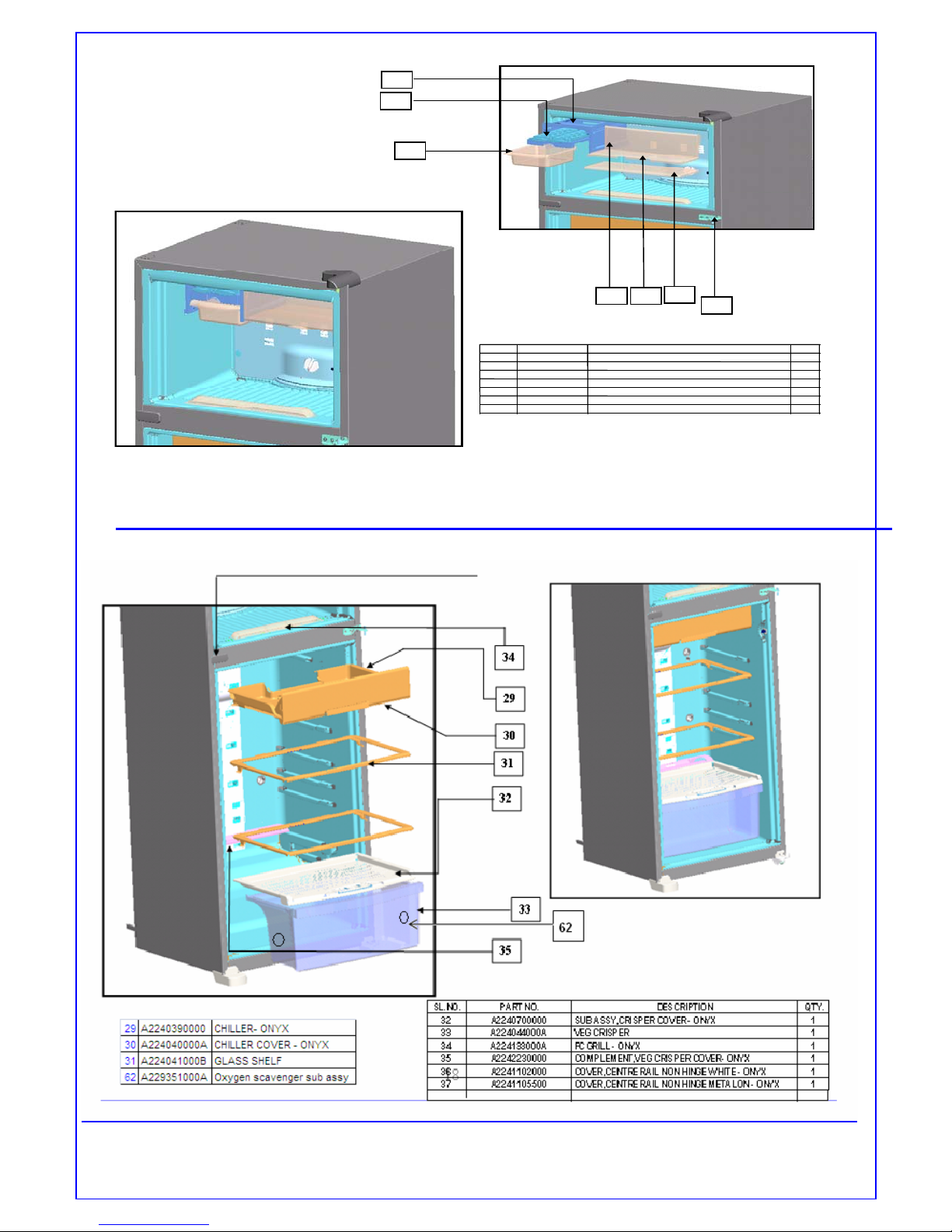

22
23
24
25 26
SL.NO. PART NO. DESCRIPTION QTY.
SL.NO. PART NO. DESCRIPTION QTY.
22 A208168000D ICE TWISTER BRACKET 1
22 A208168000D ICE TWISTER BRACKET 1
23 A2084290000 ICE TWISTER SUB ASSY 1
23 A2084290000 ICE TWISTER SUB ASSY 1
24 A208171000A ICE COLLECTOR 1
24 A208171000A ICE COLLECTOR 1
25 A2240800000 QUICK FREEZE COVER - ONYX 1
25 A2240800000 QUICK FREEZE COVER - ONYX 1
26 A2240810000 QUICK FREEZE SHELF, FRONT -ONYX 1
26 A2240810000 QUICK FREEZE SHELF, FRONT -ONYX 1
27 A2240820000 QUICK FREEZE SHELF, BACK -ONYX 1
27 A2240820000 QUICK FREEZE SHELF, BACK -ONYX 1
28
28
A2242620000
A2242620000
SUB ASSY,CENTRE HINGE LH-ONYX
SUB ASSY,CENTRE HINGE LH-ONYX
27
28
1
1
18
Page 19
36,37,131
SL.NO. PART NO. DESCRIPTION QTY.
38 A2243490000 M 4.8X 13 SELF TAPPING SCREW(LI NER TO PL E NUM) 4
39 A2242690000 SUB ASSY PLENUM FRONT -ONYX 1
40 A2241810000 PLENUM CAP-ONYX 4
41 A201495000C KNOB - FREEZER CONTROL 1
42 A2244120000 FC DAMPER , AUS-ONYX 1
43 A2240730000 COMPLEMENT EPS, PLENUM BACK-ONYX 1
44 A2221170000 FAN MOTOR MI-(DUO) 1
45 A224268000A SUB ASSY PLENUM BACK -ONYX 1
46 A201356000B SCREW FOR FIXING BRACKET AND HOUSING 4
47 A2243500000 M 4.2X 16 SELF TAPPING SCREW( FRONT TO BACK) 4
48 A2223740000 SCREW FOR FIXING FAN MOTOR 1
49 A2222710000 SOUND DAMPER 1
50 A2242540000 COMPLEMENT PLENUM FRONT-ONYX 1
51 A2221180000 FAN BLADE 110MM, DUO 1
50
38
39
40
41
42
A224110A700
51
COVER,CENTRE RAIL NON HINGE BLACK -
46
49
44
45
47
48
1
43
52
53
SL.NO. PART NO. DESCRIPTION QTY.
SL.NO. PART NO. DESCRIPTION QTY.
52 A2241650000 LED PCB, FC-ONYX 1
52 A2241650000 LED PCB, FC-ONYX 1
53 A224153000A LENS, FC LED-ONYX 1
53 A224153000A LENS, FC LED-ONYX 1
54 A2241010000 RC LED PCB-ONYX 1
54 A2241010000 RC LED PCB-ONYX 1
55 A2241080000 LENS, RC LED-ONYX 1
55 A2241080000 LENS, RC LED-ONYX 1
56 A224102000A HOUSING RC LED, DEODERISER-ONYX 1
56 A224102000A HOUSING RC LED, DEODERISER-ONYX 1
57 A2242770000 COVER - DEODERISER-ONYX 1
57 A2242770000 COVER - DEODERISER-ONYX 1
58
58
A2253030000
A2253030000
59 A2087000000 DEODERISOR 1
59 A2087000000 DEODERISOR 1
SWITCH ROCKER ARM, NC- ESBEE W welded
SWITCH ROCKER ARM, NC- ESBEE W welded
19
54
55
56
2
2
57
58
59
Page 20

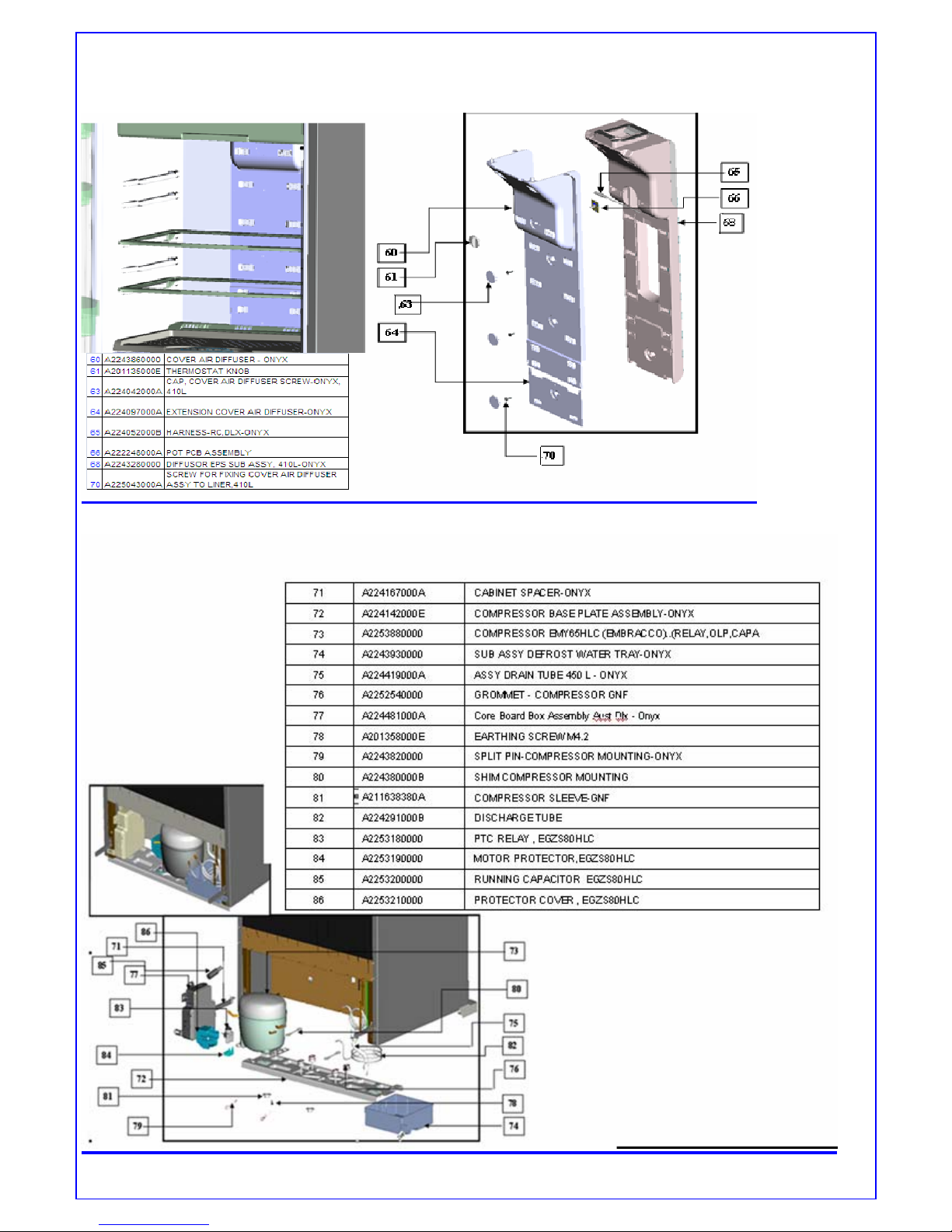

20
Page 21
87,132
95,134
93,133
21
Page 22
137
22
Page 23
104
103
102
SL.NO. PART NO. DESCRIPTION QTY.
102 A2117510000 THERMAL FUSE WITH CONN ECTOR 1
103 A2290920000 FC THERMISTOR CLIP 1
104 A2242050000 HARNESS, FC THERMISTOR
136
Part No: -
A2241780000
INTEGRATED DEFROST HEATER,KENMORE-ONYX
1
23
Page 24
PART LIST FOR ONYX-AUSTRALIA
SERVICABLE PART-ONYX-AUSTRALIA
Sr
WOIL PART
no
NUMBER
1 A2340992000 A238113 CAP, TOP HINGE COVER WHITE- TRINITY PLASTIC 1.000 EA
2 A234099B500 A234098 CAP, TOP HINGE COVER GRAPHITE - TRINITY PLASTIC 1.000 EA
3 A2340982000 A234098 COVER - HINGE TOP WHITE - TRINITY PLASTIC 1.000 EA 1.000 EA
4 A234098B500 A234098 COVER - HINGE TOP GRAPHITE - TRINITY PLASTIC 1.000 EA
5 A2243510000 A224351
6 A224503000A A224503 SUB ASSY,TOP HINGE (SHEETMETAL) - ONYX ASSY 1.000 EA 1.000 EA
7 A2381132000 A238113 END CAP FC TOP SUB ASSY TRIONYX WHITE PLASTIC 1.000 E A
8 A238113B500 A238113 FC TOP END CAP SUB ASSY - GRAPHITE ONYX PLASTIC 1.000 EA
9 A2381522000 A238152
10 A238152K900 A238152
11 A2240350000 A224035 FREEZER BIN – ONYX PLASTIC 2.000 EA 2.000 EA
12 A2243700000 A224370 MULTI USE BIN – ONYX PLASTIC 1.000 EA 1.000 EA
13 A2240510000 A224051 EGG TRAY – ONYX PLASTIC 1.000 EA 1.000 EA
14 A224059000A A224059 PACKET SEPARATOR – ONYX PLASTIC 1.000 EA 1.000 EA
15 A2381560000 A238156
16 A238156K900 A238156
WOIL
DRAWING
NUMBER
DESCRIPTION COMMODITY
M 5.5 X 1.8 PHILIPS HEAD SELF TAPPING
SCREW (BOTTOM HINGE,CENTRE HINGE,TOP
HINGE,TOP HINGE COVER AND WRAPPER)
FOAMED DOOR FC WHITE WITH SIDE POCKET
TRIONYX
FOAMED DOOR FC SLIKE WITH SIDE POCKET
TRIONYX
FOAMED RC DOOR WHITE WITH SIDE POCKET
HANDLE –TRIONYX
FOAMED RC DOOR SLIK E WITH SIDE POCKET
HANDLE –TRIONYX
SCREW 20.000 EA
FOAM DOOR 1.000 EA
FOAM DOOR 1.000 EA
FOAM DOOR 1.000 EA
FOAM DOOR 1.000 EA
Quantity
410L white 410L slike
20.000
EA
17 A2240650000 A224065 BOTTLE SEPARATOR – ONYX PLASTIC 1.000 EA 1.000 EA
18 A2240370000 A224037 BOTTLE BIN – ONYX PLASTIC 1.000 EA 1.000 EA
19 A224357000A A224357 BIN SEPARATOR- ONYX PLASTIC 1.000 EA 1.000 EA
20 A224036000A A224036 SHALLOW BIN – ONYX PLASTIC 1 . 000 E A 1.000 EA
21 A2243690000 A224369 FREEZER BIN - RC ONYX PLASTIC 1.000 EA 1.000 EA
22 A208168000D A208168 ICE TWISTER - BRAC KE T PLASTIC 1.000 EA 1.000 EA
23 A2084290000 A208429 ICE TWISTER SUB ASSY PLASTIC 1.000 EA 1.000 EA
24 A208171000A A208171 ICE COLLECTOR PLASTIC 1.000 EA 1.000 EA
25 A2240800000 A224080 QUICK FREEZE COVER-ONYX PLASTIC 1.000 E A 1.000 EA
26 A2240810000 A224081 QUICK FREEZE SHELF, FRONT -ONYX PLASTIC 1.000 EA 1.000 EA
27 A224082000A A224082 QUICK FREEZE SHELF, BACK -ONYX PLASTIC 1.000 EA 1.000 EA
28 A224144000A A224144 CENTRE HINGE ASSY, RH - ONYX ASSY 1.000 EA 1.000 EA
29 A2240390000 A224039 CHILLER- ONYX PLASTIC 1.000 EA 1.000 EA
30 A224040000A A224040 CHILLER COVER - ONYX PLASTIC 1.000 EA 1.000 EA
31 A224041000B A224041 GLASS SHELF PLASTIC 2.000 EA 2.000 EA
32 A2381360000 A238136 HONEY COMB CRISPER SUB ASSY ASSY 1.000 EA 1.000 EA
24
Page 25
33 A224044000A A224044 VEG CRISPER PLASTIC 1.000 EA 1.000 EA
34 A224133000A A224133 FC GRILL-ONYX PLASTIC 1.00 0 E A 1.000 EA
36 A224110200A A224110
37 A224110B50A A224110
38 A2243490000 A224349
39 A224269000A A224269 SUB ASSY PLENUM FRONT -ONYX ASSY 1.000 EA 4.000 EA
40 A2241810000 A224181 PLENUM CAP - ONYX PLASTIC 4.000 EA 1.000 EA
41 A201495000C A201495 KNOB -FREEZE R CONTROL PLASTIC 1.000 EA 4.000 EA
COVER,CENTRE RAIL NON HINGE WHITE ONYX
COVER,CENTRE RAIL NON HING E GRAPHITONYX
M 4.8X 13 PAN HEAD SELF TAPPING
SCREW(LINER TO PLENUM)
PLASTIC 1.000 EA
PLASTIC 1.000 EA
SCREW 4.000 EA 1.000 EA
43 A2240730000 A224073 COMPLEMENT EPS, PLANUM BACK - ONYX
44 A2221170000 A222117 FAN MOTOR MI-(DUO) ELEC 1.000 EA 1.000 EA
45 A224268000B A224268 SUB ASSY PLENUM BACK -ONYX ASSY 1.000 EA 1.000 EA
46 A201356000B A201356 SCREW FOR FIXING BRACKET AND HOUSING SCREW 4.000 EA 4.000 EA
47 A2243500000 A222350
48 A2223740000 A222374 SCREW FOR FIXING FAN MOT O R SCREW 1.000 EA 1.000 EA
49 A2222710000 A222271 SOUND DAMPER RUBBER 1.000 EA 1.000 EA
50 A2242540000 A224254 COMPLEMENT PLENUM FRONT-ONYX ELEC 1.000 EA 1.000 EA
51 A2221180000 A222118 FAN BLADE, 110MM DUO PLASTIC 1.000 EA 1.000 EA
52 A2241650000 A224165 LED PCB FC –ONYX ELEC 1 .00 0 E A 1.000 EA
53 A2241520000 A224153 HOUSING, FC LED – ONYX PLASTIC 1.000 EA 1.000 EA
54 A2240990000 A224101 RC PCB LENS ASSY – ONYX ELEC 1.00 0 E A 1.000 EA
55 A224104000A A224108 FC PCB LENS ASSY – ONYX PLASTIC 1.000 EA 1.000 EA
56 A2241020000 A224102 HOUSING RC LED, DEODERISER-ONYX PLASTIC 1.000 EA 1.000 EA
57 A2242770000 A224277 COVER - DEODERISER-ONYX PLASTIC 1. 00 0 E A 1.000 EA
58 A2253030000 A225303 SWITCH ROCKER ARM, NC- ESBEE W welded ELEC 2.000 EA 2.000 EA
59 A2087000000 A208700 DEODERISOR
60 A2243860000 A224386 COVER AIR DIFFUSER - ONYX PLASTIC 1.000 EA 1.000 EA
61 A201135000E A201135 THERMOSTAT KNOB PLASTIC 1.000 EA 1.000 EA
62 A229351000A A229351 Oxygen scavenger sub assy PLASTIC 2.000EA 2.000EA
63 A224042000A A224042 CAP, COVER AIR DIFFUSER SCREW-ONYX, 410L PLASTIC 2.000 EA
64 A224097000A A224097 EXTENSION COVER AIR DIFFUSER -O N YX PLASTIC 1.00 0 E A 1.000 EA
65 A224052000B A224052 HARNESS-RC,DLX-ONYX ASSY 1.000 EA 1.000 EA
66 A2295400000 A229540 POT PCB ASSEMBLY ELEC 1.000 EA 1.000 EA
68 A2243280000 A224328 DIFFUSOR EPS SUB ASSY, 410L-ONYX EPS 1.000 EA 1.000 EA
70 A225043000A A225043
71 A224167000A A224167 CABINET SPACER-ONYX PLASTIC 2.000 EA 2.000 EA
72 A224142000E A224142 COMPRESSOR BASE PLATE ASSEM BL Y- ON YX ASSY 1.000 EA 1.000 EA
M 4.2X 16 SELF TAPPING SCREW( FRONT TO
BACK)
SCREW FOR FIXING COVER AIR DIFFUSER
ASSY TO LINER,410L
ELEC
SCREW 4.000 EA 4.000 EA
ABSORPTION
PACKETZ
SCREW 2.000 EA ___
1.000 EA 1.000 EA
1.000 EA 1.000 EA
2.000 EA
__
25
Page 26
73 A2253880000 A225388
74 A2243930000 A224393 SUB ASSY DEFROST WATER TRAY-ONYX PLASTIC 1.000 EA 1.000 EA
75 A224419000A A224419 ASSY DRAIN TUBE 450 L - ONYX PLASTIC 1.000 EA 1.000 EA
76 A2252540000 A225254 GROMMET - COMPRESSOR GNF RUBBER 4.000EA 4.000EA
77 A2380630000 A238063 Core Board sub assy Hercules Onyx ASSY 1.000 EA 1.000 EA
78 A201358000E A201358 EARTHING SCREW M4.2 SCREW 1.000 EA 1.000 EA
79 A2243820000 A224382 SPLIT PIN-COMPRESSOR MOUNTING-ONYX STEEL 4.000 EA 4.000 EA
80 A224380000B A224380 SHIM COMPRESSOR MOUNTING STEEL 2.000 EA 2.000 EA
81 A211638380A A211638 COMPRESSOR SLEEVE-GNF PLASTIC 4.000 EA 4.000 EA
COMPRESSOR EMY65HLC
(EMBRACCO)..(RELAY,OLP,CAPA
1.000 EA 1.000 EA
82 A224291000B A224291 DISCHARGE TUBE
83 A2253180000 A225318 PTC RELAY , EGZS80HLC ELEC 1.000EA 1.000EA
84 A2253190000 A225319 MOTOR PROTECTOR,EGZS80H L C ELEC 1.000EA 1.000EA
85 A2253200000 A225320 RUNNING CAPACITOR EGZS80HL C ELEC 1.000 EA 1.000 EA
86 A2253210000 A225321 PROTECTOR COVER , EGZS80HLC PLASTIC 1.000EA 1.000EA
87 A224198200A A224198
88 A224050000B A224050 STOP,DOOR RH-ONYX PLASTIC 1. 00 0 E A 1.000 EA
89 A2241310000 A224131
90 A224109000A A224109
91 A224127000A A224127 LEVELLER ASSEMBLY-ONYX PLASTIC 2.000 EA 2.000 EA
92 A2243510000 A224351
93 A224199B50A A224199 SOCKLE, BOTTOM HINGE GRAPHITE, LH - ONYX PLASTIC 1.000 EA
93 A224198B50A A224199 SOCKLE, BOTTOM HINGE GRAPHITE, RH - ONYX PLASTIC 1.000 EA
94 A2242710000 A224271
95 A224234200A A224234 SOCKLE CAP, ONYX, WHITE PLASTIC 1.000 EA
SOCKLE,HINGE SIDE AUS, LH OPENONYX,WHITE
M4.8 X 1.6 SCREW FOR FIXING RC DOOR
STOPPER,410L/450L
SUB ASSY,BOTTOM HINGE,HIN G E SID E,LH
OPEN –ONYX
M 5.5 X 1.8 SELF TAP SCREW (BOTTOM HINGE
AND WRAPPER)
SUB ASSY,BOTTOM HINGE,NO N HING E SID E,LH
OPEN-ONYX
COPPER
TUBE
PLASTIC 1.000EA
SCREW 1.000 EA 1.000 EA
ASSY 1.000 EA 1.000 EA
SCREW 4.000 EA 4.000 EA
PLASTIC 1.000 EA 1.000 EA
1.000 EA 1.000 EA
96 A2290690000 A229069 CONTROL BOX PLASTIC 1.000 EA 1.000 EA
97 A229089000A A229089 SCREW-DC POWER SUPPLY SCREW 2.000 EA 2.000 EA
98 A2292090000 A229209 DC POWER SUPPLY- ONYX ELEC 1.000 EA 1.000 EA
99 A2380630000 A238063 Core Board sub assy Hercules Onyx ELEC 1.000 EA 1.000 EA
100 A2290700000 A229070 CORE BOARD BOX COVER PLASTIC 1.000 EA 1.000 EA
101 A2243480000 A224348
102 A2117510000 A211751 THERMAL FUSE WITH CONNECTOR ELEC 1.000 E A 1.000 EA
103 A2290920000 A229092 FC TH ERMISTOR CLIP STEEL 1.000 EA 1.000 EA
104 A224205000B A224205 HARNESS FC THERMISTOR-ONYX ELEC 1.000 EA 1.000 EA
M4.8 X 0.8 SELF TAPPING SCREW (CONTROL
BOARD TO WRAPPER,DWT to WRAPPER)
SCREW 3.000 EA 3.000 EA
26
Page 27
105 A2243610000 A224361 SS WASHER DOOR STOPPER-ONYX STEEL 1 .00 0 E A 1.000 EA
106 A204316000B A204316 SLEEVE HINGE PLASTIC 1.000 E A 1.000 EA
107 A224069D800 A224069 HUMIDITY CONTROL - ONYX PLASTIC 1.00 0 E A 1.000 EA
108 A222119000B A222119 BRACKET FAN MOTOR MOUNTING PLASTIC 1.000 EA 1.000 EA
109 A222120000B A222120 HOUSING, FAN MOTOR, DUO PLASTIC 1.000 EA 1.000 EA
110 A222148000A A222148 GROMET F OR FIXING MOTOR RUBBER 2.000 EA 2.000 EA
111 A2243860000 A224196 COVER AIR DIFFUSOR DLX - ONYX ASSY 1.000 EA 1.000 EA
112 A2243860000 A224196 COVER AIR DIFFUSER ASSY 450L DLX - ONYX ASSY 1.000 EA 1.000 EA
113 A2380640000 A238064
114 A2081860000 A208186 SUPPORT BUSH, ICE TWISTER PLASTIC 2.000 EA 2.000 EA
115 D111155700K D111155700K
116 A2223760000 A222303
117 A2240990000 A224099 SUB ASSY RC LED – ONYX ASSY 1.000 EA 1.000 EA
118 A224104000A A224104 FC LED ASSEM BL Y – ONYX ELEC 1.000 EA 1.000 EA
119 A2243970000 A224397 SOCKLE KIT ( SUB ASSY ) -ONYX PLASTIC 1 . 000 E A 1.000 EA
120 A2242152000 A224032 DOOR FC ASSY,LH,AUS,WHITE -ONYX,DLX FOAM DOOR 1.000 EA 1.000 EA
Power Cord Hercules Dlx Onyx
SCREW FOR LUGS OF ICE TWISTER BRACKET
TOP
SCREW FOR LUGS OF ICE TWISTER BRACKET
SIDE
ELEC 1.000 EA 1.000 EA
SCREW 3.000 EA 3.000 EA
SCREW 1.000 EA 1.000 EA
126 A2380630000 A238063 Core Board sub assy Hercules Onyx ASSY 1.000 EA 1.000 EA
136 A2241780000 A224178
137 A2294830000 A229483 Tube Suction Complement for EMY65HLC Comp copper ube 1.000EA 1.000EA
Note- yellow coloured parts are new parts.
INTEGRATED DEFROST HEATER,KENMOREONYX
Heater 1.000 EA 1.000 EA
27
Loading...
