Whirlpool WOC54EC7HS Installation

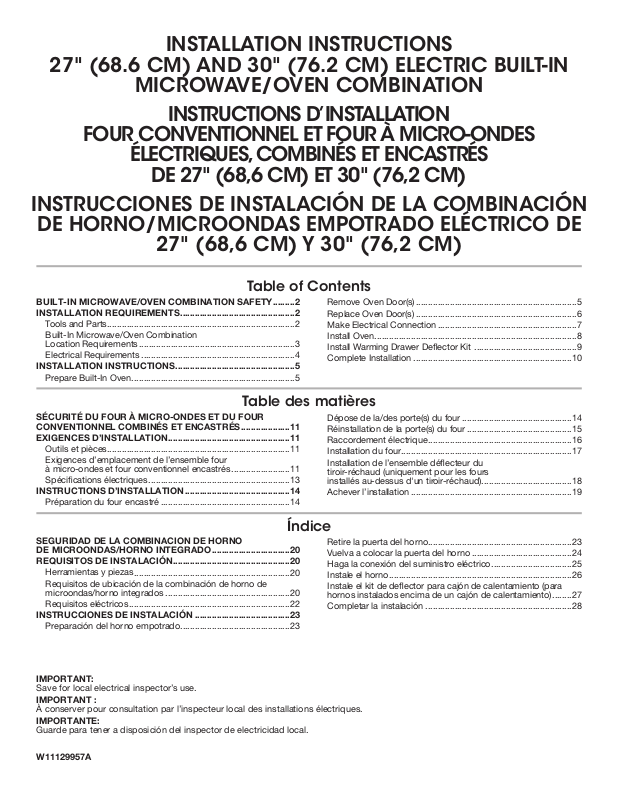

INSTALLATION INSTRUCTIONS

27" (68.6 CM) AND 30" (76.2 CM) ELECTRIC BUILT-IN

MICROWAVE/OVEN COMBINATION

INSTRUCTIONS D’INSTALLATION

FOUR CONVENTIONNEL ET FOUR À MICRO-ONDES

ÉLECTRIQUES, COMBINÉS ET ENCASTRÉS

DE 27" (68,6 CM) ET 30" (76,2 CM)

INSTRUCCIONES DE INSTALACIÓN DE LA COMBINACIÓN

DE HORNO/MICROONDAS EMPOTRADO ELÉCTRICO DE

27" (68,6 CM) Y 30" (76,2CM)

Table of Contents

BUILT-IN MICROWAVE/OVEN COMBINATION SAFETY .........2

INSTALLATION REQUIREMENTS

Tools and Parts Built-In Microwave/Oven Combination

cation Requirements ................................................................3

Electrical Requirements ...............................................................4

INSTALLATION INSTRUCTIONS

Prepare Built-In Oven

.............................................................................2

...................................................................5

...............................................2

.................................................5

Remove Oven Door(s) ..................................................................5

Replace Oven Door(s) Make Electrical Connection Install Oven Install Warming Drawer Deﬂector Kit Complete Installation

...................................................................................8

..................................................................6

.........................................................7

..........................................9

.................................................................10

Table des matières

SÉCURITÉ DU FOUR À MICRO-ONDES ET DU FOUR CONVENTIONNEL COMBINÉS ET ENCASTRÉS

EXIGENCES D’INSTALLATION

Outils et pièces Exigences d’emplacement de l’ensemble four

à micro-ondes et four conventionnel encastrés ........................11

Spéciﬁcations électriques

INSTRUCTIONS D’INSTALLATION

Préparation du four encastré

...........................................................................11

..................................................11

..........................................................13

...........................................14

.....................................................14

....................11

Dépose de la/des porte(s) du four .............................................14

Réinstallation de la porte(s) du four Raccordement électrique Installation du four Installation de l’ensemble déﬂecteur du

tiroir-réchaud (uniquement pour les fours installés au-dessus d'un tiroir-réchaud)

Achever l’installation

Índice

SEGURIDAD DE LA COMBINACION DE HORNO

DE MICROONDAS/HORNO INTEGRADO ................................20

REQUISITOS DE INSTALACIÓN

Herramientas y piezas Requisitos de ubicación de la combinación de horno de

microondas/horno integrados Requisitos eléctricos

INSTRUCCIONES DE INSTALACIÓN

Preparación del horno empotrado

IMPORTANT: Save for local electrical inspector’s use.

IMPORTANT : À conserver pour consultation par l’inspecteur local des installations électriques.

IMPORTANTE: Guarde para tener a disposición del inspector de electricidad local.

................................................................20

..................................................................22

................................................20

...................................................20

.......................................23

.............................................23

Retire la puerta del horno Vuelva a colocar la puerta del horno Haga la conexión del suministro eléctrico Instale el horno Instale el kit de deﬂector para cajón de calentamiento (para

hornos instalados encima de un cajón de calentamiento) Completar la instalación

...........................................15

...........................................................16

......................................................................17

.....................................18

..................................................................19

...........................................................23

.........................................24

.................................25

...........................................................................26

........27

............................................................28

W11129957A

BUILT-IN MICROWAVE/OVEN COMBINATION SAFETY

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

You can be killed or seriously injured if you don't immediately

DANGER

WARNING

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.

follow instructions.

You

can be killed or seriously injured if you don't

instructions.

INSTALLATION REQUIREMENTS

Tools and Parts

Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed here.

Tools Needed

■ Phillips screwdriver

■ Measuring tape

■ Drill (for wall cabinet installations)

■ 1” (2.5 cm) drill bit (for wall cabinet installations)

■ Level

■ Flat-blade screwdriver

Parts Needed

■ UL listed or CSA Approved conduit connector

■ UL listed wire connectors

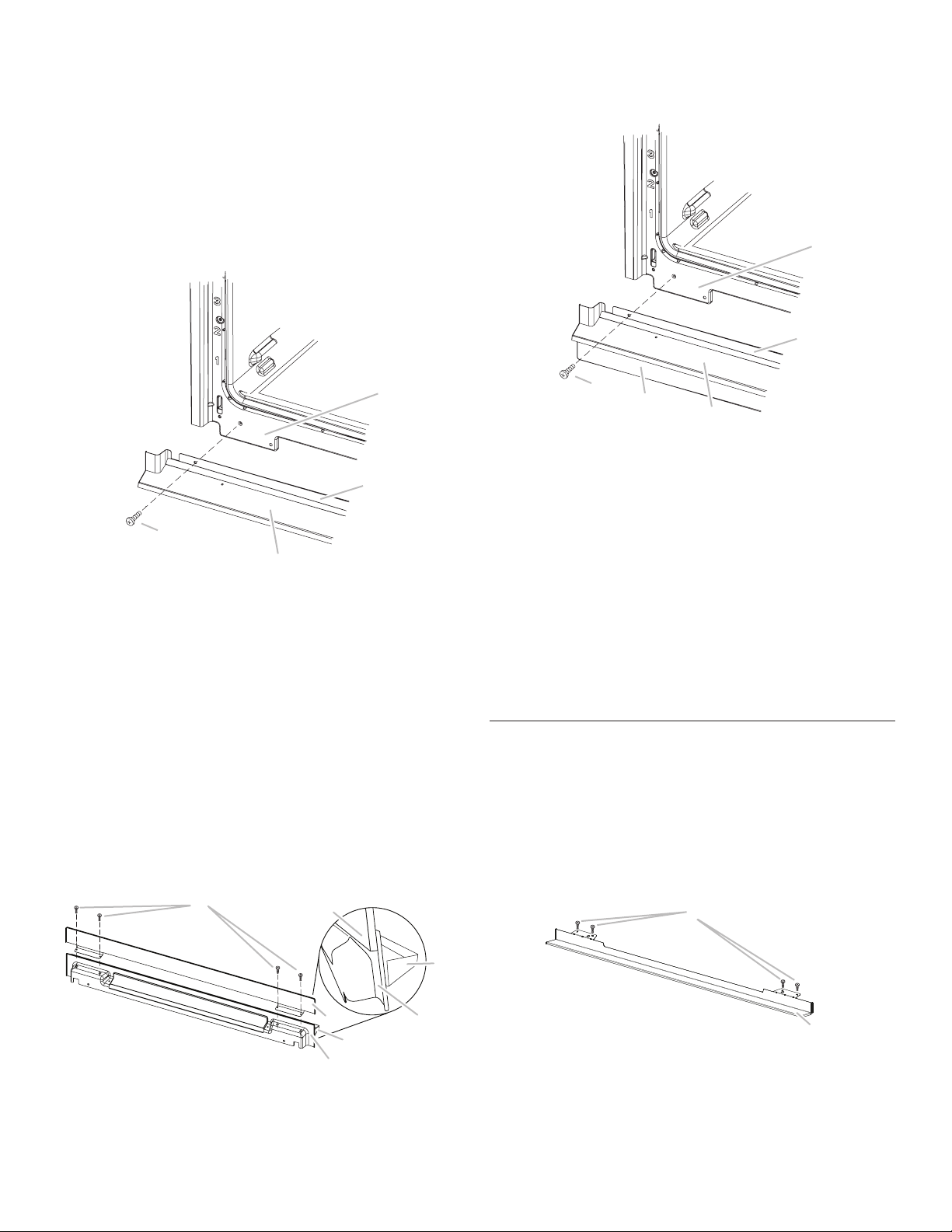

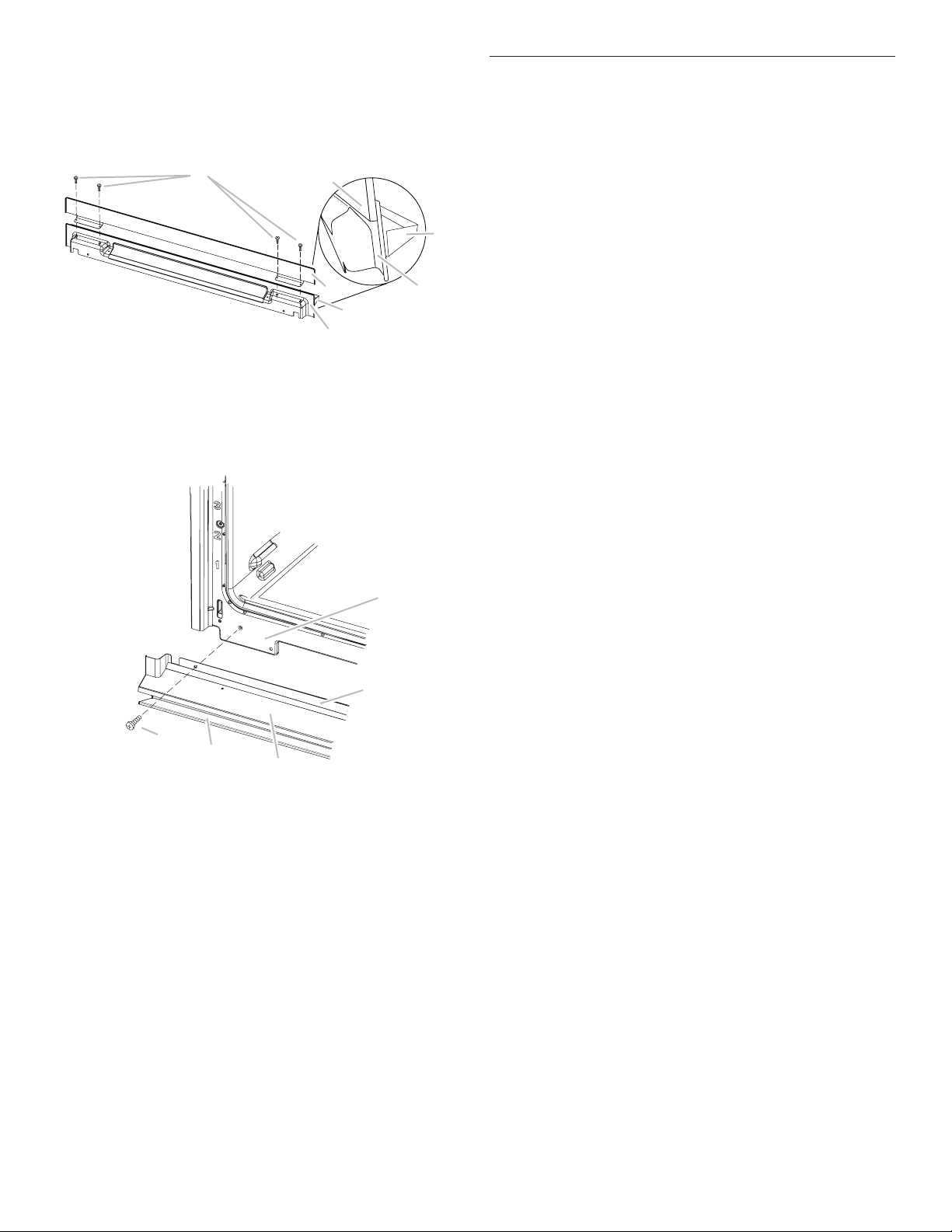

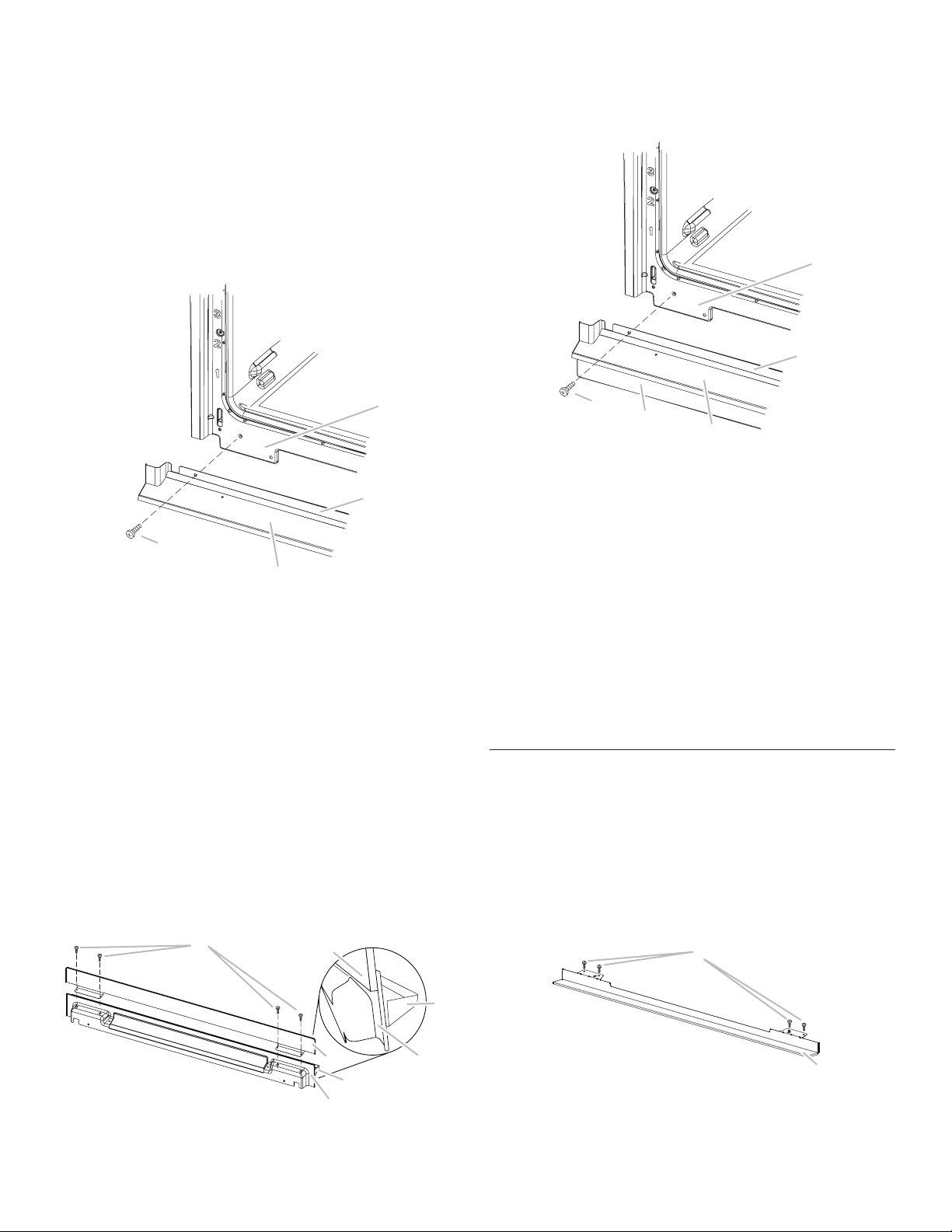

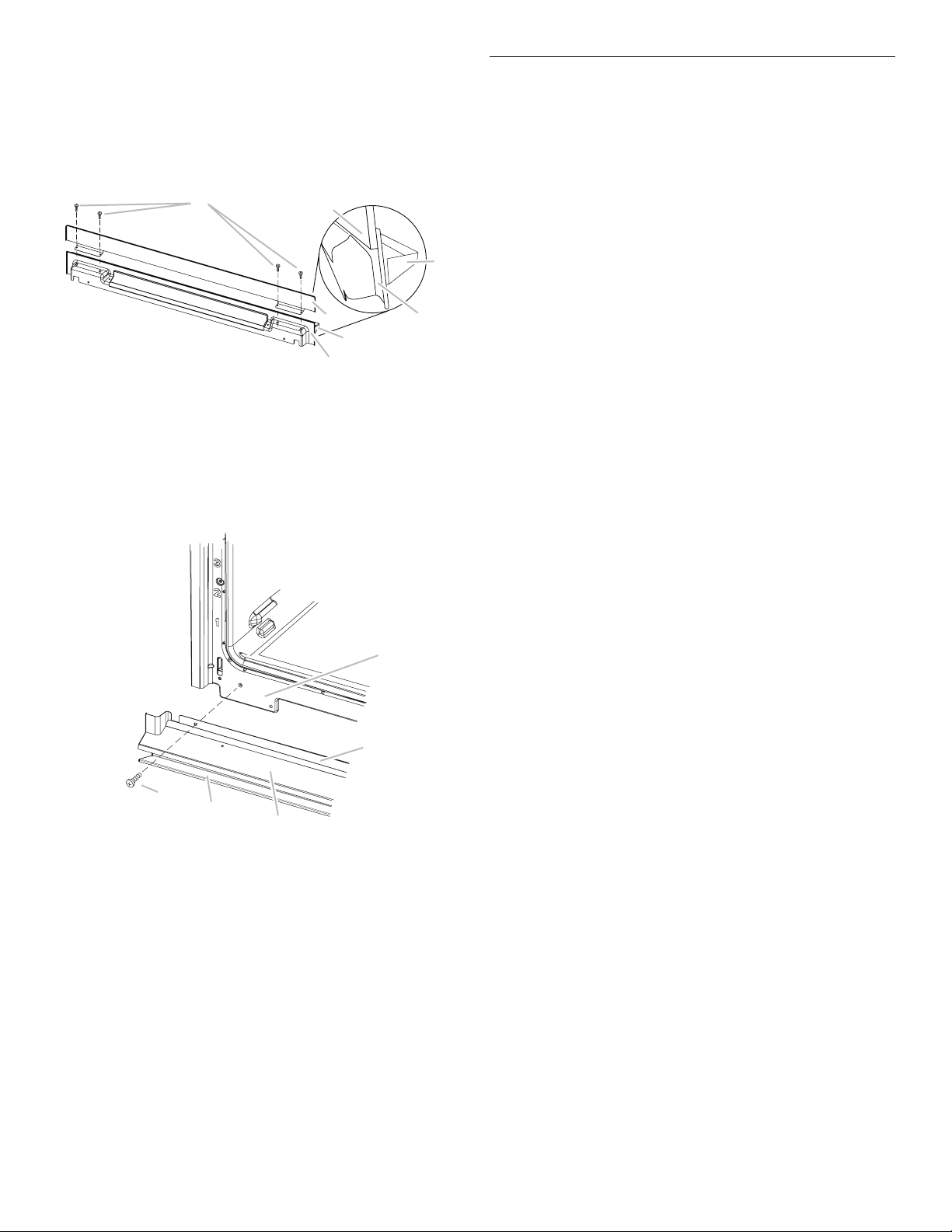

■ Warming Drawer Deﬂector Kit (for ovens installed above a

warming drawer):

Color Size Type Warming Drawer

White 27” Combo W10510613 White 30” Combo W10510614 Black 27” Combo W10531009 Black 30” Combo W10531010 Stainless Steel 27” Combo W10536338 Stainless Steel 30” Combo W10536339 Black Stainless

Steel Black Stainless

Steel Bronze 30” Combo W11123007

To order, see the “Assistance or Service” section of the Use and Care Guide.

27” Combo W10888988

30” Combo W10727416

Deﬂector Kit

■ Flush Installation Kit (for Single and Double installed at ﬂush

installation):

Color Size Type Flush Installation

White 27” Combo W11173682 White 30” Combo W11173684 Black 27” Combo W11173686 Black 30” Combo W11173692 Stainless Steel 27” Combo W11173695 Stainless Steel 30” Combo W11123004 Black Stainless

Steel Black Stainless

Steel Bronze 30” Combo W11123006

To order, see the “Assistance or Service” section of the Use and Care Guide.

27” Combo W11173701

30” Combo W11173704

Kit

Parts Supplied

■ Four #8–14 x 3/4” (19 mm) screws

■ Bottom vent

■ Two #8–18 x 3/8” (9.5 mm) screws — bottom vent

Check local codes. Check existing electrical supply. See the “Electrical Requirements” section.

It is required that all electrical connections be made by a licensed, qualiﬁed electrical installer.

Built-In Microwave/Oven Combination

the conduit clamp.

ear of the oven. Do not remove

the conduit clamp.

41½" (105.6 cm) for microwave/oven combination.

27" (68.6 cm) model

D. E.

" (10.2-48.9 cm) bottom

" (105 cm)* recommended

Location Requirements

IMPORTANT: Observe all governing codes and ordinances.

■ Cabinet opening dimensions that are shown must be used.

Given dimensions provide minimum clearance with oven.

■ Recessed installation area must provide complete enclosure

around the recessed portion of the oven.

■ Grounded electrical supply is required. See the “Electrical

Requirements” section.

■ Electrical supply junction box should be located 3” (7.6 cm)

above the cutout 3” (7.6 cm) maximum below the support surface when the oven is installed in a wall cabinet. A 1” (2.5 cm) minimum diameter hole should have been drilled in the right rear or left rear corner of the upper or lower support surface to pass the appliance cable through to the junction box.

■ Oven support surface must be solid, level and ﬂush with

bottom of cabinet cutout. Floor must be able to support a total weight (microwave and built-in oven) of 208 lbs (95 kg) for 27” (68.6 cm) models or 249 lbs (113 kg) for 30” (76.2 cm) models.

IMPORTANT: To avoid damage to your cabinets, check with your builder or cabinet supplier to make sure that the materials used will not discolor, delaminate or sustain other damage. This oven has been designed in accordance with the requirements of UL and CSA International and complies with the maximum allowable wood cabinet temperatures of 194°F (90°C).

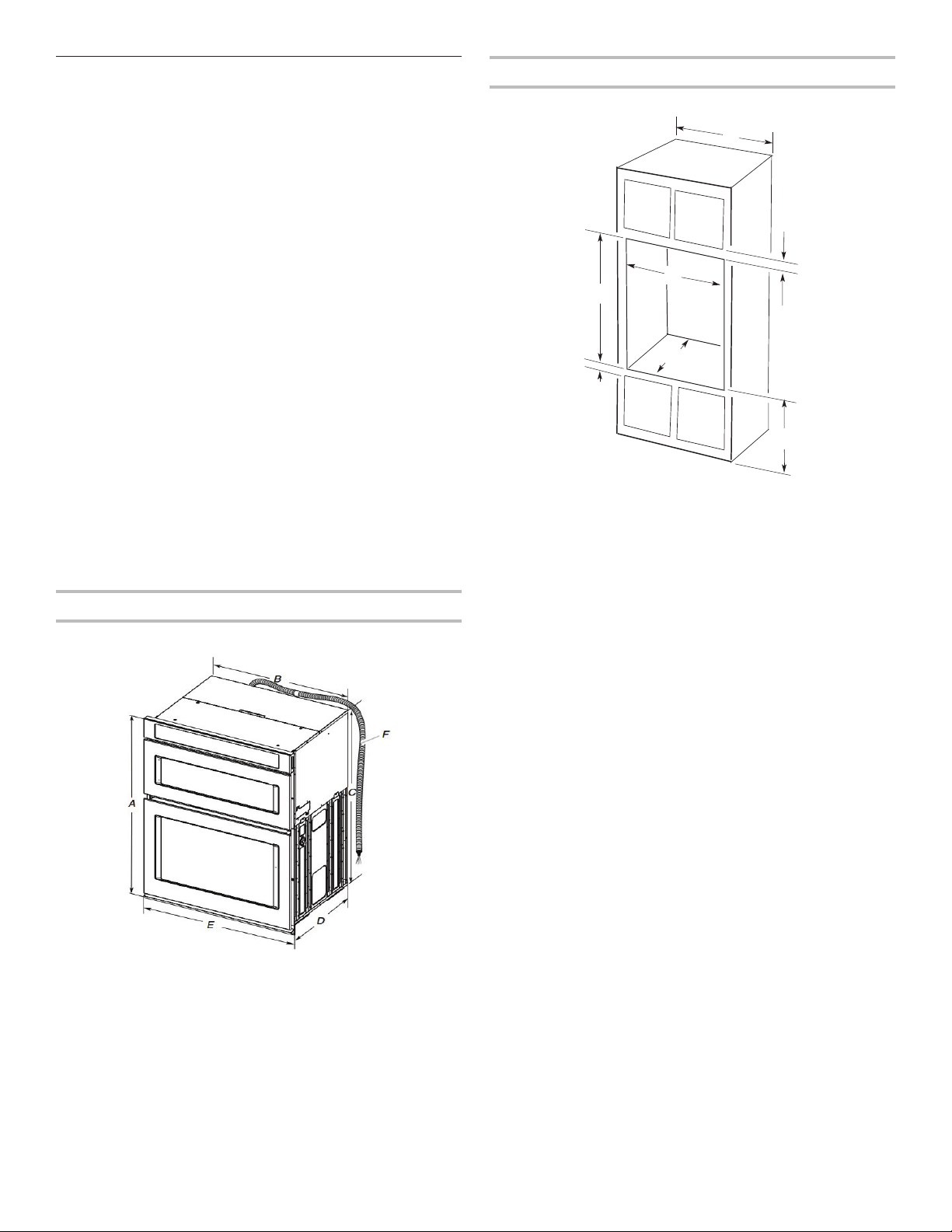

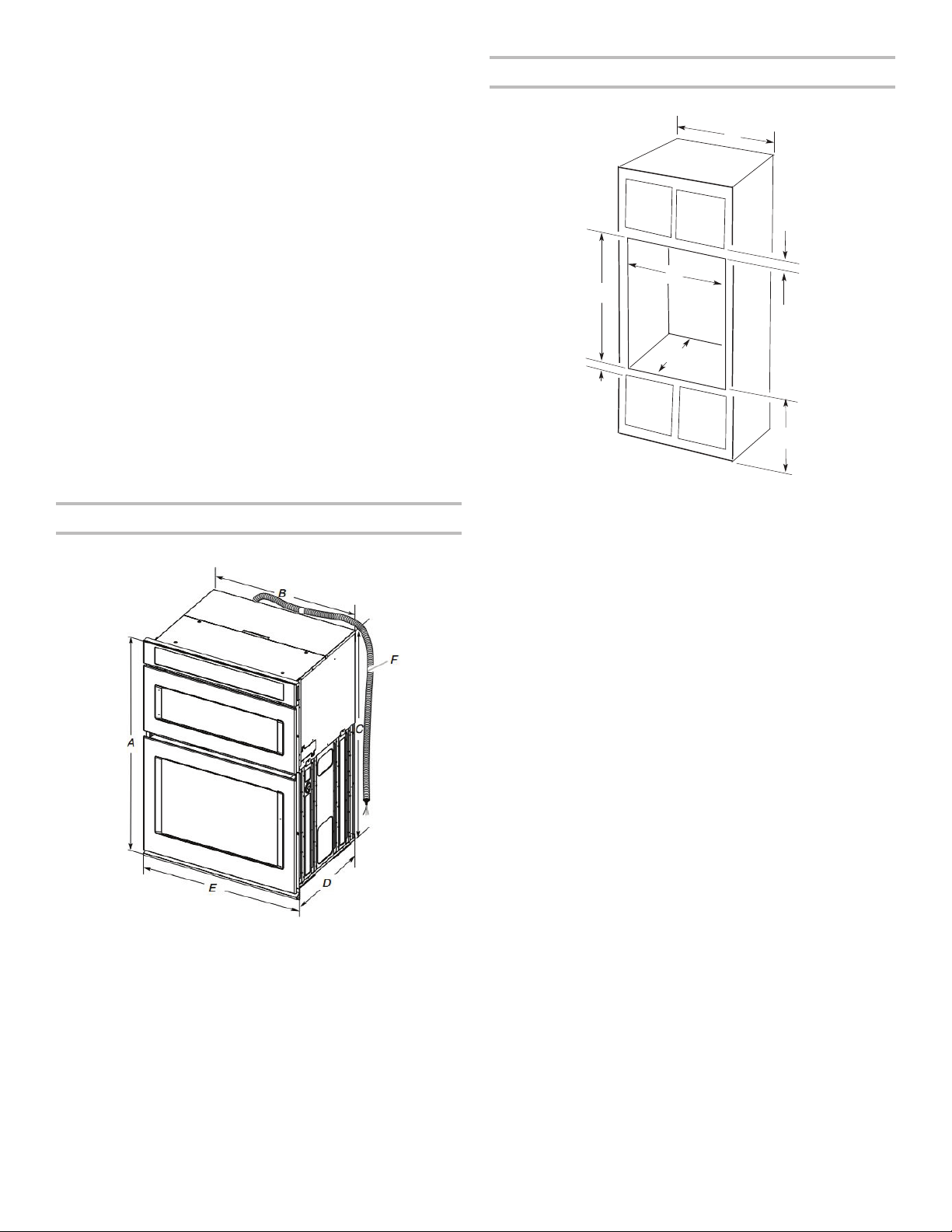

Product Dimensions

27” (68.6 cm) and 30” (76.2 cm) Ovens

Cabinet Dimensions

27” (68.6 cm) and 30” (76.2 cm) Ovens

27" (68.6 cm) min. cabinet width

1" (2.5 cm) top of cutout to bottom of upper cabinet door

19¹⁄

" (48.9 cm) bottom of

cutout to ﬂoor is

ecommended. 4"-19¹⁄4" (10.2-48.9 cm) bottom of cutout to ﬂoor is acceptable.

25¹⁄

" (64.8 cm) cutout width

1¹⁄

" (3.8 cm) min. bottom of

cutout to top of cabinet door

⁄16" (105 cm)* recommended

cutout height 24" (60.7 cm) cutout depth

* NOTE: The cutout height can be between 41" (104.1 cm) and

30" (76.2 cm) models

A. 30" (76.2 cm) min. cabinet width

B. 1" (2.5 cm) top of cutout to bottom of upper cabinet door

C. 19¹⁄

" (48.9 cm) bottom of cutout to ﬂoor is recommended. 4"-19¹⁄

of cutout to ﬂoor is acceptable.

D. 28¹⁄

" (72.4 cm) cutout width

E. 1¹⁄

" (3.8 cm) min. bottom of

cutout to top of cabinet door

F. 41

⁄

cutout height G. 24" (60.7 cm) cutout depth

27" (68.6 cm) models

A. 42

⁄16" (108.0 cm) overall height

B. 25

⁄16" (64.6 cm) recessed width

C. 41" (104.1 cm) recessed height

D. 23¹⁄

" (59.1 cm) max. recessed

depth E. 27" (68.6 cm) overall width F. 48" (121.9 cm) Flexible conduit

length measured from the conduit clamp located at the rear of the oven. Do not remove

30" (76.2 cm) models

A. 42 B. 28¹⁄ C. 41" (104.1 cm) recessed height D. 23¹⁄

depth E. 30" (76.2 cm) overall width F. 48" (121.9 cm) Flexible conduit

length measured from the conduit clamp located at the r

⁄16" (108.0 cm) overall height

" (72.3 cm) recessed width

" (59.1 cm) max. recessed

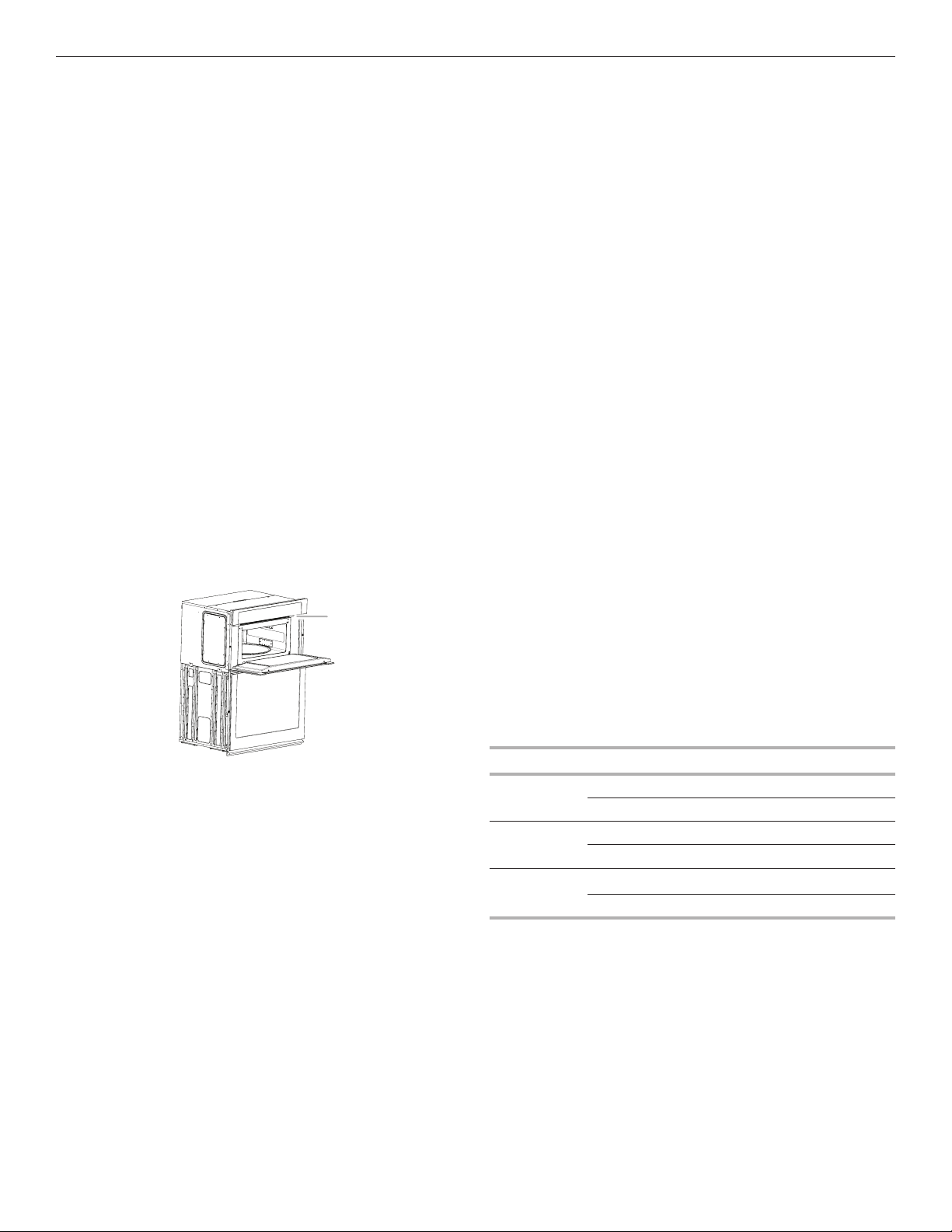

Electrical Requirements

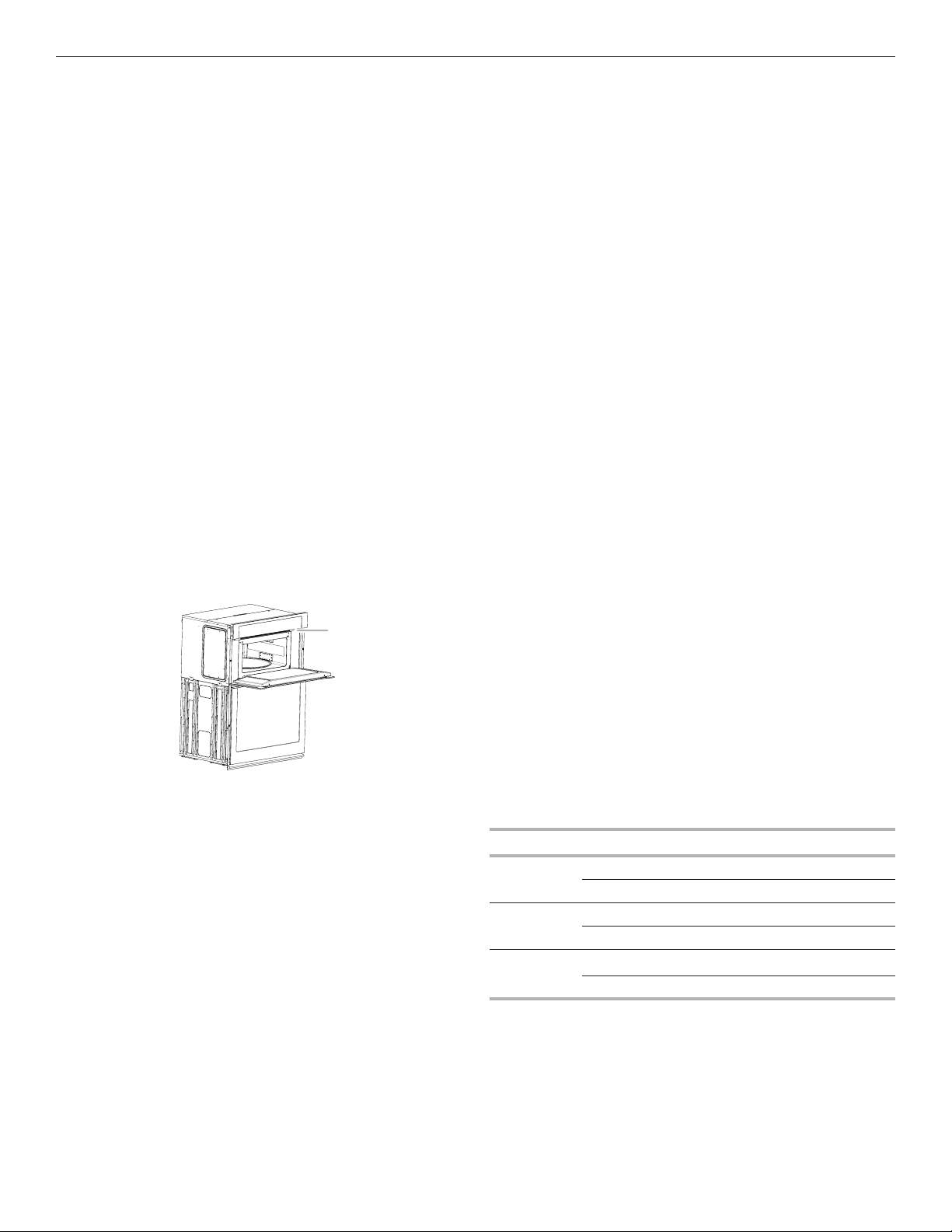

A. Model/serial/rating plate

If codes permit and a separate ground wire is used, it is recommended that a qualiﬁed electrical installer determine that the ground path and wire gauge are in accordance with local codes.

Check with a qualiﬁed electrical installer if you are not sure the oven is properly grounded.

This oven must be connected to a grounded metal, permanent wiring system.

A copy of the above code standards can be obtained from:

National Fire Protection Association

1 Batterymarch Park

Quincy, MA 02169-7471

CSA International

8501 East Pleasant Valley Road

Cleveland, OH 44131-5575

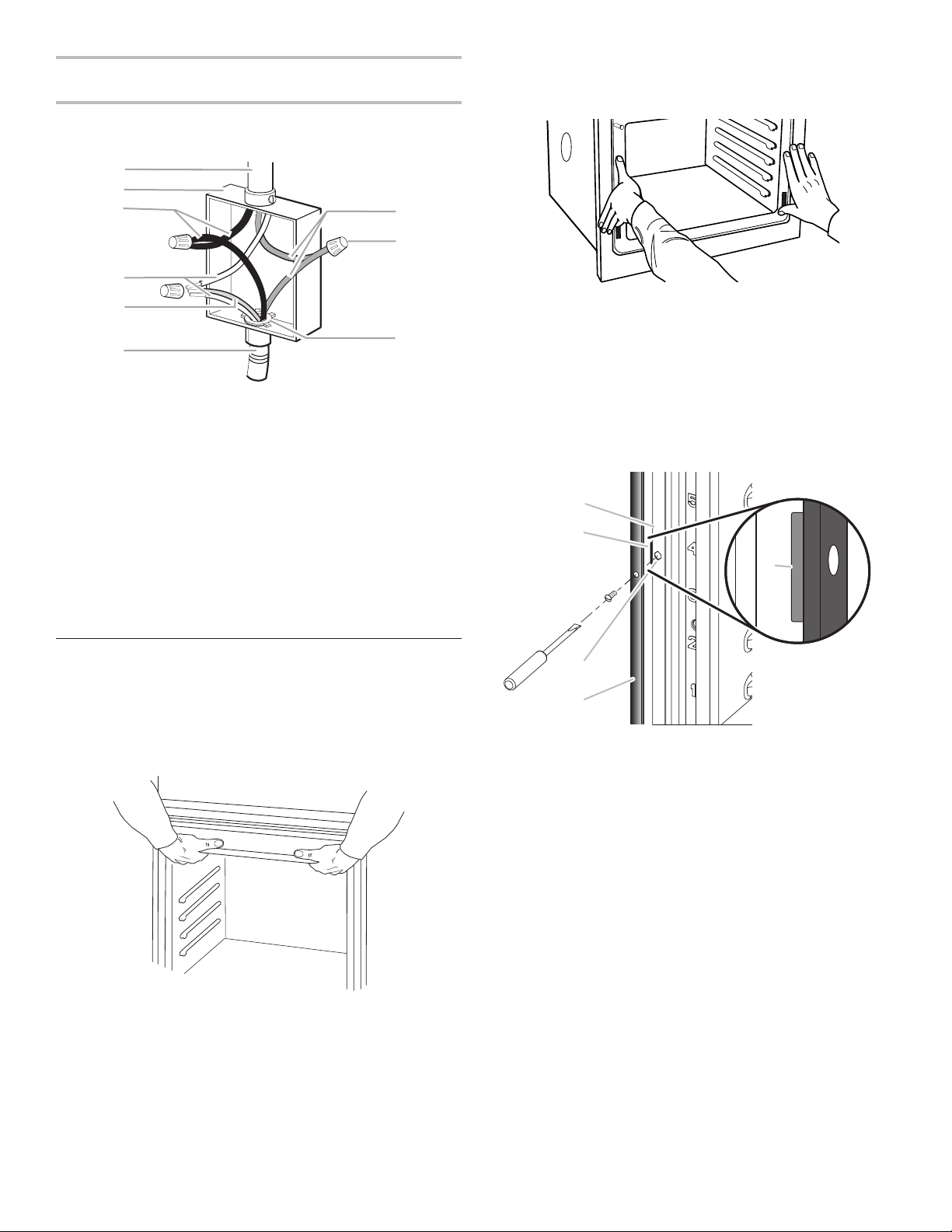

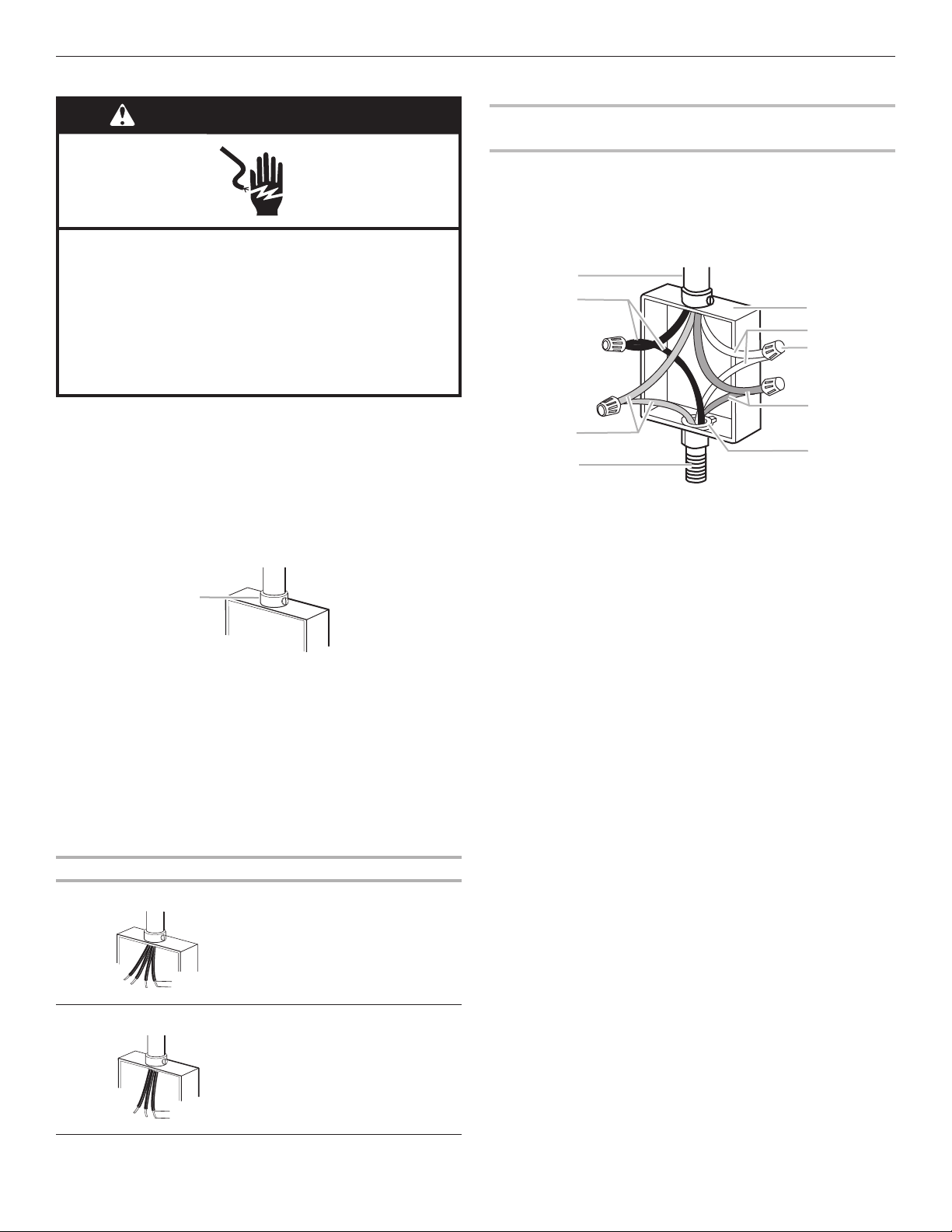

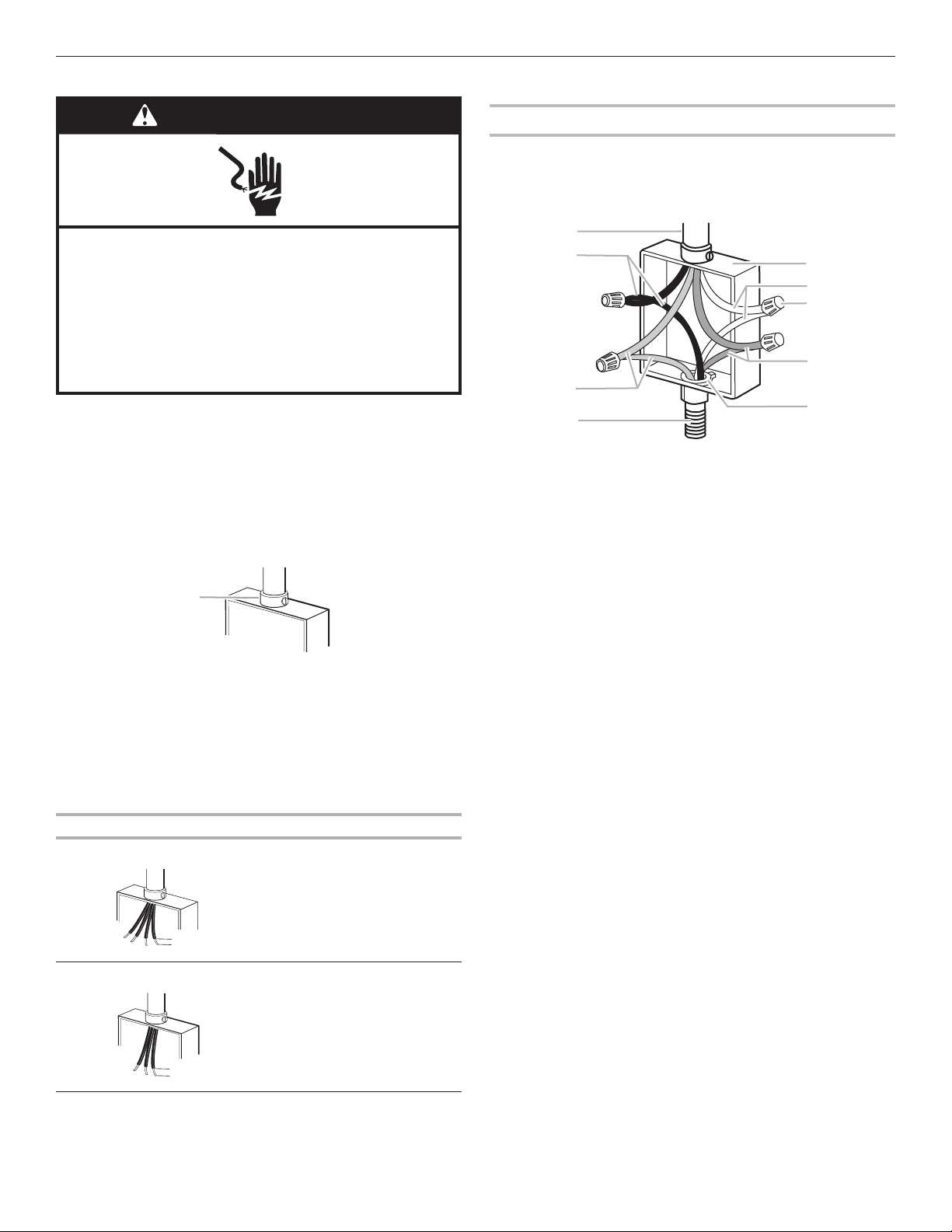

Electrical Connection

To properly install your oven, you must determine the type of electrical connection you will be using and follow the instructions provided for it here.

■ Oven must be connected to the proper electrical voltage,

amperage, and frequency as speciﬁed on the model/serial/ rating plate. See the following illustration.

■ Models rated from 7.3 to 9.6 kW at 240 volts (6.3 to 8.3 kW

at 208 volts) require a separate 40-amp circuit. Models rated from 4.9 to 7.2 kW at 240 volts (4.3 to 6.2 kW at 208 volts) require a separate 30-amp circuit. Models rated at

4.8 kW and below at 240 volts (4.2 kW and below at 208 volts) require a separate 20-amp circuit.

■ A circuit breaker is recommended.

■ Connect directly to the fused disconnect (or circuit breaker

box) through ﬂexible, armored or nonmetallic sheathed, copper cable (with grounding wire). See the “Make Electrical Connection” section.

■ Flexible conduit from the oven should be connected directly

to the junction box.

■ Do not cut the conduit. The length of conduit provided is for

serviceability of the oven.

■ A UL Listed or CSA Approved conduit connector must be

provided.

■ If the house has aluminum wiring, follow the procedure

below:

■ Connect the aluminum wiring using special connectors

and/or tools designed and UL Listed for joining copper to aluminum.

Follow the electrical connector manufacturer’s recommended procedure. Aluminum/copper connection must conform with local codes and industry accepted wiring practices.

Be sure that the electrical connection and wire size are adequate and in conformance with the National Electrical Code, ANSI/ NFPA 70-latest edition or CSA Standards C22.1-94, Canadian Electrical Code, Part 1and C22.2 No. O-M91-latest edition, and all local codes and ordinances. A copy of the above code standards can be obtained from: National Fire Protection Association 1 Batterymarch Park Quincy, MA 02169-7471 CSA International 8501 East Pleasant Valley Road Cleveland, OH 44131-5575.

For power requirements, refer to the following table.

Series Voltage Frequency Rating

WOC97EC/ WOCA7EC

120/240 V AC 60 Hz 7.6 kW 120/208 V AC 60 Hz 6.2 kW

WOC75EC 120/240 V AC 60 Hz 7.5 kW

120/208 V AC 60 Hz 6.1 kW

WOC54EC 120/240 V AC 60 Hz 7.5 kW

120/208 V AC 60 Hz 6.1 kW

INSTALLATION INSTRUCTIONS

Prepare Built-In Oven

1. Decide on the ﬁnal location for the oven. Avoid drilling or cutting into house wiring during installation.

WARNING

Excessive Weight Hazard

Use two or more people to move and install oven.

Failure to do so can result in back or other injury.

2. To avoid ﬂoor damage, set the oven onto cardboard prior to installation. Do not use handle or any portion of the front frame for lifting.

3. Remove the shipping materials and tape from the oven. Remember to keep the corner posts and other materials that may be needed for installation.

4. Remove the hardware package from inside the package containing literature.

5. Remove and set aside racks and other parts from inside the oven.

6. Move oven and cardboard close to the oven’s ﬁnal location.

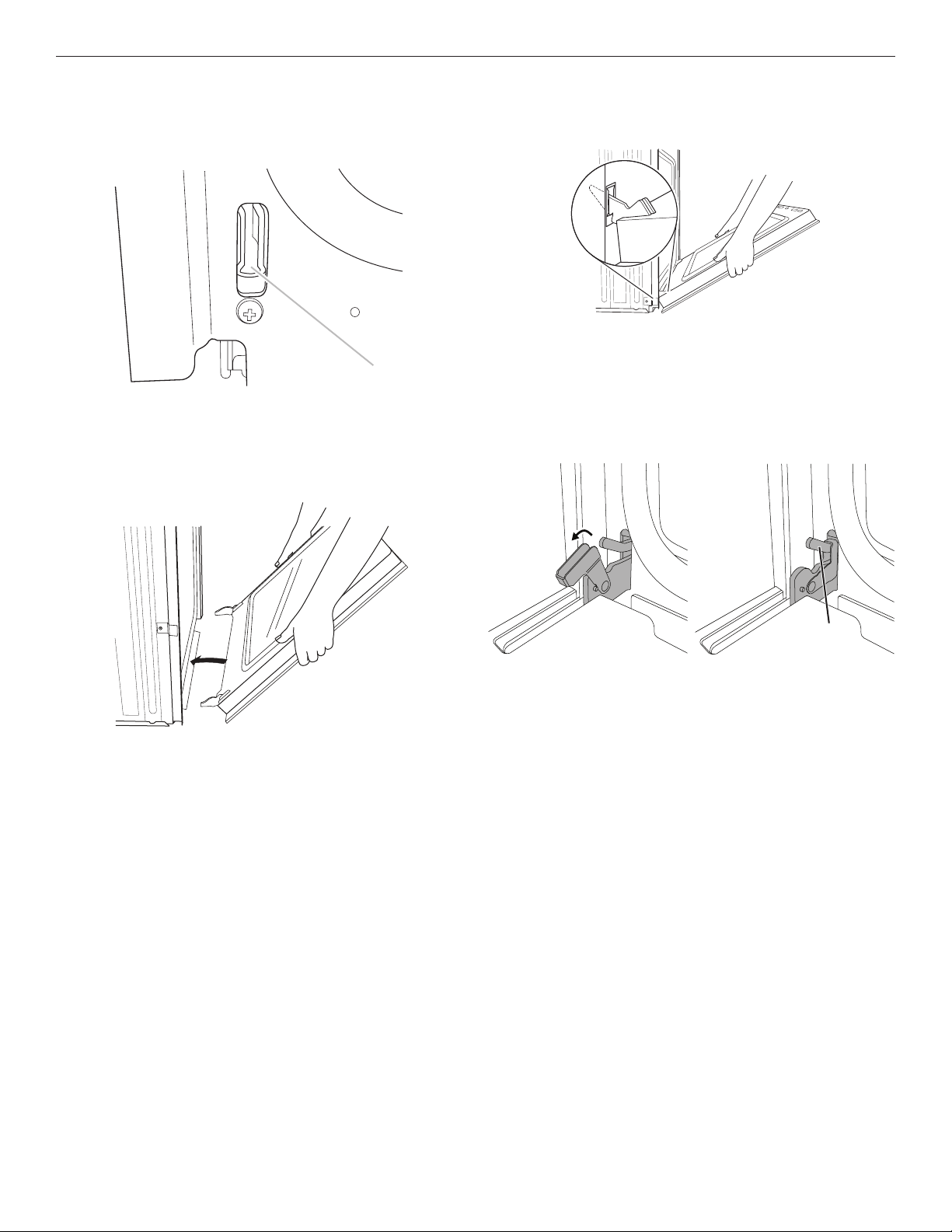

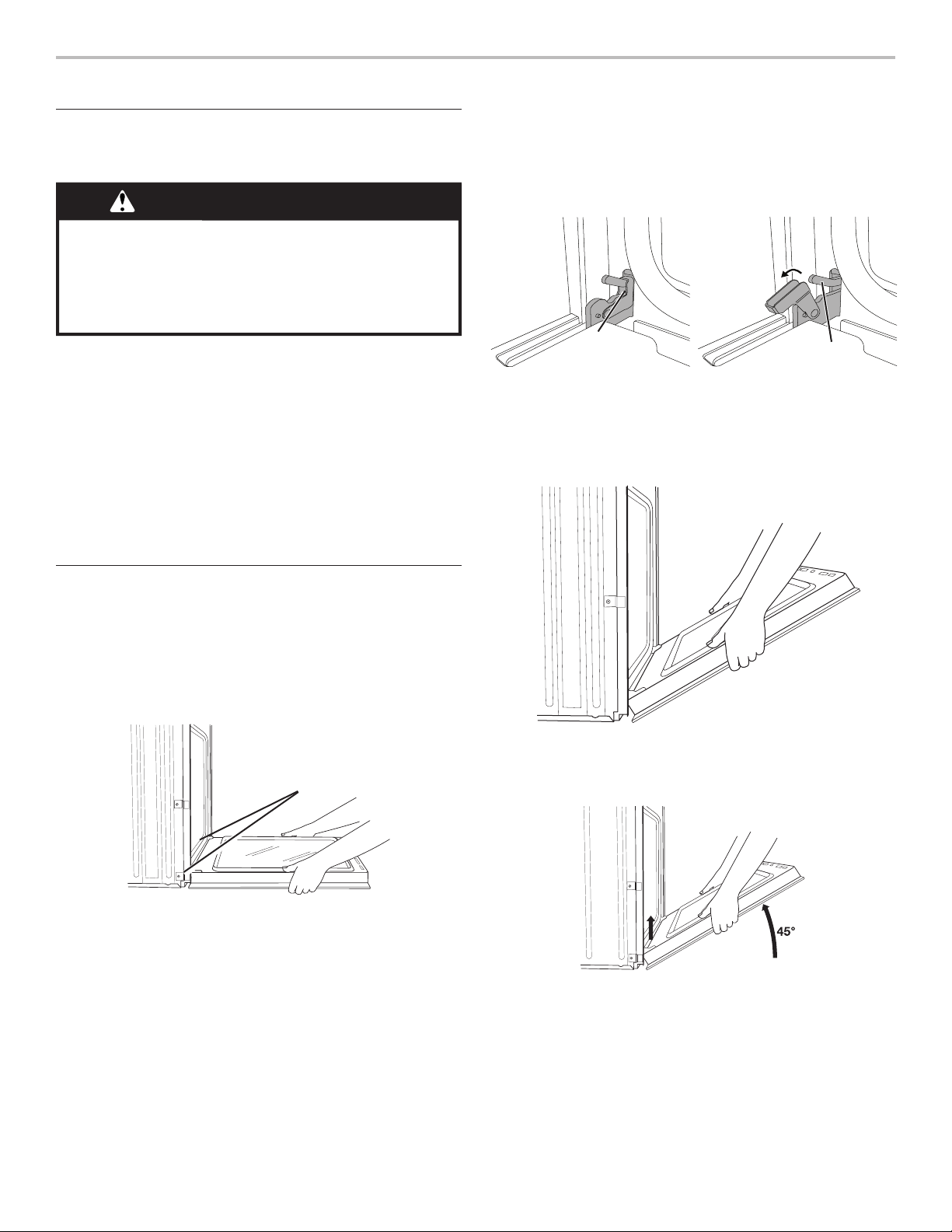

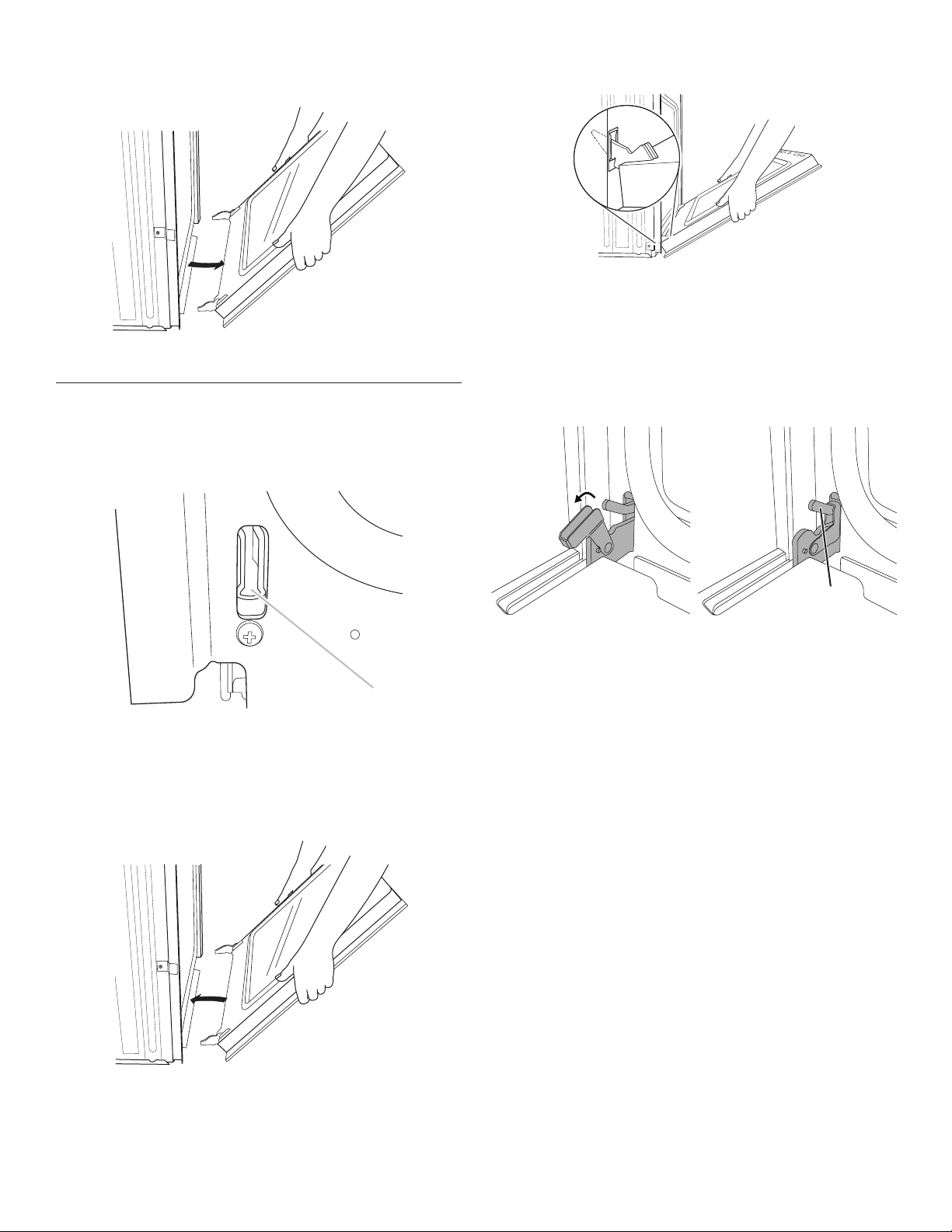

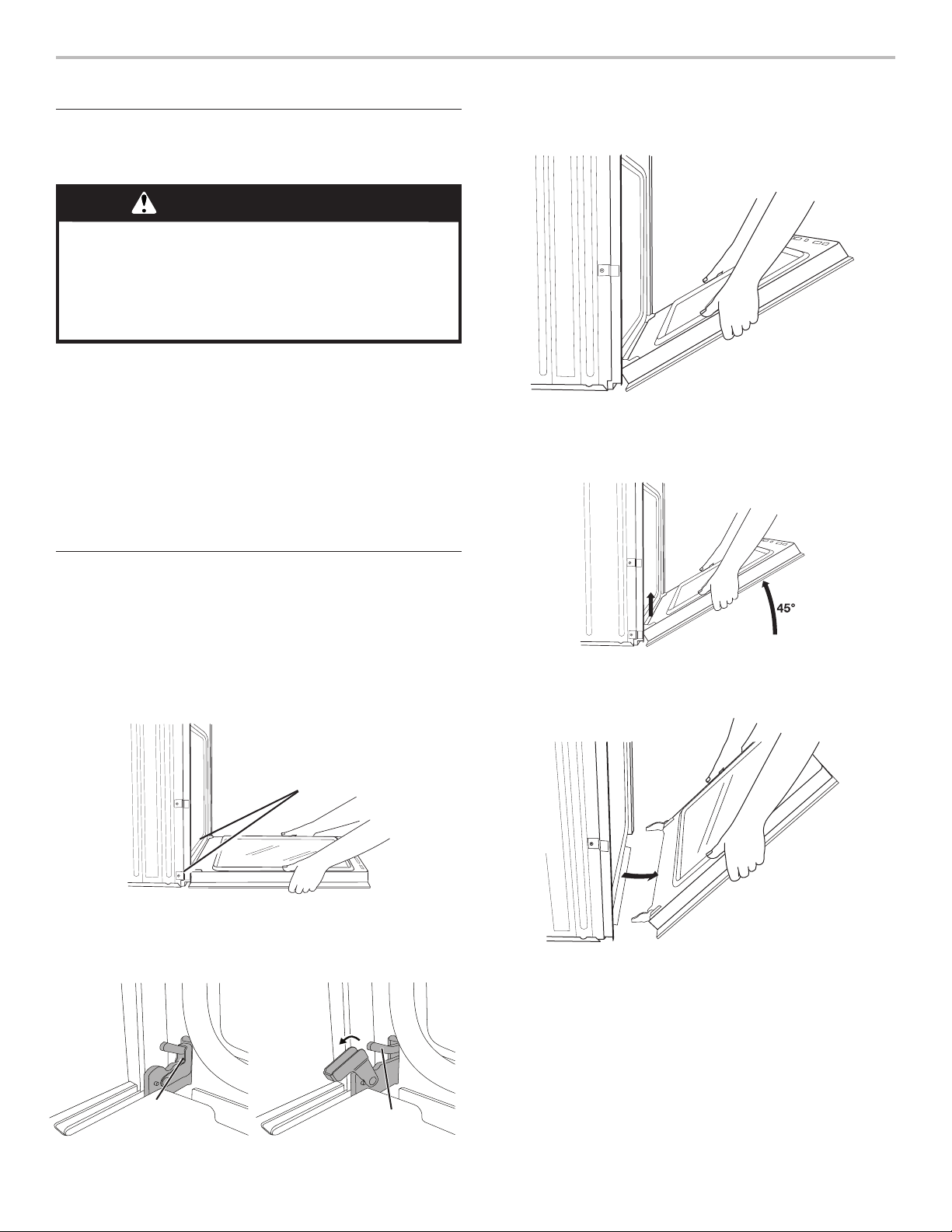

Remove Oven Door(s)

IMPORTANT: Use two hands to remove oven door. For double ovens, repeat the process for each door.

1. Prior to removing the oven door, prepare a surface where you will place it. This surface should be ﬂat and covered with a soft blanket, or use the corner posts from your packaging material.

2. Fully open the oven door.

4. Gently start to close the door. The door will stop at a partially

closed position.

5. Using two hands, grasp the edges of the oven door. Close the oven door slightly past the stop position to take the weight off of the door hinges, and then pull the oven door up.

Door Hinges

3. Locate the oven door hinge locks in both corners of the oven door, and rotate the hinge locks toward the oven door to the unlocked position. If the door hinge lock is not rotated fully (see illustration B), the door will not remove properly.

Locked position

Grip here to rotate

A. Oven door hinge lock in

locked position

Unlocked position

Soft close hinge

arm on select models

B. Oven door hinge lock in

partially unlocked position

6. Pull the oven door toward you, and then remove it. You may need to gently shift the door from side to side as you pull.

7. Set the oven door aside on the prepared covered work surface with the oven door resting on its handle.

Replace Oven Door(s)

1. Using two hands, grasp side edges of door at the midpoint. Face the oven cavity.

2. Locate the slots on each side of the oven front frame for the door hinge locks.

A. Slot in the oven cavity for door hinge lock

3. Using two hands, grasp the edges of the oven door. At a 45° angle, insert the hinges at the same time, and push the oven door into the oven cavity slot to replace. You may need to gently shift the door from side to side as you push.

4. Make sure the door hinge notch is engaged on the bottom of the oven cavity slot.

IMPORTANT: Do not close the door at this step or damage may occur to the door hinge.

5. Lower the oven door to the fully open position. If the oven door does not open to a full 90°, repeat steps 1 through 3.

6. Locate the oven door hinge locks in the corners of the oven door, and rotate the hinge locks toward the oven cavity to the locked position.

Unlocked position

Locked position

Soft close hinge

arm on select models

7. After the door hinges have been locked, gently swing the door upward to close. The door should not be forced closed.

8. When the hinges are properly installed and the door is closed, there should be an even gap between the door and the control panel. If one side of the oven door is lower than the other, the hinge on that side is not properly installed.

See the “Remove Oven Door(s)” and “Replace Oven Door(s)” sections.

Make Electrical Connection

WARNING

4-Wire Cable from Home Power Supply

IMPORTANT: Use the 4-wire cable from home power supply

in the U.S. where local codes do not allow grounding through neutral, New Branch circuit installations (1996 NEC), mobile homes and recreational vehicles, new construction and in Canada.

Electrical Shock Hazard

Disconnect power before servicing.

Use 8 gauge copper wire.

Electrically ground oven.

Failure to follow these instructions can result in death, fire, or electrical shock.

This oven is manufactured with a neutral (white) power supply wire and a cabinet-connected green (or bare) ground wire twisted together.

1. Disconnect power.

2. Feed the ﬂexible conduit from the oven through the opening

in the cabinet.

3. Remove junction box cover, if it is present.

4. Install a UL Listed or CSA Approved conduit connector to

the junction box.

A. UL listed or CSA approved conduit connector

5. Route the ﬂexible conduit from the oven to the junction box through a UL Listed or CSA Approved conduit connector.

6. Tighten screws on conduit connector.

7. See the “Electrical Connection Options Chart” to complete

installation for your type of electrical connection.

Electrical Connection Options Chart

If your home has: Go to section:

4-Wire 4-Wire Cable from Home

Power Supply

A. Cable from home power supply B. Black wires C. Red wires D. 4-wire ﬂexible conduit from

oven

E. Junction box

F. White wires G. UL listed wire connectors H. Green (or bare) ground wires I. UL Listed or CSA Approved

conduit connector

1. Connect the two black wires (B) together using a UL Listed wire connector.

2. Connect the two red wires (C) together using a UL Listed wire connector.

3. Untwist white wire from green (or bare) ground wire coming from the oven.

4. Connect the two white wires (F) together using a UL Listed wire connector.

5. Connect the green (or bare) ground wire (H) from the oven cable to the green (or bare) ground wire (in the junction box) using a UL Listed wire connector.

6. Install junction box cover.

3-Wire Cable from Home Power Supply: U.S. Only

IMPORTANT: Use the 3-wire cable from home power supply

where local codes permit a 3-wire connection.

1/2"

(13 mm)

3-Wire 3-Wire Cable from Home

Power Supply

1/2"

(13 mm)

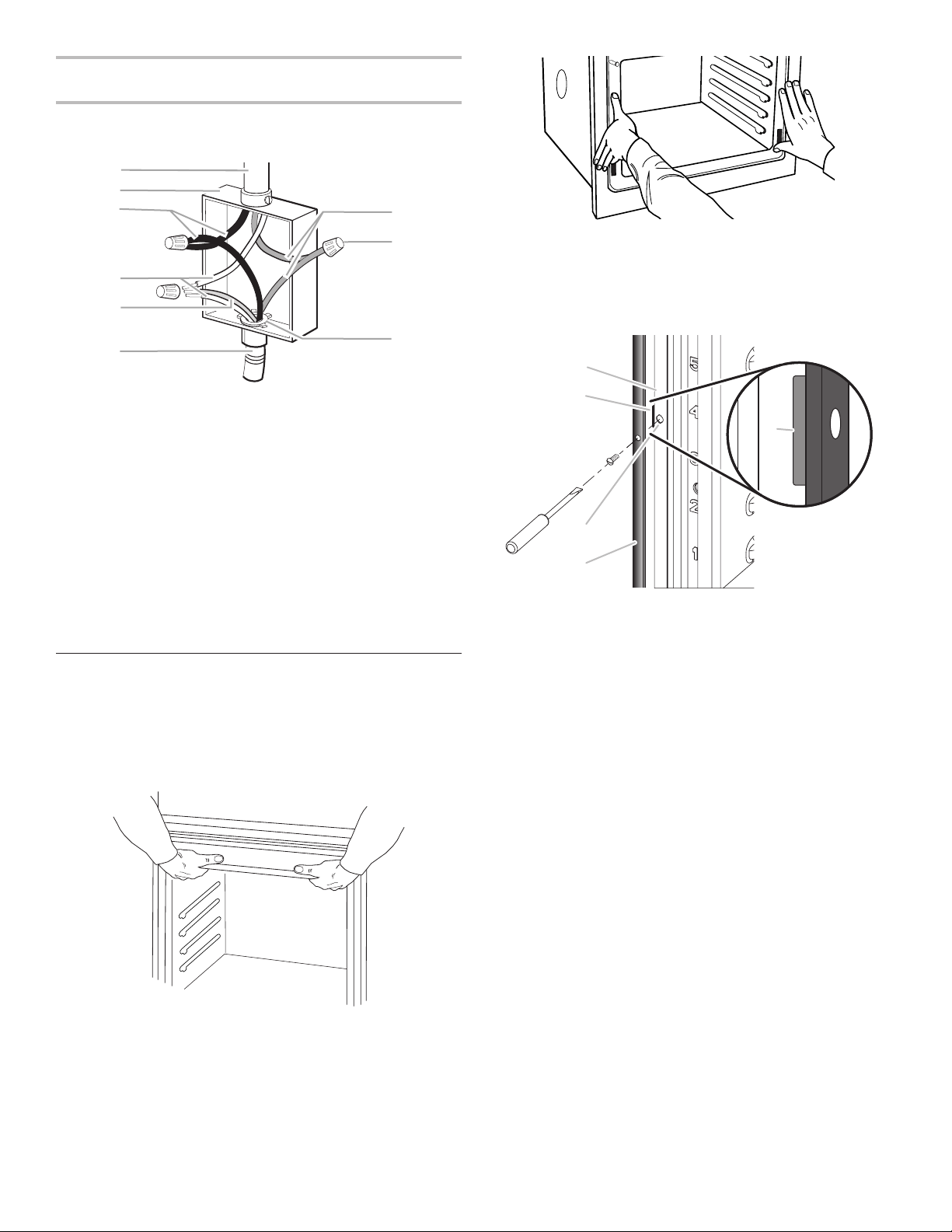

A. Cable from home power supply

B. Junction box C. Black wires D. White wires E. Green (or bare) ground wire

(from oven)

F. 4-wire ﬂexible conduit from oven

G. Red wires H. UL Listed wire connectors I. UL Listed or CSA Approved

conduit connector

1. Connect the two black wires (C) together using a UL Listed wire connector.

2. Connect the two white wires (D) and the green (or bare) ground wire (of the oven cable) using a UL Listed wire connector.

3. Connect the two red wires (G) together using a UL Listed wire connector.

4. Install junction box cover.

4. Remove the tape from the black front trim, and remove the

zip tie from the mounting spacer.

■ Securely fasten the oven to the cabinet using the

#8-14 x 1" screws provided.

■ Insert the screws through holes in black trim, aligning

with the holes in oven frame and mounting spacers already in place. Do not overtighten screws.

Install Oven

1. Using two or more people, lift the oven partially into cabinet cutout. Use the oven opening as an area to grip.

NOTE: Push against seal area of oven front frame when pushing oven into cabinet. Do not push against the outside edges.

2. Push against the seal area of the front frame to push the oven into the cabinet until the back surface of the front frame touches the front wall of the cabinet.

A. Oven frame B. Mounting spacer C. Oven frame hole D. Black trim piece

3. Push the oven completely into the cabinet and center oven into cabinet cutout.

5. The bottom vent and bottom vent trim (required when the

oven is installed with the feet in the tall position) are shipped in the foam packing at the top of the oven.

To install only the bottom vent, see the following instructions. To install both the bottom vent and the bottom vent trim for installations with the feet in the tall position, see the instructions in Step 6.

■ Align vent tab (B) with oven frame (A) as shown.

■ Using one #8-18 x 3/8" (9.5 mm) screw (D) on each side

of the vent tab (B), fasten the vent securely to the oven.

■ Align vent tab (B) with oven frame (A) as shown.

■ Using one #8-18 x 3/8" (9.5 mm) screw (E) on each side of

the vent tab (B), fasten the vent securely to the oven.

A. Oven frame B. Vent tab

C. Oven vent D. #8-18 x 3/8" (9.5 mm)

screws

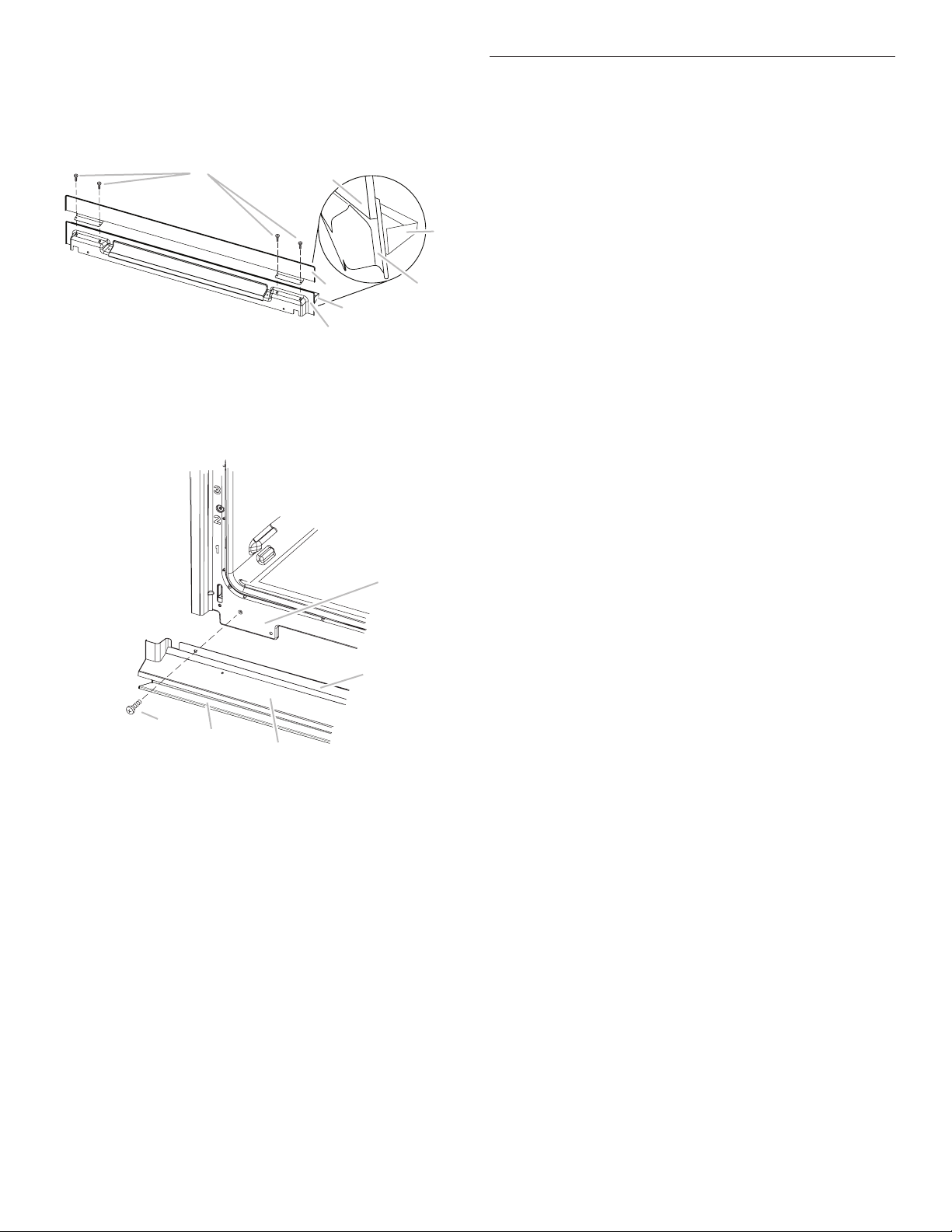

6. On models with the feet installed in the tall position, the bottom vent trim must also be installed. See the following instructions to install.

■ Flex the upper vent piece (C) away from the lower vent

piece (D) to slide the bottom vent trim (B) between them. Some force may be required to ﬂex the upper vent trim (C) away from the lower vent trim (D). Some force may also be required to ﬂex the bottom vent trim (B) and slide it into position. Make sure screw holes are properly aligned between the two pieces. See the following illustration.

■ Install the bottom vent trim (B) to the lower vent piece (D)

using two #8-18 x 1/4" (6.4 mm) screws on each side.

A. Oven frame B. Vent tab C. Oven vent

D. Bottom vent trim E. #8-18 x 3/8" (9.5 mm)

screw

7. Replace the oven racks.

8. Replace the oven door. See the “Replace Oven Door(s)”

section.

9. Check that the door is free to open and close. If it is not, repeat the removal and installation procedures. See the “Prepare Built-In Oven” section.

10. Repeat for lower oven door.

11. Reconnect power.

12. The display panel will light brieﬂy, and “PF” should appear in

the display.

13. If the display panel does not light, reference the “Warranty” section of the Use and Care Guide.

Install Warming Drawer Deector Kit

(only for ovens installed above

warming drawers)

On combo microwave/oven models installed above a warming drawer, a warming drawer deﬂector kit must be installed. See the “Tools and Parts” section for information on ordering.

Parts Supplied

A. #8-18 x 1/4" (6.4 mm)

screws

B. Bottom vent trim

C. Upper vent piece D. Lower vent piece

A. Phillips head screws (4) only 2 screws for 27" (68.6 cm) size

B. Warming drawer deﬂector (1)

+ 19 hidden pages
