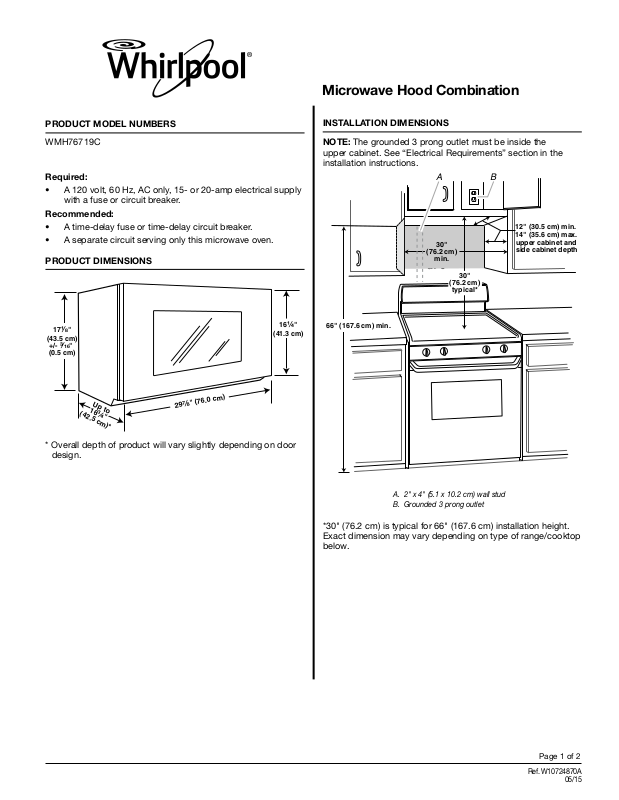

Whirlpool WMH76719CS, WMH76719CW, WMH76719CZ, WMH76719CB, WMH76719CH Dimension Guide
...
PRODUCT MODEL NUMBERS
WMH76719C
Required:
•A 120 volt, 60 Hz, AC only, 15or 20-amp electrical supply with a fuse or circuit breaker.
Recommended:
•A time-delay fuse or time-delay circuit breaker.
•A separate circuit serving only this microwave oven.
PRODUCT DIMENSIONS
17¹⁄" |
16 |
¹⁄" |
|||||
(41.3 |
cm) |
||||||
(43.5 cm) |
|||||||
|
|
|
|
||||
+/- ³⁄" |
|
|
|
|
|||
(0.5 cm) |
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Microwave Hood Combination
INSTALLATION DIMENSIONS
NOTE: The grounded 3 prong outlet must be inside the upper cabinet. See “Electrical Requirements” section in the installation instructions.
A B
30" (76.2 cm) min.
30" (76.2 cm) typical*
66" (167.6 cm) min.
12" (30.5 cm) min.
14" (35.6 cm) max.
upper cabinet and side cabinet depth
|
Up |
to |
|||
16 |
|
||||
(42. |
|
|
|
" |
|
5 |
|
³⁄ |
|||
cm)* |
|||||
|
|
||||
|
|
.0cm) |
|
"(76 |
|
⁄ |
|
|
29 |
|
|
* Overall depth of product will vary slightly depending on door design.
A. 2" x 4" (5.1 x 10.2 cm) wall stud
B. Grounded 3 prong outlet
*30" (76.2 cm) is typical for 66" (167.6 cm) installation height. Exact dimension may vary depending on type of range/cooktop below.
Page 1 of 2
Ref. W10724870A
05/15
