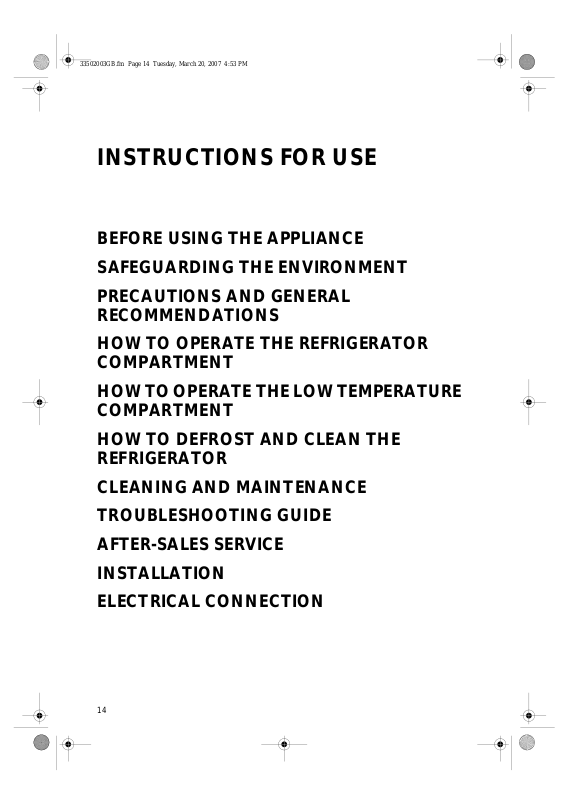

INSTRUCTIONS FOR USE
BEFORE USING THE APPLIANCE
SAFEGUARDING THE ENVIRONMENT
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
HOW TO OPERATE THE REFRIGERATOR
COMPARTMENT
HOW TO OPERATE THE LOW TEMPERATURE
COMPARTMENT
HOW TO DEFROST AND CLEAN THE
REFRIGERATOR
CLEANING AND MAINTENANCE
TROUBLESHOOTING GUIDE
AFTER-SALES SERVICE
INSTALLATION
ELECTRICAL CONNECTION
14
Page 2
33502003GB.fm Page 15 Tuesday, March 20, 2007 4:53 PM
BEFORE USING THE APPLIANCE
•
Your new appliance is designed exclusively for
domestic use.
For best use of your appliance, carefully read
the user handbook which contains a
description of the appliance and advice on
storing and preserving food.
Keep this handbook for future consultation.
1.
After unpacking the appliance, make sure that
it is undamaged and that the doors close
correctly. Any damage must be reported to the
dealer within 24 hours of delivery of the
appliance.
2.
Wait at least two hours before switching the
appliance on, to ensure that the refrigerant
circuit is fully efficient.
3.
Installation and the electrical connection must
be carried out by a qualified technician,
according to the manufacturer's instructions
and local safety regulations.
4.
Clean the inside of the appliance before using it.
SAFEGUARDING THE ENVIRONMENT
1.Packaging
The packaging material is 100% recyclable and
carries the recycling symbol. For disposal,
comply with the local regulations. Keep packing
materials (plastic bags, polystyrene parts, etc.)
out of the reach of children, as they are a
potential source of danger.
2.Scrapping/Disposal
The appliance is manufactured using recyclable
material.
This appliance is marked according to the European
directive 2002/96/EC on Waste Electrical and
Electronic Equipment (WEEE).
By ensuring that this appliance is disposed of
correctly, you are helping to prevent potentially
damaging consequences for the environment
and for human health.
The symbol on the appliance, or on the
accompanying documents, indicates that this
appliance should not be treated as domestic waste
but must be taken to a special collection centre for
the recycling of electrical and electronic
equipment.
When scrapping the appliance, make it unusable
by cutting off the power cable and removing the
doors and shelves so that children cannot easily
climb inside and become trapped.
Scrap the appliance in compliance with local
regulations on waste disposal, taking it to a
special collection centre; do not leave the
appliance unattended even for a few days, since
it is a potential source of danger for children. For
further information on the treatment, recovery
and recycling of this product, contact your
competent local office, the household waste
collection service or the shop where you
purchased the appliance.
Information:
This appliance does not contain CFCs. The
refrigerant circuit contains R134a (HFCs) or
R600a (HCs), see the rating plate inside the
appliance.
Appliances with isobutane (R600a): Isobutane is
a natural gas of low environmental impact.
Caution is required, however, since isobutane is
flammable. Therefore, ensure that refrigerant
circuit pipelines are not damaged
Declaration of conformity
•
This product has been designed for preserving
food and is manufactured in compliance with
Regulation (CE) No. 1935/2004.
•
This product has been designed, manufactured
and marketed in compliance with:
- the safety objectives prescribed in the Low
Voltage Directive 2006/95/CE (which replaced
Directive 73/23/CEE as amended).
- the protection requirements of the “EMC”
89/336/CEE directive, amended by Directive
93/68/CEE.
•
Electrical safety of the appliance can only be
guaranteed if it is correctly connected to an
approved earthing system.
15
Page 3
33502003GB.fm Page 16 Tuesday, March 20, 2007 4:53 PM
PRECAUTIONS AND GENERAL
RECOMMENDATIONS
•
During installation, make sure the appliance
does not damage the power cable.
•
Make sure the appliance is not placed near a
heat source.
•
To guarantee adequate ventilation, leave a
space on both sides and above the appliance
and follow the installation instructions.
•
Keep the appliance ventilation openings free.
•
Power cable modification or replacement
must only be carried out by qualified
personnel.
•
It must be possible to disconnect the
appliance from the power supply by
unplugging it or by means of a mains two-pole
switch installed upstream of the socket.
•
Make sure the voltage specified on the rating
plate corresponds to that of your home
•
For the water connection, use the pipe
supplied with the new appliance; do not reuse
the one from the previous appliance.
•
Install and level the appliance on a floor strong
enough to take its weight and in a place
suitable for its size and use.
•
The appliance must be handled and installed
by two or more persons.
•
Be careful not to damage the floors when you
move the appliance (e.g. parquet flooring).
•
Do not use single/multiple adapters or
extension cords.
•
Install the appliance in a dry, well-ventila ted
place. The appliance has been configured for
operation in places where the temperature
falls within the following ranges, and within
the climatic class given on the rating plate. The
appliance may not work properly if it is left for
a long time at a temperature outside the
specified range.
Climatic Class Amb. temp.
(°C)
SN From 10 to 32 From 50 to 90
N From 16 to 32 From 61 to 90
ST From 16 to 38 From 61 to 100
T From 16 to 43 From 61 to 110
Amb. temp.
(°F)
•
Do not store or use petrol, flammable liquids
or gas in the vicinity of this or other electrical
appliances. The vapours may cause fire or
explosion.
•
Do not use mechanical, electric or chemical
means other than those recommended by the
Manufacturer to speed up the defrost
process.
•
Do not damage the appliance refrigerant
circuit pipes.
•
Do not use or place electrical appliances
inside the product if they are not of the type
expressly authorised by the Manufacturer.
•
This appliance is not designed for use by
young children or the infirm without
supervision.
•
To avoid the risk of children becoming
trapped and suffocating, do not allow them to
play or hide inside the appliance.
•
Do not swallow the contents (non-toxic) of
the ice packs (where provided).
•
Use the refrigerator compartment to store
fresh food only and the freezer compartment
to store frozen food, to freeze fresh food, and
to make ice cubes only.
•
Do not store glass containers with liquids in
the freezer since they may burst.
•
Do not eat ice cubes or ice lollies immediately
after taking them out of the freezer since they
may cause cold burns.
•
Before carrying out any maintenance or
cleaning, unplug the appliance or disconnect it
from the power supply.
•
All appliances equipped with an ice-maker and
water dispenser must be connected to a water
supply that only delivers drinking water (with
mains water pressure of between 0.17 and
0.81 Mpascals (1.7 and 8.1 bar)). Ice-makers
and/or water dispensers not directly
connected to the water supply must be filled
with drinking water only.
• The Manufacturer declines any liability if
the above advice and precautions are not
respected.
16
Page 4
33502003GB.fm Page 17 Tuesday, March 20, 2007 4:53 PM
HOW TO OPERATE THE REFRIGERATOR
COMPARTMENT
Starting the appliance up
Starting up the appliance
Depending on the model, the appliance has either
Plug in the appliance.
For appliances with
•
The light, positioned either below the control panel or inside the appliance (depending on model) switches on
when the door is opened.
•
Green LED lights up, indicating the appliance is running.
For appliances with
switches on when the refrigerator door is opened (as long as the thermostat knob is not turned to z.
The thermostat, located inside the refrigerator compartment or on the front panel of the appliance, is used
to adjust the temperature of both the refrigerator compartment and low temperature compartment (if
fitted).
external controls
internal controls
:
, when the appliance is connected to the mains, the inside light
external
Adjusting temperature
1.
For correct operation and optimum storage of food,
product sheet for thermostat adjustment.
2.
To adjust the temperature in the compartment, turn the thermostat control knob:
•
lower numbers 1-2/MIN
to
•
3-4/MED
to
•
5-7/MAX
to
Thermostat setting on z: no operation, no light.
Note:
•
The ambient air temperature, frequency of door opening and the position of the appliance can affect
internal temperatures. Take these factors into consideration when setting the thermostat knobs.
for a
for the
MEDIUM
COLDEST
LEAST COLD
for the
temperature;
temperature.
internal controls
or
follow instructions given in the enclosed
internal temperatures;
.
17
Page 5
33502003GB.fm Page 18 Tuesday, March 20, 2007 4:53 PM
How to store food in the refrigerator compartment

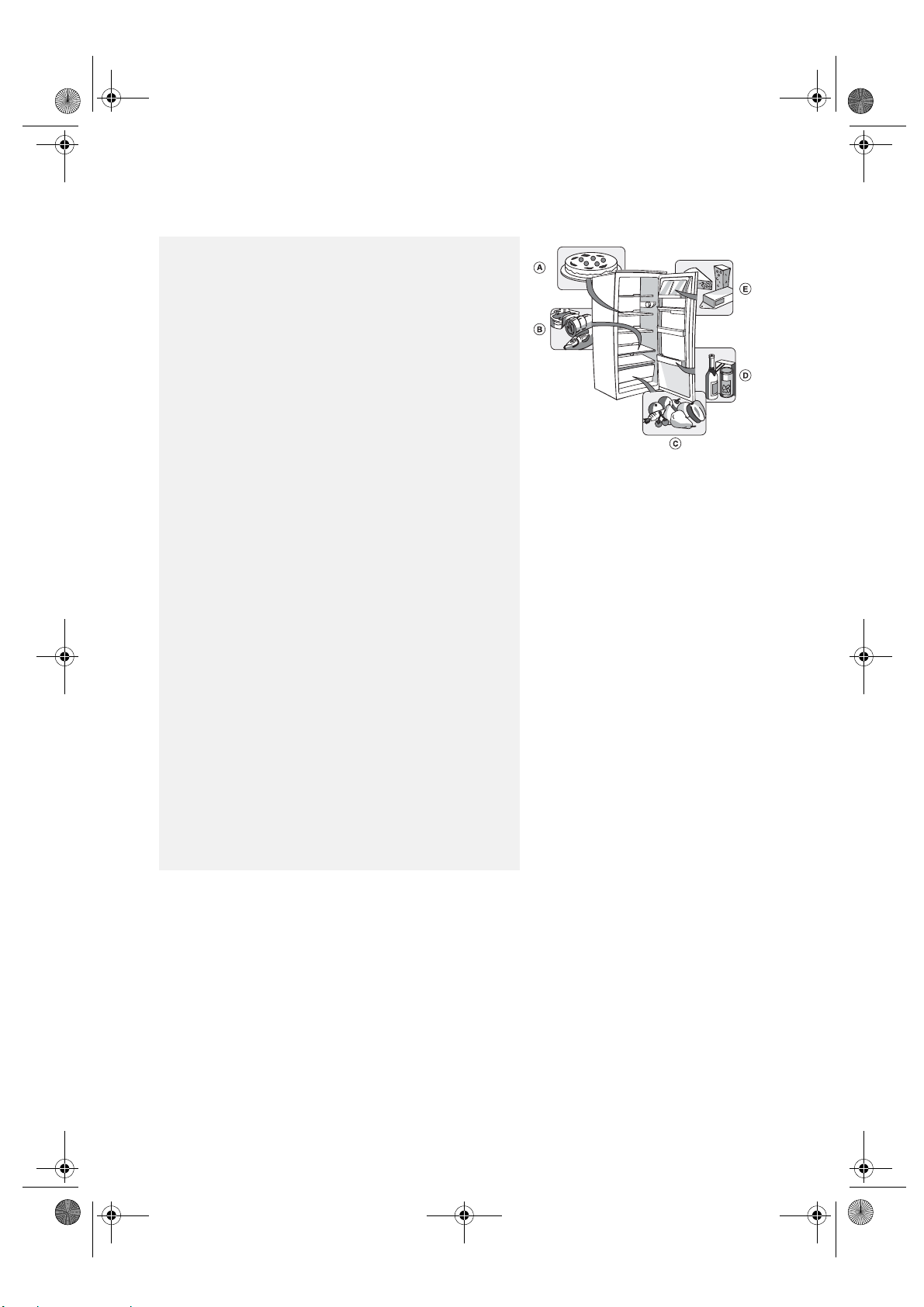

Position the food as shown in the figure.
A Cooked food
BFish, meat
C Fruit and vegetables
D Bottles
E Cheese
Attention:
•
The space between the shelves and the rear wall of the
refrigerator compartment must be unobstructed to allow
circulation of air.
•
Do not place food in direct contact with the rear wall of the
refrigerator compartment.
•
Do not place hot food in the refrigerator.
•
Store liquids in closed containers.
Important
Storing vegetables with high water content can cause
condensation to form on the glass shelf of the crisper
drawer: this will not affect the correct operation of the
appliance.
Gourmet box (if present)
The box is enhanced with food-grade natural antibacterial
substances; these substances improve hygiene in the box,
limiting unpleasant odours and keeping ripe cheeses and
dressed pork products fresh for a longer period a time .
"6th Sense" function
If present, the 6th Sense function is automatically activated in
the following case:
Door opening
The function activates when lid opening causes the internal
temperature to increase to values that do not ensure safe
storage of food and remains active until optimal storage
conditions have been restored.
NOTE:
The duration of the 6th Sense function is calculated
according to the amount of food inside the appliance, and the
outside temperature. Therefore significant duration variations
are quite normal.
18
Page 6
33502003GB.fm Page 19 Tuesday, March 20, 2007 4:53 PM
HOW TO OPERATE THE LOW TEMPERATURE
COMPARTMENT
The low temperature compartment is , , or
.
Compartments marked or can be used to
store frozen foods for the period of time indicated on
packaging. If the low temperature compartment is
marked , it can also be used to freeze fresh food.
The quantity of fresh food that can be frozen in 24
hours is shown on the rating plate.
Note:
In the event of a power cut, the low temperature
compartment will maintain a sufficiently low temperature for
food storage. However, it is advisable to avoid opening the
compartment door during such periods.
Freezing fresh food (only in compartments
marked )
Important
•
Before freezing, wrap and seal fresh food in: aluminium foil,
cling film, air and water-tight plastic bags, polythene
containers with lids or freezer containers suitable for
freezing fresh food.
•
Arrange the fresh food in the top compartment, leaving
sufficient space around each pack for the air to circulate.
•
For optimum freezing, turn the thermostat down by half a
point when placing fresh foods in the freezer
compartment.
•
The food will be completely frozen in 24 hours.
For appliances with compartments marked

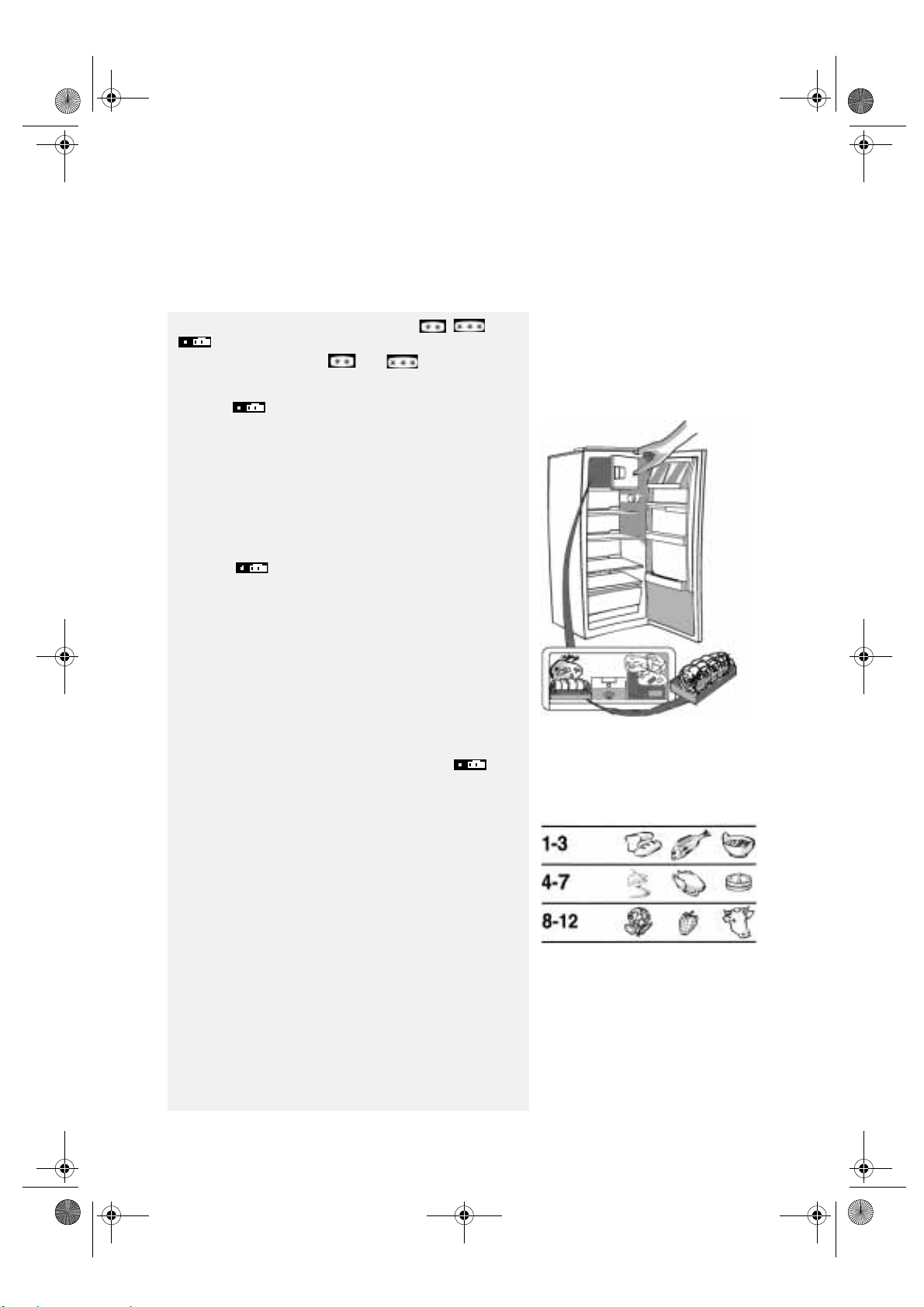

The table alongside shows the recommended
maximum storage time for frozen fresh foods.
When purchasing frozen food products:
•
Make sure the packaging is not damaged, since the product
quality may have deteriorated. If a package is swollen or has
damp stains it has not been perfectly conserved and may
started thawing.
•
When shopping, leave frozen food purchases until last and
transport the products in a thermally insulated cool bag.
•
Place the items in the low temperature compartment as
soon as you get home.
•
If food has defrosted even partially, do not re-freeze it.
Consume within 24 hours.
•
Avoid, or keep temperature variations to the minimum.
Respect the best-before date on the package.
•
Always observe the storage information on the package.
MONTHS FOOD
19
Page 7
33502003GB.fm Page 20 Tuesday, March 20, 2007 4:53 PM
Making ice cubes
Fill the ice cube tray 2/3 full and place it in the low
•
temperature compartment.
Do not use sharp or pointed instruments to detach the tray
•
if it is stuck to the low temperature compartment bottom.
Bend the ice tray slightly to remove the cubes.
•
.
HOW TO DEFROST AND CLEAN THE
REFRIGERATOR
Before any cleaning or maintenance operation, always
unplug the appliance or disconnect it from the power
supply.
Defrosting of the refrigerator compartment is
completely automatic.
Droplets of water on the rear wall of the refrigerator
compartment indicate that the periodic automatic defrost
cycle is in progress.

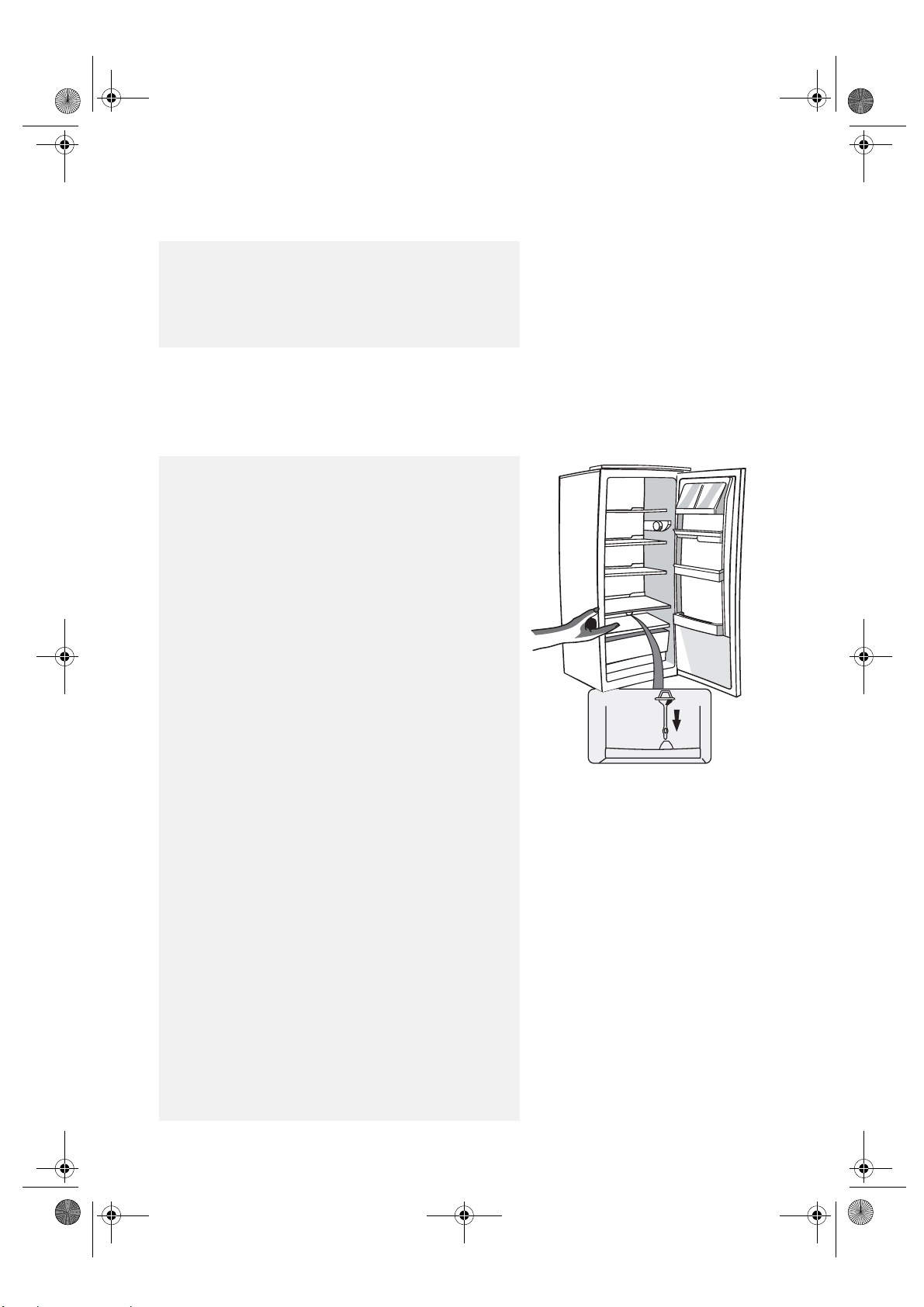

The defrost water is automatically routed to a drai n o u t l e t a n d
into a container from which it evaporates.
Clean the defrost water drain outlet regularly using the tool
supplied with the appliance in order to ensure defrost water
is removed correctly.
Defrosting the low temperature compartment
Defrost the low temperature compartment once or
twice a year or when the ice formation is excessive.
It is perfectly normal for ice to form. The amount of ice
which forms and the rate at which it accumulates will
depends on room temperature and humidity, and on
the frequency with which the door is opened. Ice
formation is concentrated at the top of the
compartment and does not affect the efficiency of the
appliance.
If possible, defrost the freezer when it is nearly empty.
Remove the food from the freezer, wrap in new spaper and
•
group together in a cool place or in a portable cooler.
Leave the door open to allow the frost to melt.
•
Clean the interior with a sponge soaked in warm water
•
and/or neutral detergent. Do not use abrasive substances.
Rinse the interior and dry thoroughly.
•
Put the food back into the freezer.
•
Close the door.
•
Plug in the appliance once again.
•
Switch the appliance on.
•
20
Page 8
33502003GB.fm Page 21 Tuesday, March 20, 2007 4:53 PM
CLEANING AND MAINTENANCE
Before any cleaning or maintenance operation, always unplug the appliance or disconnect it
from the power supply.
• Clean the inside of the refrigerator compartment regularly with a sponge dampened in warm water
and/or neutral detergent. Rinse and dry with a soft cloth.
Do not use abrasive products.
• The separators must not be washed with water but cleaned with a lightly dampened sponge.
• Clean the inside of the freezer compartment when defrosting.

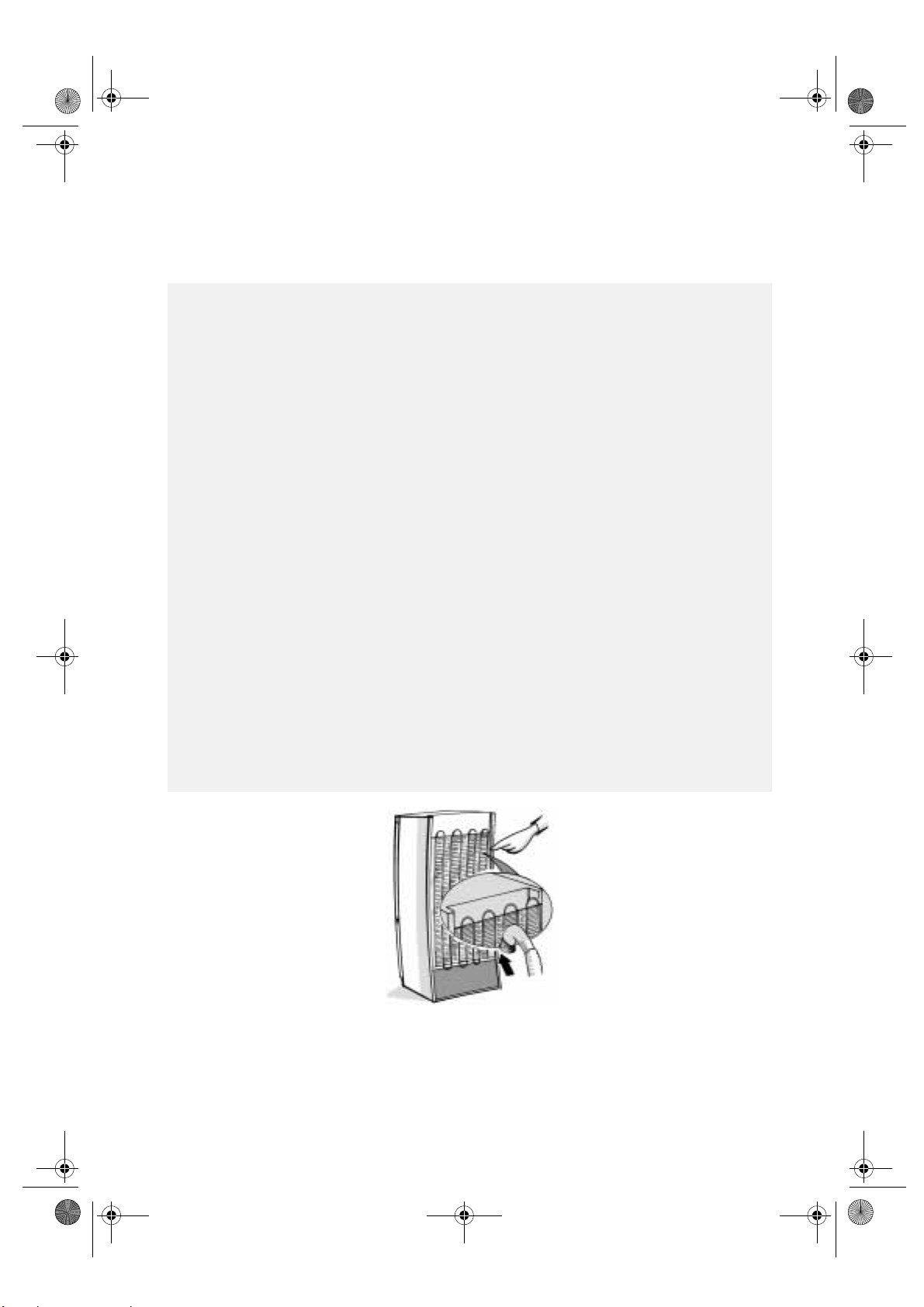

• Clean the air vents and condenser at the rear of the appliance regularly with a vacuum cleaner or
brush.
• Clean the outside with a soft damp cloth. Do not use abrasive products, scourers, stain-removers
(e.g. thrichlorethylene acetone) or vinegar.
For long vacations
1.
Empty the refrigerator.
2.
Disconnect the appliance from the mains power supply.
3.
Defrost and clean the interior.
4.
In the event of prolonged disuse, leave the door open to prevent mould, odours and oxidation from
forming.
5.
Clean the appliance.
•
Clean the inside of the low temperature compartment (where fitted) when defrosting.
•
Clean the inside of the refrigerator compartment regularly with a sponge dampened in warm water
and/or neutral detergent. Rinse and dry with a soft cloth. Do not use abrasive products.
6.
Clean the outside with a damp cloth. Do not use abrasive products, scourers, stain-removers (e.g.
acetone, trichloroethylene) or vinegar.
Replacing bulbs:
When replacing the bulb, proceed as follows:
•
Unplug the appliance from the mains
•
Press the top of the lamp cover.
•
Remove the lamp cover.
•
Replace the lamp with one of the same power or of the max. power in watt, specified near the lamp
holder.
•
Put the lamp cover back on and wait 5 minutes before plugging the appliance back into the mains.
21
Page 9
33502003GB.fm Page 22 Tuesday, March 20, 2007 4:53 PM
TROUBLESHOOTING GUIDE

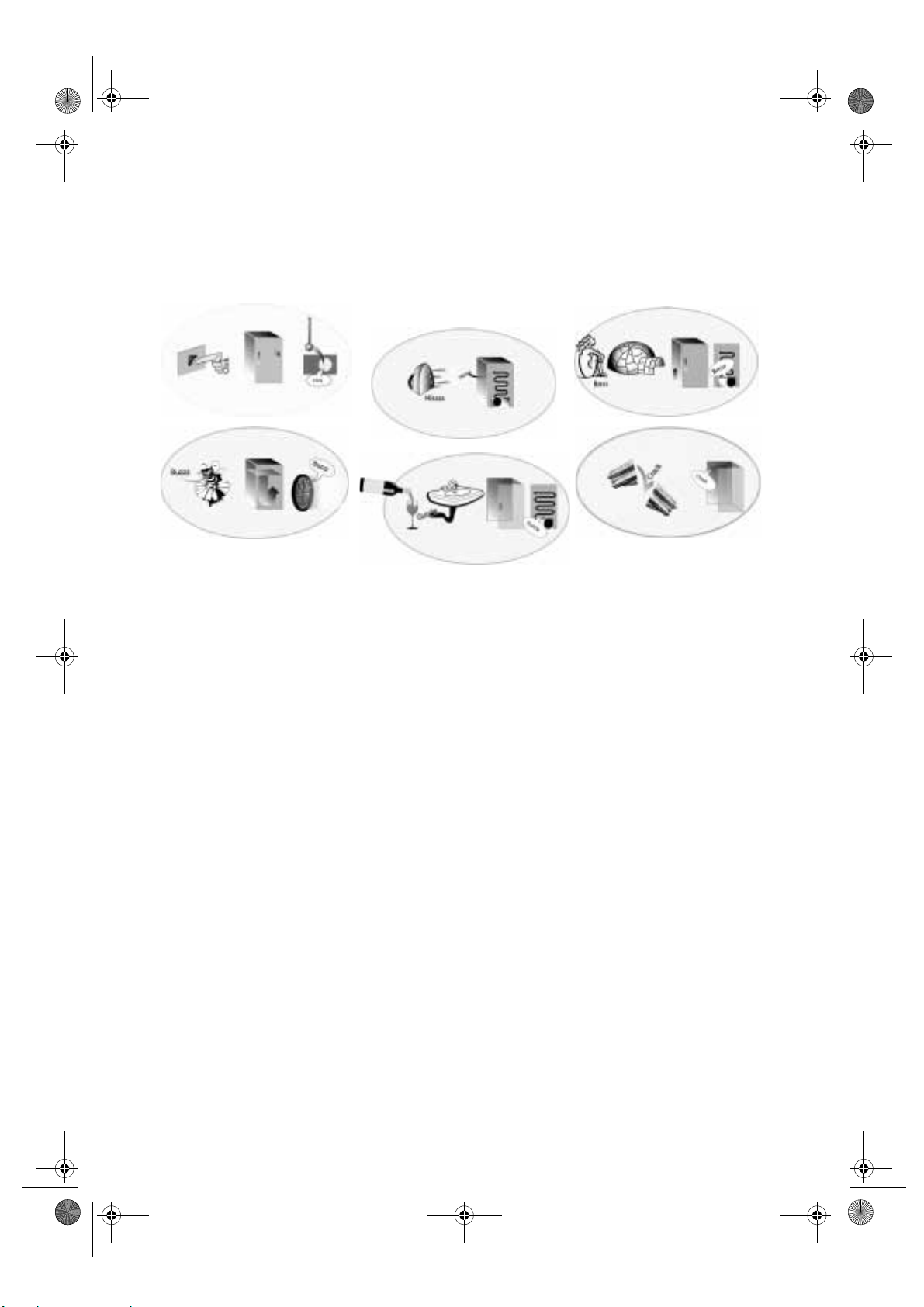

When you hear these noises
..your appliance is alive!!!
1. The appliance is no working.
•
Is there a power failure?
•
Is the plug properly inserted in the socket?
•
Is the double-pole switch on?
•
Do the household electrical system protection
devices work correctly?
•
Is the power cord damaged?
2. Temperature inside the compartments is
not low enough.
•
Are the doors closed properly?
•
Is the appliance installed near a heat source?
•
Are the air circulation vents blocked?
3. Water collects at the bottom of the
refrigerator compartment.
•
Is the defrost water drain blocked?
4. The internal light does not work.
Check point
•
Disconnect the appliance from the mains
power supply.
•
Replace the lamp with one of the same power
or of the max. power in watt, specified near the
lamp holder
5. Excessive frost build-up in the freezer
compartment.
•
Is the door shut properly?
•
Is food obstructing proper door closure?
Gurgling and hissing noises due to expansion
in the refrigerant circuit are normal.
1 first
, then:
22
Page 10
33502003GB.fm Page 23 Tuesday, March 20, 2007 4:53 PM
AFTER-SALES SERVICE
Before contacting the After-sales Service:
1.
See if you can solve the problem yourself (see
“Troubleshooting guide”).
2.
Switch the appliance on again to see if the
problem has been solved. If it has not, switch off
the appliance again and repeat the operation
after one hour.
3.
If the problem persists, contact After-sales
Service.
Please provide:
•
The nature of the problem,
•
The appliance model,
•
•
•
Note:
The direction of door opening can be changed.
If this operation is performed by After-sales
Service it is not covered by the warranty.
This is not possible on appliances with a
handle on the front.
INSTALLATION
•
Install the appliance away from heat sources. Installation in a
hot environment, direct exposure to the sun or installation
near heat sources (heaters, radiators, cookers) will increase
power consumption and should therefore be avoided.
•
If this is not possible, the following minimum distances must
be respected:
•
30 cm from coal or paraffin stoves;
•
3 cm from electric and/or gas stoves.
•

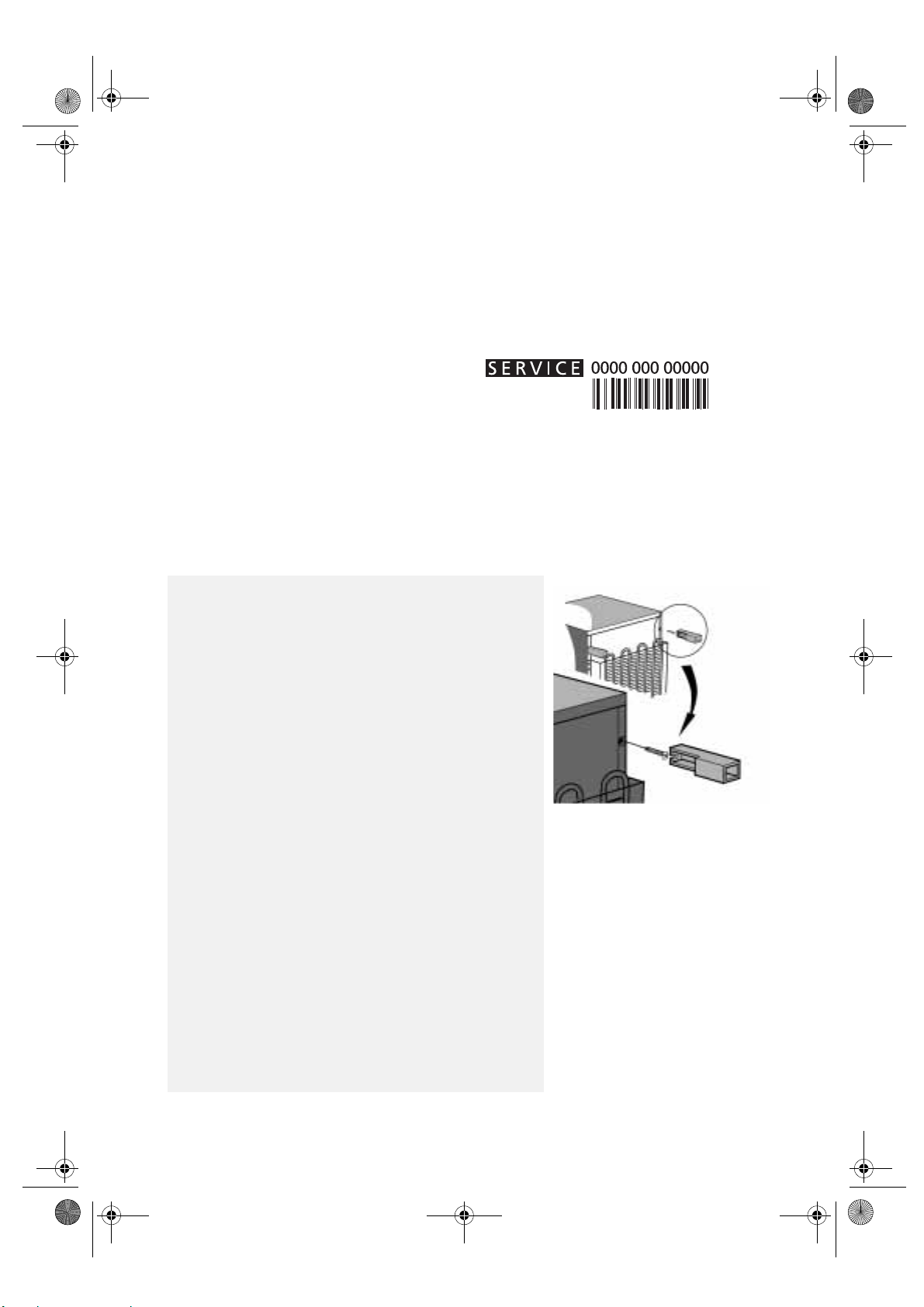

Fit the spacers on the rear of the condenser at the back of the
appliance (see figure).
•
To optimize appliance efficiency, leave a 5 cm gap above the
appliance and make sure that adjacent kitchen units are
sufficiently distanced to allow air circulation.
•
Install the appliance in a dry, well-ventilated place, and ensure
it is level, using the front adjustment feet if necessary.
•
Clean the interior.
•
Fit the accessories.
Electrical connection
• Electrical connections must be made in accordance
with local regulations.
•
Voltage and power consumption are indicated on the rating
plate inside the appliance.
• Regulations require that the
The Manufacturer declines all liabilities for injury to
persons, animals or damage to property resulting from
failure to observe these regulations.
•
If the plug and socket are not of the same type, have the
socket replaced by a qualified electrician.
•
Do not use extension leads or splitters.
Disconnecting the appliance
It must be possible to disconnect the appliance by unplugging it
or by means of a two-pole switch fitted upline of the socket.
appliance is earthed.
the Service number (the number after the
word SERVICE on the rating plate inside the
appliance),
your full address,
Your telephone number and area code.
23
Page 11
33502003GB.fm Page 24 Tuesday, March 20, 2007 4:53 PM
ELECTRICAL CONNECTION
1) For Great Britain only
Warning - this appliance must be earthed
Fuse replacement
If the mains lead of this appliance is fitted with a BS 1363A
13amp fused plug, to change a fuse in this type of plug use an
A.S.T.A. approved fuse to BS 1362 type and proceed as follows:

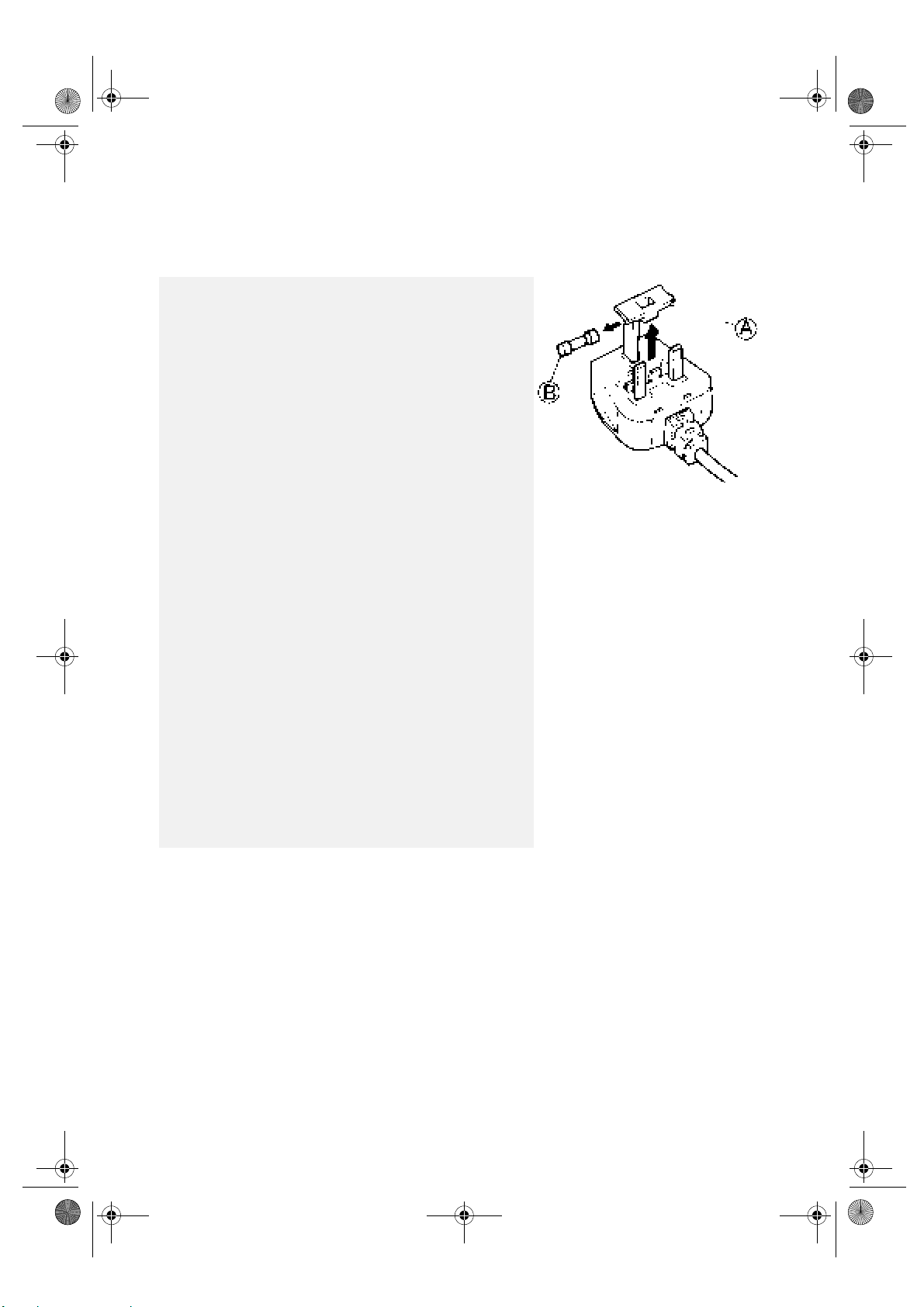

1.
Remove the fuse cover (A) and fuse (B).
2.
Fit replacement 13A fuse into fuse cover.
3.
Refit both into plug.
Important:
The fuse cover must be refitted when changing a fuse and if the
fuse cover is lost the plug must not be used until a correct
replacement is fitted.
Correct replacement are identified by the colour insert or the
colour embossed in words on the base of the plug.
Replacement fuse covers are available from your local electrical
store.
2) For the Republic of Ireland only
The information given in respect of Great Britain will frequently
apply, but a third type of plug and socket is also used, the
2-pin, side earth type.
3) Socket outlet / plug (valid for both countries)
If the fitted plug is not suitable for your socket outlet, please
contact the After-Sales-Service for further instruction. Please do
not attempt to change plug yourself. This procedure needs to be
carried out by a qualified technician in compliance with the
manufactures instructions and current standard safety
regulations.
24
Loading...
