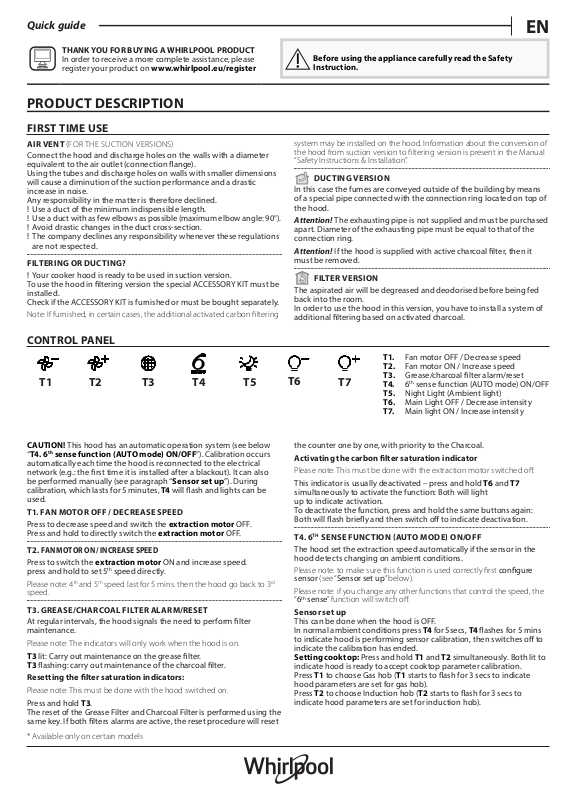

Quick guide

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT

In order to receive a more complete assistance, please register your product on www.whirlpool.eu/register

EN

Before using the appliance carefully read the Safety Instruction.

PRODUCT DESCRIPTION

FIRST TIME USE

AIR VENT (FOR THE SUCTION VERSIONS)

Connect the hood and discharge holes on the walls with a diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined. !! Use a duct of the minimum indispensible length.

!! Use a duct with as few elbows as possible (maximum elbow angle: 90°). !! Avoid drastic changes in the duct cross-section.

!! The company declines any responsibility whenever these regulations are not respected.

FILTERING OR DUCTING?

!! Your cooker hood is ready to be used in suction version.

To use the hood in filtering version the special ACCESSORY KIT must be installed.

Check if the ACCESSORY KIT is furnished or must be bought separately.

Note: If furnished, in certain cases, the additional activated carbon filtering

system may be installed on the hood. Information about the conversion of the hood from suction version to filtering version is present in the Manual “Safety Instructions & Installation”.

  DUCTING VERSION

In this case the fumes are conveyed outside of the building by means of a special pipe connected with the connection ring located on top of the hood.

Attention! The exhausting pipe is not supplied and must be purchased apart. Diameter of the exhausting pipe must be equal to that of the connection ring.

Attention! If the hood is supplied with active charcoal filter, then it must be removed.

  FILTER VERSION

The aspirated air will be degreased and deodorised before being fed back into the room.

In order to use the hood in this version, you have to install a system of additional filtering based on activated charcoal.

CONTROL PANEL

							T1.	Fan motor OFF / Decrease speed
							T2.	Fan motor ON / Increase speed
T1	T2	T3	T4	T5	T6	T7	T3.	Grease/charcoal filter alarm/reset
							T4.	6th sense function (AUTO mode) ON/OFF
							T5.	Night Light (Ambient light)
							T6.	Main Light OFF / Decrease intensity
							T7.	Main light ON / Increase intensity

CAUTION! This hood has an automatic operation system (see below “T4. 6th sense function (AUTO mode) ON/OFF”). Calibration occurs

automatically each time the hood is reconnected to the electrical

network (e.g.: the first time it is installed after a blackout). It can also be performed manually (see paragraph “Sensor set up”). During

calibration, which lasts for 5 minutes, T4 will flash and lights can be used.

T1. FAN MOTOR OFF / DECREASE SPEED

Press to decrease speed and switch the extraction motor OFF. Press and hold to directly switch the extraction motor OFF.

T2. FAN MOTOR ON / INCREASE SPEED

Press to switch the extraction motor ON and increase speed. press and hold to set 5th speed directly.

Please note: 4th and 5th speed last for 5 mins. then the hood go back to 3rd speed.

T3. GREASE/CHARCOAL FILTER ALARM/RESET

At regular intervals, the hood signals the need to perform filter maintenance.

Please note: The indicators will only work when the hood is on.

T3 lit: Carry out maintenance on the grease filter.

T3 flashing: carry out maintenance of the charcoal filter.

Resetting the filter saturation indicators:

Please note: This must be done with the hood switched on.

Press and hold T3.

The reset of the Grease Filter and Charcoal Filter is performed using the same key. If both filters alarms are active, the reset procedure will reset

* Available only on certain models

the counter one by one, with priority to the Charcoal.

Activating the carbon filter saturation indicator

Please note: This must be done with the extraction motor switched off.

This indicator is usually deactivated – press and hold T6 and T7 simultaneously to activate the function: Both will light

up to indicate activation.

To deactivate the function, press and hold the same buttons again: Both will flash briefly and then switch off to indicate deactivation.

T4. 6TH SENSE FUNCTION (AUTO MODE) ON/OFF

The hood set the extraction speed automatically if the sensor in the hood detects changing on ambient conditions.

Please note: to make sure this function is used correctly first configure sensor (see “Sensor set up” below).

Please note: if you change any other functions that control the speed, the “6th sense” function will switch off.

Sensor set up

This can be done when the hood is OFF.

In normal ambient conditions press T4 for 5secs, T4 flashes for 5 mins to indicate hood is performing sensor calibration, then switches off to

indicate the calibration has ended.

Setting cooktop: Press and hold T1 and T2 simultaneously. Both lit to indicate hood is ready to accept cooktop parameter calibration.

Press T1 to choose Gas hob (T1 starts to flash for 3 secs to indicate hood parameters are set for gas hob).

Press T2 to choose Induction hob (T2 starts to flash for 3 secs to indicate hood parameters are set for induction hob).

T5. NIGHT LIGHT (AMBIENT LIGHT)

Press to switch the soft background lighting on or off.

T6. MAIN LIGHT OFF / DECREASE INTENSITY

Press to decrease intensity and to switch OFF light. Press and hold to directly switch OFF.

T7. MAIN LIGHT ON / INCREASE INTENSITY

Press to switch ON and to increase light intensity. Press and hold to directly switch ON.

TECHNICAL DATA

Height (cm)	Width (cm)	Depht (cm)	Ø of exaust tube (cm)
110 - 129.5	89.8	32	15

CLEANING AND MAINTENANCE

CLEANING

•Do not use steam-cleaning equipment.

•Disconnect the appliance from the mains.

Important: do not use corrosive or abrasive detergents. If any such products unintentionally come into contact with the appliance, clean the appliance immediately with a damp cloth. Do not use alcohol.

•Clean the surfaces with a damp cloth. If it is very dirty, add a few

drops of washing-up detergent to the water. Finish off with a dry

cloth.

Important: do not use abrasive sponges or metallic scrapers or scourers. Over time, these can ruin the enamel surfaces.

•Use detergents specifically designed for cleaning the appliance and follow the manufacturer's instructions.

Important: clean the filters at least once a month to remove oil and grease residue.

MAINTENANCE OF THE CHARCOAL FILTER (FOR FILTRATION MODELS ONLY)

This filter retains the unpleasant odours produced during cooking. Saturation of the carbon filter occurs after a relatively long use, however this depends on the type of cooking and how regularly the grease filter is cleaned. Regardless, it is necessary to replace the cartridge every 4 months. It CANNOT be washed or recycled.

Fitting or replacing the carbon filter

1.Disconnect the hood from the mains.

2.Remove the grease filters.

3.Fit 2 carchoal filters (one each side of the conveyour), bajonet attachment.

4.Reinstall the grease filter in place.

Proceed in reverse order to remove.

MAINTENANCE OF THE GREASE FILTERS

This must be cleaned once a month (or when the filter saturation indication system - if envisaged on the model in possession - indicates this necessity) using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle. When washed in a dishwasher, the grease filter may discolour slightly, but this does not affect its filtering capacity.

Pull out the handle to remove the filter.

Once the filter has been washed and left to dry, proceed in reverse order to refit the filter.

REPLACING THE LAMPS

The hood is equipped with an LED lighting system.

LEDs ensure excellent illumination, have a service life up to 10 times longer than traditional bulbs, and offer up to 90% energy savings.

Note: For replacement LED, please contact the Technical After-sales Service Centre.

2 x
