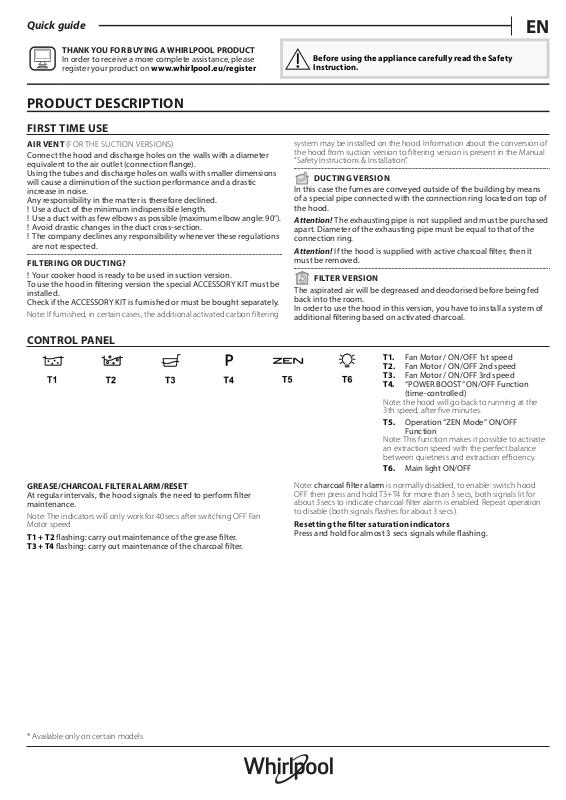

WHIRLPOOL WHBS 63 F LE X Daily Reference Guide
Quick guide
EN
THANK YOU FOR BUYING A WHIRLPOOL PRODUCT
In order to receive a more complete assistance, please
register your product on www . whirlpool . eu/ register
PRODUCT DESCRIPTION
FIRST TIME USE
AIR VENT FOR THE SUCTION VERSIONS
Connect the hood and discharge holes on the walls with a diameter
equivalent to the air outlet (connection ange).
Using the tubes and discharge holes on walls with smaller dimensions
will cause a diminution of the suction performance and a drastic
increase in noise.
Any responsibility in the matter is therefore declined.
! Use a duct of the minimum indispensible length.
! Use a duct with as few elbows as possible (maximum elbow angle: 90°).
! Avoid drastic changes in the duct cross-section.
! The company declines any responsibility whenever these regulations
are not respected.
FILTERING OR DUCTING?
! Your cooker hood is ready to be used in suction version.
To use the hood in ltering version the special ACCESSORY KIT must be
installed.
Check if the ACCESSORY KIT is furnished or must be bought separately.
Note: If furnished, in certain cases, the additional activated carbon ltering
Before using the appliance carefully read the Safety
Instruction.
system may be installed on the hood. Information about the conversion of
the hood from suction version to ltering version is present in the Manual
“Safety Instructions & Installation”.
DUCTING VERSION
In this case the fumes are conveyed outside of the building by means
of a special pipe connected with the connection ring located on top of
the hood.
Attention! The exhausting pipe is not supplied and must be purchased
apart. Diameter of the exhausting pipe must be equal to that of the
connection ring.
Attention! If the hood is supplied with active charcoal lter, then it
must be removed.
FILTER VERSION
The aspirated air will be degreased and deodorised before being fed
back into the room.
In order to use the hood in this version, you have to install a system of
additional ltering based on activated charcoal.
CONTROL PANEL
GREASE/CHARCOAL FILTER ALARM/RESET
At regular intervals, the hood signals the need to perform lter
maintenance.
Note: The indicators will only work for 40secs after switching OFF Fan
Motor speed.
T1 + T2 ashing: carry out maintenance of the grease lter.
T3 + T4 ashing: carry out maintenance of the charcoal lter.
T1. Fan Motor / ON/OFF 1st speed
T2. Fan Motor / ON/OFF 2nd speed
T3. Fan Motor / ON/OFF 3rd speed
T4. “POWER BOOST“ ON/OFF Function
(time-controlled)
Note: the hood will go back to running at the
3th speed, after ve minutes.
T5. Operation “ZEN Mode” ON/OFF
Function
Note: This function makes it possible to activate
an extraction speed with the perfect balance
between quietness and extraction eciency.
T6. Main light ON/OFF
Note: charcoal lter alarm is normally disabled, to enable: switch hood
OFF then press and hold T3+T4 for more than 3 secs, both signals lit for
about 3secs to indicate charcoal lter alarm is enabled. Repeat operation
to disable (both signals ashes for about 3 secs).
Resetting the lter saturation indicators
Press and hold for almost 3 secs signals while ashing.
* Available only on certain models
TECHNICAL DATA
Model Height (cm) Width (cm) Depht (cm) Ø of exaust tube (cm)
WHC 93 F LT X 74.5 -118.5 89.8 52.0 15
WHC 63 F LT X 74.5 -118.5 59.8 52.0 15
WHC 63 F LB X 74.5 -118.5 59.8 51.5 14.9
WHC 93 F LE X 74.5 -118.5 89.8 51.5 14.9
WHBS 93 F LE X 70.7 – 114.8 89.8 45.0 14.9
WHBS 63 F LE X 70.7 – 114.8 59.8 45.0 14.9
WHFG 63 F LE X 68.3 – 113.7 59.8 41.4 14.9
WHFG 93 F LE X 68.3 – 113.7 89.8 41.4 14.9
WIFG 103 F LE X 78.4 – 106.4 99.8 50.9 14.9
CLEANING AND MAINTENANCE
CLEANING
• Do not use steam-cleaning equipment.
• Disconnect the appliance from the mains.
Important: do not use corrosive or abrasive detergents. If any such
products unintentionally come into contact with the appliance, clean
the appliance immediately with a damp cloth. Do not use alcohol.
• Clean the surfaces with a damp cloth. If it is very dirty, add a few
drops of washing-up detergent to the water. Finish o with a dry
cloth.
Important: do not use abrasive sponges or metallic scrapers or
scourers. Over time, these can ruin the enamel surfaces.
• Use detergents specically designed for cleaning the appliance
and follow the manufacturer's instructions.
Important: clean the lters at least once a month to remove oil and
grease residue.
MAINTENANCE OF THE GREASE FILTERS
This must be cleaned once a month (or when the lter saturation
indication system - if envisaged on the model in possession - indicates
this necessity) using non aggressive detergents, either by hand or in the
dishwasher, which must be set to a low temperature and a short cycle.
When washed in a dishwasher, the grease lter may discolour slightly,
but this does not aect its ltering capacity.
Pull out the handle to remove the lter.
Once the lter has been washed and left to dry, proceed in reverse
order to ret the lter.
MAINTENANCE OF THE CHARCOAL FILTER FOR FILTRATION
MODELS ONLY
This lter retains the unpleasant odours produced during cooking.
Saturation of the carbon lter occurs after a relatively long use,
however this depends on the type of cooking and how regularly
the grease lter is cleaned. Regardless, it is necessary to replace the
cartridge every 4 months. It CANNOT be washed or recycled.
Fitting or replacing the carbon lter
1. Disconnect the hood from the mains.
2. Remove the grease lters.
3. Hook the carbon lter rstly to the metal tab at the back on the
hood and then x it at the front with the two knobs.
4. Reinstall the grease lter in place.
Proceed in reverse order to remove.
REPLACING THE LAMPS
The hood is equipped with an LED lighting system.
LEDs ensure excellent illumination, have a service life up to 10 times
longer than traditional bulbs, and oer up to 90% energy savings.
Note: For replacement LED, please contact the Technical After-sales Service
Centre.
* Available only on certain models
