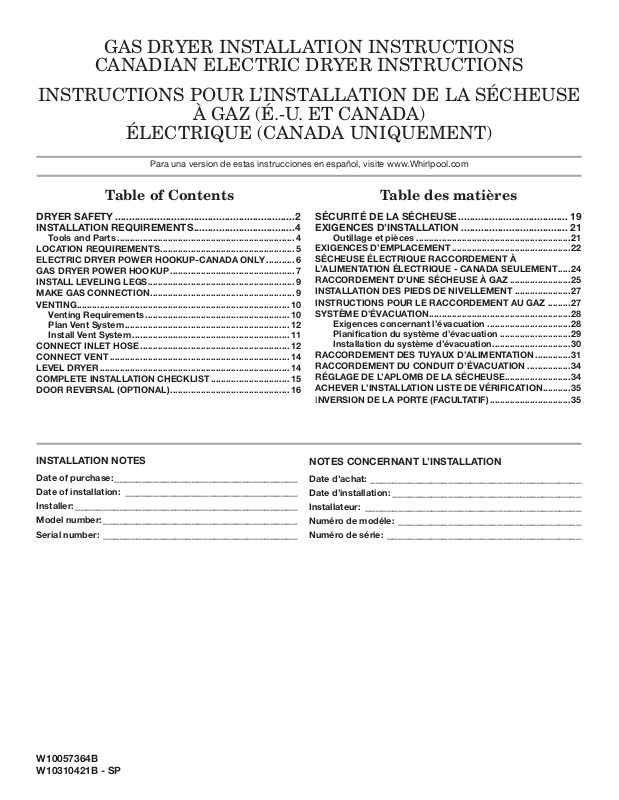

Whirlpool YWEDXXHEXW, YWEDXXHEXR, YWEDXXHEXG, YWED97HEXG, YWED95HEXG Installation Instructions

...
GAS DRYER INSTALLATION INSTRUCTIONS
CANADIAN ELECTRIC DRYER INSTRUCTIONS
INSTRUCTIONS POUR L’INSTALLATION DE LA SÉCHEUSE
À GAZ (É.-U. ET CANADA)
ÉLECTRIQUE (CANADA UNIQUEMENT)
Para una version de estas instrucciones en español, visite www.Whirlpool.com
Table of Contents
INSTALLATION REQUIREMENTS ....................................4
Tools and Parts ...................................................................... 4
LOCATION REQUIREMENTS ..................................................... 5
ELECTRIC DRYER POWER HOOKUP-CANADA ONLY ........... 6
GAS DRYER POWER HOOKUP ................................................. 7
INSTALL LEVELING LEGS .......................................................... 9
MAKE GAS CONNECTION ......................................................... 9

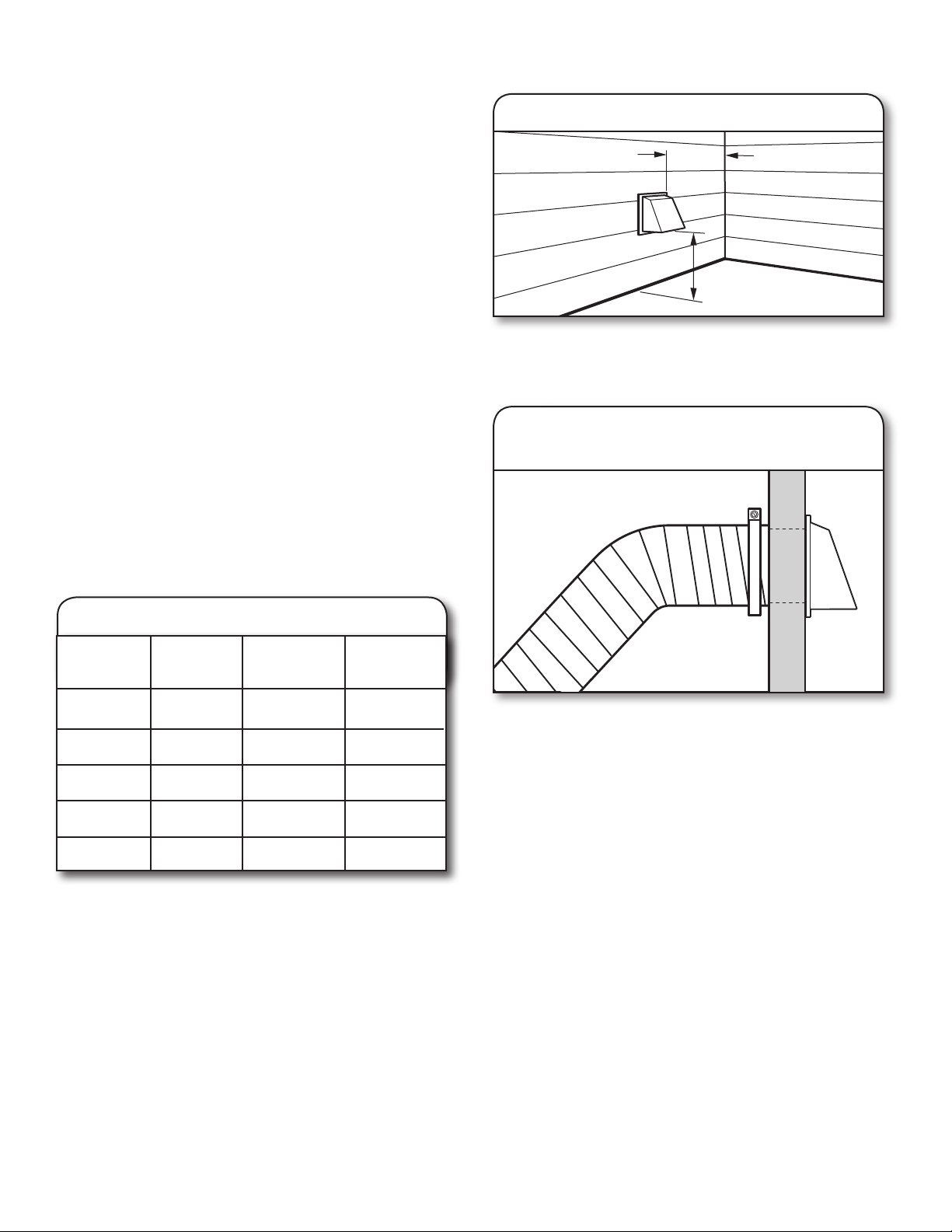

VENTING .................................................................................... 10
Venting Requirements ......................................................... 10
Plan Vent System ................................................................. 12

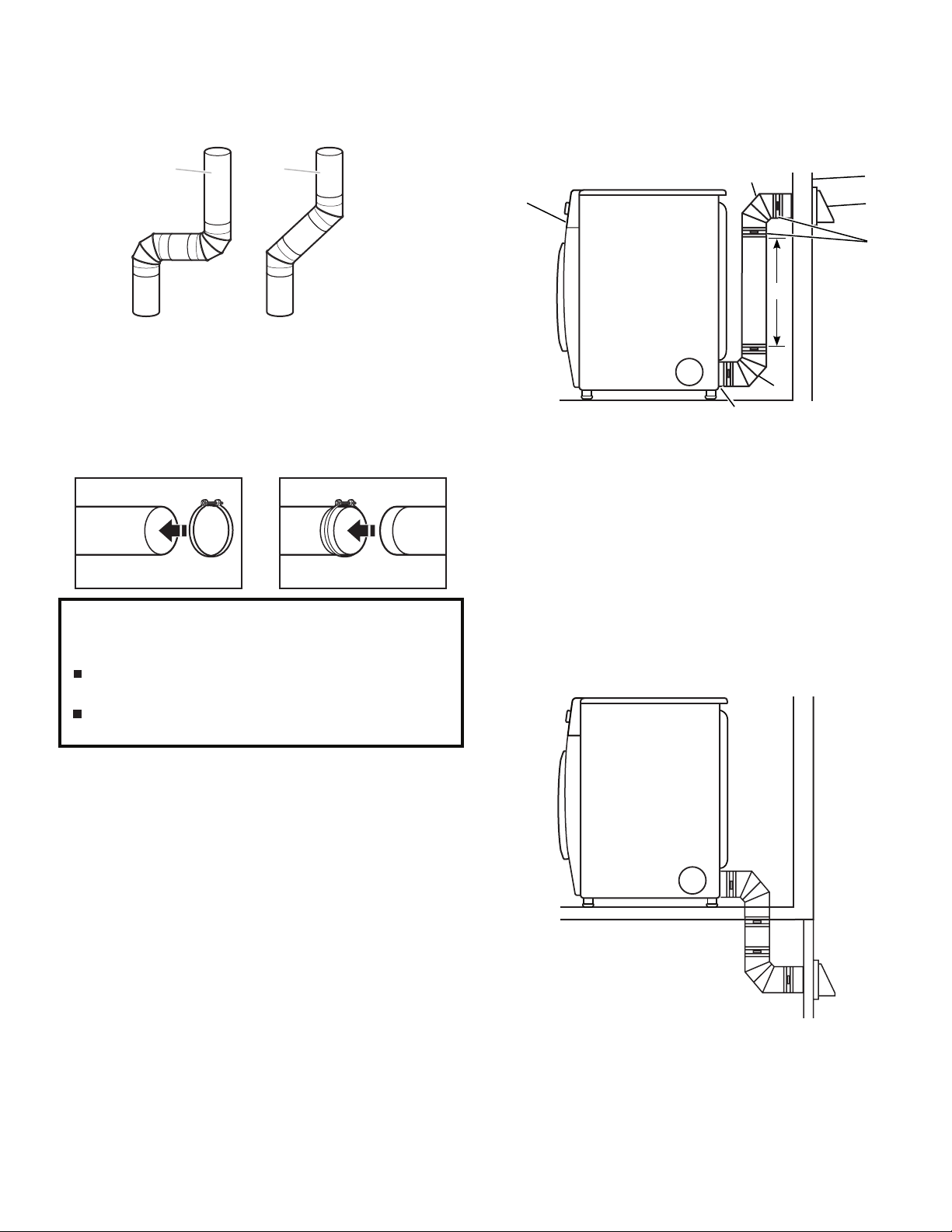

Install Vent System .............................................................. 11

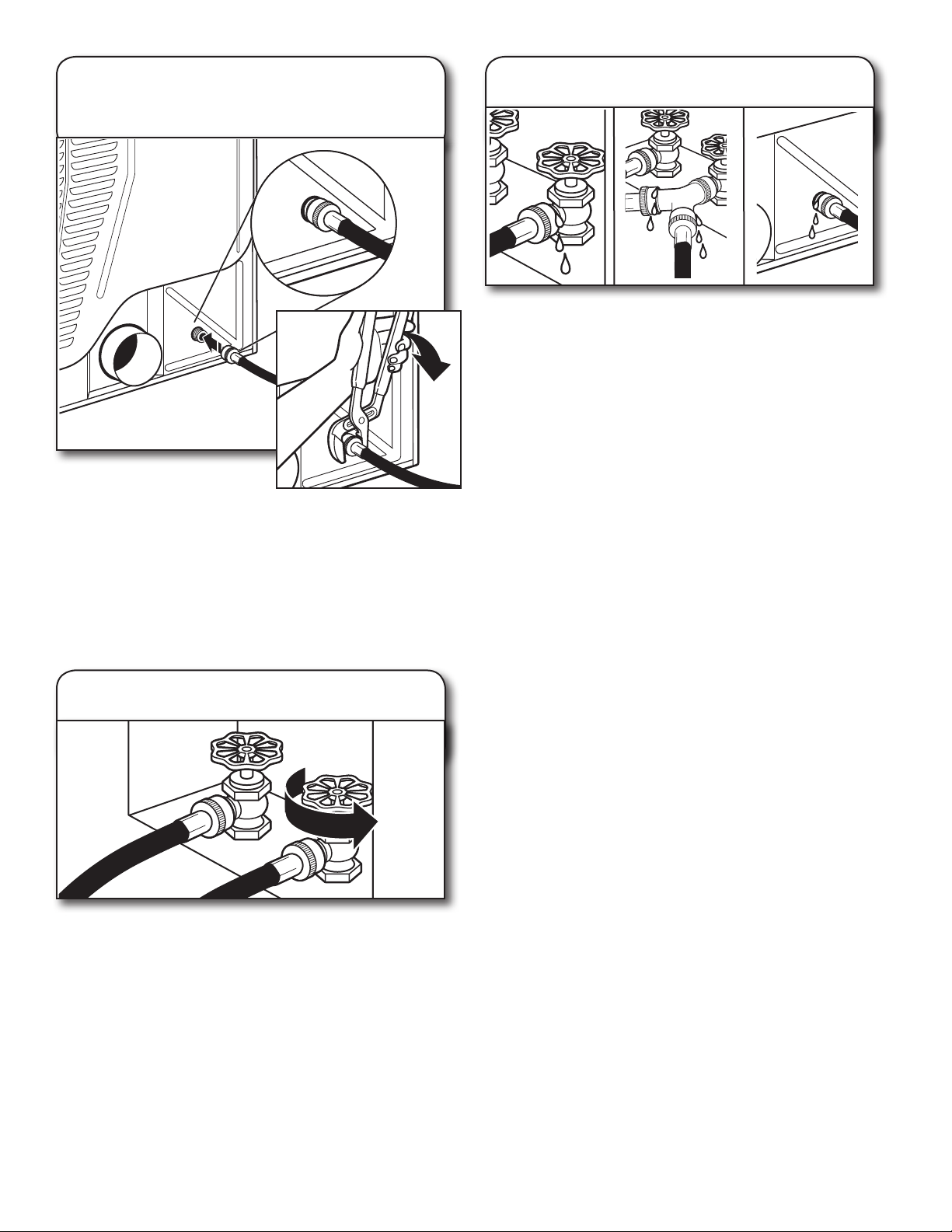

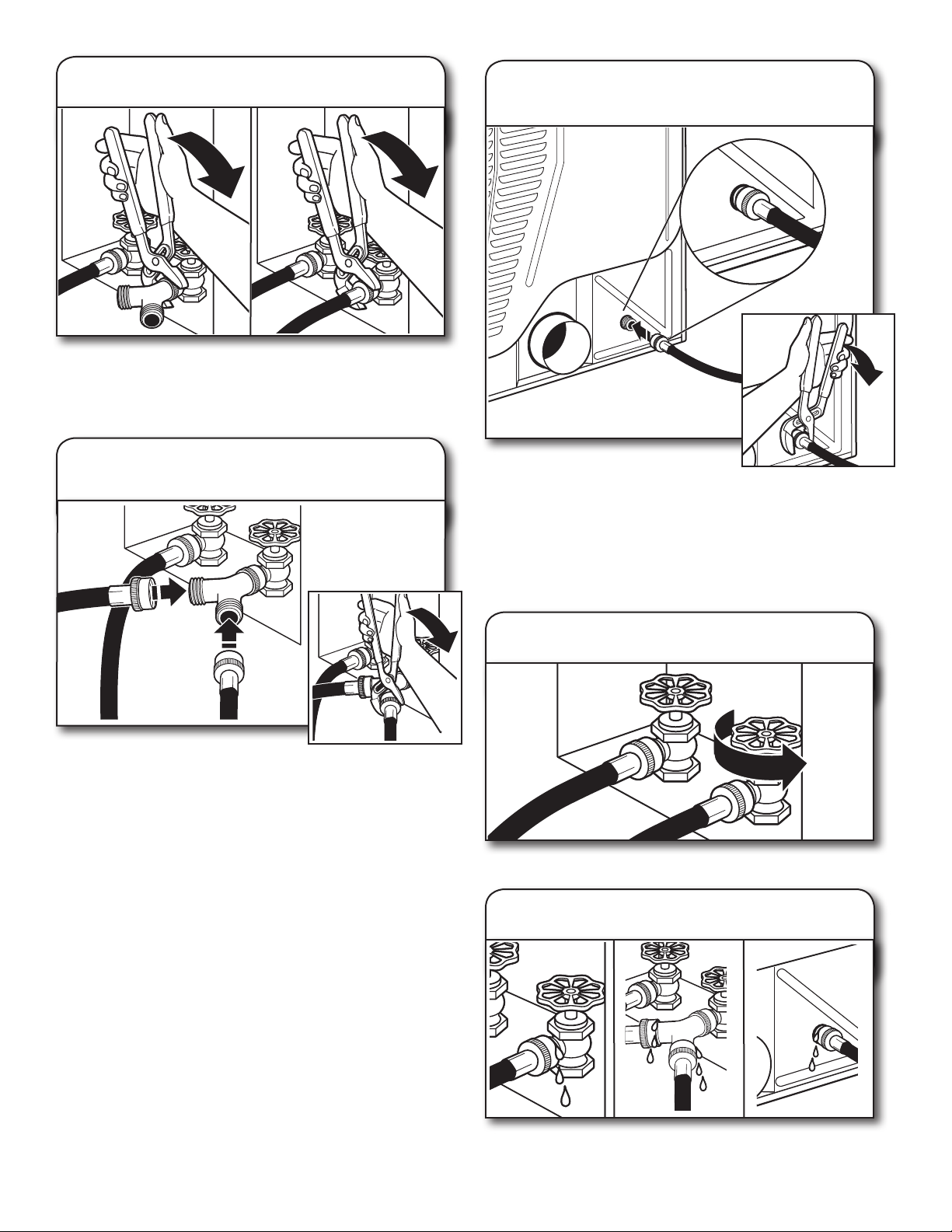

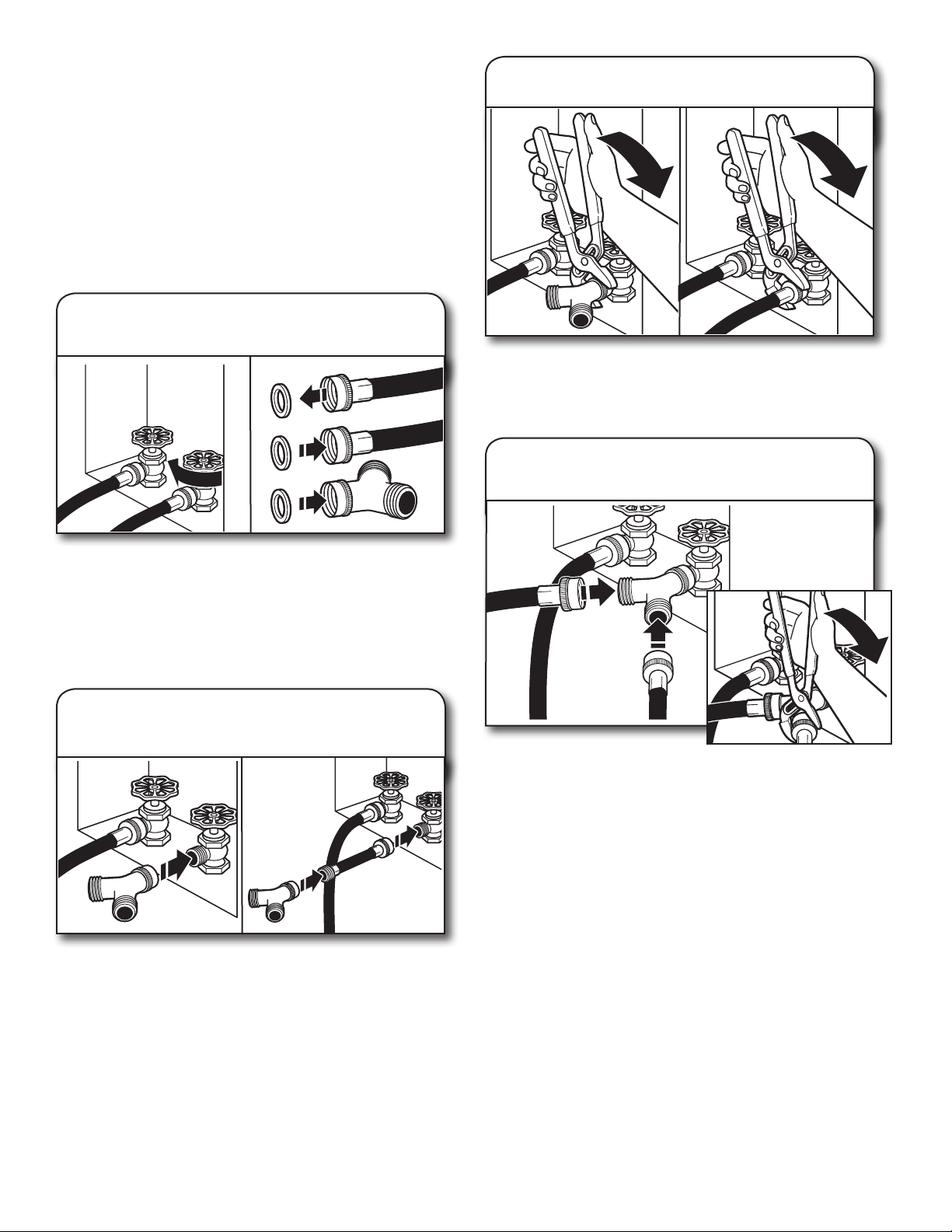

CONNECT INLET HOSE ........................................................... 12

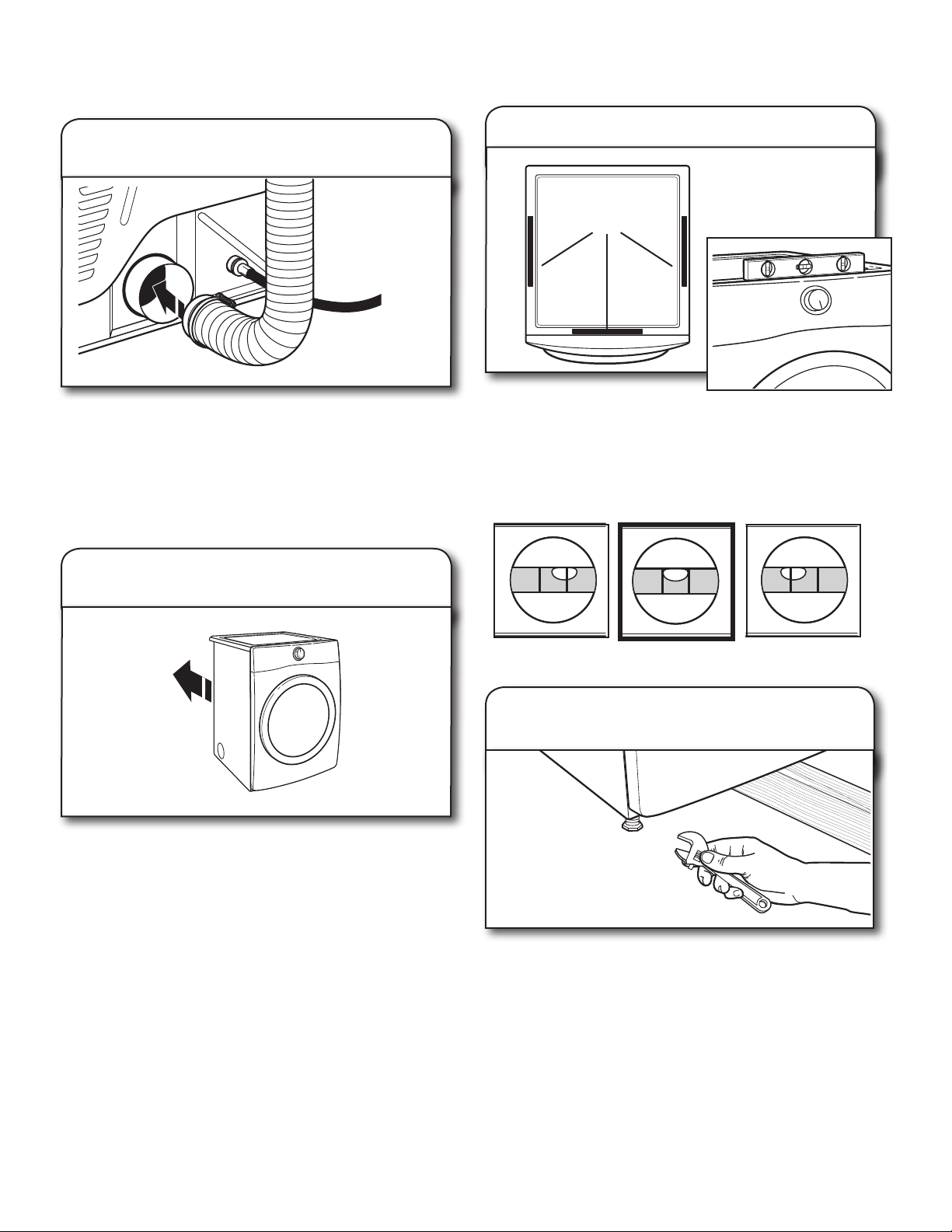

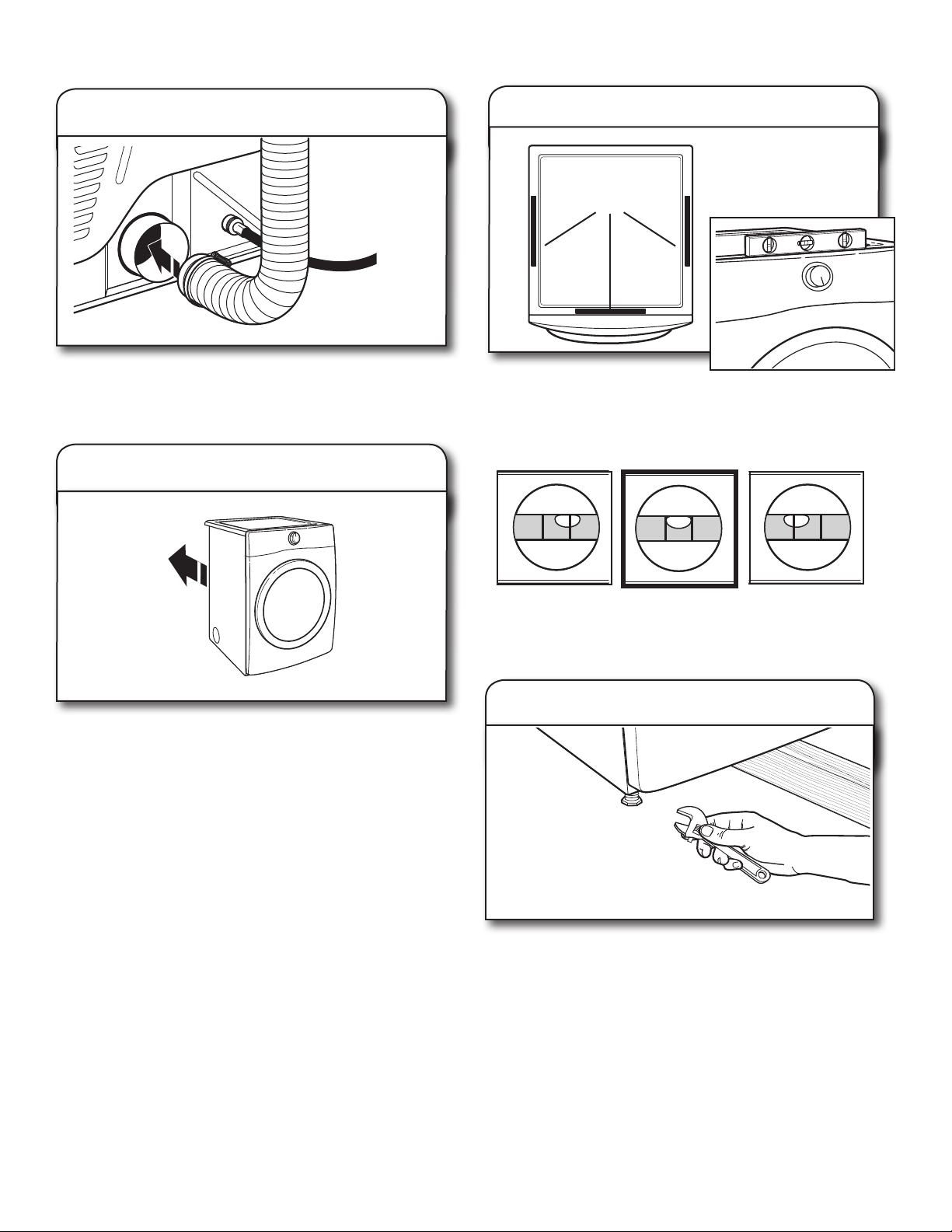

CONNECT VENT ....................................................................... 14
LEVEL DRYER ........................................................................... 14
COMPLETE INSTALLATION CHECKLIST ...............................15

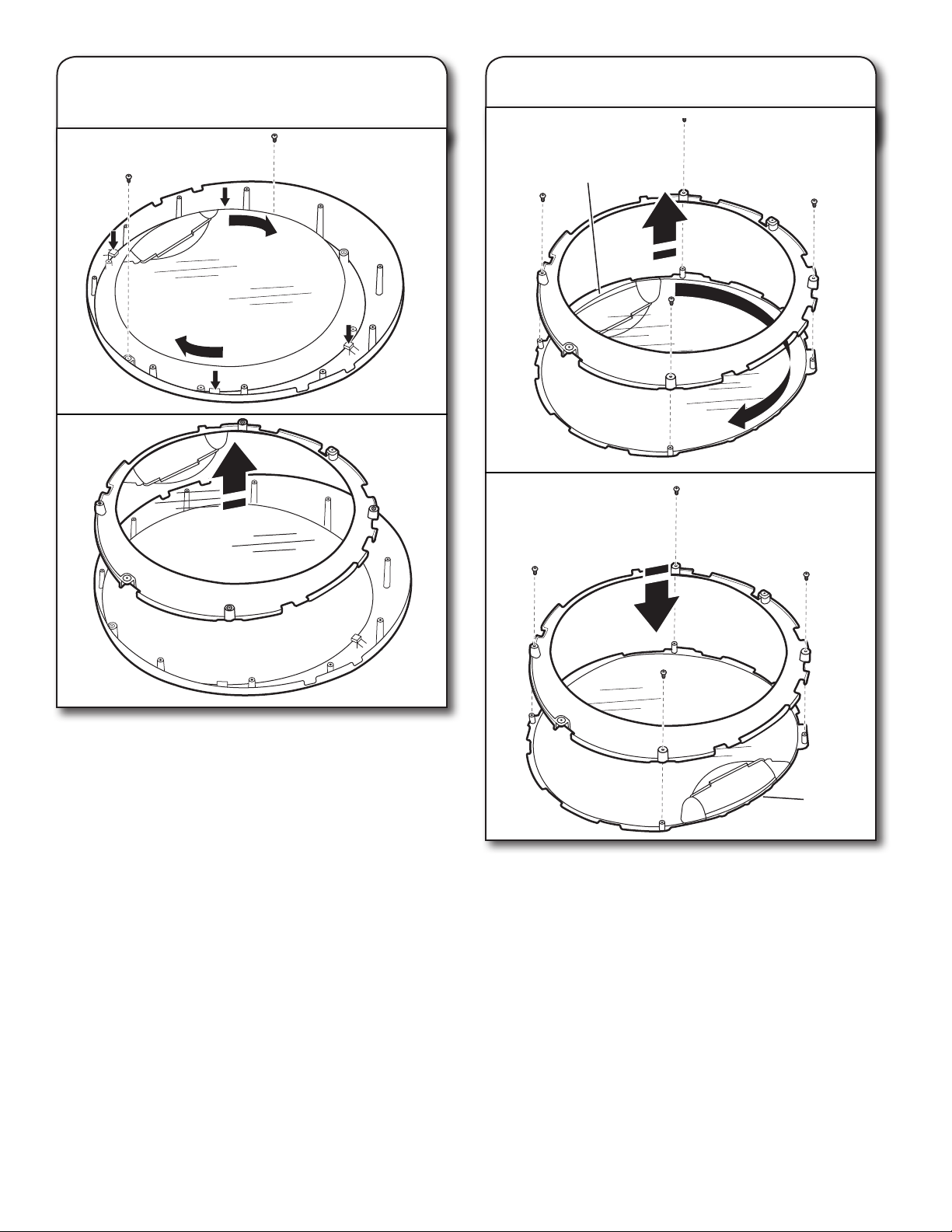

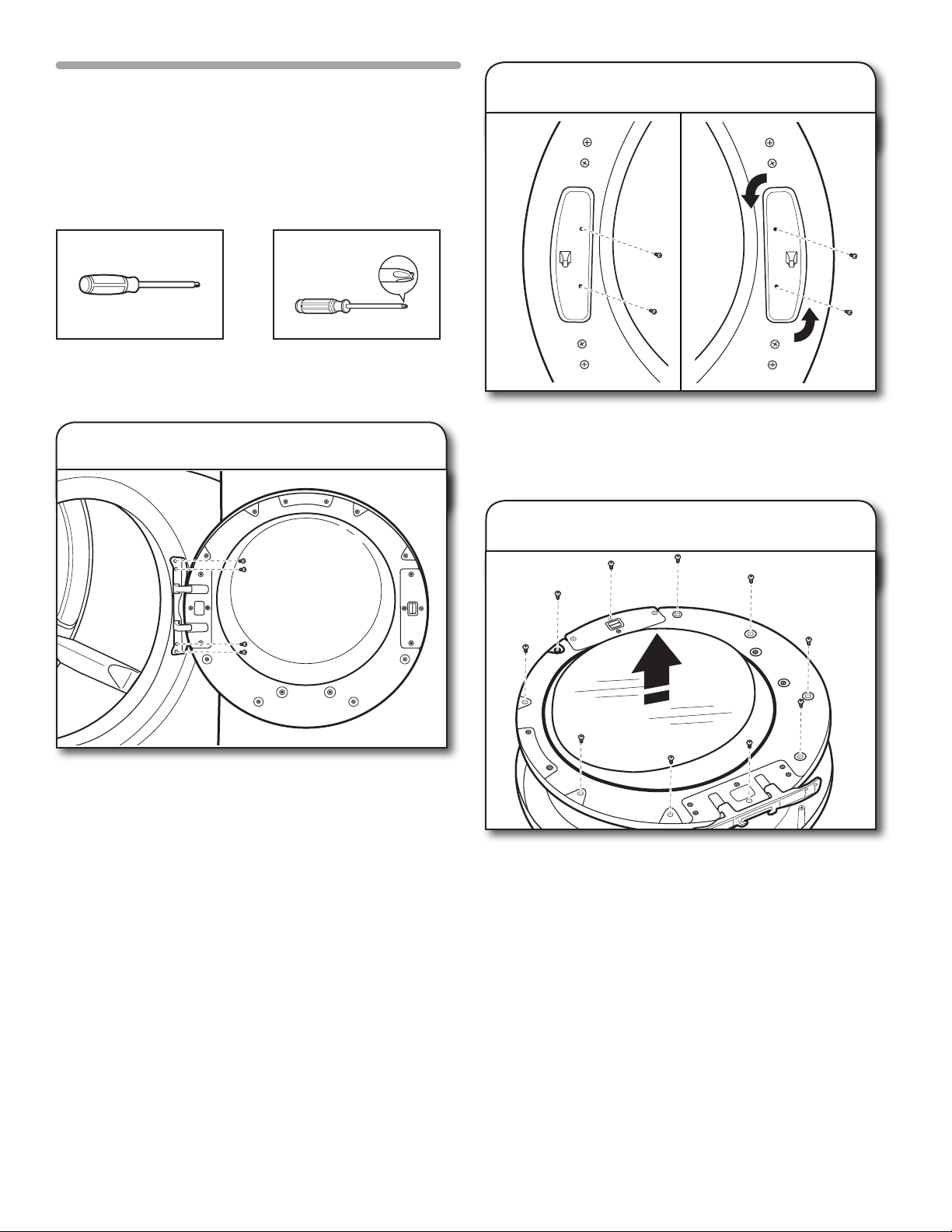

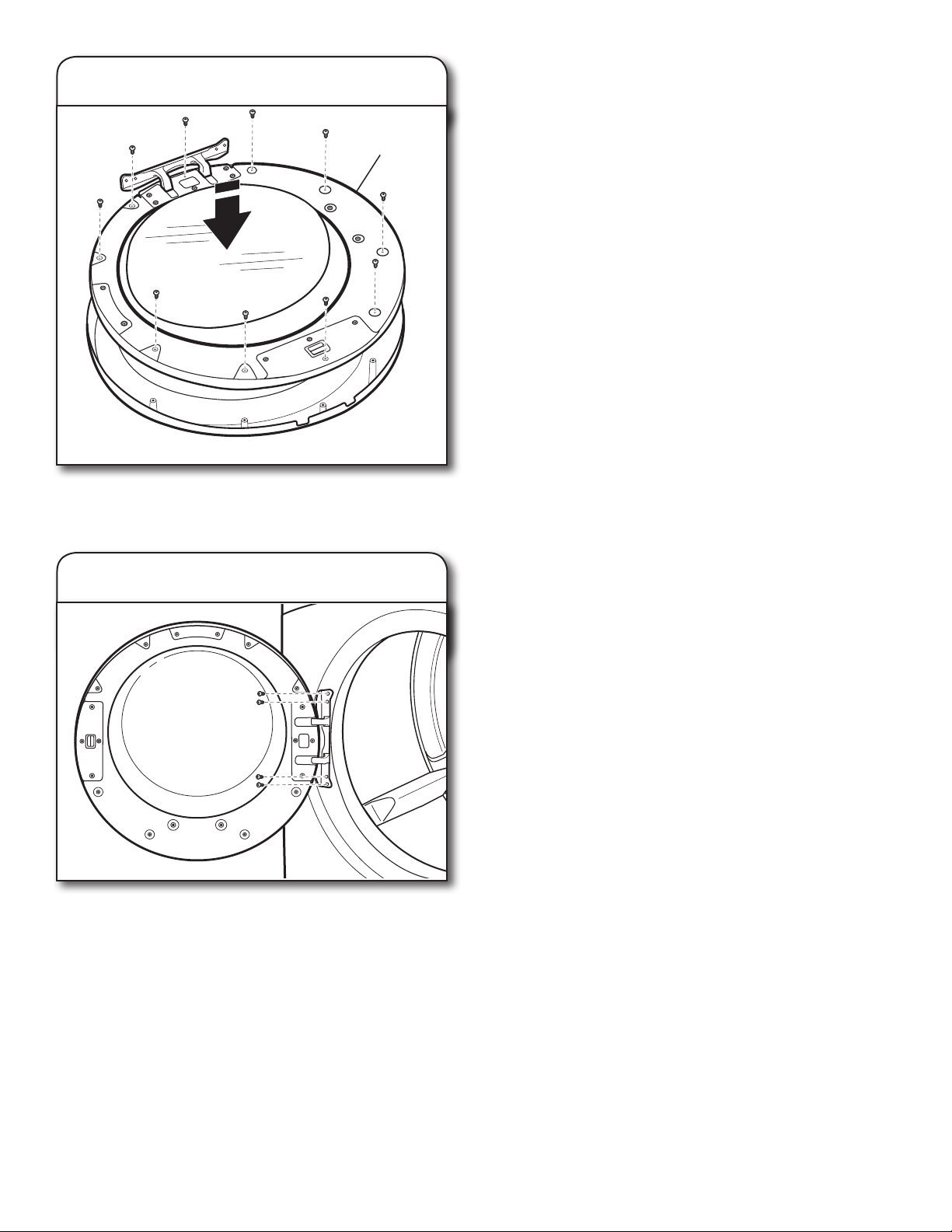

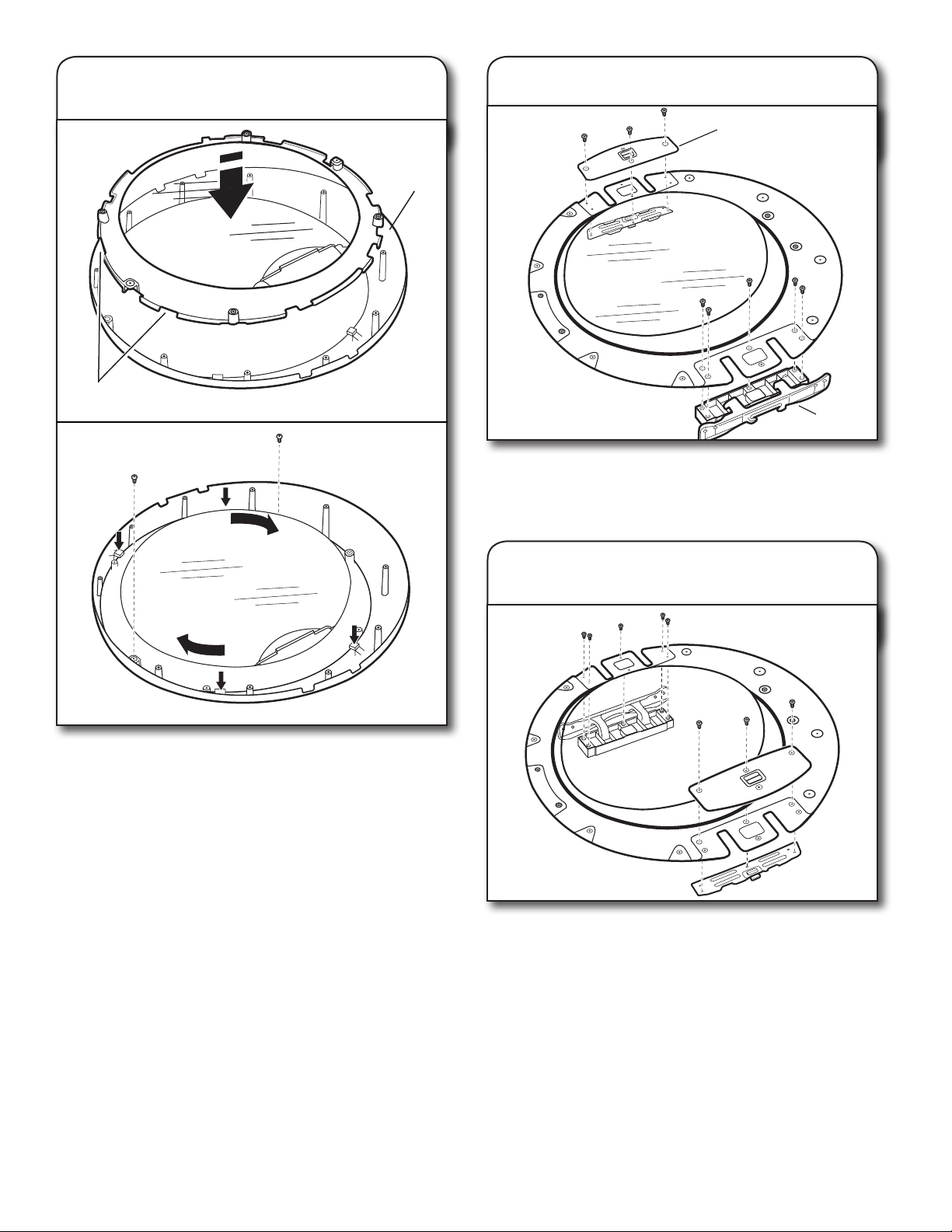

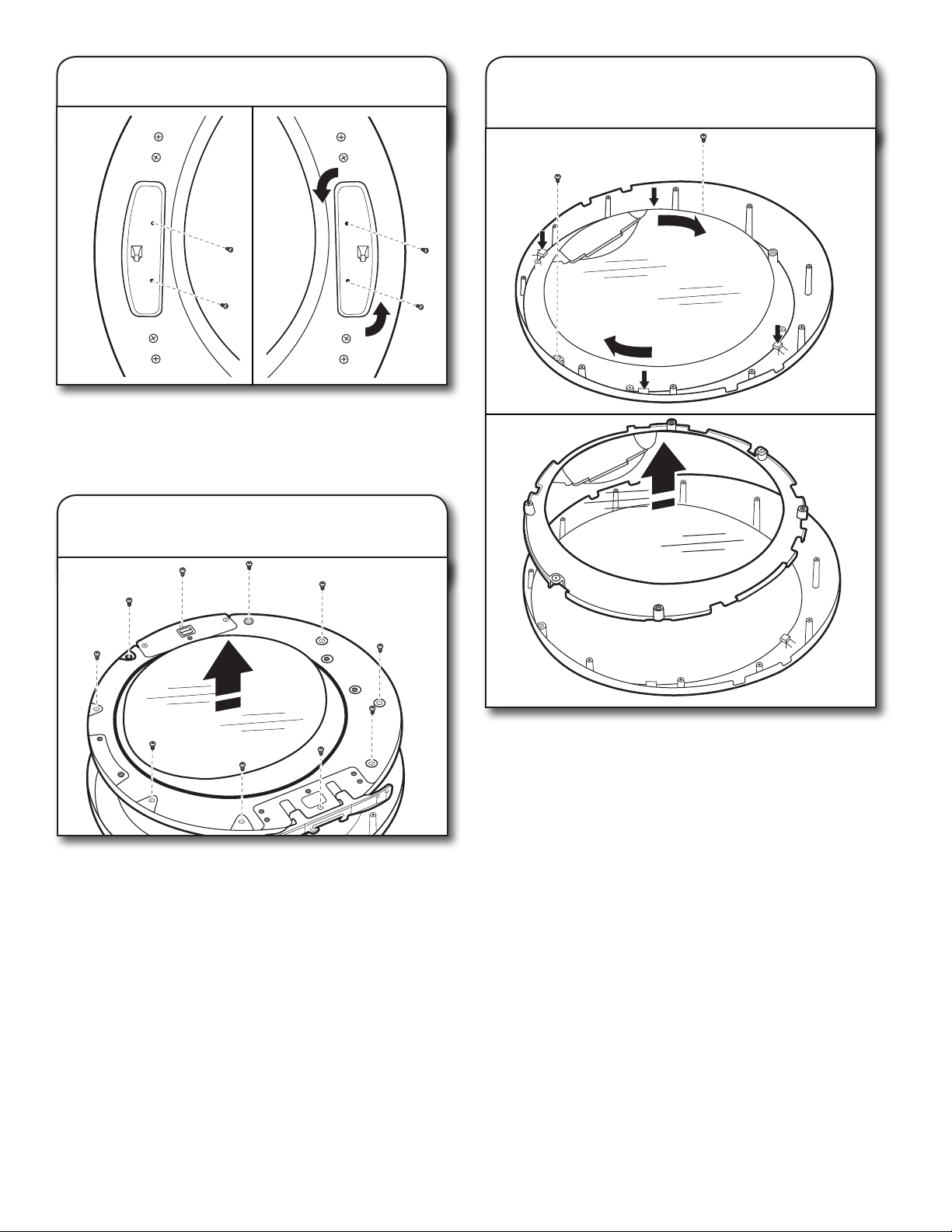

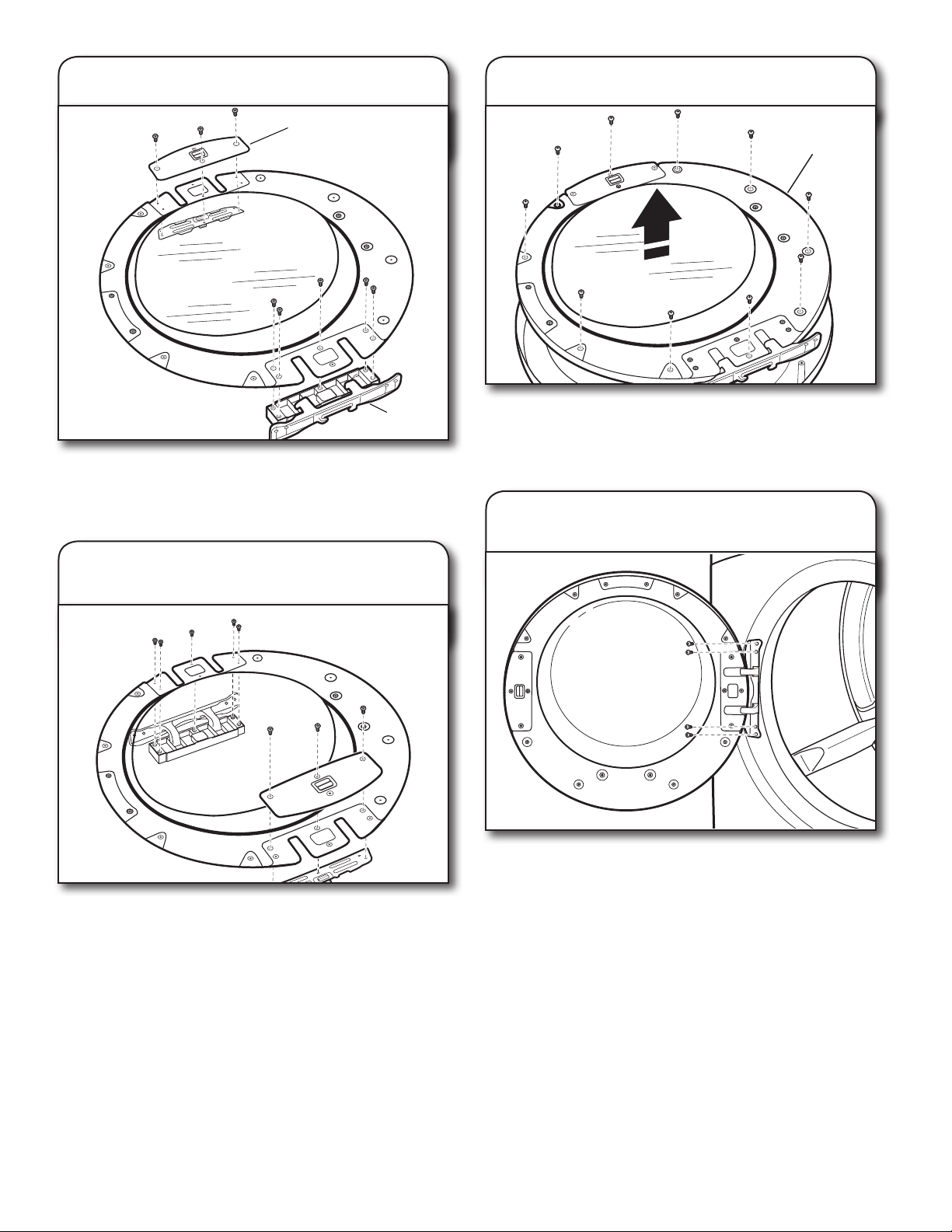

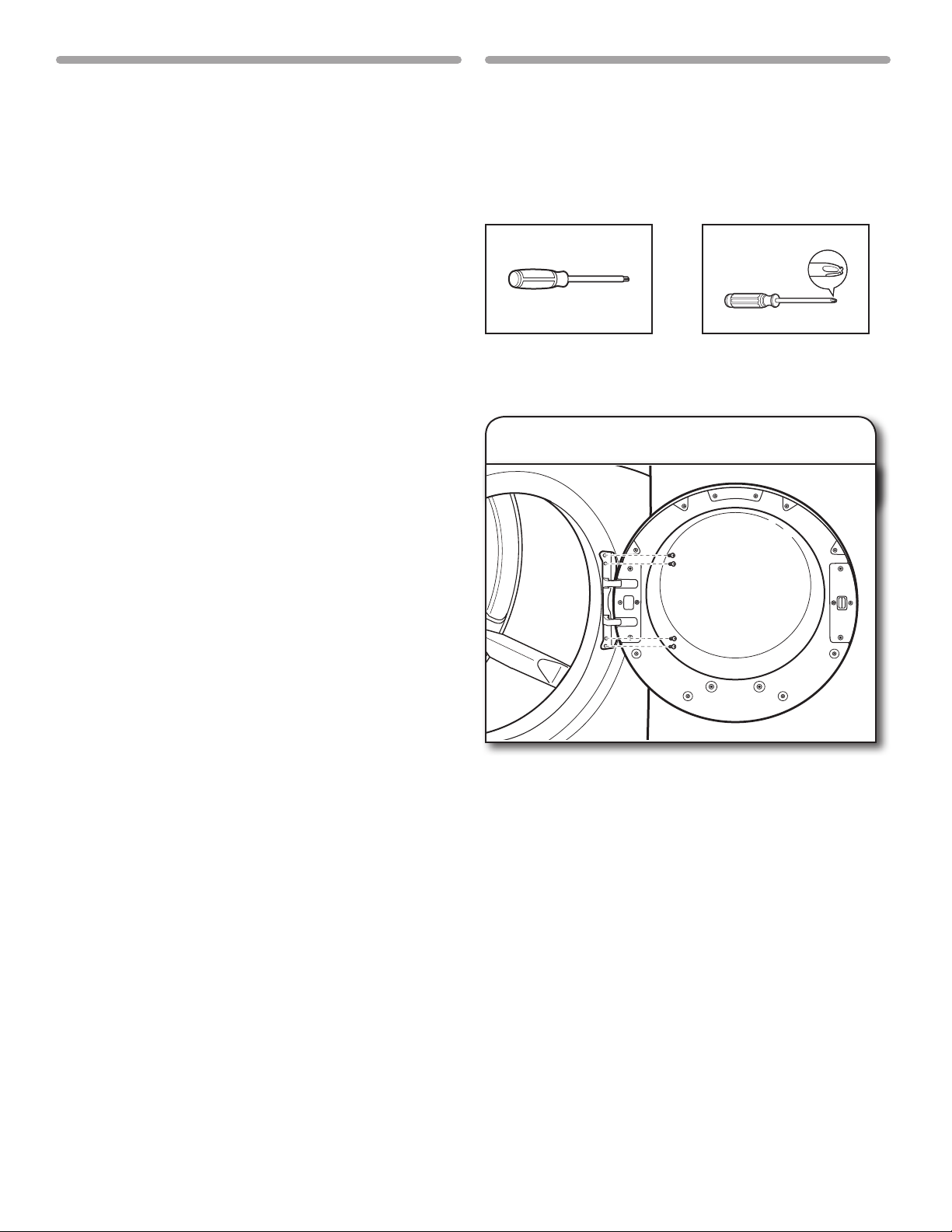

DOOR REVERSAL (OPTIONAL) ............................................... 16
INSTALLATION NOTES
Date of purchase: _________________________________ Date of installation: _______________________________ Installer: ________________________________________ Model number: ___________________________________ Serial number: ___________________________________
Table des matières
SÉCURITÉ DE LA SÉCHEUSE ....................................... 19
EXIGENCES D’INSTALLATION ...................................... 21
Outillage et pièces .............................................................21
EXIGENCES D’EMPLACEMENT ...............................................22
SÉCHEUSE ÉLECTRIQUE RACCORDEMENT À
L’ALIMENTATION ÉLECTRIQUE - CANADA SEULEMENT .....24
RACCORDEMENT D’UNE SÉCHEUSE À GAZ ........................25
INSTALLATION DES PIEDS DE NIVELLEMENT ......................27
INSTRUCTIONS POUR LE RACCORDEMENT AU GAZ .........27
SYSTÈME D’ÉVACUATION........................................................28
Exigences concernant l’évacuation .................................28
Planication du système d’évacuation ............................29
Installation du système d’évacuation ...............................30
RACCORDEMENT DES TUYAUX D’ALIMENTATION ..............31
RACCORDEMENT DU CONDUIT D’ÉVACUATION .................34
RÉGLAGE DE L’APLOMB DE LA SÉCHEUSE..........................34
ACHEVER L’INSTALLATION LISTE DE VÉRIFICATION ........... 35

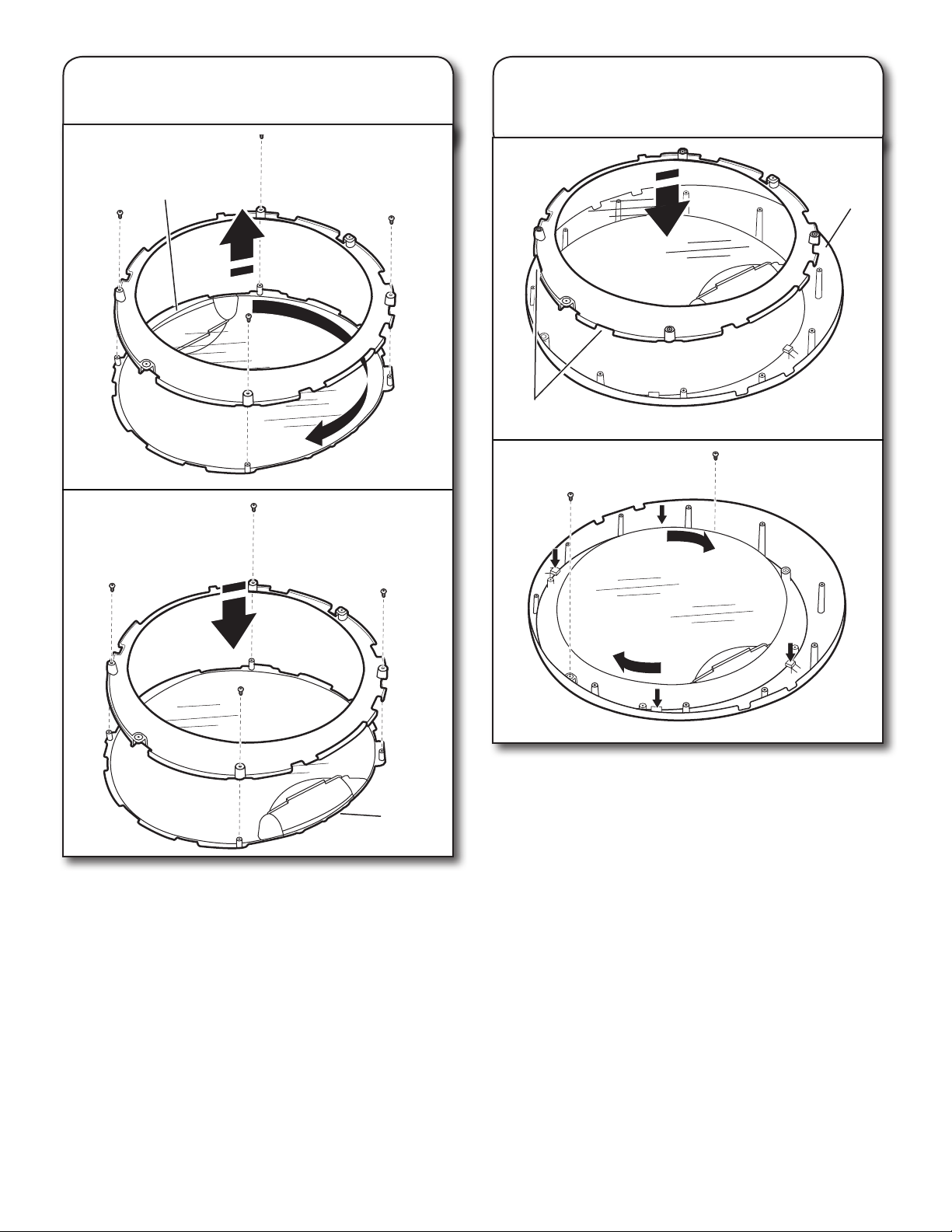

INVERSION DE LA PORTE (FACULTATIF) ................................35
NOTES CONCERNANT L’INSTALLATION
Date d’achat: ______________________________________ Date d’installation: __________________________________ Installateur: _______________________________________ Numéro de modéle: _________________________________ Numéro de série: ___________________________________
W10057364B W10310421B - SP

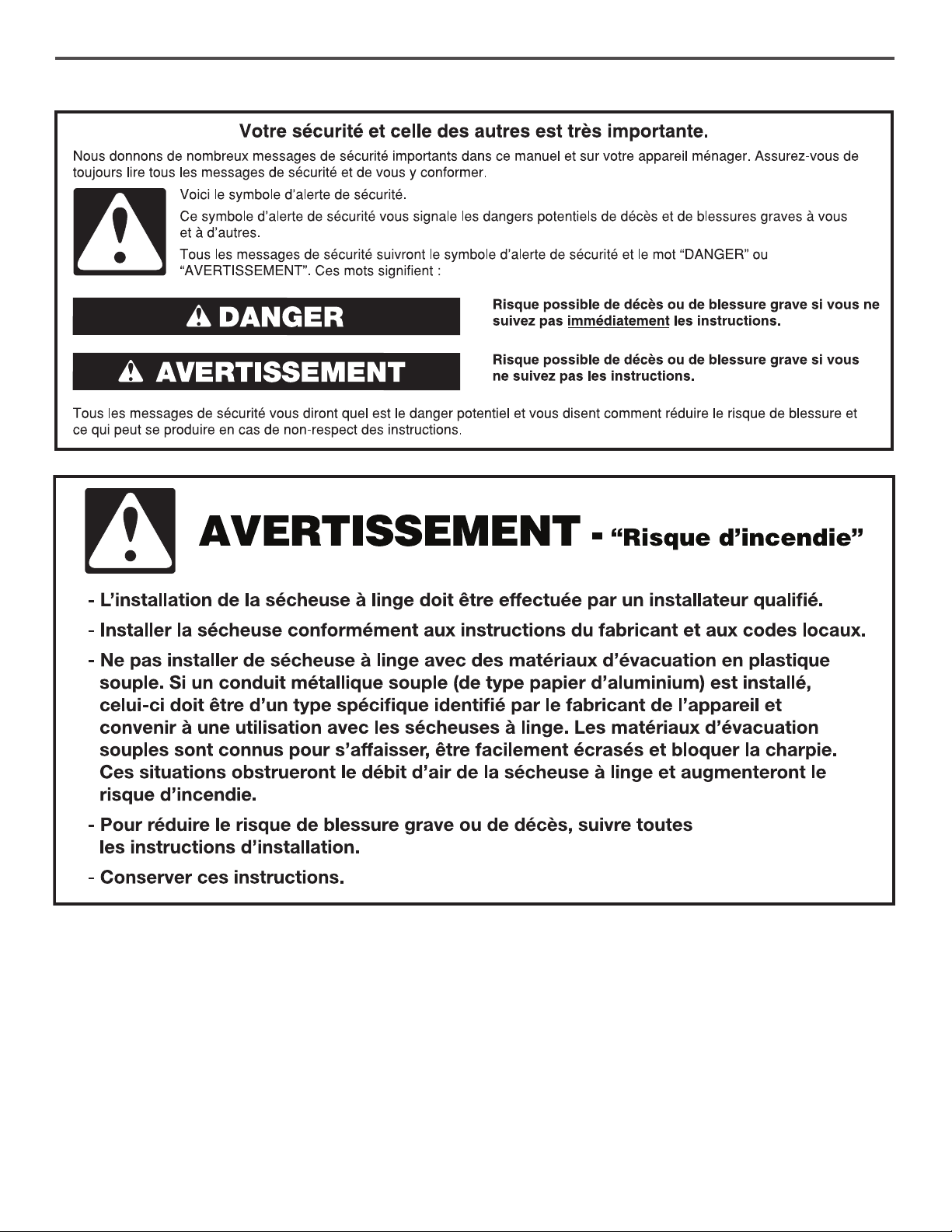

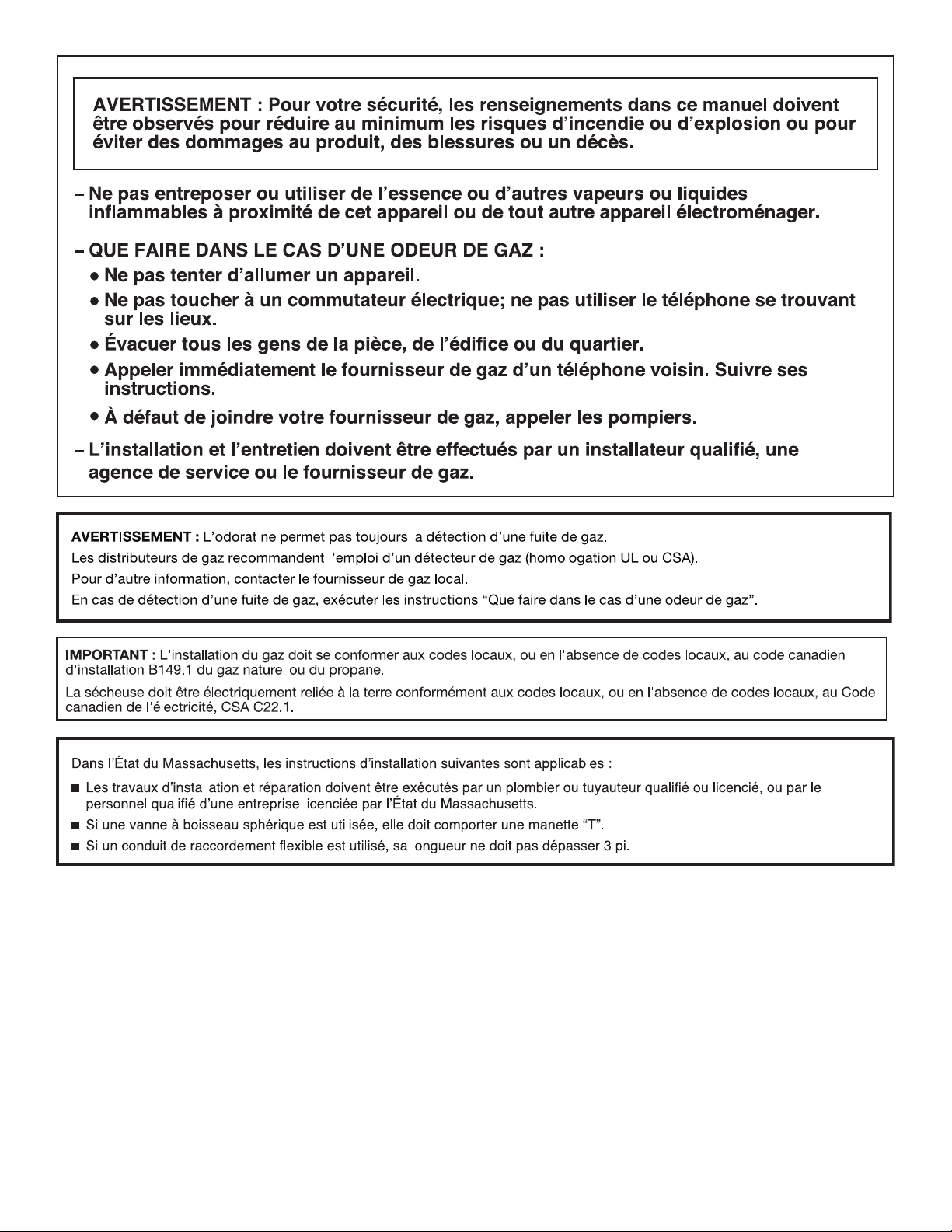

DRYER SAFETY
2
IMPORTANT: When discarding or storing your old clothes dryer, remove the door.
3
INSTALLATION REQUIREMENTS

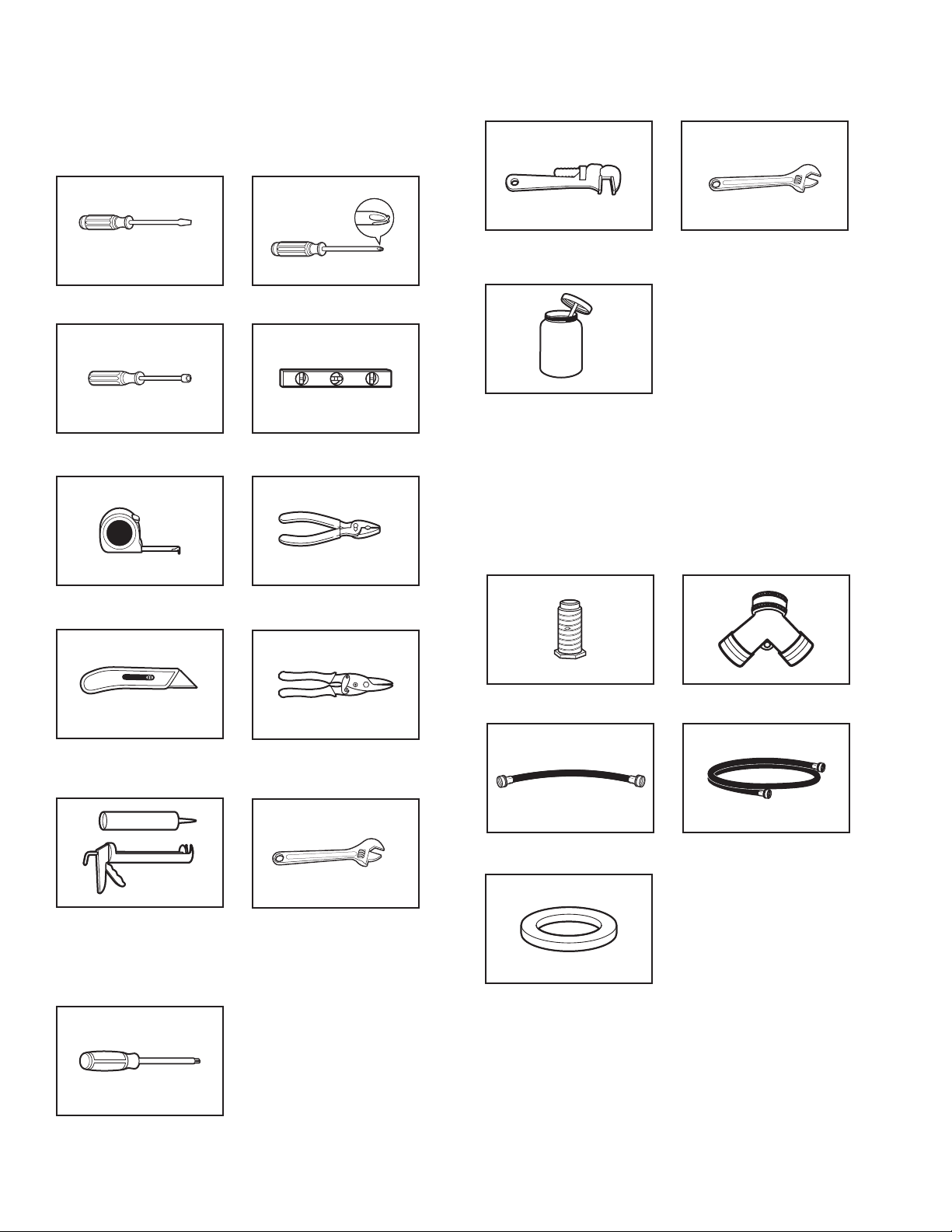

TOOLS AND PARTS
Gather the required tools and parts before starting installation.
Tools needed for all installations:
Flat-blade screwdriver #2 Phillips screwdriver
1/4" and 5/16" nut driver
(recommended)
Level
Tools needed for gas installations:
8" or 10" pipe wrench
Pipe-joint compound
resistant to LP gas
8" or 10" adjustable wrench (for gas connections)
Parts supplied:
Parts package is located in dryer drum. Check that all parts are included.
NOTE: Do not use leveling legs supplied with dryer if installing with a pedestal or a stack kit.
Tape measure
Utility knife
Caulking gun and compound (new vent installations)
®
Min. 8" long Torx screwdriver (for door reversal only)
T25
Pliers
Tin snips (new vent installations)
Adjustable wrench that opens to 1" (25 mm) or hex-head socket wrench
Leveling legs (4)
Short inlet hose
Rubber washers
“Y” connector
Long inlet hose
Parts needed: (Not supplied with dryer)
Vent clamps Vent elbows and ductwork
Additional parts may be required, depending in your installation. Check local codes. Check existing electrical supply and venting. Read “Electrical Requirements” and “Venting Requirements” before purchasing parts.
® TORX is a registered trademark of Saturn Fasteners, Inc.
4
Optional Equipment: (Not supplied with dryer)
27"
(686 mm)
3
/4
"*
(18 mm)
38
1
/8
"
(968 mm)
311/8"
(790 mm)
50
7
/8"
(1292 mm)
53/4"*
(146 mm)
3
/4"*
(18 mm)
61/4"
(159 mm)
29
7
/8"*
(759 mm)
3
1
/2"*
(89 mm)
53/4"*
(146 mm)
6
1
/8"*
(156 mm)
14
3
/8"
(365 mm)
253/4"
(654 mm)
3
/4"*
(18 mm)
Refer to your Use and Care Guide for information about accessories available for your dryer.
LOCATION REQUIREMENTS
You will need:
A location allowing for proper exhaust installation. See “Venting Requirements.”
A separate 15 or 20 amp circuit for a gas dryer or 30 amp circuit for an electric dryer.
If using power supply cord, a grounded electrical outlet located within 2 ft. (610 mm) of either side of dryer. See “Electrical Requirements.”
Floor must support dryer weight of 200 lbs. (90.7 kg). Also consider weight of companion appliance.
Cold water faucets located within 4 ft. (1.2 m) of the water ll
valves, and water pressure of 20 - 120 psi (138 - 827 kPa). You may use the water supply for your washer using the “Y” connector and short hose (if needed) which are provided.
Level oor with maximum slope of 1" (25 mm) under entire
dryer. If slope is greater than 1" (25 mm), install Extended Dryer Feet Kit, Part Number 279810. If not level, clothes may not tumble properly and automatic sensor cycles may not operate correctly.
For garage installation, place dryer at least 18" (460 mm) above oor. If using a pedestal, you will need 18" (460 mm) to bottom of dryer.
The dryer must not be installed or stored in an area where it will be exposed to water and/or weather.
IMPORTANT: Do not operate, install, or store dryer where it will be exposed to water, weather, or at temperatures below 40° F (4° C). Lower temperatures may cause dryer not to shut off at end of automatic sensor cycles, resulting in longer drying times.
Installation Clearances
For each arrangement, consider allowing more space for ease of installation and servicing; spacing for companion appliances and clearances for walls, doors, and oor moldings. Space must be large enough to allow door to fully open. Add spacing on all sides of dryer to reduce noise transfer. If a closet door or louvered door is installed, top and bottom air openings in door are required.
Check code requirements. Some codes limit, or do not permit, installation of the dryer in garages, closets, mobile homes, or sleeping quarters. Contact your local building inspector.
NOTE: No other fuel-burning appliance can be installed in the same closet as a dryer.

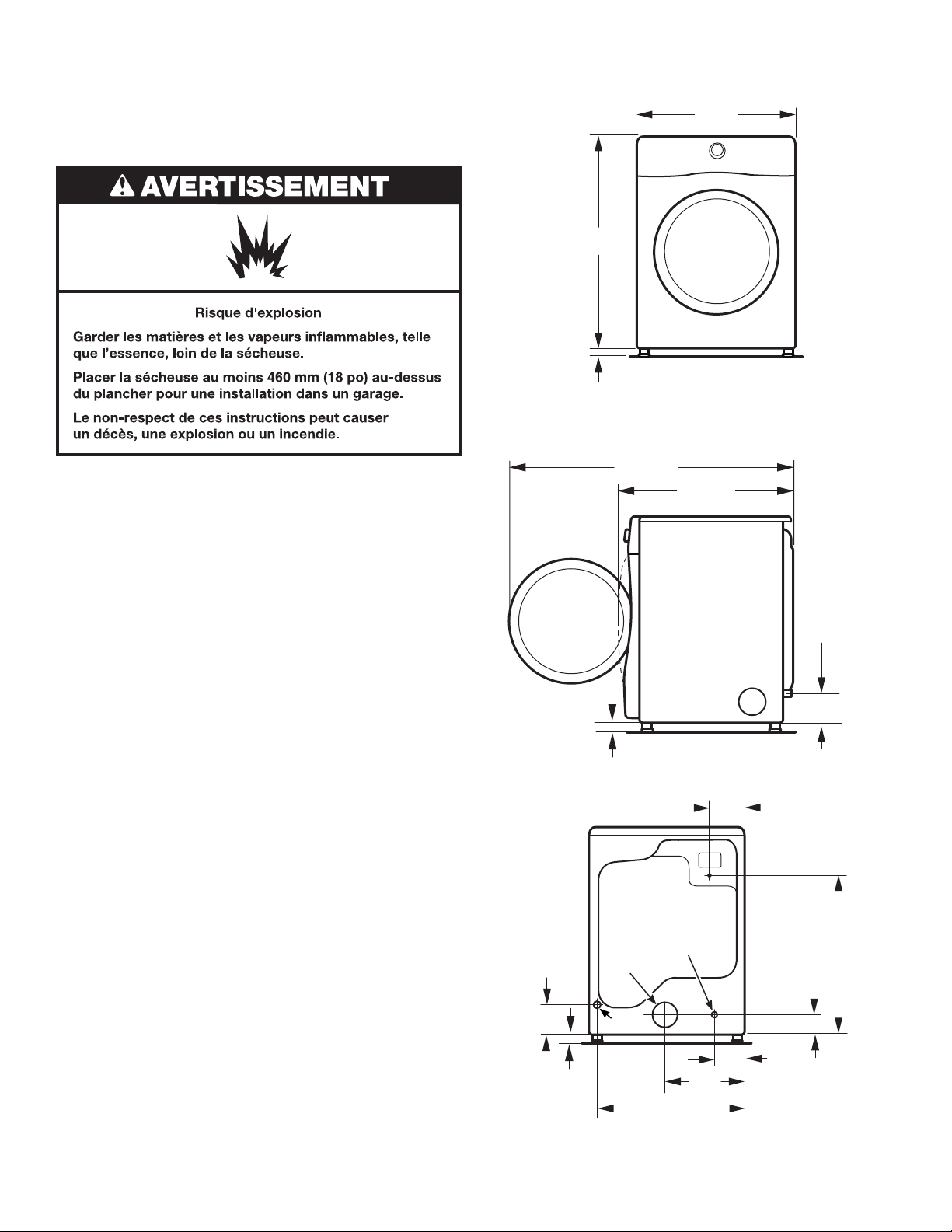

DRYER DIMENSIONS
Front view:
* Approx. measurement
Side view:
* Approx. measurement
Back view:
Water inlet
Vent
Gas
* Approx. measurement
NOTE: Most installations require a minimum of 5" (127 mm) clearance behind dryer for exhaust vent with elbow. See “Venting Requirements.”
5

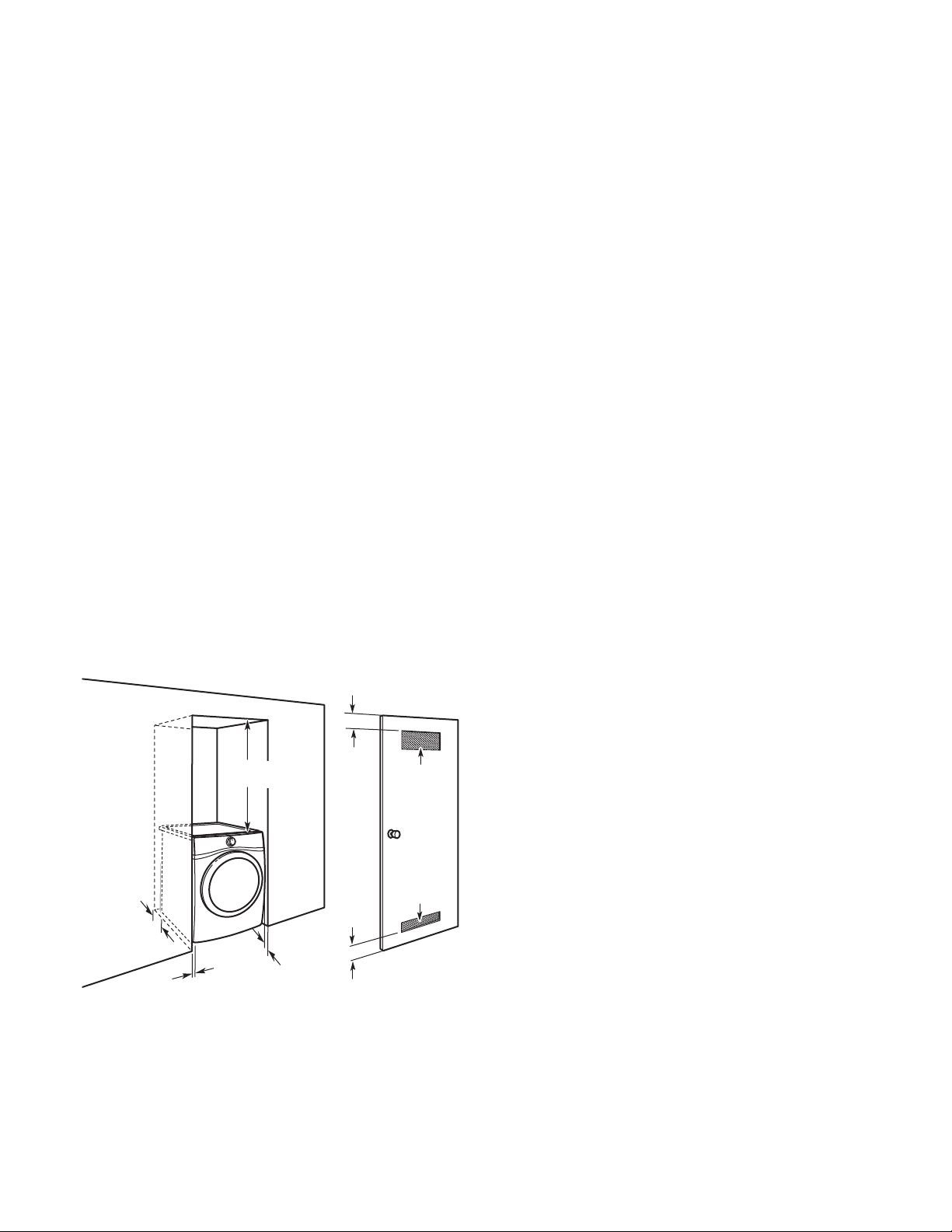

Installation spacing for recessed area
18" min.
(457 mm)
1"
(25 mm)
5"
(127 mm)
24 in.2 min.
(155 cm2)
48 in.2 min.
(310 cm
2
)
3"
(76 mm)
3"
(76 mm)
1"
(25 mm)
GROUNDING INSTRUCTIONS
SAVE THESE INSTRUCTIONS
For a grounded, cord-connected dryer:
This dryer must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This dryer is equipped with a cord having an equipment­grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
WARNING: Improper connection of the equipment-
grounding conductor can result in a risk of electric shock. Check with a qualied electrician or service representative or personnel if you are in doubt as to whether the dryer is properly grounded. Do not modify the plug provided with the dryer: if it will not t the outlet, have a proper outlet installed by a qualied electrician.
or closet installation
All dimensions show recommended and minimum spacing allowed.
Additional spacing should be considered for ease of
installation and servicing. Additional clearances might be required for wall, door, oor
moldings, dryer venting, and gas line. Additional spacing should be considered on all sides
of the dryer to reduce noise transfer. For closet installation, with a door, minimum ventilation
openings in the top and bottom of the door are required. Louvered doors with equivalent ventilitation openings are acceptable.
Companion appliance spacing should also be considered.
ELECTRIC DRYER POWER HOOKUP- CANADA ONLY
ELECTRICAL REQUIREMENTS
Recommended installation clearances (dryer only):
Mobile home - Additional installation requirements:
This dryer is suitable for mobile home installations. The installation must conform to the Manufactured Home Construction and Safety Standard, Title 24 CFR, Part 3280 (formerly the Federal Standard for Mobile home construction and Safety, Title 24, HUD Part 280) or Standard CAN/CSA-Z240 MH.
Mobile home installations require:
Metal exhaust system hardware, available for purchase from your dealer. For further information, see “Assistance or Service” section in your Use and Care Guide.
Special provisions must be made in mobile homes to
introduce outside air into dryer. Openings (such as a nearby window) should be at least twice as large as dryer exhaust opening.
For mobile home installation of gas dryers:
Mobile Home Installation Hold-down Kit Part Number 346764 is available to order. For further information, see "Assistance or Service" section in your Use and Care Guide.
6
It is your responsibility:
To contact a qualied electrical installer. To be sure that the electrical connection is adequate and in
conformance with Canadian Electrical Code, C22.1-latest edition and all local codes. A copy of above codes standard may be obtained from: Canadian Standards Association, 178 Rexdale Blvd., Toronto, ON M9W 1R3 CANADA.
To supply the required 4 wire, single phase, 120/240 volt,
60 Hz, AC only electrical supply on a separate 30-amp circuit, fused on both sides of the line. A time-delay fuse or circuit breaker is recommended. Connect to an individual branch circuit.
This dryer is equipped with a CSA
International Certied Power Cord intended to be plugged into a standard 14-30R wall receptacle. The cord is 5 ft. (1.52 m) long. Be sure wall receptacle is within reach of dryer’s nal location.
If using a replacement power supply cord, it is recommended that you use Power Supply Cord Replacement Part Number 8529008.
For further information, please reference service numbers located in “Assistance or Service” section of your Use and Care Guide.

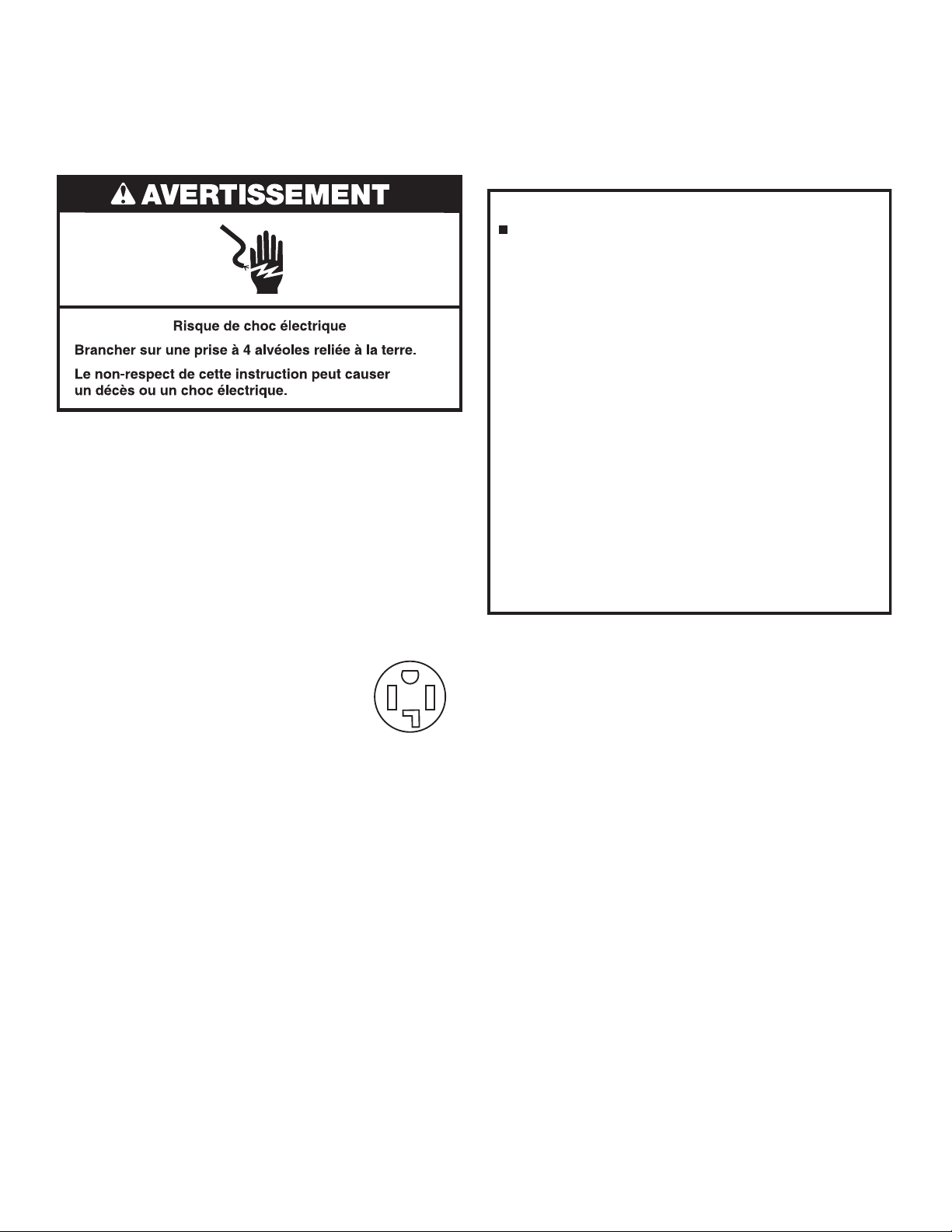

4-wire receptacle
(14-30R)

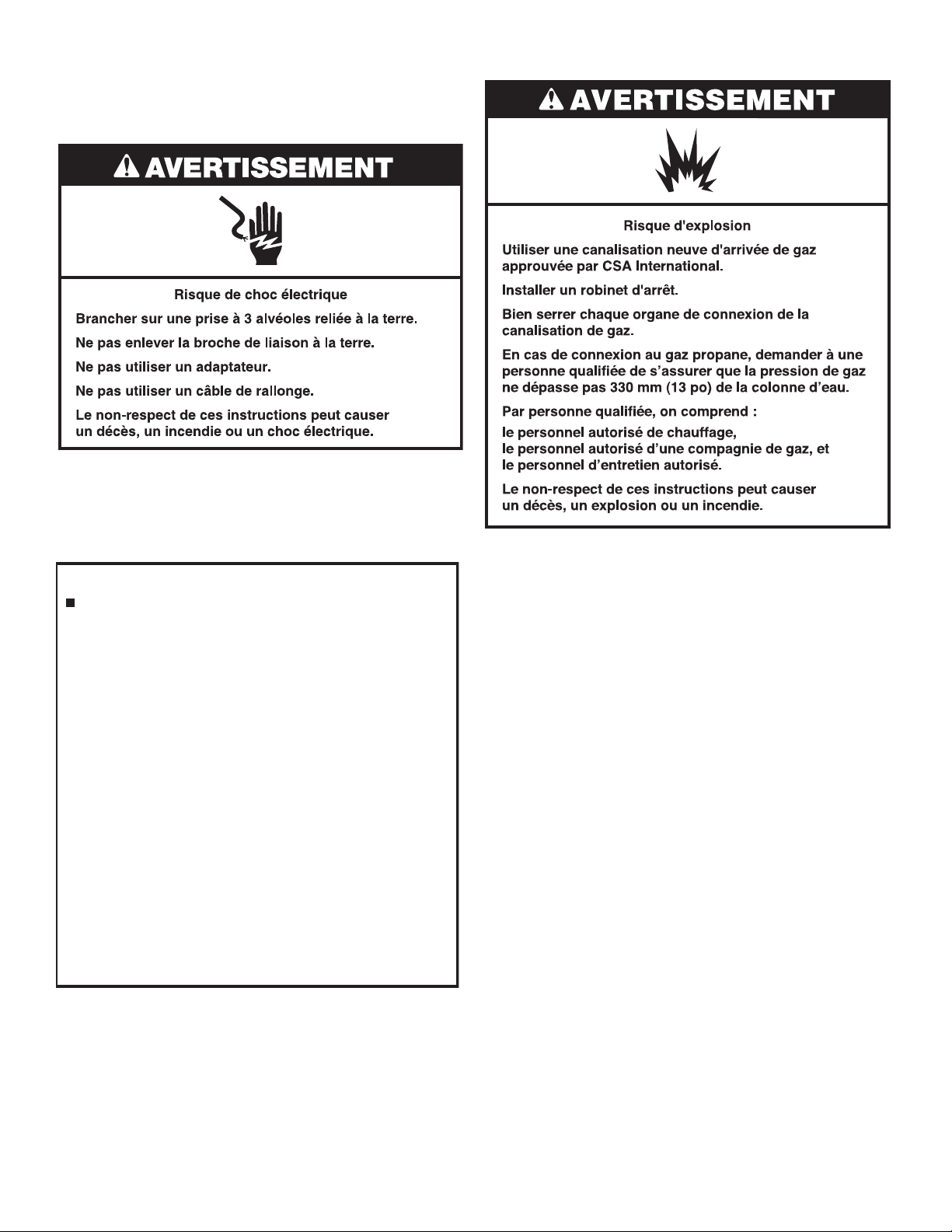

GAS DRYER POWER HOOKUP
GROUNDING INSTRUCTIONS
SAVE THESE INSTRUCTIONS
For a grounded, cord-connected dryer:
This dryer must be grounded. In the event of malfunction or breakdown, grounding will reduce the risk of electric shock by providing a path of least resistance for electric current. This dryer is equipped with a cord having an equipment­grounding conductor and a grounding plug. The plug must be plugged into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.
WARNING: Improper connection of the equipment-
grounding conductor can result in a risk of electric shock. Check with a qualied electrician or service representative or personnel if you are in doubt as to whether the dryer is properly grounded. Do not modify the plug provided with the dryer: if it will not t the outlet, have a proper outlet installed by a qualied electrician.
ELECTRICAL REQUIREMENTS
120 Volt, 60 Hz, AC only, 15- or 20- amp fused electrical supply is required. A time-delay fuse or circuit breaker is recommended. It is also recommended that a separate circuit serving only this dryer be provided.
GAS SUPPLY REQUIREMENTS
GAS TYPE
Natural Gas:
This dryer is equipped for use with Natural gas. It is design­certied by CSA International for LP (propane or butane) gases with appropriate conversion.
Your dryer must have the correct burner for the type of gas in
your home. Burner information is located on the rating plate in the door well of your dryer. If this information does not agree with the type of gas available, contact your dealer or call the phone numbers referenced in the “Assistance or Service” section of your Use and Care Guide.
LP Gas Conversion:
IMPORTANT: Conversion must be made by a qualied
technician. No attempt shall be made to convert the appliance from the gas
specied on the model/serial rating plate for use with a different gas without consulting your gas company.
7
*53/4" (146 mm)
11/2"
(38 mm)
GAS SUPPLY LINE
A
B
E
D
C
Option 1 (Recommended Method)
Flexible stainless steel gas connector:
If local codes permit, use a new exible stainless steel gas
connector (Design Certied by the American Gas Association or CSA International) to connect your dryer to the rigid gas supply line. Use an elbow and a 3/8" are x 3/8" NPT adapter tting between the stainless steel gas connector and the dryer gas pipe, as needed to prevent kinking.
Option 2 (Alternate Method)
Approved aluminum or copper tubing:
Must include 1/8" NPT minimum plugged tapping accessible
for test gauge connection, immediately upstream of the gas connection to the dryer. See illustration.
1/2" IPS pipe is recommended.
3/8"approved aluminum or copper tubing is acceptable for lengths under 20 ft. (6.1 m) if local codes and gas supplier permit.
If you are using Natural gas, do not use copper tubing.
Lengths over 20 ft. (6.1 m) should use larger tubing and a different size adapter tting.
If your dryer has been converted to use LP gas, 3/8" LP
compatible copper tubing can be used. If the total length of the supply line is more than 20 ft. (6.1 m), use larger pipe.
NOTE: Pipe-joint compounds that resist the action of LP gas must be used. Do not use TEFLON
Must include shut-off valve
In the U.S.A.:
An individual manual shut-off valve must be installed within six (6) ft. (1.8 m) of the dryer in accordance with the National Fuel Gas Code, ANSI Z223.1. The location should be easy to reach for opening and closing.
In Canada:
An individual manual shut-off valve must be installed in accordance with the B149.1, Natural Gas and Propane Installation Code. It is recommended that an individual manual shutoff valve be installed within six (6) ft. (1.8 m) of the dryer. The location should be easy to reach for opening and closing.
®†
tape.
GAS SUPPLY CONNECTION REQUIREMENTS
Use an elbow and a 3/8" are x 3/8" NPT adapter tting between the exible gas connector and the dryer gas pipe, as needed to avoid kinking.
Use only pipe-joint compound. Do not use TEFLON
This dryer must be connected to the gas supply line with a
®†
tape.
listed exible gas connector that complies with the standard for connectors for gas appliances, ANSI Z21.24 or CSA 6.10.
BURNER INPUT REQUIREMENTS
Elevations above 2,000 ft. (610 m):
When installed above 2,000 ft. (610 m) a 4% reduction of the
burner Btu rating shown on the model/serial number plate is required for each 1,000 ft. (305 m) increase in elevation.
Gas supply pressure testing
The dryer must be disconnected from the gas supply piping system during pressure testing at pressures greater than 1/2 psi.

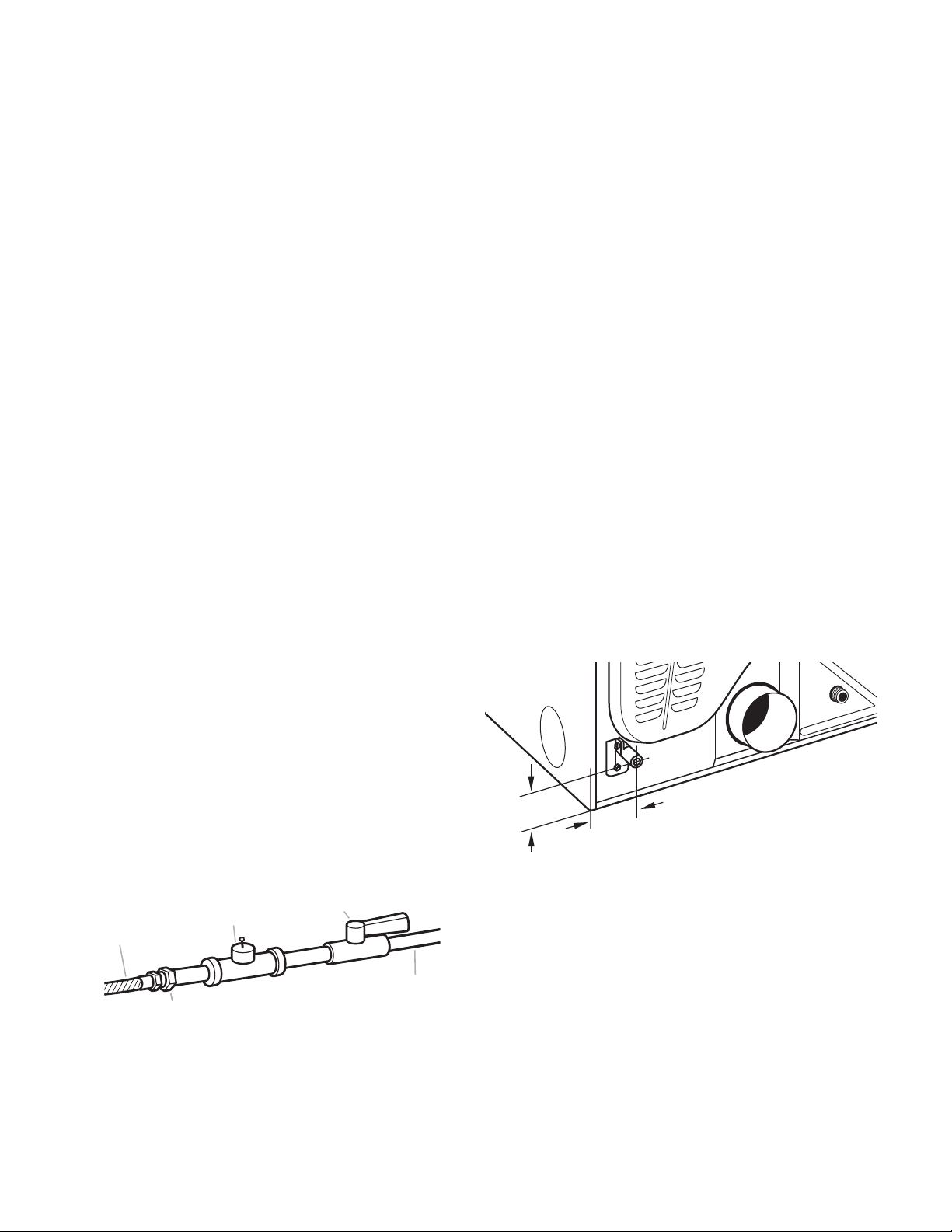

DRYER GAS PIPE
The gas pipe that comes out through the rear of your dryer has a 3/8" male pipe thread.
* NOTE:
If the dryer is mounted on a pedestal, the gas
pipe height must be an additional 10" (254 mm) or
15.5" (394 mm) from the oor, depending on the pedestal model. For a garage installation, the gas pipe height must be an additional 18" (460 mm) from the oor.
3/8" NPT dryer gas pipe
8
A. 3/8" exible gas connector B. 3/8" pipe to are adapter tting C. 1/8" NPT minimum plugged tapping D. 1/2" NPT gas supply line E. Gas shutoff valve.
†®TEFLON is a registered trademark of E.I. Dupont De Nemours and Company.
A
B
A
B
C
D
A
B

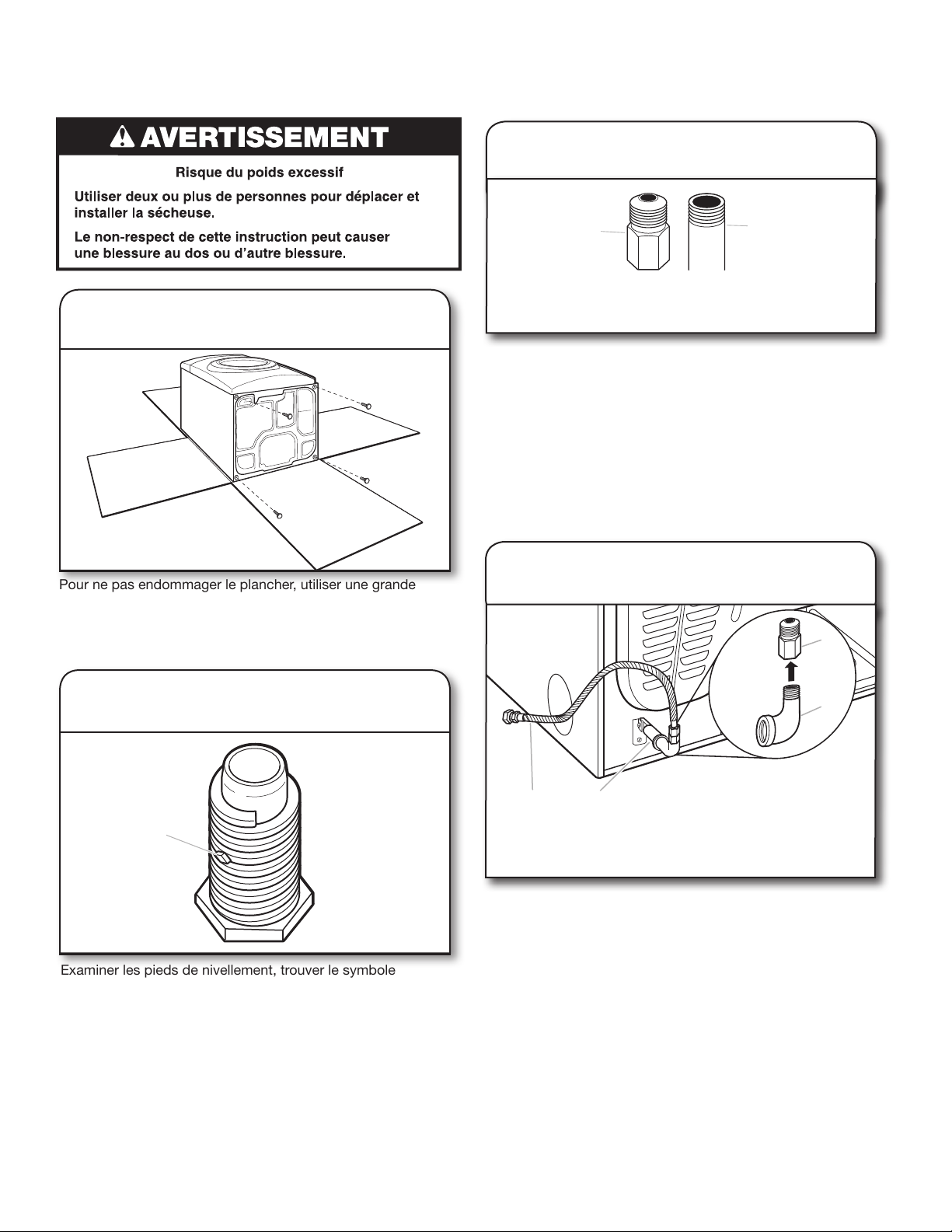

INSTALL LEVELING LEGS
diamond marking
MAKE GAS CONNECTION (gas dryer models only)
1. Connect gas supply to dryer
1. Prepare dryer for leveling legs
To avoid damaging oor, use a large at piece of cardboard
from dryer carton; place under entire back edge of dryer. Firmly grasp dryer body (not console panel) and gently lay dryer down on cardboard.
2. Screw in leveling legs
A. Flared male tting B. Non-ared male tting
Remove red cap from gas pipe. Using a wrench to tighten, connect gas supply to dryer. Use pipe-joint compound on threads of all non-ared male ttings. If exible metal tubing is used, be sure there are no kinks.
NOTE: For LP gas connections, you must use pipe-joint compound resistant to action of LP gas Do not use TEFLON
®†
tape.
2. Plan pipe tting connection (option 1)
Examine leveling legs, nd diamond marking. Screw legs into leg holes by hand, use a wrench to nish turning legs until diamond marking is no longer visible.
Place a carton corner post from dryer packaging under each
of the 2 dryer back corners. Stand the dryer up. Slide the dryer on the corner posts until it is close to its nal location. Leave enough room to connect the exhaust vent.
A. 3/8" exible gas connector B. 3/8" dryer gas pipe
A combination of pipe ttings must be used to connect dryer to existing gas line. A recommended connection is shown. Your connection may be different, according to supply line type, size, and location.
C. 3/8" to 3/8" pipe elbow D. 3/8" pipe-to-are adapter
tting
3. Open shut-off valve
A. Closed valve B. Open valve
Open shut-off valve in supply line; valve is open when handle is parallel to gas pipe. Then, test all connections by brushing on an approved noncorrosive leak-detection solution. Bubbles will show a leak. Correct any leak found.
†®TEFLON is a registered trademark of E.I. Dupont De Nemours and Company.
9
VENTING
4"
(102 mm)

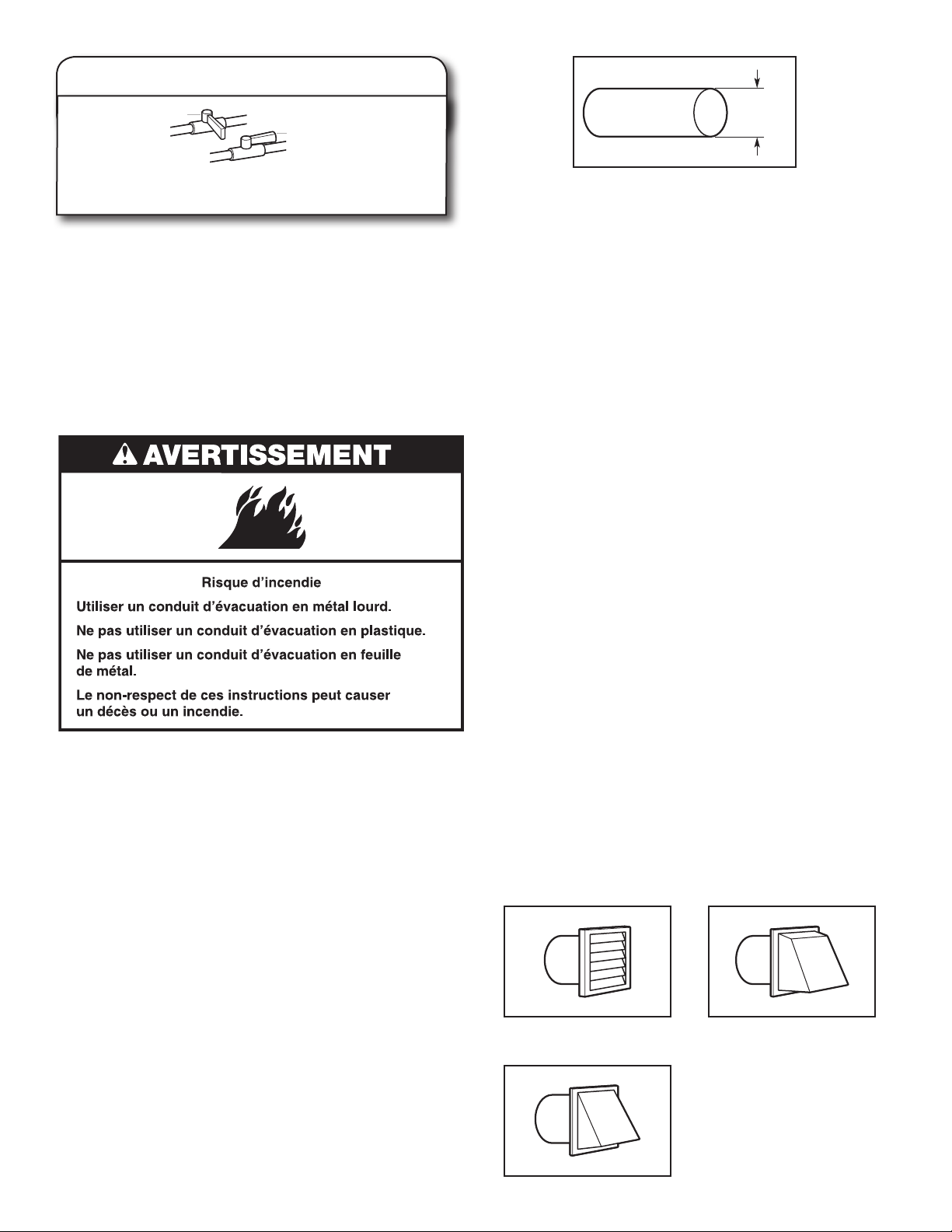

Venting Requirements
Exhaust hoods:
An exhaust hood should cap the vent to keep rodents and insects from entering the home.
Must be at least 12" (305 mm) from ground or any object
that may obstruct exhaust (such as owers, rocks, bushes, or snow).
Do not use an exhaust hood with a magnetic latch.
Recommended Styles:
WARNING: To reduce the risk of re, this dryer MUST BE
EXHAUSTED OUTDOORS. IMPORTANT: Observe all governing codes and ordinances.
Dryer exhaust must not be connected into any gas vent, chimney, wall, ceiling, attic, crawlspace, or a concealed space of a building. Only rigid or exible metal vent shall be used for exhausting.
4" (102 mm) heavy metal exhaust vent
Only a 4" (102 mm) heavy metal exhaust vent and clamps
may be used.
Do not use plastic or metal foil vent.
Rigid metal vent:
Recommended for best drying performance and to avoid
crushing and kinking.
Flexible metal vent: (Acceptable only if accessible to clean)
Must be fully extended and supported in nal dryer location.
Remove excess to avoid sagging and kinking that may result
in reduced airow and poor performance.
Do not install in enclosed walls, ceilings, or oors.
The total length should not exceed 7
The length of exible metal vent used must be included in the
overall vent system design as shown in the Vent System Chart.
3
/4 ft. (2.4 m).
Louvered Hood
Box Hood
Acceptable Style:
Angled Hood
Elbows:
45° elbows provide better airow than 90° elbows.
Good
Better
Clamps:
Use clamps to seal all joints. Exhaust vent must not be connected or secured with screws
or other fastening devices that extend into interior of duct and catch lint. Do not use duct tape.
NOTE: If using an existing vent system, clean lint from entire
length of the system and make sure exhaust hood is not plugged with lint. Replace plastic or metal foil vents with rigid metal or exible metal vents. Review Vent system chart and if necessary, modify existing vent system to achieve best drying performance.
10
Plan Vent System
Choose your exhaust installation type
Recommended exhaust installation:
B
A
F
G
B
H
A. Dryer B Elbow C. Wall D. Exhaust hood E. Clamps
Special provisions for mobile homes:
Exhaust vent must be securely fastened to a noncombustible portion of mobile home and must not terminate beneath the mobile home. Terminate exhaust vent outside.
F. Rigid metal or
exible metal vent
G. Vent length
necessary to connect elbows
H. Exhaust outlet
Determine vent path:
Select route that will provide straightest and most direct path outdoors.
Plan installation to use fewest number of elbows and turns.
When using elbows or making turns, allow as much room
C
D
E
as possible. Bend vent gradually to avoid kinking.
Use as few 90° turns as possible.
Determine vent length and elbows needed for best drying performance:
Use the following Vent System Chart to determine type of vent material and hood combinations acceptable to use.
NOTE: Do not use vent runs longer than those specied in Vent system chart.
Exhaust systems longer than those specied will:
Shorten life of dryer.
Reduce performance, resulting in longer drying times and increased energy usage.
The Vent System Chart provides venting requirements that will help achieve best drying performance.
Vent System Chart
Number of 90° elbows
0
1
2
Type
of vent
Rigid metal
Rigid metal
Rigid metal
Box/louvered
hoods
64 ft. (20 m)
54 ft. (16.5 m)
44 ft. (13.4 m)
Angled
hoods
58 ft. (17.7 m)
48 ft. (14.6 m)
38 ft. (11.6 m)
3
4
Rigid metal
Rigid metal
35 ft. (10.7 m)
27 ft. (8.2 m)
29 ft. (8.8 m)
21 ft. (6.4 m)
11
Install Vent System
12" min.
(305 mm)
12" min.
(305 mm)
1. Install exhaust hood
Install exhaust hood and use caulking compound to seal exterior wall opening around exhaust hood.
2. Connect vent to exhaust hood
CONNECT INLET HOSE
The dryer must be connected to the cold water faucet using the
new inlet hoses. Do not use old hoses.
NOTE: Replace inlet hoses after 5 years of use to reduce the risk
of hose failure. Record hose installation or replacement dates on the hoses for future reference.
Periodically inspect and replace hoses if bulges, kinks, cuts,
wear, or leaks are found.
1. Turn cold water off, remove hose,
and replace rubber washer
Turn cold water faucet off and remove washer inlet hose. Check and see if rubber washer is in the “Y” connector.
Remove old rubber washer from inlet hose and replace with new rubber washer provided.
Vent must t over the exhaust hood. Secure vent to exhaust
hood with 4" (102 mm) clamp. Run vent to dryer location using straightest path possible. Avoid 90° turns. Use clamps to seal all joints. Do not use duct tape, screws, or other fastening devices that extend into interior of vent to secure vent, because they can catch lint.
2. Attach short hose and
“Y” connector
A
If space permits, attach the female end of the “Y” connector to the cold water faucet. See gure A.
If “Y” connector cannot be attached directly to the cold water faucet, the short hose must be used. See gure B. Attach short hose to cold water faucet. Screw on coupling by hand until it is seated on faucet. Then attach “Y” connector to male end of the short hose. Screw on coupling by hand until it is seated on connector.
B
12
Loading...
+ 28 hidden pages
