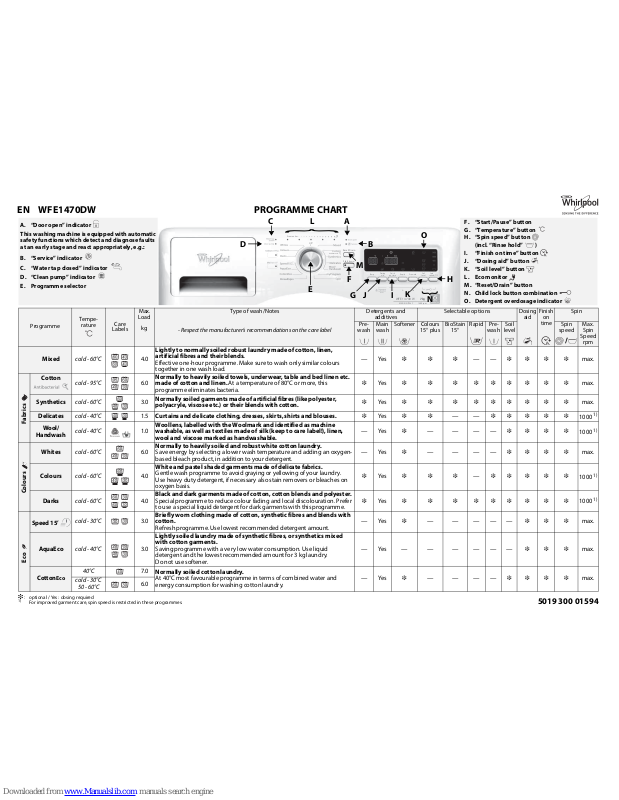

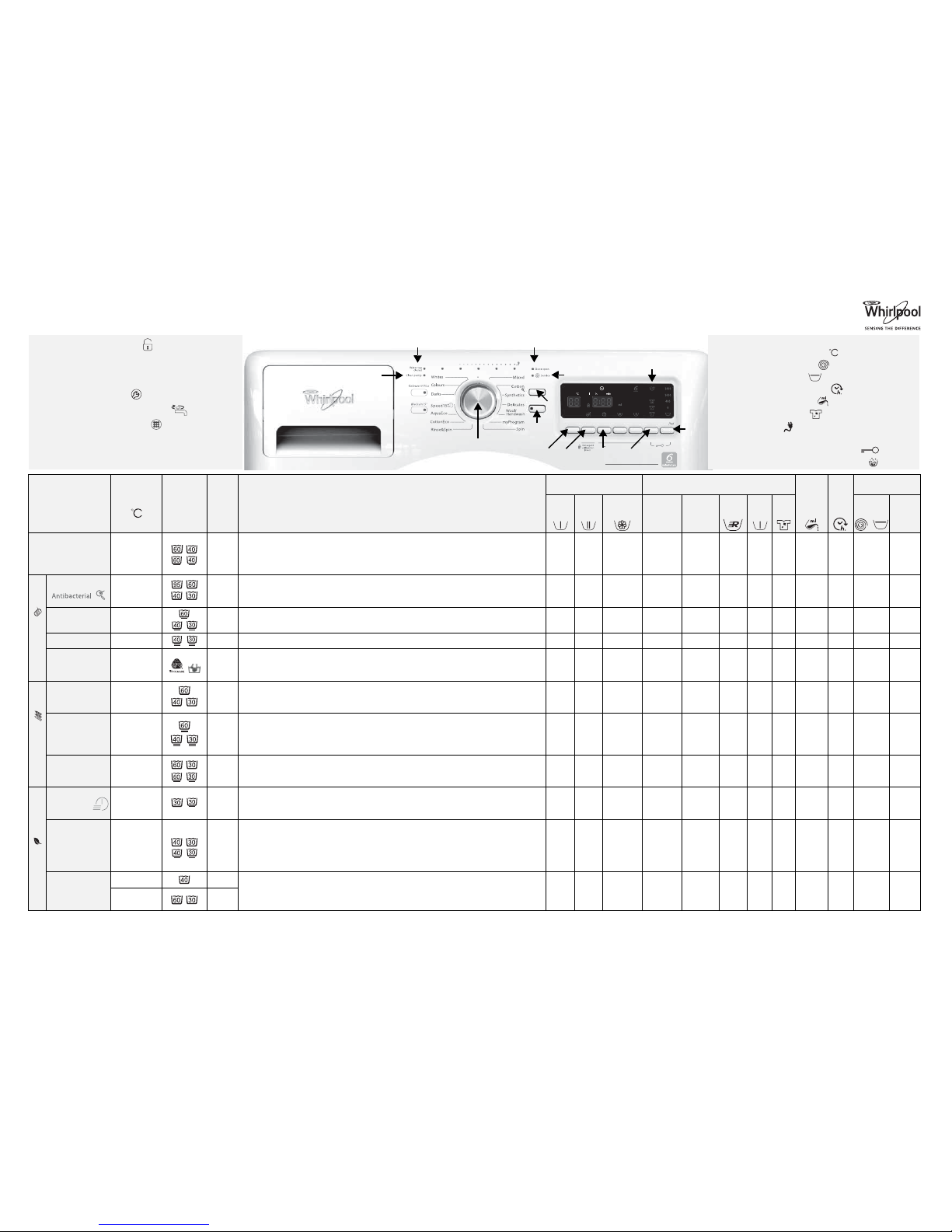

EN WFE1470DW PROGRAMME CHART

❉: optional / Yes : dosing required

For improved garment care, spin speed is restricted in these programmes.

5019 300 01594

Programme

Tem pe -

rature

Care

Labels

Max. Load

Type of was h/Not es

- Respect the manufacturer’s recommendations on the care label

Detergents and

additives

Selectable options Dosing

aid

Finish

time

Spin

Pre-

wash

Main wash

Softener Colours

15° plus

BioStain

15°

Rapid Pre-

wash

Soil

level

Spin

speed

Max. Spin

Speed

rpm

Mixed

cold - 60°C

4.0

Lightly to normally soiled robust laundry made of cotton, linen, artificial fibres and their blends.

Effective one-hour programme. Make sure to wash only similar colours together in one wash load.

—Yes

❉❉❉

——

❉❉ ❉ ❉

max.

Cotton

cold - 95°C

6.0

Normally to heavily soiled towels, underwear, table and bed linen etc. made of cotton and linen.

At a temperature of 80°C or more, this

programme eliminates bacteria.

❉

Yes

❉❉❉❉❉❉❉❉❉

max.

Synthetics

cold - 60°C

3.0

Normally soiled garments made of artificial fibres (like polyester, polyacryle, viscose etc.) or their blends with cotton.

❉

Yes

❉❉❉❉❉❉❉❉❉

max.

Delicates

cold - 40°C

1.5

Curtains and delicate clothing, dresses, skirts, shirts and blouses.

❉

Yes

❉❉

——

❉❉ ❉ ❉ ❉

1000

Wool/

Handwash

cold - 40°C

1.0

Woollens, labelled with the Woolmark and identified as machine washable, as well as textiles made of silk (keep to care label!), li nen, wool and viscose marked as handwashable.

—Yes

❉

————

❉❉ ❉ ❉

1000

Whites

cold - 60°C

6.0

Normally to heavily soiled and robust white cotton laundry.

Save energy by selecting a lower wash temperature and adding an oxygenbased bleach product, in addition to your detergent.

—Yes

❉

————

❉❉ ❉ ❉

max.

Colour s

cold - 60°C

4.0

White and pastel shaded garments made of delicate f abrics.

Gentle wash programme to avoid graying or yellowing of your laundry. Use heavy duty detergent, if necessary also stain removers or bleaches on oxygen basis .

❉

Yes

❉❉❉—❉❉ ❉ ❉ ❉

1000

Darks

cold - 60°C

4.0

Black and dark garments made of cotton, cotton blends and polyester.

Special programme to reduce colour fading and local discolouration. Prefer to use a special liquid detergent for dark garments with this programme.

❉

Yes

❉❉❉❉❉❉❉❉❉

1000

Speed 15’

cold - 30°C

3.0

Briefly worn clothing made of cotton, synthetic fibres and blends with cotton.

Refresh programme. Use lowest recommended detergent amount.

—Yes

❉

—————

❉❉ ❉

max.

AquaEco

cold - 40°C

3.0

Lightly soiled laundry made of synthetic fibres, or synthetics mixed with cotton garments.

Saving programme with a ver y low water consumption. Use liquid detergent and the lowest recommended amount for 3 kg laundry. Do not use softener.

—Yes — — — ———

❉❉ ❉

max.

Cotton

Eco

40°C

7.0

Normally soiled cotton laundry.

At 40°C most favour able programme in terms of combined wa ter and energy consumption for washing cotton laundry.

—Yes

❉

————

❉❉ ❉ ❉

max.

cold - 30°C

50 - 60°C

6.0

Finish on time

+ Ok

Dosing

aid

Temp. Rapid Prewash

Soil level

Spin

speed

Ecomonitor

Antibacterial

O

Start (Pause)

Reset/Drain

WFE1470DW 7kg

1400rpmMADE IN ITALY

A. “Door open” indicator

This washing machine is equipped with automatic safety functions which detect and diagnose faults at an early stage and react appropriately, e.g.:

B. “Service” indicator

C. “Water tap closed” indicator

D. “Clean pump” indicator E. Programme selector

F. “Start/Pause” button G. “Temperature” button H. “Spin speed” button

(incl. “Rinse hold” ) I. “Finish on time” button J. “Dosing aid” button K. “Soil level” button L. Eco monitor M. “Reset/Drain” button N. Child lock button combination O. Detergent overdosage indicator

}

Fabr ics Colours

Eco

Page 2

EN WFE1470DW PROGRAMME CHART

❉: optional / Yes : dosing required

For improved garment care, spin speed is restricted in these programmes.

5019 300 01594

Programme

Tem pe -

rature

Care

Labels

Max. Load

Type of wash/Notes

- Respect the manufacturer’s recommendations on the care label

Detergents and

additives

Selectable options Dosing

aid

Finish

time

Spin

Pre-

wash

Main wash

Softener Colour s

15° plus

BioStain

15°

Rapid Pre-

wash

Soil

level

Spin

speed

Max. Spin

Speed

rpm

P01– BIG ITEMS

cold -

60°C

3.0

Blankets made of synthetic fibers; bedcovers filled with feathers, polyester or other artificial fibers; sleeping bags, bathmats and similar items.

❉

Yes

❉❉❉—❉❉ ❉ ❉ ❉

1000

P02 – BABY

cold -

60°C

4.0

Normally soiled baby clothes made of cotton and/or linen.

The suds are rinsed out even more thoroughly, which helps to protect sensitive baby skin.

❉

Yes

❉❉❉❉❉❉❉❉❉

1000

P03 – BED LINEN

cold -

95°C

3.5

White or coloured bed linen made of cotton and synthetic fibers, or blends of both.

Reduces microbes and gently cleans, also delicate bed linen. A thorough rinse phase helps to prevent detergent and pollen residues. Prefer powder detergent for this programme.

❉

Yes

❉❉❉—❉❉ ❉ ❉ ❉

max

P04 – JEANS

cold -

60°C

4.0

Normally soiled cotton jeans-wear and garments made of robust jeans-like material, such as trousers and jackets.

For dark jeans-wear, use of special detergent for dark laundry recommended.

❉

Yes

❉❉❉❉❉❉❉❉❉

1000

P05 – BUSINESS

cold -

40°C

1.5

Shirts and blouses made of cotton, linen, synthetic fibers or their blends.

Gentle programme for fine garments which have been used or which are only lightly soiled. Pre-treatment of stains recommended. Reduce ironing by selecting “rinse hold”, terminating the programme without spinning and putting the shirts/blouses on hangers dripping wet to let them dry.

❉

Yes

❉❉

——

❉❉ ❉ ❉ ❉

1000

P06 – SPORT

cold -

30°C

3.0

Normally soiled and sweaty sportswear made of cotton jersey or microfibers.

Programme includes a prewash cycle - add detergent also to the prewash chamber. Do not use softener.

❉

Yes —

❉❉❉❉❉❉❉❉

max

P07 – CASHMERE

cold -

40°C

1.0

High quality cashmere garments identified as machine washable or hand washable.

Low spin speed recommended (400 rpm). Respect the instructions on the care label.

—Yes

❉

————

❉❉ ❉ ❉

400

P08 – MINI LOAD

cold -

40°C

1.0

Cotton and/or synthetic laundry made of stable fabric types.

Ideal programme to wash a small load of laundry in an economic way. Pre-treatment of stains recommended. Not appropriate for very delicate laundry.

—Yes

❉

————

❉❉ ❉ ❉

max

Rinse & Spin — — 7.0

Separate rinse and intensive spin programme.

Suitable for robust laundry.

——

❉

——————

❉❉

max.

Spin — — 7.0

Separate intensive spin programme.

Suitable for robust laundry.

—— — — — — —— —

❉❉

/ — max.

myProgr am

Page 3

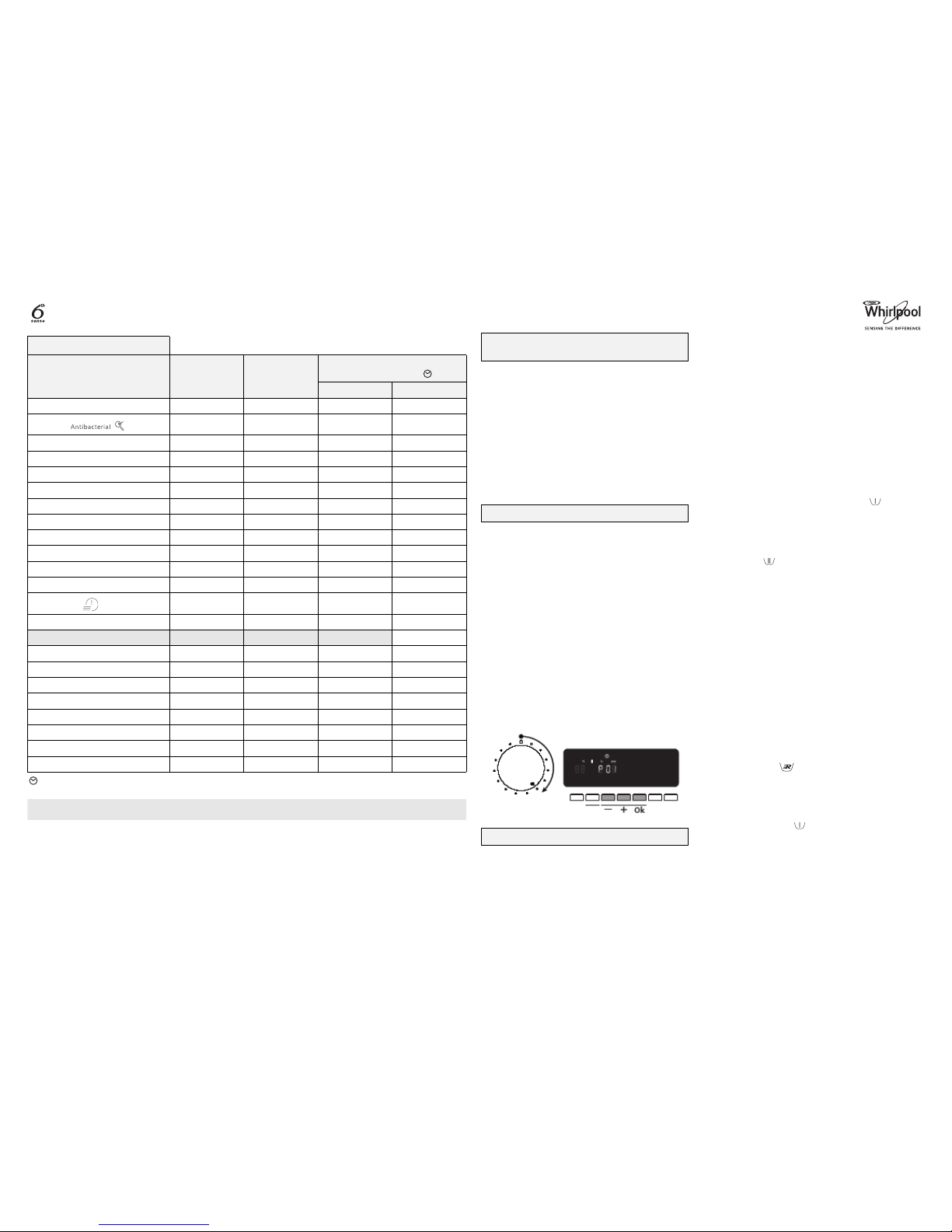

- the sensor technology adapts drum movement, water, energy and programme duration to your wash load

5019 300 01594

CONSUMPTION DATA

Programme

Temperature

(°C)

Load

(kg)

Approx. Programme Duration

(hours : minutes)

without “Rapid” with “R apid”

Mixed 40 4.0 1:00 —

Cotton

95 6.0 2:40 —

Cotton 60 6.0 2:20 1:45

Cotton 40 6.0 2:05 1:15

Synthetics 60 3.0 1:37 1:12

Synthetics 40 3.0 1:20 0:55

Delicates 40 1.5 0:50 —

Delicates 30 1.5 0:46 —

Wool/Handwash 40 1.0 0:40 —

Whites 40 6.0 2:20 —

Colours 40 4.0 1:20 —

Darks 40 4.0 1:40 1:15

Speed 15’

30 3.0 0:15 —

AquaEco 40 3.0 1:00 —

CottonEco* 40 7.0 4:30 —

P01 – Big items 40 3.0 1:30 —

P02 – Baby 60 4.0 1:30 1:10

P03 – Bed linen 60 3.5 2:00 —

P04 – Jeans 40 4.0 1:30 1:10

P05 – Business 40 1.5 0:50 —

P06 – Sport 30 3.0 1:35 1:11

P07 – Cashmere 30 1.0 0:36 —

P08 – Mini load 30 1.0 0:45 —

The programme duration may differ from the values indicated above as it depends on the operation conditions applicable at that time (see also “Troubleshooting Guide” in your Instructions for Use).

* Reference programme for Energy and Water Labelling, according to the Australian Standards

AS/NZS 2040.1 and AS/NZS 2040.2.

Load the laundry, close the door and turn the programme selector to the desired programme the “Start/Pause” indicator blinks. The temperature and spin speed shown on the display can be altered by pressing the “Temperature” or “Spin speed” button. If you do not use the Dosing Aid, add detergent now. The washing machine is designed to save energy; therefore, if you have selected a programme but do not start it within about a quarter of an hour, it will switch off automatically. To s witc h it o n aga in, t urn t he pr ogra mme s elec tor to “Off” and then to the desired programme again.

This feature offers the possibility to select and save, out of a list of 8 special programmes, the one that most meets your needs. When you select the “myProgram” position, a code ranging from “P01” to “P08” will appear on the display (see programme table to understand which programme corresponds to the displayed code). Use the “+” and “-” buttons to select the available programmes, and button “Ok” to confirm your choice. If you do not confirm it within a few seconds, the selected programme is automatically confirmed, and its default settings appear on the display. You can now select options or modify temperature/ spin speed, as you do it for any other programme, according to the possibilities indicated in the programme table. Once a programme of the “myProgram” list has been confirmed, it will be remembered next time you select “myProgram” on the selector.

If the combination programme/option or option/ option is not possible, the indicator switches off automatically. For certain programmes, an option may already be preset; if you want you can deselect it.

“Colours 15° plus” button

• Helps to maintain the colours of dark and coloured laundry by pre-treatment with fabric softener, before the main wash cycle.

• Your laundry will be washed with cold water; thus you save most of the energy used for water heating.

• Appropriate for lightly soiled dark and coloured laundry without stains, made o f cotton/linen, synthetics or blends of both. Recommendable for new garments of that type which usually fade most during the first washes. - Make sure that the fabrics are suitable to be treated with softener.

• Use detergent for coloured or dark laundry which is appropriate also for cold wash temperatures (15 or 20°C).

• Add the recommended amount of liquid fabric softener to the PREWASH chamber of the detergent dispenser; respect the dosing recommendations on the softener bottle.

• If you intend to use liquid detergent for the main wash, add the additional insert delivered with your washing machine to the MAIN WASH chamber of the detergent dispenser. Observe the indications in your Instructions for Use / Where to put Detergents and Additives. IMPORTANT: Do not add the insert to the main wash chamber when using powder detergent for the main wash.

• This option will prolong the programme by about half an hour.

• Not Selectable for Cotton 70 - 95°C.

“BioStain 15°” button

• Supports the removal of stains.

• The programme you selected will begin wi th a cold water wash phase; this will prolong the programme duration by about 10 minutes.

• Appropriate for all kinds of stains, except grease/ oil.

• Pre-treat ment recommended for obstinate stains.

• Not selectable for Cotton 70 - 95°C.

“Rapid” button

• Enables quicker washing by shortening the programme duration.

• Recommendable for only lightly soiled laundry.

• Not selectable for Cotton 70 - 95 °C.

“Prewash” button

• Adds a prewash cycle to the wash programme selected; prolongs the programme by about a quarter of an hour.

• Recommended for heavily soiled laundry (e.g. containing sand or granular dirt).

• Do not use liquid detergent for the main wash when activating the “Prewash” option.

LOAD LAUNDRY AND SELECT PROGRAMME

myProgr am

SELECT OPTIONS IF DESIRED

Page 4

- the sensor technology adapts drum movement, water, energy and programme duration to your wash load

5019 300 01594

Soil level” button

• Adapts the programme duration to the soil level of your laundry. Also influences the detergent quantity recommendation when using the “Dosing Aid” button.

= lightly soiled - = normally soiled -

= heavily soiled

Not all soil levels are selectable for each programme.

“Spin speed” button (incl. “Rinse Hold” )

• Select a spin speed differing from the preset one.

• Press the button to set another spin speed.

• If you select spin speed “0”, the final spinning is cancelled and the water is drained out only. However, intermediate spin phases remain during the rinse.

• If you select “Rinse hold” , the laundry remains in the last rinse water without progressing to the final spin cycle, to avoid cre asing and prevent colours from changing. To activate the “Rinse hold”, press the “Spin speed” button repeatedly until the “Rinse hold” symbol on the display lights up.

- The wash programme stops to “Rinse hold”

when the “Rinse hold” symbol on the display blinks; the “Start/Pause” indicator blinks as well.

- To terminate the “Rinse hold” by spinning the

laundry, press “Start/Pause” - the laundry will be spun with the default spin speed. You can also select another spin speed with the “Spin speed” button before you start the spin cycle with “Start/Pause”.

- To terminate the “Rinse hold” by draining the

water without spinning, press the “Spin speed” button until spin speed “0” appears on the display; then press “Start/Pause” to start the draining.

- Do not leave the laundry to soak for too long

in the “Rinse hold” (especially silk!).

Wit h th is fun cti on y ou c an p ost pon e yo ur p rog ram me to complete at a later time: press the button to select in how many hours the programme shall be finished. Thus, it allows you to have your laundry ready at a particular time and to profit from more favourable energy rates during the night, for example.

• Do not use liquid detergent when activating this function.

• The time until the cycle end can be selected in full hour time segments (1 to 24 h). When you press the button, the shortest possible time will be displayed; keep on pressing the button to loop through all the available times. To remove it again, keep on pressing the button until you see the value “0:00”.

• When you have selected the desired time until the cycle end, press “Start/Pause” - the countdown will begin.

• During the countdown, you can still modify the programme setting (select or deselect options, change spin speed etc.). If the modifications prolong the programme duration so that it overruns the originally set time until the cycle end, the programme will start immediately.

• Sometimes the programme may finish before the selected time until the cycle end has expired (e.g. for small loads). In this case, the washing machine will tumble the laundry regularly to keep it fresh, until the selected cycle end time has expired. During tumbling, the display will show an animation. The tumbling phase can be stopped at any time either by pressing any button or by rotating the programme selector; the animation will stop and the door wil l unlock in about 1 minute as indicated on the display.

With the “Dosing Aid” button, you can make your washing machine indicate you the recommended detergent quantity for your wash load, depending on the soil level selected and the size of the load.

• Helps to save detergent and protect the environment and also sensitive skin by avoiding detergent overdosing.

• Before you use this function, you must adapt the washing machine to the dosing amounts which are recommended for the detergents you use. Also check if your region’s water hardness corresponds with the water hardness level “soft” of your washing machine - if not adapt it.

• Select programme, options and cycle end BEFORE using the “Dosing Aid” button.

For any details, refer to the separate “Dosing Aid” Instructions for Use.

Before starting and after end of a programme, the indicator lights to show that the door can be opened. As long as a wash programme is running, the door remains locked and must on no account be forced open. In case you have an urgent need to open it during a running programme, refer to “Reset a running programme before the end”.

The “Eco monitor” gives you a rough feedback about the power consumption of the programme setting you selected.

SET CYCLE END "FINISH ON TIME"

DETERGENT DOSING RECOMMENDATION

“DOOR OPEN” INDICATOR

ECO MONITOR

As soon as you turn the programme selector to any programme, the “Eco monitor” is on.

The indicator on the left is to show that the “Eco monitor” is active. The four indicators next to it show the degree of consumption: the less power your programme setting is forecasted to consume, the l ess indicators will light up. This depends on the programme, temperature and options selected, and also on the size of the wash load. For that reason, the forecasted degree of power consumption may adapt when the washing machine detects the wash load.

When you select a programme, the drum light will slowly go on to assure a good visibility during laundry loading.

• After starting your programme with “Star t/ Pause”, the drum light will fade on and off while the washing machine detects the laundry load. Subsequently, it will go off.

• When the programme is finished, the light goes on again for a short time; afterwa rds it will go off automatically to save energy. If you want to switch it on again for unloading your laundry, just press any option button or turn the programme selector (but not to “Off”).

The drum light will blink fast when a failure is detected.

Open the tap and press the “Start/Pause” button. The “Start/Pause” indicator lights up. When the laundry load is detected or the programme duration is adapted, the display shows an animation.

Prevents children from starting a wash cycle or changing the settings of a running programme. Cannot be activated or deactivated when the programme selector is in the “Off” position. To activate the child lock:

• Turn the programme selector to a programme position, or run a programme as usual.

• Press the 2 buttons marked with the key symbol

simultaneously for at least 3 seconds. A key-like symbol will shortly appear on the display to indicate that the child lock is active.

Any time you try to change a programme setting with active child lock, the display will briefly show the key-like symbol. The programme setting cannot be changed anymore. The only change possible is to switch the washer off by turning the programme selector to the “Off” position. To deactivate the child lock, proceed in the same way as for activating it.

If one of the failure indicators lights up, or in case of any malfunction, consult the “Troubleshooting Guide” in your Instructions for Use. Spin speed on display blinks: Unbalance during spinning.

• The “Door open” indicator lights up. The display shows “End”. After about a quarter of an hour, the washing machine will switch off completely to save energy.

1. Turn the programme selector to the “Off” position.

2. Close the water tap.

3. Open the door and unload the machine.

4. Leave the door ajar to allow the drum to dry.

The symbol will light up at the end of the programme if you used too much detergent. Use less detergent next time.

1. Press the “Start/Pause” button to pause the programme. The indicator blinks.

2. Select the new programme, temperature, any options and another spin speed if you want.

3. Press the “Start/Pa use” button again. The new programme continues at the same position where the previous programme was interrupted. Do not add detergent for this programme.

The “Reset/Drain” button cancels a running programme.

•Press and hold the “Reset/Drain” button for a few seconds; an animation appears on the display. The water is drained out; it may last some time until you can open the door.

DRUM LIGHT

PROGRAMME START

CHILD LOCK

less more

FAILURE INDICATORS

PROGRAMME END

DETERGENT OVERDOSAGE INDICATOR

CHANGE PROGRAMME AND/OR OPTIONS AFTER PROGRAMME START

RESET A RUNNING PROGRAMME

Whirlpool is a registered trademark of Whirlpool USA
