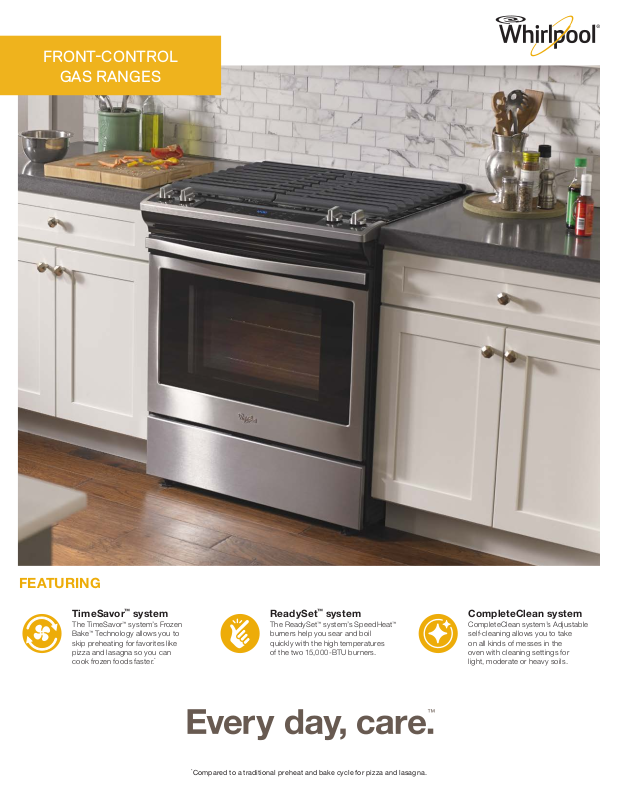

Whirlpool WEG515S0FS INSTALLATION

FRONT-CONTROL

GAS RANGES

FEAT URING

TimeSavor™ system

The TimeSavor™ system’s Frozen Bake™ Technology allows you to skip preheating for favorites like pizza and lasagna so you can cook frozen foods faster.

ReadySet™ system

The ReadySet™ system’s SpeedHeat™ burners help you sear and boil quickly with the high temperatures

Compared to a traditional preheat and bake cycle for pizza and lasagna.

of the two 15,000-BTU burners.

CompleteClean system

CompleteClean system’s Adjustable self-cleaning allows you to take on all kinds of messes in the oven with cleaning settings for light, moderate or heavy soils.

Front-Control Gas Ranges

PRODUCT DIMENSIONS

This manual covers several models. Your model may appear different from the models depicted. Dimensions given are maximum dimensions across all models.

CABINET OPENING DIMENSIONS

Cabinet opening dimensions shown are for 25" (64.0 cm) countertop depth, 24" (61.0 cm) base cabinet depth and 36" (91.4 cm) countertop height.

IMPORTANT: If installing a range hood or microwave hood combination above the range, follow the range hood or microwave hood combination installation instructions for dimensional clearances above the cooktop surface.

Range may be installed next to combustible walls with zero clearance.

Available Colors

White

Black

Stainless Steel

WEG515S0 F

5.0 cu. ft.

TimeSavor™ system

• Frozen Bake™ technology

ReadySet™ system

• SpeedHeat™ burners

CompleteClean system

• Adjustable self-cleaning

HelpingHand™ system

• Edge-to-edge cast-iron grates

NEW

Product Dimensions Cabinet Dimensions

A. 13/16" (3.0 cm) height from

cooktop to top of vent

B. 29

/8" (75.9 cm)

C. Model/serial number plate

(located behind the oven door on the top right-hand side of the oven frame)

D. 36" (91.4 cm) height to

top of cooktop edge with leveling legs screwed all the way in*

IMPORTANT: Range must be level after installation. Follow the instructions in the “Level Range” section. Using the cooktop as a reference for leveling the range is not recommended.

* Range can be raised approximately 1" (2.5 cm) by adjusting the

leveling legs.

E. 28

/64" (72.1 cm) max. depth from front of console to back of range.

F. 29

/64" (73.7 cm) max. depth from handle to back of range.

A. 18" (45.7 cm) upper side cabinet to countertop B. 13" (33 cm) max. upper cabinet depth C. 30" (76.2 cm) min. opening width D. For minimum clearance to top of cooktop, see NOTE*. E. 30" (76.2 cm) min. opening width F. 3" (7.6 cm) min. clearance from both sides of range to side

wall or other combustible material.

G. The shaded area is recommended for installation of rigid

gas pipe and grounded outlet.

H. 13

/8" (33.3 cm)

I. 7

/16" (19.5 cm)

J. 4

/16" (12.2 cm)

K. 31

/16" (9.4 cm) or measurement of N, whichever is greater L. 12" (30.5 cm) M. Cabinet door or hinges should not extend into the cutout. N. Remaining counter depth should not exceed 2

NOTE: 24" (61.0 cm) minimum when bottom of wood or metal cabinet is shielded by not less than with not less than No. 28 MSG sheet steel, 0.015" (0.4 mm) stainless steel, 0.024" (0.6 mm) aluminum or 0.020" (0.5 mm) copper.

30" (76.2 cm) minimum clearance between the top of the cooking platform and the bottom of an uncovered wood or metal cabinet.

/4" (0.64 cm) ﬂame retardant millboard covered

/4" (5.7 cm)

HeatRight™ system

• Temperature sensor

• AccuSimmer® burner

ADDITIONAL FEATURES

• Keep Warm

• Closed door broiling

• Delay Cook

• Sabbath mode

• Star-K certified

• ADA compliant

Dimensions are for planning purposes only. For complete details, see Installation Instructions packed with product. Specifications subject to change without notice.
