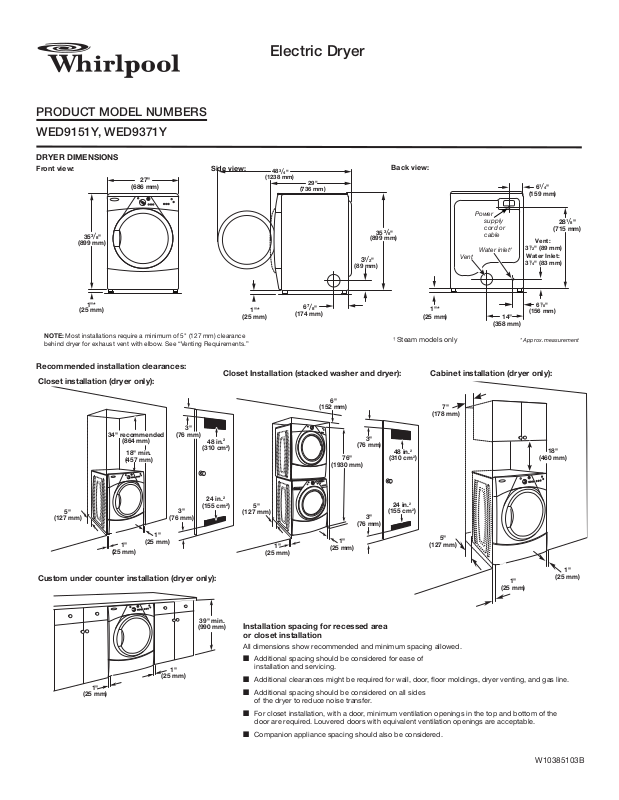

Page 1
PRODUCT MODEL NUMBERS
WED9151Y, WED9371Y
Electric Dryer
DRYER DIMENSIONS
3"
Side view:
Closet Installation (stacked washer and dryer):
2
48 in.
(310 cm2)
Front view:
27"
(686 mm)
3
35
/8"
(899 mm)
1"*
(25 mm)
NOTE: Most installations require a minimum of 5" (127 mm) clearance
behind dryer for exhaust vent with elbow. See “Venting Requirements.”
Recommended installation clearances:
Closet installation (dryer only):
34" recommended
(864 mm)
18" min.
(457 mm)
(76 mm)
1"*
(25 mm)
3
48
/4"
(1238 mm)
29"
(736 mm)
7
6
/8"
(174 mm)
6"
(152 mm)
(1930 mm)
76"
1
3
/2"
(89 mm)
3"
(76 mm)
Back view:
3
35
/8"
(899 mm)
†
Steam models only
48 in.
(310 cm2)
Power
supply
cord or
cable
Water inlet
Vent
1"*
(25 mm)
14"
(358 mm)
Cabinet installation (dryer only):
7"
(178 mm)
2
1
6
/4"
(159 mm)
Vent:
1
†
/2" (89 mm)
3
Water Inlet:
1
(83 mm)
/4"
3
61/8"
(156 mm)
* Approx. measurement
18"
(460 mm)
1
/8"
28
(715 mm)
24 in.
(155 cm2)
1"
3"
(76 mm)
5"
(127 mm)
1"
(25 mm)
(25 mm)
Custom under counter installation (dryer only):
39" min.
(990 mm)
1"
(25 mm)
1"
(25 mm)
2
5"
(127 mm)
1"
(25 mm)
1"
(25 mm)
3"
(76 mm)
24 in.
(155 cm2)
2
5"
(127 mm)
(25 mm)
Installation spacing for recessed area
or closet installation
All dimensions show recommended and minimum spacing allowed.
■ Additional spacing should be considered for ease of
installation and servicing.
■ Additional clearances might be required for wall, door, oor moldings, dryer venting, and gas line.
■ Additional spacing should be considered on all sides
of the dryer to reduce noise transfer.
■ For closet installation, with a door, minimum ventilation openings in the top and bottom of the
door are required. Louvered doors with equivalent ventilation openings are acceptable.
■ Companion appliance spacing should also be considered.
1"
1"
(25 mm)
W10385103B
Page 2
ELECTRICAL REQUIREMENTS
To supply the required 3 or 4 wire, single phase, 120/240 volt, 60 Hz., AC only electrical supply (or 3 or 4 wire, 120/208 volt electrical
supply, if specied on the serial/rating plate) on a separate 30-amp circuit, fused on both sides of the line. A time-delay fuse or circuit
breaker is recommended. Connect to an individual branch circuit.
VENTING REQUIREMENTS
Exhaust venting: Exhaust your dryer to the outside. 4" (102 mm)
diameter vent is required. Rigid or exible metal exhaust vent
must be used. Do not use plastic or metal foil vet. Exhaust hood
must be at least 12" (305 mm) from the ground or any object that
may be in the path of the exhaust.
The Vent System Chart provides venting requirements that will
help achieve best drying performance.
Whirlpool Vent System Chart
Exhaust hoods:
Recommended Styles:
Louvered Hood
Box Hood
Acceptable Style:
Angled Hood
Determine vent path:
■ Select route that will provide straightest and most direct
path outdoors.
■ Plan installation to use fewest number of elbows and turns.
■ When using elbows or making turns, allow as much room
as possible.
■ Bend vent gradually to avoid kinking.
■ Use as few 90° turns as possible.
Number of
90° elbows
0
1
2
3
4
NOTE: Bottom exhaust installations have a 90º turn inside the
dryer. To determine maximum exhaust length, add one 90º turn
to the chart.
Type
of vent
Rigid metal
Rigid metal
Rigid metal
Rigid metal
Rigid metal
Box/louvered
hoods
64 ft. (20 m)
54 ft. (16.5 m)
44 ft. (13.4 m)
35 ft. (10.7 m)
27 ft. (8.2 m)
Angled
hoods
58 ft. (17.7 m)
48 ft. (14.6 m)
38 ft. (11.6 m)
29 ft. (8.8 m)
21 ft. (6.4 m)
Determine vent length and elbows needed for best
drying performance:
■ Use following Vent System Chart to determine type of vent
material and hood combinations acceptable to use.
NOTE: Do not use vent runs longer than those specied
in Vent System Chart. Exhaust systems longer than those
specied will:
■ Shorten life of dryer.
■ Reduce performance, resulting in longer drying times
and increased energy usage.
Because Whirlpool Corporation policy includes a continuous commitment to improve Dimensions are for planning purposes only. For complete details, see Installation
our products, we reserve the right to change materials and specications without notice. Instructions packed with product. Specications subject to change without notice.
W10385103B
11/2011
