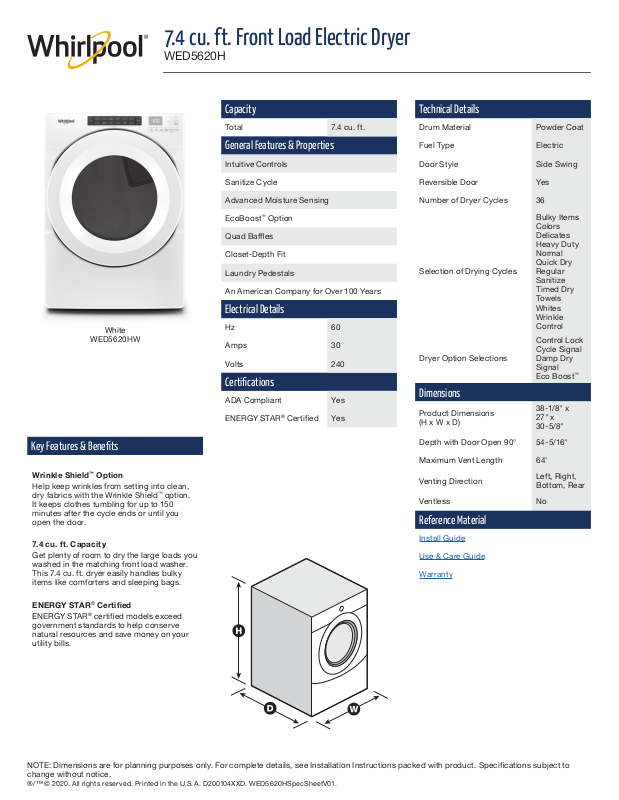

Whirlpool WED5620HW Specifications

7.4 cu. ft. Front Load Electric Dryer

WED5620H

White

WED5620HW

Key Features & Benets

Wrinkle Shield™ Option

Help keep wrinkles from setting into clean,
dry fabrics with the Wrinkle Shield
It keeps clothes tumbling for up to 150
minutes after the cycle ends or until you
open the door.

7.4 cu. ft. Capacity

Get plenty of room to dr y the large loads you
washed in the matching front load washer.
This 7.4 cu. ft. dryer easily handles bulky
items like comforters and sleeping bags.

™

option.

Capacity

Total 7.4 cu. ft.

General Features & Properties

Intuitive Controls

Sanitize Cycle

Advanced Moisture Sensing

EcoBoost™ Option

Quad Bafes

Closet-Depth Fit

Laundry Pedestals

An American Company for Over 100 Years

Electrical Details

Hz 60

Amps 30

Volts 240

Certications

ADA Compliant Yes

ENERGY STAR® Certied Yes

Technical Details

Drum Material Powder Coat

Fuel Type Electric

Door Style Side Swing

Reversible Door Yes

Number of Dryer Cycles 36

Bulky Items
Colors
Delicates
Heavy Duty
Normal

Selection of Drying Cycles

Dryer Option Selections

Quick Dr y
Regular
Sanitize
Timed Dry
Towels
Whites
Wrinkle
Control

Control Lock
Cycle Signal
Damp Dry
Signal
Eco Boost

™

Dimensions

Product Dimensions
(H x W x D)

Depth with Door Open 90° 54-5 /16"

Maximum Vent Length 64'

Venting Direction

Ventless No

38 -1/8 " x
27" x
30-5/8"

Left, Right,
Bottom, Rear

Reference Material

Install Guide

Use & Care Guide

Warranty

ENERGY STAR

ENERGY STAR
government standards to help conserve
natural resources and save money on your
utility bills.

NOTE: Dimensions are for planning purposes only. For complete details, see Installation Instructions packed with product. Specications subject to
change without notice.

®/™ © 2020. All rights reserved. Printed in the U.S.A. D200104XXD. WED5620HSpecSheetV01.

®

Certied

®

certied models exceed
