CABINET PARTS

For Model: WED5300SQ0, WED5300ST0

(White) (Biscuit)

29"ELECTRIC DRYER

5−06 Litho in U.S.A.(LT.)

1

Part No. 8181243

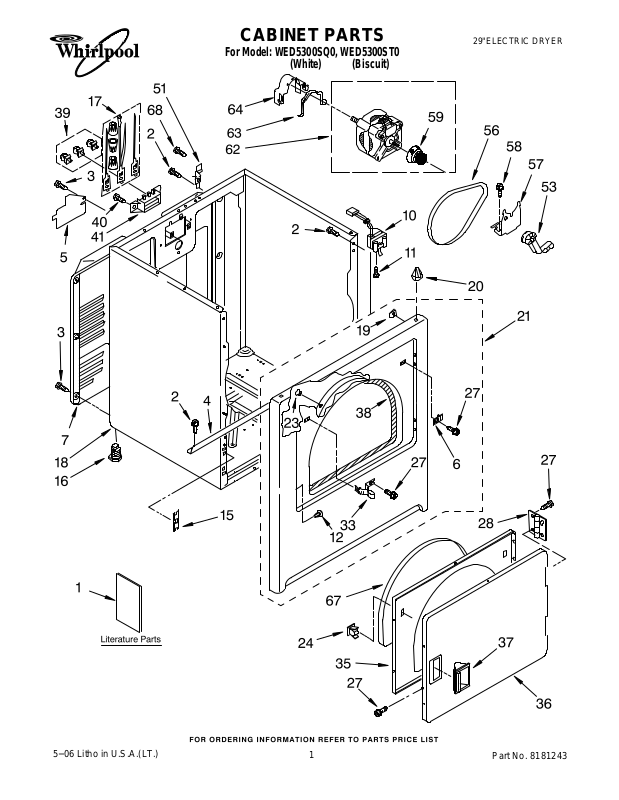

CABINET PARTS

For Model: WED5300SQ0, WED5300ST0

(White) (Biscuit)

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

8577188 Installation

Instructions

W10042960

8578183 Use & Care Guide
8528187 Wiring Diagram

Sheet,
Cycle Feature

Following May Be Purchased

DO−IT−YOURSELF
REPAIR MANUALS

677818 Dryer

2 343641 Screw, 10−16 x 1/2
3 693995 Screw, Hex

Washer Head
4 8541400 Bracket, Cabinet
5 3396795 Cover, Block
6 Plug,

Strike Hole
3403630 White
3403632 Biscuit

7 3396805 Panel, Rear

10 3406109 Door Switch

Assembly

11 697773 Screw, 6−20 x 7/8

Illus. Part

No. No. DESCRIPTION

12 Plug,

Hinge Hole
3404413 White
3404415 Biscuit

15 3394083 Clip, Front

Panel (2)

16 3392100 Foot, Dryer

279810 Foot − Optional

(Extended Length

Package Of 2)

(Not Included)

17 279318 Terminal, Tinned

& Brass (3)

(Includes

Illus. 39)

18 Cabinet

(Includes

Illus. 4)
8530603 White
8530606 Biscuit

19 98234 Clip, Ground
20 690363 Lock, Front Top (2)
21 Panel, Front

3403444 White
8282481 Biscuit

23 685203 Clip, Felt Pad (3)
24 3389441 Catch, Door

Assembly

27 342055 Screw, 8−18 x 1/2
28 3405514 Hinge, Door
33 3403431 Strike, Door

Illus. Part

No. No. DESCRIPTION

35 3402341 Door, Rear
36 Door, Front

3402335 White
3402337 Biscuit

37 Handle, Door

8566059 White
8566071 Biscuit

38 3406129 Seal & Bearing

Assembly

39 279393 Terminal Block

Kit (For

Terminal Block)
40 3393008 Screw, 10−16 x 1/2
41 3397659 Block, Terminal
51 8066217 Hinge, Top (2)
53 691366 Idler & Pulley

Assembly
56 8066065 Belt, Drive
57 348780 Base, Motor
58 3400500 Bolt,

5/16−18 x 3/4
59 8066184 Pulley, 60 Hz.
62 8066206 Motor Assembly

60 Hz.
63 660658 Clamp, Motor
64 3404162 Clamp, Motor

(W/Shield)
67 3405246 Seal, Door
68 697776 Screw, 10−32 x 5/8

(External Ground)

2

8181243
