Whirlpool WED4850XQ, WED4910XQ, WED4800XQ3 Dimension Guide
|
Electric Dryer |
|
PRODUCT MODEL NUMBERS |
|
WED4800X, WED4850X, |
|
WED4900X, WED4910X |
Installation clearances: |
Minimum spacing for recessed area or closet installation |
The location must be large enough to allow the dryer door to |
|
open fully. |
|

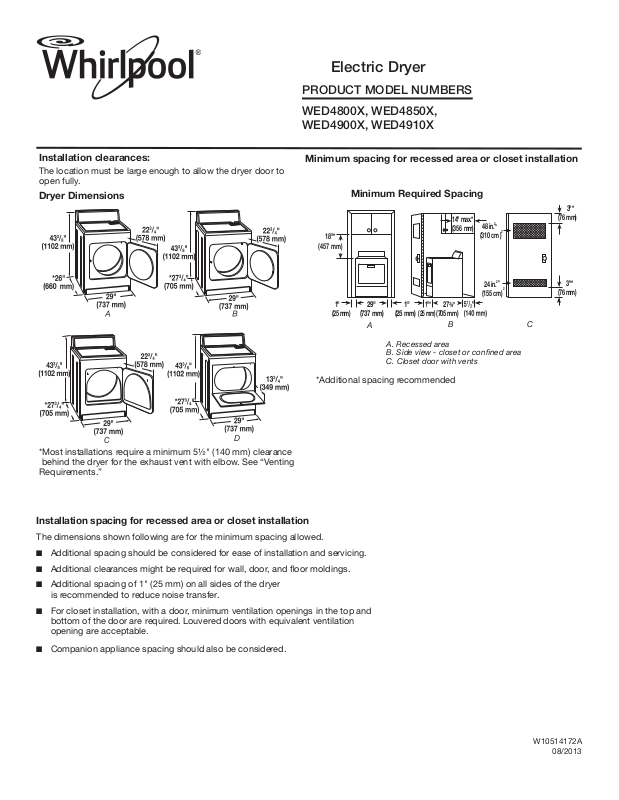

Dryer Dimensions |
Minimum Required Spacing |
|
|
|
|
|
|
3"* |
|
|
|
|
14"max.* |
48 in.2* |
(76 mm) |
|
|
|
|
(356 mm) |
|
|
18"* |
|
|
|
(310 cm )2 |
|
|
(457 mm) |
|
|
|
|
|
|
|
|
|
|
|
24 in.2 * |
3"* |
|
|
|
|
|
(155 cm )2 |
(76 mm) |
1" |
29" |
1" |
1"* |
27¾" |
|
|
(25 mm) |
(737 mm) |
(25 mm) (25mm) (705 mm) |
|
|
||
A B C
A. Recessed area
B. Side view - closet or confined area
C. Closet door with vents
*Additional spacing recommended
*Most installations require a minimum 5½" (140 mm) clearance behind the dryer for the exhaust vent with elbow. See “Venting Requirements.”
Installation spacing for recessed area or closet installation
The dimensions shown following are for the minimum spacing allowed.
■■ Additional spacing should be considered for ease of installation and servicing. ■■ Additional clearances might be required for wall, door, and floor moldings.
■■ Additional spacing of 1" (25 mm) on all sides of the dryer is recommended to reduce noise transfer.
■■ For closet installation, with a door, minimum ventilation openings in the top and bottom of the door are required. Louvered doors with equivalent ventilation opening are acceptable.
■■ Companion appliance spacing should also be considered.
W10514172A
08/2013
ELECTRICAL REQUIREMENTS
To supply the required 3 or 4 wire, single phase, 120/240 volt, 60 Hz., AC only electrical supply (or 3 or 4 wire, 120/208 volt electrical supply, if specified on the serial/rating plate) on a separate 30-amp circuit, fused on both sides of the line. A time-delay fuse or circuit breaker is recommended. Connect to an individual branch circuit.
VENTING REQUIREMENTS
Exhaust venting: Exhaust your dryer to the outside. 4" (102 mm) diameter vent is required. Rigid or flexible metal exhaust vent must be used. Do not use plastic or metal foil vet. Exhaust hood must be at least 12" (305 mm) from the ground or any object that may be in the path of the exhaust.
Exhaust hoods:
Recommended Styles:
|
|
|
Louvered Hood |
|
Box Hood |
Acceptable Style:
The Vent System Chart provides venting requirements that will help achieve best drying performance.
Vent System Chart
Number of |
Type |
Box/louvered |
Angled |
90° turns |
of vent |
hoods |
hoods |
or elbows |
|
|
|
0 |
Rigid metal |
64 ft. (20 m) |
58 ft. (17.7 m) |
|
|
|
|
1 |
Rigid metal |
54 ft. (16.5 m) |
48 ft. (14.6 m) |
|
|
|
|
2 |
Rigid metal |
44 ft. (13.4 m) |
38 ft. (11.6 m) |
|
|
|
|
3 |
Rigid metal |
35 ft. (10.7 m) |
29 ft. (8.8 m) |
|
|
|
|
4 |
Rigid metal |
27 ft. (8.2 m) |
21 ft. (6.4 m) |
|
|
|
|
Angled Hood
Determine vent path:
■■ Select route that will provide straightest and most direct path outdoors.
■■ Plan installation to use fewest number of elbows and turns.
■■ When using elbows or making turns, allow as much room as possible.
■■ Bend vent gradually to avoid kinking. ■■ Use as few 90° turns as possible.
Determine vent length and elbows needed for best drying performance:
■■ Use following Vent System Chart to determine type of vent material and hood combinations acceptable to use.
NOTE: Do not use vent runs longer than those specified in Vent System Chart. Exhaust systems longer than those specified will:
■■ Shorten life of dryer.
■■ Reduce performance, resulting in longer drying times and increased energy usage.
Vent System Chart
(Long Vent Models Only)
Number of |
Type |
Box/louvered, or |
90° turns |
of vent |
Angled hoods |
or elbows |
|
|
|
|
|
0 |
Rigid metal |
120 ft. (36.6 m) |
|
|
|
1 |
Rigid metal |
110 ft. (33.5 m) |
|
|
|
2 |
Rigid metal |
100 ft. (30.5 m) |
|
|
|
3 |
Rigid metal |
90 ft. (27.4 m) |
|
|
|
4 |
Rigid metal |
80 ft. (24.4 m) |
|
|
|
5 |
Rigid metal |
70 ft. (21.3 m) |
|
|
|
NOTE: Bottom exhaust installations have a 90º turn inside the dryer. To determine maximum exhaust length, add one 90º turn to the chart.
Because Whirlpool Corporation policy includes a continuous commitment to improve our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation Instructions packed with product. Specifications subject to change without notice.
