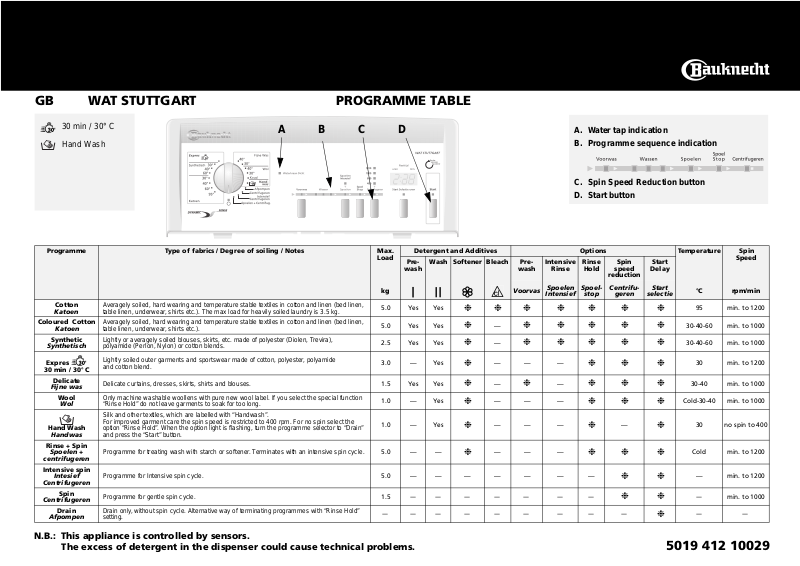

Whirlpool WAT STUTTGART/1 PROGRAM CHART

GB WAT STUTTGART PROGRAMME TABLE

30 min / 30° C

ABCD

Hand Wash

Programme Type of fabrics / Degree of soiling / Notes Max.

Cotton

Katoen

Coloured Cotton

Katoen

Synthetic

Synthetisch

Expres

30 min / 30° C

Delicate

Fijne was

Wool

Wol

Hand Wash

Handwas

Rinse + Spin

Spoelen +

centrifugeren

Intensive spin

Intesief

Centrifugeren

Spin

Centrifugeren

Drain

Afpompen

Averagely soiled, hard wearing and temperature stable te xtiles in cotton and linen (bed linen, table linen, underwear, shirts etc.). The max load for heavily soiled laundry is 3.5 kg.

Averagely soiled, hard wearing and temperature stable te xtiles in cotton and linen (bed linen, table linen, underwear, shirts etc.).

Lightly or averagely soiled blouses, skirts, etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or cotton blends.

Lightly soiled outer garments and sportswear made of cotton, polyester, polyamide and cotton blend.

Delicate curtains, dresses, skirts, shirts and blouses. 1.5 Yes Yes Only machine washable woollens with pure new wool label. If you select the special function

“Rinse Hold” do not leave garments to soak for too long. Silk and other textiles, which are labelled with “Handwash”.

For improved garment care the spin speed is restricted to 400 rpm. For no spin select the option “Rinse Hold”. When the option light is flashing, turn the programme selector to “Drain” and press the “Start” button.

Programme for treating wash with starch or softener. Terminates with an intensive spin cycle. 5.0 — —

Programme for Intensive spin cycle. 5.0 — — — — — — —

Programme for gentle spin cycle. 1.5 Drain only , without spin cycle. Alternative wa y of terminating programmes with “Rinse Hold”

setting.

A. Water tap indication B. Programme sequence indication

C. Spin Speed Reduction button D. Start button

Load

5.0 Yes Yes

2.5 Yes Yes

3.0 — Yes

1.0 — Yes

Detergent and Additives Options Temperature°C Spin

Pre-

Wash Softener Bleach Pre-

wash

Voorvas

wash

Intensive

Rinse

Spoelen

Intensief

Rinse

Hold

Spoel-

stop

Spin

speed

reduction

Centrifu-

geren

❉❉❉ ❉❉ ❉ ❉ ❉ ❉

❉ ❉

❉

—

—— —

—

—— —

❉❉❉❉ ❉ ❉❉❉❉ ❉

❉

—

❉❉ ❉ ❉❉ ❉

❉❉ ❉

❉

—

❉❉ ❉

❉❉

—— — — — — —

——— — — — — — —

❉❉

Start

Delay

Start

selectie

❉

Speed

rpm/min

95 min. to 1200

30-40-60 min. to 1000

30 min. to 1200

30-40 min. to 1000

Cold-30-40 min. to 1000

30 no spin to 400

Cold min. to 1200

— min. to 1200

—

——

min. to 1000

N.B.: This appliance is controlled by sensors.

The excess of detergent in the dispenser could cause technical problems.

5019 412 10029

CONSUMPTION DATA

Temperature

Programme

Cotton 95

Coloured Cotton 60 5.0 48 0.95 120

Synthetic 60 2.0 54 0.7 89 Synthetic 40 2.0 50 0.5 74

Expres 30 3.0 35 0.4 30

Delicate 40 1.5 50 0.5 45

Wool 40 1.0 50 0.5 42

Handwash 30 1.0 35 0.4 25

Prewash cycle increases programme duration by 5 to 20 min. Consumption values were measured in normalized conditions in compliance with Standard IEC 60 456. Consumption data in the home may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash.

The remaining time indicator can similary deviate from the values in the table, because it takes into account

the household conditions applicable at that time. To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the

pump drains the water out.

Selector

(°C)

ADDING DETERGENT AND ADDITIVES

Add the detergent and the additives into the dispenser as follows:

• Programme with pre- and main wash

• Main wash programme without prewash

• Fabric softeners and conditioners

• Chlorine bleach

• Stain remover agents

• Anti-scale agents (water hardness 4)

Important:

• Be careful not to fill more than the level mark.

• For programmes without prewash from cold to 40° C it is recommended to use a liquid detergent to avoid whitish residues on the coloured laundry.

• With a Start delay, use a dose aid for liquid detergent, placed directly in the drum.

CLOSE THE DOOR AND SELECT THE PROGRAMME

1. Turn the desired programme with its predefined temperature. The remaining time display shows the duration of the choosen programme (in hours and minutes) and the pilot lamp of the “Start” button is flashing.

2. The programme sequence and the predefined spin speed indication corresponding to the selected programme lights up

programme selector knob

“MAX”

to the

Rated

Load

(kg)

5.0 49* 1.6 125

Water

(l)

Energy

(kWh)

Programme

Duration

PRESS ANY DESIRED OPTION BUTTON(S).

The pilot lamp lights up. An audible tone sounds if the combination of programme and additional options is not possible. Unsuitable combinations of options are deselected automatically

Prewash button

• Only for heavily soiled loads (for example sand, granular dirt) sensible. The cycle time increases from 5 to 20 min.

Intensive Rinse button

• For improved rinsing efficiency the rinse water level and the cycle time are increased.

• This option is particulary suitable for areas with very soft water washing baby linen and helps people with allergies.

Rinse Hold button

• The laundry remains in the last rinse water without progressing to the final spin cycle to avoid creasing and prevent colours from changing.

• This option is particularly recommended for the programme “Synthetic” or “Delicate”.

• This function is particularly useful if you want to postpone spinning to a later time or when you do not wish to spin the clothes.

Note

: The programme stops to “Rinse Hold” at

the time the “Rinse Hold” button light flashes

(min)

Terminate the Rinse Hold option:

• Press the “Rinse Hold” button again; the programme will terminate automatically with the final spin cycle for the present wash programme.

• If you do not wish to spin the clothes, turn the programme selector knob to the drain programme and start again.

Spin speed reduction button

• Every programme has an automatic predefined maximum spin speed.

• Press the button to set another spin speed.

• If no lamps are on, the final spinning is cancelled.

Start Delay button

The Start Delay allows to run the machine at the consumer’s convenience, for example at night when electricity is cheaper.

• Press the “Start Delay” button to select the delay time by 1 to 19 hours;

• Press the “Start” button. The “Start Delay” light flashes until the programme starts.

• The time delay indication disappears when the programme starts and it’s replaced by the remaining time.

• The number of hours preselected can later be reduced pressing again the “Start Delay” button.

To cancel the “Start Delay”.

• Turn the programme selector to the “ ” position.

• Reselect the desired programme and options and press the “Start” button..

PROGRAMME START

Open the tap and press the “Start” button. The pilot lamp of the “Start” button lights up. The indicator lamps show the sequence reached in the programme. After starting the programme, the sequence indication runs from left to right through Wash, Rinse, Spin. When the sequence of the programme is finished the corresponding lamps goes out.

DOOR LOCK

During the running programme the door can be opened for adding further laundry. The door locks automatically in all rinsing and

spinning cycles. If the programme is stopped or the electrical power supply is terminated, the door lock will open after approximately 1 minute.

PROGRAMME END

• The remaining time is on “0:00” and all the lights of the programme sequence indication are “Off”. A short audible tone sounds three times.

1. Turn the programme selector to the position

“”

2. Turn the water supply tap off.

3. Open the door and the drum flaps and

unload the machine..

SELECTING A NEW PROGRAMME, SPIN SPEED, OPTIONS AFTER PROGRAMME START

1. Press the “Start” button to pause the programme. The light flashes.

2. Select the new programme (with temperature), any options and another spin speed if you want it.

3. Press the “Start” button again. The programme continues at the same position of the programme sequence indication. Do not add detergent for this programme..

TO STOP, RESET A PROGRAMME BEFORE THE END

1. Press the “Start” button to pause the programme. The lights flashes.

2. Set the programme selector to “Drain”. The spin indications are off and the remaining time shows 2 minutes.

3. Press the “Start” button to start the drain programme..

AUTOMATIC SAFETY FUNCTIONS / FAULTS

This washing machine is equipped with automatic safety functions which detect and diagnose faults at an early stage and react appropriately. Often, however, the faults detected are small enough to be solved in a matter of minutes. Informations can be found in the Troubleshooting guide.

5019 412 10029
