Page 1

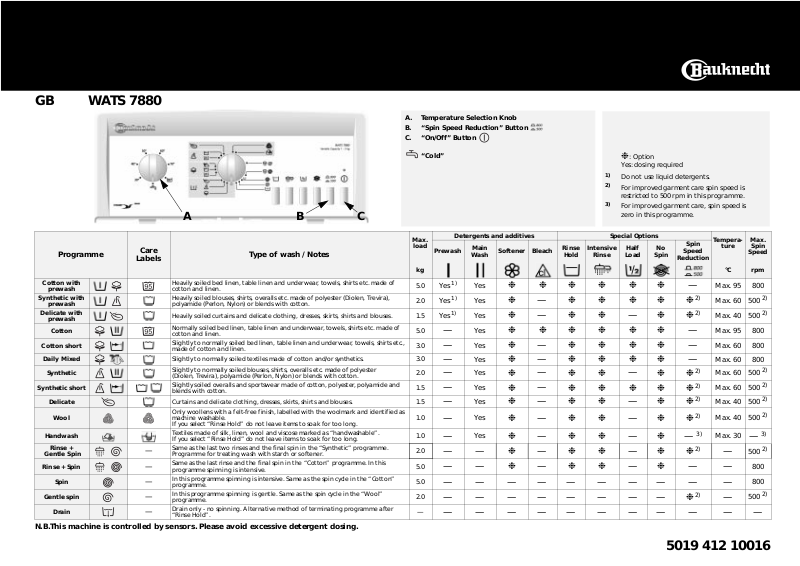

GB WATS 7880
A. Temperature Selection Knob
B. “Spin Speed Reduction” Button
C. “On/Off” Button
Programme
Cotton with
prewash
Synthetic with
prewash
Delicate with
prewash
Cotton
Cotton short
Daily Mixed
Synthetic
Synthetic short
Delicate
Wool
Handwash
Rinse +
Gentle Spin
Rinse + Spin
Spin
Gentle spin
Drain
—
—
Care
Labels
—
—
—
Type of wash / Notes
Heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of
cotton and linen.
Heavily soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira),
polyamide (Perlon, Nylon) or blends with cotton.
Heavily soiled curtains and delicate clothing, dresses, skirts, shirts and blouses.
Normally soiled bed linen, table linen and underwear, towels, shirts etc. made of
cotton and linen.
Slightly to normally soiled bed linen, table linen and underwear, towels, shirts etc.,
made of cotton and linen.
Slightly to normally soiled textiles made of cotton and/or synthetics.
Slightly to normally soiled blouses, shirts, overalls etc. made of polyester
(Diolen, Trevira), polyamide (Perlon, Nylon) or blends with cotton.
Slightly soiled overalls and sportswear made of cotton, polyester, polyamide and
blends with cotton.
Curtains and delicate clothing, dresses, skirts, shirts and blouses.
Only woollens with a felt-free finish, labelled with the woolmark and identified as
machine washable.
If you select “Rinse Hold” do not leave items to soak for too long.
Textiles made of silk, linen, wool and viscose marked as “handwashable”.
If you select “Rinse Hold” do not leave items to soak for too long.
Same as the last two rinses and the final spin in the “Synthetic” pr ogramme.
Programme for treating wash with starch or softener.
Same as the last rinse and the final spin in the “Cotton” programme. In this
programme spinning is intensive.
In this programme spinning is intensive. Same as the spin cycle in the “Cotton”
programme.
In this programme spinning is gentle. Same as the spin cycle in the “Wool”
programme.
Drain only - no spinning. Alternative method of terminating programme after
“Rinse Hold”.
N.B.This machine is controlled by sensors. Please avoid excessive detergent dosing.
“Cold”
CBA
Max.
load
kg
5.0
2.0
1.5
5.0
3.0
3.0
2.0
1.5
1.5
1.0
1.0
2.0
5.0
5.0
2.0
—
Detergents and additives Special Options
Prewash
Yes
Yes
Yes
—
—
—
—
—
—
—
—
Main
Wash
1)
Yes
1)
Yes
1)
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
——
Softener Bleach
❉❉❉❉❉❉
❉
❉
❉❉❉❉❉❉
❉
❉
❉
❉
❉
❉
❉
❉
❉
—
—
—
—
—
—
—
—
—
—
—
Rinse
Intensive
Hold
❉❉❉❉❉
❉❉
❉❉❉❉
❉❉❉❉
❉❉
❉❉❉❉❉
❉❉
❉❉
❉❉
❉❉
❉❉
————————— —
————————
————————— ——
❉
: Option
Yes: dosing required
1)
Do not use liquid detergents.
2)
For improved garment care spin speed is
restricted to 500 rpm in this programme.
3)
For improved garment care, spin speed is
zero in this programme.
Rinse
Half
Load
—
—
—
—
—
—
—
No
Spin
Reduction
❉❉
❉❉
❉❉
❉❉
❉
❉❉
❉
Speed
—
Tempe ra-
Spin
—
—
—
—
Max. 95 800
2)
Max. 60 500
2)
Max. 40 500
Max. 95 800
Max. 60 800
Max. 60 800
2)
Max. 60 500
2)
Max. 60 500
2)
Max. 40 500
2)
Max. 40 500
3)
Max. 30
2)
ture
°C
—
——
2)
❉
—
Max.
Spin
Speed
rpm
—
500
800
800
500
2)
2)
2)
2)
2)
2)
3)
2)
2)
5019 412 10016
Page 2
CONSUMPTION DATA
Programme
Cotton 95 5.0 63* 1.80 2:05
Cotton 60 5.0 55 0.95 2:05
Cotton 40 5.0 55 0.60 2:05
Daily Mixed 40 3.0 45 0.48 1:00
Synthetic 60 2.0 62 0.80 1:35
Synthetic 40 2.0 56 0.45 1:30
Delicate 40 1.5 63 0.45 0:50
Wool 40 1.0 63 0.45 0:40
Handwash 30 1.0 63 0.30 0:50
Prewash cycle increases programme duration approximately 15 min. Consumption values were measured in normalized
conditions in compliance with standard IEC 60456. Consumption data in the home may vary with respect to the values in
the table in relation to the water supply pressure and temperature, the load and the type of wash.
The data on the “Energy Label” refer to the programme “Cotton 60° C”.
* To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump
drains the water out.
Temperature Selector
(°C)
PREPARATION OF WASH CYCLE
1. Load the machine, close the drum flaps and
check that they are properly locked.
2. Add detergents and additives into the
dispenser to no more than the
“MAX
” level
mark, as follows:
• Programme with pre and main
wash
• Main wash programme
without prewash
• Fabric softeners and
conditioners
• Chlorine bleach
(4 chamber models only)
• Stain remover agents
• Anti-scale agents
(if necessary)
3. Turn the
programme selector knob
to the
desired programme.
4. Turn the
temperature selector knob
the desired temperature.
5. Press the
spin speed reduction button,
desired.
• If you want to cancel the final spin, select
the rinse hold option and drain the water
after the cycle has finished
(see Appliance
in “Rinse Hold”).
to
Load
(kg)
Water
(l)
Energy
(kWh)
Approx. Programme
Duration
(hours : minutes)
SELECT THE DESIRED OPTION
Selecting or deselecting an option can be
done at any time during the programme.
The option will be applied as long as the
corresponding programme phase has not
been executed yet.
“Rinse Hold” button
• The laundry remains in the last rinse water
without progressing to the final spin cycle to
avoid creasing and prevent colo urs from
fading.
• This option is particularly recommended for
the “Synthetic” or “Delicate”
programmes.
• This function is particularly useful if you
want to postpone spinning to a later time,
or if you want to drain only.
Appliace in “Rinse Hold”:
• Press the “Rinse Hold” button again: the
if
programme will terminate automatically
with the selected spin cycle.
• If you do not wish to spin the clothes, press
the “
” button, turn the
On/Off
programme selector knob to the “Drain”
programme and press the “
On/Off
button again.
”
“Intensive Rinse” button
• One rinse cycle is added to ensure a more
intensive rinse.
• This option is particularly suitable for areas
with very soft water, washing baby linen
and people with detergents allergies.
“Half Load” button
• Can be used for small loads and lightly
soiled laundry.
• Reduces the water consumption especially
during the rinses.
“Non Spin” button
• Excludes spinning from programme, press
button. Suitable for delicate laundry.
with the “Cotton” and “Synthetic”
Note:
programmes a short spin cycle is provided in
any case, even if the exclusion has been
selected, in order to optimize rinsing results.
PROGRAMME START
Turn on the tap and press the “
button. The indicator light of the “
On/Off
On/Off
”
”
button lights up.
: If there is a power interruption or if the
Note
appliance is disconnected during the cycle, the
programme will run again from the point where
it was interrupted.
END OF WASH CYCLE
• The programme selector knob is in the Stop
position “ ”.
1. Press the “
” button to switch off
On/Off
the machine.
2. Cancel the options.
3. Turn the tap off.
4. Wait for the door to unlock (about
1minute).
5. Open the door and the drum flaps and
unload the machine.
CHANGE THE PROGRAMME DURING THE
WASH CYCLE
1. Switch off the machine by pressing the
“
On/Off
” button.
2. Select the new programme.
3. Start programme by pressing the “
On/Off
button again.
PAUSE/INTERRUPT A PROGRAMME
If, for any reason, you wish to interrupt the
programme for a certain time and continue it
later:
1. Press the “
On/Off
” button.
2. After the desired pause, press again the
“On/Off”
button.
CANCEL PROGRAMME
1. Switch off the machine by pressing the
“
On/Off
” button.
2. Set the programme selector to “Drain” .
3. Press the “
” button again to start
On/Off
the “Drain” programme.
”
5019 412 10016
