Whirlpool WATE 6545 EX PROGRAM CHART

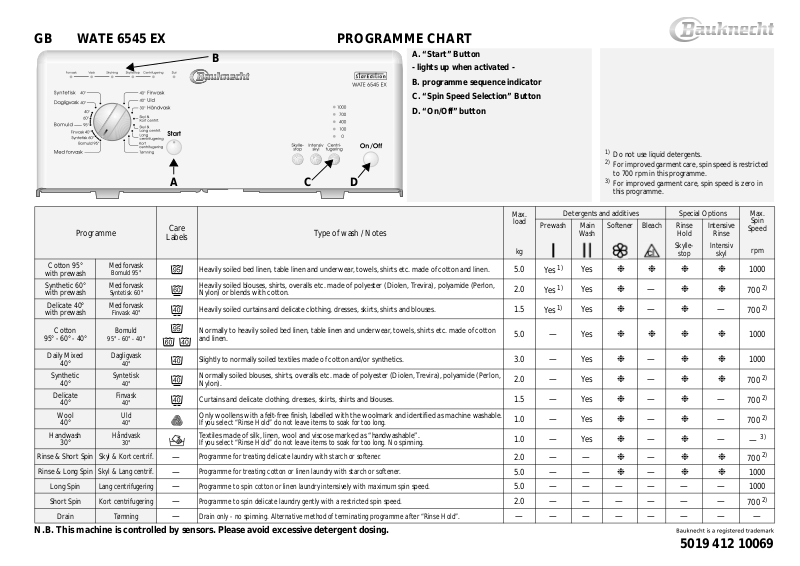

GB WATE 6545 EX PROGRAMME CHART

A. “Start” Button

- lights up when activated B. programme sequence indicator

C. “Spin Speed Selection” Button D. “On/Off” button

Do not use liquid detergents.

For improved garment care, spin speed is restricted to 700 rpm in this programme.

For improved garment care, spin speed is zero in this programme.

Programme

Cotton 95°

with prewash

Synthetic 60°

with prewash

Delicate 40°

with prewash

Cotton

95° - 60° - 40°

Daily Mixed

40°

Synthetic

40°

Delicate

40°

Wool

40°

Handwash

30°

Rinse & Short Spin Skyl & Kort centrif.

Rinse & Long Spin Skyl & Lang centrif.

Long Spin Lang centrifugering

Short Spin Kort centrifugering

Drain Tømnin g

Med forvask

Bomuld 95°

Med forvask

Syntetisk 60°

Med forvask

Finvask 40°

Bomuld

95° - 60° - 40°

Dagligvask

40°

Syntetisk

40°

Finvask

40°

Uld

40°

Håndvask

30°

Care

Labels

— — — — —

Type of wash / Notes

Heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen. Heavily soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon,

Nylon) or blends with cotton. Heavily soiled curtains and delicate clothing, dresses, skirts, shirts and blouses.

Normally to heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.

Slightly to normally soiled textiles made of cotton and/or synthetics. Normally soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon,

Nylon). Curtains and delicate clothing, dresses, skirts, shirts and blouses. Only woollens with a felt-free finish, labelled with the woolmark and identified as machine washable.

If you select “Rinse Hold” do not leave items to soak for too long.

Textiles made of silk, linen, wool and viscose marked as “handwashable”.

If you select “Rinse Hold” do not leave items to soak for too long. No spinning. Programme for treating delicate laundry with starch or softener. Programme for treating cotton or linen laundry with starch or softener. Programme to spin cotton or linen laundry intensively with maximum spin speed. Programme to spin delicate laundry gently with a restricted spin speed. Drain only - no spinning. Alternative method of terminating programme after “Rinse Hold”.

N.B. This machine is controlled by sensors. Please avoid excessive detergent dosing.

Max.

load

5.0

2.0

1.5

5.0

3.0

2.0

1.5

1.0

2.0

5.0

2.0

Detergents and additives Special Options Max.

Prewash Main

Yes

—

— — — — —

—— ——

Softener Bleach Rinse

Wash

Yes Yes Yes

Yes

Yes Yes Yes Yes Yes

❉❉❉ ❉ ❉ ❉

❉❉❉ ❉

❉ ❉ ❉ ❉ ❉

❉ ❉

— —

— — — — —

— —

Hold

Skylle-

stop

Intensive

Rinse

Intensiv

skyl

❉❉ ❉

—

❉❉ ❉❉ ❉ ❉ ❉

— — —

❉❉ ❉❉

————— — ————— —

Spin

Speed

rpm

1000

700 700

1000

700 700 700

—

700

1000 1000

700

—————— — —

5019 412 10069

CONSUMPTION DATA

Programme

Temperature Selector

(°C)

Load

(kg)

Water

(l)

Energy

(kWh)

Approx. Programme

Duration

(hours : minutes) Cotton 95 5.0 66* 1.80 2:05 Cotton 60 5.0 55 0.95 2:05 Cotton 40 5.0 55 0.60 2:05

Daily Mixed 40 3.0 49 0.48 1:00

Synthetic 60 2.0 56 0.80 1:30 Synthetic 40 2.0 56 0.45 1:20

Delicate 40 1.5 60 0.55 0:45

Wool 40 1.0 60 0.50 0:40

Handwash 30 1.0 60 0.30 0:50

Prewash cycle increases programme duration approximately 15 min. Consumption values were measured in normalized conditions in compliance with standard IEC/EN 60 456. Consumption data in the home may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash.

The data on the “Energy Label” refer to the programme “Cotton 60°C”.

* To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains

the water out.

PREPARATION OF WASH CYCLE SELECT THE DESIRED OPTION

1. Load the machine, close the drum doors and check that they are properly locked.

2. Add detergents and additives into the dispenser to no more than the

“MAX”

level mark, as

follows:

• Programme with pre and main wash

• Main wash programme without prewash

• Fabric softeners and conditioners

• Chlorine bleach

• Stain remover agents

• Anti-scale agents (if necessary)

3. Press the The lamp of the

4. Turn the

“On/Off”

programme selector knob

button.

“Start”

button flashes.

to the desired programme. The lamp of the programme’s standard spin speed lights up.

Selecting or deselecting an option can be done at any time during the programme. The option will be applied as long as the corresponding programme phase has not been executed yet.

“Rinse Hold” button

• The laundry remains in the last rinse water without progressing to the final spin cycle to avoid creasing and prevent colours from fading.

• This option is particularly recommended for the “Synthetic”, “Delicate” and “Daily Mixed” programmes.

• This function is particularly useful if you want to postpone spinning to a later time, or if you want to drain only.

• As soon as the appliance stops in the rinse hold, the lamp of the

“Start”

button flashes.

Appliance in “Rinse Hold”:

• Press the “Rinse Hold” button or the flashing

“Start”

button: the programme will terminate

automatically with the selected spin cycle.

• If you do not wish to spin the clothes, turn the programme selector knob to the “Drain” programme and press the

“Start”

button again.

“Intensive Rinse” button

• The amount of water is increased to ensure a more intensive rinse.

• This option is particularly suitable for areas with very soft water, washing baby linen and people with skin allergies.

Spin Speed selection button

• Every programme has an automatically preset spin speed.

• Press the button to set another spin speed.

• If spin speed “0” is selected, the final spin is cancelled and the programme ends with a drain cycle.

PROGRAMME START

Verify that the appliance is switched on. Turn on the tap and press the

The indicator lamp of the

“Start”

button.

button stops

flashing and lights up.

: If there is a power interruption or if the

Note

appliance is disconnected during the cycle, the programme will run again from the point where it was interrupted.

END OF WASH CYCLE

• The “End” lamp of the programme sequence indicator lights up.

1. Press the

“On/Off”

button to switch off the

machine.

2. Turn the tap off.

3. Wait for the lid to unlock (about 1 minute).

Open the lid and the drum doors and unload

the machine. Leave the lid open for some time to allow the inside of the appliance to dry

CHANGE THE PROGRAMME DURING THE WASH CYCLE

1. Switch the appliance off by pressing

“On/Off”

2. Turn the programme selector knob to the new programme.

3. Switch the appliance on again by pressing

“On/Off”

. The

“Start”

button flashes. If necessary, select additional options and different spin speed.

4. Start programme by pressing the

“Start”

button.

PAUSE/INTERRUPT A PROGRAMME

If, for any reason, you wish to interrupt the programme for a certain time and continue it later:

1. Press the

“On/Off”

button.

2. After the desired pause, press again on the

“On/Off”

button.

CANCEL PROGRAMME

1. Switch off the appliance by pressing

“On/Off”

2. Turn the programme selector to “Drain”.

3. Switch the appliance on again by pressing

“On/Off”

. The lamp of the

“Start”

button

flashes.

4. Press the

“Start”

button to start the “Drain”

programme.

5019 412 10069
