WAT 9358 WD / WAT 9558 WD

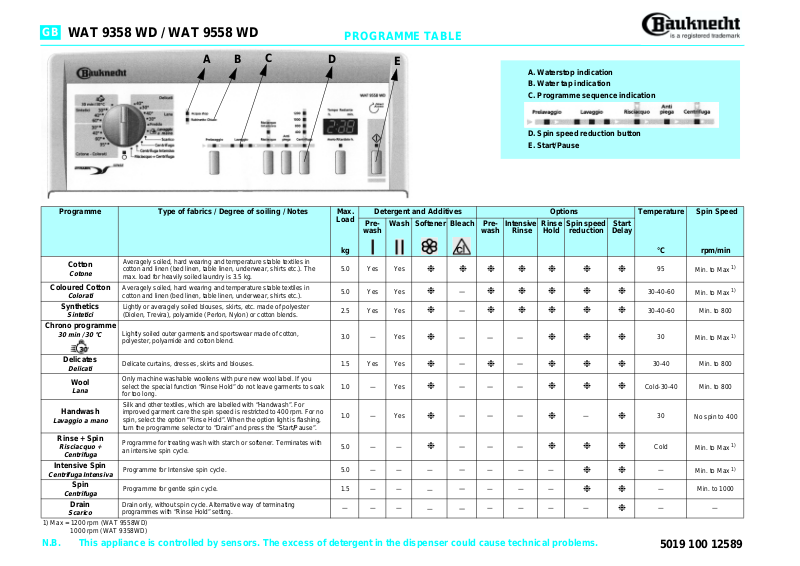

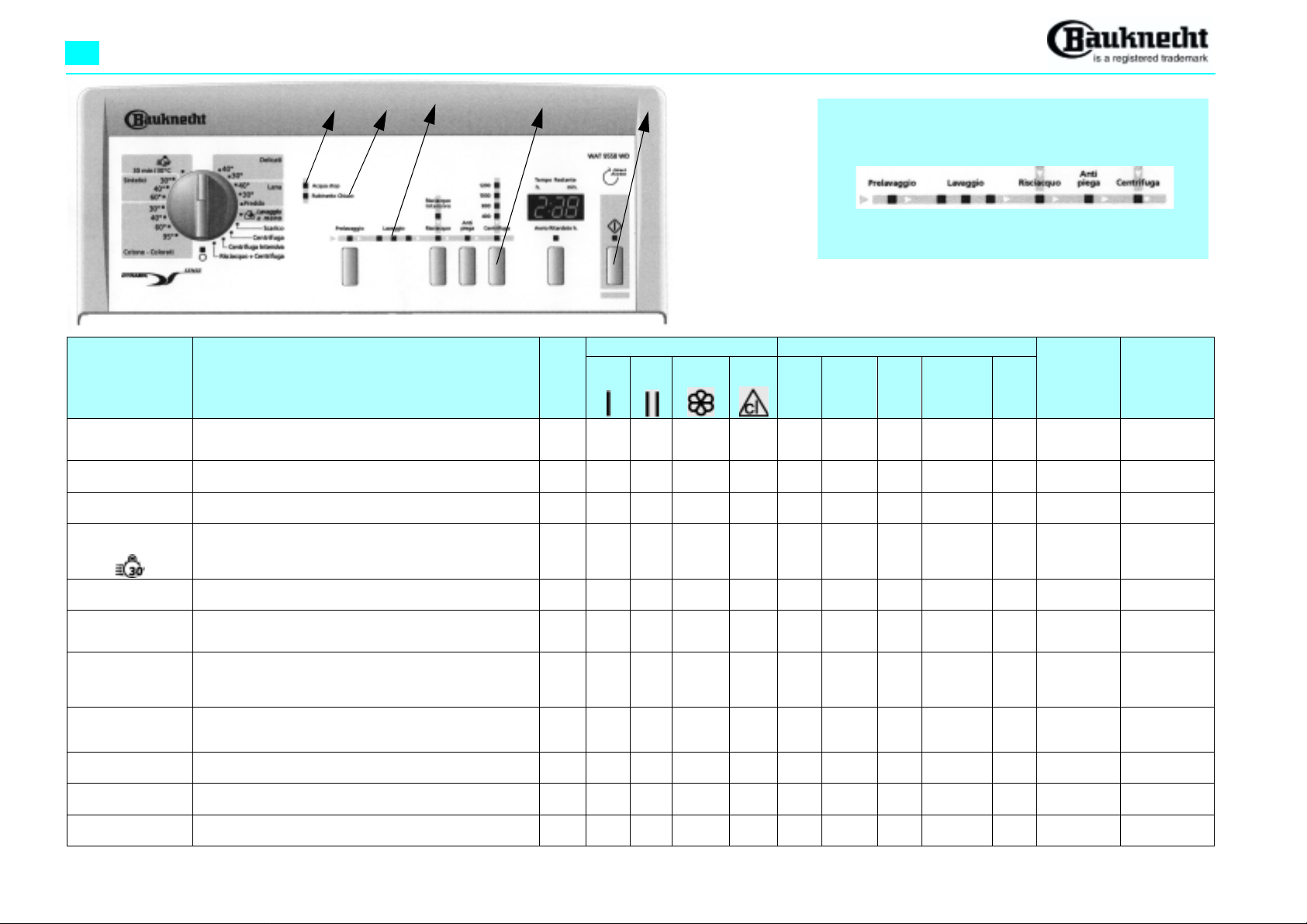

PROGRAMME TABLE

Programme Type of fabrics / Degree of soiling / Notes Max.

Cotton

Cotone

Coloured Cotton

Colorati

Synthetics

Sintetici

Averagely soiled, hard wearing and temperature stable textiles in cotton and linen (bed linen, table linen, underwear, shirts etc.). The max. load for heavily soiled laundry is 3.5 kg.

Averagely soiled, hard wearing and temperature stable textiles in cotton and linen (bed linen, table linen, underwear, shirts etc.).

Lightly or averagely soiled blouses, skirts, etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or cotton blends.

Chrono programme

30 min / 30 °C

Lightly soiled outer garments and sportswear made of cotton, polyester, polyamide and cotton blend.

Load

Pre-

wash

5.0 Yes Yes

2.5 Yes Yes

3.0 — Yes

A. Waterstop indication B. Water tap indication C. Programme sequence indication

D. Spin speed reduction button E. Start/Pause

Detergent and Additives Options Temperature°C Spin Speed

Wash Softener Bleach Pre-

❉❉❉❉❉❉❉ ❉

❉

—

—— —

wash

Intensive

Rinse

Hold

Spin speed

reduction

Start

Delay

❉❉❉❉❉ ❉❉❉❉❉

❉❉❉

rpm/min

30-40-60

30-40-60 Min. to 800

Min. to Max

Delicates

Delicati

Wool

Lana

Handwash

Lavaggio a mano

Rinse + Spin

Risciacquo +

Centrifuga

Intensive Spin

Centrifuga Intensiva

Spin

Centrifuga

Drain

Scarico

1) Max = 1200 rpm (WAT 9558WD) 1000 rpm (WAT 9358WD)

Delicate curtains, dresses, skirts and blouses. 1.5 Yes Yes Only machine washable woollens with pure new wool label. If you

select the special function “Rinse Hold” do not leave garments to soak for too long.

Silk and other textiles, which are labelled with “Handwash”. For improved garment care the spin speed is restricted to 400 rpm. For no spin, select the option “Rinse Hold”. When the option light is flashing, turn the programme selector to “Drain” and press the “Start/Pause”.

Programme for treating wash with starch or softener. Terminates with an intensive spin cycle.

Programme for Intensi ve s pi n c yc le. 5.0 — — —

Programme for gentle spin cycle. 1.5 — —

Drain only, without spin cycle. Alternative way of terminating programmes with “Rinse Hold” setting.

1.0 — Yes

5.0 — —

———

❉ ❉

❉

—

❉

—— —

———

—

———

—

——— —

—

❉❉❉ ❉❉❉

❉

—

❉❉❉

❉❉ ❉❉

N.B. This appliance is controlled by sensors. The excess of detergent in the dispenser could cause technical problems.

30-40 Min. to 800

Cold-30-40 Min. to 800

❉

Cold

—

— Min. to 1000

——

5019 100 12589

No spin to

Min. to Max

400

Page 2

Programme

Cotton

Coloured Cotton

Synthetics Synthetics

Chrono programme

Delicates

Wool

Handwash

Prewash cycle increases programme duration by 5 to 20 min. Consumption values were measured in normalized conditions in compliance with Standard IEC 60 456. Consumption data in the home may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash.

The remaining time indicator can similarly deviate from the values in the table, because it takes into account the household conditions applicable at that time. **To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains the water out.

Temperature selector (°C)

60 5.0 48 1.15 125 60 2.0 54 0.70 89 40 2.0 50 0.50 74 30 3.0 35 0.40 30 40 1.5 50 0.50 45 40 1.0 50 0.50 42 30 1.0 35 0.40 25

Load

(kg)

Water

(l)

Energy

(kWh)

Programme

duration (min) *

5.0 49 1.60 120

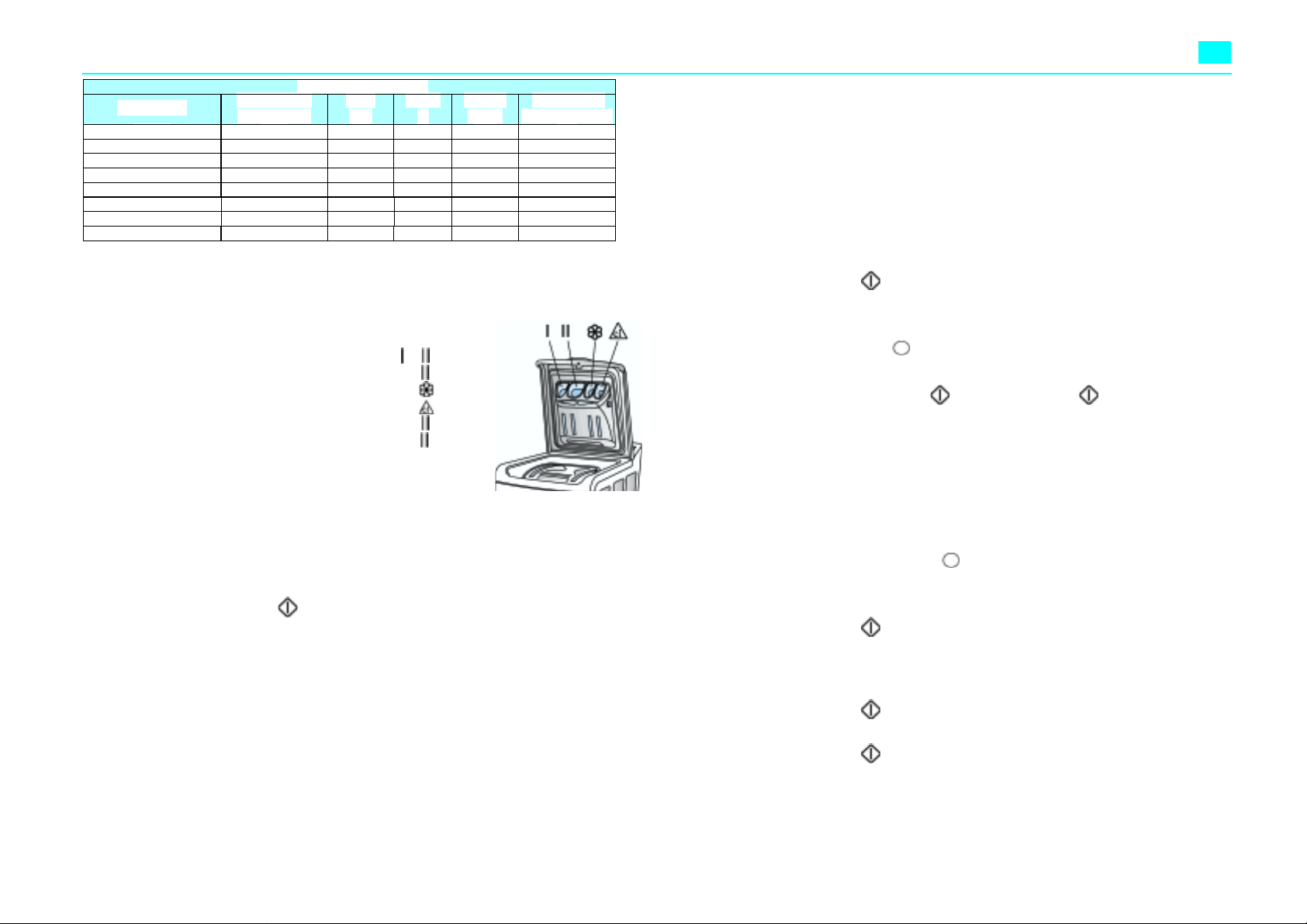

ADDING DETERGENT AND ADDITIVES

CONSUMPTION DATA

Add the detergent and the additives into the dispenser as follows:

• Programme with pre and main wash

• Main wash programme without prewash

• Fabric softeners and conditioners

• Chlorine bleach

• Stain remover agents

• Anti-scale agents (water hardness 4)

Important:

• Be careful not to fill more than the

• For programme with prewash: do not use liquid detergents and

detergent tablets.

• For programmes without prewash from cold to 40° C it is recommended to use a liquid detergent to avoid

whitish residues on the coloured laundry.

• With a Start delay, use a dose aid for liquid detergent, placed directly in the drum.

• Use detergent in the form of tablets placing it directly in the drum, above th e laudry, not in th e dispenser.

“MAX”

level mark.

CLOSE THE DOOR AND SELECT THE PROGRAMME

1. Turn the

• The remaining time display shows the duration of the chosen programme (in hours and minutes)

and the

2. The programme sequence and the predefined spin speed indication corresponding to the selected

programme lights up.

PRESS ANY DESIRED OPTION BUTTON(S).

An audible tone sounds if the combination of programme and ad ditional option s is not possible. Unsuitable combinations of options are deselected automatically “Prewash” button

• Only for heavily soiled loads (for example sand, granular dirt) sensible. The cycle time increases

from 5 to 20 min.

“Intensive Rinse” button

• The water level and the cycle time increase for improved rinsing efficiency.

• This option is particularly suitable for areas with very soft water washing baby linen and helps

people with allergies.

“Rinse Hold” button

• The laundry remains in the last rinse water without progressing to the final spin cycle to avoid

creasing and prevent colours from changing.

• This option is particularly recom mended for the programme “Synthetics” or “Delicates”.

• This function is particularly useful if you want to postpone spinning to a later time.

programme selector knob

“Start/Pause”

button “” is flashing.

to the desired programme with its predefined temperature.

The pilot lamp lights up

Note:

The programme stops to “Rinse Hold” at the time the “Rinse Hold” button light flashes.

Terminate the “Rinse Hold” option:

• Press the “Rinse Hold” button again; the programme will terminate automatically with the final spin cycle for the present wash programme.

• If you do not wish to spin the clothes, turn the programme selector knob to the drain programme and start again.

“Spin speed reduction” button

• Every programme has an automatic pr edefined maximum spin speed.

• Press the button to set another spin speed.

• If no lamps are on, the final spinning is cancelled.

START DELAY

Start Delay allows to run the machine at the consumer’s convenience, for example at night when

The

electricity is cheaper.

• Press the “Start Delay” button to select the delay time by 1 to 19 hours;

• Press the Start/Pause button “”. The “Start Delay” light flashes until the programme s tarts.

• The time delay indication disappear when the programme starts and it’s replaced by the remaining

time.

• The number of hours preselected can later be reduced pressing again the “Start Delay” button.

To cancel the “Start Delay”.

• Turn the programme selector to the “” position.

• Reselect the desired programme and options and press the

“Start/Pause”

button.

PROGRAMME START

Open the tap and press the Start/Pause button “”. The pilot lamp of the “” button lights up. The indicator lamps show the sequence reached in the programme. After starting the programme, the sequence indication runs from left to right through Wash, Rinse, Spin. When the sequence of the programme is finished the corresponding lamps goes out.

DOOR LOCK

During the running programme the doo r can be opened for adding further laundry. The door locks automatically in all rinsing and spinning cycles. If the programme is stopped or the electrical power supply is terminated, the door lock will open after approximately 1 minute.

PROGRAMME END

• The remaining time is on “0:00” and all the lights of the programme sequence indication are “Off”. A short audible tone sounds three times.

1. Turn the programme selector to the position “”.

2. Turn the water supply tap off.

3. Open the door and the drum flaps and unload the machine.

SELECTING A NEW PROGRAMME, SPIN SPEED, OPTIONS AFTER PROGRAMME START

1. Press the Start/Pause button “” to pause the programme. The light flashes.

2. Select the new programme (with temperature), any options and another spin speed if you want it.

3. Press the “Start/Pause” button again. The programme continues at the same position of the programme sequence indication. Do not add detergent for this programme.

TO STOP, RESET A PROGRAMME BEFORE THE END

1. Press the Start/Pause button “” to pause the programme. The lights flashes.

2. Set the programme selector to “Drain”. The spin indications are off and the remaining time shows 2 minutes.

3. Press the Start/Pause button “” to start the drain programme.

AUTOMATIC SAFETY FUNCTIONS / FAULTS

This washing machine is equipped with automatic safety functions which detect and diagnose fa ults at an early stage and react appropriately. Often, however, the faults detected are small enough to be solved in a matter of minutes. Informations can be found in the “Troubleshooting Guide”.
