Whirlpool WAT 9458 WD PROGRAM CHART
GB
WAT 9458 WD

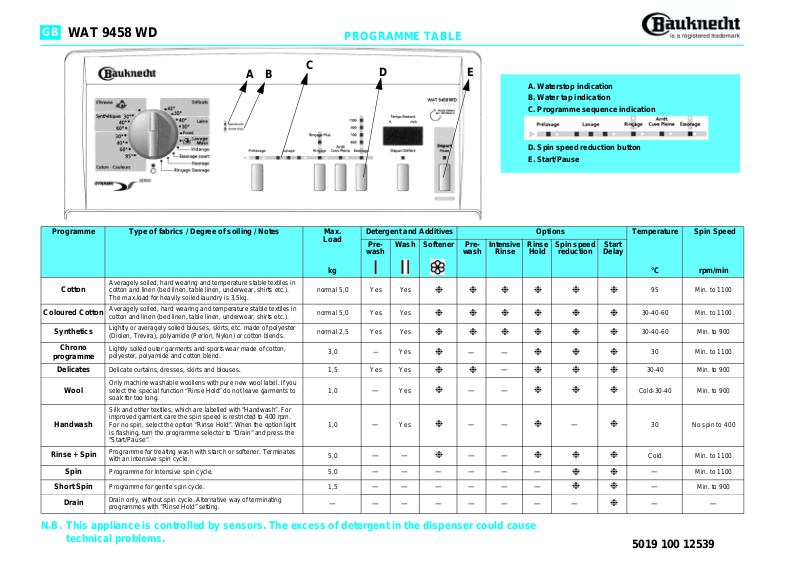

PROGRAMME TABLE
A
C
B
Programme Type of fabrics / Degree of soiling / Notes Max.
Cotton
Coloured Cotton
Synthetics
Chrono
programme
Delicates
Wool
Handwash
Rinse + Spin
Spin
Short Spin
Drain
Averagely soiled, hard wearing and temperature stable textiles in
cotton and linen (bed linen, table linen, underwear, shirts etc.).
The max.load for heavily soiled laundry is 3,5kg.
Averagely soiled, hard wearing and temperature stable textiles in
cotton and linen (bed linen, table linen, underwear, shirts etc.).
Lightly or averagely soiled blouses, skirts, etc. made of polyester
(Diolen, Trevira), polyamide (Perlon, Nylon) or cotton blends.
Lightly soiled outer garments and sportswear made of cotton,
polyester, polyamide and cotton blend.
Delicate curtains, dresses, skirts and blouses. 1,5 Yes Yes
Only machine washable woollens with pure new wool label. If you
select the special function “Rinse Hold” do not leave garments to
soak for too long.
Silk and other textiles, which are labelled with “Handwash”. For
improved garment care the spin speed is restricted to 400 rpm.
For no spin, select the option “Rinse Hold”. When the option light
is flashing, turn the programme selector to “Drain” and press the
“Start/Pause”.
Programme for treating wash with starch or softener. Terminates
with an intensive spin cycle.
Programme for Intensive spin cycle. 5,0
Programme for gentle spin cycle. 1,5
Drain only, without spin cycle. Alternative way of terminating
programmes with “Rinse Hold” setting.
D
Load
kg
normal 5,0 Yes Yes
normal 5,0 Yes Yes
normal 2,5 Yes Yes
3,0 — Yes
1,0
1,0
5,0
— —————— —
Detergent and Additives Options Temperature°C Spin Speed
Pre-
wash
Wash Softener Pre-
❉❉❉❉ ❉ ❉
❉❉❉❉ ❉ ❉
❉❉❉❉ ❉ ❉
❉
❉❉
Yes
—
Yes
—
——
——————
——————
❉
❉
❉
E
Intensive
wash
Rinse
——
—
——
——
——
A. Waterstop indication
B. Water tap indication
C. Programme sequence indication
D. Spin speed reduction button
E. Start/Pause
Rinse
Spin speed
Hold
reduction
❉❉❉
❉❉❉
❉❉❉
❉
—
❉❉❉
❉❉
❉❉
Start
Delay
❉
❉
rpm/min
95 Min. to 1100
30-40-60 Min. to 1100
30-40-60 Min. to 900
30 Min. to 1100
30-40 Min. to 900
Cold-30-40 Min. to 900
30
Cold Min. to 1100
—
—
——
No spin to
Min. to 1100
Min. to 900
400
N.B. This appliance is controlled by sensors. The excess of detergent in the dispenser could cause
technical problems.
5019 100 12539
GB
CONSUMPTION DATA
Programme
Cotton
Coloured Cotton
Synthetics
Synthetics
Chrono programme
Delicates
Wool
Handwash
Prewash cycle increases programme duration by 5 to 20 min. Consumption values were measured in normalized
conditions in compliance with Standard IEC 60 456. Consumption data in the home may vary with respect to the values
in the table in relation to the water supply pressure and temperature, the load and the type of wash.
*
The remaining time indicator can similarly deviate from the values in the table, because it takes into account the
household conditions applicable at that time. **To reduce the water temperature, some cold water is added at the end
of the main wash cycle, before the pump drains the water out.
Temperature
selector (°C)
**
95
60 5,0 45 1,15 120
60 2,0 54 0,7 89
40 2,0 50 0,5 74
30 3,0 35 0,4 30
40 1,5 50 0,5 45
40 1,0 50 0,5 42
30 1,0 35 0,4 25
Load
(kg)
5,0 49 1,6 125
Water
(l)
Energy
(kWh)
Programme
duration (min) *
ADDING DETERGENT AND ADDITIVES
Add the detergent and the additives into the chamber as follows:
• Programme with pre and main wash
• Main wash programme without prewash
• Fabric softeners and conditioners
• Stain remover agents
• Anti-scale agents (water hardness 4)
Important:
• Be careful not to fill more than the
• For programme with pre-wash: do not use liquid detergents.
• For programmes without prewash from cold to 40° C it is
recommended to use a liquid detergent to avoid whitish residues on the coloured laundry.
• With a Start delay, use a dose aid for liquid detergent, placed directly in the drum.
“MAX”
level mark.
CLOSE THE DOOR AND SELECT THE PROGRAMME
1. Turn the
• The remaining time display shows the duration of the chosen programme (in hours and minutes)
and the pilot lamp of the
2. The programme sequence and the predefined spin speed indication corresponding to the
selected programme lights up.
PRESS ANY DESIRED OPTION BUTTON(S).
An audible tone sounds if the combination of programm e and additio nal options i s not possi ble.
Unsuitable combinations of options are deselected automatically
Prewash button
• Only for heavily soiled loads (for example sand, granular dirt) sensible. The cycle time increases
from 5 to 20 min.
“Intensive Rinse” button
• The water level and the cycle time increase for improved rinsing efficiency.
• This option is particularly suitable for areas with very soft water washing baby linen and helps
people with allergies.
“Rinse Hold” button
• The laundry remains in the last rinse water without progressing to the final spin cycle to avoid
creasing and prevent colours from changing.
• This option is particularly recommended for the programme “Synthetics” or “Delicates”.
• This function is particularly useful if you want to postpone spinning to a later time.
programme selector knob
“Start/Pause”
to the desired programme with its predefined temperature.
button is flashing.
The pilot lamp lights up.
Note:
The programme stops to “Rinse Hold” at the time the “Rinse Hold” button light flashes
Terminate the “Rinse Hold” option:
• Press the “Rinse Hold” button again; the programme will terminate automatically with the final
spin cycle for the present wash programme.
• If you do not wish to spin the clothes, turn the programme selector knob to the drain programme
and “Start” again.
Spin speed reduction button
• Every programme has an automatic predefined maximum spin speed.
• Press the button to set another spin speed.
• If no lamps are on, the final spinning is cancelled.
START DELAY
The Start Delay allows to run the machine at the consumer’s convenience, for example at night when
electricity is cheaper.
• Press the “Start Delay” button to select the delay time by 1 to 19 hours;
• Press the
• The time delay indication disappears when the programme starts and it’s replaced by the
remaining time.
• The number of hours preselected can later be reduced pressing again the “Start Delay” button.
To cancel the “Start Delay”.
• Turn the programme selector to the position.
• Reselect the desired programme and options and press the
“Start/Pause”
button. The “Start Delay” light flashes until the programme starts.
“Start/Pause”
button.
PROGRAMME START
Open the tap and press the
up. The indicator lamps show the sequence reached in the programme. After starting the programme,
the sequence indication runs from left to right through Wash, Rinse, Spin. When the sequence of the
programme is finished the corresponding lamps goes out.
“Start/Pause”
button. The pilot lamp of the
“Start/Pause”
button lights
DOOR LOCK
During the running programme the door can be opened for adding further laundry.
The door locks automatically in all rinsing and spinning cycles. If the programme is stopped or th e
electrical power supply is terminated, the door lock will open after approximately 1 minute.
PROGRAMME END
• The remaining time is on “0:00” and all the lights of the programme sequence indication are “Off”.
A short audible tone sounds three times.
1. Turn the programme selector to the position
2. Turn the water supply tap off.
3. Open the door and the drum flaps and unload the machine.
“ ”
.
SELECTING A NEW PROGRAMME, SPIN SPEED, OPTIONS AFTER PROGRAMME START
1. Press the
2. Select the new programme (with temperature), any options and another spin speed if you want it.
3. Press the
programme sequence indication. Do not add detergent for this programme.
“Start/Pause”
“Start/Pause”
button to pause the programme. The light flashes.
button again. The programme continues at the same position of the
TO STOP, RESET A PROGRAMME BEFORE THE END
1. Press the
2. Set the program me selector to “Drain”. The spin indications are off and the remaining time shows
2 minutes.
3. Press the
“Start/Pause”
“Start/Pause”
button to pause the programme. The lights flashes.
button to start the drain programme.
AUTOMATIC SAFETY FUNCTIONS / FAULTS
This washing machine is equipped with automatic safety functions which detect and diagnose faults at
an early stage and react appropriately. Often, however, the faults detected are small enough to be
solved in a matter of minutes. Informations can be found in the Troubleshooting guide.
5019 100 12539
