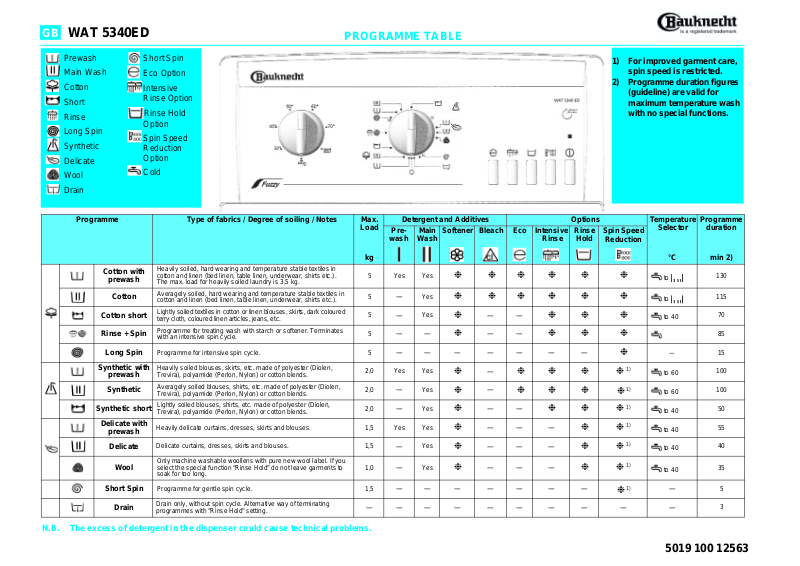

Whirlpool WAT 5340ED PROGRAM CHART
GB
WAT 5340ED
PROGRAMME TABLE
Prewash
Main Wash
Cotton
Short
Rinse
Long Spin
Synthetic
Delicate
Wool
Short Spin
Eco Option
Intensive
Rinse Option
Rinse Hold
Option
Spin Speed
Reduction
Option
Cold
Drain
Programme Type of fabrics / Degree of soiling / Notes Max.
Cotton with
prewash
Cotton
Cotton short
Rinse + Spin
Long Spin
Synthetic with
prewash
Synthetic
Synthetic short
Delicate with
prewash
Delicate
Wool
Short Spin
Drain
Heavily soiled, hard wearing and temperature stable textiles in
cotton and linen (bed linen, table linen, underwear, shirts etc.).
The max. load for heavily soiled laundry is 3,5 kg.
Averagely soiled, hard wearing and temperature stable textiles in
cotton and linen (bed linen, table linen, underwear, shirts etc.).
Lightly soiled textiles in cotton or linen blouses, skirts, dark coloured
terry cloth, coloured linen articles, jeans, etc.
Programme for treating wash with starch or softener. Terminates
with an intensive spin cycle.
Programme for intensive spin cycle. 5
Heavily soiled blouses, skirts, etc. made of polyester (Diolen,
Trevira), polyamide (Perlon, Nylon) or cotton blends.
Averagely soiled blouses, shirts, etc. made of polyester (Diolen,
Trevira), polyamide (Perlon, Nylon) or cotton blends.
Lightly soiled blouses, shirts, etc. made of polyester (Diolen,
Trevira), polyamide (Perlon, Nylon) or cotton blends.
Heavily delicate curtains, dresses, skirts and blouses. 1,5 Yes Yes
Delicate curtains, dresses, skirts and blouses. 1,5
Only machine washable woollens with pure new wool label. If you
select the special function “Rinse Hold” do not leave garments to
soak for too long.
Programme for gentle spin cycle. 1,5
Drain only, without spin cycle. Alternative way of terminating
programmes with “Rinse Hold” setting.
1) For improved garment care,
spin speed is restricted.
2) Programme duration figures
(guideline) are valid for
maximum temperature wash
with no special functions.
Load
kg
5YesYes
5
5
5
2,0 Yes Yes
2,0
2,0
1,0
———— ——— — — —
Detergent and Additives Options Temperature
Pre-
Main
wash
Softener Bleach Eco Intensive
Wash
Rinse
Rinse
Hold
Spin Speed
Reduction
❉❉❉❉❉ ❉
Yes
—
Yes
—
——
—— — —— — —
Yes
—
Yes
—
Yes
—
Yes
—
—— — —— — —
❉❉❉❉❉ ❉
❉
❉
——
——
❉❉ ❉
❉❉ ❉
❉
❉
❉
❉
❉
❉
❉
—
—
——
—— —
—— —
—— —
❉❉❉ ❉
❉❉❉
❉❉ ❉
❉❉
❉❉
❉❉
1)
1)
❉
1)
1)
1)
1)
1)
❉
Selector
to
to
to 40
to 60
to 60
to 40
to 40
to 40
to 40
°C
—15
—
Programme
duration
min 2)
130
115
70
85
100
100
50
55
40
35
5
3
N.B. The excess of detergent in the dispenser could cause technical problems.
5019 100 12563
GB
CONSUMPTION DATA
Programme Temperature
Selector
(°C)
Cotton 5 63* 1,8 120
Cotton + Eco 60 5 55 1,15 115
Cotton 60 5 55 1,15 115
Cotton 40 5 55 0,6 95
Synthetic 60 2,0 57 0,8 90
Synthetic 40 2,0 49 0,4 75
Delicate 30 1,5 70 0,65 55
Wool 40 1,0 70 0,55 45
Prewash cycle increases programme duration by approx. 15 min. The data under the heading “Energy” refer to
programme “Cotton 60° C” with special option “Eco” selected. Consumption values were measured in normalized
conditions in compliance with Standard IEC 60 456. Consumption data in the home may vary with respect to the values
in the table in relation to the water supply pressure and temperature, the load and the type of wash.
* To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains
the water out.
Load
(kg)
Water
(l)
Energy
(kWh)
Programme
Duration
(min)
ADDING DETERGENT AND ADDITIVES
Add the detergent and the additives into the dispenser as
follows:
• Programme with pre-and main wash
• Main wash programme without prewash
• Fabric softeners and conditioners
• Chlorine bleach
• Stain remover agents
• Anti-scale agents (water hardness 4)
Important:
• Be careful not to fill more than the
“MAX”
level mark.
• For programme with pre-wash: do not use liquid
detergents.
• For programmes without prewash from cold to 40° C it
is recommended to use a liquid detergent to avoid
whitish residues on the coloured laundry.
CLOSE THE DOOR AND SELECT THE PROGRAMME
1. Turn the
2. Turn the
programme selector knob
temperature knob
to the required temperature.
clockwise to the desired programme.
PRESS ANY DESIRED OPTION BUTTON(S)
Eco button “”
• The wash time is extended and the water temperature is reduced.
• This function saves about 30% in energy without compromising the excellent results of
the wash.
Intensive Rinse button “”
• The water level increases for improved rinsing efficiency.
• This option is particularly suitable for areas with very soft water washing baby linen
and helps people with allergies.
Rinse Hold button “”
• The laundry remains in the last rinse water without progressing to the spin cycle to
avoid creasing and prevent colours from changing.
• This option is particularly recommended for the programme Synthetic “” or
Delicate “”.
• This function is particularly useful if you want to postpone spinning to a later time or
when you do not wish to spin the clothes.
Note:
The programme selector knob stops on the position “”.
Terminate the Rinse Hold option:
• Press the “Rinse Hold” button again; the programme will terminate automatically with
the spin cycle for the present wash programme.
• If you do not wish to spin the clothes, switch off the appliance, turn the programme
knob to the drain “” programme and switch on the appliance again.
Spin Speed Reduction button
“”
• Press the button to set the spin speed.
Note: Every programme has an automatic maximum spin speed.
PROGRAMME START
Open the tap and press the On/Off button “”. The pilot lamp lights up.
DOOR LOCK
During the running programme the door can be opened for adding further laundry.
The door locks automatically in all spinning cycles. If the programme is stopped or the
electrical power supply is terminated, the door lock will open after approximately 1 minute.
Note:
If you open the door during the delicate or wool programme, there will be no spinning at the
end of the cycle but only draining. If you want to spin the laundry start the gentle spin programme.
PROGRAMME END
• The programme selector knob is at
“”
.
1. Press the On/Off button “”.
2. Cancel the special options by pressing the appropriate buttons.
3. Turn the water supply tap off.
4. Wait for the door to unlock (about 1 minute).
5. Open the door and the drum flaps and unload t he machine.
SELECTING A NEW PROGRAMME, OPTIONS AFTER PROGRAMME START
1. Press the On/Off button “” to switch off the appliance.
2. Select the new programme, temperature, and option.
3. Press the On/Off button “” to switch on the appliance.
TO STOP, RESET A PROGRAMME BEFORE THE END.
1. Press the On/Off button “” to switch off the appliance.
2. Set the programme selector to Drain “”
3. Press the On/Off button “” to start the drain programme.
Only open the door when the programme selector is at
“”
and the door is unlocked
(after approximately 1 minute).
