Whirlpool WAE 77480 INSTRUCTION FOR USE

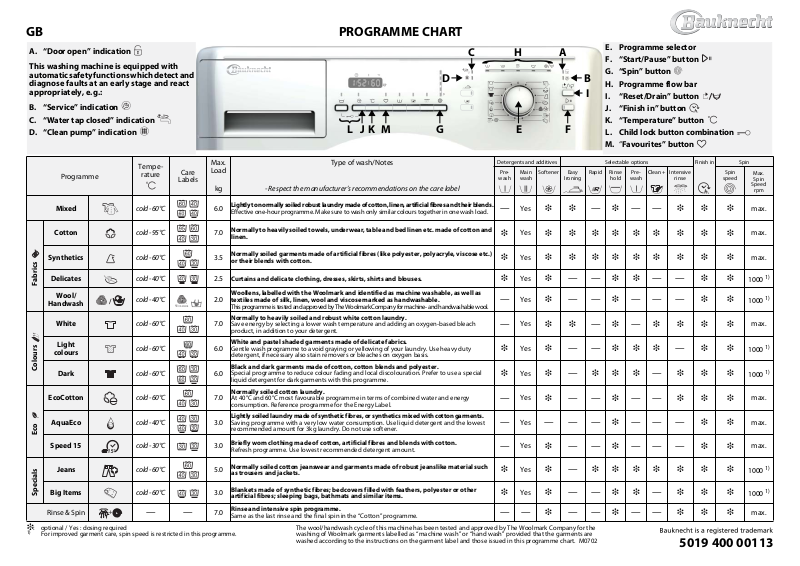

GB PROGRAMME CHART

A. “Door open” indication

This washing machine is equipped with automatic safety functions which detect and diagnose faults at an early stage and react appropriately, e.g.:

B. “Service” indication

C. “Water tap closed” indication D. “Clean pump” indication

}

M FE

}

E. Programme selector F. “Start/Pause” button

G. “Spin” button

H. Programme flow bar

I. “Reset/Drain” button J. “Finish in” button K. “Temperature” button

L. Child lock button combination M. “Favourites” button

Programme

Mixed cold - 60 °C

Cotton cold - 95 °C

Synthetics cold - 60 °C

Delicates cold - 40 °C

Fabrics Colours Eco

Wool/

Handwash

White cold - 60 °C

Light

colours

Dark cold - 60 °C

EcoCotton cold - 60 °C

AquaEco cold - 40 °C

Speed 15 cold - 30 °C

Tempe-

rature

cold - 40 °C

cold - 60 °C

Care

Labels

Max. Load

Lightly to normally soiled robust laundry made of cotton, linen, artificial fibres and their blends.

6.0

Effective one-hour programme. Make sure to wash only similar colours together in one wash load.

Normally to heavily soiled towels, underwear, table and bed linen etc. made of cotton and

7.0

linen.

Normally soiled garments made of artificial fibres (like polyester, polyacryle, viscose etc.)

3.5

or their blends with cotton.

Curtains and delicate clothing, dresses, skirts, shirts and blouses.

2.5

Woollens, labelled with the Woolmark and identified as machine washable, as well as textiles made of silk, linen, wool and viscose marked as handwashable.

2.0

This programme is tested and approved by The Woolmark Company for machine- and handwashable wool.

Normally to heavily soiled and robust white cotton laundry.

Save energy by selecting a lower wash temperature and adding an oxygen-based bleach

7.0

product, in addition to your detergent.

White and pastel shaded garments made of delicate fabrics.

Gentle wash programme to avoid graying or yellowing of your laundry. Use heavy duty

6.0

detergent, if necessary also stain removers or bleaches on oxygen basis.

Black and dark garments made of cotton, cotton blends and polyester.

Special programme to reduce colour fading and local discolouration. Prefer to use a special

6.0

liquid detergent for dark garments with this programme.

Normally soiled cotton laundry.

At 40°C and 60°C most favourable programme in terms of combined water and energy

7.0

consumption. Reference programme for the Energy Label.

Lightly soiled laundry made of synthetic fibres, or synthetics mixed with cotton garments.

Saving programme with a very low water consumption. Use liquid detergent and the lowest

3.0

recommended amount for 3kg laundry. Do not use softener.

Briefly worn clothing made of cotton, artificial fibres and blends with cotton.

3.0

Refresh programme. Use lowest recommended detergent amount.

- Respect the manufacturer’s recommendations on the care label

Type of wash/Notes

Detergents and additives Selectable options Finish in Spin

Pre-

Main

wash

—

❉

—

❉

—

Softener Easy

wash

Yes

❉❉— ❉ —— ❉❉ ❉

Yes

❉❉❉❉❉❉❉❉❉

Yes

❉❉❉❉❉❉❉❉❉

Yes

❉ ——❉ ❉ —— ❉❉

Yes

❉ ——❉ —— — ❉❉

Yes

❉❉— ❉ — ❉❉ ❉ ❉

Yes

❉ ——❉❉❉ — ❉❉

Yes

❉ — ❉❉❉— ❉❉ ❉

Yes

❉ ——❉ —— ❉❉ ❉

Yes

———❉ —— — ❉❉

Yes

❉ ——❉ —— — ❉❉

Ironing

Rapid Rinse

hold

Pre-

Clean + Intensive

wash

rinse

Spin

speed

Max. Spin

Speed

rpm

max.

1000

max.

1000

max.

Jeans cold - 60 °C

Big Items cold - 60 °C

Specials

Rinse & Spin

❉: optional / Yes : dosing required

For improved garment care, spin speed is restricted in this programme.

——

Normally soiled cotton jeanswear and garments made of robust jeanslike material such

5.0

as trousers and jackets.

Blankets made of synthetic fibres; bedcovers filled with feathers, polyester or other

3.0

artificial fibres; sleeping bags, bathmats and similar items.

Rinse and intensive spin programme.

7.0

Same as the last rinse and the final spin in the “Cotton” programme.

The wool/handwash cycle of this machine has been tested and approved by The Woolmark Company for the washing of Woolmark garments labelled as “machine wash” or “hand wash” provided that the garments are washed according to the instructions on the garment label and those issued in this programme chart. M0702

Yes

❉

❉ — ❉❉❉❉ ❉ ❉ ❉

Yes

❉ ——❉❉— ❉❉ ❉

—— ❉ ——❉ —— ❉❉ ❉

5019 400 00113

1000

max.

- the sensor technology adapts water, energy and programme duration to the size of your wash load

CONSUMPTION DATA

Programme

Mixed 40 6.0 65 0.65 1:00 — Cotton 95 7.0 75** 2.40 2:30 — Cotton 60 7.0 58 1.19 2:20 1:35 Cotton 40 7.0 68 0.75 2:05 1:15

Synthetics 60 3.5 48** 0.95 1:35 1:10 Synthetics 40 3.5 45 0.55 1:20 0:55

Delicates 40 2.5 60 0.65 0:50 —

Wool/Handwash 40 2.0 45 0.60 0:40 —

White 40 7.0 70 0.85 2:20 —

Light colours 40 6.0 70 0.50 1:20 —

Dark 40 6.0 49 0.60 1:40 1:15 EcoCotton* 60 7.0 48 0.72 4:00 — EcoCotton* 60 3.5 37 0.65 3:00*** — EcoCotton* 40 3.5 37 0.55 3:00*** —

AquaEco 40 3.0 19 0.45 1:00 — Speed 15 30 3.0 30 0.20 0:15 —

Jeans 40 5.0 60 0.50 1:30 1:10

Big Items 40 3.0 70 0.75 1:30 —

Consumption values were measured in normalized conditions, in compliance with IEC/EN 60456. In the home, they may vary depending on the individual water supply pressure and temperature, the load and the type of wash. The consumption data indicated are based on an inlet water temperature of approx. 15°C through the cold fill valve as well as the hot fill valve (if available). If your washing machine has a hot fill valve, connection of this valve to hot water supply will lower the energy consumption by reduced heating times, depending on the individual hot fill inlet water temperature. Water and energy consumptions refer to the default setting of the programmes, with temperature and load as indicated in the table; selecting any options or changing the spin speed will also change the consumption data.

The programme duration may differ from the values indicated above as it depends on the operation conditions applicable at that time (see also “Troubleshooting Guide” in your Instructions for Use).

* Reference programmes for Energy Label. ** To reduce the water temperature, some cold water is added at the end of the main wash cycle before the water is drained.

*** Automatic adaptation of programme duration after detection of wash load.

Temperature

(°C)

ADD DETERGENTS, CLOSE THE DOOR AND SELECT THE PROGRAMME

Load your laundry, close the door properly and add detergent as indicated on the front page and as described in the chapter “Detergent and Additives” in your Instructions for Use. Turn the programme selector to the desired programme. The display shows the programme duration in hours and minutes as well as the predefined temperature. The “Start/Pause” indicator

blinks. The temperature and spin speed can be altered by

pressing the “Temperature” or the “Spin” button.

SELECT ANY DESIRED OPTION

Push the button of any option desired - the indicator lights up. If the combination programme/option or option/option is not possible, the indicator switches off automatically. For certain programmes, an option may already be preset; if you want you can deselect it.

“Easy ironing” button

• Reduces creasing by an increased water quantity and a very gentle spin.

“Rapid” button

• Enables quicker washing by shortening the programme duration.

• Recommendable for only lightly soiled laundry.

• Not selectable for Cotton 70 - 95°C.

“Rinse hold” button

• The laundry remains in the last rinse water without progressing to the final spin cycle, to avoid creasing and prevent colours from changing.

• The programme stops to “Rinse hold” when the indicator blinks; the “Start/Pause” indicator blinks as well.

Load

(kg)

Water

(l)

Energy

(kWh)

• To terminate the “Rinse hold” by spinning the laundry, press

• To terminate the “Rinse hold” by draining the water, without

• Do not leave the laundry to soak for too long in the “Rinse

“Prewash” button

• Adds a prewash cycle to the wash programme selected;

• Recommended for heavily soiled laundry (e.g. containing

• Do not use liquid detergent for the main wash when

“Clean +” button

• Choose this option if you use an in-wash additive for stain removal

• Use with maximum load preferrably.

• Add an appropriate amount of in-wash additive for stain

• May prolong the programme by up to 15 minutes.

• Appropriate for use of stain removers and bleaches on oxygen

“Intensive rinse” button

• More water is added and rinse cycle is prolonged.

• This option is particularly suitable for areas with very soft

Approx. Programme Duration (hours : minutes)

without “Rapid” with “Rapid”

“Start/Pause” - the laundry will be spun with the default spin speed. You can also select another spin speed with the “Spin” button before you start the spin cycle with “Start/Pause”.

spinning, select spin speed “0”; then press “Start/Pause” to start the draining.

hold” (especially silk).

prolongs the programme by about a quarter of an hour.

sand or granular dirt).

activating the Prewash option.

(powder, for example “Vanish”) - it will optimize the additive’s efficiency to get better wash performance and stain removal.

removal (powder) to the main wash chamber, together with your detergent (only use powder detergent with this option). Respect the manufacturer’s dosing instructions.

basis. Chlorine or perborate bleaches must not be used!

water, washing baby linen and helping people with allergies.

“Spin speed” button

• Press the button to change the predefined spin speed.

• If you select spin speed “0”, the final spinning is cancelled, and the water is drained out only. However, intermediate spin phases remain during rinse.

SET CYCLE END (“FINISH IN”)

With this function you can postpone your programme to complete at a later time: press the button to select in how many hours the programme shall be finished. Thus, it allows you to have your laundry ready at a particular time and to profit from more favourable energy rates during the night, for example.

• Do not use liquid detergent when activating this function.

• The time until the cycle end can be selected in full hour time segments (1 to 24 h). When you press the button, the shortest possible time will be displayed; keep on pressing the button to loop through all the available times. To remove it again, keep on pressing the button until you see the value “0:00”.

• When you have selected the desired time until the cycle end, press “Start/Pause” - the countdown will begin.

• During the countdown, you can still modify the programme setting (select or deselect options, change spin speed etc.). If the modifications prolong the programme duration so that it overruns the originally set time until the cycle end, the programme will start immediately.

• Sometimes the programme may finish before the selected time until the cycle end has expired (e.g. for small loads). In this case, the washing machine will tumble the laundry regularly to keep it fresh, until the selected cycle end time has expired. During tumbling, the display will show an animation. The tumbling phase can be stopped at any time either by pressing any button or by rotating the programme selector; the animation will stop and the door will unlock in about 1 minute as indicated on the display.

“DOOR OPEN” INDICATOR

Before starting and after end of a programme, the indicator lights to show that the door can be opened. As long as a wash programme is running, the door remains locked and must on no account be forced open. In case you have an urgent need to open it during a running programme, refer to “Reset a running programme before the end”.

PROGRAMME START

Open the tap and press the “Start/Pause” button . The “Start/ Pause” indicator lights up. The programme flow bar shows

the current programme phase, running from left to right through Wash, Rinse, Spin/Drain. When the laundry load is detected or the programme duration is adapted, the display shows an animation.

CHILD LOCK

Prevents children from starting a wash cycle or changing the settings of a running programme. Cannot be activated or deactivated when the programme selector is in the “Off/O” position. To activate the child lock:

• Turn the programme selector to a programme position, or run a programme as usual.

• Press the 2 buttons marked with the key symbol simultaneously for at least 3 seconds. A key-like symbol will shortly appear on the display to indicate that the child lock is active.

Any time you try to change a programme setting with active child lock, the display will briefly show the key-like symbol. The

programme setting cannot be changed anymore. The only change possible is to switch the washer off by turning the programme selector to the “Off/O” position. To deactivate the child lock proceed in the same way as for activating it.

SAVE YOUR FAVOURITE PROGRAMMES

If there is a programme setting which you use frequently, the appliance offers the possibility to save one setting for each programme so that it can be used again by just pushing one button.

• Select the desired programme, temperature, spin speed and option(s), press and hold the “Favourites” button for a few seconds. The “Favourites” indicator briefly blinks and then lights up - the programme setting is saved.

Next time you want to use your individual programme setting, select the programme, briefly push the “Favourites” button and start by pressing “Start/Pause” .

If you want to replace the saved programme setting by another one, proceed as already described above - the previous setting will be replaced by the new one.

FAILURE INDICATORS

If one of the failure indicators blinks, refer to the “Troubleshooting Guide” in your “Instructions for Use”.

Spin speed indicator blinks: Unbalance during spinning.

PROGRAMME END

• The “Door open” indicator lights up. The display shows

“End”.

1. Turn the programme selector to the “Off/O” position.

2. Close the water tap.

3. Open the door and unload the machine.

4. Leave the door ajar to allow the drum to dry.

CHANGE PROGRAMME AND/OR OPTIONS AFTER PROGRAMME START

1. Press “Start/Pause” to pause the programme. The light

blinks.

2. Select the new programme, temperature, any options and

another spin speed if you want.

3. Press “Start/Pause” again. The new programme continues

at the same position where the previous programme was interrupted. Do not add detergent for this programme.

RESET A RUNNING PROGRAMME BEFORE THE END

The “Reset/Drain” button cancels a programme before the end.

• Press the “Reset/Drain” button for at least 3

seconds. “rES” appears on the display. The water is drained out; it may last some time until you can open the door.

5019 400 00113
