Whirlpool WAB 1000 INSTRUCTION FOR USE

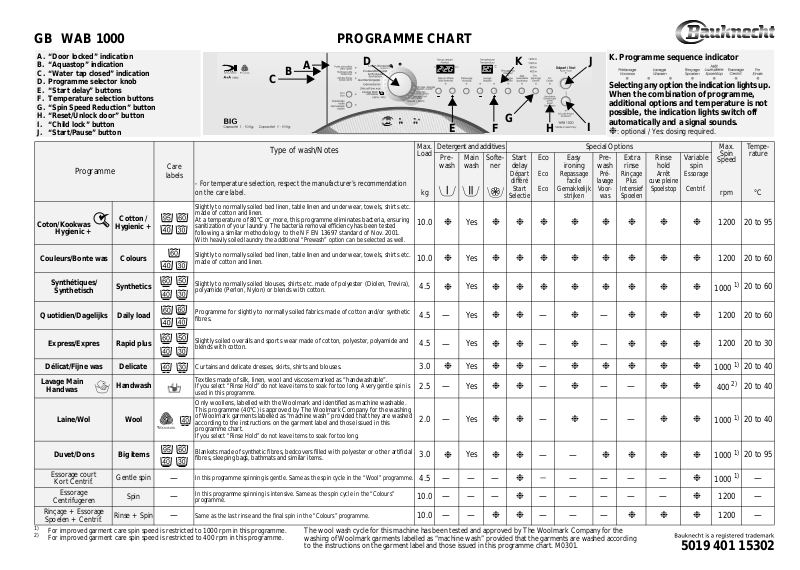

GB WAB 1000 PROGRAMME CHART

A. “Door locked” indication B. “Aquastop” indication C. “Water tap closed” indication D. Programme selector knob E. “Start delay” buttons F. Temperature selection buttons G. “Spin Speed Reduction” button H. “Reset/Unlock door” button I. “Child lock” button J. “Start/Pause” button

Programme

Coton/Kookwas

Hygienic +

Couleurs/Bonte was Colours

Synthétiques/

Synthetisch

Quotidien/Dagelijks Daily load

Express/Expres Rapid plus

Délicat/Fijne was Delicate

Lavage Main

Handwas

Laine/Wol Wool

Duvet/Dons Big items

Essorage court

Kort Centrif.

Essorage

Centrifugeren

Rinçage + Essorage

Spoelen + Centrif.

For improved garment care spin speed is restricted to 1000 rpm in this programme.

For improved garment care spin speed is restricted to 400 rpm in this programme.

Cotton /

Hygienic +

Synthetics

Handwash

Gentle spin

Spin

Rinse + Spin

Care

labels

— — —

- For temperature selection, respect the manufacturer’s recommendation on the care label.

Slightly to normally soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen. At a temperature of 80°C or more, this programme eliminates bacteria, ensuring sanitization of your laundry. The bacteria removal efficiency has been tested following a similar methodology to the NF EN 13697 standard of Nov. 2001.

With heavily soiled laundry the additional “Prewash” option can be selected as well.

Slightly to normally soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.

Slightly to normally soiled blouses, shirts etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or blends with cotton.

Programme for slightly to normally soiled fabrics made of cotton and/or synthetic fibres.

Slightly soiled overalls and sports wear made of cotton, polyester, polyamide and blends with cotton.

Curtains and delicate dresses, skirts, shirts and blouses. Textiles made of silk, linen, wool and viscose marked as “handwashable”.

If you select “Rinse Hold” do not leave items to soak for too long. A very gentle spin is used in this programme.

Only woollens, labelled with the Woolmark and identified as machine washable. This programme (40°C) is approved by The Woolmark Company for the washing of Woolmark garments labelled as “machine wash” provided that they are washed according to the instructions on the garment label and those issued in this programme chart.

If you select “Rinse Hold” do not leave items to soak for too long.

Blankets made of synthetic fibres, bedcovers filled with polyester or other artificial fibres, sleeping bags, bathmats and similar items.

In this programme spinning is gentle. Same as the spin cycle in the “Wool” programme. In this programme spinning is intensive. Same as the spin cycle in the “Colours”

programme. Same as the last rinse and the final spin in the “Colours” programme.

Type of wash/Notes

The wool wash cycle for this machine has been tested and approved by The Woolmark Company for the washing of Woolmark garments labelled as “machine wash” provided that the garments are washed according to the instructions on the garment label and those issued in this programme chart. M0301.

Max.

Detergent and additives Special Options Max.

Load

Pre-

Main

wash

10.0

❉

10.0

❉

4.5

❉

4.5

—

4.5

—

3.0

❉

2.5

—

2.0

—

3.0

❉

4.5

———

10.0

———

10.0

——

K. Programme sequence indicator

Selecting any option the indication lights up. When the combination of programme, additional options and temperature is not

Softe-

Start

ner

delay

Départ

différé

Start

Selectie

Yes

❉❉❉ ❉ ❉ ❉ ❉ ❉

Yes

❉❉❉ ❉ ❉ ❉ ❉ ❉

Yes

❉❉❉ ❉ ❉ ❉ ❉ ❉

Yes

❉❉

Yes

❉❉

Yes

❉❉

Yes

❉❉

Yes

❉❉

Yes

❉❉

❉ ❉

❉❉

Eco

Eco Eco

—

— —

—

——

————— ———

—

Easy

ironing

Repassage

facile

Gemakkelijk

strijken

❉

❉ ❉❉❉❉❉

❉

————

possible, the indication lights switch off automatically and a signal sounds.

: optional / Yes: dosing required.

❉

Pre-

wash

Pré-

lavage

Voor-

was

—

Extra

rinse

Rinçage

Plus

Intensief

Spoelen

Rinse

hold

Arrêt

cuve pleine

Spoelstop

❉❉❉

——

❉❉ ❉ ❉

❉❉❉

Variable

spin

Essorage

Centrif.

Spin

Speed

rpm

1200 20 to 95

1200 20 to 60

1000

1200 20 to 60

1200 20 to 30

1000

❉❉

400

1000

❉

1000

1200

❉

1200

5019 401 15302

Tempe -

rature

°C

20 to 60

20 to 40 20 to 40

20 to 40

20 to 95

— — —

CONSUMPTION DATA

Temperature

Programme

Selector

(°C)

Cotton / Hygienic + 95 10.0 99

Colours

***

60 10.0 92 1.70 2:45

Load

(kg)

Water

(l)

Energy

Approximate programme

duration

(kWh)

(hours : minutes)

3.15 2:45

Colours 60 4.0 50 1.10 1:35

Colours 40 10.0 92 0.96 2:35 Synthetics 40 4.5 58 0.65 1:30 Daily load 40 4.5 58 0.65 1:00 Rapid plus 30 4.5 38 0.40 0:30

Delicate 30 3.0 70 0.45 0:50

Handwash 30 2.5 60 0.30 0:31

Wool 40 2.0 60 0.50 0:35

Big items 40 3.0 85 0.80 1:30

Prewash cycle increases programme duration by approximately 15 min. Consumption values were measured in normalized conditions in compliance with Standard IEC/EN 60 456. Consumption data in the home may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash.

The remaining time indicator can deviate from the values in the table, because it takes into account the operating conditions

applicable at that time. To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains the water out.

Reference programme for energy label.

***

ADD DETERGENT, CLOSE THE DOOR AND SELECT THE PROGRAMME

Add the detergent as described in the programme table or in the chapter “Detergent and Additives” of the instructions for use.

1. Turn the

programme selector

to the desired

programme.

2. The remaining time display shows the duration of the chosen programme (in hours and minutes) and the lamp of the

“Start/Pause”

button flashes.

3. The

indicator

of the predefined

spin speed

corresponding to the selected programme lights up; it can be altered by pressing the “Variable Spin” button.

SELECT ANY DESIRED OPTION

Selecting any option the indication lights up. When the combination of programme, additional options and temperature is not possible, the indication lights switch off automatically and a signal sounds.

“Eco Wash” button

• The duration of the wash is extended and the

temperature reduced. This saves you energy and maintains good washing results.

“Easy ironing” button

• Can be selected to reduce creasing.

• Increases the water quantity and the clothes are

spun very gently.

“Prewash” button

• Only for heavily soiled laundry (e.g. sand, granular dirt). The cycle time increases by approx. 15 minutes.

“Intensive rinse” button

• More water and a longer time in rinse cycle is added.

• This option is particularly suitable for areas with very soft water, for baby clothes and to help people with allergies.

“Rinse hold” button

• The laundry remains in the last rinse water without being spun: this prevents creasing and colours from changing.

• This option is particularly recommended for the programme “Synthetics” or “Delicate”.

• This function is particularly useful if you want to postpone spinning to a later time, or if you want to drain only.

The programme starts to “Rinse hold” as

Note:

soon as the “Rinse hold” indicator light in the programme display lights up.

Terminate the “Rinse hold” option:

• Press the “Rinse hold” button again; the programme will terminate automatically with the final spin cycle for the present wash programme.

• If you do not wish to spin the clothes, press the

“Reset/Unlock door”

button. The water is

drained out then, before the door can be opened.

“Variable spin” button

• Every programme has an automatic predefined spin speed.

• Press the button to set another spin speed.

• If spin speed “0” is selected, the final spinning is cancelled but intermediate spin peaks remain during rinse. The water is drained out only.

START DELAY

The “Start delay” allows to run the machine at the consumer’s convenience, for example at night when electricity is cheaper.

• Select programme, temperature and options.

• Press the “Start delay” button to select the delay time by 1 to 23 hours;

• Press the

“Start/Pause”

button.

• The time delay indication disappears when the programme starts and it is replaced by the remaining time.

• The number of hours preselected can later be reduced pressing again the “Start delay” button.

To cancel the “Start delay”.

• Turn the programme selector to the “ ” position.

• Reselect the desired programme and options and press the

“Start/Pause”

button.

PROGRAMME START

Turn on the tap and press the button. The lamp of the

“Start/Pause”

button

lights up. The indicator lamps show the sequence reached in

the programme. After starting the programme, the sequence indication runs from left to right through Prewash, Wash, Rinse, Spin.

When a sequence of the programme is finished the corresponding lamp goes out.

ADD WASHING/DOOR LOCK

Each time a programme starts the door is locked, the “Door locked” indication light comes on and approx.

0.5 litres of water enters the machine. In the

programmes Cotton / Hygienic +, Colours, Synthetics, Daily load and Rapid plus, for 10 minutes at the beginning of the Main Wash the programme can be interrupted by pressing the

“Start/Pause”

button and the door can be opened again, e.g. to add more washing. After this time, the door remains locked until the end of the programme and must on no account be forced open. You will find more information about door locking in the Instructions for Use.

PROGRAMME END

• The time remaining is “0:00” and the “End” light is on.

1. Turn the programme selector to the “ ” position.

2. Turn the tap off and leave the door ajar to allow the drum to dry.

CHANGE THE PROGRAMME, TEMPERATURE, OPTIONS AFTER PROGRAMME START

1. Press the

“Start/Pause”

button to interrupt

the programme. The light flashes.

2. Select the new programme (with temperature), any options and another spin speed if you want.

3. Pres s t h e

“Start/Pause”

button again. The new programme continues at the same position where the previous programme was interrupted. Do not add detergent for this programme.

CANCEL (RESET) A RUNNING PROGRAMME BEFORE THE END

Press the

“Reset/Unlock door”

button for at least 3 seconds. Any existing water is drained out before the door can be opened. Caution, the washing could still be hot!

CHILD LOCK

Detailed information can be found in the instructions for use. The controls can be locked to avoid interference by children.

1. If the machine is off:

Turn the programme selector knob from the OFF position “ ” to any programme. Do not press the

“Start/Pause”

button. Press the “Child lock” button for 5 seconds. The “Child lock” indicator lights up. Turn the programme selector knob to the OFF position “ ” again.

2. While a programme is running: Press the “Child lock” button for 5 seconds. The child lock indicator will light up.

Now, in spite of the programme selector knob being turned, no programme can be started or altered. However, a running programme can be stopped at any time (e.g. in an emergency), by turning the programme selector knob to “ ”. Attempts at changing during the running programme are signalled by the lamp of the accidentally chosen programme flashing. The indicator light for the actual programme running is on. To unlock the controls, the machine must either have a programme running or be in select mode. Press the “Child lock” button for 5 seconds. The child lock lamp will go out.
