Whirlpool WA 2300 PROGRAM CHART

WA 2300

Coloured / Cotton

Easy care Spin

Delicates Gentle Spin Wool Drain

Short

Rinse + Spin

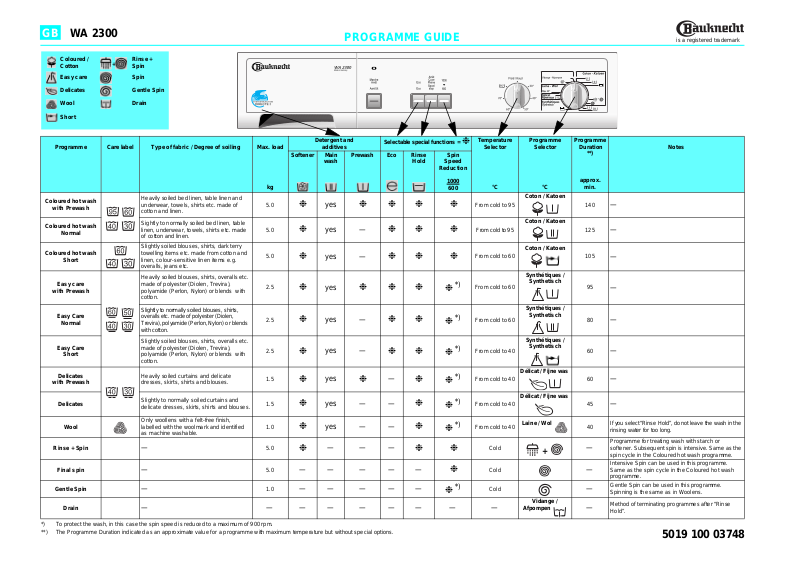

PROGRAMME GUIDE

is a registered trademark

Detergent and

Programme Care label Type of fabric / Degree of soiling Max. load

Coloured hot wash

with Prewash

Coloured hot wash

Normal

Coloured hot wash

Short

Easy care

with Prewash

Easy Care

Normal

Easy Care

Short

Delicates

with Prewash

Delicates

Wool

Rinse + Spin

Final spin

Gentle Spin

Drain

*) To protect the wash, in this case the spin speed is reduced to a maximum of 900 rpm. **) The Programme Duration indicated as an approximate value for a programme with maximum temperature but without special options.

Heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.

Sightly to normally soiled bed linen, table linen, underwear, towels, shirts etc. made of cotton and linen.

Slightly soiled blouses, shirts, dark terry towelling items etc. made from cotton and linen, colour-sensitive linen items e.g. overalls, jeans etc.

Heavily soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or blends with cotton.

Slightly to normally soiled blouses, shirts, overalls etc. made of polyester (Dio len, Trevira), polyamide (Perlon, Nylon) or blends with cotton.

Slightly soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or blends with cotton.

Heavily soiled curtains and delicate dresses, skirts, shirts and blouses.

Slightly to normally soiled curtains and delicate dresses, skirts, shirts and blouses.

Only woollens with a felt-free finish, labelled with the woolmark and identified as machine washable.

—

—————————

Softener Main

5.0

2.5

1.5

1.0

5.0

1.0

additives

❉

❉ ❉

❉

Prewash Eco Rinse

wash

yes

yes —

yes

yes —

yes

yes — —

———

—— ———

Selectable special functions =

❉❉❉ ❉

❉❉❉

❉

Hold

Spin

Speed

Reduction

1000

600

❉❉ ❉

❉

❉❉

—

❉

❉ ❉

❉

❉❉

❉

Temperature

Selector

°C

From cold to 95

From cold to 60

From cold to 40

Cold

Programme

Selector

°C

Coton / Katoen

Synthétiques /

Synthetisch

Synthétiques /

Synthetisch

Synthétiques /

Synthetisch

Délicat / Fijne was

Laine / Wol

Vidange /

Afpompen

Programme

Duration

**)

approx.

min.

140

125

105

—

Notes

—

If you select “Rinse Hold”, do not leave the wash i n the rinsing water for too long.

Programme for treating wash with starch or softener. Subsequent spin is intensive. Same as the spin cycle in the Coloured hot wash programme.

Intensive Spin can be used in this programme. Same as the spin cycle in the Coloured hot wash programme.

Gentle Spin can be used in this programme. Spinning is the same as in Woolens.

Method of terminating programmes after “Rinse Hold”.

5019 100 03748

Power and water consumption data

Programme Temperature

Coloured hot wash

Easy Care

Delicates

Wool

Selector

(°C)

95 5.0 64 1.60 125

60 5.0 59 0.95 115

40 5.0 59 0.50 100

60 2.5 55 0.80 80

40 2.5 55 0.50 70

40 1.5 60 0.60 45

40 1.0 55 0.50 40

Max. Load

(kg)

Water

(I)

Energy

(kWh)

Programme

Duration

(min.)

Prewash cycle increases Programme Duration by approx. 15 minutes. Consumption data were measured in normalised conditions in compliance with Standard IE C 60 456. Consumption values in the home may vary with respect to the values in the table depending on the water pressure, the water supply temperature, the load and the type of wash.

FOR DAILY USE:

1. Turn on the water tap.

2. Sort and load the laundry by to fabric type and colour.

3. Close the door.

4. Add detergent and additives.

5. Select programme, temperature, special options.

6. Press the “On/Off” button.

SAFETY SYSTEM / FAULTS:

The washing machine is equipped with a safety system. This means that the washing cycle is interrupted after a few minutes if one of the following faults occurs:

• No water supply.

• Detergent pump blocked.

To restart the washing machine, switch the appliance off and then on again. Detailed advice can be found in the instructions for use in the “Troubleshooting Guide” section.
