Whirlpool W10063560 User Manual
®
FRONT-LOADING
AUTOMATIC WASHER
Use & Care Guide
For questions about features, operation/performance,
parts, accessories or service call: 1-800-253-1301
In Canada, call: 1-800-807-6777
www.whirlpool.com or www.whirlpool.ca
or visit our website at
LAVEUSE
AUTOMATIQUE À
CHARGEMENT FRONTAL
Guide d’utilisation et d’entretien
Au Canada, pour assistance, installation ou service, composez le :
Table of Contents/Table des matières.................. 2
1-800-807-6777
ou visitez notre site internet à
www.whirlpool.ca
Designed to use only HE
High Efficiency Detergent
Conçue pour l’utilisation
d’un détergent haute
efficacité seulement
W10063560
TABLE OF CONTENTS
TABLE DES MATIÈRES
WASHER SAFETY ..........................................................................3
INSTALLATION REQUIREMENTS................................................4
Tools and Parts ............................................................................4
Options.........................................................................................4
Location Requirements................................................................5
Drain System................................................................................6
Electrical Requirements ...............................................................7
INSTALLATION INSTRUCTIONS..................................................8
Remove Transport System ..........................................................8
Connect the Inlet Hoses...............................................................8
Route the Drain Hose...................................................................9
Secure the Drain Hose.................................................................9
Level the Washer........................................................................10
Complete Installation .................................................................10
FEATURES AND BENEFITS ........................................................11
WASHER USE...............................................................................12
Starting Your Washer.................................................................12
Using the Proper Detergent .......................................................12
Using the Dispenser...................................................................13
Pausing or Restarting.................................................................14
Changing Cycles and Options...................................................14
Status Lights ..............................................................................14
Cycles.........................................................................................15
Normal Sounds ..........................................................................16
Options and Modifiers................................................................16
Laundry Guide............................................................................17
LAUNDRY TIPS ............................................................................17
Loading.......................................................................................18
Stain Removal Guide .................................................................18
WASHER CARE ............................................................................19
Cleaning Your Washer ...............................................................19
Water Inlet Hoses.......................................................................20
Vacation, Storage, and Moving Care.........................................20
TROUBLESHOOTING ..................................................................21
Washer and Components..........................................................21
Washer Operation ......................................................................22
Clothes Care...............................................................................23
ASSISTANCE OR SERVICE.........................................................24
In the U.S.A. ...............................................................................24
In Canada ...................................................................................24
WARRANTY ..................................................................................25
SÉCURITÉ DE LA LAVEUSE........................................................26
EXIGENCES D'INSTALLATION...................................................27
Outillage et pièces......................................................................27
Options .......................................................................................27
Exigences d'emplacement.........................................................28
Système de vidange...................................................................29
Spécifications électriques ..........................................................30
INSTRUCTIONS D'INSTALLATION.............................................31
Élimination des accessoires de transport..................................31
Raccordement des tuyaux d'alimentation.................................31
Acheminement du tuyau de vidange .........................................32
Immobilisation du tuyau de vidange..........................................32
Réglage de l'aplomb de la laveuse............................................33
Achever l'installation ..................................................................33
CARACTÉRISTIQUES ET AVANTAGES .....................................34
UTILISATION DE LA LAVEUSE...................................................35
Mise en marche de la laveuse....................................................35
Utilisation du détergent approprié .............................................35
Utilisation du distributeur ...........................................................36
Pause ou remise en marche.......................................................37
Modification des programmes et options..................................37
Témoins lumineux ......................................................................37
Programmes...............................................................................38
Sons normaux ............................................................................40
Options et modificateurs............................................................40
Guide de lessivage.....................................................................41
CONSEILS DE LESSIVAGE..........................................................42
Chargement................................................................................42
Guide pour l'élimination des taches...........................................43
ENTRETIEN DE LA LAVEUSE .....................................................44
Nettoyage de la laveuse.............................................................44
Tuyaux d'arrivée d'eau...............................................................45
Précautions à prendre avant les vacances,
un entreposage ou un déménagement......................................45
DÉPANNAGE.................................................................................46
La laveuse et ses composants...................................................46
Fonctionnement de la laveuse ...................................................47
Soin des vêtements....................................................................49
ASSISTANCE OU SERVICE.........................................................50
Aux États-Unis............................................................................50
Au Canada..................................................................................50
GARANTIE.....................................................................................51
®
2
WASHER SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol.
This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”
These words mean:
You can be killed or seriously injured if you don't immediately
DANGER
WARNING
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
IMPORTANT SAFETY INSTRUCTIONS
WARNING:
including the following:
To reduce the risk of fire, electric shock, or injury to persons when using the washer, follow basic precautions,
follow instructions.
can be killed or seriously injured if you don't
You
instructions.
follow
■
Read all instructions before using the washer.
■
Do not wash articles that have been previously cleaned
in, washed in, soaked in, or spotted with gasoline,
dry-cleaning solvents, other flammable, or explosive
substances as they give off vapors that could ignite or
explode.
■ Do not add gasoline, dry-cleaning solvents, or other
flammable, or explosive substances to the wash water.
These substances give off vapors that could ignite or
explode.
■ Under certain conditions, hydrogen gas may be
produced in a hot water system that has not been used
for 2 weeks or more. HYDROGEN GAS IS
EXPLOSIVE. If the hot water system has not been
used for such a period, before using the washing
machine, turn on all hot water faucets and let the water
flow from each for several minutes. This will release
any accumulated hydrogen gas. As the gas is
flammable, do not smoke or use an open flame during
this time.
SAVE THESE INSTRUCTIONS
■
Do not allow children to play on or in the washer. Close
supervision of children is necessary when the washer is used
near children.
■ Before the washer is removed from service or
remove the door or lid.
■ Do not reach into the washer if the drum, tub or agitator is
moving.
■ Do not install or store the washer where it will be exposed to
the weather.
■ Do not tamper with controls.
■ Do not repair or replace any part of the washer or attempt any
servicing unless specifically recommended in this manual or in
published user-repair instructions that you understand and
have the skills to carry out.
■ See “Electrical Requirements” for grounding instructions.
discarded,
3
INSTALLATION REQUIREMENTS
Tool s and Parts
Gather the required tools and parts before starting installation.
The parts supplied are in the washer drum.
Tools needed for connecting the water inlet hoses
■ Pliers (that open to 1⁹⁄₁₆" [39.5 mm])
■ Flashlight (optional)
Tools needed for installation
■ Open end wrenches 14 mm and 13 mm
■ Level
■ Wood block
■ Ruler or measuring tape

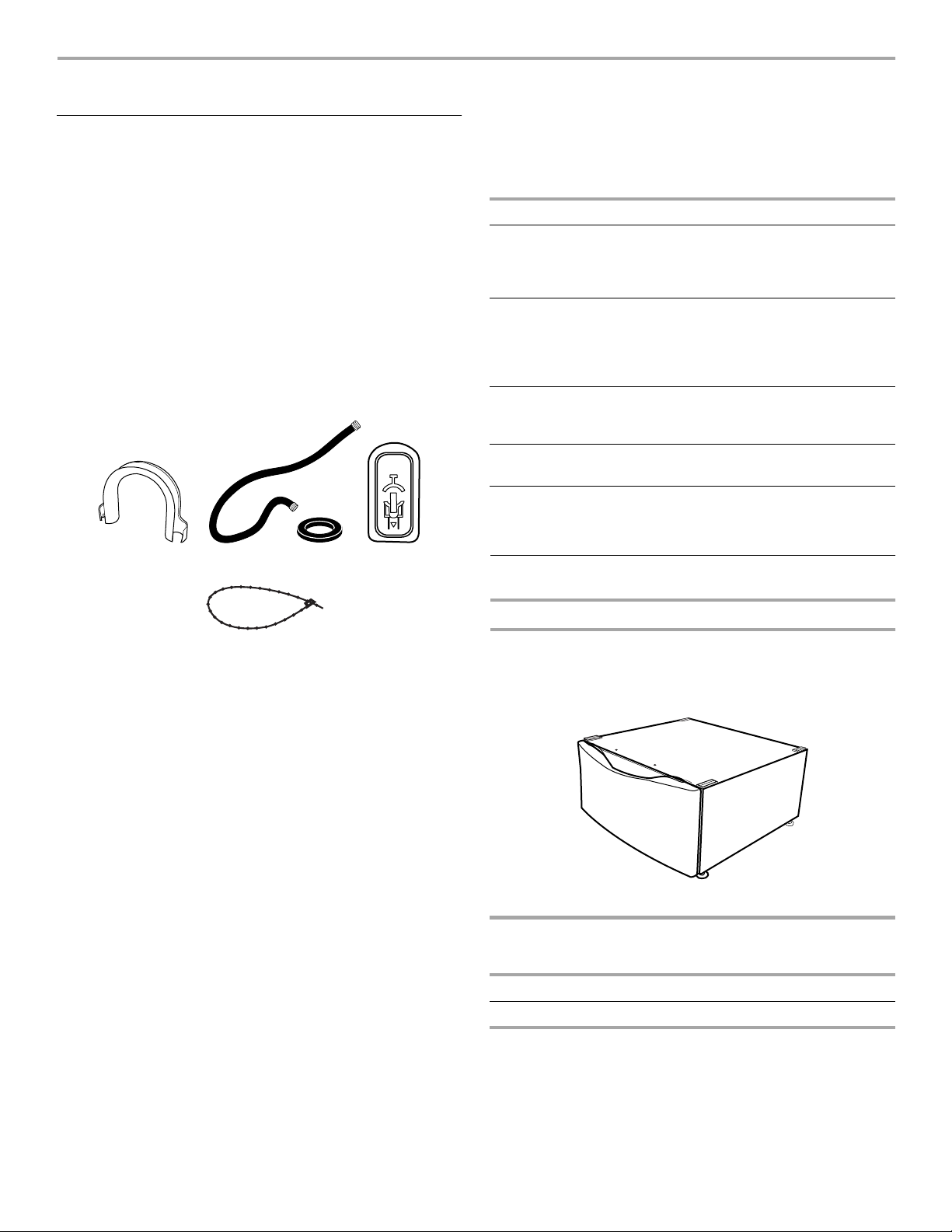

Parts supplied
AB C
D
Options
Pedestal
You have the option of purchasing pedestals of different heights
separately for this washer. You may select a 10" (25.4 cm) or a
15.5" (39.4 cm) pedestal. The pedestal will add to the total height
of the washer.
Optional pedestal
Pedestal
Height
10" (25.4 cm) 46" (116.8 cm) White WHP1000SQ
15.5" (39.4 cm) 51.5" (130.8 cm) White WHP1500SQ
Approximate
Height with
Washer
Color Model
Number
E
A. U-shaped hose form
B. Water inlet hoses (2)
C. Inlet hose washers (4)
D. Transit bolt hole
plug (4)
E. Beaded tie strap
Alternate Parts
Your installation may require additional parts. If you are interested
in purchasing one of the items listed here, call the toll-free
number on the cover or in the “Assistance or Service” section.
If You H ave You Wil l N eed to B uy
Laundry tub or
standpipe taller
than 96" (2.4 m)
Overhead sewer Standard 20 gal. (76 L), 30" (76.2 cm) tall
Floor drain Siphon break, Part Number 285834;
Drain hose too
short
Water faucets
beyond reach of fill
hoses
Sump pump system (if not already
available)
drain tub or utility sink and sump pump
(available from local plumbing suppliers)
additional drain hose
Part Number 8318155; and connector kit,
Part Number 2858835
4 ft (1.2 m) drain hose extension kit,
Part Number 2858863
2 longer water fill hoses:
6 ft (1.8 m) Part Number 76314
10 ft (3.0 m) Part Number 350008
Stack Kit
Are you planning to stack your washer and dryer? To do so you
will need to purchase a Stack Kit.
To order, call the dealer from whom you purchased your washer
or refer to the “Assistance or Service” section of this manual. Ask
for Part Number 8572546.
4

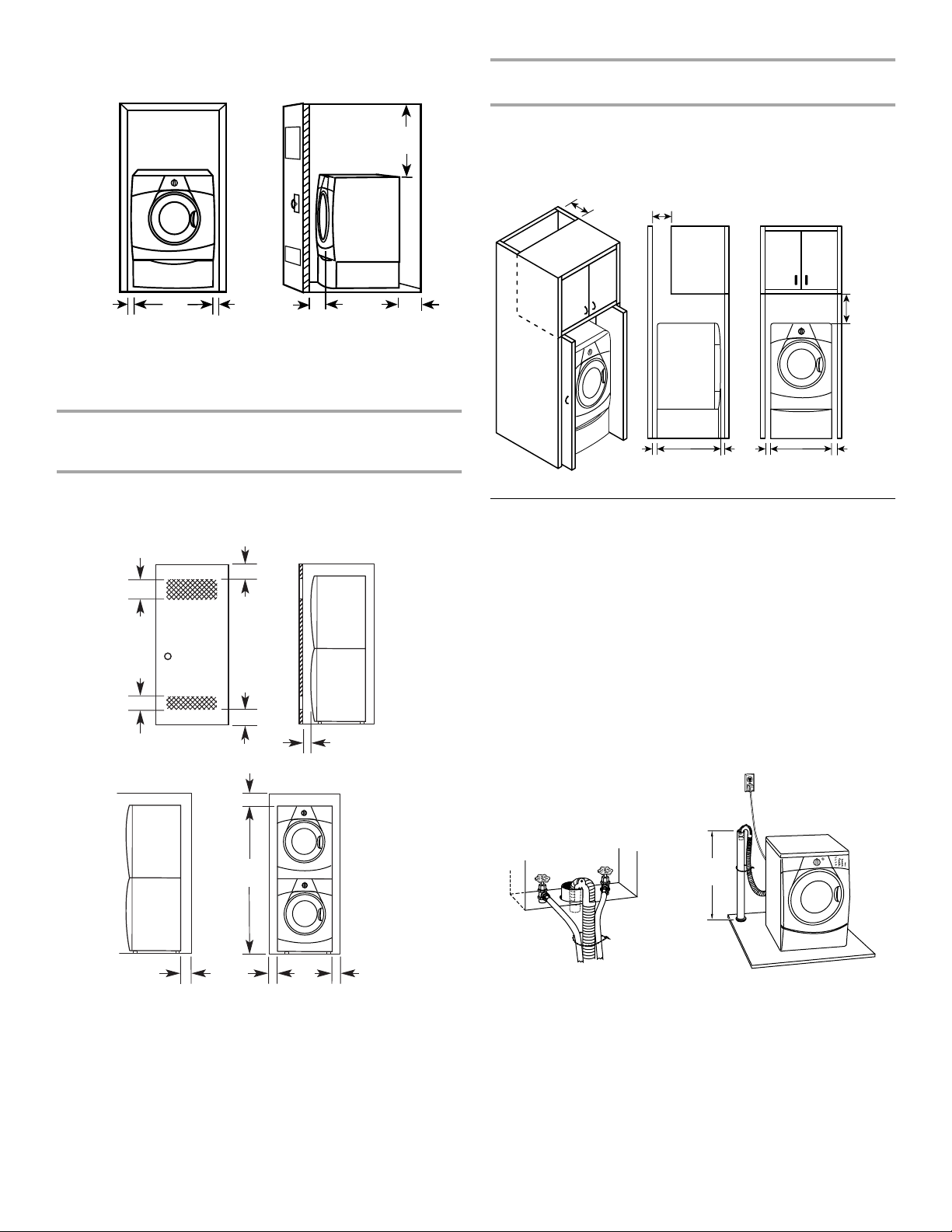

Location Requirements
Selecting the proper location for your washer improves
performance and minimizes noise and possible washer “walk.”
Your washer can be installed under a custom counter, or in a
basement, laundry room, closet, or recessed area. See “Drain
System.”
Companion appliance location requirements should also be
considered. Proper installation is your responsibility.
You will need
■ A water heater set to deliver 120°F (49°C) water to the
washer.
■ A grounded electrical outlet located within 6 ft (1.8 m) of
where the power cord is attached to the back of the washer.
See “Electrical Requirements.”
■ Hot and cold water faucets located within 4 ft (1.2 m) of the
hot and cold water fill valves, and water pressure of
20-100 psi (137.9-689.6 kPa).
■ A level floor with a maximum slope of 1" (2.5 cm) under entire
washer. Installing the washer on soft floor surfaces, such as
carpets or surfaces with foam backing, is not recommended.
■ A sturdy and solid floor to support the washer with a total
weight (water and load) of 400 lbs (180 kg).
Do not operate your washer in temperatures below 32°F (0°C).
Some water can remain in the washer and can cause damage in
low temperatures.
Installation clearances
■ The location must be large enough to allow the washer door
to be fully opened.
■ Additional spacing should be considered for ease of
installation and servicing. The door opens more than 90°, and
it is not reversible.
■ Additional clearances might be required for wall, door, and
floor moldings.
■ Additional spacing of 1" (2.5 cm) on all sides of the washer is
recommended to reduce noise transfer.
■ Companion appliance spacing should also be considered.

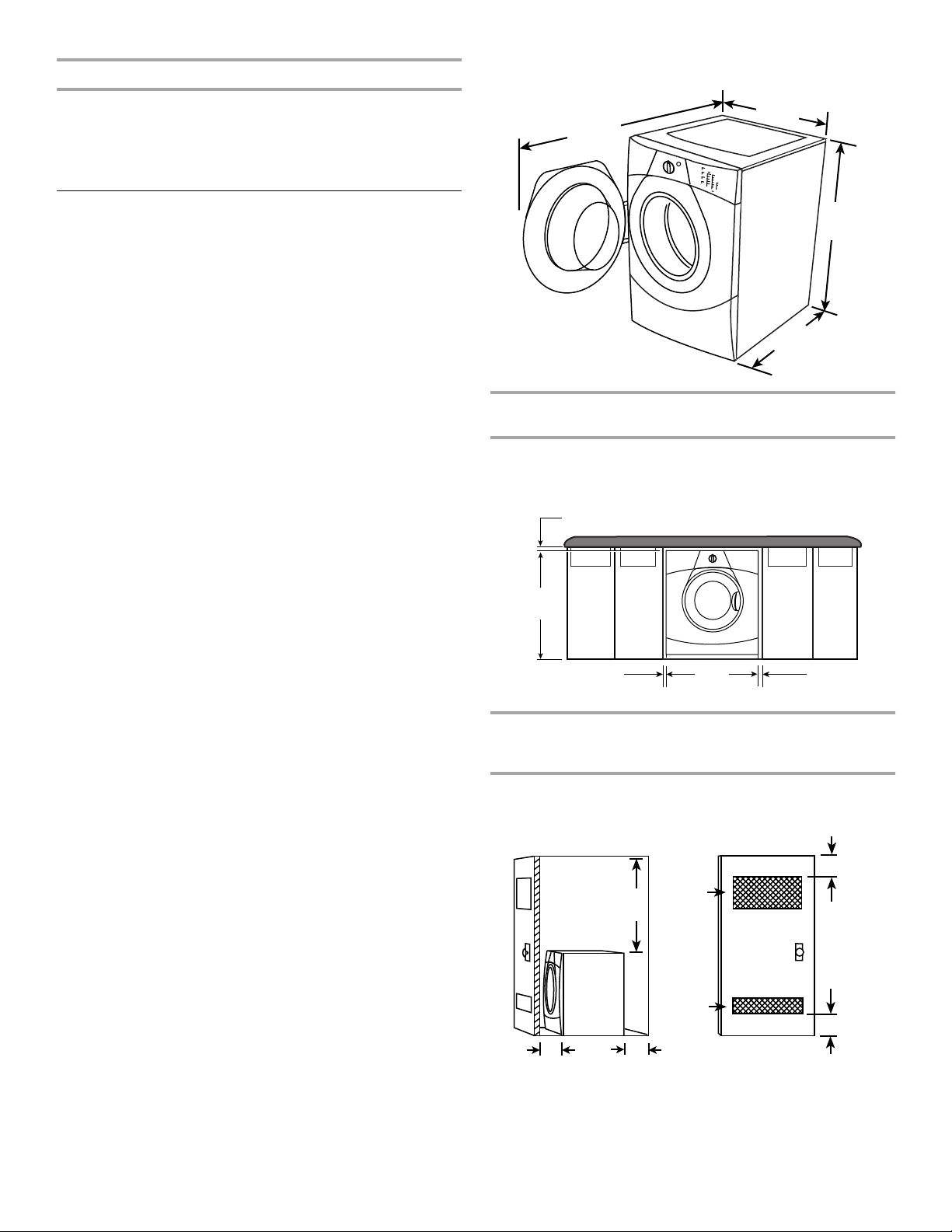

Washer Dimensions
27"
50¹⁄₄"
(127.6 cm)
(68.6 cm)
Recommended installation spacing for custom
undercounter installation
The dimensions shown are for the recommended spacing.
Custom undercounter installation - Washer only
2" (5 cm)
36" min.
(91.4 cm)
1"
(2.5 cm)
27"
(68.6 cm)
1"
(2.5 cm)
Recommended installation spacing for recessed or
closet installation, with or without a pedestal
The dimensions shown are for the recommended spacing.
Recessed area or closet installation
(7.6 cm)
2
48"
(122 cm)
1"
30
¹⁄₂"
(2.5 cm)
(77.5 cm)
4"
(10.2 cm)
A
A. Side view - closet or confined area
B. Closet door with vents
Recessed or closet installation - Washer on pedestal
48 in.
(310 cm2)
24 in.
(155 cm2)
2
(7.6 cm)
B
3"
3"
30¹⁄₂"
(77.5 cm)
36"
(91.4 cm)
1"
(2.5 cm)
38" min.
(96.5 cm)
27"
(68.6 cm)
1"
(2.5 cm)
(2.5 cm)
1"
30
¹⁄₂
"
(77.5 cm)
4"
(10.2 cm)
AB
A. Recessed area
B. Side view - closet or confined area
5
Recommended installation spacing for recessed or
closet installation, with stacked washer and dryer
The dimensions shown are for the recommended spacing.
48 in.2 *
2
)
(310 cm
3" (7.6 cm)
3" (7.6 cm)
2
24 in.
(155 cm2)
*
12" (30.5 cm)
72"
(182.9 cm)
1" (2.5 cm)
Drain System
The washer can be installed using the standpipe drain system
(floor or wall), the laundry tub drain system, or the floor drain
system. Select the drain hose installation method you need. See
“Tools and Parts.”
Standpipe drain system - wall or floor (views A & B)
The standpipe drain requires a minimum diameter standpipe of
2" (5 cm). The minimum carry-away capacity can be no less than
17 gal. (64 L) per minute.
The top of the standpipe must be at least 30" (76.2 cm) high and
no higher than 96" (2.4 m) from the bottom of the washer.
30" min.
(76.2 cm)
A
B
5¹⁄₄"**
(13.3 cm)
1"***
(2.5 cm)
27"
(68.6 cm)
1"***
(2.5 cm)
*Min. top and bottom air openings for closet door.
**External exhaust elbow requires additional space.
***Wall, door and floor molding may require additional spacing.
Recommended installation spacing for cabinet
installation
The dimensions shown are for the recommended spacing.
For cabinet installation, with a door, the minimum ventilation
openings in the top are required.
7" (17.8 cm)
7" (17.8 cm)
9"
(22.9 cm)
Laundry tub drain system (view A)
The laundry tub needs a minimum 20 gal. (76 L) capacity. The top
of the laundry tub must be at least 30" (76.2 cm) above the floor.
Floor drain system (view B)
The floor drain system requires a siphon break that may be
purchased separately. See “Tools and Parts.”
The siphon break must be a minimum of 28" (71 cm) from the
bottom of the washer. Additional hoses might be needed.
26" min.
30" min.
(76.2 cm)
AB
(66 cm)
4"
(10.2 cm)
31¹⁄₂"
(80.0 cm)
1"
(2.5 cm)1"(2.5 cm)1"(2.5 cm)
27"
(68.6 cm)
6
WARNING
Electrical Requirements
■ If codes permit and a separate ground wire is used, it is
recommended that a qualified electrician determine that the
ground path is adequate.
■ Do not ground to a gas pipe.
■ Check with a qualified electrician if you are not sure the
washer is properly grounded.
■ Do not have a fuse in the neutral or ground circuit.
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
■ A 120 volt, 60 Hz., AC only, 15- or 20-amp, fused electrical
supply is required. A time-delay fuse or circuit breaker is
recommended. It is recommended that a separate circuit
serving only this appliance be provided.
■ This washer is equipped with a power supply cord having a
3 prong grounding plug.
■ To minimize possible shock hazard, the cord must be
plugged into a mating, 3 prong, grounding-type outlet,
grounded in accordance with local codes and ordinances. If a
mating outlet is not available, it is the personal responsibility
and obligation of the customer to have the properly grounded
outlet installed by a qualified electrician.
GROUNDING INSTRUCTIONS
For a grounded, cord-connected washer:
This washer must be grounded. In the event of a malfunction
or breakdown, grounding will reduce the risk of electrical
shock by providing a path of least resistance for electric
current. This washer is equipped with a cord having an
equipment-grounding conductor and a grounding plug. The
plug must be plugged into an appropriate outlet that is
properly installed and grounded in accordance with all local
codes and ordinances.
WARNING:
grounding conductor can result in a risk of electric shock.
Check with a qualified electrician or serviceman if you are in
doubt as to whether the appliance is properly grounded.
Do not modify the plug provided with the appliance – if it will
not fit the outlet, have a proper outlet installed by a qualified
electrician.
For a permanently connected washer:
This washer must be connected to a grounded metal,
permanent wiring system, or an equipment grounding
conductor must be run with the circuit conductors and
connected to the equipment-grounding terminal or lead on
the appliance.
Improper connection of the equipment-
7
INSTALLATION INSTRUCTIONS

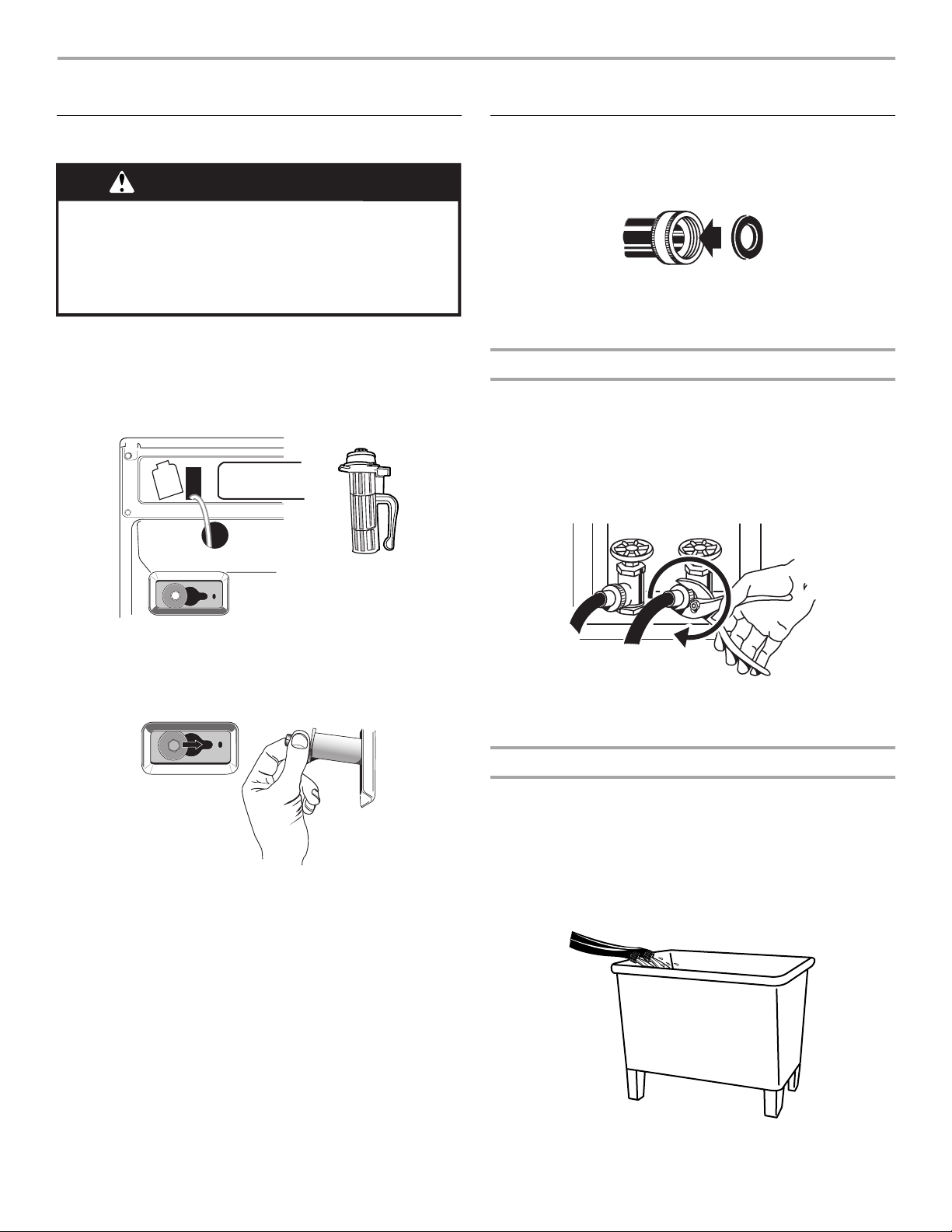

Remove Transport System
WARNING
Excessive Weight Hazard
Use two or more people to move and install washer.
Failure to do so can result in back or other injury.
IMPORTANT: Position the washer so that the rear of the washer
is within approximately 3 ft (90 cm) of its final location.
There are 4 blue bolts in the rear panel of the washer that support
the suspension system during transportation. These bolts also
retain the power cord inside the washer until the bolts are
removed.
Connect the Inlet Hoses
Insert new flat washers (supplied) into each end of the inlet
hoses. Firmly seat the washers in the couplings.
AB
A. Coupling
B. Washer
Connect the inlet hoses to the water faucets
Make sure the washer drum is empty.
1. Attach a hose to the hot water faucet. Screw on coupling by
hand until it is seated on the washer.
2. Attach a hose to the cold water faucet. Screw on coupling by
hand until it is seated on the washer.
3. Using pliers, tighten the couplings with an additional
two-thirds turn.
1. Using a 13 mm wrench, loosen each of the bolts.
2. Once the bolt is loose, move it to the center of the hole and
completely pull out the bolt, including the plastic spacer
covering the bolt.
3. Once all 4 bolts are removed, discard the bolts and spacers.
Then pull the power cord through the opening of the rear
panel and close the hole with the attached cap.
4. Close the bolt holes with the 4 transport bolt hole plugs.
NOTE: If the washer is to be transported at a later date, call your
local service center. To avoid suspension and structural damage,
your machine must be properly set up for relocation by a certified
technician.
NOTE: Do not overtighten or use tape or sealants on the valve.
Damage to the valves can result.
Clear the water lines
■ Run water through both faucets and inlet hoses, into a
laundry tub, drainpipe or bucket, to get rid of particles in the
water lines that might clog the inlet valve screens.
■ Check the temperature of the water to make sure that the hot
water hose is connected to the hot water faucet and that the
cold water hose is connected to the cold water faucet.
8
Connect the inlet hoses to the washer
Laundry tub drain or standpipe drain
Connect the drain hose form to the corrugated drain hose.
H
H. Hot water inlet
C. Cold water inlet
C
1. Attach the hot water hose to the washer’s hot (H) water inlet
valve. Screw on coupling by hand until it is seated on the
washer.
2. Attach the cold water hose to the washer’s cold (C) water
faucet. Screw on coupling by hand until it is seated on the
washer.
3. Using pliers, tighten the couplings with an additional
two-thirds turn.
NOTE: Do not overtighten. Damage to the coupling can
result.
4. Turn on the water faucets completely and check for leaks.
NOTE: Replace inlet hoses after 5 years of use to reduce the
risk of hose failure. Record hose installation or replacement
dates on the hoses for future reference.
Periodically inspect and replace hoses if bulges, kinks, cuts,
wear, or leaks are found.
AB
A. Snap either end of the drain hose form to the drain hose at the
point where the corrugation begins.
B. Bend drain hose over drain hose form and snap into place.
To keep drain water from going back into the washer:
■ Do not straighten the drain hose, and do not force excess
drain hose into standpipe. Hose should be secure, but loose
enough to provide a gap for air.
■ Do not lay excess hose on the bottom of the laundry tub.
Floor drain
You may need additional parts. See Floor drain under “Tools and
Parts.”
Secure the Drain Hose
1. Drape the power cord over the washer top.
2. Move the washer to its final location.
3. Place the drain hose in the laundry tub or standpipe as
shown. See illustrations A and B.
Route the Drain Hose
Proper routing of the drain hose protects your floor from damage
due to water leakage. Read and follow these instructions.
Remove drain hose from the washer
Gently pull the corrugated drain hose from the shipping clips.
AB C
4. If the washer faucets and the drain standpipe are recessed,
put the hooked end of the drain hose in the standpipe as
shown. See illustration C.

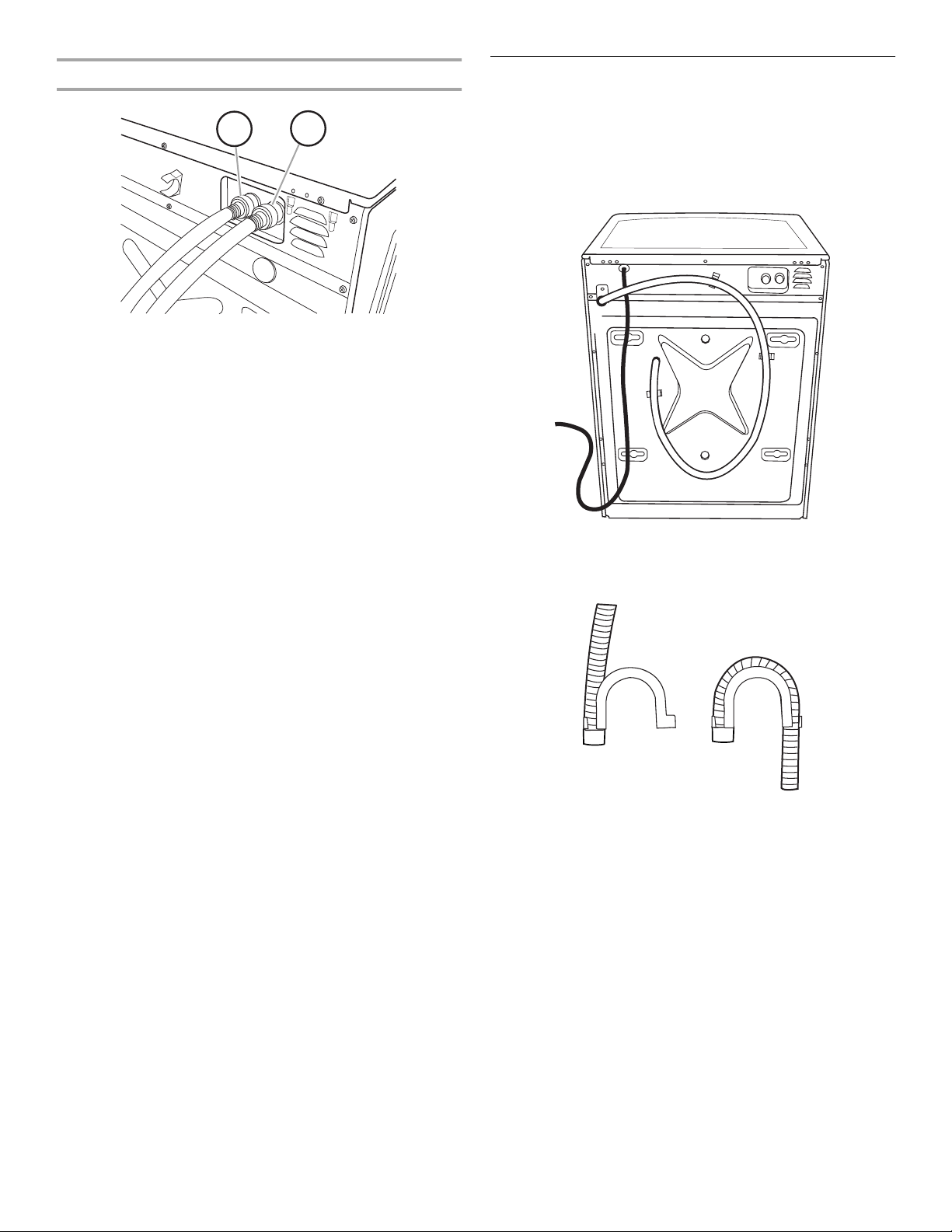

NOTES:
■ Do not force excess drain hose back into the rear of the
washer.
■ To avoid siphoning, do not seal the drain hose into the
standpipe.
9

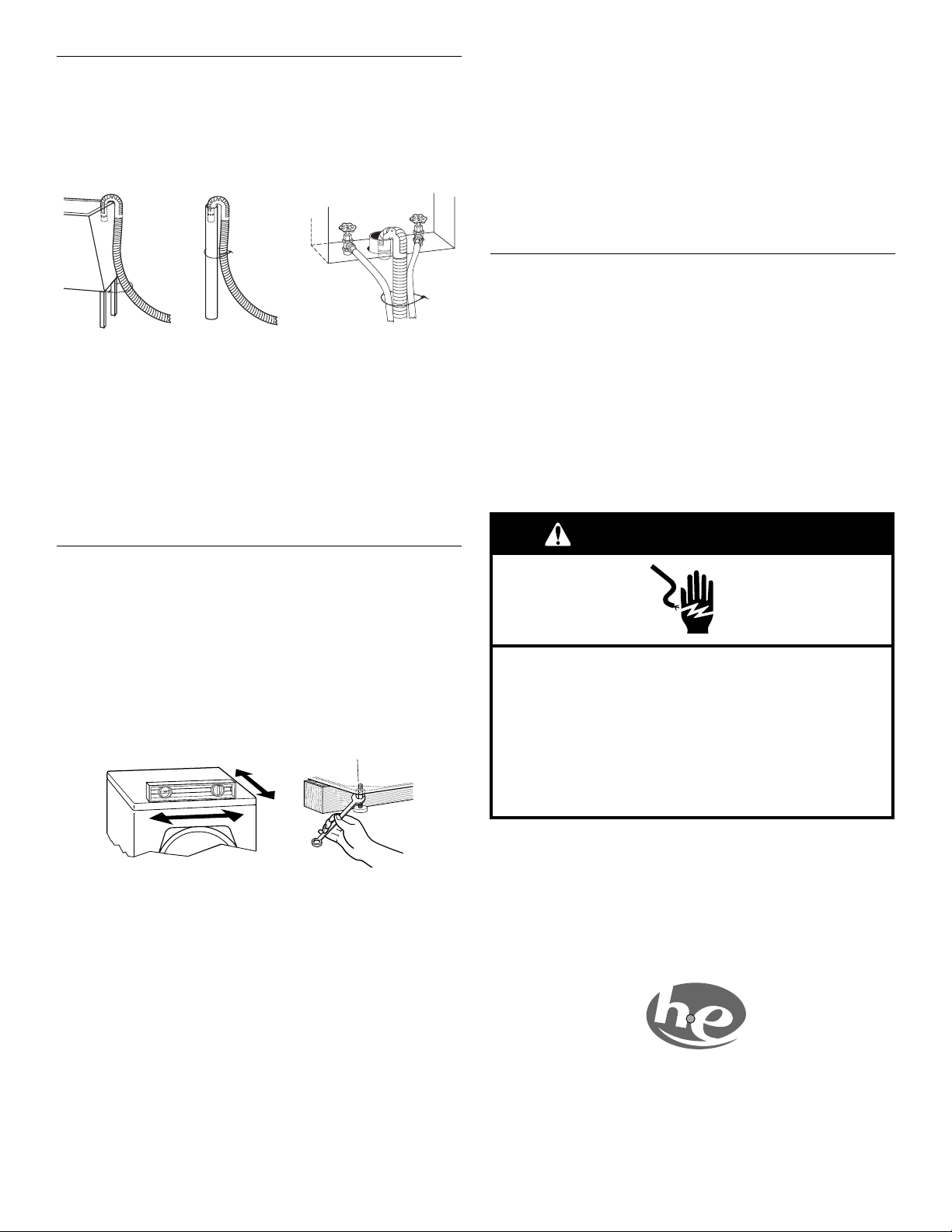

Level the Washer
The right front foot has been installed at a different height on your
new washer. The other three feet were preset at the factory.
Properly leveling your washer will minimize excessive noise and
vibration.
1. Push on the upper front panel to be sure that the washer is on
the rear feet. Lower the right front foot until it contacts the
floor. Check the levelness of the washer by placing a level on
the top edge of the washer, first side to side, then front to
back.
If the washer is against a wall, move the washer out slightly
before tipping back. First prop the front with a wood block
and adjust the feet as necessary; then prop the back and
adjust feet as necessary. Repeat this step until washer is
level.
2. Make sure that all four feet are stable and resting on the floor.
Then check that the appliance is perfectly level (use a level).
3. After the washer is level, use a 14 mm open-end wrench to
turn the nuts on the feet tightly against the washer cabinet.
IMPORTANT: All four feet must be tightened. If the nuts are
not tight against the washer cabinet, the washer may vibrate.
4. When you are pushing on the edges of the washing machine
top plate, the machine should not move front to back, side to
side, or diagonally.
5. Slide the washer to its final location.
6. Confirm the levelness of the washer.
Complete Installation
1. Check the electrical requirements. Be sure that you have the
correct electrical supply and the recommended grounding
method. See “Electrical Requirements.”
2. Check that all parts are now installed. If there is an extra part,
go back through the steps to see which step was skipped.
3. Check that you have all of your tools.
4. Dispose of/recycle all packaging materials.
5. Check that the water faucets are on.
6. Check for leaks around faucets and inlet hoses.
WARNING
Electrical Shock Hazard
Plug into a grounded 3 prong outlet.
Do not remove ground prong.
Do not use an adapter.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
7. Plug into a grounded 3 prong outlet.
8. Read “Washer Use.”
9. To test and to clean your washer, measure ¹⁄₂ the detergent
manufacturer’s recommended amount of HE High Efficiency
detergent for a medium-size load. Pour the detergent into the
detergent dispenser. Select NORMAL/CASUAL, and then
select START. Allow the washer to complete one whole cycle.
10
Use only HE High Efficiency detergent.
FEATURES AND BENEFITS
Your new front-loading high efficiency washer, was designed to
conserve resources and lower your water and energy bills. The
washer is designed to determine and then provide the amount of
water needed for the best performance. The time of operation
may be greater for this new system than for a conventional
washer.
Electronic Controls
Flexible electronic controls are easy to use whether you are a
beginner or an expert.
Auto Water Level
Adjusting to the size of the load, this feature allows the washer to
use the minimal amount of water needed to clean and rinse the
clothes. With a low water level, you can obtain the same results
with smaller amounts of additives. Because only the required
amount of water is used, the washer saves energy, too. You can
obtain the same washing results for small and large load sizes.
Larger Load Size
Since there is no agitator, you can wash larger, bulkier items such
as an average size sleeping bag. You are also able to wash more
clothes at one time, which means fewer loads. You can wash a
pillow or a large stuffed teddy bear.
Suspension System
To reduce washer “walk” and “off-balance” conditions, your new
washer combines:
■ 2 Springs to isolate vibration
■ 4 Shock absorbers at the washer base to minimize movement
Stainless Steel Drum
The stainless steel drum eliminates corrosion and enables higher
spin speeds for more water extraction, reducing drying time.
Spin Speeds
This washer automatically selects the spin speed based on the
cycle selected. For some cycles, the default spin speed can be
changed if desired. This washer offers up to three different spin
speed choices.
Add A Garment
This option is available in all wash cycles except Rinse/Spin,
Drain/Spin, and Clean Washer. When this option is available at
the beginning of the cycle the Add A Garment status light will
illuminate for the first 7 minutes. This washer allows a 7-minute
period in which forgotten garments may be added to a load.
Dynamic Balance
A precision balancing system allows the washer to reach highspeed spins. The washer spins faster so that clothes coming out
of the washer will have less moisture than with traditional top
load machines. In addition, if the Dynamic Balance system
detects off-balance loads during spinning, it redistributes the
clothes so that they are evenly balanced.
Smart Dispensers
The three compartments in the dispenser allow loading of all
laundry additives before the washer is started. The additives will
be dispensed into the wash at the optimal time for highperformance cleaning. The bleach release system is included in
the detergent advantage system. The detergent is added at the
beginning of the cycle, and the bleach is added after the
enzymes have had a chance to do their cleaning. The fabric
softener is dispensed in the rinse cycle or in the EXTRA RINSE, if
selected. The Detergent Advantage System Dispenser tray is
easily removed for cleaning.
Adaptive Variable Speed Motor
The motor adapts to the load size and to the cycle selected to
give the optimum cleaning, rinsing, and spinning conditions. The
motor can handle slow speeds needed for delicate items and is
powerful enough to drive an average clothes load up to highspeed spin.
Use only HE High Efficiency detergent.
11

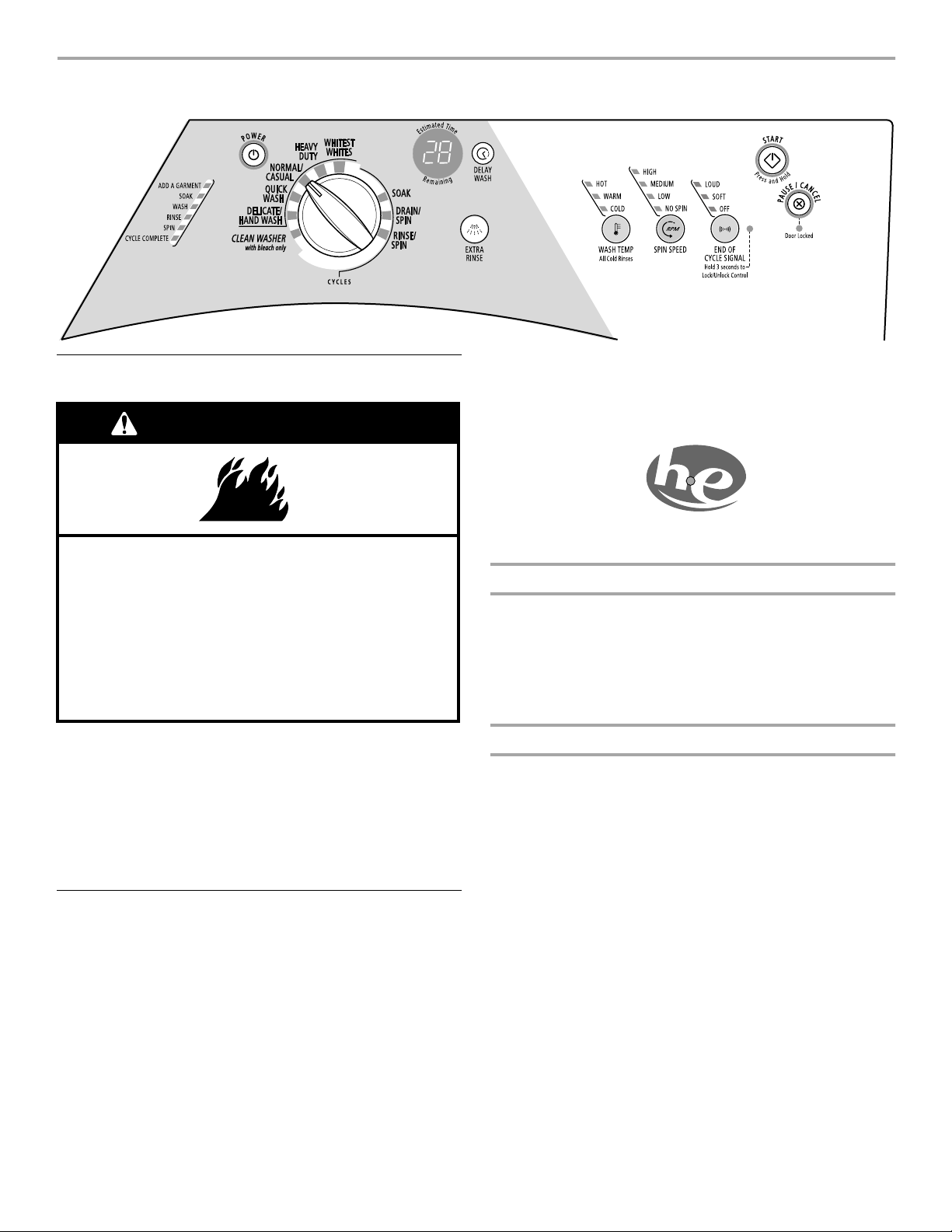

WASHER USE
Starting Your Washer
WARNING
Fire Hazard
Never place items in the washer that are dampened
with gasoline or other flammable fluids.
No washer can completely remove oil.
Do not dry anything that has ever had any type of oil on
it (including cooking oils).
Doing so can result in death, explosion, or fire.
WARNING: To reduce the risk of fire, electric shock, or injury to
persons, read the IMPORTANT SAFETY INSTRUCTIONS before
operating this appliance.
The following is a guide to using your washer. Please refer to
specific sections of this manual for more detailed information.
Do not store laundry additives on the top surface of this washer.
Vibration is normal during operation.
Using the Proper Detergent
Use only High Efficiency detergents. The package for this type of
detergent will be marked “HE” or “High Efficiency.” This wash
system, along with less water, will create too much sudsing with a
regular non-HE detergent. Using regular detergent will likely result
in washer errors, longer cycle times, and reduced rinsing
performance. It may also result in component failures and
noticeable mold or mildew. HE detergents are made to produce
the right amount of suds for the best performance. Follow the
manufacturer's instructions to determine the amount of detergent
to use.
Use only HE High Efficiency detergent.
First Wash Cycle Without Laundry
Before washing clothes for the first time, if not completed during
the final installation step, choose the Normal/Casual cycle and
run it without clothes. Use only HE High Efficiency detergent. Use
¹⁄₂ the manufacturer’s recommended amount for a medium-sized
load. This initial cycle serves to ensure the interior is clean before
washing clothes.
For All Wash Cycles
1. To load washer
Open the washer door by pulling on the handle. Sort laundry
according to color and type of fabric. Place a load of sorted
clothes in the washer. Do not overload washer. Overloading
can cause poor cleaning.
■ The washer can be fully loaded, but not tightly packed.
Washer door should close easily.
■ Mix large and small items. Avoid washing a single item.
Load evenly.
■ Wash small items such as infant socks in mesh garment
bags. It is recommended that more than one garment bag
be used and that each garment bag be filled with equal
amounts of material.
■ When unloading garments, occasionally check under the
rubber rim at the front of the tub for small items.
2. Close the washer door by pushing it firmly until the lock
clicks. The washer door will remain locked during the wash
cycle.
NOTE: After any wash cycle is completed, the door must be
opened and then closed before a new cycle can begin. The
door can be opened only if PAUSE/CANCEL is selected while
the ADD A GARMENT light is illuminated or if the cycle has
been canceled. See “To cancel a cycle” in the “Changing
Cycles and Options” section.
3. Open the dispenser drawer and add laundry additives to the
detergent, bleach, or fabric softener compartments. Close
drawer slowly to avoid spills. See “Using the Dispenser.”
4. Turn on the washer by selecting POWER. Select one of the
cycles by turning the cycle selector. The indicator light for the
selected cycle will illuminate. When selecting a Wash Cycle,
the preset Modifiers and Options, Water Temp, and Spin
Speed for the selected cycle will illuminate. The preset
settings provide the recommended fabric care for the
selected cycle. See “Wash Cycles.”
5. Select the desired OPTIONS. Not all Options are available
with all cycles. See “Options.”
12
6. If desired, select the END OF CYCLE SIGNAL. The signal is
C
D
helpful when you are washing items that should be removed
from the washer as soon as it stops. Press END OF CYCLE
SIGNAL to select LOUD, SOFT or OFF.
7. To begin the wash cycle immediately
Select and hold START (for approximately 1 second).
■ If you do not select START within 5 minutes of choosing a
cycle, the washer automatically shuts off.
■ When the wash cycle is complete, the CYCLE
COMPLETE status light illuminates, the door unlocks, and
the wash load can be removed from the washer. The
washer powers down automatically 5 minutes after the
cycle is complete and the CYCLE COMPLETE light goes
off. To power down the washer manually after the wash
cycle is complete, select PAUSE/CANCEL once.
8. To begin the wash cycle later
Select DELAY WASH until the desired delay time (in hours) is
displayed. Select START. The countdown to the wash cycle
will show in the display window.
IMPORTANT: When delaying a cycle, use only powdered
detergents in the main wash compartment since liquid
detergents may seep out of the compartment during Delay,
before the wash cycle begins.

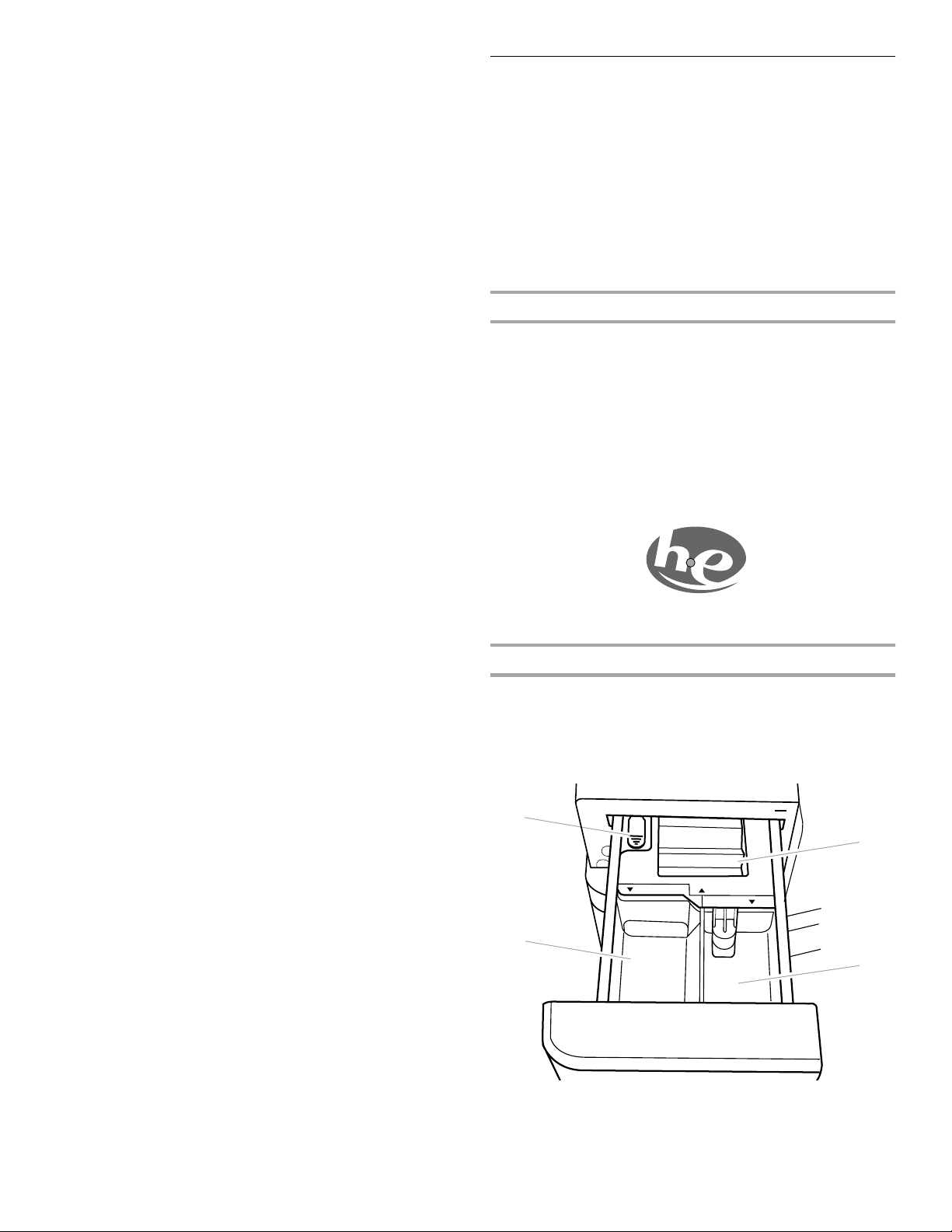

Using the Dispenser
Your new washer has a dispenser drawer with three separate
compartments for your laundry additives—one is for detergent,
one is for liquid chlorine bleach, and one is for liquid fabric
softener. Laundry additives are diluted and dispensed
automatically at the proper time during the wash cycle, making it
unnecessary for you to return to the washer during the cycle to
add them.
It is normal for small amounts of water to remain in the
dispensers when the wash cycle is complete.
Do not put laundry additives directly into the wash tub. Always
use the proper dispensers when adding laundry additives.
Choosing the Right Detergent
Use only High Efficiency detergents. The package for this type of
detergent will be marked “HE” or “High Efficiency.”
system, along with less water, will create too much sudsing with a
regular non-HE detergent. Using regular detergent will likely result in
washer errors, longer cycle times, and reduced rinsing performance.
It may also result in component failures and noticeable mold or
HE detergents are made to produce the right amount of
mildew.
suds for the best performance. Follow the manufacturer's
instructions to determine the amount of detergent to use.
Use only HE High Efficiency detergent.
This wash
To fill dispenser compartments
1. Pull out the dispenser drawer.
2.
Add the desired laundry additives to the proper compartment.
3. Push in the dispenser drawer slowly and completely (to avoid
a spill).
A
MAX
DETERGENT
B
Dispenser
A. Dispenser release lever
B. Main Wash detergent compartment
C. Liquid chlorine bleach compartment
D. Fabric softener compartment
LIQUID BLEACH
SOFTENER
MAX
Main Wash detergent compartment
(Letter B in Dispenser Illustration)
Add liquid or powdered HE detergent to this compartment for
your main wash cycle.
■ Powdered color-safe bleach may be added to the Main Wash
compartment along with the powdered detergent.
■ Powdered detergent: Measure the amount of powdered
detergent with the measurement device which comes with
the detergent. Add no more than the manufacturer's
recommended amount.
NOTE: Overfilling could cause an oversudsing condition.
Chlorine bleach compartment
(Letter C in Dispenser Illustration)
Add NO MORE THAN ²⁄₃ cup (160 mL) liquid chlorine bleach to
this compartment. The bleach will be automatically diluted and
dispensed at the best time during the first rinse after the wash
cycle. This compartment cannot dilute powdered bleach.
■ Use only liquid chlorine bleach in this dispenser. Do not use
this dispenser to add powdered chlorine or any form of colorsafe bleach to your load.
■ Always measure liquid chlorine bleach. Use a measuring cup
with a pour spout; do not guess. Follow the manufacturer’s
directions for proper use.
■ Do not fill beyond the “MAX” level.
NOTE: Overfilling could cause garment damage.
Fabric softener compartment
(Letter D in Dispenser Illustration)
Add ¼ cup (60 mL) liquid fabric softener to this compartment.
Fabric softener will be automatically dispensed in the final rinse
or in the EXTRA RINSE, if selected.
■ Do not fill beyond the “MAX” level.
13
Pausing or Restarting
1. To pause the washer at any time, select PAUSE/CANCEL.
2. To continue the cycle, select and hold START (for
approximately 1 second).
Changing Cycles and Options
Not all Options are available with all Cycles.
Cycles and Options can be changed anytime before START is
selected.
To stop a cycle and select a new cycle
1. Select PAUSE/CANCEL once.
2. Select desired cycle.
3. Select the desired OPTIONS.
4. Select and hold START (for approximately 1 second) to restart
the washer at the beginning of the new cycle.
To cancel a cycle
1. Select PAUSE/CANCEL twice.
2. The washer powers down, the door unlocks, and clothes can
be removed.
NOTE: If the water level or the temperature is too high, the
washer will drain automatically before the door unlocks.
To add items
1. Select PAUSE/CANCEL. The washer door unlocks, and items
can be added.
2. To continue the cycle, close the door and select and hold
START (for approximately 1 second).
3. To unlock the door after the Add a Garment period, press
PAUSE/CANCEL twice. This will cancel the Wash Cycle.
Cycle Complete
The Cycle Complete light stays on for 5 minutes after the cycle is
complete. The washer will then power down.
Locking controls
The Control Lock avoids unintended use of the washer. You can
also use the control lock feature to avoid unintended cycle or
option changes during a cycle. When CONTROL LOCKED is lit,
all buttons are disabled except for PAUSE/CANCEL and START.
You can lock the controls while the washer is operating.
To lock the controls
Select and hold END OF CYCLE SIGNAL for 3 seconds.
To change Options after the cycle has started
1. Select PAUSE/CANCEL once.
2. Select the desired OPTIONS. If the option is not available, the
machine will beep.
3. Select and hold START (for approximately 1 second) to
continue the cycle.
To drain the washer manually
1. Select PAUSE/CANCEL.
2. Select DRAIN/SPIN.
3. Select and hold START (for approximately 1 second) to begin
the drain.
4. When the spin is complete, the door unlocks. Items can be
removed from the washer.

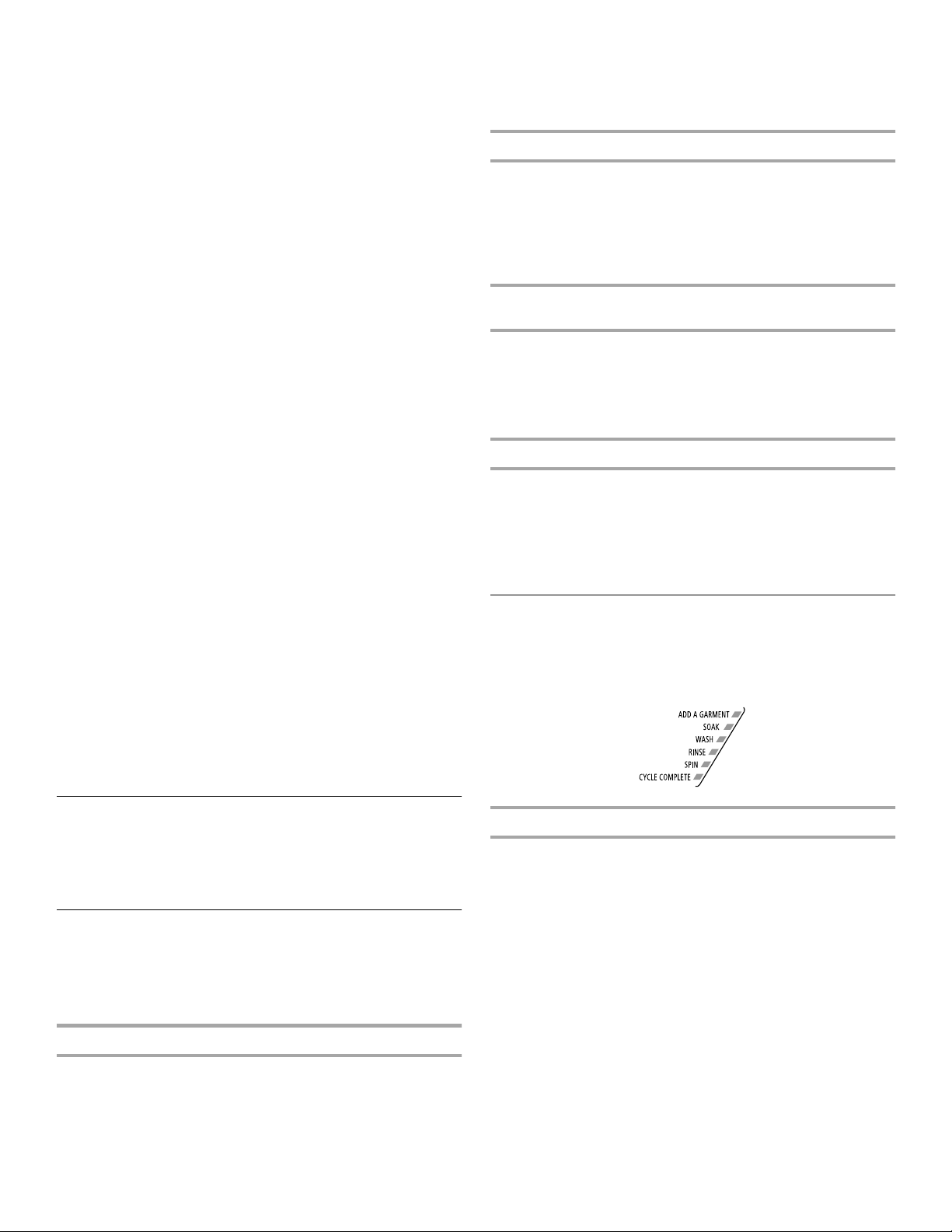

Status Lights
These lights show which portion of the cycle the washer is
operating. They also indicate when you can add an additional
item to the wash cycle and when the controls are locked.
The CONTROL LOCKED status light illuminates.
To unlock the controls
Select and hold END OF CYCLE SIGNAL for 3 seconds until the
CONTROL LOCKED Status light turns off.
Estimated Time Remaining
The cycle times vary automatically based on your water pressure,
water temperature, detergent, and clothes load. The cycle time
will be extended if oversudsing occurs or the load is unbalanced.
The SUDs routine removes extra suds and assures proper rinsing
of your garments. The options you select will also affect the cycle
times that are shown in the Preset Cycle Settings table. The
Estimated Time Remaining can change up to 30 minutes under
extreme conditions.
Door Locked
When the status light illuminates, the door is locked. The door is
locked and unlocked automatically, depending on the stage of
the wash cycle.
Adding items
You can add items to the washer after the wash cycle has
started, if the ADD A GARMENT status light is illuminated. All
cycles have this feature except Rinse/Spin, Drain/Spin, and
Clean Washer.
14

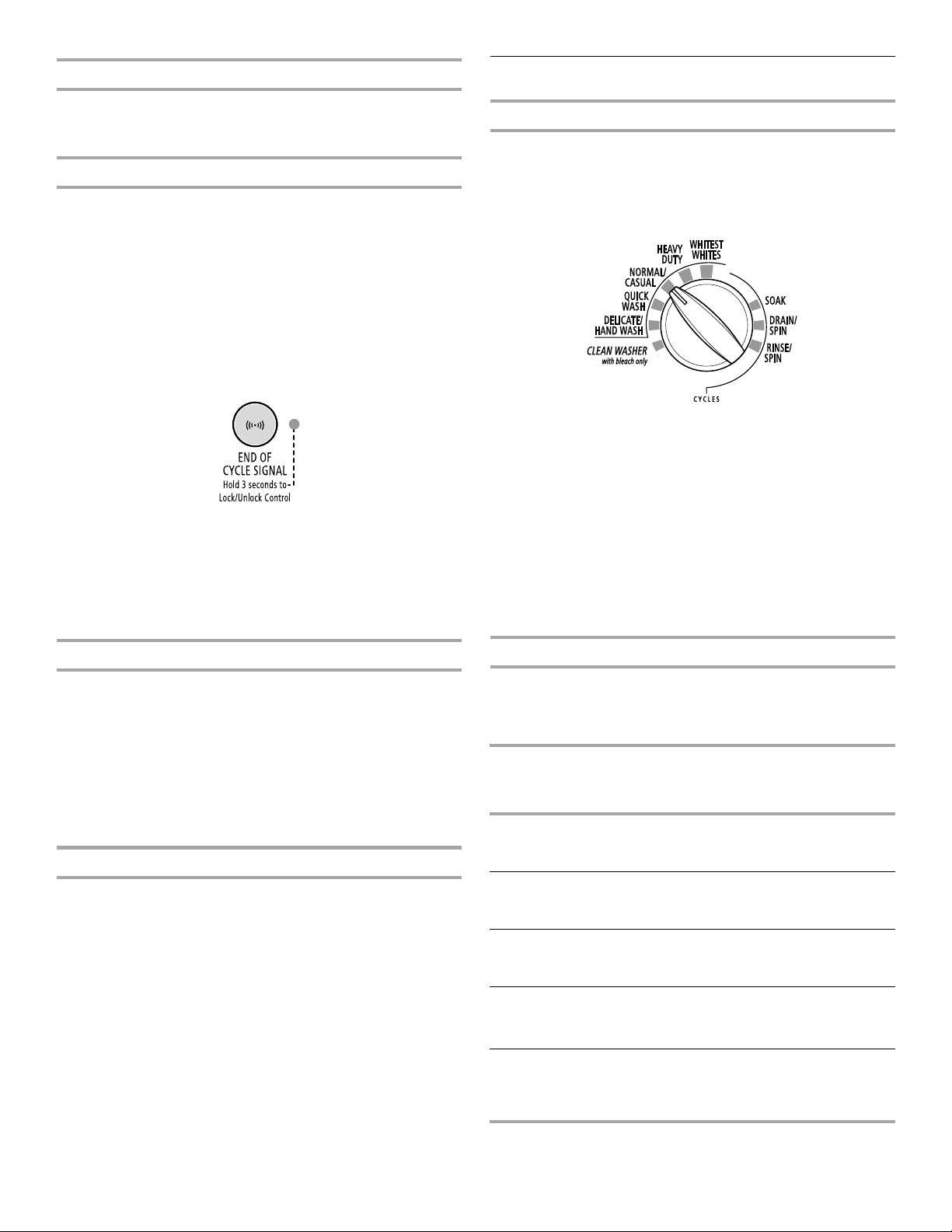

Cycles
Wash Cycles
Choose Wash Cycles by rotating the Cycle selector knob to the
desired cycle. The indicator light for the cycle selected will
illuminate. Each cycle is designed for different types of fabric and
soil levels.
■ Each cycle has a preset cycle time, WASH TEMP, SPIN
SPEED, and may have preset Options. The preset settings
provide the recommended fabric care for the selected cycle.
■ The preset settings can be changed anytime before START is
selected. Not all Options and Modifiers (WASH TEMP, SPIN
SPEED) are available with all Cycles. To change settings after
the cycle has started, select PAUSE/CANCEL, then select the
desired settings. Select and hold START (for approximately
1 second) to continue the cycle.
Preset Cycle Settings
Each cycle has a preset Cycle Time, WASH/RINSE TEMP, and
SPIN SPEED. The preset settings provide the recommended
fabric care for the selected cycle. See chart.
Cycle
Estimated
Time*
Wash Temp Spin Speed
(hr:min)
Whitest Whites 2H Hot High
Heavy Duty 0:87 Hot High
Normal/Casual 0:54 Warm High
Quick Wash
(2-3 items)
Delicate/
Hand Wash
Clean Washer 0:56 N/A High
Rinse/Spin 0:26 Cold High
Drain/Spin 0:14 N/A High
Soak 0:30 Warm No Spin
*The cycle times vary automatically based on your water
pressure, water temperature, detergent, and clothes load. The
cycle time will be extended if oversudsing occurs or the load is
unbalanced.
0:28 Warm High
0:37 Cold Low
Whitest Whites
This cycle is especially designed for cleaning loads of soiled
white fabrics with the addition of bleach. Hot washing
temperatures assure optimal bleach activity. An additional rinse
provides optimal rinse performance to avoid chlorine residues on
your laundry. This cycle combines fast-speed tumbling, longer
wash time, and high-speed spin to shorten drying time. It also
includes Extra Rinse as a preset setting.
Heavy Duty
Use this cycle to wash loads of sturdy, colorfast fabrics and
Heavy soiled garments. This cycle combines fast-speed
tumbling, longer wash time, and high-speed spin to shorten
drying times.
Normal/Casual
Use this cycle to wash loads of no-iron fabrics such as sport
shirts, blouses, casual business clothes, permanent press
blends, cottons and linens, and synthetic fabrics. This cycle
combines medium-speed tumbling, high-speed spin, and a load
cooling process to reduce wrinkling.
Quick Wash
Use this cycle to wash small loads of 2-3 lightly soiled garments
that are needed in a hurry. This cycle combines fast-speed
tumbling, a shortened wash time, and high-speed spin to shorten
drying time. Large wash loads will result in the machine
increasing the wash time.
Delicate/Hand Wash
Use this cycle to wash sheer fabrics, lingerie, hand washable,
and special-care garments. This cycle combines low-speed
tumbling and low-speed spin for gentle fabric care.
■ Use mesh garment bags to wash undergarments such as
underwire bras, items with strings, and small items such as
socks.
Clean Washer
Use the Clean Washer cycle once a month to keep the inside of
your washer fresh and clean. This cycle uses a higher water level
in combination with liquid chlorine bleach to thoroughly clean the
inside of your washing machine. See “Cleaning Your Washer.”
IMPORTANT: Do not place garments or other items in the washer
during the Clean Washer cycle. Use this cycle with an empty
wash drum.
Rinse/Spin
Use this cycle to get a rinse and spin only. This cycle combines
fast-speed tumbling and high-speed spin. If desired, you can
reduce the spin speed by selecting the speed you want from the
SPIN SPEED modifier.
Rinse & Spin is useful for:
■ Loads that need rinsing only.
■ Adding fabric softener to a load using the fabric softener
dispenser.
15
Drain/Spin
Delay Wash
Use this cycle to drain your washer or to drain and spin your
wash load. The spin speed is preset to HIGH. If desired, you can
reduce the spin speed by selecting the speed you want from the
SPIN SPEED modifier.
NOTE: Loads of synthetics, delicate fabrics, handwashables, and
woolens should be drained with no spin or low spin to avoid
fabric stress.
Soak
Use the Soak cycle to help remove small spots of set-in stains on
fabrics. This cycle provides a soak time with warm or cold water,
followed by drain. Extra water, a short tumbling phase for equal
distribution of the laundry, and a soaking time without drum
movement, to help improve the removal of set-in stains. Drain
without spin assures gentle treatment, even for delicate items.
Normal Sounds
As with any new product, you will hear sounds that you are not
accustomed to. You may hear various sounds when the door is
locked or unlocked, and during the washing, rinsing, or spinning
process. Between changes in wash actions, there will be
momentary pauses. You will hear water spraying and splashing
during the wash and rinse cycles. These new sounds and pauses
are part of normal washer operation. See “Troubleshooting.”

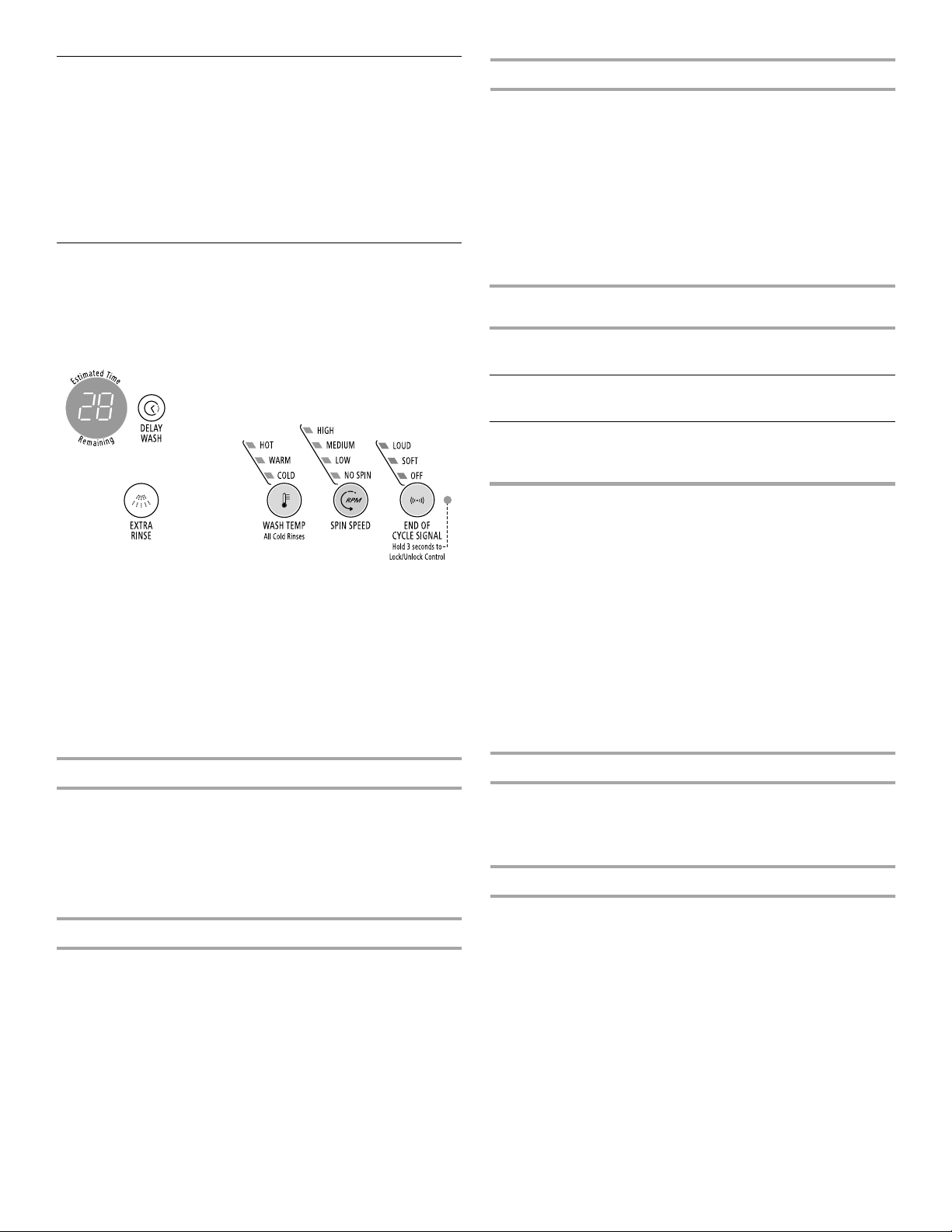

Options and Modifiers
You can customize your wash by adding options to your cycle
selections. You can add or change an option after starting a cycle
anytime before the selected option begins. Not all Options are
available with all cycles.
Use this to begin the wash cycle later.
■ Select DELAY WASH until the desired time (in hours) shows in
the Estimated Time Remaining display.
■ Select START. The countdown to the wash cycle will show in
the display window.
Extra Rinse
An extra rinse can be used to aid in the removal of detergent or
bleach residue from garments. This option provides an additional
rinse with the same water temperature as in the normal rinse. It is
a preset setting for the Whitest Whites cycle. You may select or
deselect by pressing EXTRA RINSE.
Wash Temp
Each cycle has a preset water temperature setting. To change the
water temperature, select the WASH TEMP button until the
desired setting is illuminated.
Select a water temperature based on the type of load you are
washing. Use the warmest wash water safe for fabrics. Follow
garment label instructions.
The water temperature for all rinse cycles is cold. Cold rinses
save energy.
Temperature Guide
Wash Water Temperature Suggested Fabrics
HOT Whites and pastels
Heavy soils
WARM Bright colors
Moderate to light soils
■ See the “Laundry Guide” section for an overview of possible
options for each Wash Cycle selection.
■ If an option is available with a selected cycle, the light for that
option will illuminate when selected.
■ If an option is unavailable with a selected cycle, there will be a
short tone and the light for that option will not illuminate when
selected.
COLD Colors that bleed or fade
Light soils
In wash water temperatures colder than 60°F (15.6°C),
detergents do not dissolve well. Soils may be difficult to remove.
Auto Temp Control
ATC (Auto Temp Control) electronically senses and maintains a
uniform water temperature. ATC regulates incoming hot and cold
water. The ATC is automatically turned ON when a cycle is
selected. See Preset Cycle Settings table in “Cycles.”
■ ATC works for the wash temperature with Warm and Cold
settings.
■ The Cold rinse temperatures depend on the cold water at
your faucet.
SPIN SPEED
Each cycle has a preset SPIN SPEED. To change the spin speed,
select the SPIN SPEED button until the desired setting is
illuminated.
End of Cycle Signal
This signal is helpful when you are removing items from the
washer as soon as it stops. Select ON or OFF.
16
Loading...
