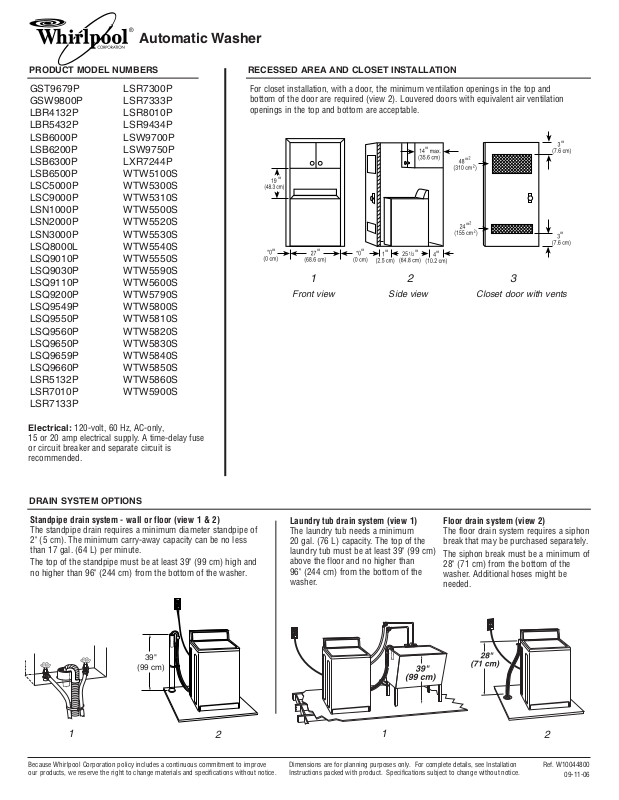

Whirlpool W10044800-D-WH User Manual
®
Automatic Washer
PRODUCT MODEL NUMBERS
DRAIN SYSTEM OPTIONS
GST9679P
GSW9800P
LBR4132P
LBR5432P
LSB6000P
LSB6200P
LSB6300P
LSB6500P
LSC5000P
LSC9000P
LSN1000P
LSN2000P
LSN3000P
LSQ8000L
LSQ9010P
LSQ9030P
LSQ9110P
LSQ9200P
LSQ9549P
LSQ9550P
LSQ9560P
LSQ9650P
LSQ9659P
LSQ9660P
LSR5132P
LSR7010P
LSR7133P
LSR7300P
LSR7333P
LSR8010P
LSR9434P
LSW9700P
LSW9750P
LXR7244P
WTW5100S
WTW5300S
WTW5310S
WTW5500S
WTW5520S
WTW5530S
WTW5540S
WTW5550S
WTW5590S
WTW5600S
WTW5790S
WTW5800S
WTW5810S
WTW5820S
WTW5830S
WTW5840S
WTW5850S
WTW5860S
WTW5900S
Electrical: 120-volt, 60 Hz, AC-only,
15 or 20 amp electrical supply. A time-delay fuse
or circuit breaker and separate circuit is
recommended.
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref. W10044800
09-11-06
RECESSED AREA AND CLOSET INSTALLATION
For closet installation, with a door, the minimum ventilation openings in the top and
bottom of the door are required (view 2). Louvered doors with equivalent air ventilation
openings in the top and bottom are acceptable.
Standpipe drain system - wall or floor (view 1 & 2)
The standpipe drain requires a minimum diameter standpipe of
2" (5 cm). The minimum carry-away capacity can be no less
than 17 gal. (64 L) per minute.
The top of the standpipe must be at least 39" (99 cm) high and
no higher than 96" (244 cm) from the bottom of the washer.
Laundry tub drain system (view 1)
The laundry tub needs a minimum
20 gal. (76 L) capacity. The top of the
laundry tub must be at least 39" (99 cm)
above the floor and no higher than
96" (244 cm) from the bottom of the
washer.
Floor drain system (view 2)
The floor drain system requires a siphon
break that may be purchased separately.
The siphon break must be a minimum of
28" (71 cm) from the bottom of the
washer. Additional hoses might be
needed.
Front view Side view Closet door with vents
"
"
"
"
"
"
"
"
"
"
12 3
"
"
39"
(99 cm)
1
2
1
2
