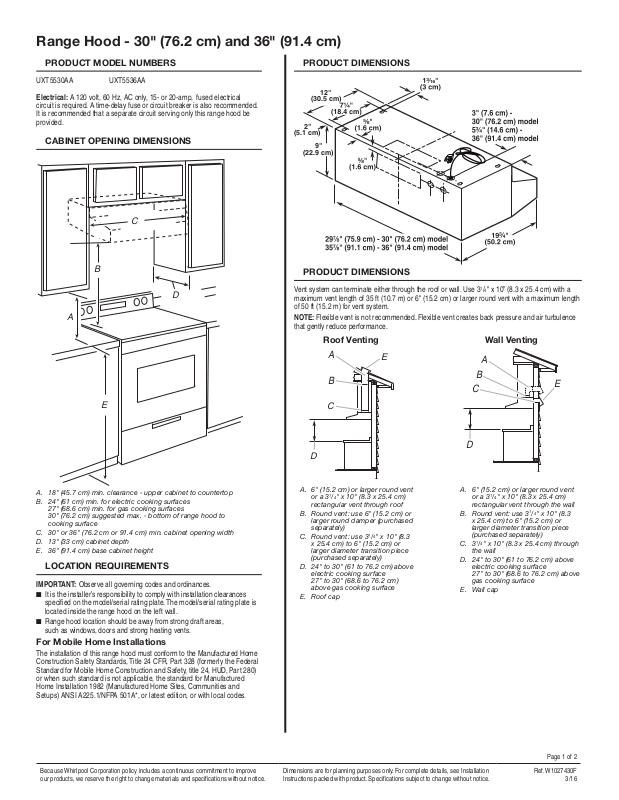

Whirlpool UXT5530AAB, UXT5530AAW, UXT5536AAB, UXT5536AAS, UXT5536AAW Dimension Guide

Range Hood - 30" (76.2 cm) and 36" (91.4 cm)

(5.1 cm)

PRODUCT MODEL NUMBERS

UXT5530AA UXT5536AA

Electrical: A 120 volt, 60 Hz, AC only, 15- or 20-amp, fused electrical circuit is required. A time-delay fuse or circuit breaker is also recommended. It is recommended that a separate circuit serving only this range hood be provided.

CABINET OPENING DIMENSIONS

PRODUCT DIMENSIONS

12"

(30.5 cm)

(22.9 cm)

PRODUCT DIMENSIONS

Vent system can terminate either through the roof or wall. Use 31/4" x 10” (8.3 x 25.4 cm) with a maximum vent length of 35 ft (10.7 m) or 6" (15.2 cm) or larger round vent with a maximum length of 50 ft (15.2 m) for vent system.

NOTE: Flexible vent is not recommended. Flexible vent creates back pressure and air turbulence that gently reduce performance.

Roof Venting

Wall Venting

A. 18" (45.7 cm) min. clearance - upper cabinet to countertop B. 24" (61 cm) min. for electric cooking surfaces

27" (68.6 cm) min. for gas cooking surfaces 30" (76.2 cm) suggested max. - bottom of range hood to

cooking surface C. 30" or 36" (76.2 cm or 91.4 cm) min. cabinet opening width D. 13" (33 cm) cabinet depth E. 36" (91.4 cm) base cabinet height

LOCATION REQUIREMENTS

IMPORTANT: Observe all governing codes and ordinances.

■ It is the installer’s responsibility to comply with installation clearances

speciﬁed on the model/serial rating plate. The model/serial rating plate is located inside the range hood on the left wall.

■ Range hood location should be away from strong draft areas,

such as windows, doors and strong heating vents.

For Mobile Home Installations

The installation of this range hood must conform to the Manufactured Home Construction Safety Standards, Title 24 CFR, Part 328 (formerly the Federal Standard for Mobile Home Construction and Safety, title 24, HUD, Part 280) or when such standard is not applicable, the standard for Manufactured Home Installation 1982 (Manufactured Home Sites, Communities and Setups) ANSI A225.1/NFPA 501A*, or latest edition, or with local codes.

A. 6" (15.2 cm) or larger round vent

or a 31/4" x 10" (8.3 x 25.4 cm) rectangular vent through roof

B. Round vent: use 6" (15.2 cm) or

larger round damper (purchased separately)

C. Round vent: use 3

x 25.4 cm) to 6" (15.2 cm) or larger diameter transition piece (purchased separately)

D. 24" to 30" (61 to 76.2 cm) above

electric cooking surface 27" to 30" (68.6 to 76.2 cm) above gas cooking surface

E. Roof cap

/4" x 10" (8.3

A. 6" (15.2 cm) or larger round vent

or a 3

/4" x 10" (8.3 x 25.4 cm)

rectangular vent through the wall

B. Round vent: use 3

x 25.4 cm) to 6" (15.2 cm) or larger diameter transition piece (purchased separately)

/4" x 10" (8.3 x 25.4 cm) through

C. 3

the wall

D. 24" to 30" (61 to 76.2 cm) above

electric cooking surface 27" to 30" (68.6 to 76.2 cm) above gas cooking surface

E. Wall cap

/4" x 10" (8.3

Page 1 of 2

Because Whirlpool Corporation policy includes a continuous commitment to improve our products, we reserve the right to change materials and speciﬁcations without notice.

Dimensions are for planning purposes only. For complete details, see Installation Instructions packed with product. Speciﬁcations subject to change without notice.

Ref. W1027430F

3/16

Calculating Vent System Length

Wall cap

90˚ elbo

" x 10"

(0.6 m)

To calculate the length of the system you need, add the equivalent feet (meters) for each vent piece used in the system.

6" (15.2 cm) or Larger Round Vent System

Vent Piece Round

45° elbow 2.5 ft (0.8 m)

31/4" x 10" (8.3 cm x 25.4 cm) Vent System

Vent Piece Round

31/4" x 10" (8.3 cm x 25.4 cm) 90° elbow 5 ft (1.5 m)

31/4" x 10" (8.3 cm x 25.4 cm) ﬂat elbow 12 ft (3.7 m)

90° elbow 5 ft (1.5 m)

6" (15.2 cm) or larger wall cap 0 ft (0 m)

31/4" x 10" (8.3 cm x 25.4 cm) to 6" (15.2 cm)

4.5 ft (1.4 m)

or larger

31/4" x 10" (8.3 cm x 25.4 cm) to 6" (15.2 cm)

5 ft (1.5 m)

or larger 90° elbow

Example vent system

2 ft (0.6 m)

6 ft (1.8 m)

31/4" x 10" (8.3 cm x 25.4 cm) wall cap 0 ft (0 m)

Example vent system

¹⁄₄

elbow

6 ft (1.8 m)

Wall cap

(8.3 x 25.4 cm)

2 ft

Maximum Recommended Length = 35 ft (10.7 m)

1 - 90° elbow = 5 ft (1.5 m)

8 ft (2.4 m) straight = 8 ft (2.4 m)

1 - wall cap = 0 ft (0 m)

Length of 31/4" x 10" (8.3 cm x 25.4 cm) system = 13 ft (3.9 m)

Maximum Recommended Length = 50 ft (15.2 m)
