Whirlpool UXT5330ADS, UXT5336ADS Dimension Guide

18" (45.7 cm)

min. clearance

upper cabinet

to countertop

36" (91.4 cm) base cabinet

height

13" (33.0 cm)

cabinet depth

30" (76.2 cm) or

36" (91.4 cm) min

cabinet opening width

24" (61.0 cm) min.

30" (76.2 cm)

suggested max. bottom of cabinet to cooking surface

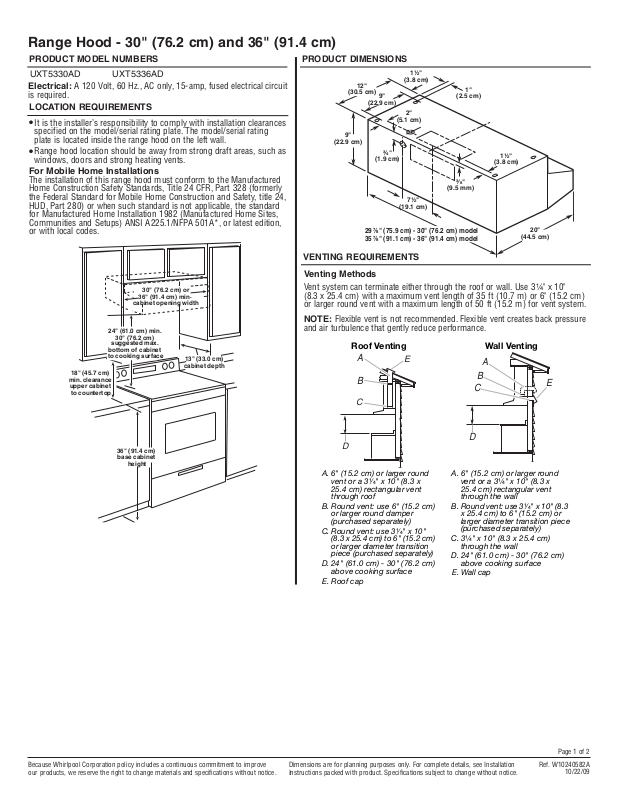

Range Hood - 30" (76.2 cm) and 36" (91.4 cm)

PRODUCT MODEL NUMBERS PRODUCT DIMENSIONS

UXT5330AD UXT5336AD

Electrical: A 120 Volt, 60 Hz., AC only, 15-amp, fused electrical circuit is required.

Because Whirlpool Corporation policy includes a continuous commitment to improve our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation Instructions packed with product. Specifications subject to change without notice.

Ref. W10240582A

10/22/09

LOCATION REQUIREMENTS

VENTING REQUIREMENTS

●

It is the installer’s responsibility to comply with installation clearances specified on the model/serial rating plate. The model/serial rating plate is located inside the range hood on the left wall.

●

Range hood location should be away from strong draft areas, such as windows, doors and strong heating vents.

For Mobile Home Installations

The installation of this range hood must conform to the Manufactured Home Construction Safety Standards, Title 24 CFR, Part 328 (formerly the Federal Standard for Mobile Home Construction and Safety, title 24, HUD, Part 280) or when such standard is not applicable, the standard for Manufactured Home Installation 1982 (Manufactured Home Sites, Communities and Setups) ANSI A225.1/NFPA 501A*, or latest edition, or with local codes.

Page 1 of 2

Venting Methods

Vent system can terminate either through the roof or wall. Use 3¹⁄₄" x 10" (8.3 x 25.4 cm) with a maximum vent length of 35 ft (10.7 m) or 6" (15.2 cm) or larger round vent with a maximum length of 50 ft (15.2 m) for vent system.

NOTE: Flexible vent is not recommended. Flexible vent creates back pressure and air turbulence that gently reduce performance.

(30.5 cm)

(22.9 cm)

12"

(22.9 cm)

(5.1 cm)

³⁄₄"

(1.9 cm)

29⁷⁄₈" (75.9 cm) - 30" (76.2 cm) model 35⁷⁄₈" (91.1 cm) - 36" (91.4 cm) model

1¹⁄₂"

(3.8 cm)

7¹⁄₂"

(19.1 cm)

(2.5 cm)

³⁄₈"

(9.5 mm)

1¹⁄₂"

(3.8 cm)

20"

(44.5 cm)

Roof Venting Wall Venting

. 6" (15.2 cm) or larger round

vent or a 3¹⁄₄" x 10" (8.3 x

25.4 cm) rectangular vent through roof

B. Round vent: use 6" (15.2 cm)

or larger round damper (purchased separately)

C. Round vent: use 3¹⁄₄" x 10"

(8.3 x 25.4 cm) to 6" (15.2 cm) or larger diameter transition piece

D. 24" (61.0 cm) - 30" (76.2 cm)

(purchased separately)

above cooking surface

E. Roof cap

A. 6" (15.2 cm) or larger round

vent or a 3¹⁄₄" x 10" (8.3 x

25.4 cm) rectangular vent through the wall

B. Round vent: use 3¹⁄₄" x 10" (8.3

x 25.4 cm) to 6" (15.2 cm) or larger diameter transition piece (purchased separately)

C. 3¹⁄₄" x 10" (8.3 x 25.4 cm)

through the wall

D. 24" (61.0 cm) - 30" (76.2 cm)

above cooking surface

E. Wall cap

x 10" (8.3 x 25.4 cm) vent system

Maximum length = 35 ft (10.7 m)

1 - 90° elbow = 5 ft (1.5 m) 8 ft (2.4 m) straight = 8 ft (2.4 m) 1 - wall cap = 0 ft (0 m) Length of x 10" (8.3 x 25.4 cm) system = 13 ft (3.9 m)

x 10" (8.3 x 25.4 cm) 90° elbow = 5 ft (1.5 m)

x 10" (8.3 x 25.4 cm) flat elbow = 12 ft (3.7 m)

x 10" (8.3 x 25.4 cm) wall cap =

0 ft (0 m)

2 ft (0.6 m)

6 ft ( 1.8 m)

wall cap

x 10" (8.3 x 25.4 cm) elbow

Maximum length = 35 ft (10.7 m)

1 - 90° elbows = 5 ft

(1.5 m)

8 ft (2.4 m) straight = 8 ft

(2.4 m)

1 - wall cap = 0 ft

(0 m) Length of 7" (17.8 cm) system = 13 ft

(3.9 m)

6" (15.2 cm) or larger vent system

x 10" (8.3 x 25.4 cm) to 6" (15.2 cm) or

90° elbow = 5 ft (1.5 m)

45° elbow =

2.5 ft (0.8 m)

x 10" (8.3

x 25.4 cm) to 6"

(15.2 cm) or

6" (15.2 cm)

wall cap = 0 ft (0 m)

6" (15.2 cm) or larger round vent system

90˚ elbow

Calculating Vent System Length To calculate the length of the system you need, add the equivalent feet (meters) for each vent piece used in the system.

Because Whirlpool Corporation policy includes a continuous commitment to improve our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation Instructions packed with product. Specifications subject to change without notice.

Ref. W10240582A

10/22/09

Page 2 of 2

2 ft (0.6 m)

6 ft (1.8 m)

or larger

Wall cap

larger = 4.5 ft (1.4 m)

larger 90° elbow = 5 ft (1.5 m)
