Whirlpool UXT4130ADB, UXT4130ADS, UXT4130ADW, UXT4136ADB, UXT4136ADW Dimension Guide
...
PRODUCT MODEL NUMBERS
UXT4130 UXT4136
Electrical: A 120 volt, 60 Hz., AC only, 15-amp, fused electrical
circuit is required.

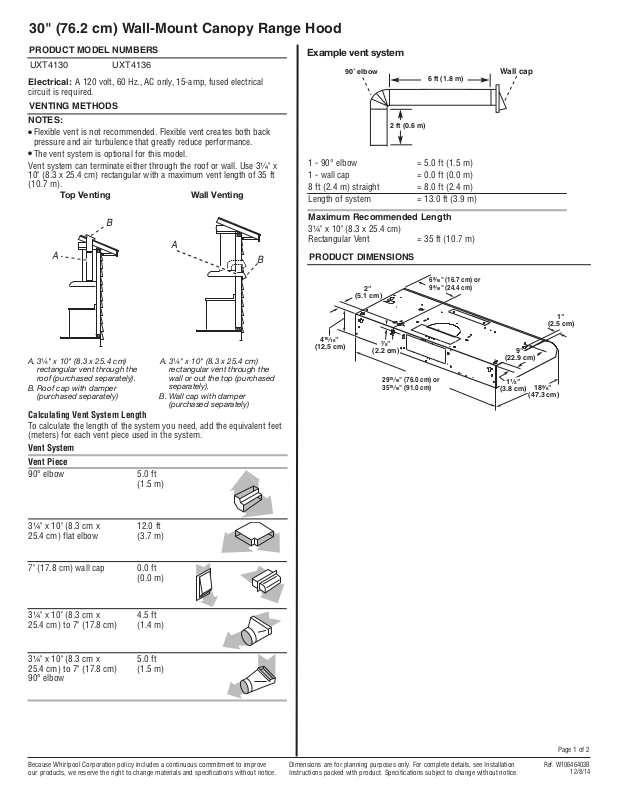

30" (76.2 cm) Wall-Mount Canopy Range Hood
Calculating Vent System Length
To calculate the length of the system you need, add the equivalent feet
(meters) for each vent piece used in the system.
Vent System
Vent Piece
90° elbow 5.0 ft
(1.5 m)
3¹⁄₄" x 10" (8.3 cm x 12.0 ft
25.4 cm) flat elbow (3.7 m)
7" (17.8 cm) wall cap 0.0 ft
(0.0 m)
3¹⁄₄" x 10" (8.3 cm x 4.5 ft
25.4 cm) to 7" (17.8 cm) (1.4 m)
3¹⁄₄" x 10" (8.3 cm x 5.0 ft
25.4 cm) to 7" (17.8 cm) (1.5 m)
90° elbow
VENTING METHODS
NOTES:
●
Flexible vent is not recommended. Flexible vent creates both back
pressure and air turbulence that greatly reduce performance.
●
The vent system is optional for this model.
Vent system can terminate either through the roof or wall. Use 3¹⁄₄" x
10" (8.3 x 25.4 cm) rectangular with a maximum vent length of 35 ft
(10.7 m).
A
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
PRODUCT DIMENSIONS
Ref. W10646403B
12/8/14
Page 1 of 2
1 - 90° elbow = 5.0 ft (1.5 m)
1 - wall cap = 0.0 ft (0.0 m)
8 ft (2.4 m) straight = 8.0 ft (2.4 m)
Length of system = 13.0 ft (3.9 m)
Maximum Recommended Length
3¹⁄₄" x 10" (8.3 x 25.4 cm)
Rectangular Vent = 35 ft (10.7 m)
Top Venting Wall Venting
B
A
A
.3¹⁄₄" x 10" (8.3 x 25.4 cm)
rectangular vent through the
roof (purchased separately).
B. Roof cap with damper
(purchased separately)
A. 3¹⁄₄" x 10" (8.3 x 25.4 cm)
rectangular vent through the
wall or out the top (purchased
separately).
B. Wall cap with damper
(purchased separately)
B
Example vent system
90˚ elbow
2 ft (0.6 m)
2"
(5.1 cm)
4¹⁵⁄₁₆"
(12.5 cm)
⁷⁄₈"
(2.2 cm)
29¹⁵⁄₁₆" (76.0 cm) or
35¹⁵⁄₁₆" (91.0 cm)
6 ft (1.8 m)
6⁹⁄₁₆" (16.7 cm) or
9⁹⁄₁₆" (24.4 cm)
Wall cap
9"
(22.9 cm)
1¹⁄₂"
(3.8 cm)
(2.5 cm)
18⁵⁄₈"
(47.3 cm)
1"
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref. W10646403B
12/8/14
Page 2 of 2
INSTALLATION CLEARANCES
A
B
E
C
D
A. 24” (61.0 cm) minimum distance from electric cooking surface.
24" (61.0 cm) minimum distance from gas cooking surface.
30" (76.2 cm) suggested maximum above the cooking surface.
B. 18" (45.7 cm) minimum clearance - upper cabinet to countertop.
C. 30" (76.2 cm) minimum cabinet opening width for 30" (76.2 cm)
models and 36" (91.4 cm) minimum cabinet width for 36"
(91.4 cm) models.
D. 12" (30.5 cm) cabinet depth.
E. 36" (91.4 cm) base cabinet height.
