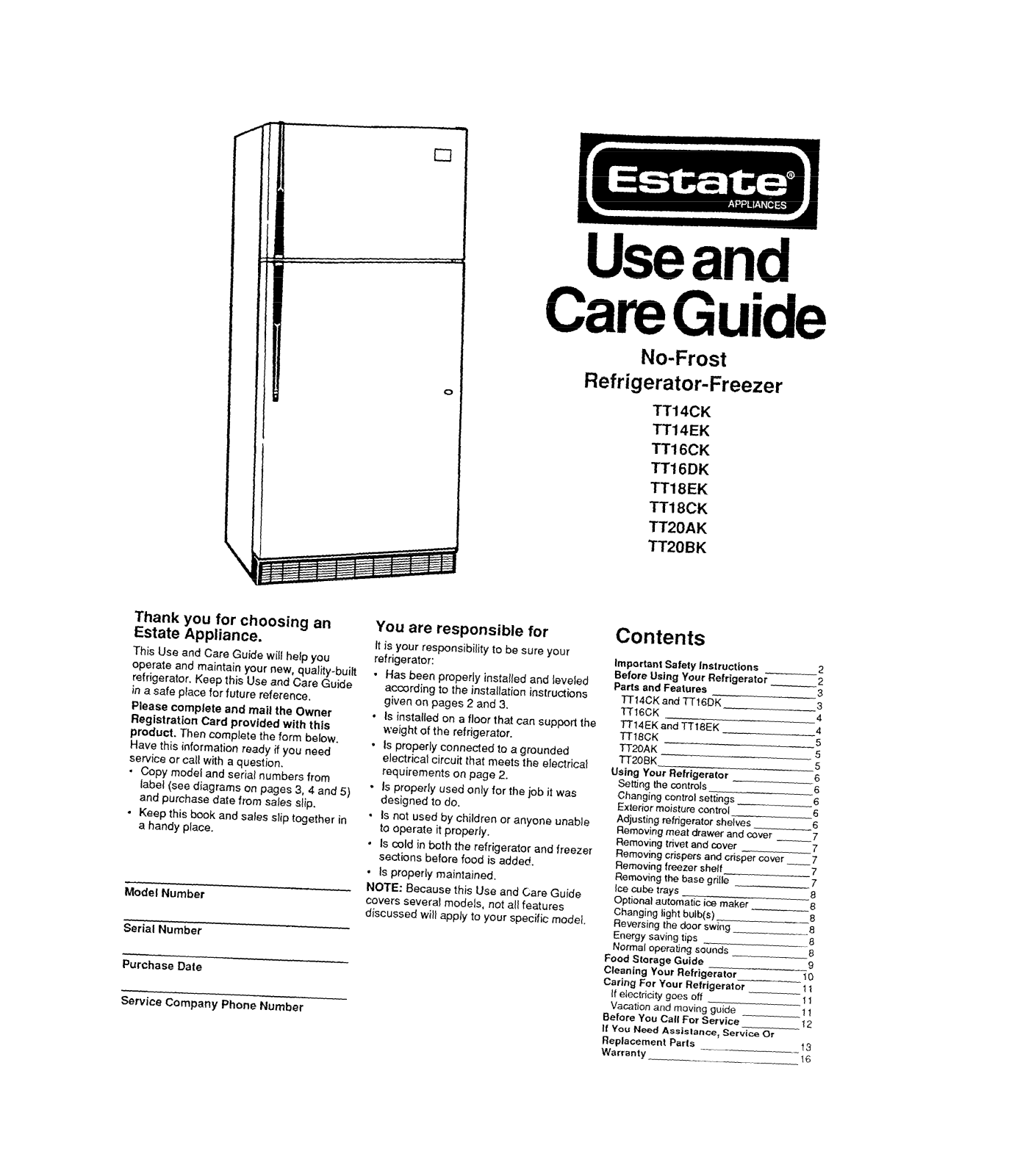

Whirlpool TTI4CK, TT20AK, TTI 6DK, TT14EK, TT2OBK User Manual

...

Useand

Thank you for choosing an Estate Appliance.

This Use and Care Guide will help you operate and maintain your new, quality-built refrigerator. Keep this Use and Care Guide in a safe place for future reference.

Please complete and mail the Owner

Registration Card provided with this product. Then complete the form below. Have this information ready if you

service or call with a question.

Copy model and serial numbers from label (see diagrams on pages 3, 4 and 5)

and purchase date from sales slip.

Keep this book and sales slip together in

a handy place.

Model Number

Serial Number

Purchase Date

Service Company Phone Number

need

Care

You are responsible for

It is your responsibility to be sure your

refrigerator:

Has been properly installed and leveled according to the installation instructions given on pages 2 and 3.

Is installed on a floor that can support the

weight of the refrigerator.

Is properly connected to a grounded electrical circuit that meets the electrical

requirements on page 2.

Is properly used only for the job if was

designed to do.

Is not used by children or anyone unable to operate it properly.

Is cold in both the refrigerator and freezer

sections before food is added.

Is properly maintained.

NOTE: Because this Use and Care Guide covers several models, not all features discussed will apply to your specific model.

Guide

No-Frost

Refrigerator-Freezer

TTI 4CK

TT14EK TTI 6CK TTI 6DK

TT18EK TT18CK TT20AK

TT2OBK

Pnntnmte

Contents

Important

Before Using Your Refrigerator Parts and Features

lTl4CK and TTiGDK

TT16CK TT14EKand TTl8EK TT18CK

T-POAK lT20BK

Using

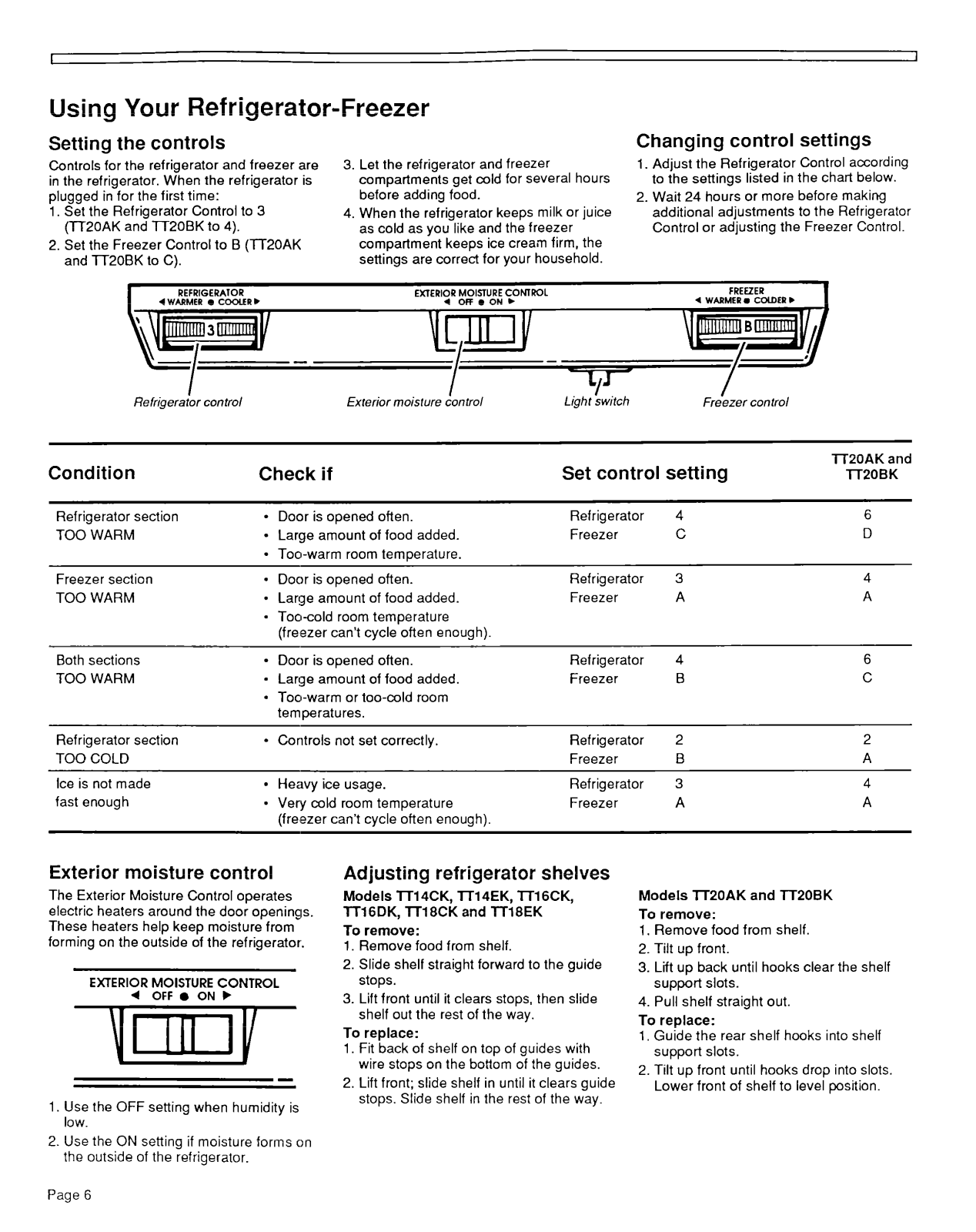

Setting the controls Changing control settings Exterior moisture control

Adjusting refrigerator shelves

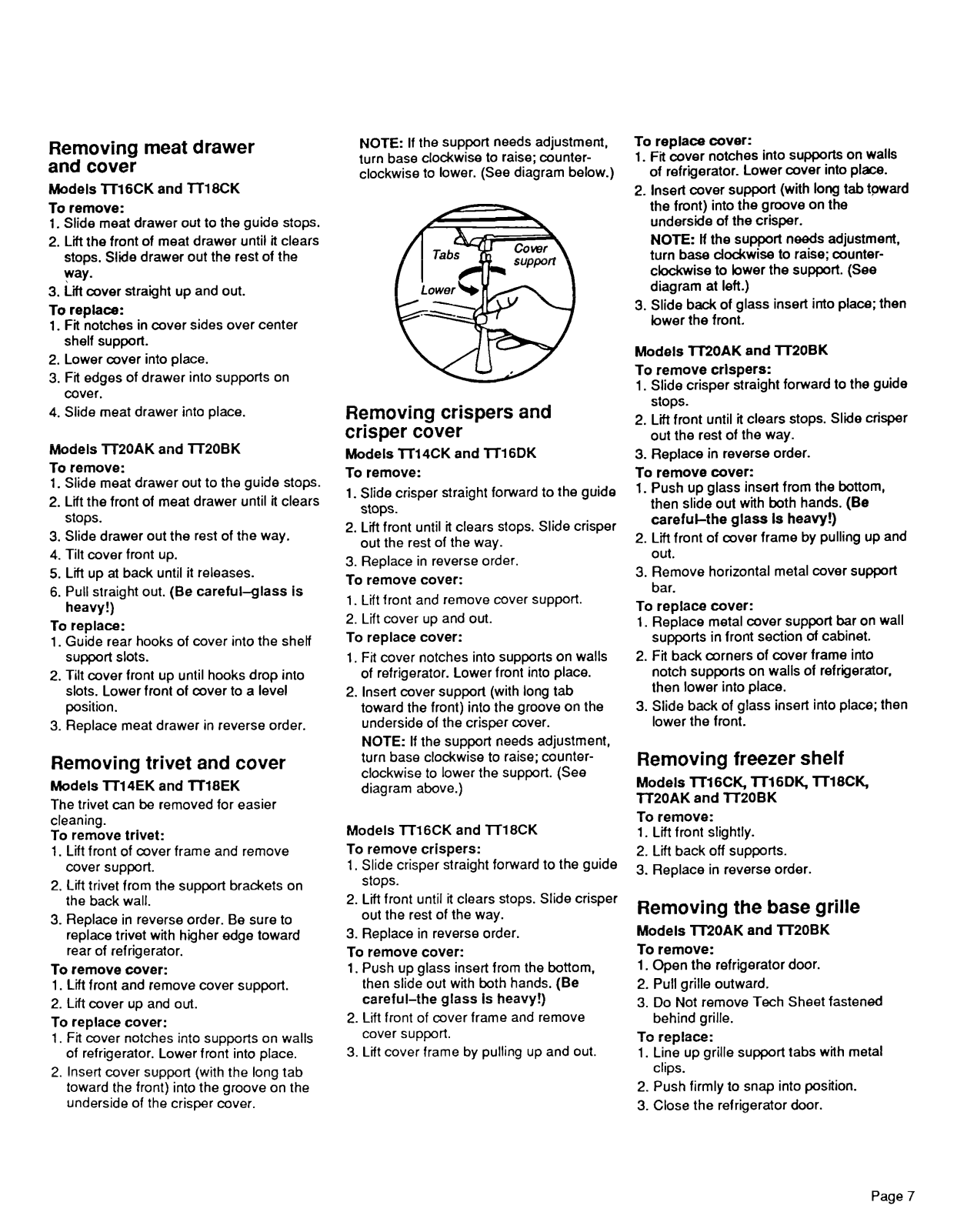

Removing meal drawer and cover Removing trivet and mver Removing crispers and crisper cover Removing freezer shelf

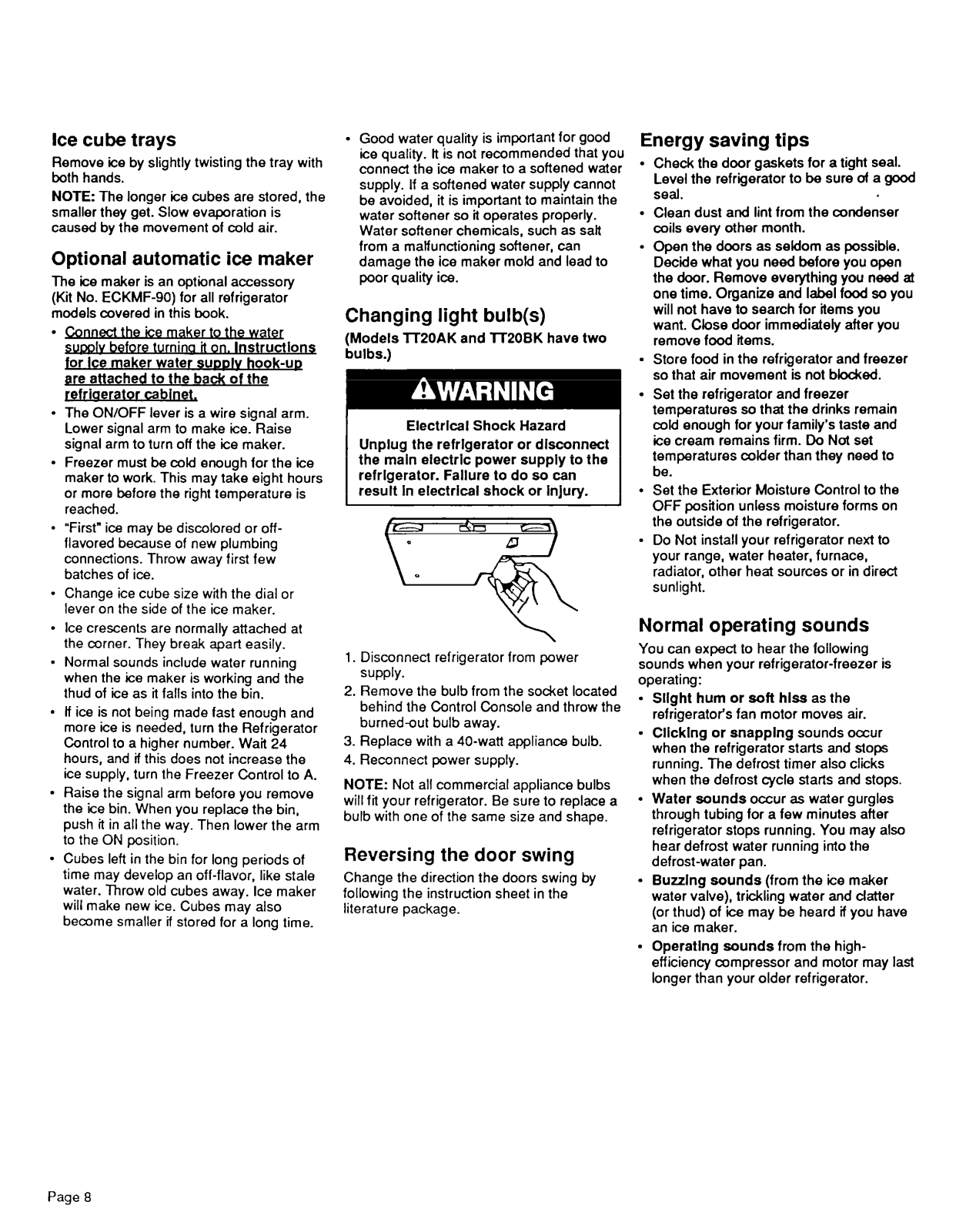

Removing the base grille Ice cube trays Optional automatic ice maker Changing light bulb(s)

Reversing the door swing Energy saving tips Normal operating sounds

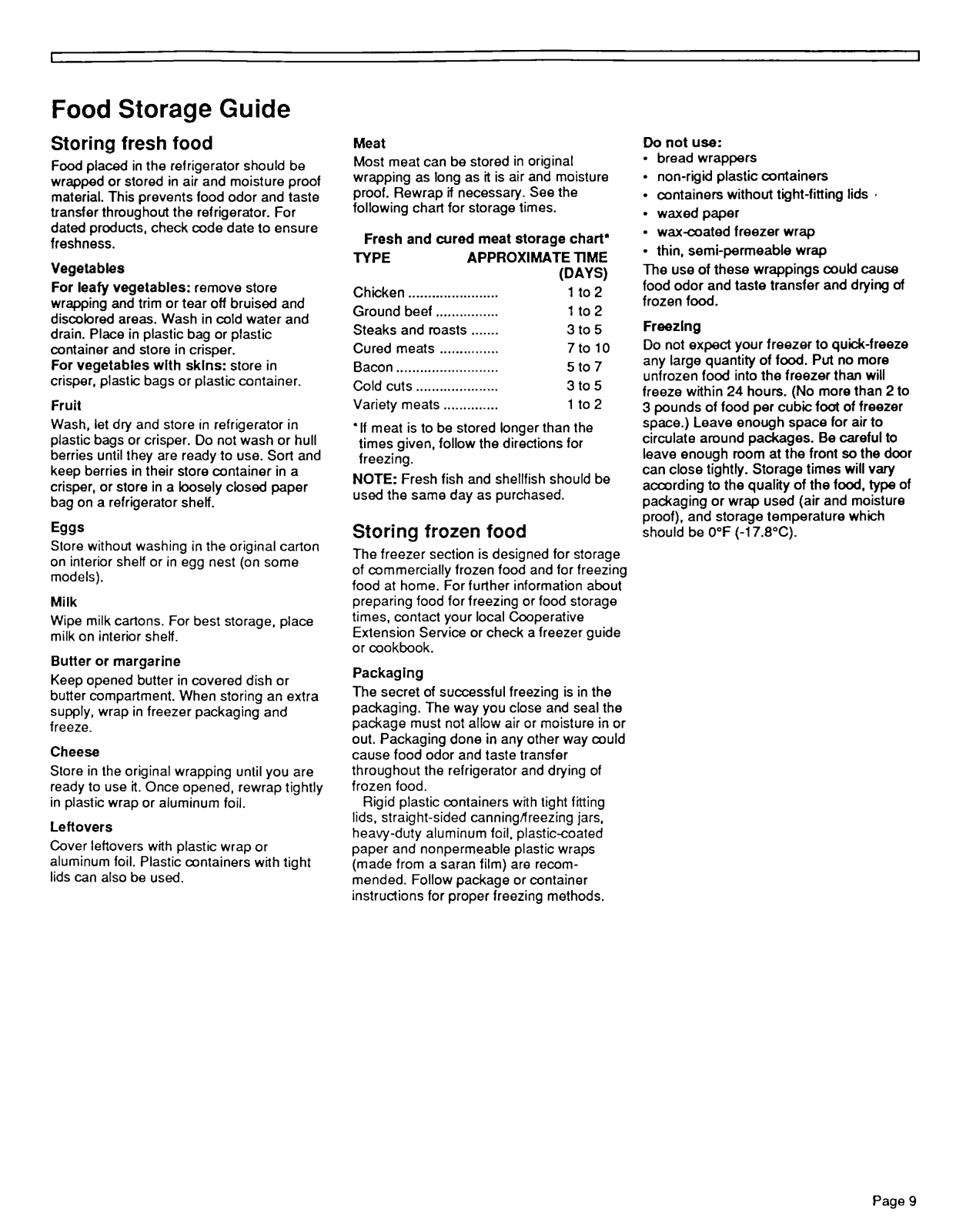

Food Storage Guide

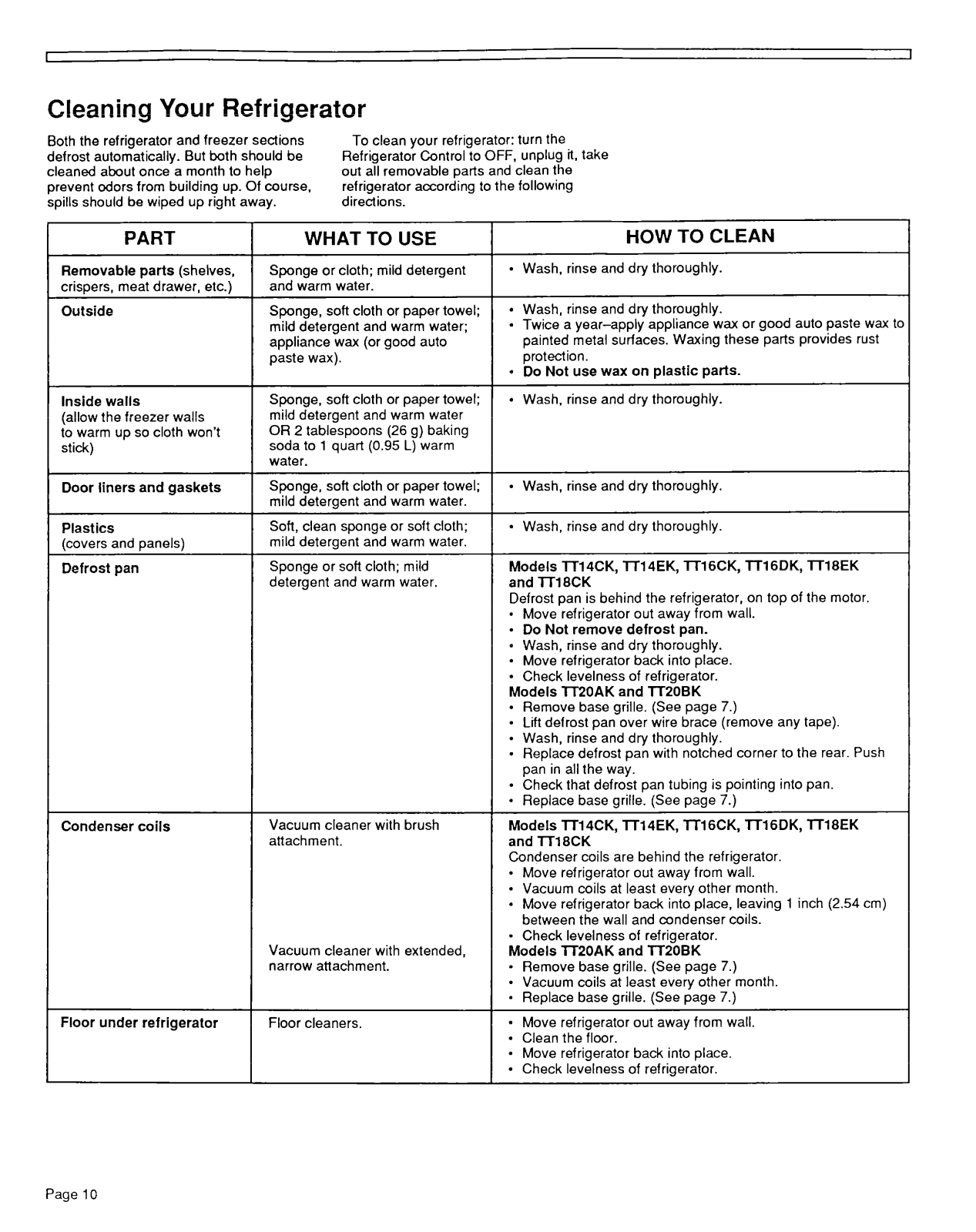

Cleaning

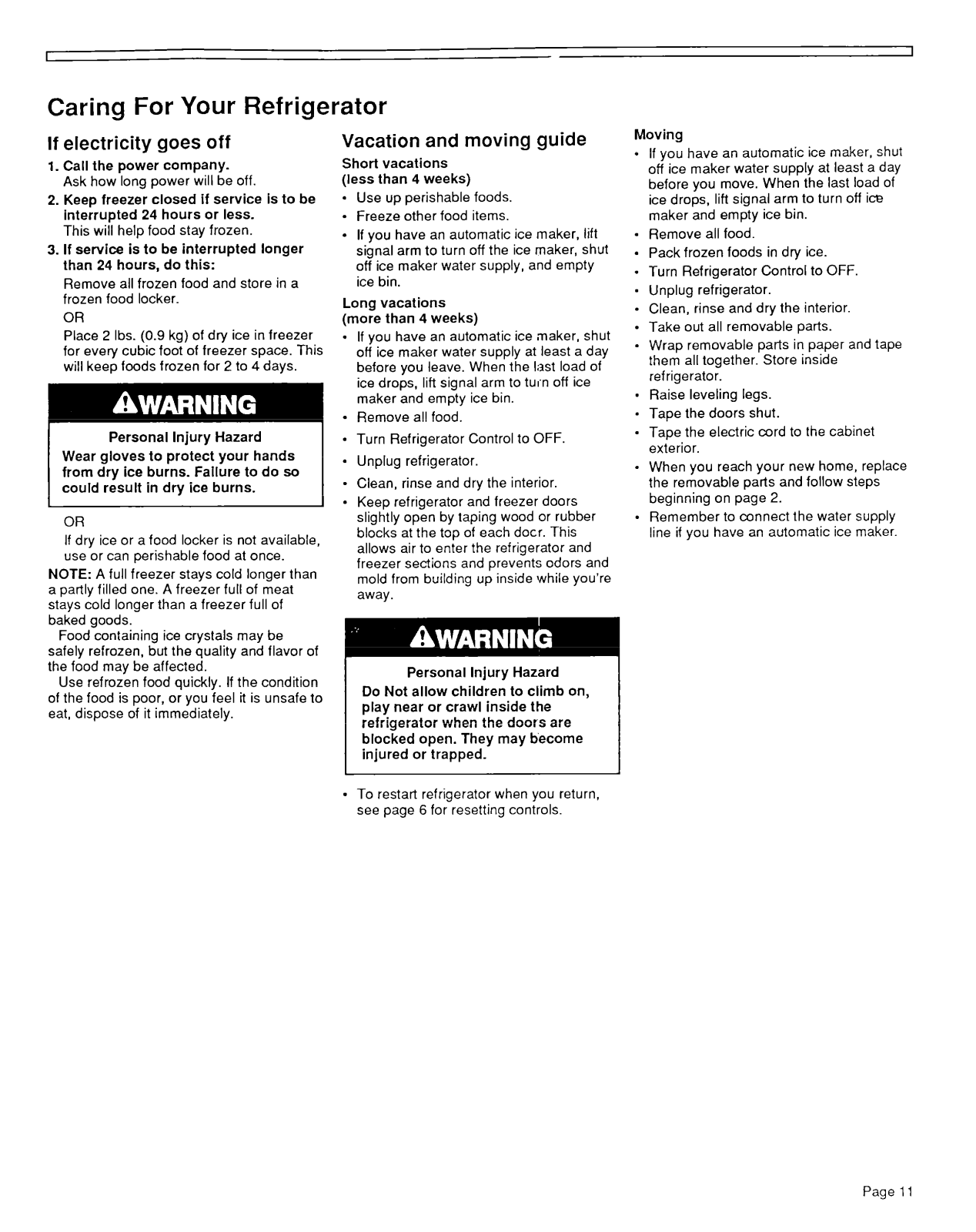

Caring For Your Refrigerator

If ekclricity goes off Vacation and moving guide

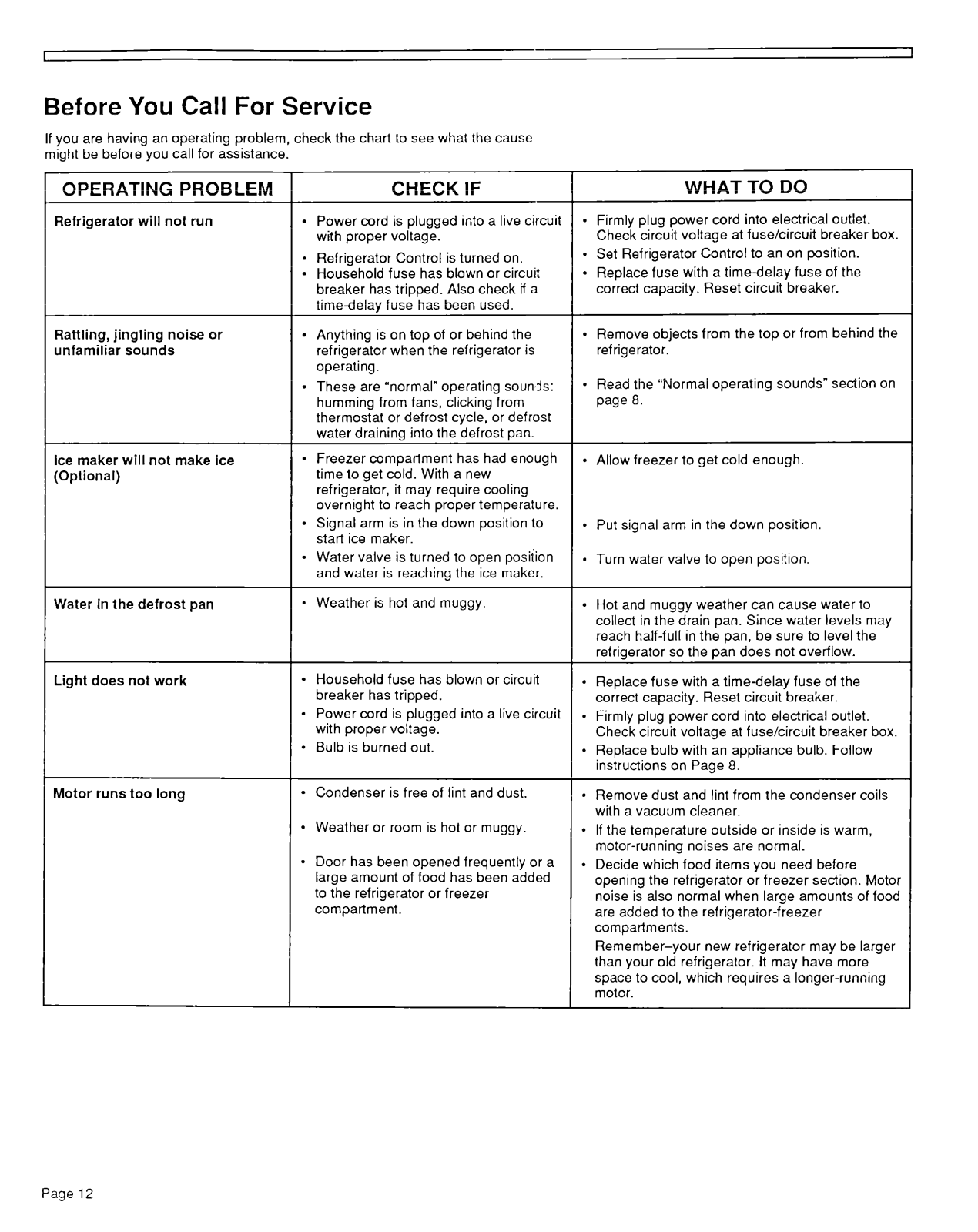

Before You Call

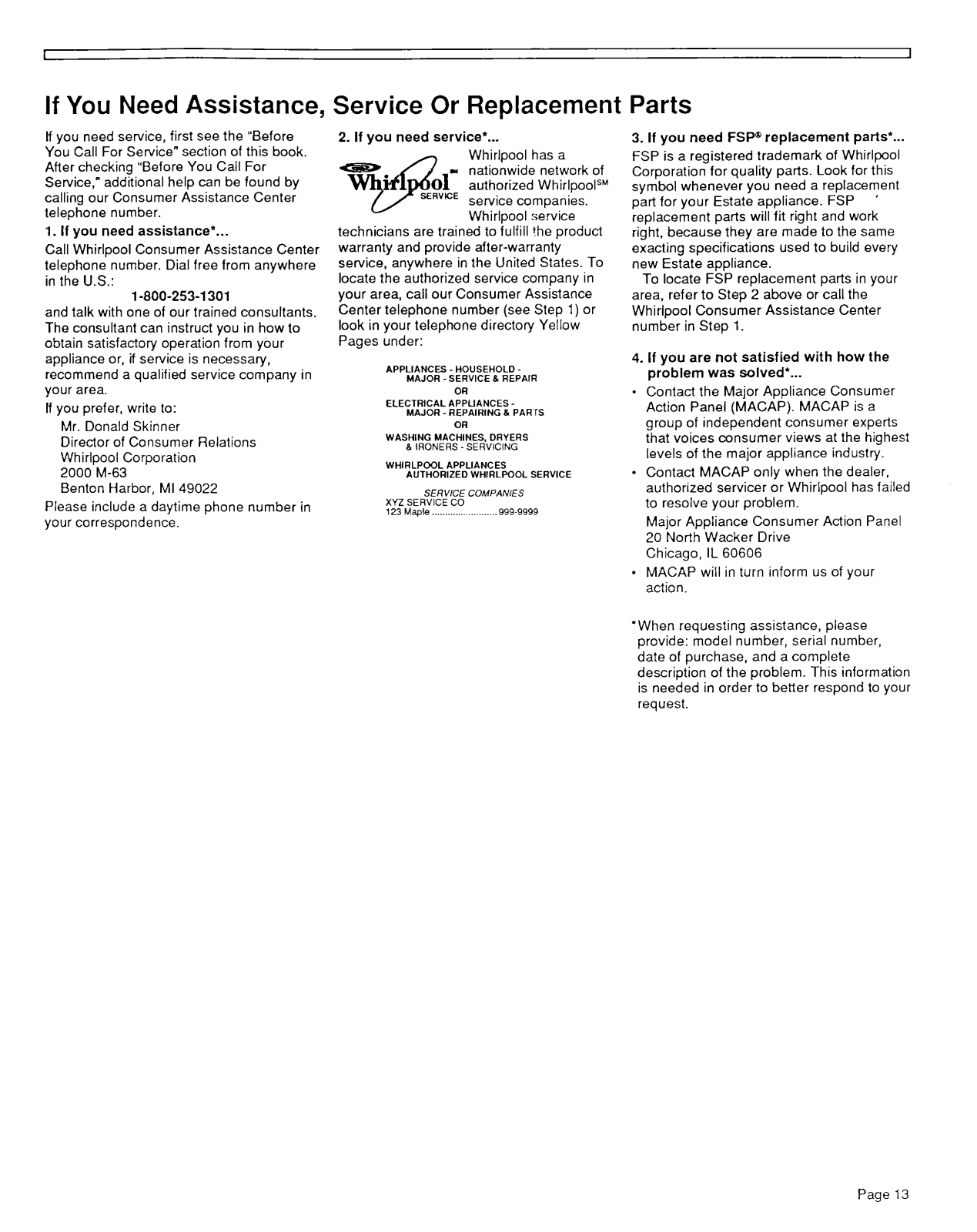

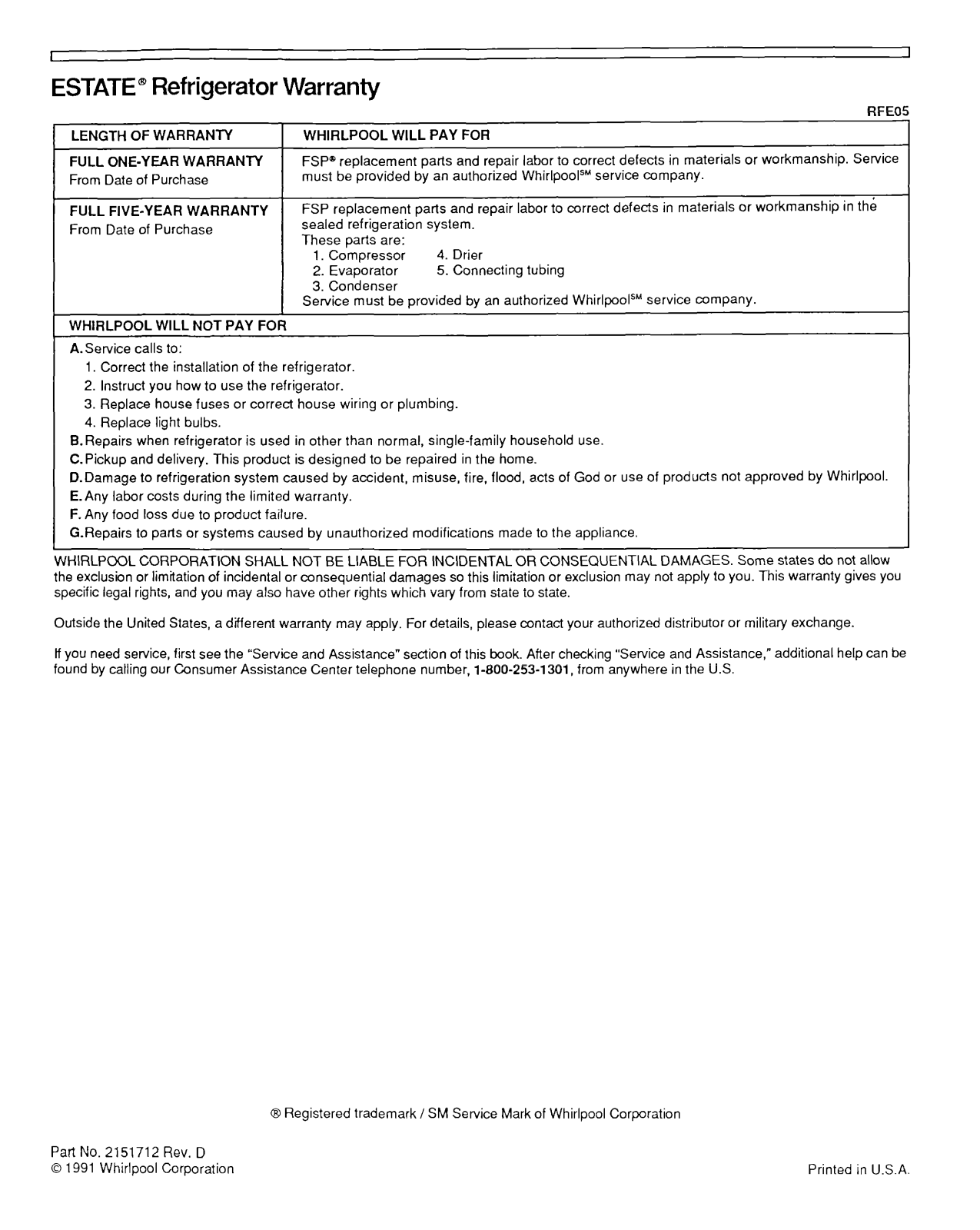

If YOU Replacement Park Warranty

Safety Instructions

Your Refrigerator

Need

For Service

Assistance, Service or

,vice

-2

-7

-Zli

--7

11 11

11 11 12 12

-2 .*

3 3

3 4

4 4

4 5

5 5

6 6

6 7 7

7 7

6 8

a 8 a a

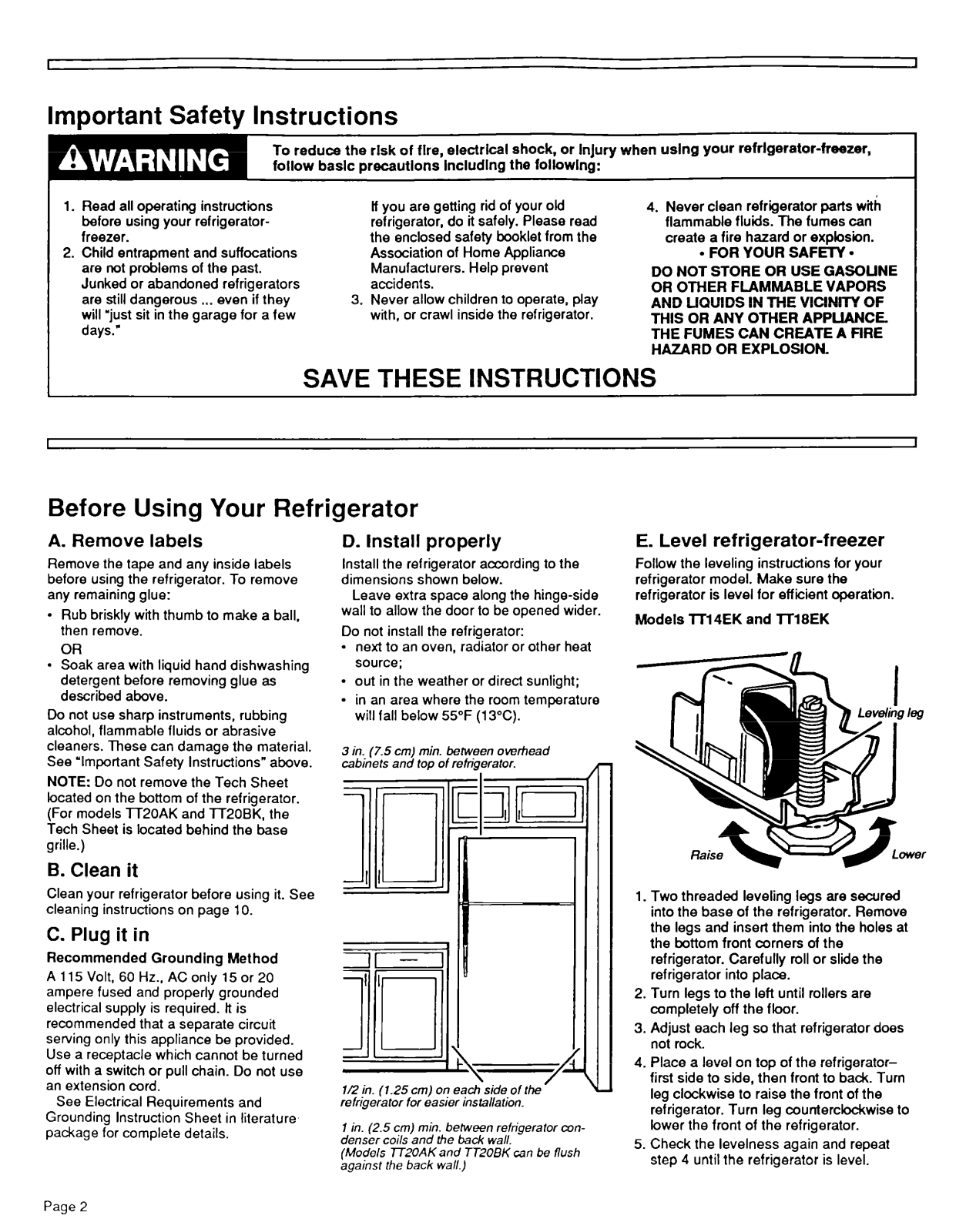

Important Safety Instructions

To reduce the rlsk of fire, electrical shock, or Injury when using your refrigerator-freezer, follow basic precautions lncludlng the followlng:

1. Read all operating instructions before using your refrigeratorfreezer.

2. Child entrapment and suffocations are not problems of the past. Junked or abandoned refrigerators are still dangerous . . . even if they will “just sit in the garage for a few

tl you are getting rid of your old

refrigerator, do it safely. Please read the enclosed safety booklet from the Association of Home Appliance

Manufacturers. Help prevent

accidents.

3. Never allow children to operate, play with, or crawl inside the refrigerator.

days.”

SAVE THESE INSTRUCTIONS

Before Using Your Refrigerator

A. Remove labels

Remove the tape and any inside labels before using the refrigerator. To remove

any remaining glue:

Rub briskly with thumb to make a ball,

then remove. OR

Soak area with liquid hand dishwashing detergent before removing glue as described above.

Do not use sharp instruments, rubbing alcohol, flammable fluids or abrasive cleaners. These can damage the material. See ‘Important Safety Instructions” above.

NOTE: Do not remove the Tech Sheet located on the bottom of the refrigerator. (For models lT20AK and lT20BK, the Tech Sheet is located behind the base grille.)

D. Install properly

Install the refrigerator aazording to the

dimensions shown below.

Leave extra space along the hinge-side

wall to allow the door to be opened wider. Do not install the refrigerator:

next to an oven, radiator or other heat source;

out in the weather or direct sunlight;

in an area where the room temperature will fall below 55°F (13%).

3 in. (7.5 cm) min. between overhead cabinets and top ol refrigerator.

4. Never clean refrigerator parts witk flammable fluids. The fumes can create a fire hazard or explosion.

. FOR YOUR SAFETY

DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND UQUIDS IN THE VlClNfTY OF THIS OR ANY OTHER APPLlANCE. THE FUMES CAN CREATE A FfRE HAZARD OR EXPLOSION.

E. Level refrigerator-freezer

Follow the leveling instructions for your refrigerator model. Make sure the refrigerator is level for efficient operation.

Models lTl4EK and ITl8EK

B. Clean it

Clean your refrigerator before using it. See cleaning instructions on page IO.

C. Plug it in

Recommended Grounding Method A 115 Volt, 60 Hz., AC only 15 or 20

ampere fused and properly grounded electrical supply is required. lt is recommended that a separate circuit serving only this appliance be provided. Use a receptacle which cannot be turned off wilh a switch or pull chain. Do not use an extension cord.

See Electrical Requirements and Grounding Instruction Sheet in literature package for complete details.

Page 2

l/2 in. (1.25 cm) on each side of the

refrigerator for easier installation.

1 in. (2.5 cm) min. between refrigerator wndenser coils and the back wall. (Models n2OAK and TTZOBK can be flush against the back wall.)

1. Two threaded leveling legs are secured into the base of the refrigerator. Remove

the legs and insert them into the holes at the bottom front corners of the refrigerator. Carefully roll or slide the refrigerator into place.

2. Turn legs to the left until rollers are completely off the floor.

3. Adjust each leg so that refrigerator does not rock.

4. Place a level on top of the refrigeratorfirst side to side, then front to back. Turn leg clockwise to raise the front of the refrigerator. Turn leg counterclockwise to lower the front of the refrigerator.

5. Check the levelness again and repeat step 4 until the refrigerator is level.

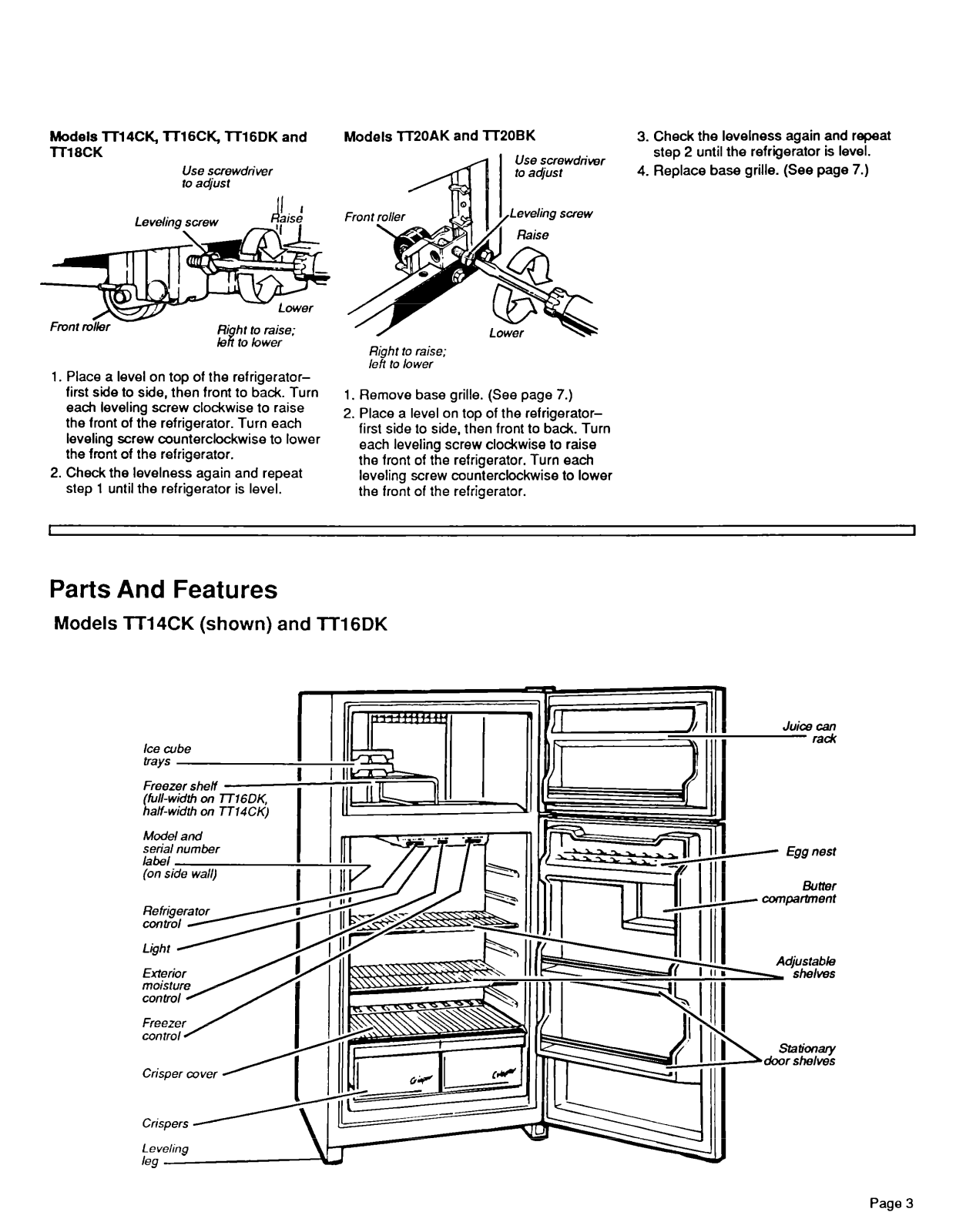

Models lTl4CK, lT16CK, lTl6DK and TT18CK

Use screwdrier to adjust

Right

raise;

left to lower

1. Place a level on top of the refrigeratorfirst side to side, then front to back. Turn each leveling screw clockwise to raise the front of the refrigerator. Turn each leveling screw counterclockwise to lower the front of the refrigerator.

2. Check the levelness again and repeat step 1 until the refrigerator is level.

Models IT2OAK and lT2OBK

Use screwdtivwr

Right to raise; left to lower

1. Remove base grille. (See page 7.)

2. Place a level on top of the refrigeratorfirst side to side, then front to bad. Turn each leveling screw clodcwise to raise the front of the refrigerator. Turn each leveling screw counterclockwise to lower the front of the refrigerator.

3. Check the levelness again and repeat step 2 until the refrigerator is level.

4. Replace base grille. (See page 7.)

Parts And Features

Models lT14CK (shown) and TTI 6DK

Ice cube trays

Freezer shelf (till-width on 7716DK,

half-width on TTl4CK) Model and

serial number label (on side wall)

Juice can

rack

- Egg nest

- compartment

- shelves

Butler

Ao’justable

Crisper w ver

Crispers y Leveling

leg

door shelves

stationaly

Page 3

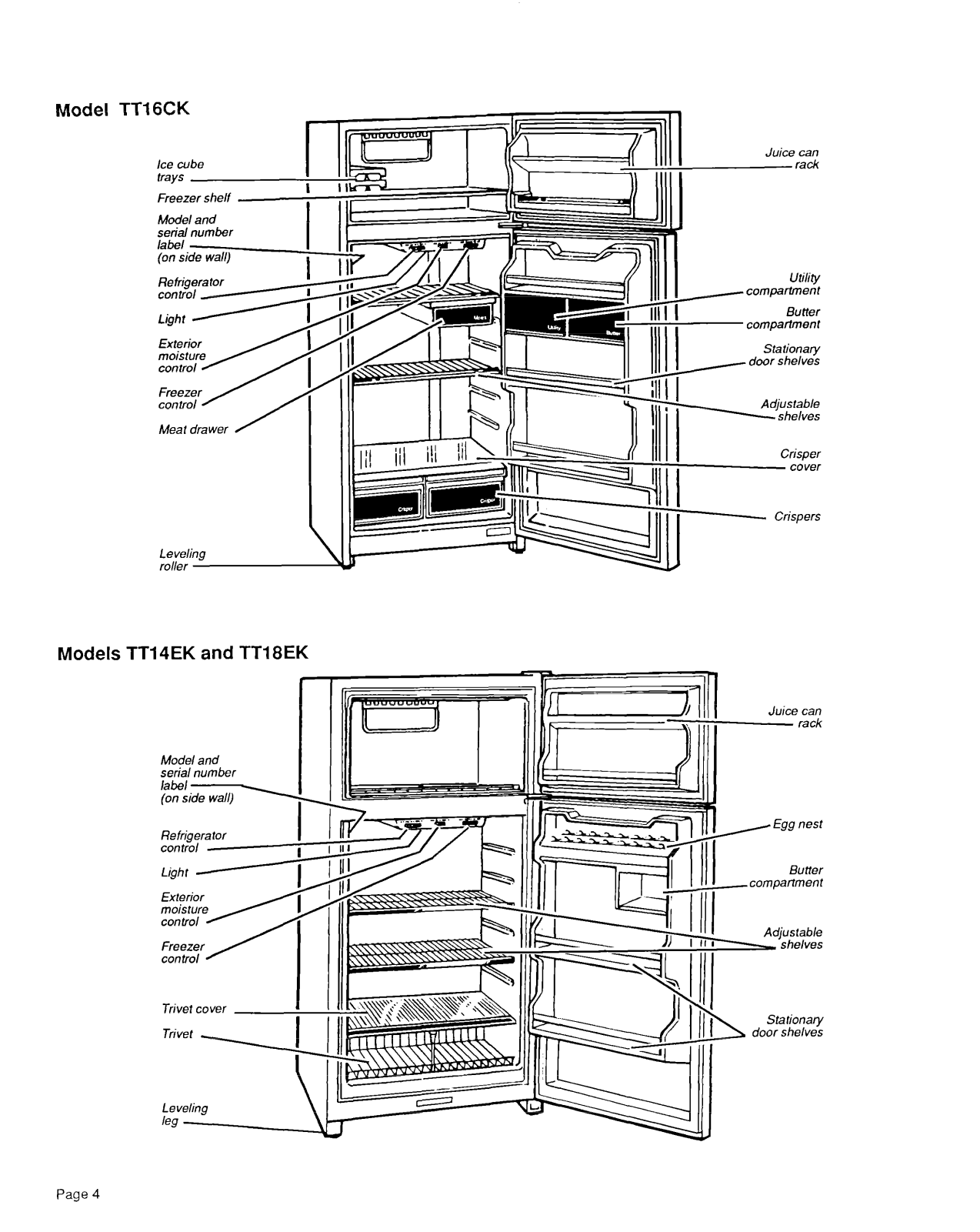

Model TTI 6CK

ice cube trays

Freezer shelf Model and

serial number label (on side

wall)

Leyeling

III

Juice can

rack

Butter

compartment

Stationary

cover

Models TT14EK and TT18EK

Model

and

serial number label (on side wall) ’

Refrigerator control -

Lighf /

Trivet cover

Tri”ef \

Leveling

Juice

can

rack

, Egg nest

ccompartment

- shelves

Butter

Adjustable

Sfafionary

door shelves

Page 4

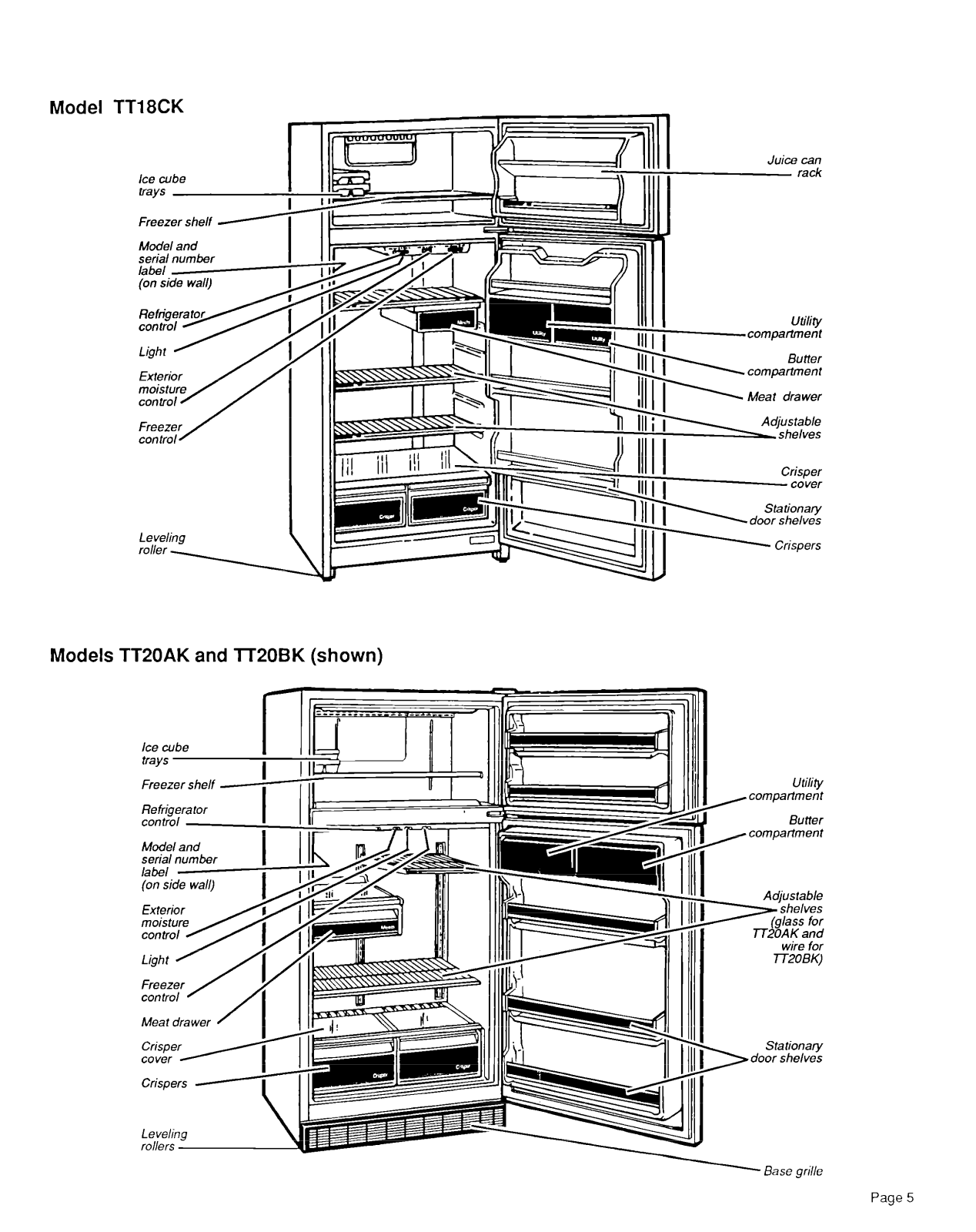

Model TT18CK

Ice cube trays

Freezer shelf y Model and

serial number label (on side wall)

Leveling roller

0 /

Models TT20AK and lT20BK (shown)

Ice cube trays

Freezer shelf Fkzra for

Model and serial number label (on side wall)

, comparfment

Utility

Butter

compartment

7720AK and

wire for

77-OBK)

Stationary

door shelves

Leveling rollers

. Base grille

Page 5
