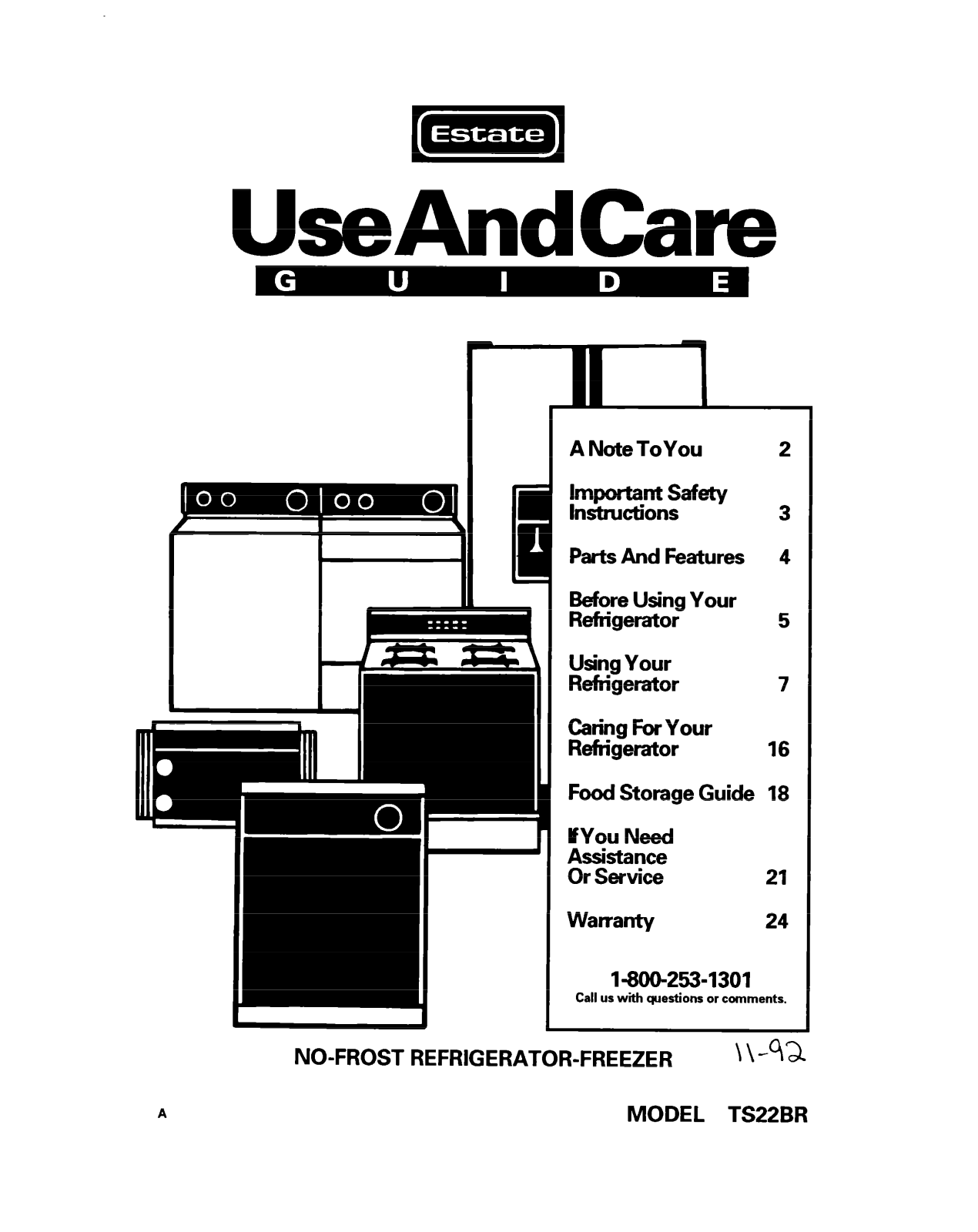

Whirlpool TS22BR User Manual
UseAndCare
A Note ToYou
IFZE:dw
Parts And Features
Before Using Your
Refrigerator
Using Your
Refrigerator 7

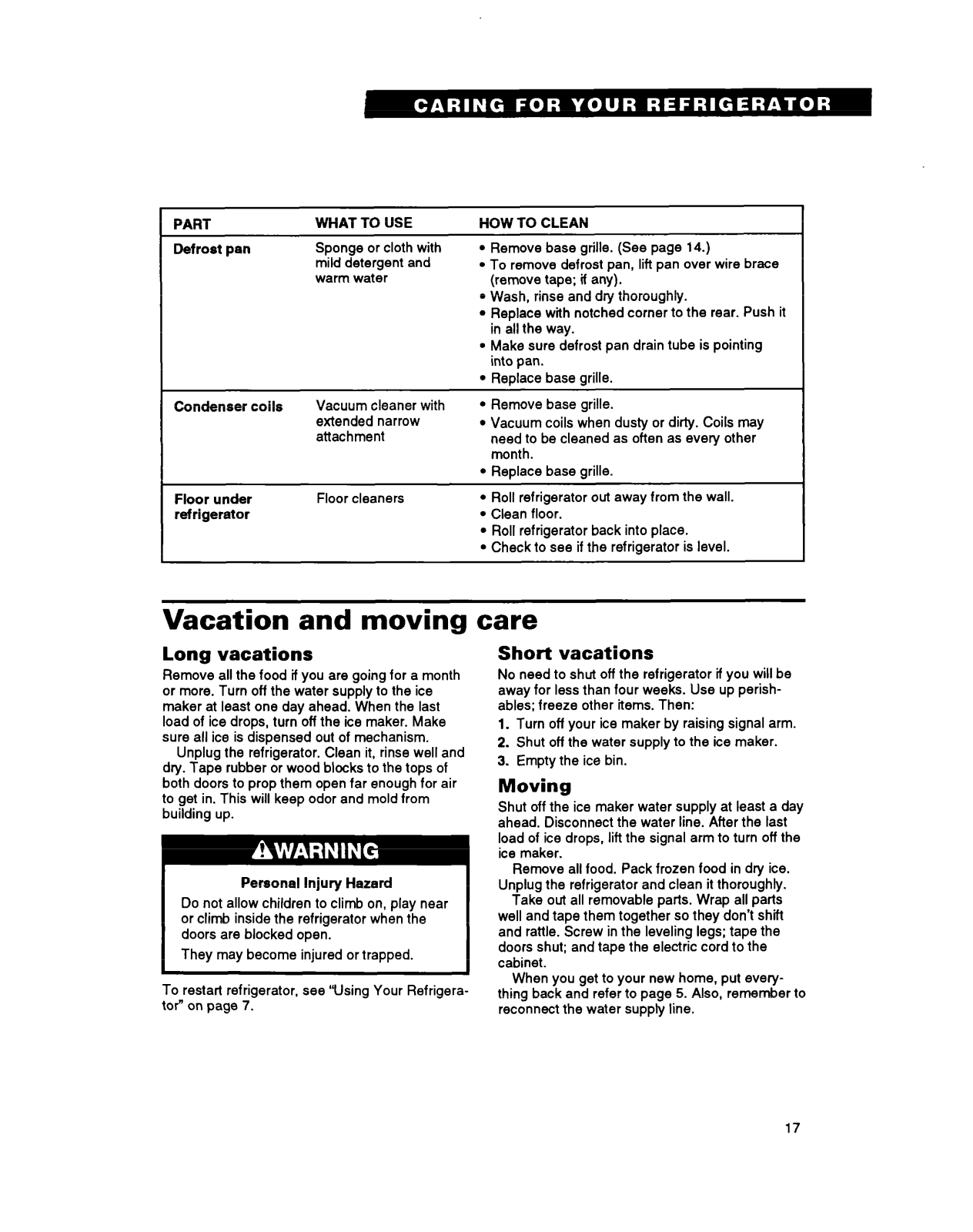

pp;e~o;Our

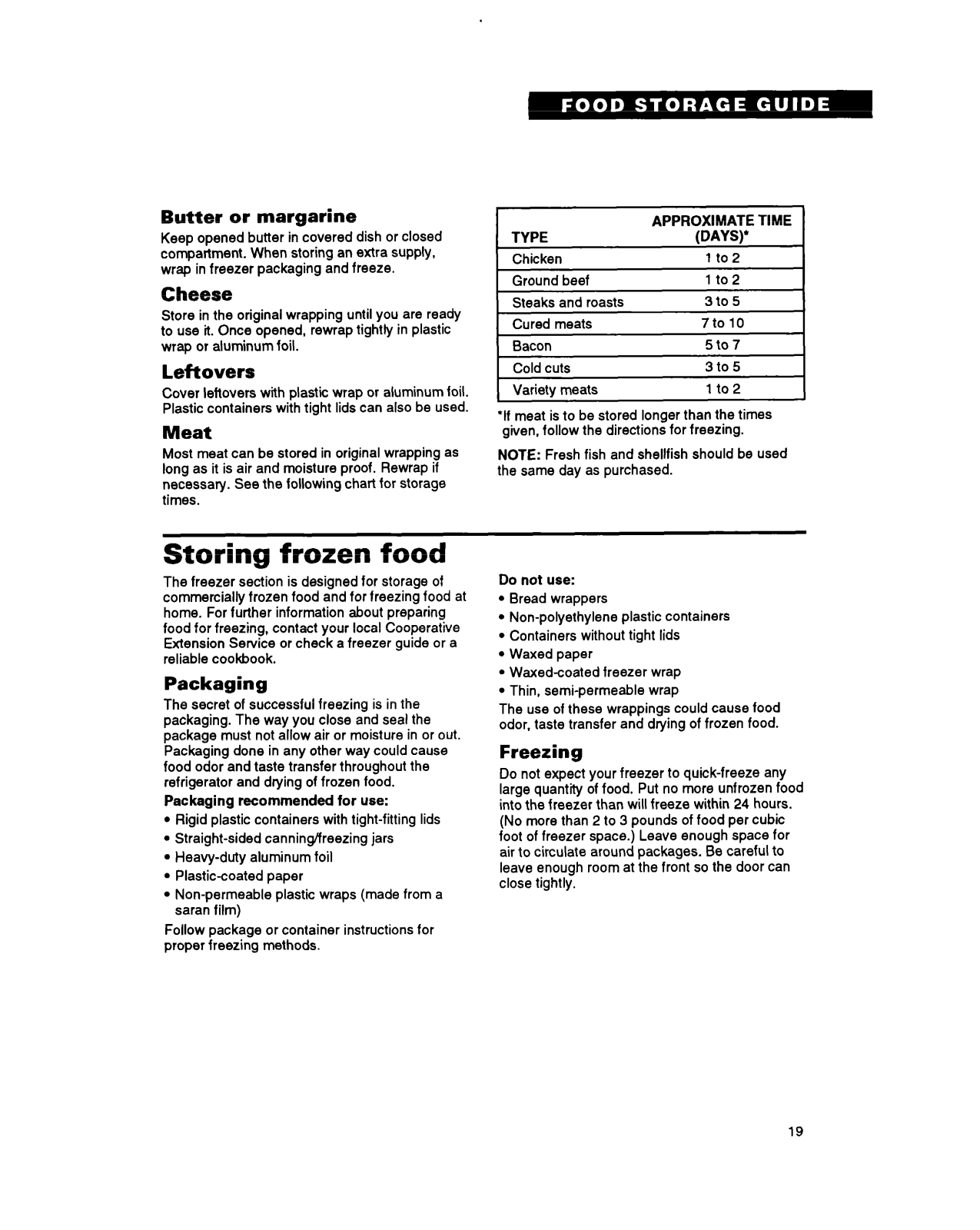

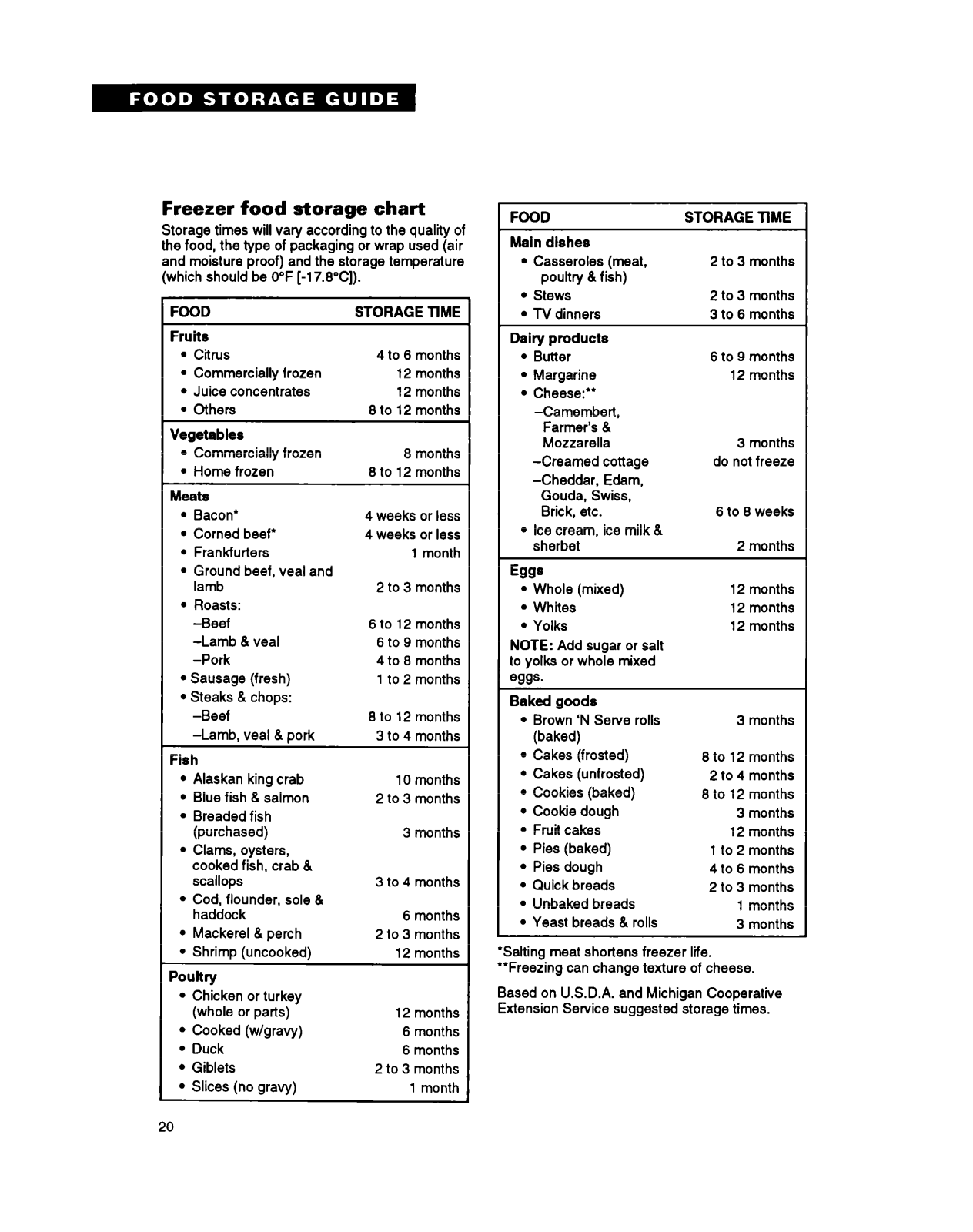

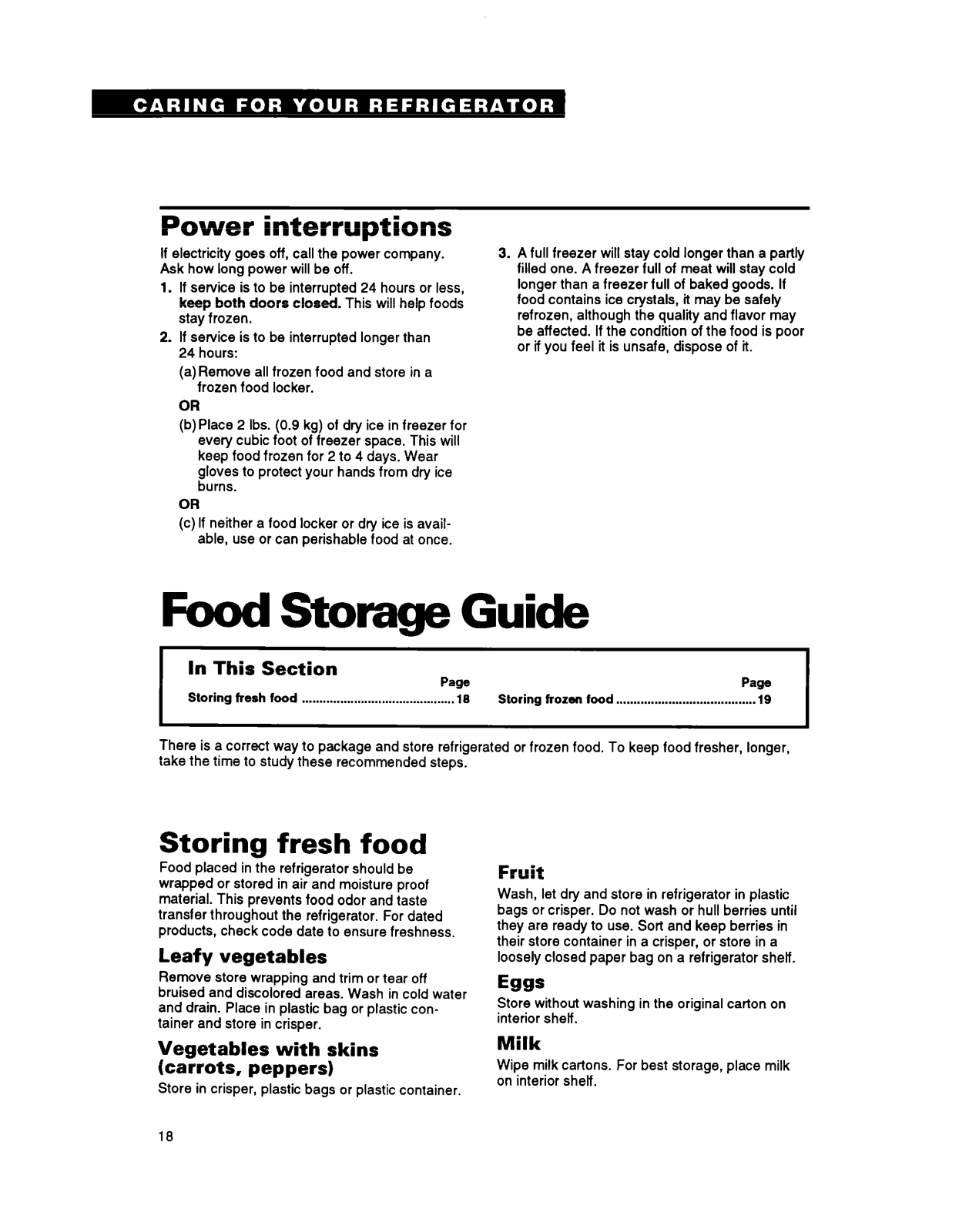

Food Storage Guide 18
YYou Need
~~~~~
2
3
4
5
16
21
Warranty
1-800-253-1301
Call us with questions or comments.
NO-FROST REFRIGERATOR-FREEZER
A
MODEL TS22BR
24
\\-Q

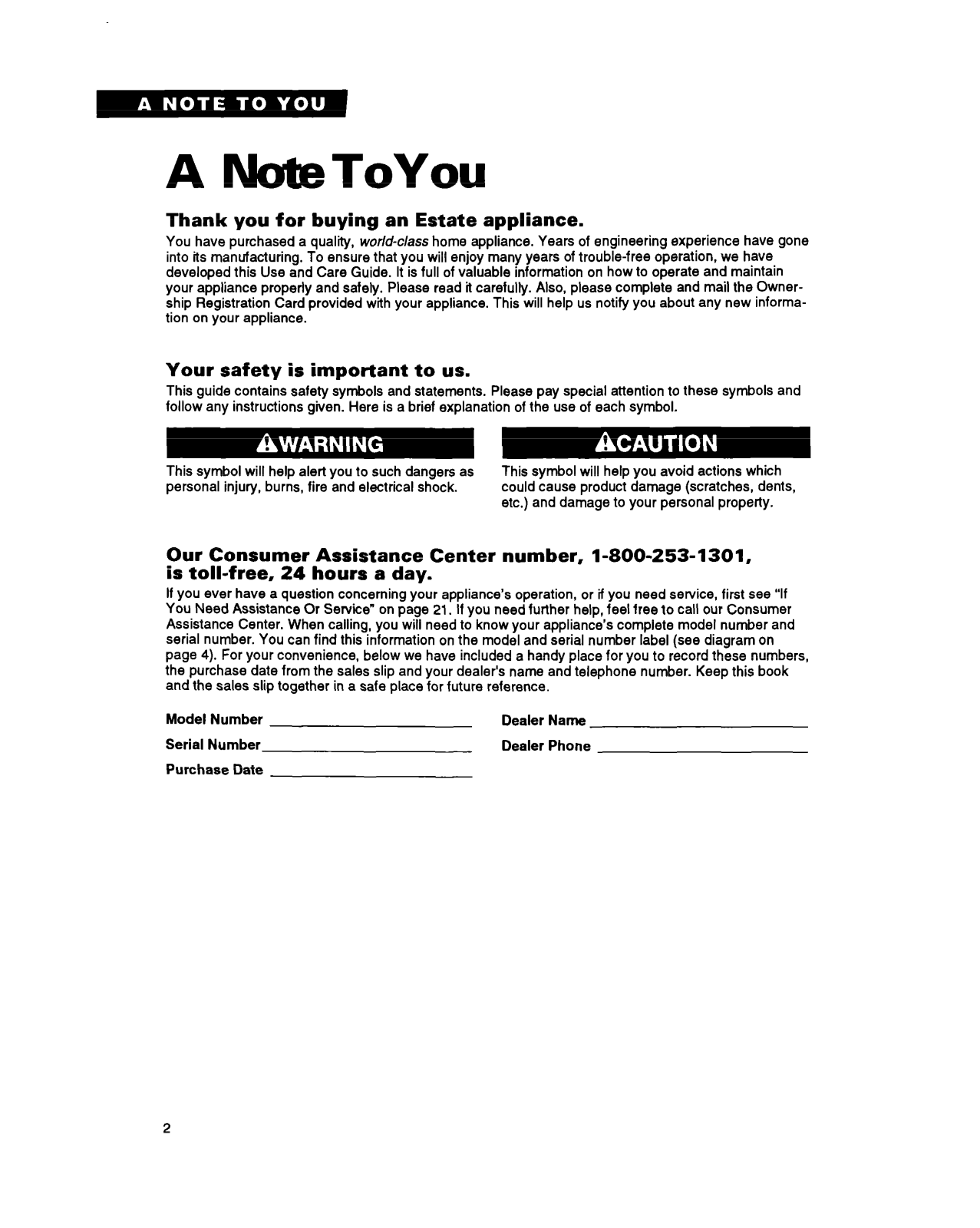

A NuteToYou
Thank you for buying an Estate appliance.
You have purchased a quality, world-class home appliance. Years of engineering experience have gone
into its manufacturing. To ensure that you will enjoy many years of trouble-free operation, we have
developed this Use and Care Guide. It is full of valuable information on how to operate and maintain
your appliance properly and safely. Please read it carefully. Also, please complete and mail the Ownership Registration Card provided with your appliance. This will help us notify you about any new information on your appliance.
Your safety is important to us.
This guide contains safety symbols and statements. Please pay special attention to these symbols and
follow any instructions given. Here is a brief explanation of the use of each symbol.
This symbol will help alert you to such dangers as
personal injury, burns, fire and electrical shock.
This symbol will help you avoid actions which
could cause product damage (scratches, dents,
etc.) and damage to your personal property.
Our Consumer Assistance Center number, l-800-253-1301,
is toll-free, 24 hours a day.

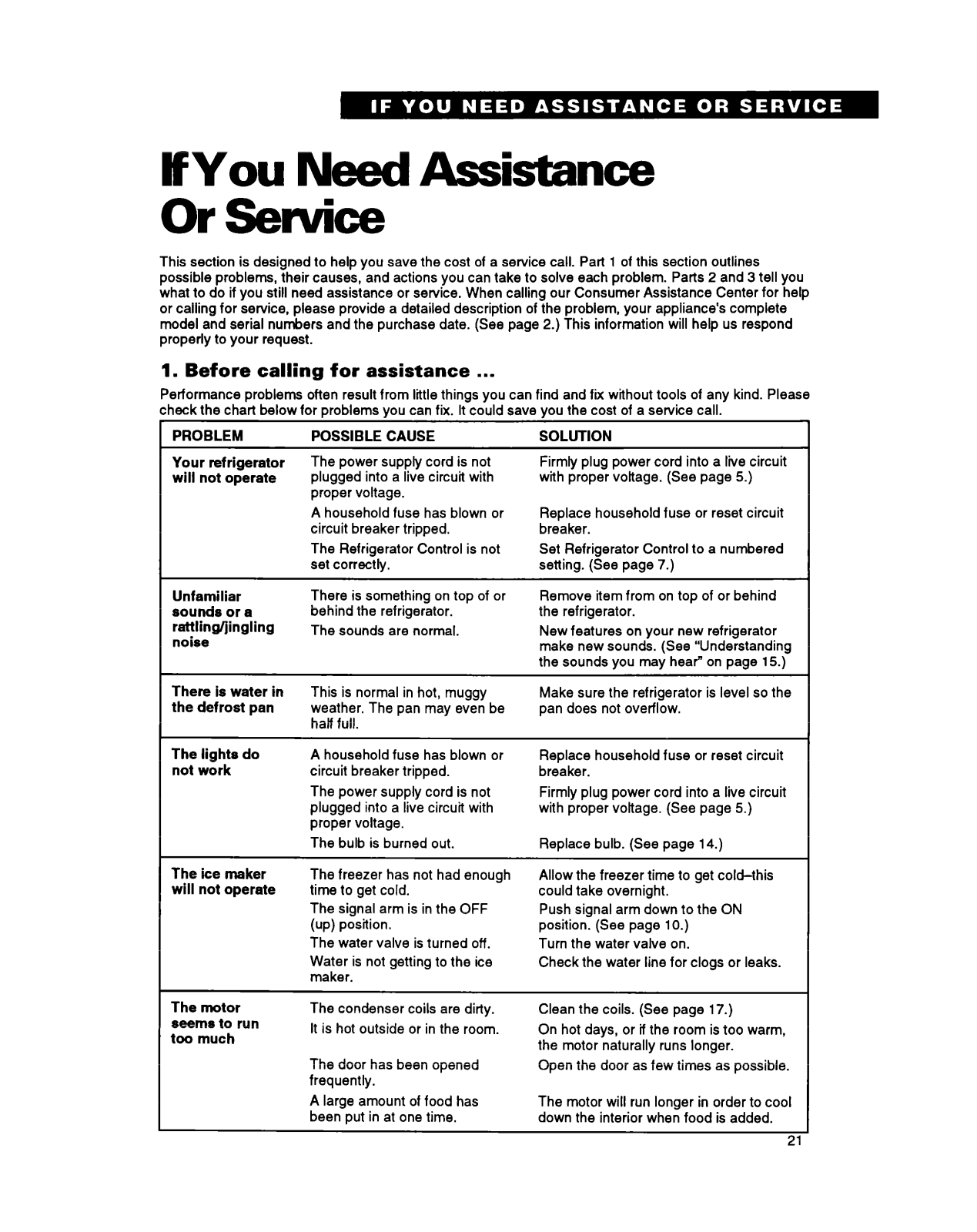

If you ever have a question concerning your appliance’s operation, or if you need service, first see “If
You Need Assistance Or Service” on page 21. If you need further help, feel free to call our Consumer
Assistance Center. When calling, you will need to know your appliance’s complete model number and
serial number. You can find this information on the model and serial number label (see diagram on
page 4). For your convenience, below we have included a handy place for you to record these numbers,
the purchase date from the sales slip and your dealer’s name and telephone number. Keep this book
and the sales slip together in a safe place for future reference.
Model Number
Serial Number
Purchase Date
Dealer Name
Dealer Phone

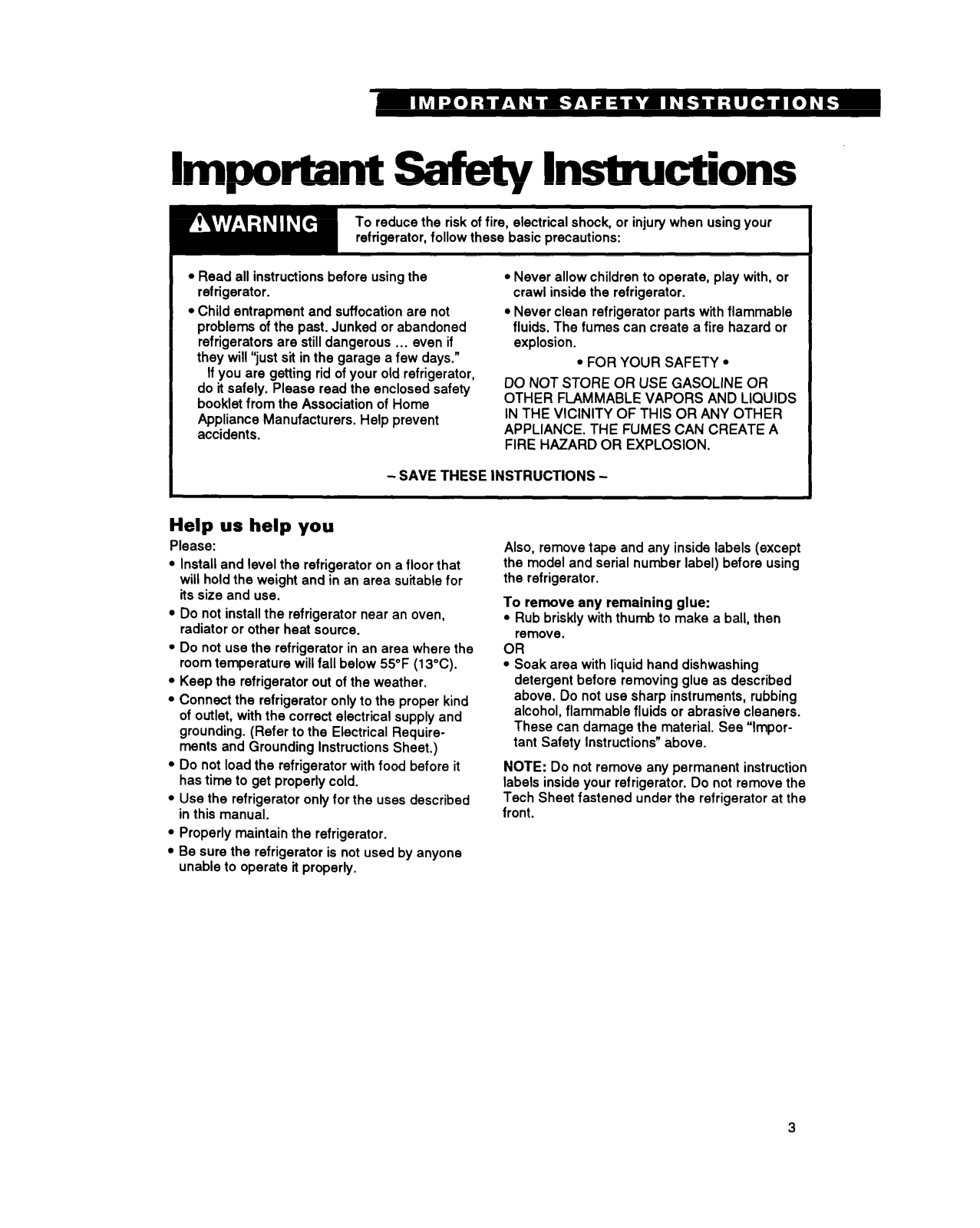

Imtxwtant Safktv Instructions
To reduce the risk of fire, electrical shock, or injury when using your
refrigerator, follow these basic precautions:
l
l
Read all instructions before using the
refrigerator.
l
Child entrapment and suffocation are not
problems of the past. Junked or abandoned
refrigerators are still dangerous . . . even if
they-will “just sit in the garage a few days.”
If you are getting rid of your old refrigerator,
do it safely. Please read the enclosed safety
booklet from the Association of Home
Appliance Manufacturers. Help prevent
accidents.
Never allow children to operate, play with, or
crawl inside the refrigerator.
l
Never clean refrigerator parts with flammable
fluids. The fumes can create a fire hazard or
explosion.
l
FOR YOUR SAFETY
l
DO NOT STORE OR USE GASOLINE OR
OTHER FLAMMABLE VAPORS AND LIQUIDS
IN THE VICINITY OF THIS OR ANY OTHER
APPLIANCE. THE FUMES CAN CREATE A
FIRE HAZARD OR EXPLOSION.
I
- SAVE THESE INSTRUCTIONS -
Help us help you
Please:
l
Install and level the refrigerator on a floor that
will hold the weight and in an area suitable for
its size and use.
l
Do not install the refrigerator near an oven,
radiator or other heat source.
. Do not use the refrigerator in an area where the
room temperature will fall below 55°F (13°C).
l
Keep the refrigerator out of the weather.
l
Connect the refrigerator only to the proper kind
of outlet, with the correct electrical supply and
grounding. (Refer to the Electrical Requirements and Grounding Instructions Sheet.)
l
Do not load the refrigerator with food before it
has time to get properly cold.
l
Use the refrigerator only for the uses described
in this manual.
l
Properly maintain the refrigerator.
l
Be sure the refrigerator is not used by anyone
unable to operate it properly.
Also, remove tape and any inside labels (except
the model and serial number label) before using
the refrigerator.
To remove any remaining glue:
l
Rub briskly with thumb to make a ball, then
remove.
OR
l
Soak area with liquid hand dishwashing
detergent before removing glue as described
above. Do not use sharp instruments, rubbing
alcohol, flammable fluids or abrasive cleaners.
These can damage the material. See “lmpor-
tant Safety Instructions” above.
NOTE: Do not remove any permanent instruction
labels inside your refrigerator. Do not remove the
Tech Sheet fastened under the refrigerator at the
front.
3

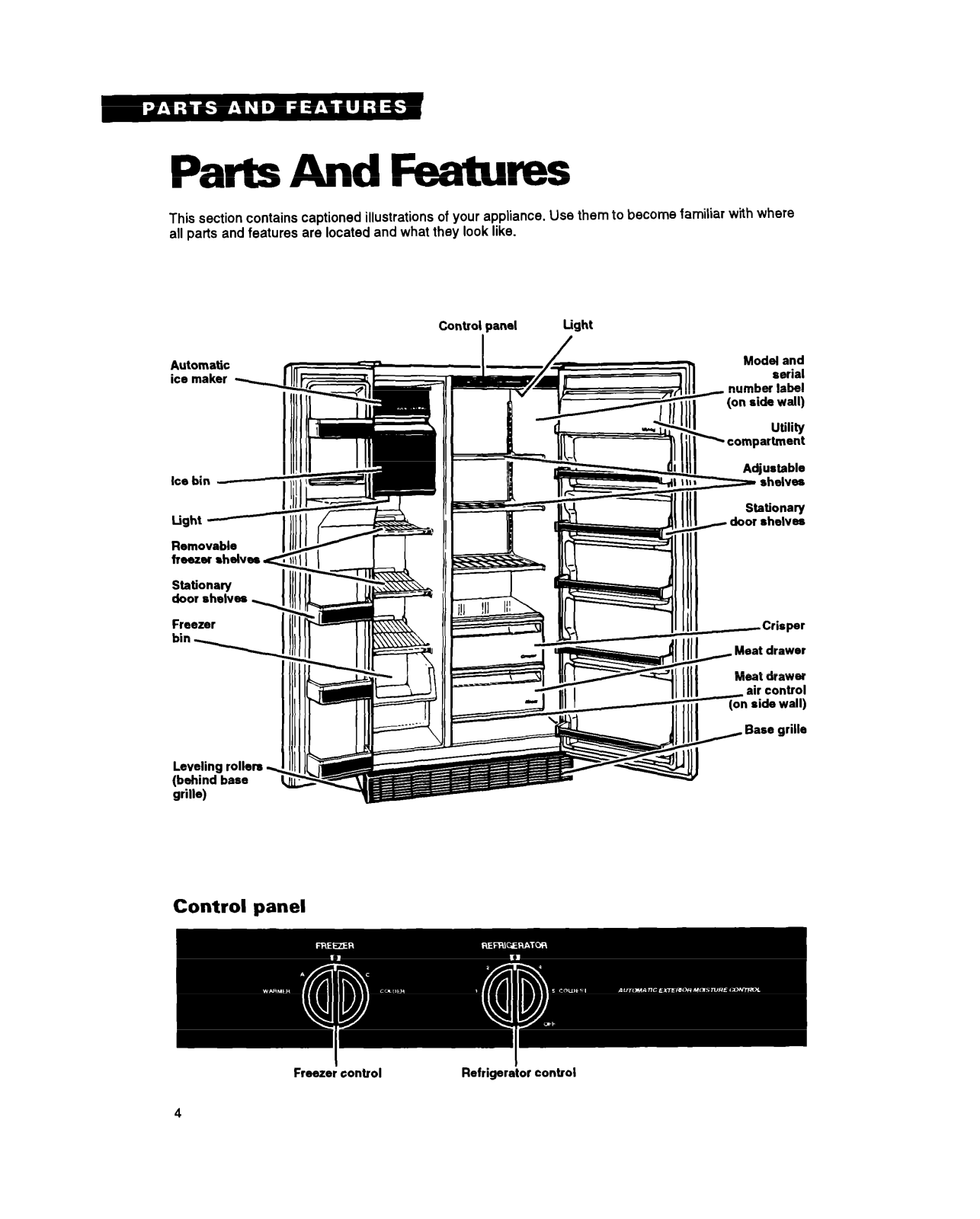

Parts And Fea%wes
This section contains captioned illustrations of your appliance. Use them to become familiar with where
all parts and features are located and what they look like.
Control panel
Model and
Leveling rollers
(behind base
grille)

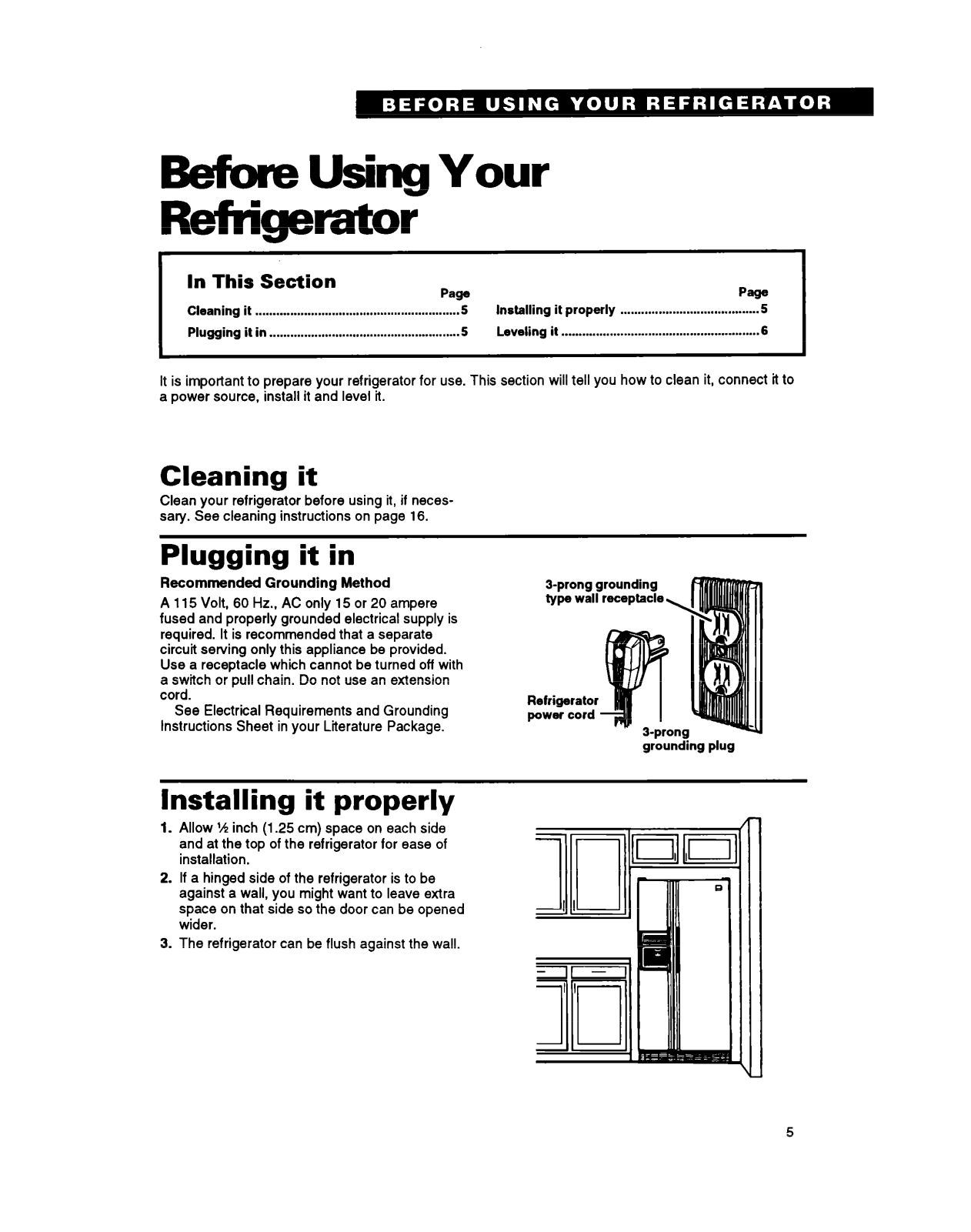

Before Using Your Refrigerator
In This Section
Cleaning it . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Plugging it in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
It is important to prepare your refrigerator for use. This section will tell you how to clean it, connect it to
a power source, install it and level it.
Pa*
Installing it properly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Leveling it . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Page
Cleaning it

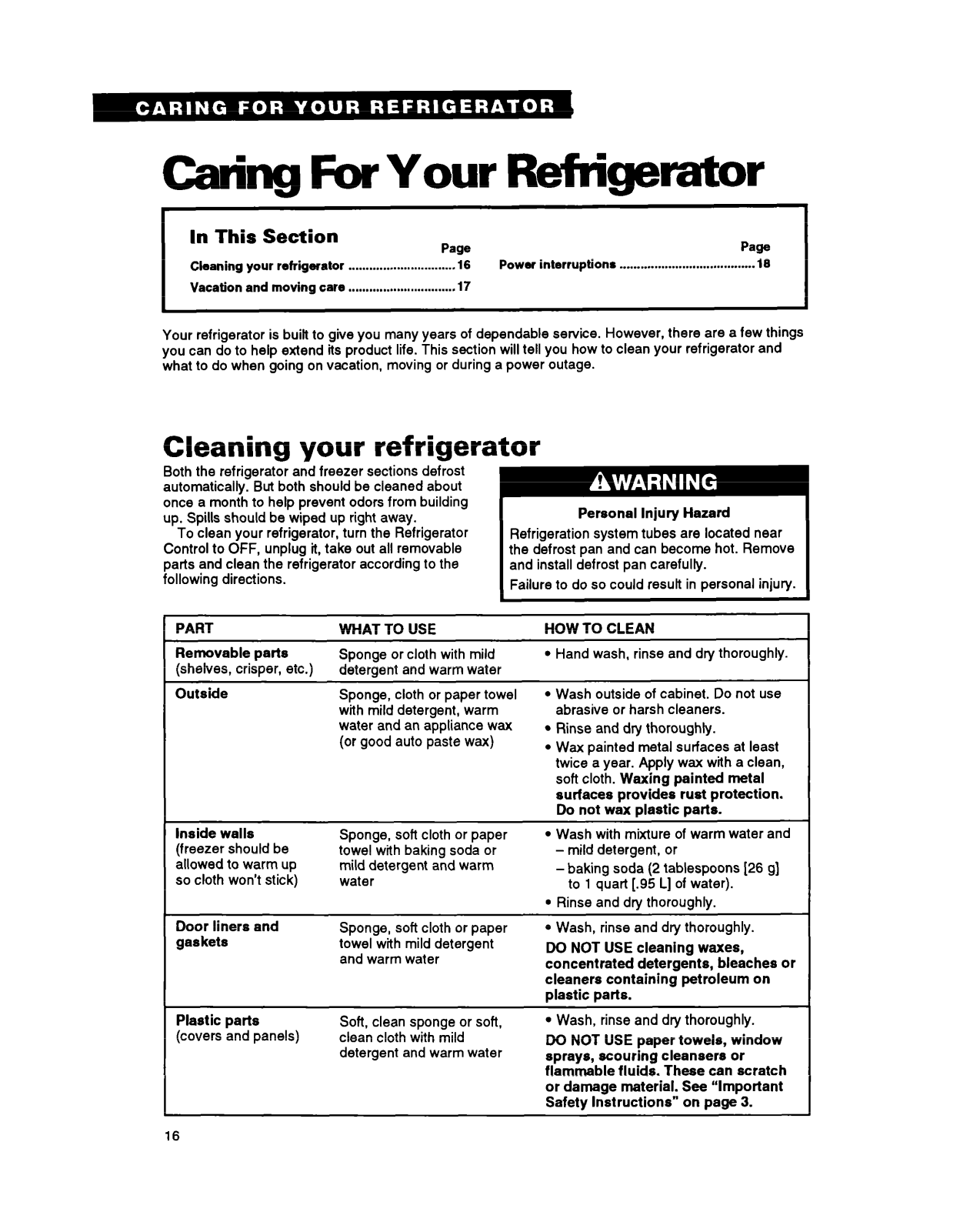

Clean your refrigerator before using it, if necessary. See cleaning instructions on page 16.
Plugging it in
Recommended Grounding Method
A 115 Volt, 60 Hz., AC only 15 or 20 ampere
fused and properly grounded electrical supply is
required. It is recommended that a separate
circuit serving only this appliance be provided.
Use a receptacle which cannot be turned off with
a switch or pull chain. Do not use an extension
cord.
See Electrical Requirements and Grounding
Instructions Sheet in your Literature Package.
Sprang grounding
type wall receptacle
Refrigerator
power cord
grounding plug
Installing it properly
1. Allow l/z inch (1.25 cm) space on each side
and at the top of the refrigerator for ease of
installation.
2. If a hinged side of the refrigerator is to be
against a wall, you might want to leave extra
space on that side so the door can be opened
wider.
3. The refrigerator can be flush against the wall.

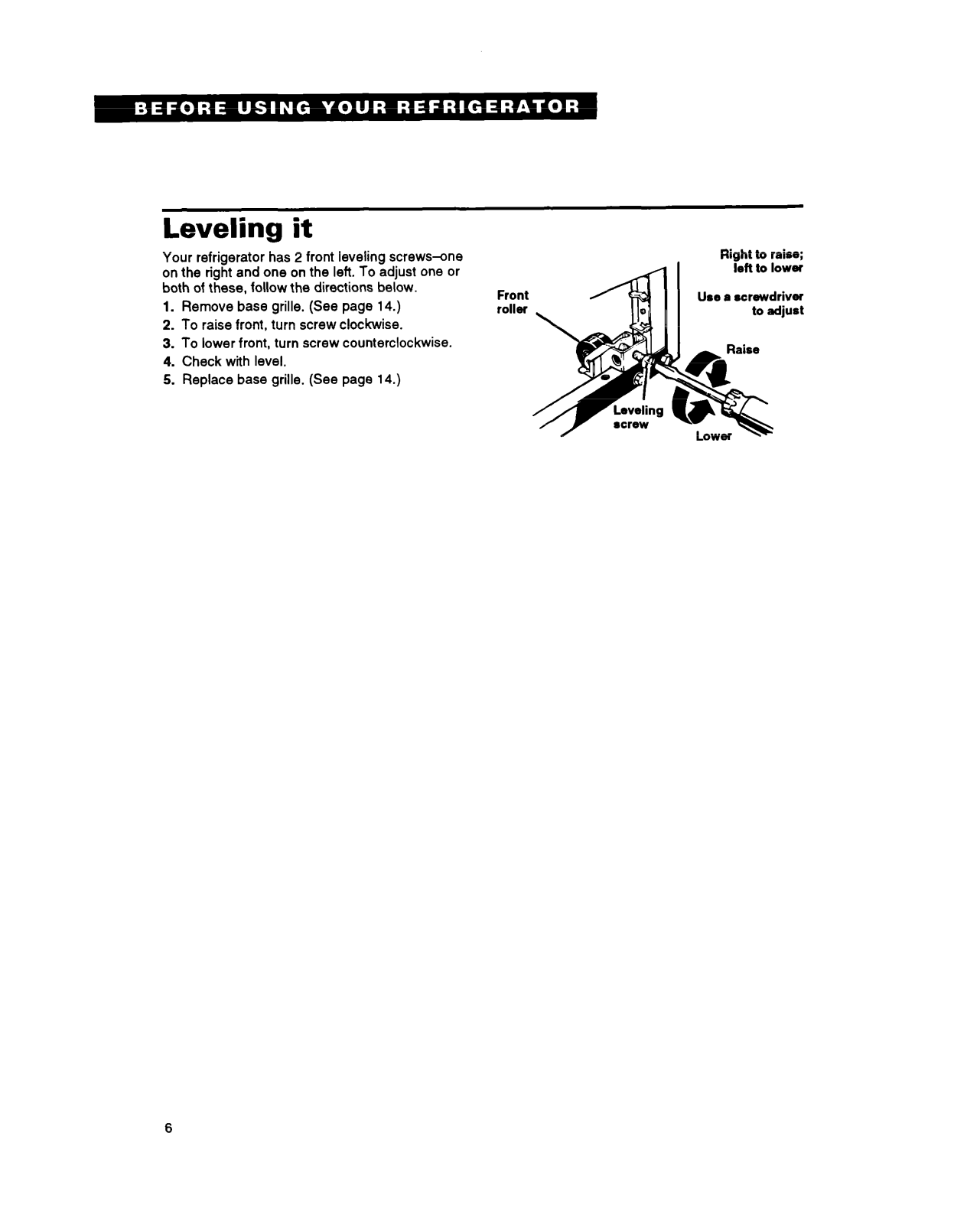

Leveling it
Your refrigerator has 2 front leveling screws-ne
on the right and one on the left. To adjust one or
both of these, follow the directions below.
1.
Remove base grille. (See page 14.)
2. To raise front, turn screw clockwise.
3. To lower front, turn screw counterclockwise.
4.
Check with level.
5. Replace base grille. (See page
14.)
Front
roller
Right to raise;
left to lower
Use a screwdriver
Using Your Refrigerator
In This Section
getting the controls
Changing the control settings..
Adjusting the refrigerator shelves

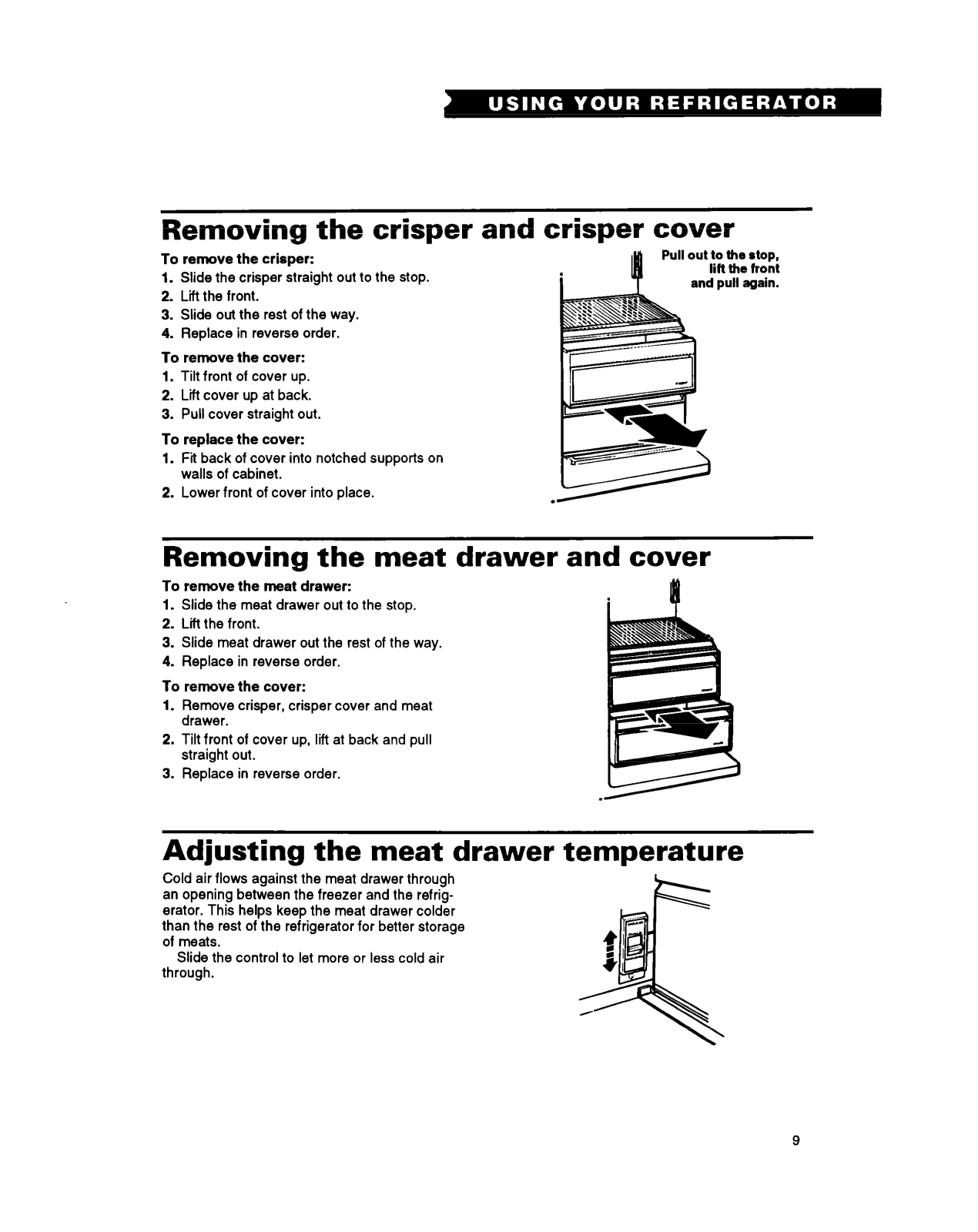

Removing the crisper and crisper cover..
Removing the meat drawer
Adjusting the meat drawer temperature..

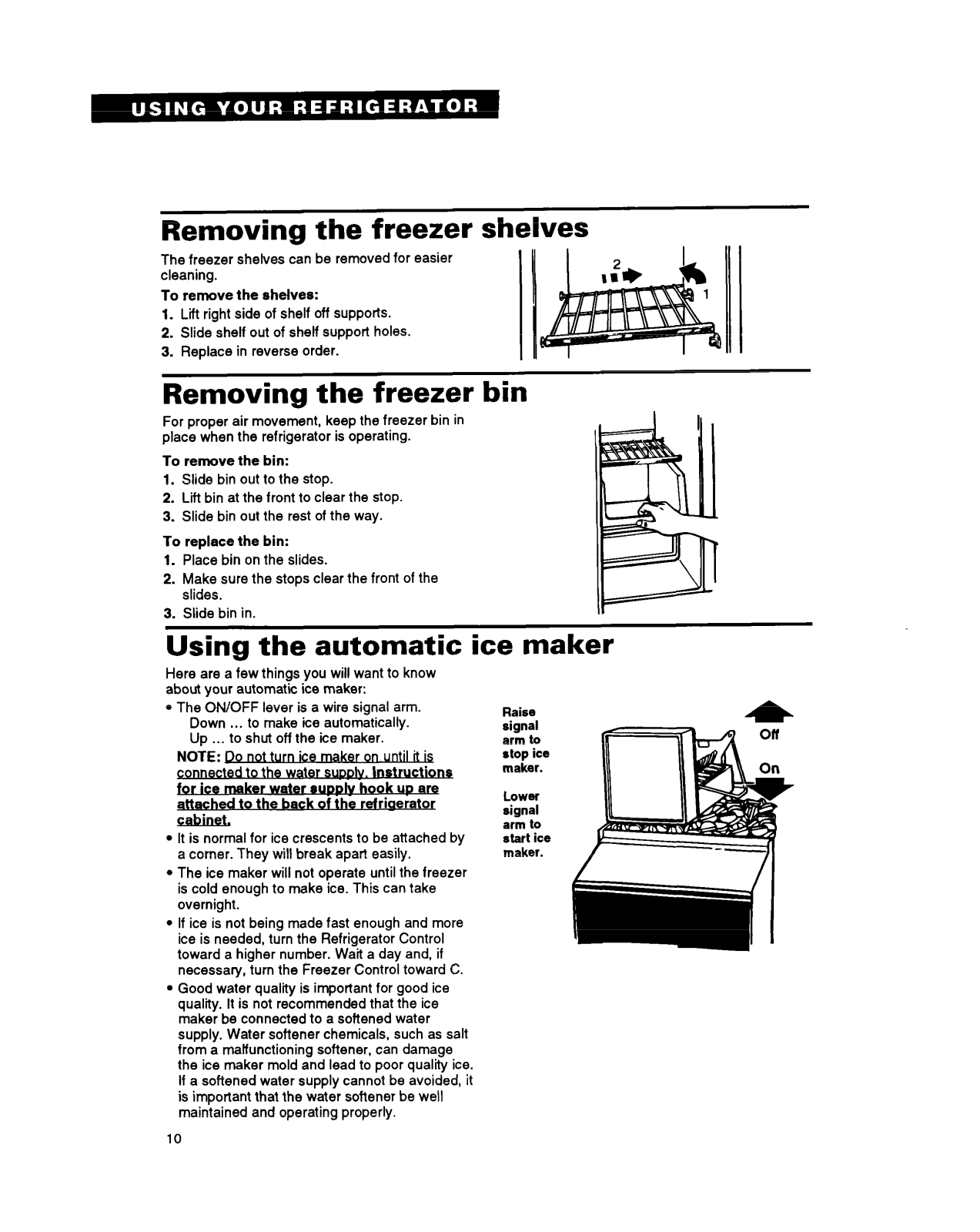

Removing the freezer shelves
Removing the freezer bin
Using the automatic ice
...........................................
........................
...................
and cover..
.........................
.................................
maker..
.....................
Page
.......
...........
........

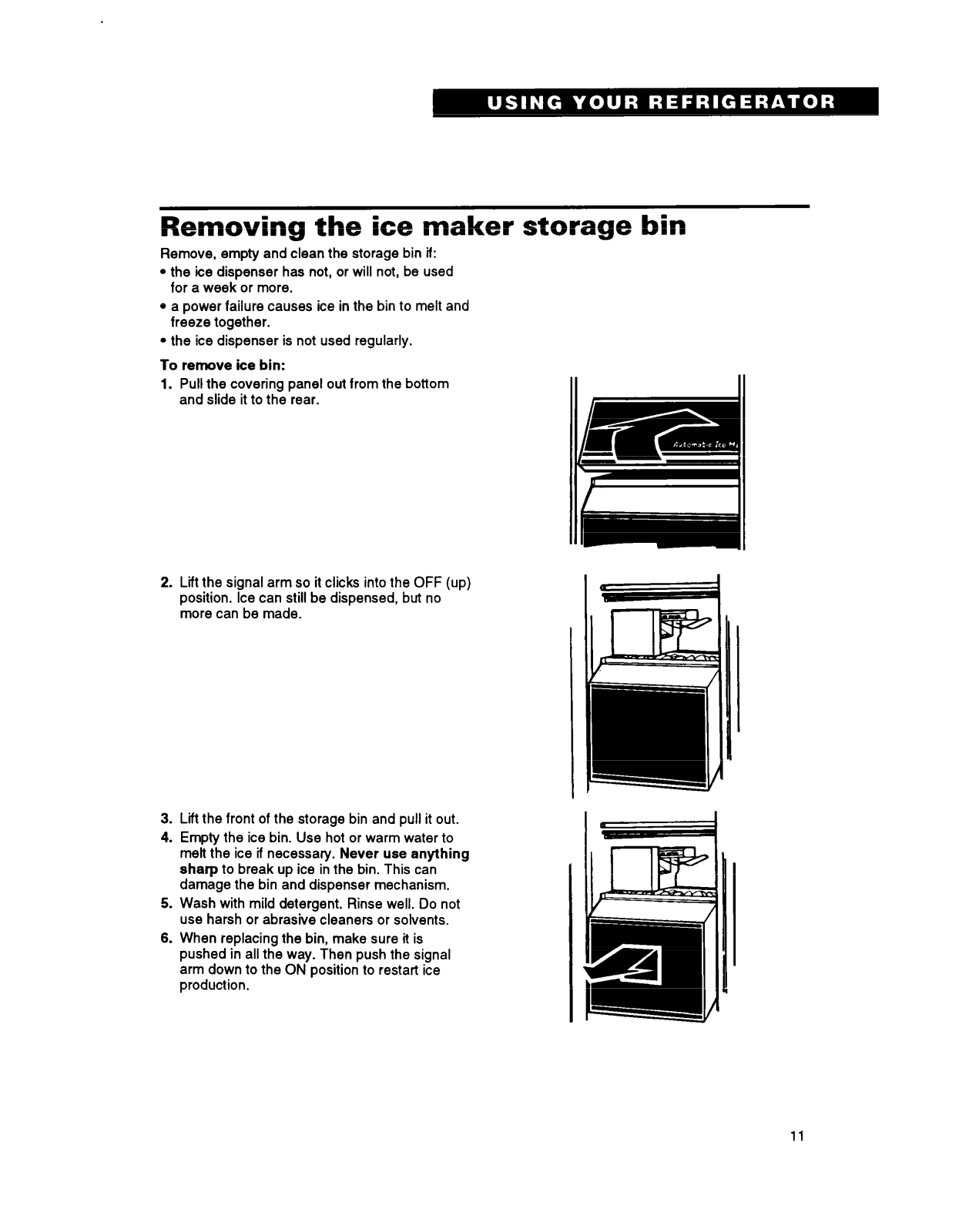

Removing the ice maker storage bin
.7

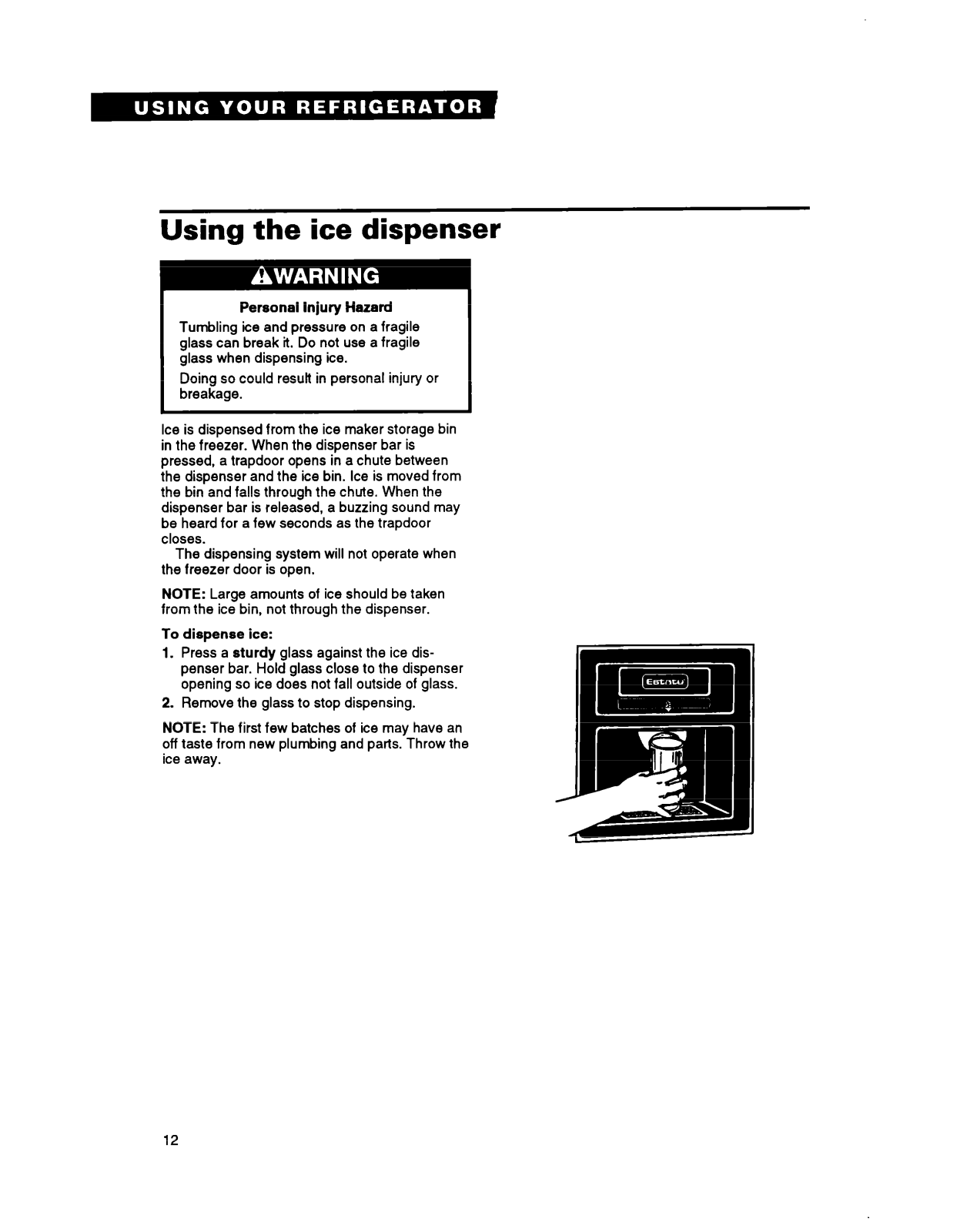

Using the ice dispenser
.9

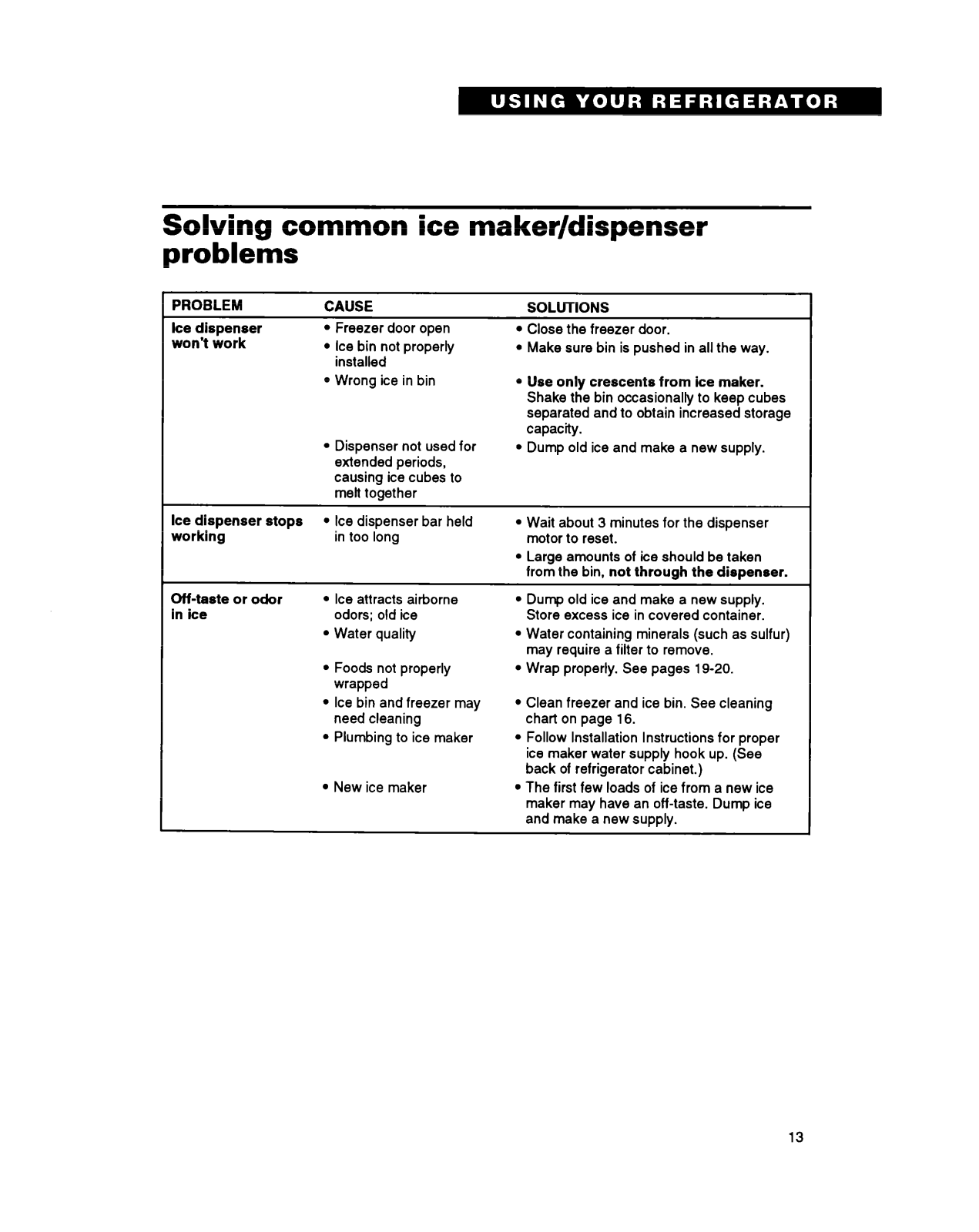

Solving common ice maker/
.9
dispenser problems
.9

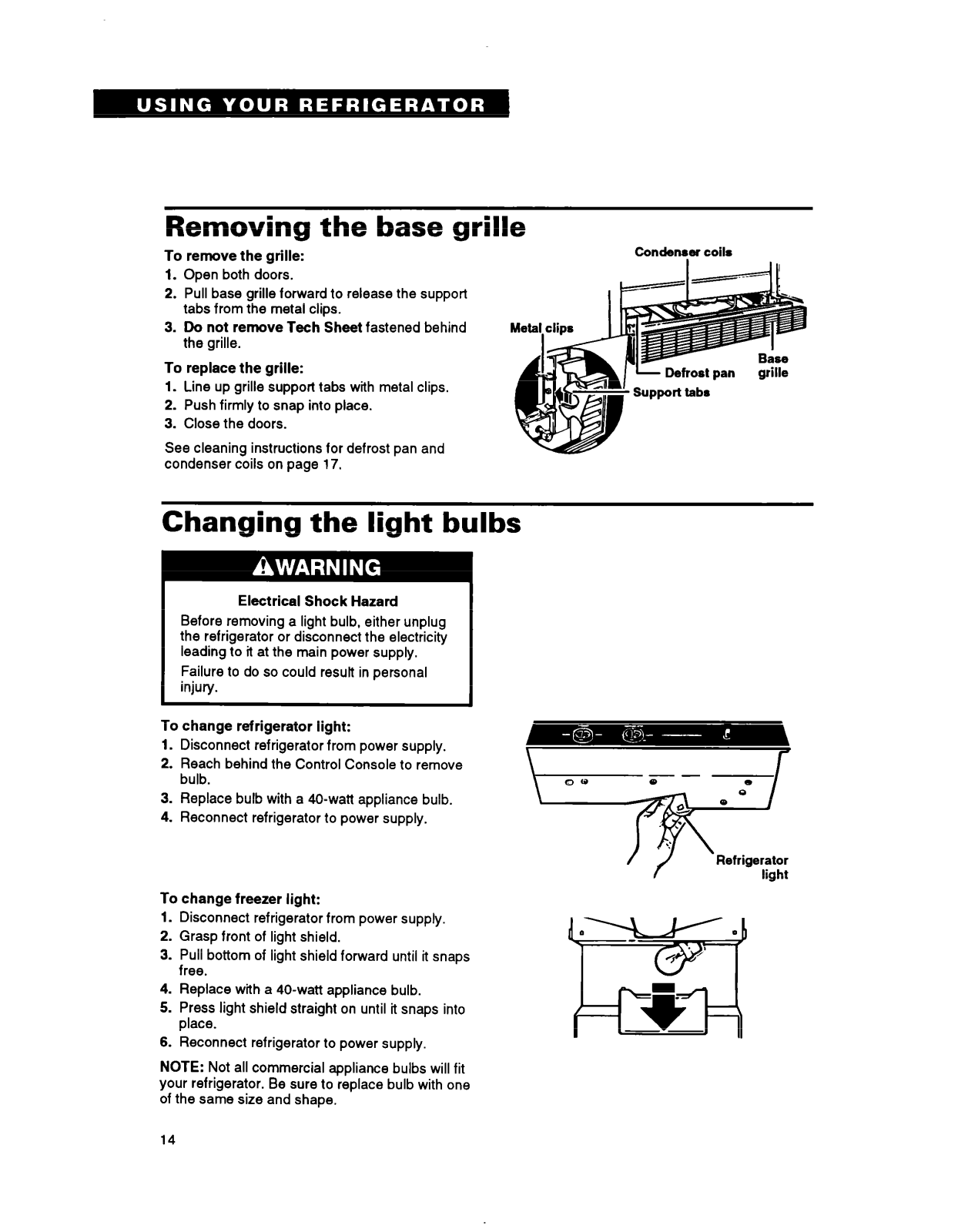

Removing the base grille
.9
Changing the light bulbs
.9

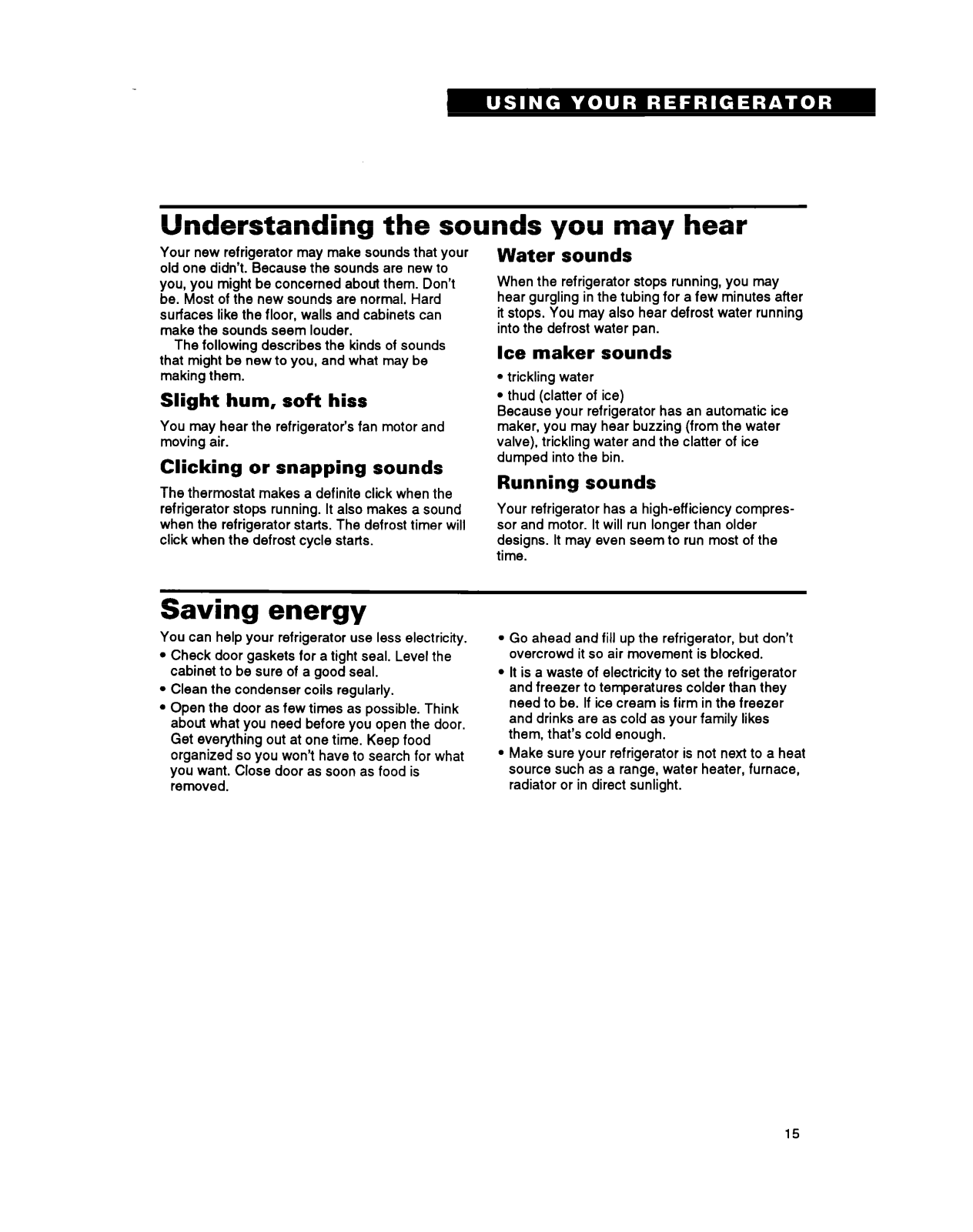

Understanding the sounds you may hear
10
10
Saving energy
.10
.......................................
................................................
.................................
.............................. 14
...............................
Page
...........
.15
..
In order to obtain the best possible results from your refrigerator, it is important that you operate it
properly. This section will tell you how to do just that.

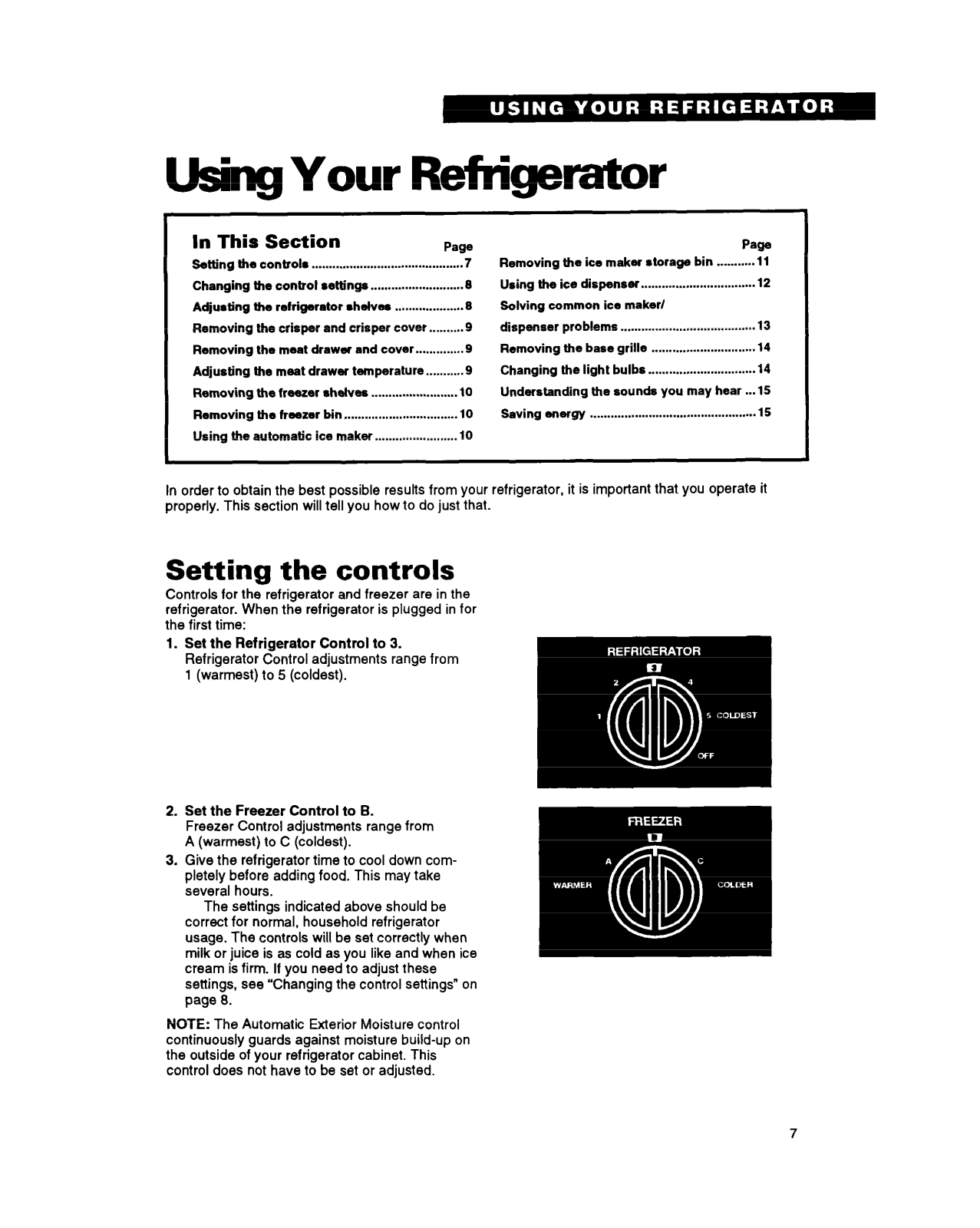

Setting the controls
Controls for the refrigerator and freezer are in the
refrigerator. When the refrigerator is plugged in for
the first time:
1. Set the Refrigerator Control to 3.
Refrigerator Control adjustments range from
1 (warmest) to 5 (coldest).
11
12
13
14
15
2. Set the Freezer Control to B.
Freezer Control adjustments range from
A (warmest) to C (coldest).
3. Give the refrigerator time to cool down completely before adding food. This may take
several hours.
The settings indicated above should be
correct for normal, household refrigerator
usage. The controls will be set correctly when
milk or juice is as cold as you like and when ice
cream is firm. If you need to adjust these
settings, see “Changing the control settings” on
page 8.
NOTE: The Automatic Exterior Moisture control
continuously guards against moisture build-up on
the outside of your refrigerator cabinet. This
control does not have to be set or adjusted.
7

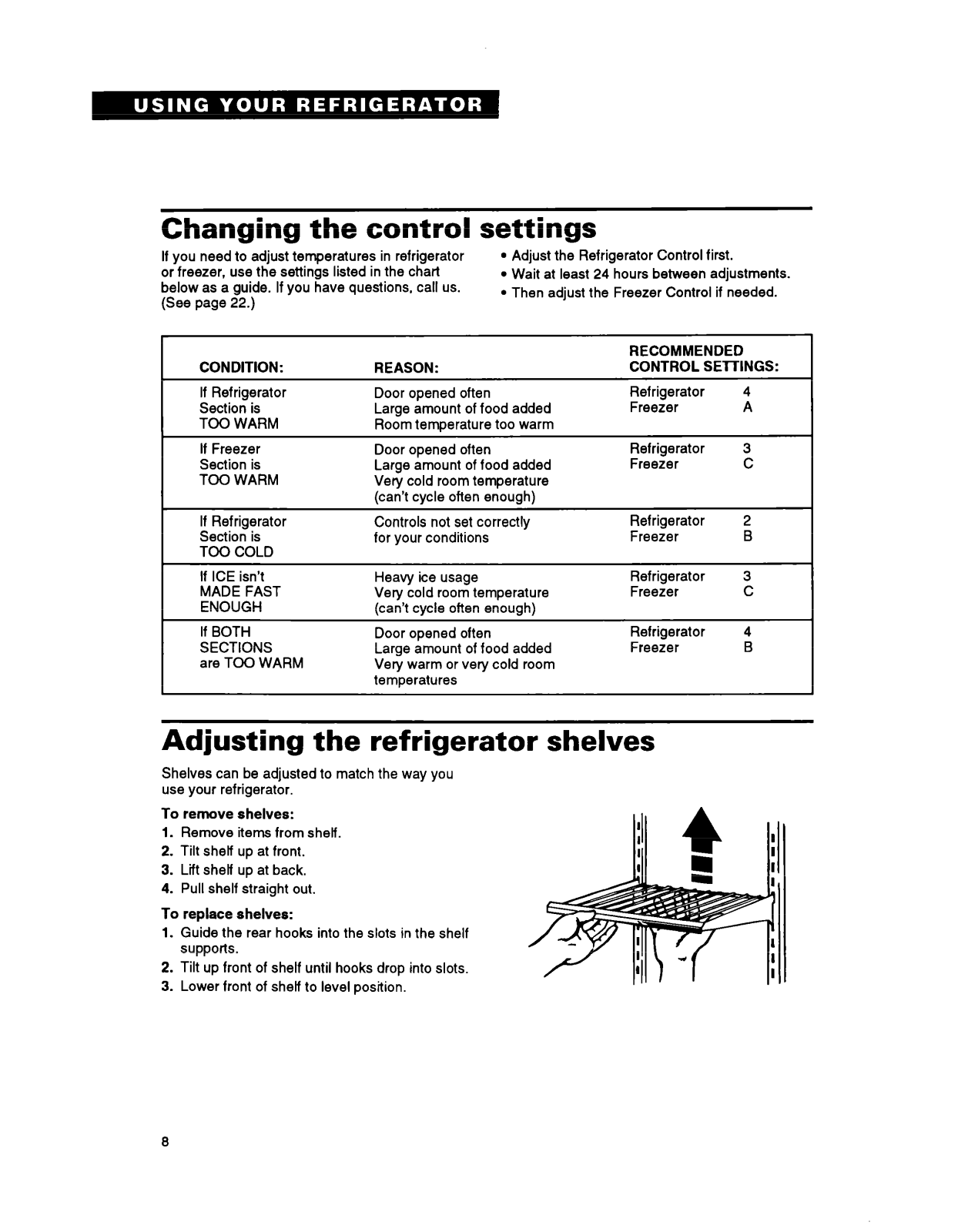

Changing the control settings
l
If you need to adjust temperatures in refrigerator
or freezer, use the settings listed in the chart
below as a guide. If you have questions, call us.
(See page 22.)
CONDITION:
I
If Refrigerator
Section is
TOO WARM
If Freezer
Section is
TOO WARM
If Refrigerator
Section is
TOO COLD
If ICE isn’t
MADE FAST
ENOUGH
If BOTH
SECTIONS
are TOO WARM
REASON:
Door opened often
Large amount of food added
Room temperature too warm
Door opened often
Large amount of food added
Very cold room temperature
(can’t cycle often enough)
Controls not set correctly
for your conditions
Heavy ice usage
Very cold room temperature
(can’t cycle often enough)
Door opened often
Large amount of food added
Very warm or very cold room
temperatures
Adjust the Refrigerator Control first.
l
Wait at least 24 hours between adjustments.
l
Then adjust the Freezer Control if needed.
RECOMMENDED
CONTROL SElTINGS:
Refrigerator
Freezer i
Refrigerator 3
Freezer C
Refrigerator 2
Freezer
Refrigerator 3
Freezer
Refrigerator 4
Freezer
B
C
B
I
Adjusting the refrigerator shelves
Shelves can be adjusted to match the way you
use your refrigerator.
To remove shelves:
1. Remove items from shelf.
2. Tilt shelf up at front.
3. Lift shelf up at back.
4. Pull shelf straight out.
To replace shelves:
1. Guide the rear hooks into the slots in the shelf
supports.
2. Tilt up front of shelf until hooks drop into slots.
3. Lower front of shelf to level position.
8
