Whirlpool SS330PEB, SS310PEB User Manual

Specifications and Main Features
  • Model Numbers: SS330PEB, SS310PEB
  • Oven Type: Continuous Cleaning and Standard Gas Ranges
  • Control Type: Manual Control – Adjustable Oven Temperature
  • Surface Burners: Generously outfitted with automatic electric leigh ignitors
  • Broiler Drawer: Built primarily to broil foods while regulating heat around them
  • Oven Temperature Adjustment: Features allowing for customisation of oven temperature settings have been built in for convenience

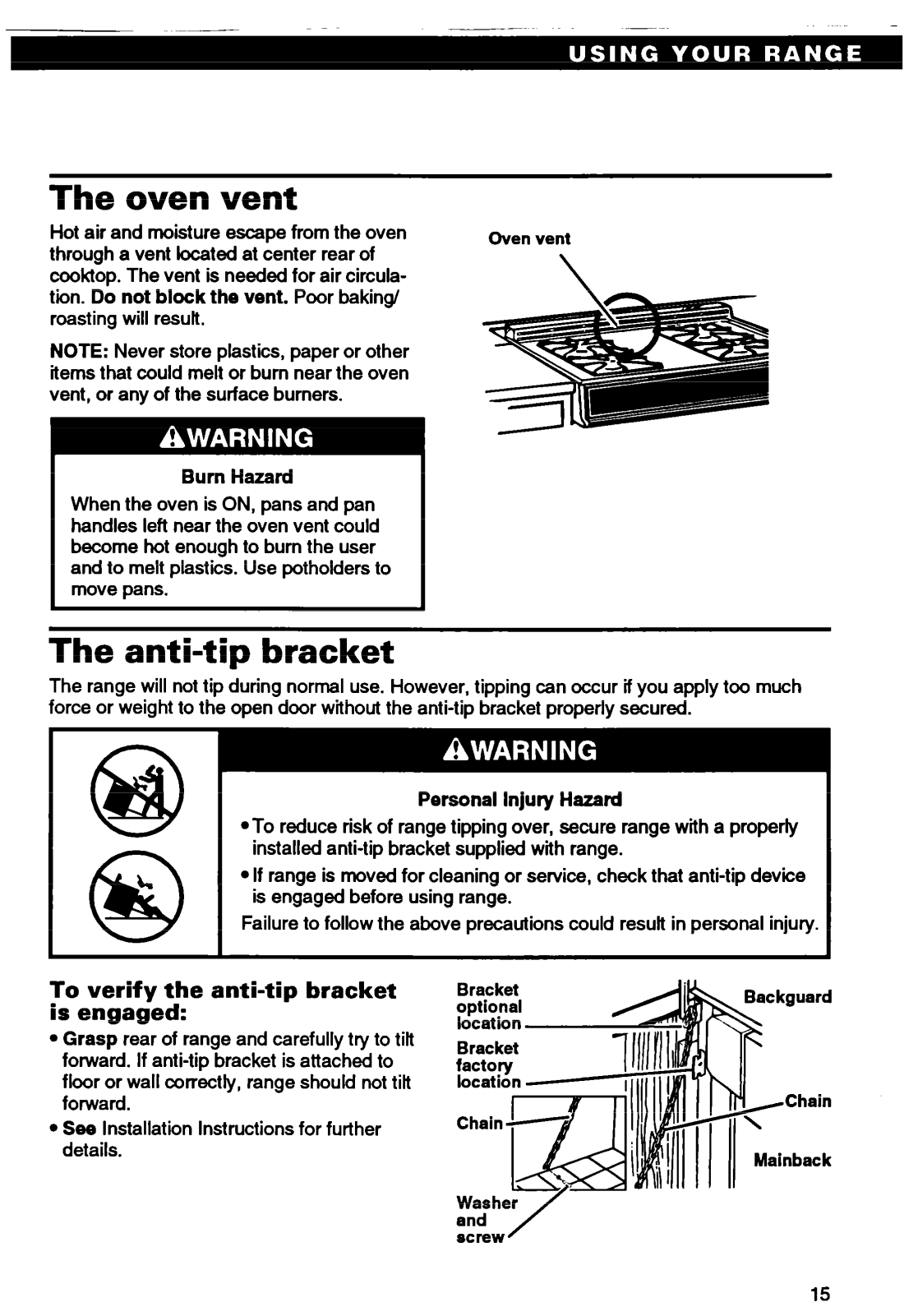

  • Safety Features: Rating: S416 – single mounting anti-tip bracket included with the oven unit

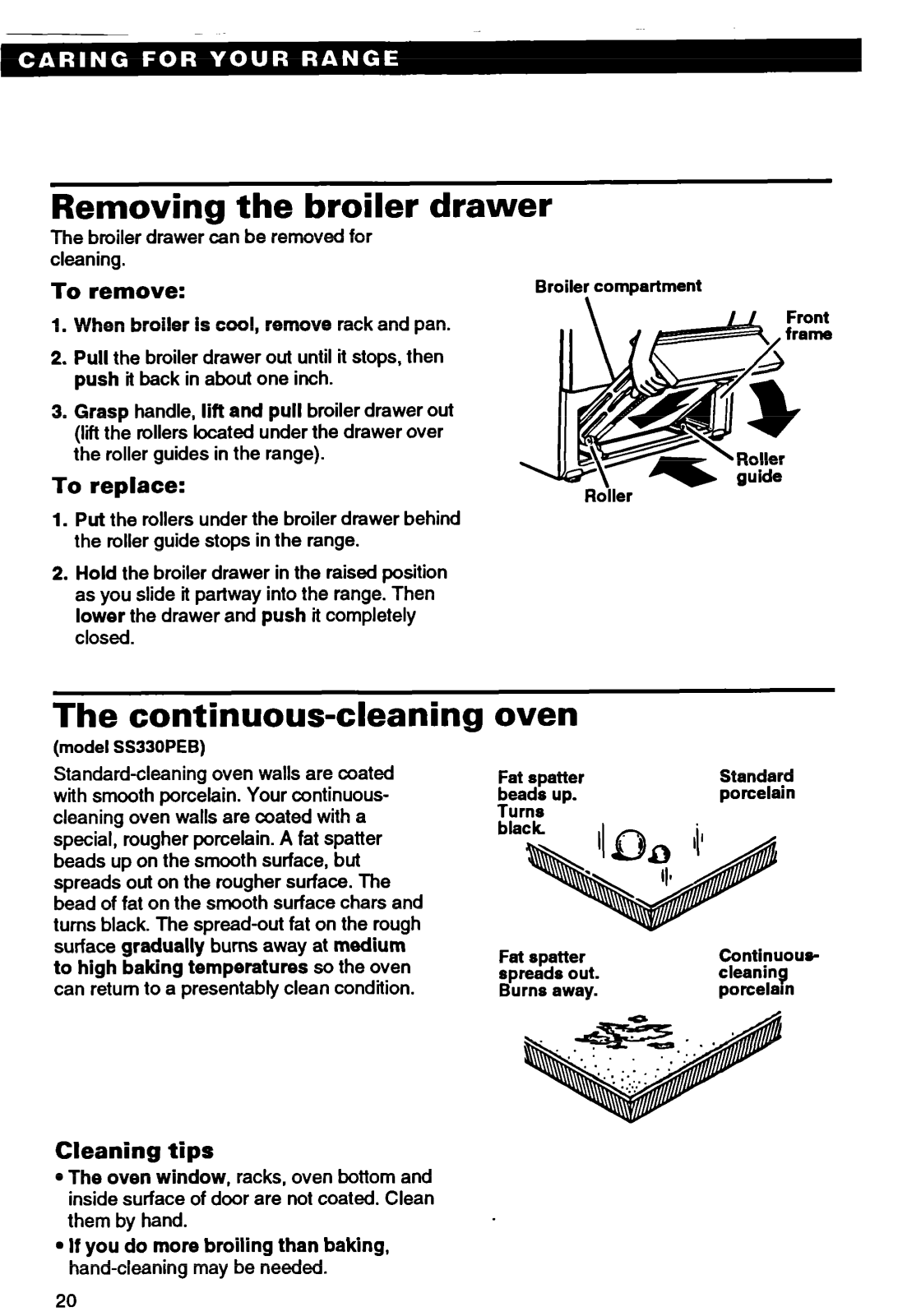

  • Cleaning Features: Specific porcelain cleaning coatings are ample to say the least of continuous cleaning ovens

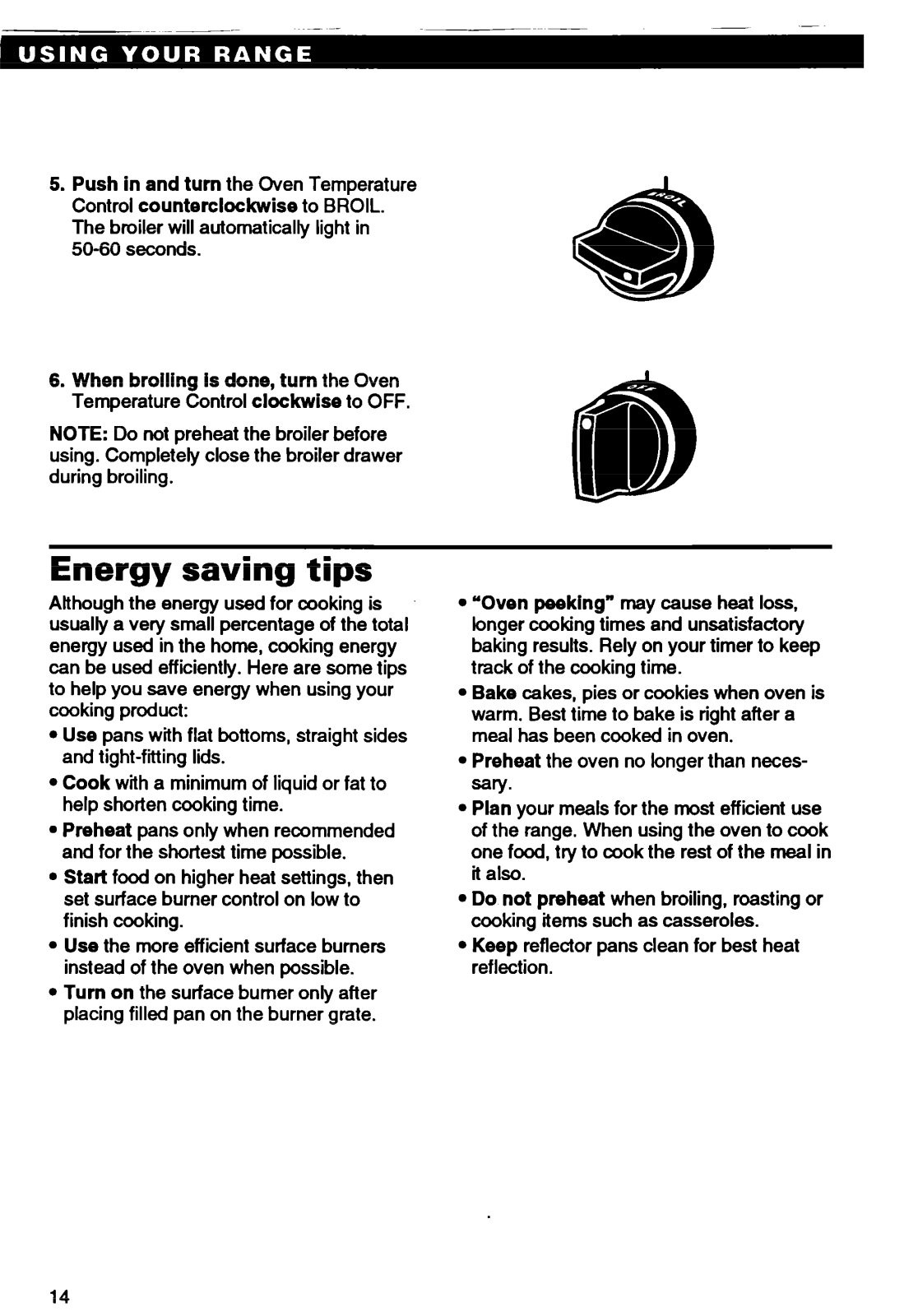

  • Energy Saving Tips: An additional fuel source along with other cooking tips are provided to help maximise efficiency

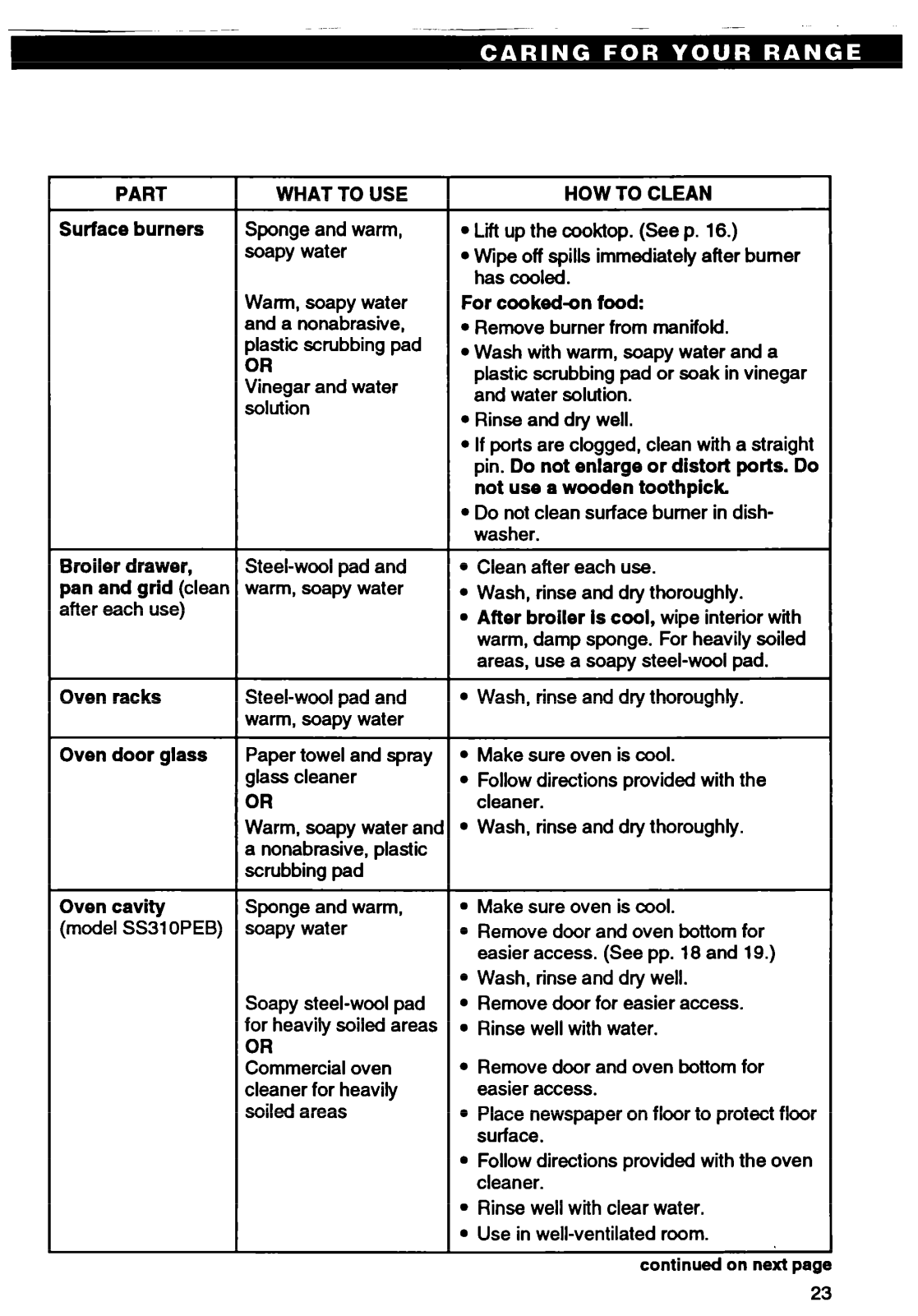

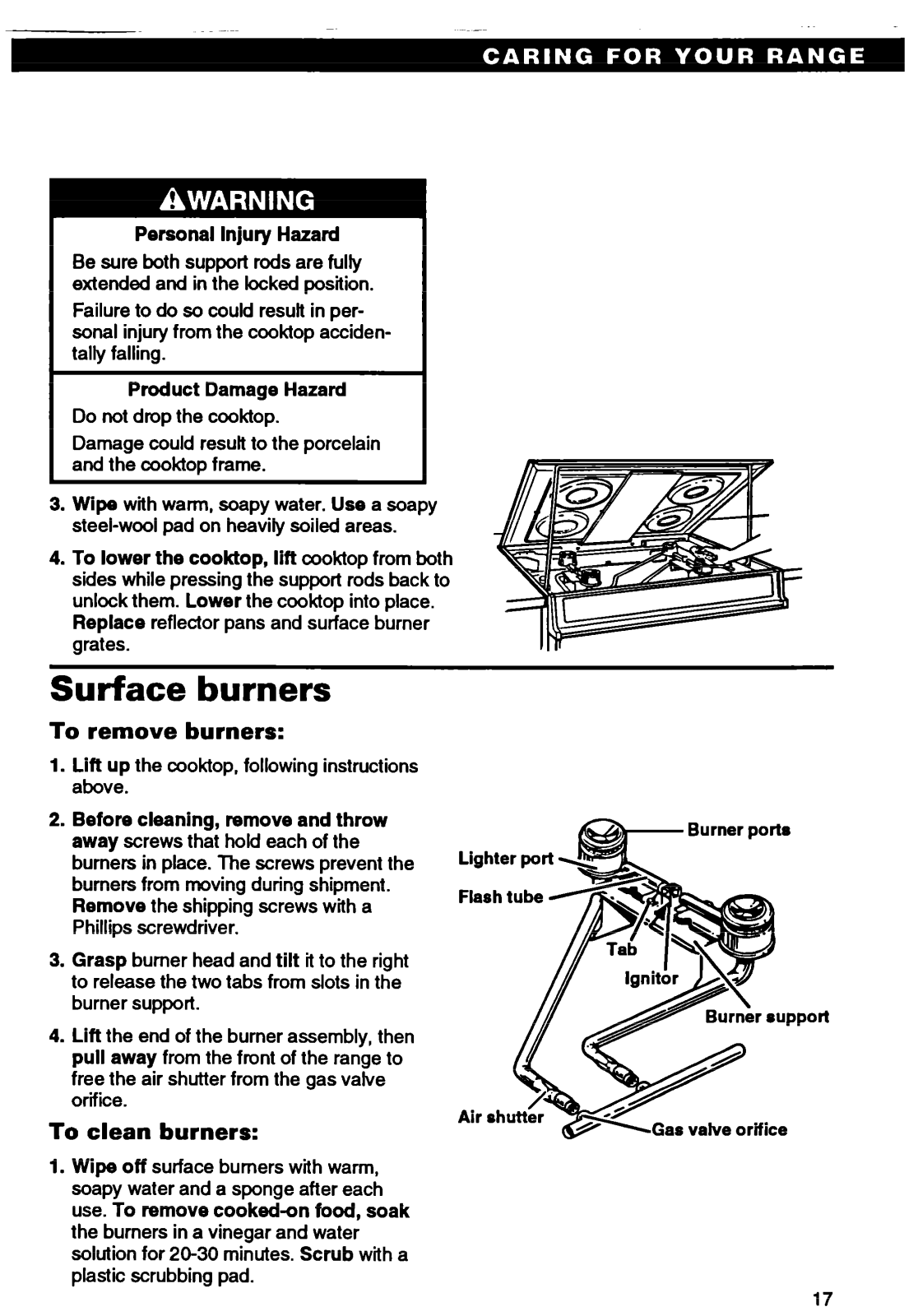

  • Maintenance Instructions: Responsible fro maintaining the surface burners the oven racks and the innards of the oven cavity are discussed

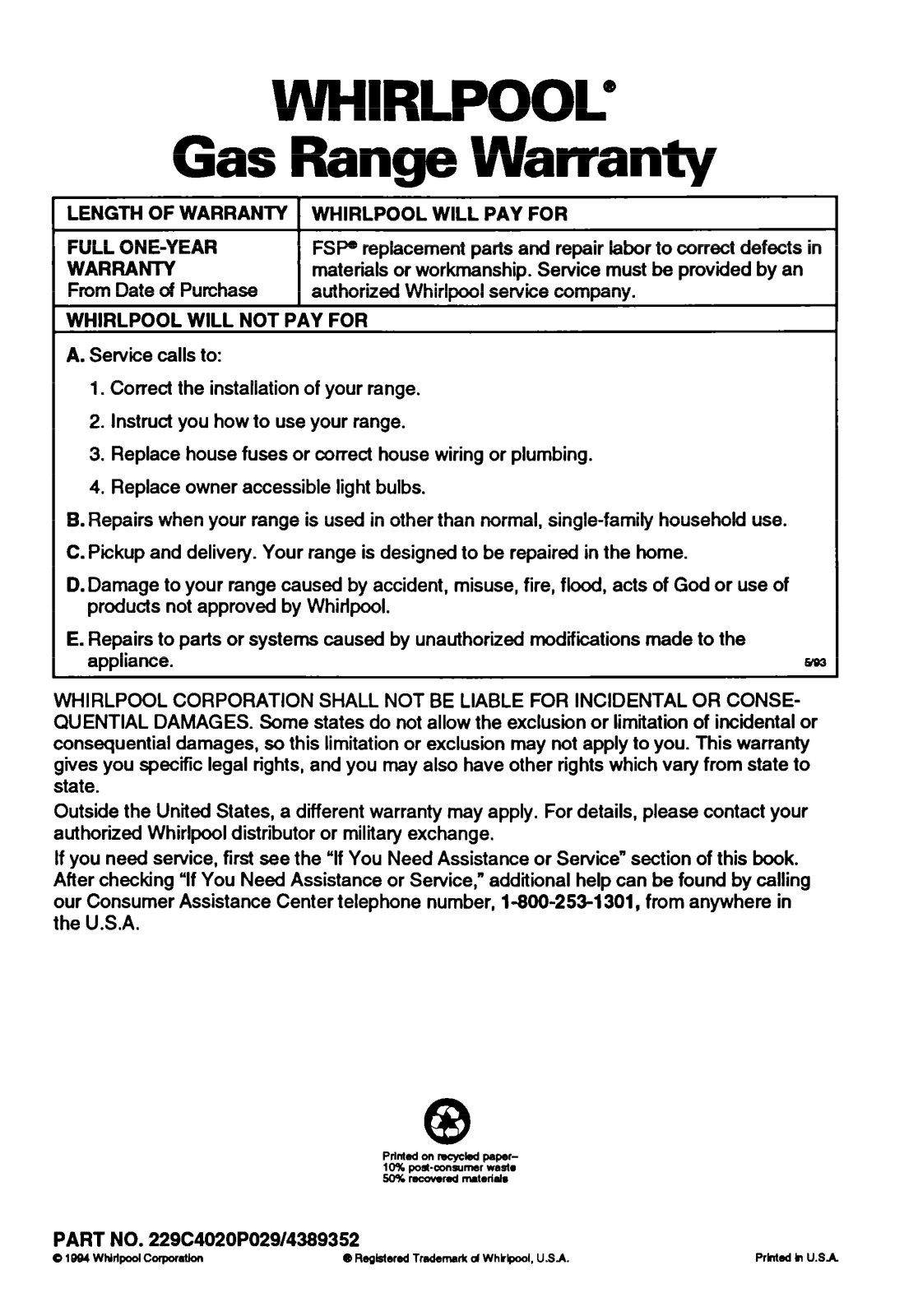

  • Warranty: Offered as customary – one year on ‘parts’, ‘repair labour’ on, ‘because of defects in material’ or ‘defective workmanship’
Frequently Asked Questions

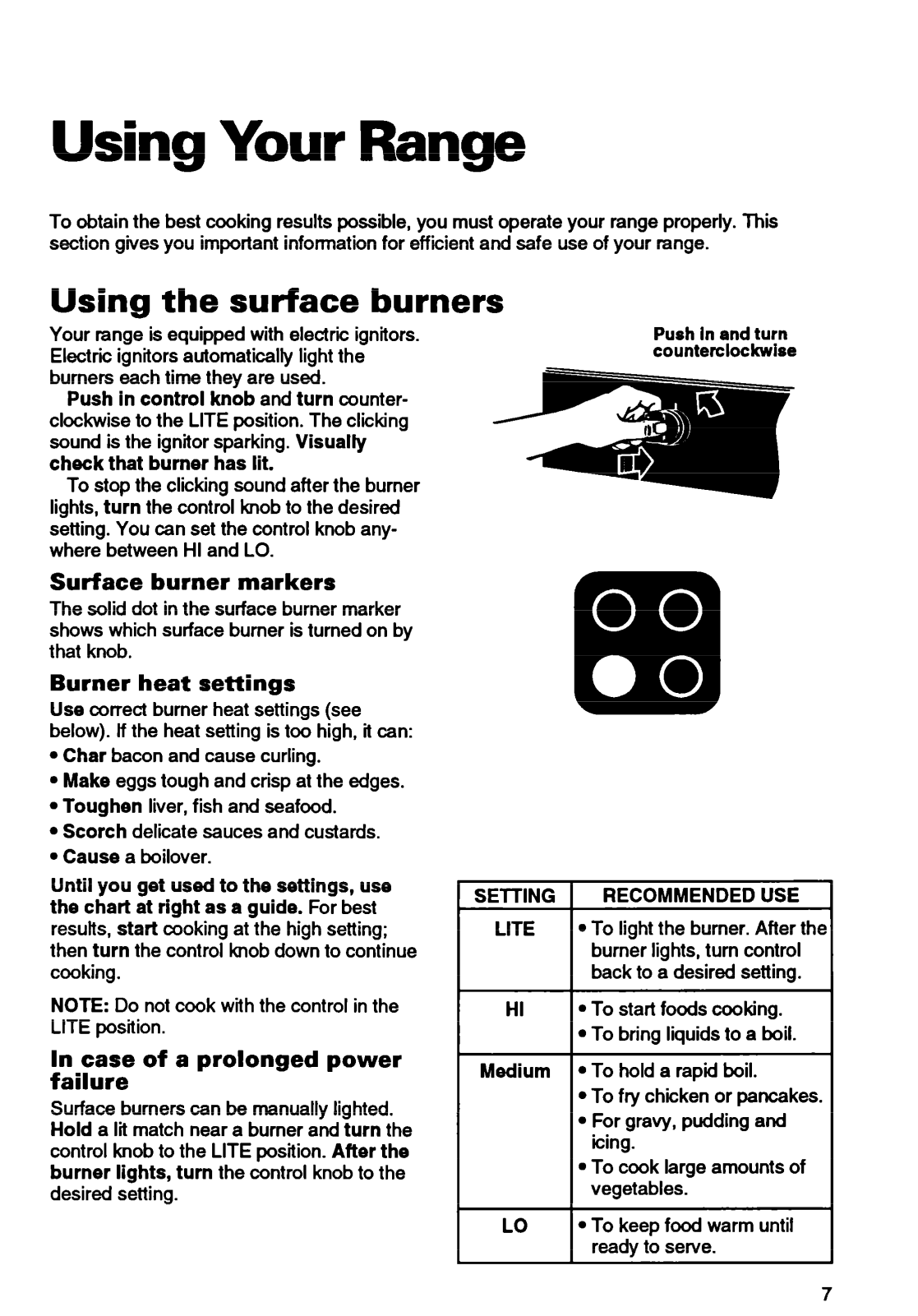

Q: How do I use the knobs on the surface burners in order to light them?

A: Control knob; push in to turn to an anti-clockwise position. Ignition; should spark when in LITE ignitor position.

Q: What do I do in instances where the burner flame whilst cooking has gone extinguished completely?

A: The Odour; is what most people complain about when seekers turn the burners off because when trying to put them on again so please wait around five minutes to get that odour to go away, then start cooking again.

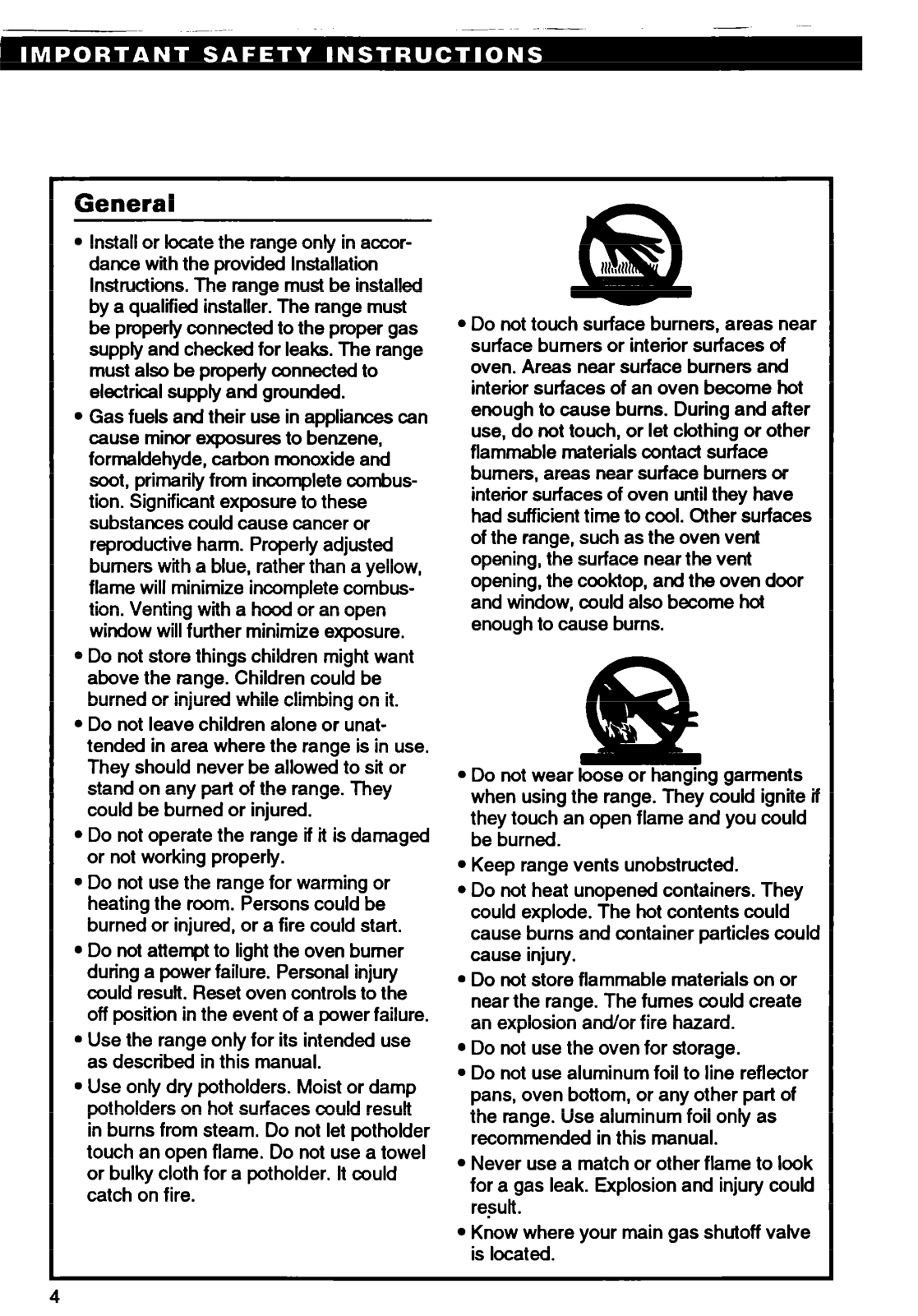

Q: Aluminium foil is good to line with, is it safe to use in an oven?

A: When unsupervised or not recommended in the manual the general sense should be to not line the range’s bottom nor any of its other components with aluminum foil.

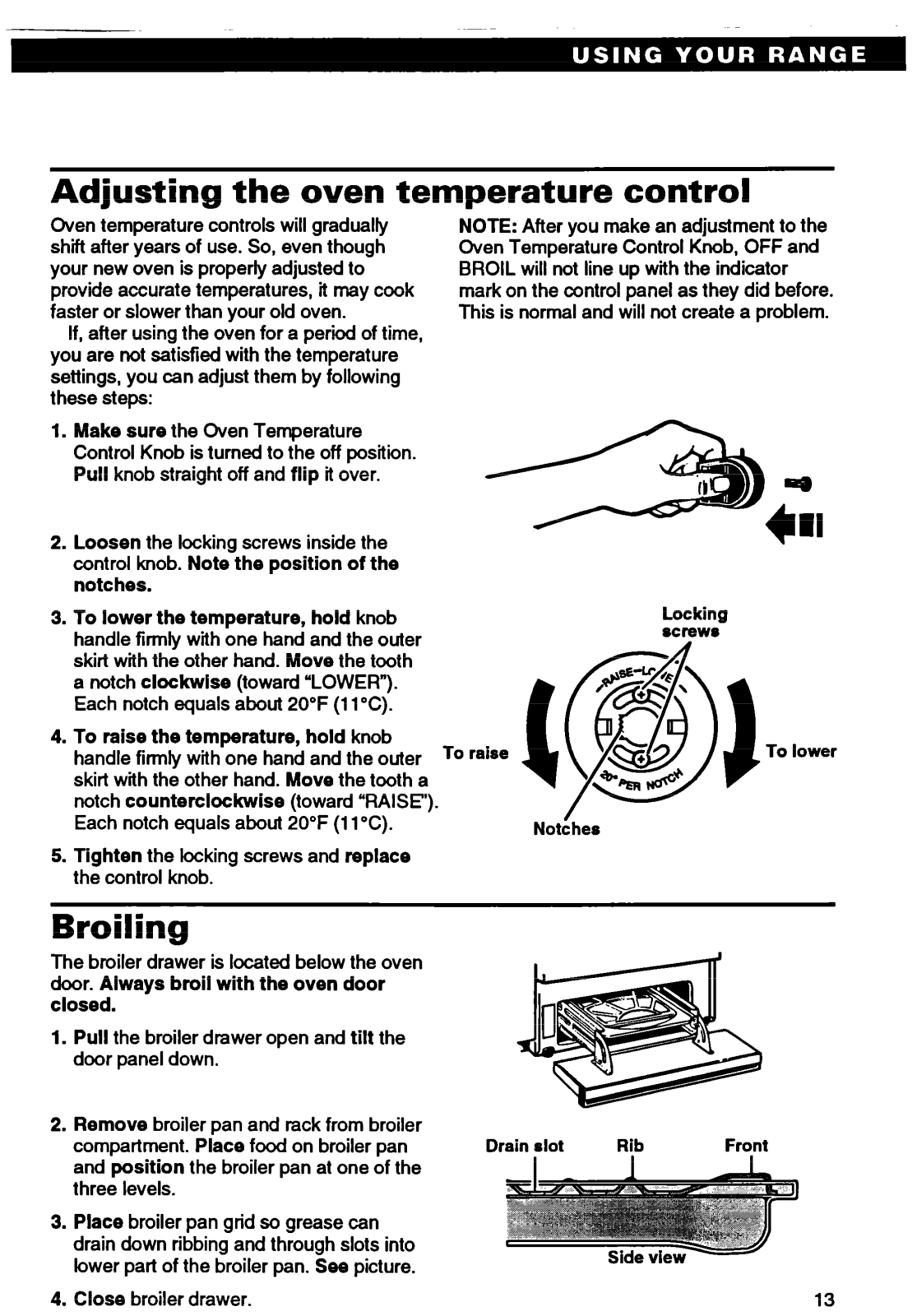

Q: How to set the temperature for the oven stove control?

A: Detach the existing control knob ,further unscrew the locking screws found inside and if there is a tooth aim to reduce the temperature gauge set it clockwise and turn counter clockwise to increase the temperature rotator aim to fix the screw and replace the knob after adjusting its temperature.

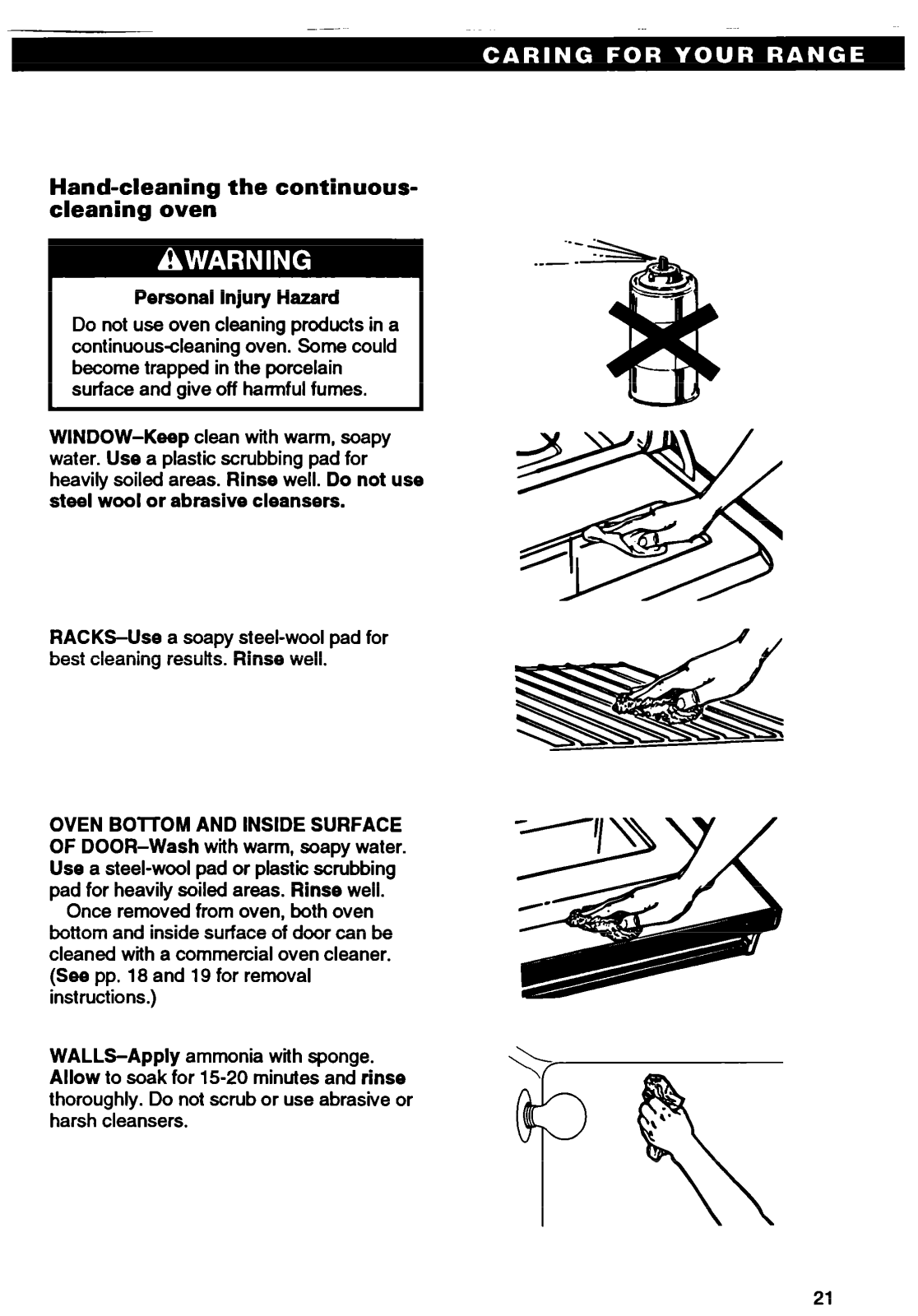

Q: Is there a need to avoid cleaning of the oven model using these oven cleaning device?

A: Commercial oven cleaning device should not be used with the oven in continuous cleaning mode.

Q: How should I go about finding where the model and serial number?

A: The manual, located on the back or side of the appliances, describes how to locate the model and serial number plates.

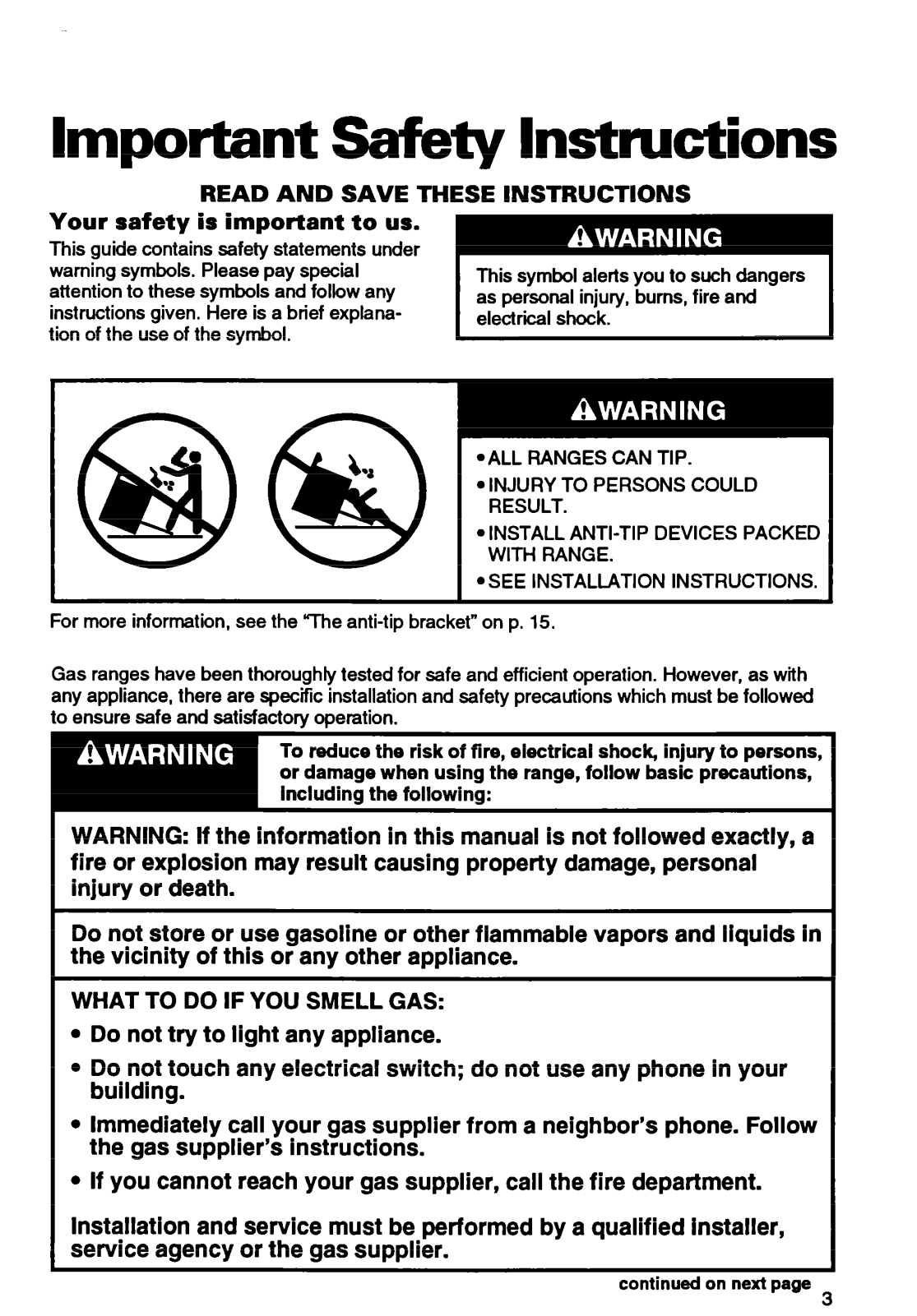

Q: What do I do if a gas smell is fueled?

A: Refrain from lighting any appliance, turn off the gas instantly and contact either your gas supplier or the fire department.

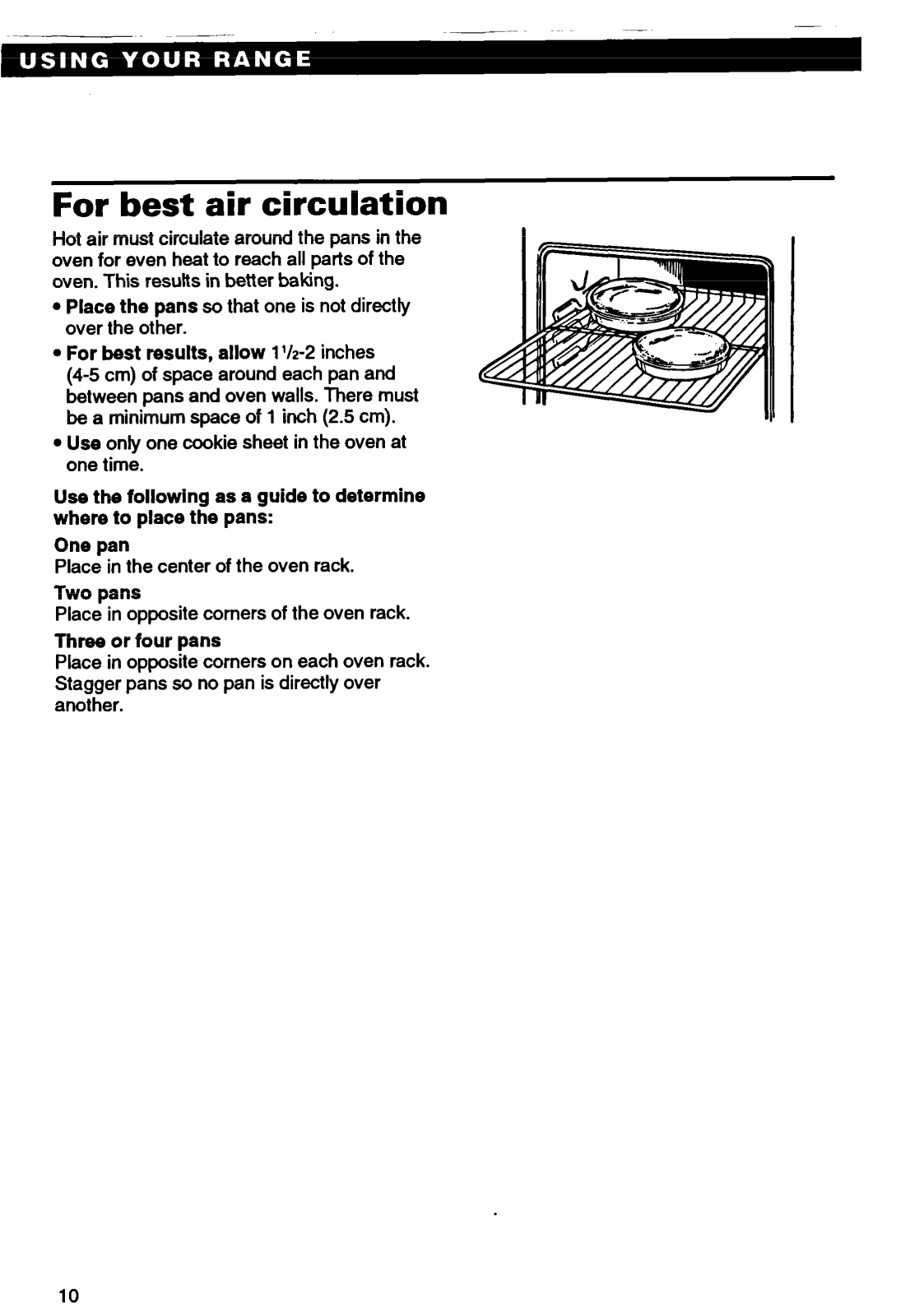

Q: How do I maintain the balance so that other requirements are as desired for even cooking?

A: Keep air space between each pan and ensure that one pan is not positioned directly above the other.
