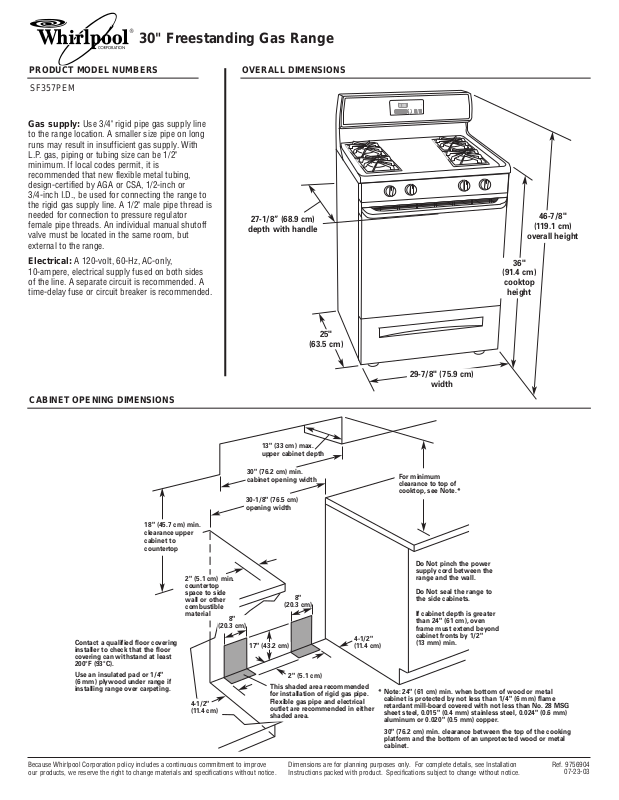

30" Freestanding Gas Range
PRODUCT MODEL NUMBERS
SF357PEM
Gas supply: Use 3/4" rigid pipe gas supply line to the range location. A smaller size pipe on long runs may result in insufficient gas supply. With L.P. gas, piping or tubing size can be 1/2" minimum. If local codes permit, it is recommended that new flexible metal tubing, design-certified by AGA or CSA, 1/2-inch or 3/4-inch I.D., be used for connecting the range to the rigid gas supply line. A 1/2" male pipe thread is needed for connection to pressure regulator female pipe threads. An individual manual shutoff valve must be located in the same room, but external to the range.
Electrical: A 120-volt, 60-Hz, AC-only, 10-ampere, electrical supply fused on both sides of the line. A separate circuit is recommended. A time-delay fuse or circuit breaker is recommended.

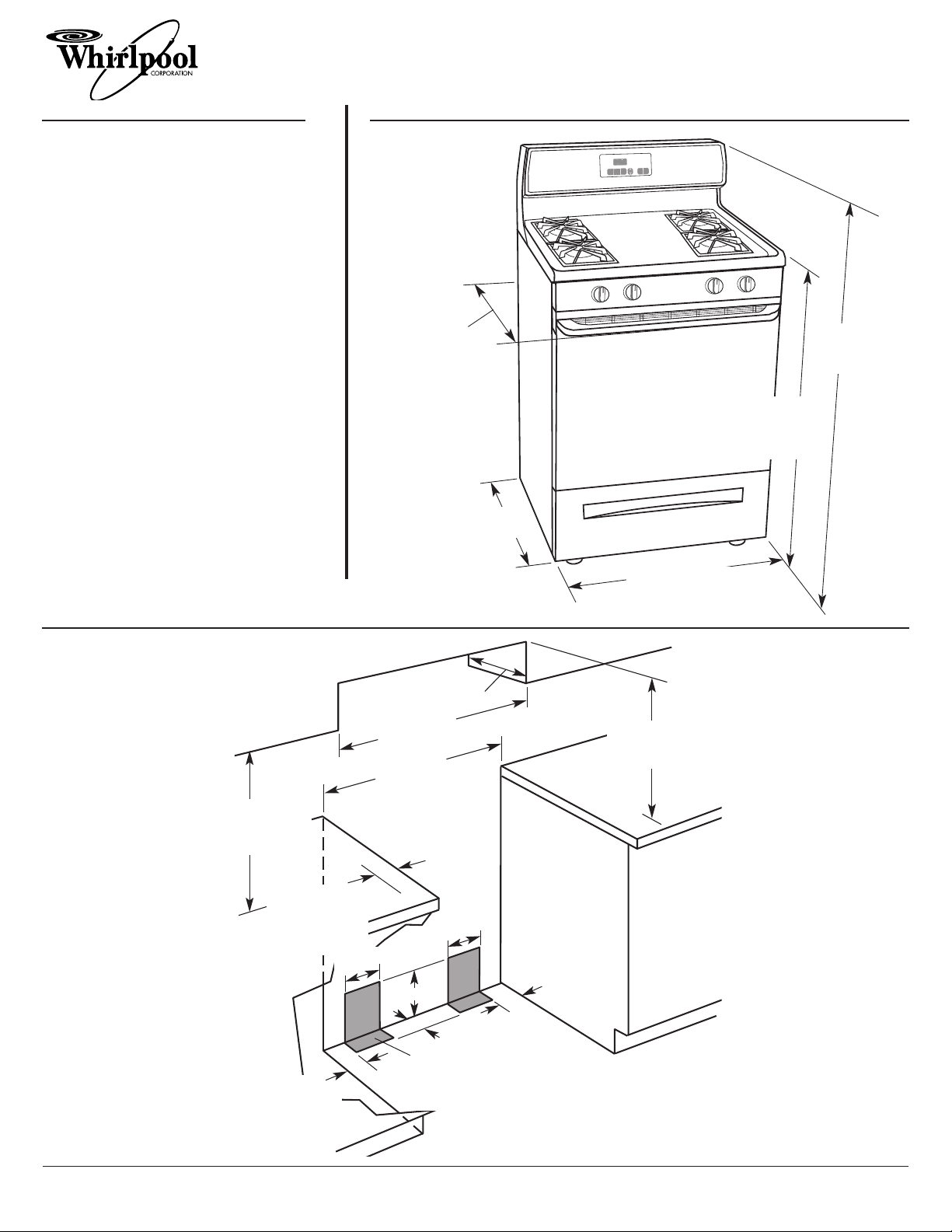

CABINET OPENING DIMENSIONS
OVERALL DIMENSIONS
888
27-1/8” (68.9 cm) |
46-7/8" |
|
(119.1 cm) |
||
depth with handle |
||
overall height |
||
|
||
|
36" |
|
|
(91.4 cm) |
|
|
cooktop |
|
|
height |
|
25" |
|
|
(63.5 cm) |
|
29-7/8" (75.9 cm) width
13" (33 cm) max. upper cabinet depth
30" (76.2 cm) min. cabinet opening width
30-1/8" (76.5 cm) opening width
18" (45.7 cm) min. clearance upper cabinet to countertop
For minimum clearance to top of cooktop, see Note.*
Contact a qualified floor covering installer to check that the floor covering can withstand at least 200°F (93°C).
Use an insulated pad or 1/4" (6 mm) plywood under range if installing range over carpeting.
2" (5.1 cm) min. |
|
|
countertop |
|
|
space to side |
8" |
|
wall or other |
||
(20.3 cm) |
||
combustible |
||
material |
|
|
8" |
|
|
(20.3 cm) |
|
17" (43.2 cm) |
4-1/2" |
(11.4 cm) |
2" (5.1 cm)
Do Not pinch the power supply cord between the range and the wall.
Do Not seal the range to the side cabinets.
If cabinet depth is greater than 24" (61 cm), oven frame must extend beyond cabinet fronts by 1/2"
(13 mm) min.
|
|
This shaded area recommended |
* Note: 24" (61 cm) min. when bottom of wood or metal |
|
|
for installation of rigid gas pipe. |
|
|
|
Flexible gas pipe and electrical |
cabinet is protected by not less than 1/4" (6 mm) flame |
4-1/2" |
|
||
|
retardant mill-board covered with not less than No. 28 MSG |
||
(11.4 cm) |
|
outlet are recommended in either |
|
|
sheet steel, 0.015" (0.4 mm) stainless steel, 0.024" (0.6 mm) |
||
|
|
shaded area. |
|
|
|
aluminum or 0.020" (0.5 mm) copper. |
|
|
|
|
|
|
|
|
30" (76.2 cm) min. clearance between the top of the cooking platform and the bottom of an unprotected wood or metal cabinet.
Because Whirlpool Corporation policy includes a continuous commitment to improve our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation |
Ref. 9756904 |
Instructions packed with product. Specifications subject to change without notice. |
07-23-03 |
