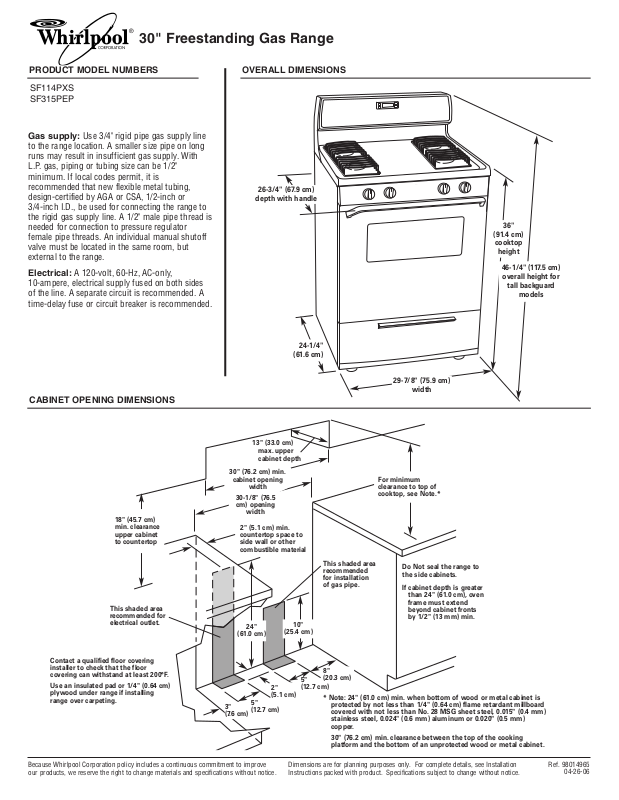

Whirlpool SF315PEP Dimension Guide

®

30" Freestanding Gas Range

PRODUCT MODEL NUMBERS OVERALL DIMENSIONS

CABINET OPENING DIMENSIONS

SF114PXS
SF315PEP

Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.

Gas supply: Use 3/4" rigid pipe gas supply line
to the range location. A smaller size pipe on long
runs may result in insufficient gas supply. With
L.P. gas, piping or tubing size can be 1/2"
minimum. If local codes permit, it is
recommended that new flexible metal tubing,
design-certified by AGA or CSA, 1/2-inch or
3/4-inch I.D., be used for connecting the range to
the rigid gas supply line. A 1/2" male pipe thread is
needed for connection to pressure regulator
female pipe threads. An individual manual shutoff
valve must be located in the same room, but
external to the range.

Electrical: A 120-volt, 60-Hz, AC-only,
10-ampere, electrical supply fused on both sides
of the line. A separate circuit is recommended. A
time-delay fuse or circuit breaker is recommended.

Ref. 98014965

04-26-06

* Note: 24" (61.0 cm) min. when bottom of wood or metal cabinet is

protected by not less than 1/4" (0.64 cm) flame retardant millboard
covered with not less than No. 28 MSG sheet steel, 0.015" (0.4 mm)
stainless steel, 0.024" (0.6 mm) aluminum or 0.020" (0.5 mm)
copper.

30" (76.2 cm) min. clearance between the top of the cooking
platform and the bottom of an unprotected wood or metal cabinet.

Contact a qualified floor covering
installer to check that the floor
covering can withstand at least 200°F.

Use an insulated pad or 1/4" (0.64 cm)
plywood under range if installing
range over carpeting.

For minimum
clearance to top of
cooktop, see Note.*

Do Not seal the range to
the side cabinets.

If cabinet depth is greater

than 24" (61.0 cm), oven
frame must extend
beyond cabinet fronts
by 1/2" (13 mm) min.

18" (45.7 cm)
min. clearance
upper cabinet
to countertop

13" (33.0 cm)

max. upper
cabinet depth

30-1/8" (76.5
cm) opening

width

30" (76.2 cm) min.

cabinet opening

width

8"
(20.3 cm)

2"
(5.1 cm)

5"
(12.7 cm)

10"

(25.4 cm)

24"

(61.0 cm)

5"
(12.7 cm)

3"
(7.6 cm)

2" (5.1 cm) min.
countertop space to
side wall or other
combustible material

This shaded area
recommended
for installation
of gas pipe.

This shaded area
recommended for
electrical outlet.

29-7/8" (75.9 cm)

width

46-1/4" (117.5 cm)

overall height for

tall backguard

models

24-1/4"

(61.6 cm)

36"

(91.4 cm)

cooktop

height

26-3/4" (67.9 cm)

depth with handle
